USER MANUAL AN924 MAKITA

INSTRUCTION MANUAL MANUEL D'INSTRUCTION

MANUAL DE INSTRUCCIONES

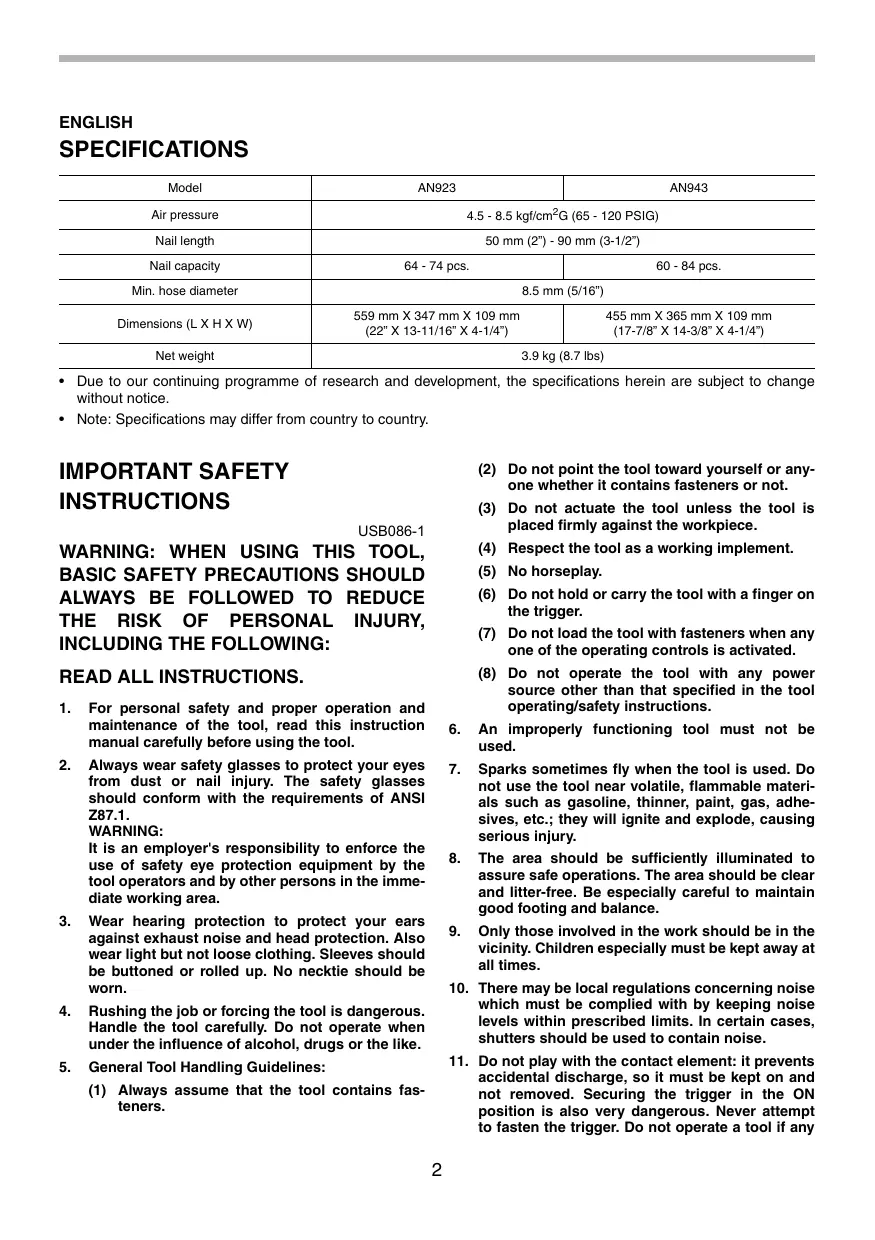

Air pressure Nail length Nail capacity Min. hose diameter Dimensions (L X H X W)

• Due to our continuing programme of research and development, the specifications herein are subject to change without notice.
• Note: Specifications may differ from country to country. IMPORTANT SAFETY INSTRUCTIONS (2) Do not point the tool toward yourself or anyone whether it contains fasteners or not. (3) Do not actuate the tool unless the tool is placed firmly against the workpiece. USB086-1

WARNING: WHEN USING THIS TOOL,

BASIC SAFETY PRECAUTIONS SHOULD

ALWAYS BE FOLLOWED TO REDUCE

THE RISK OF PERSONAL INJURY, INCLUDING THE FOLLOWING: (4) Respect the tool as a working implement. READ ALL INSTRUCTIONS. (8) Do not operate the tool with any power source other than that specified in the tool operating/safety instructions.

(5) No horseplay. (6) Do not hold or carry the tool with a finger on the trigger. (7) Do not load the tool with fasteners when any one of the operating controls is activated. For personal safety and proper operation and maintenance of the tool, read this instruction manual carefully before using the tool. Always wear safety glasses to protect your eyes from dust or nail injury. The safety glasses should conform with the requirements of ANSI Z87.1.

WARNING:

It is an employer's responsibility to enforce the use of safety eye protection equipment by the tool operators and by other persons in the immediate working area.

Wear hearing protection to protect your ears against exhaust noise and head protection. Also wear light but not loose clothing. Sleeves should be buttoned or rolled up. No necktie should be worn.

Rushing the job or forcing the tool is dangerous. Handle the tool carefully. Do not operate when under the influence of alcohol, drugs or the like.

An improperly functioning tool must not be used.

Sparks sometimes fly when the tool is used. Do not use the tool near volatile, flammable materials such as gasoline, thinner, paint, gas, adhesives, etc.; they will ignite and explode, causing serious injury.

The area should be sufficiently illuminated to assure safe operations. The area should be clear and litter-free. Be especially careful to maintain good footing and balance.

Only those involved in the work should be in the vicinity. Children especially must be kept away at all times.

10. There may be local regulations concerning noise

which must be complied with by keeping noise levels within prescribed limits. In certain cases, shutters should be used to contain noise.

11. Do not play with the contact element: it prevents

accidental discharge, so it must be kept on and not removed. Securing the trigger in the ON position is also very dangerous. Never attempt to fasten the trigger. Do not operate a tool if any (1) Always assume that the tool contains fasteners.

portion of the tool operating controls is inoperable, disconnected, altered, or not working properly. Be sure that dust, sand, chips and foreign matter will not enter the tool in the place where you leave it setting.

12. Operate the tool within the specified air pressure

on the tool label for safety and longer tool life. Do not exceed the recommended max. operating pressure. The tool should not be connected to a source whose pressure potentially exceeds 14.0 kgf/cm2G (200 PSIG).

25. Do not point the ejection port at anyone in the

vicinity. Keep hands and feet away from the ejection port area.

26. When the air hose is connected, do not carry the

tool with your finger on the trigger or hand it to someone in this condition. Accidental firing can be extremely dangerous.

13. Never use the tool with other than compressed

air. If bottled gas (carbon dioxide, oxygen, nitrogen, hydrogen, air, etc.) or combustible gas (hydrogen, propane, acetylene, etc.) is used as a power source for this tool, the tool will explode and cause serious injury.

27. Handle the tool carefully, as there is high pressure inside the tool that can be dangerous if a

crack is caused by rough handling (dropping or striking). Do not attempt to carve or engrave on the tool.

14. Always check the tool for its overall condition

and loose screws before operation. Tighten as required.

28. Stop nailing operations immediately if you

notice something wrong or out of the ordinary with the tool.

15. Make sure all safety systems are in working

order before operation. The tool must not operate if only the trigger is pulled or if only the contact element is pressed against the wood. It must work only when both actions are performed. Test for possible faulty operation with nails unloaded and the contact element in fully pulled position.

29. Always disconnect the air hose and remove all of

the nails: (1) When unattended. (2) Before performing any maintenance or repair. (3) Before cleaning a jam.

16. Make sure that the trigger is locked when the

change lever is set to the LOCK position. (4) Before moving the tool to a new location.

17. Check walls, ceilings, floors, roofing and the like

carefully to avoid possible electrical shock, gas leakage, explosions, etc. caused by striking live wires, conduits or gas pipes.

30. Perform cleaning and maintenance right after

finishing the job. Keep the tool in tip-top condition. Lubricate moving parts to prevent rusting and minimize friction-related wear. Wipe off all dust from the parts.

18. Use only nails specified in this manual. The use

of any other nails may cause malfunction of the tool.

31. When not operating the tool, always lock the trigger by turning the change lever to the LOCK

19. Do not permit those uninstructed to use the tool.

32. Do not modify tool without authorization from

20. Make sure no one is nearby before nailing. Never

attempt to nail from both the inside and outside at the same time. Nails may rip through and/or fly off, presenting a grave danger. 33. Do not attempt to keep the trigger or contact element depressed with tape or wire. Death or serious injury may occur.

21. Watch your footing and maintain your balance

with the tool. Make sure there is no one below when working in high locations, and secure the air hose to prevent danger if there is sudden jerking or catching.

34. Always check contact element as instructed in

this manual. Nails may be driven accidentally if the safety mechanism is not working correctly.

35. Ask Makita's Authorized service centers for periodical inspection of the tool.

22. On rooftops and other high locations, nail as you

move forward. It is easy to lose your footing if you nail while inching backward. When nailing against perpendicular surface, nail from the top to the bottom. You can perform nailing operations with less fatigue by doing so.

36. To maintain product SAFETY and RELIABILITY,

maintenance and repairs should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts.

SAVE THESE INSTRUCTIONS

23. A nail will be bent or the tool can become

jammed if you mistakenly nail on top of another nail or strike a knot in the wood. The nail may be thrown and hit someone, or the tool itself can react dangerously. Place the nails with care.

WARNING:

MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

24. Do not leave the loaded tool or the air compressor under pressure for a long time out in the sun.

SYMBOLS Selecting air hose

USD501-1 The followings show the symbols used for tool. ....................Read and understand tool labels and manual. ....................Operators and others in work area must wear safety glasses with side shields. ....................Keep fingers away from trigger when not driving fasteners to avoid accidental firing. Use an air hose as large and as short as possible to assure continuous, efficient nailing operation. With an air pressure of 5.0 kgf/cm2G (70 PSIG), an air hose with an internal diameter of over 8.5 mm (5/16”) and a length of less than 20 m (6.6 ft.) is recommended when the interval between each nailing is 0.5 seconds. Air supply hoses shall have a minimum working pressure rating of

10.7 kgf/cm2G (150 PSIG) or 150 percent of the maximum pressure produced in the system whichever is

higher. INSTALLATION Selecting compressor

CAUTION: Low air output of the compressor, or a long or smaller diameter air hose in relation to the nailing frequency may cause a decrease in the driving capability of the tool.

Nailing frequency (times/min) The air compressor must comply with the requirements of ANSI B19.3. Select a compressor that has ample pressure and air output to assure cost-efficient operation. The graph shows the relation between nailing frequency, applicable pressure and compressor air output. Thus, for example, if nailing takes place at a rate of approximately 40 times per minute at a compression of

6.0 kgf/cm2G (85 PSIG), a compressor with an air output

over 3 ft3/minute is required. Pressure regulators must be used to limit air pressure to the rated pressure of the tool where air supply pressure exceeds the tool’s rated pressure. Failure to do so may result in serious injury to tool operator or persons in the vicinity. To insure maximum performance, install an air set (oiler, regulator, air filter) as close as possible to the tool. Adjust the oiler so that one drop of oil will be provided for every 30 nails. When an air set is not used, oil the tool with pneumatic tool oil by placing 2 (two) or 3 (three) drops into the air fitting. This should be done before and after use. For proper lubrication, the tool must be fired a couple of times after pneumatic tool oil is introduced.

1. Pneumatic tool

oil FUNCTIONAL DESCRIPTION ASSEMBLY CAUTION: Always lock the trigger and disconnect the hose before adjusting or checking function on the tool.

CAUTION: Always lock the trigger and disconnect the hose before carrying out any work on the tool. Loading nailer

1. Adjuster

To adjust the depth of nailing, turn the adjuster. The depth of nailing is the deepest when the adjuster is turned fully in the A direction shown in the figure. It will become shallower as the adjuster is turned in the B direction. If nails cannot be driven deep enough even when the adjuster is turned fully in the A direction, increase the air pressure. If nails are driven too deep even when the adjuster is turned fully in the B direction, decrease the air pressure. Generally speaking, the tool service life will be longer when the tool is used with lower air pressure and the adjuster set to a lower depth of nail driving. Select nails suitable for your work. Insert strip of nails into the magazine. Pull the pusher lever to the rear to engage the pusher to the last nail.

1. Pusher

1. Hook

• Always lock the trigger and disconnect the hose from the tool.
• Never hook the tool at high location or on potentially unstable surface. The hook is convenient for hanging the tool temporarily. To use the hook, simply lift up hook until it snaps into the open position. When not in use, always lower hook until it snaps into the closed position.

Pull the pusher lever to the rear. Return the pusher lever back while keeping the pusher depressed to disengage it from the strip of nails. Depress the nail stopper and remove the strip of nails from the magazine.

1. Nail stopper

Pull the trigger first and then place the contact element against the workpiece. No. 1 method is for intermittent nailing, when you wish to drive a nail carefully and very accurately. No. 2 method is for continuous nailing. CAUTION: However when the tool is set to the “Intermittent Nailing” mode, WITH THE TRIGGER HELD IN A HALF-PULLED POSITION, an unexpected nailing could occur, if contact element is allowed to re-contact against the workpiece or the other surface under the influence of recoil. In order to avoid this unexpected nailing, perform as follows; A. Do not place the contact element against the workpiece with excessive force. B. Pull the trigger fully and hold it on for 1-2 seconds after nailing.

• For No. 1 method, set the change lever to the position. For No. 2 method, set the change lever to the position. After using the change lever to change the nailing method, always make sure that the change lever is properly set to the position for the desired nailing method.

1. Air socket

2. Air fitting

Lock the trigger. Slip the air socket of the air hose onto the air fitting on the nailer. Be sure that the air socket locks firmly into position when installed onto the air fitting. A hose coupling must be installed on or near the tool in such a way that the pressure reservoir will discharge at the time the air supply coupling is disconnected.

1. Continuous nailing

2. Trigger lock

3. Lock lever

4. Intermittent nailing

OPERATION CAUTION: Make sure all safety systems are in working order before operation. To drive a nail, you may place the contact element against the workpiece and pull the trigger, or

Anti dry fire mechanism

This tool is equipped with an anti dry fire mechanism. When there are a few nails remaining in the magazine, the contact arm will be locked in the undepressed position to prevent the tool from being activated. Load more nails to resume operation. Jammed nailer

Hammer Small rod Ejection port Driver Maintenance of nailer CAUTION:

• Always lock the trigger, disconnect the hose and remove the nails from the magazine before cleaning a jam. When the nailer becomes jammed, do as follows: Insert a small rod or the like into the ejection port and tap it with a hammer to retract the driver. Use pliers to bend the jammed nail so that the nail head comes out of the slot in the driver guide. Then remove the jammed nail. Always check the tool for its overall condition and loose screws before operation. Tighten as required.

1. Pliers

2. Slot

With tool disconnected, make daily inspection to assure free movement of the contact element and trigger. Do not use tool if the contact element or trigger sticks or binds.

Make sure that the trigger is locked when the change lever is set to the position.

1. Trigger lock

2. Change lever

Handle nail coils and their box carefully. If the nail coils have been handled roughly, they may be out of shape or their connector breaks, causing poor nail feed. Avoid storing nails in a very humid or hot place or place exposed to direct sunlight.

When the tool is not to be used for an extended period of time, lubricate the tool using pneumatic tool oil and store the tool in a safe place. Avoid exposure to direct sunlight and/or humid or hot environment.

CAUTION: Always disconnect the air hose from the tool before attempting to perform inspection or maintenance.

Hoses must also be directed away from sharp edges and areas which may lead to damage or abrasion to the hose.

Maintenance of compressor, air set and air hose To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts.

1. Drain cock

ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

1. Air filter

After operation, always drain the compressor tank and the air filter. If moisture is allowed to enter the tool, It may result in poor performance and possible tool failure. Check regularly to see if there is sufficient pneumatic oil in the oiler of the air set. Failure to maintain sufficient lubrication will cause O-rings to wear quickly.

1. Oiler

2. Pneumatic oil

Keep the air hose away from heat (over 60°C, over 140°F), away from chemicals (thinner, strong acids or alkalis). Also, route the hose away from obstacles which it may become dangerously caught on during operation.

FRANÇAIS SPÉCIFICATIONS Modèle AN923 WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry products, and
• arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.
