Product Type	Iron
Brand	Zelmer
Model	28Z010
Power	1850 – 2200 W
Voltage	230 V
Water Tank Capacity	300 ml
Sole Plate Material	Ceramic
Steam Ironing	Yes, adjustable steam control
Dry Ironing	Yes
Spray Function	Yes
Burst of Steam	Yes, also in vertical position
Self-Cleaning Function	Yes, monthly recommended
Anti-Scale System	Built-in cartridge
Anti-Drip System	Yes, automatic
Auto Shut-Off (Horizontal)	After 16 – 39 seconds
Auto Shut-Off (Vertical)	After 5 – 10 minutes
Heater Control Light	Yes (red)
Auto Shut-Off Indicator	Green pulsating light
Power Cord	With grounding plug
Class	I (grounded)
Usage	Domestic only
Cleaning	Damp cloth, mild detergent; no abrasives
Storage	Vertical, after cooling

Frequently Asked Questions - 28Z010 Zelmer

What type of water should I use in the Zelmer 28Z010 iron?

For best results, use demineralised water or distilled water. Do not use chemically descaled water, vinegar, or other liquids as they can damage the appliance.

How do I fill the water tank?

Unplug the iron, set the steam control to - position, open the water inlet cover, and fill to the MAX mark on the tank. Use demineralised or distilled water.

How does the auto shut-off feature work?

If the iron is left unattended horizontally, it shuts off after 16-39 seconds. In vertical rest position, it shuts off after 5-10 minutes. The green indicator blinks. Simply move the iron to reactivate.

What is the self-cleaning function and how do I use it?

Self-cleaning removes scale buildup. Fill the tank halfway, heat to max setting, unplug, hold horizontally over a sink, then turn the self-cleaning knob (or press the button on 28Z011) to let steam and hot water flush out minerals. Use at least once a month.

Can I use the burst of steam vertically?

Yes. Hold the iron 15-30 cm from the garment and press the burst of steam button. Do not direct steam at people or pets. The iron must be at the highest temperature setting.

What does the anti-drip system do?

It prevents water from dripping onto clothes when the iron is too cold. You may hear a clicking sound during heating or cooling; this is normal and indicates the system is working.

How do I clean the soleplate?

Let the iron cool completely, then wipe the soleplate with a damp cloth. Do not use abrasive cleaners, vinegar, or sharp objects.

What should I do before first use?

Remove any protective films, unwind the cord, fill the water tank, connect to mains, set temperature to max (●●●), and iron an old towel until steam stops. This prepares the iron for regular use.

How do I store the iron after use?

Set the temperature dial to MIN, unplug, empty the water tank, and let it cool completely. Store vertically in a safe place. Never wrap the cord around the iron while it is hot.

Why does the control light go on and off during use?

The red heater control light indicates the iron is heating. It turns off when the set temperature is reached and glows again when the heater activates to maintain temperature. This is normal.

USER MANUAL 28Z010 Zelmer

Line drawing of an iron iron with a handle and internal components (no text or symbols)

Line drawing of a steam iron with labeled part (Typ 28Z011), showing internal components and mounting holes (no text or symbols on the diagram itself)

2-8

Typ 28Z011

Nalewanie wody

Line drawing of an iron (£) with raindrops falling below (no text or symbols)

Typ 28Z011

Typ 28Z011

Line drawing of an iron (£) with raindrops falling below (no text or symbols)

Typ 28Z011

Upozornění!

Line drawing of a steam iron with water droplets below (no text or symbols)

Typ 28Z011

Line drawing of a steam iron with a screwdriver, shown in side profile (no text or symbols)

Typ 28Z011

Nalievanie vody

Line drawing of an iron (£) with raindrops falling below (no text or symbols)

Varovanie!

Line drawing of a steam iron with cooling rack (no text or symbols)

Line drawing of a steam iron with a screwdriver and wooden base (no text or symbols)

28Z011 tipus

Vízfeltöltés

Line drawing of an iron iron with raindrops falling below (no text or symbols)

Line drawing of a steam iron with a pointer and base plate (no text or symbols)

Tip 28Z011

Line drawing of an iron (£) with water droplets on the base (no text or symbols)

Tip 28Z011

Avertisement!

Line drawing of an iron (£) with a spring, showing internal components and a patterned base (no text or symbols)

Тип 28Z011

Line drawing of a steam iron with raindrops falling (no text or symbols)

Тип 28Z011

Line drawing of a steam iron with water droplets on the base (no text or symbols)

Line drawing of a steam iron with a handle and base, no text or symbols present

Тип 28Z011

Наливане на вода

Line drawing of an iron (£) with raindrops falling below (no text or symbols)

Тип 28Z011

Предупреждение!

Line drawing of an iron with steam dropers underneath (no text or symbols)

Тип 28Z011

Line drawing of a steam iron with a handle and screw base (no text or symbols)

Модель 28Z011

Наливання води

Line drawing of a steam iron with raindrops (no text or symbols)

Модель 28Z011

Застереження!

Line drawing of a steam iron with water droplets on the base (no text or symbols)

Модель 28Z011

Line drawing of a steam iron with a handle and base, no text or symbols present

Tipas 28Z011

Vandens jpylimas

Line drawing of an iron (£) with raindrops falling below (no text or symbols)

Ispéjimas!

Line drawing of an iron (£) with a spring, showing internal structure and base plate (no text or symbols)

Üdens piepildīšana

Line drawing of an iron iron with water droplets falling below (no text or symbols)

BRIDINĀJUMS!:

Line drawing of a steam iron with a screwdriver and base (no text or symbols)

Vee lisamine

Line drawing of an iron (£) with steam drop pattern (no text or symbols)

Mudel 28Z011

Line drawing of an iron (£) with a spring, shown above a coiled cord (no text or symbols)

Mudel 28Z011

Line drawing of a steam iron with a handle and base plate (no text or symbols)

Important safety and proper handling instructions....79

Hints for ironing 80

Technical data....80

How to fill the water 81

Preparation for operation – first time ironing ....81

After ironing....81

Spraying 81

Dry ironing 81

Steam ironing 81

Burst of steam 82

Burst of steam in vertical position....82

Build-in Anti-scale System....82

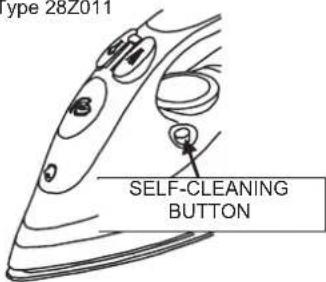

Self-cleaning....83

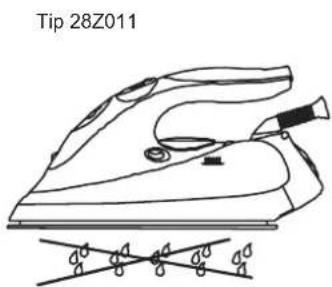

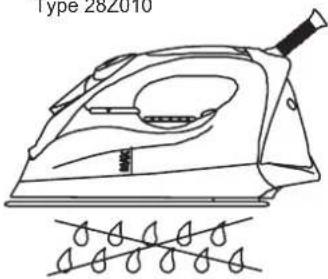

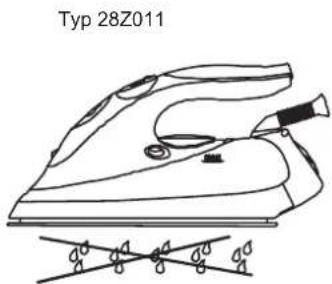

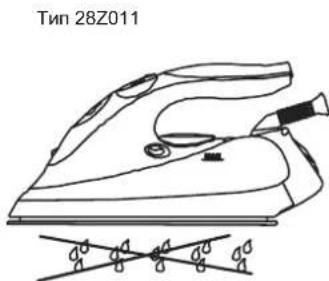

Anti-drip system....83

Auto shut-off feature 84

Auto shut-off in horizontal position....84

Auto shut-off in vertical position 84

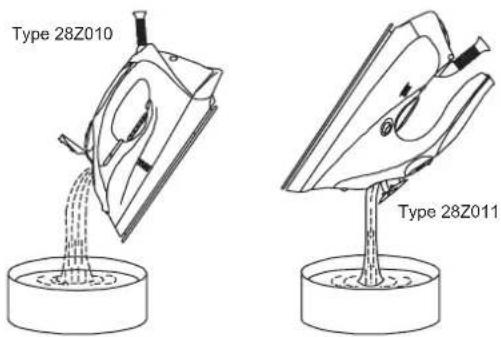

Draining the water 84

Cleaning and maintenance....84

Ecology – environment protection 84

Dear Clients,

Congratulations on your choice of our appliance, and welcome among the users of Zelmer products.

In order to achieve best possible results we recommend using exclusively original Zelmer accessories. They have been specially designed for this product.

Please read these instructions carefully. Pay your special attention to important safety instructions. Keep this User's Guide for future reference.

Important safety and proper handling instructions

Always keep these basic safety instructions during ironing:

The iron is intended for domestic usage only. -

Unwind and straighten the power cord before usage.

Connect the iron to a suitable mains supply outlet 230 V, with grounding.

If the non-detachable part of the cord is damaged, it should be replaced by the producer or at a proper service point or by a qualified person in order to avoid any hazards.

The appliance should be repaired by trained staff only. Improper repair can result in serious hazard for a user. In case of defects we recommend you to contact qualified service desk.

Use and place the appliance on a firm and steady surface. -

Always unplug before filling or emptying the water tank. –

Do not open water inlet during ironing.

Never iron and clothes or fabrics that are being worn by human or pets. —

Never direct the steam to human or pets. —

- Empty the tank after each usage.

-Use self-cleaning function at least once a month.

- Keep special care when ironing in presence of children.

- Do not leave the appliance unattended when it is connected to a mains supply outlet or it is hot.

-Do not use an extension power cord set without certification.

- Do not add perfumed, vinegar or other chemical liquids into the water tank; they can damage the appliance seriously.

- The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.

- Do not roll the power cord or supply cord around the iron unit or base console for storage until it has cooled down completely.

- Do not immerse the appliance in water or any other liquid.

- If you do not use the iron, even for short time, switch it off, turning Temperature Dial in anti-clockwise direction to „MIN”.

- If you do not use the iron, even for short time, switch the steam function off, setting the knob on (Type 28Z010), or steam control dial (Type 28Z011), to position.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Hints for ironing

1. Sort out the articles to be ironed according to the type of fabric. This will minimize the frequency of temperature adjustment for different garments.
2. Test ironing a small area on the backside or inside the garment if you are unsure about the type of fabric. Start with a low temperature and increase gradually.
3. Wait for about three minutes before ironing heat sensitive fabrics. Temperature adjustment needs certain time to reach the required level no matter it is higher or lower.
4. Delicate fabrics such as silk, wool, velour, etc. are best ironed with an ironing cloth to prevent shine marks.
5. You may need a few times of press to activate the spray, burst and vertically burst function.
6. Read garment labels and follow the manufacturer's ironing instructions which are often shown by symbols similar to the following:

Temperature Control Setting
AcetateElasticsPolyamidePolypropylene	CuproPolyesterProteinsSilk	TriacetateViscoseWool

Technical data

The iron technical parameters are included at the name plate.

Type 28Z010: 230 V, Power: 1850 W ÷ 2200 W

Water tank nominal capacity: 300 ml

Type 28Z011: 230 V, Power: 1850 W ÷ 2200 W

Water tank nominal capacity: 180 ml

Sole plate- ceramic.

The iron is I class appliance, equipped with supplying cord and plug with grounding.

ZELMER iron meets the requirements of effective standards.

The appliance meets the requirements of the following directives:

Low Voltage Device (LVD) - 2006/95/EC. -

Electro- Magnetic Compatibility (EMC) - 2004/108/EC. -

The product is marked with CE symbol on the name plate.

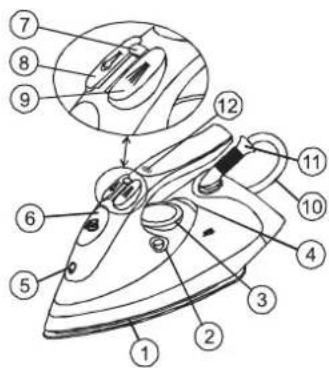

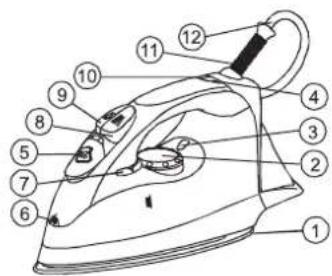

Type 28Z010

1. Sole Plate
2. Temperature Dial
3. Dial Pointer
4. Auto shut-off indicator (green)
5. Water inlet cover
6. Spraying nozzle
7. Steam control/Self-cleaning knob
8. Water Spray button
9. Burst of Steam button
10. Heater control light (red)
11. Cord grommet
12. Power cord

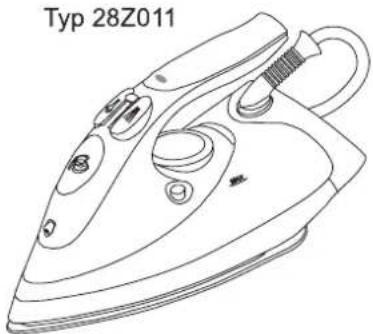

Type 28Z011

1. Sole Plate
2. Self-cleaning Button
3. Temperature Dial
4. Heater control light (red)
5. Spraying nozzle
6. Water inlet cover
7. Steam control dial
8. Burst of Steam button
9. Water Spray button
10. Power cord
11. Cord grommet
12. Auto shut-off indicator – pulsating light

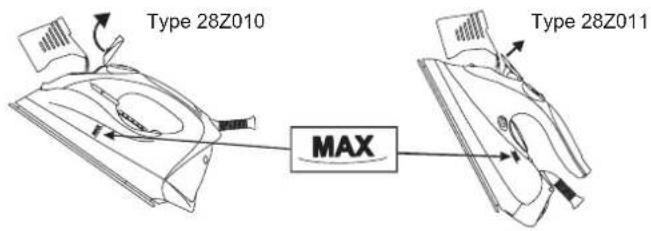

How to fill the water

Disconnect the iron from mains supply outlet.

Move the Steam Control Knob (Type 28Z010) or dial (Type 28Z011) in - position.

Release the water inlet cover and fill water through the water inlet hole. –

- Fill up to the „MAX“ level marked on the side of the water tank.

For best result, it is advisable to use demineralised water or distilled water. Do not use chemically descaled water or any other liquids.

Preparation for operation – first time ironing

Remove any protective films or stickers from the sole plate (10) and the cabinet.

- Unwind and straighten the power cord.

Fill the water tank with demineralised water or distilled water. See "How To Fill Water".

-Connect the iron to a suitable mains supply outlet.

- Turn the Temperature Dial in clockwise direction to ••• – position– control light glows.

Control light goes off when the required temperature is reached.

- Move the Steam Control Knob (Type 28Z010) or Dial (Type 28Z011) to position, steam starts coming out from the holes in the sole plate.

-Begin first time ironing with an old towel.

When the water tank is empty and there is no more steam produced; the preparation work is completed. The iron is now ready for proper use.

After ironing

- Move the Temperature Dial in anti-clockwise direction to „MIN”; the iron is switched off.

Disconnect the iron from mains supply outlet. –

When the iron gets cool completely, store it vertically in a safe place. -

Spraying

This function can be used any time and is - not affect any setting.

Fill the water tank as described in How to Fill Water.

Aim the nozzle to the garment. -

-Press the Spray Button.

It may be necessary to press the spray button a few times to start this function.

Type 28Z010

Type 28Z011

Dry ironing—Always follow the garment

manufacturer's ironing instructions mentioned at the garment label.

-Connect the iron to a suitable mains supply outlet.

- Turn the Temperature Dial in clockwise direction to; set: ●, ●● or ●●●.

-Control light glows, indicating that the iron is on.

Control light goes off when the required temperature is reached. The iron is now ready for use.

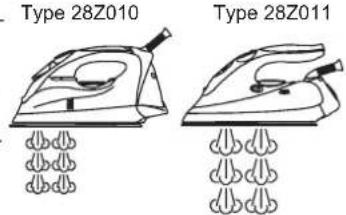

Steam ironing- Always follow the garment manufacturer's ironing instructions mentioned at the garment label.

Fill the water tank with demineralised water or distilled water. See "How – To Fill Water".

Connect the iron to a suitable mains supply outlet. Turn the Temperature Dial in clockwise direction to ●●●. (For optimum steam quality, do not use ● or ●● setting for steam ironing).

-Control light glows, indicating that the iron is on. Control light goes off when the required temperature is reached. The iron is now ready for use.

Type 28Z010

Move the Steam Control Knob (Type 28Z010) or Dial (Type 28Z011) to selected position, in order to set the amount of steam.

After finishing move the Temperature Dial in anti-clockwise direction to „MIN”; the iron is switched off.

Move the Steam Control Knob (Type 28Z010) or Dial (Type 28Z011) in position.

Burst of steam – Always follow the garment manufacturer's ironing instructions mentioned at the garment label.

This function provides extra amount of steam to remove stubborn wrinkles at clothes and hanging garments.

Fill the water tank with demineralised water or distilled water. See "How To Fill Water".

Turn the Temperature Dial in -clockwise direction to ●●. Connect the iron to a suitable mains supply outlet. See „Preparation for operation”.

Control light glows, indicating that the iron is on. Control light goes off when the required temperature is reached. The iron is now ready for use.

Type 28Z011

Press the Burst of Steam Button once – steam will shoot from the holes – of the soleplate.

For stubborn wrinkles, wait a few seconds before pressing the Burst of - Steam Button again. Most wrinkles can be removed within three presses.

It may be necessary to press the burst of steam button a few times to start this function.

For optimum steam quality, do not operate the Burst Of Steam more than three times after the pilot light goes off.

Burst of steam in vertical position— Always follow the garment manufacturer's ironing instructions mentioned at the garment label.

This function provides extra amount of steam to remove wrinkles on delicate garments in hanging position, hanging curtains, or other hanging fabrics.

Warning:

Do not apply steam on any clothes or fabrics that are being worn by human or pets. Temperature of steam is very high.

Fill the water tank with demineralised water, or distilled water. See "How - To Fill Water".

Turn the Temperature Dial in clockwise direction to •••. Connect the iron to a suitable mains supply outlet. See „Preparation for operation”.

Control light glows, indicating that the iron is on. Control light goes off – when the required temperature is reached. The iron is now ready for use.

-Hold the iron between 15 and 30 centimetres away from the garment.

Press the Burst of Steam Button once – steam will shoot from the holes – of the soleplate.

For stubborn wrinkles, wait a few seconds before pressing the Burst of Steam Button again. Most wrinkles can be removed within three presses.

It may be necessary to press the burst of steam button a few times to start this function.

For optimum steam quality, do not operate the Burst Of Steam more than three times after the pilot light goes off.

Build-in Anti-scale System

The build-in anti-scale cartridge is designed to reduce the build-up of lime scale that occurs during steam ironing.

This will prolong the working life of your iron. The cartridge does not completely stop the natural process of limes scale build-up.

Self-cleaning

This function removes the scales and minerals built up in the Steam Chamber. The iron will remain in the best condition if this function is performed at least once a month or more regularly depending on the hardness of the water used.

Fill the water tank with demineralised water, or distilled water. (See How To Fill Water)". Fill it up to the half.

Put the iron in vertical position. -

Connect the iron to a suitable mains supply outlet (See the item „Preparation for operation”).

Turn the Temperature Dial in clockwise direction to ●●● position. -

Control light glows, indicating that the iron is on. Control light goes off – when the required temperature is reached. The iron is now ready for use.

Wait for one more cycle; pilot light glows and goes off. -

After finishing move the Temperature Dial in anti-clockwise direction to – „MIN" position.

Disconnect the iron from mains supply outlet. —

Hold the iron horizontally over a sink.

• Turn Steam Control / self-cleaning Knob left as much as possible and hold in position.

Type 28Z011

-Press and hold the self cleaning button.

Steam and boiling hot water will drain from the holes on the soleplate washing away the scales and minerals that have built up inside the Steam Chamber.

—Gently move the iron back and forth until the water tank is empty.
- When Self-Cleaning is complete, release the Self-Cleaning Knob.
- Rest your iron back on its heel rest and allow to fully cool down.
—Wipe the soleplate with a cold damp cloth.

Caution!

Keep skin/body away from the hot water.

Anti-drip system

- The system, which is designed to prevent water escaping from the soleplate when the iron is too cold automatically.

During use, the anti – drip system may emit a loud clicking sound, particularly during heat-up or whilst cooling down. This is perfectly normal and indicates that the system is functioning correctly.

Type 28Z010

Line drawing of an iron (£) with steam drop drops below (no text or symbols)

Type 28Z011

Type 28Z010

Line drawing of an iron (£) with a spring, showing internal components and a hanging handle (no text or symbols)

Type 28Z011

Line drawing of a steam iron with a handle and base, no text or symbols present

Auto shut-off feature

The Auto shut-off feature will operate automatically when the iron is unattended and it is connected to a mains supply outlet.

Auto shut-off in horizontal position

The iron will switch off automatically at 16-39 seconds if the iron is im- mobile in the ironing position (horizontal).

Auto shut-off indicator light (green) pulsates (blinks) – does not glow permanently.

Simply moving the iron, the iron will back on. Shut-off indicator light shall be off and heater indicator light shall glow – the iron shall heat again.

Auto shut-off in vertical position

The iron will switch off automatically at 5 -10 minutes if the iron is immobile in the rest position (vertical).

Auto shut-off indicator light (green) pulsates (blinks) – does not glow permanently.

Simply moving the iron, the iron will back on. Shut-off indicator light shall be off and heater indicator light shall glow – the iron shall heat again.

Each usage - moving the iron brings it back to previously set function. The iron will take about 60 seconds to reach its previous sole-plate temperature.

Draining the water

Move the Steam Control Knob (Type 28Z010) or Dial (Type 28Z011) to - position.

Disconnect the iron from mains supply outlet. -

Press the Burst of Steam Button, to release any trapped water when the - soleplate still hot.

Press the Spray Button, to release any trapped water.

Turn the iron upside down and gently shake it to remove the remaining – water.

Before storage make sure that Steam Control Knob (Type 28Z010) or Dial (Type 28Z011) is in position.

Cleaning and maintenance

Disconnect the iron from mains supply outlet. —

The iron should get cool completely before cleaning.

Use a damp cloth and gentle washing liquid for cleaning. —

Do not use aggressive detergents like cream, milk, paste etc. to clean – the casing. They can remove graphic symbols such as: scales, marking, caution signs, etc.
- Never use sharp or rough objects to remove the deposits on the sole plate.
- Never use any abrasive, vinegar or descaling agents to clean the iron.

Ecology – environment protection

Each user can protect the natural environment. It is neither difficult nor expensive.

In order to do it:

Put the cardboard packing into recycling paper container.

Put the polyethylene (PE) bags into container for plastic.

When worn out, dispose the appliance to particular disposal centre, because of the dangerous elements of this appliance, which can be hazardous for natural environment.

Please do not dispose this iron into domestic waste disposal!!!

The manufacturer/importer does not accept any liability for any damages resulting from unintended use or improper handling.

The manufacturer/importer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.
