Product Type	Built-in refrigerator
Model	KI31REDD0
Brand	Siemens
Installation Type	Built-in (under-counter)
Height (mm)	820
Width (mm)	597
Depth (mm)	548
Weight (kg)	33
Energy Efficiency Class	A++
Annual Energy Consumption (kWh)	153
Noise Level (dB)	38
Net Capacity Fridge (L)	185
Defrost System	Automatic (frost-free)
Door Hinge	Reversible
Interior Light	LED
Shelves	Safety glass
Temperature Control	Electronic
Climate Class	SN-ST
Power Input (W)	90
Voltage / Frequency (V/Hz)	220-240 / 50
Cleaning Instructions	Clean interior with warm water and mild detergent; avoid abrasive cleaners
Safety Features	Child lock, overheat protection
Spare Parts Availability	Long-term availability (10+ years)

Frequently Asked Questions - KI31REDD0 SIEMENS

How do I adjust the temperature in my Siemens KI31REDD0 fridge?

Use the electronic temperature control panel inside the fridge. Press the + or - buttons to set the desired temperature, typically recommended between 2°C and 8°C.

Can I reverse the door opening direction?

Yes, the door hinge is reversible. Refer to the installation manual for step-by-step instructions. You will need a screwdriver and possibly a spanner. The process involves moving hinges and door handles to the opposite side.

Why is my fridge making unusual noises?

Normal operating sounds include humming from the compressor, gurgling from refrigerant flow, and occasional clicking when the thermostat switches. If noises are loud or irregular, check that the fridge is level and not touching walls or cabinets.

How often should I defrost the fridge?

The KI31REDD0 features automatic defrost (frost-free), so manual defrosting is not required. However, if ice builds up, it may indicate a door seal issue or frequent door opening.

What is the correct way to clean the interior?

Unplug the fridge and remove all food. Clean with a soft cloth dipped in warm water and a mild detergent. Rinse and dry thoroughly. Do not use abrasive cleaners or sharp objects that could damage the interior.

How do I change the interior light bulb?

The light is LED and integrated. If it fails, it may need replacement by a qualified technician. Contact Siemens customer service for assistance.

What should I do if the fridge stops cooling?

First, check that the power cord is plugged in and the circuit breaker is on. Verify that the temperature setting is correct. If the problem persists, listen for the compressor running; if silent, a faulty compressor or control board may require professional repair.

Is it normal for the outside of the fridge to feel warm?

Yes, the sides may feel warm during operation, especially in hot weather. This is due to the heat dissipation from the cooling system. Ensure adequate ventilation around the appliance.

How do I obtain spare parts or accessories?

Spare parts can be ordered through Siemens authorized service centers or online. Use the model number KI31REDD0 to find compatible parts. Long-term availability is ensured for at least 10 years after production.

Can I use an extension cord with my fridge?

It is not recommended. Extension cords may cause voltage drop or overheating. Plug the fridge directly into a properly grounded wall outlet. If necessary, use a heavy-duty cord rated for appliance use, but consult a qualified electrician.

USER MANUAL KI31REDD0 SIEMENS

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Diagram of hands holding a refrigerator with shelves and doors, showing structural components (no text or symbols)

Ремонт

Diagram of a hand interacting with a multi-tiered storage unit panel, showing directional arrows indicating movement (no text or symbols present)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Ремонт

Пантите са свалени.

Пантите са свалени.

Diagram of a two-tiered plastic container with upward arrows indicating movement or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Рафтът е свален.

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a table with a blue panel and a black bracket, no text or symbols present

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Abstract 3D graphic with two arrows pointing to a rectangular block, no text or symbols present

Ремонт

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D cabinet or shelf with an eye icon above, showing internal compartments and arrows indicating movement (no text or symbols)

Diagram of hands holding a 3D refrigerator with shelves and doors, showing internal compartments (no text or symbols)

Popravak

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Brtva vrata je postavljena.

Popravak

Technical line drawing of a refrigerator door with mounting brackets and internal components, shown in two views (no text or symbols)

Popravak

1. 1. Otpustite četiri vijka (1).

2. Gurnite vrata prema van i uklonite ih (2).

1. 1. Uklonite četiri vijka (1).

2. Uklonite zglobove (2).

Zglobovi su uklonjeni.

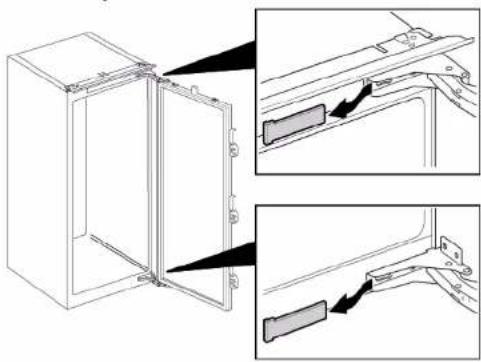

4.2.2 Postavljanje ravnog zgloba

Zglobovi su uklonjeni.

Diagram of a two-panel door handle assembly with arrows indicating direction (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a mechanical assembly with an arrow indicating direction and a blue tool inside, no text or symbols present.

1. Spustite izvlačnu policu i zaokrenite je bočno.

2. ➞ Izvlačna je polica uklonjena.

4.6.2 Postavljanje izvlačne police

▶ Postavite obratnim redoslijedom.

Popravak

4.7 Zamjena police odjeljka zamrzivača

Zahtjev:

Vrata su otvorena.

4.7.1 Uklanjanje police odjeljka zamrzivača

Diagram of a table with a blue panel and a black bracket, no text or symbols present

Polica odjeljka zamrzivača je uklonjena.

4.7.2 Postavljanje police odjeljka zamrzivača

→ Spremnik je uklonjen.

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

1. Uklonite spremnik za voće i povrće.→38

2. 1. Pritisnite polugu ispod obje strane pregrade (1).
3. Povucite pregradu prema naprijed (2).

1. Podignite pregradu i zaokrenite je bočno prema van.

Pregrada je uklonjena.

Spremnik za održavanje svježine je uklonjen.

Abstract graphic with a document icon and two arrows pointing right, set against a dark background with abstract shapes (no text or symbols)

Popravak

Illustration of a hand holding a rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a wall-mounted device with attached red panel and white components, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted device with a black arrow indicating rotation (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Oprava

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Technical line drawing of a refrigerator door with mounting brackets and internal compartments (no text or symbols)

Oprava

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a blue table with a black arrow pointing upward, connected to a metal frame (no text or symbols)

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Abstract graphic with a rectangular panel and two arrows pointing outward, no text or symbols present.

Oprava

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular panel with a curved arrow indicating direction (no text or symbols)

Diagram of a 3D wall-mounted shelf with an eye icon pointing to the top panel (no text or symbols present)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparation

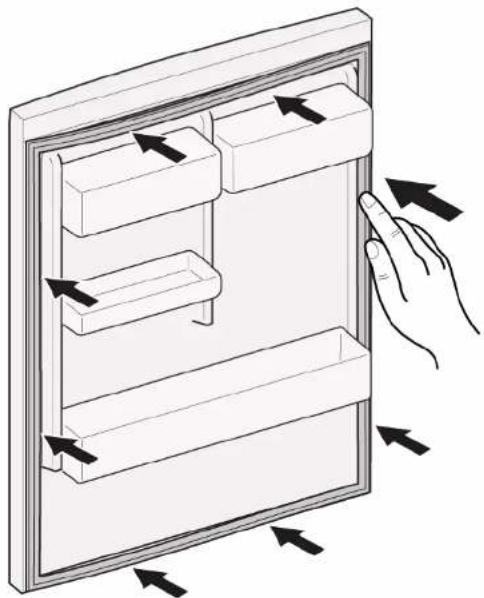

1. Tryk hele pakningen trinvist i rillen.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Reparation

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Hylden er fjernet.

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a table with a blue panel and a black bracket, no text or symbols present

→ Beholderen er fjernet.

Diagram of a mechanical assembly with a blue platform and a black upward arrow, no text or symbols present

Abstract graphic with a document icon and two arrows pointing right, set against a dark gray background (no text or symbols)

Reparation

Illustration of a hand holding a device with a red highlighted section, against a dark background (no text or symbols)

1. Afbryd LED-spotlampens elektriske tilslutning.

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparatie

Diagram of a hand interacting with a multi-tiered storage unit, showing directional arrows indicating movement (no text or symbols present)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Reparatie

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a table with a blue panel and a black bracket, no text or symbols present

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Abstract 3D graphic with two arrows pointing to a rectangular block, no text or symbols present

Reparatie

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

1.2 Explanation of symbols 108

1.2.1 Danger levels.... 108

1.2.2 Hazard symbols 108

1.2.3 Structure of the warnings.... 109

1.2.4 General symbols.... 109

Safety 110

2.1 General Safety instructions 110

2.1.1 All domestic appliances 110

Tools and aids....111

Repair 112

4.7 Replacing freezer compartment shelf.... 121

4.7.1 Removing freezer compartment shelf 121

4.7.2 Installing freezer compartment shelf.... 121

4.8 Replacing fruit and vegetable container.... 122

4.8.1 Removing fruit and vegetable container 122

4.8.2 Installing fruit and vegetable container 122

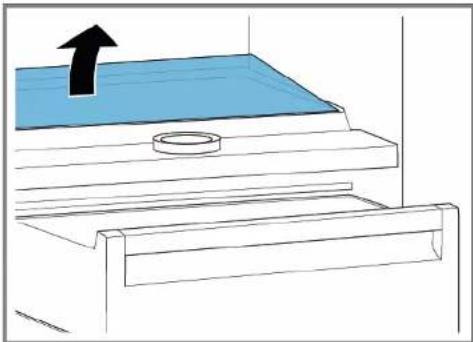

4.9 Replacing partition and cover of fruit and vegetable container.... 123

4.9.1 Removing partition and cover of fruit and vegetable container 123

4.9.2 Installing partition and cover of fruit and vegetable container.... 123

4.10 Replacing cool-fresh container.... 124

4.10.1 Removing cool-fresh container 124

4.10.2 Installing cool-fresh container.... 124

4.11 Replacing extendable container 125

4.11.1 Removing extendable container 125

4.11.2 Installing extendable container 125

4.12 Replacing LED spot light 126

4.12.1 Removing LED spot light.... 126

4.12.2 Installing LED spot light 127

i Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumer to repair appliances by himself according to the applicable eco-design regulation (as of 03/2021).

They contain information how to exchange defined spare parts including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
	Danger	Non-observance of the warning message will result in death or serious injuries.
	Warning	Non-observance of the warning message could result in death or serious injuries.
	Caution	Non-observance of the warning message could result in minor injuries.
Notice		Non-observance of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.
The following hazard symbols are used in this document:

Hazard symbol Meaning
		General warning message
		Danger from electrical voltage
		Risk of explosion
		Danger of cuts
		Danger of crushing

i Concerning this document

Hazard symbol Meaning
		Danger from hot surfaces
		Danger from strong magnetic field
		Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Type and source of danger!

Possible consequences of ignoring the danger / warning.

▶ Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
	Identification of a special tip (text and/or graphic)
	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
Start Identification of a key or button
[00123456] Identification of a material number
Status Identification of displayed text / window(in the appliance's display)

Table 3: General symbols

Safety

2.1 General Safety instructions

2.1.1 All domestic appliances

Risk of electric shock due to live parts!

• Errors by repairs involving electrical components can lead to electrical shock!
  ■ Disconnect the appliance from the mains for at least 60 seconds before starting work.
  ■ After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of injury from sharp edges!

■ Wear protective gloves.

Risk of crushing during repair, maintenance, troubleshooting and service due to heavy and moving components

■ Wear protective shoes.
■ Secure heavy components from falling down.
■ Do not stick body parts into moving components.

Risk to the appliance's safety / function!

■ Only use original spare parts.

Risk of damage to electrostatically sensitive components (ESDs)!

- Do not touch the modules, including connections and conductor paths.

Tools and aids

Designation Details Images
Protection cloth[00342013]	60 cm x 50 cm
Torx Bit TX20[00340865]	6,3 mm (1/4")
Special tool[00342180]

Repair

1. Release door gasket from the groove on right and left corner.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Pull out door gasket from groove.

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Door gasket is removed.

	Thickness of new door gasket may deviate slightly from thickness of old door gasket. This will not affect closing behavior and long-term function.
	If your appliance has adjustable hinges or hinge attachments, you can optimize the closing behavior subsequently.
	Small side holes in door gasket are functional (required for ventilation). These are not production faults.

Repair

1. Check groove for gasket for damage.

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

1. If groove for gasket is it is damaged.

2. Contact customer service.

3. i Slight deformation of door gasket is normal and does not affect its function. It is recommended to straighten door gasket before inserting it into appliance.

Heat door gasket with a hair dryer or hot water and manually reshape it.

1. Push corners of gasket at the top and bottom to the groove.

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Repair

1. Press whole gasket step by step into the groove.

Diagram of a hand interacting with a multi-tiered storage unit, showing directional arrows indicating movement (no text or symbols present)

Door gasket is installed.

Repair

4.2 Replacing flat hinge

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Prerequisite:

√ Appliance is disconnected from power supply.
√ Furniture door is removed. See Installation Instruction.
Door is open.

1. Remove two hinge covers.


Technical line drawing of a refrigerator door with mounting brackets and internal compartments, shown in two views (no text or symbols)

Repair

1. 1. Loosen four screws (1).

2. Slide out and remove door (2).

1. 1. Remove four screws (1).

2. Remove hinges (2).

Hinges are removed.

4.2.2 Installing flat hinge

▶ Install in reverse order.

Repair

4.3 Replacing sliding hinge

Required tools:

Torx Bit TX20 6,3 mm (1/4") [00340865]

Prerequisite:

√ Appliance is disconnected from power supply.
√ Furniture door and appliance door are separated. See Installation Instruction.

4.3.1 Removing sliding hinge

1. Unscrew two screws (1).
2. Remove upper hinge (2).
3. Remove door (3).
4. Unscrew two screws (4).
5. Remove lower hinge (5).

Hinges are removed.

4.3.2 Installing sliding hinge

▶ Install in reverse order.

Repair

4.4 Replacing door rack

Prerequisite:

√ Door is open.

▶ Lift door rack upwards.

Diagram showing two mechanical components with upward arrows indicating motion or force, no text or symbols present.

Door rack is removed.

▶ Install in reverse order.

Repair

4.5 Replacing shelf

Prerequisite:

√ Door is open.

4.5.1 Removing shelf

▶ Pull out shelf.

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Shelf is removed.

4.5.2 Installing shelf

▶ Install in reverse order.

Repair

4.6 Replacing extendable shelf

Prerequisite:

√ Door is open.

4.6.1 Removing extendable shelf

1. Pull out extendable shelf until the locking catch is released.

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

1. Lower extendable shelf and swing it out to the side.

2. ➕ Extendable shelf is removed.

4.6.2 Installing extendable shelf

▶ Install in reverse order.

Repair

4.7 Replacing freezer compartment shelf

Prerequisite:

√ Door is open.

4.7.1 Removing freezer compartment shelf

▶ Pull out freezer compartment shelf.

Diagram of a table with a blue panel and a black bracket, no text or symbols present

Freezer compartment shelf is removed.

4.7.2 Installing freezer compartment shelf

▶ Install in reverse order.

Repair

4.8 Replacing fruit and vegetable container

Prerequisite:

√ Door is open.

4.8.1 Removing fruit and vegetable container

▶ 1. Pull container out all the way (1).

1. Remove container (2).

→ Container is removed.

4.8.2 Installing fruit and vegetable container

▶ Install in reverse order.

Repair

4.9 Replacing partition and cover of fruit and vegetable container

Prerequisite:

Door is open.

4.9.1 Removing partition and cover of fruit and vegetable container

1. Remove glass plate from partition.

Diagram of a mechanical assembly with a blue platform and a black upward arrow, no text or symbols present

1. Remove fruit and vegetable container.→ Page 122

2. 1. Press lever on the underside on both partition sides (1).
3. Pull the partition forwards (2).

1. Lift the partition and swivel it out to the side.

Partition is removed.

1. 1. Lift the cover of fruit and vegetable container.

2. Pull cover of fruit and vegetable container forwards and swivel it out to the side.

Cover of fruit and vegetable container is removed.

4.9.2 Installing partition and cover of fruit and vegetable container

▶ Install in reverse order.

Repair

4.10 Replacing cool-fresh container

Prerequisite:

√ Door is open.

4.10.1 Removing cool-fresh container

▶ 1. Tilt cool-fresh container forwards (1). 2. Remove cool-fresh container (2).

Cool-fresh container is removed.

4.10.2 Installing cool-fresh container

▶ Install in reverse order.

Repair

4.11 Replacing extendable container

Prerequisite:

√ Door is open.

4.11.1 Removing extendable container

▶ 1. Tilt extendable container forwards (1).
2. Remove extendable container (2)

Extendable container is removed.

4.11.2 Installing extendable container

▶ Install in reverse order.

Repair

4.12 Replacing LED spot light

Required tools:

Special tool [00342180]
Slotted screwdriver Blade 2.4 mm x 0.4 mm x 60 mm, in the kit [00341820]

Your appliance features a maintenance-free LED light. These lights may be repaired by customer service or authorised technicians only!

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair - Electric parts should be repaired by a qualified electricians. - After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Risk of electric shock due to live parts!

Death by electrocution - Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

Sharp edges!

Cut injuries ▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Door is open.
√ Fridge compartment shelves are removed.

4.12.1 Removing LED spot light

1. Release LED spot light cover.

1. Pull LED spot light cover inwards and simultaneously push forwards.

Abstract graphic with a document icon and two arrows pointing right, set against a dark gray background (no text or symbols)

Repair

1. Detach LED spot light module.

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

1. Disconnect LED spot light electrical connection.

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

LED spot light is removed.

4.12.2 Installing LED spot light

▶ Install in reverse order.

Remonditeave - Külmik

i Selle dokumendiga seoses 129

1.1 Tähtis teave 129

1.1.1 Eesmärk 129

1.2 Sümbolite selgitus 129

1.2.1 Ohutasemed.... 129

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular panel with a curved arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Remont

1. Vajutage terve tihend jupphaaval soonde.

Diagram of a hand interacting with a multi-tiered storage unit panel, showing directional arrows indicating movement (no text or symbols present)

Technical line drawing of a refrigerator door with mounting brackets and internal components, shown in two views (no text or symbols)

Remont

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a table with a blue panel and a black bracket, no text or symbols present

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Abstract graphic with a rectangular object and two arrows pointing outward, no text or symbols present.

Remont

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted device with a black arrow indicating rotation (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Korjaus

Diagram of a hand interacting with a refrigerator drawer, showing arrows indicating movement (no text or symbols present)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Korjaus

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Hylly on poistettu.

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a table with a blue panel and a black bracket, no text or symbols present

Diagram of a mechanical assembly with a blue platform and a black upward arrow, no text or symbols present

Cool-fresh-lokero on poistettu.

4.10.2 Cool-fresh-lokeron asennus

Abstract graphic with a rectangular object and two arrows pointing outward, no text or symbols present.

Korjaus

1. Irrota LED-kohdevalomoduuli.

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

Illustration of hands connecting a cable to a storage unit panel (no text or symbols)

1. Retirer le joint de porte de la rainure.

Illustration of hands holding a cable inside a rectangular panel with a curved arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Réparation

Diagram of a hand interacting with a multi-tiered storage unit panel, showing directional arrows indicating movement (no text or symbols present)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Réparation

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or architectural component with an arrow indicating direction, no text or symbols present

Diagram of a table with a blue panel and a black bracket, no text or symbols present

Diagram of a mechanical assembly with a blue platform and a black upward arrow, no text or symbols present

Abstract 3D graphic with two arrows pointing to a rectangular block, no text or symbols present

Réparation

Illustration of a hand holding a device with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

Illustration of hands connecting a cable to a storage unit panel (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Instandsetzen

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Instandsetzen

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a mechanical assembly with an arrow indicating direction and a blue tool inside (no text or symbols)

Diagram of a table with a blue panel and a black bracket, no text or symbols present

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

Abstract 3D graphic with two arrows pointing to a rectangular object, no text or symbols present

Instandsetzen

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

Illustration of hands connecting a cable to a door panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted device with a black arrow indicating rotation (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Επισκευή

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Επισκευή

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

To páfi pórtas éxei aφαιρεθεί.

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

To páφι αφαιρέθηκε.

Diagram showing a mechanical assembly with an arrow indicating direction and a blue tool inside, no text or symbols present.

Diagram of a medical examination table with a blue panel and a black object on top (no text or symbols)

Diagram of a mechanical assembly with a blue top component and an upward arrow, no text or symbols present

To theckopiko surtári afaipéthke.

Abstract 3D graphic with two arrows pointing to a rectangular block, no text or symbols present

Επισκευή

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Javítás

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Technical line drawing of a door frame with two inset views showing internal components (no text or symbols)

Javítás

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a table with a blue panel and a black bracket, no text or symbols present

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Abstract 3D graphic with two arrows pointing to a rectangular block, no text or symbols present

Javítás

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Riparazione

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Riparazione

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a table with a blue panel and a black bracket, no text or symbols present

Diagram of a mechanical assembly with a blue platform and a black upward arrow, no text or symbols present

Abstract 3D diagram with two arrows pointing to a rectangular object on a dark surface, no text or symbols present

Riparazione

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a 3D wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle with arrows indicating force or movement (no text or symbols)

Remonts

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Remonts

Viras ir nonemtas.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Plaukts ir iznemts.

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a table with a blue panel and a black bracket, no text or symbols present

Tvertne ir iznemta.

4.8.2 Auglu un dârzenu tvertnes uzstâdîsana

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

1. Iznemiet auglu un dârzenu tvertni.→290

2. 1. Nospiediet sviru starplikas apakšā abās pusēs (1).
3. Velciet starpliku uz priekšu (2).

1. Starpliku paceliet un sagaziet uz sāniem, lai iznemtu.

Abstract graphic with two arrows pointing to a rectangular object, no text or symbols present

Remonts

1. Atvienojiet LED starmeša moduli.

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

1. Atvienojiet LED starmeša elektrisko savienojumu.

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

LED starmetis ir nonemts.

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Remontas

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Remontas

Vyriai nuimti.

Vyriai nuimti.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Lentyna išimta.

Diagram showing a mechanical assembly with an arrow indicating direction and a blue tool inside (no text or symbols)

Diagram of a table with a blue panel and a black bracket, no text or symbols present

Talpykla išimta.

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Abstract 3D graphic with two arrows pointing to a rectangular block, no text or symbols present

Remontas

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands connecting a cable to a wall-mounted panel with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparasjon

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Technical line drawing of a refrigerator door with mounting brackets and internal components, shown in two views (no text or symbols)

Reparasjon

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a table with a blue panel and a black bracket, no text or symbols present

Hyllen i fryseren er demontert.

4.7.2 Montering av hylle i fryser

→ Beholderen er demontert.

Diagram of a mechanical assembly with a blue top component and a black upward arrow indicating motion (no text or symbols)

Cool-Fresh-beholderen er demontert.

Abstract graphic with a rectangular object and two arrows pointing outward, no text or symbols present.

Reparasjon

1. Løsne LED -spotlightmodulen.

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

LED-spotlight er demontert.

4.12.2 Montering av LED-spotlight

Illustration of hands connecting a cable to a refrigerator panel (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Naprawy

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Technical line drawing of a door opening with two inset views showing internal components (no text or symbols)

Naprawy

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Półka jest wyjęta.

4.5.2 Montaż półki

Diagram showing a mechanical assembly with an arrow indicating direction and a blue component inside (no text or symbols)

Diagram of a table with a blue panel and a black bracket, no text or symbols present

Diagram of a mechanical assembly with a blue platform and a black upward arrow, no text or symbols present

Abstract 3D graphic with a rectangular block and two arrows pointing outward, no text or symbols present

Naprawy

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a door handle assembly with arrows indicating force or movement (no text or symbols)

Reparação

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Reparação

1. 1. Remova quatro parafusos (1).

2. Remova as dobradiças (2).

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a blue table with a black bracket and a white panel, no text or symbols present

Diagram of a mechanical assembly with a blue platform and a black upward arrow, no text or symbols present

Abstract graphic with a document icon and two arrows pointing to it, set against a dark background with curved lines (no text or symbols)

Reparação

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Repararea

Diagram of a hand interacting with a multi-tiered storage unit, showing directional arrows indicating movement (no text or symbols present)

Cap torx TX20 6.3 mm (1/4") [00340865]

Technical line drawing of a refrigerator door with mounting brackets and internal compartments (no text or symbols)

Repararea

Balamalele sunt demontate.

4.2.2 Montarea balamalei plate

Cap torx TX20 6.3 mm (1/4") [00340865]

Balamalele sunt demontate.

4.3.2 Montarea balamalei glisante

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a blue table with a black arrow and bird, no text or symbols present

Diagram of a mechanical assembly with a blue platform and a black upward arrow, no text or symbols present

Abstract 3D graphic with two arrows pointing to a rectangular block, no text or symbols present

Repararea

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Vytiahnite tesnenie z drážky.

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Oprava

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols)

Tesnenie dvierok je namontované.

Oprava

Technical line drawing of a refrigerator door with mounting brackets and internal components, shown in two views (no text or symbols)

Oprava

Závesy sú odobraté.

Závesy sú odobraté.

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Polička v dvierkach je odobratá.

4.4.2 Montáž poličky do dvierok

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a table with a blue panel and a black bracket, no text or symbols present

Polica mraziaceho priestoru je odobratá.

4.7.2 Montáž police mraziaceho priestoru

Nádoba je odobratá.

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

1. Odoberte nádobu na ovocie a zeleninu.→416

2. 1. Stlačte páčku na spodnej strane oboch strán priehradky (1).
3. Potiahnite priehradku dopredu (2).

1. Zdvihnite priehradku a vyklopte ju nabok.

Priehradka je odobratá.

Nádoba cool-fresh je odobratá.

Abstract graphic with a rectangular panel and two arrows pointing outward, no text or symbols present.

Oprava

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

1. Tesnilo vrat izvlecite iz utora.

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Popravilo

1. Celotno tesnilo korak po koraku potisnite v utor.

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Popravilo

Poškodbe hrbta in mišic

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Polica je odstranjena.

4.5.2 Namestitev police

- Namestite v obratnem vrstnem redu.

Popravilo

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a table with a blue panel and a black bracket, no text or symbols present

Diagram of a mechanical assembly with a blue top component and a black upward arrow indicating motion (no text or symbols)

1. Odstranite predal za sadje in zelenjavo.→437

2. 1. Pritisnite pritrdila na spodnji strani steklene plošče (1).
3. Pregrado potegnite k sebi (2).

1. Pregrado dvignite in jo z obračanjem na stran odstranite. → Pregrada je odstranjena.

2. 1. Dvignite polico nad predalom za sadje in zelenjavo.
3. Polico nad predalom za sadje in zelenjavo potegnite k sebi in jo z obračanjem na stran odstranite. Polica nad predalom za sadje in zelenjavo je odstranjena.

4.9.2 Namestitev pregrade in police nad predalom za sadje in zelenjavo

▶ Namestite v obratnem vrstnem redu.

Popravilo

Abstract 3D graphic with a rectangular block and two arrows pointing right, set against a dark gray background (no text or symbols)

Popravilo

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparación

Diagram of a hand interacting with a refrigerator drawer, showing shelves and drawers with directional arrows (no text or symbols)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Reparación

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a table with a blue panel and a black bracket, no text or symbols present

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Abstract 3D graphic with two arrows pointing to a rectangular block, no text or symbols present

Reparación

Illustration of a hand holding a device with a red highlighted section, emitting light rays (no text or symbols)

3D rendering of a rectangular device with attached red panel and white circular elements, no visible text or symbols

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable inside a rectangular panel with a curved arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Reparation

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Technical line drawing of a refrigerator door with mounting brackets and internal components, shown in two views (no text or symbols)

Reparation

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Dörrhyllan har tagits bort.

4.4.2 Montera dörrhylla

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a table with a blue panel and a black bracket, no text or symbols present

Frysdelens hylla har tagits bort.

4.7.2 Montera frysdelens hylla

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Cool fresh-facket har tagits bort.

4.10.2 Montera cool fresh-fack

Abstract graphic with a document icon and two arrows pointing right, set against a dark gray background (no text or symbols)

Reparation

1. Ta loss LED-spotlightmodulen.

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

1. Lossa LED-spotlightens elanslutning.

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols

LED-spotlighten har tagits bort.

4.12.2 Montera LED-spotlight

Illustration of hands connecting a cable to a rectangular panel with shelves (no text or symbols)

Illustration of hands holding a cable with a black arrow indicating direction (no text or symbols)

Isometric line drawing of a wall-mounted shelf with an eye icon above (no text or symbols)

Line drawing of a refrigerator with hand gestures indicating side placement (no text or symbols)

Onarim

Diagram of a hand interacting with a refrigerator drawer, showing multiple compartments and directional arrows indicating movement (no text or symbols present)

Technical line drawing of a refrigerator door with two inset views showing internal components (no text or symbols)

Onarim

Diagram showing two mechanical components with upward arrows indicating motion or assembly (no text or symbols)

Illustration of hands holding a tablet with a black arrow indicating rotation (no text or symbols)

Diagram showing a mechanical or structural component with an arrow indicating direction, no text or symbols present

Diagram of a blue table with a black bracket and a bird, no text or symbols present

Kap çıkartılmıştır.

Diagram of a mechanical assembly with a blue component and an upward arrow, no text or symbols present

Special tool [00342180]

Düz tornavida Biçak 2,4 mm x 0,4 mm x 60 mm,

Abstract graphic with a rectangular object and two arrows pointing outward, no text or symbols present.

Onarim

Illustration of a hand holding a small rectangular object with a red highlighted section, against a dark background (no text or symbols)

3D rendering of a mechanical component with attached red and black parts, no visible text or symbols
