WIW28541EU - Washing machine BOSCH - Free user manual and instructions

Product type	Front-loading washing machine
Brand	Bosch
Model	WIW28541EU
Washing capacity	8 kg
Maximum spin speed	1400 rpm
Energy class	E (old classification)
Annual water consumption	10500 L
Annual energy consumption	175 kWh
Noise level (washing/spinning)	51 dB / 76 dB
Dimensions (H x W x D)	84.5 x 60 x 59 cm
Net weight	70 kg
Power supply	220-240 V, 10 A, 50 Hz
Wash programs	Cotton, Synthetics, Delicates, Wool, Quick 15 min, etc.
Special functions	Delayed start, Child safety, Drum cleaning
Drum type	VarioSoft drum with cells
Motor	EcoSilence Drive without belt
Maintenance and cleaning	Regular cleaning of the fluff filter and detergent drawer
Spare parts and repairability	Parts available via Bosch after-sales service
Safety	Automatic shut-off in case of overheating, leak protection
General information	Made in Germany, 2-year warranty

Frequently Asked Questions - WIW28541EU BOSCH

How to clean the drum of my Bosch WIW28541EU washing machine?

Use the Drum cleaning program (available on the selector) with a specific cleaning product or white vinegar. Run the program empty.

What to do if the washing machine does not drain?

Check the fluff filter located at the bottom right, clean it. Make sure the drain hose is not bent or blocked.

Why does the drum rotate slowly?

This may be due to an overload of laundry or an imbalance. Distribute the laundry evenly or reduce the load.

How to use the delayed start?

Select a program, then press the Delayed start button to set the desired end time. Confirm by pressing Start.

What is the maximum laundry capacity?

The maximum capacity is 8 kg for the Cotton program. Do not exceed this load to avoid premature wear.

The washing machine displays an error code E:XX, what to do?

Consult the manual: the code indicates a problem (e.g., E:17 = blocked drain). Clean the filter or call after-sales service.

How to unlock the door during a cycle?

Press the Pause button and wait for the door light to go off. If the door remains locked, cut off the power and wait 2 minutes.

What type of detergent to use?

Use a detergent suitable for front-loading machines (HE). Avoid excessive foam. Dose according to the manufacturer's recommendations.

How to prevent bad odors in the washing machine?

Leave the door slightly open after each wash, regularly clean the gasket and detergent drawer. Run a program at 90°C once a month.

Where to find the complete user manual?

You can download the PDF manual on our site notice-facile.com by selecting the desired language.

USER MANUAL WIW28541EU BOSCH

Ремонт

1. Свалете винтовете. 3. 1. Освободете крепежните елементи (1, 2).

Close-up of a washing machine front panel with blue circular annotations highlighting internal components (no text or symbols visible)

3D cutaway diagram of a mechanical component showing internal structure and mounting features (no text or symbols)

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Close-up of a white refrigerator interior with a blue arrow pointing to the lid area (no text or symbols visible)

2.

ВНИМАНИЕ!

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

3D rendering of a mechanical component with concentric rings and mounting brackets (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

Interior view of a washing machine showing internal components like hoses and gauges (no text or symbols visible)

Front view of a white and red industrial washing machine with a circular vent (no visible text or symbols)

Close-up of a washing machine with red plastic components and a blue directional arrow indicating flow or movement (no text or symbols visible)

Ремонт

Interior view of a washing machine showing internal components and a blue arrow indicating a motion or flow direction (no text or symbols present)

Close-up of a car interior showing a tire, cable, and a blue arrow pointing to the wheel (no text or symbols visible)

1.

ВНИМАТЕЛНО

Interior view of a washing machine showing internal components and casing (no text or symbols visible)

Ремонт

Popravak

1. Uklonite vijke. 3. 1. Otpustite zahvatne elemente (1, 2).

Close-up of a washing machine front panel with blue circular annotations highlighting internal components (no text or symbols visible)

1. Uklonite ploču.

3.1.2 Postavljanje ploče

▶ Postavite obratnim redoslijedom.

Popravak

3.2.2 Postavljanje ladice za deterdžent

▶ Postavite obratnim redoslijedom.

Popravak

3D cutaway diagram of a mechanical assembly showing internal components and directional arrows (no text or symbols)

1. Uklonite ručicu ladice za deterdžent.

3.3.2 Postavljanje ručice ladice za deterdžent

▶ Postavite obratnim redoslijedom.

Popravak

3.4 Zamjena vrata

OPREZ

3D rendering of a washing machine with a red arrow pointing to the door panel (no text or symbols visible)

1. Uklonite vrata prema gore.

1. Uklonite zglob vrata.

3.6.2 Postavljanje zgloba vrata

▶ Postavite obratnim redoslijedom.

Popravak

3.7 Zamjena brtve vrata

Oštri rubovi kućišta!

Porezotine

▶ Nosite zaštitne rukavice.

Opasnost od padanja dijelova zbog otpuštenih vijaka!

Close-up of a white washing machine interior with a blue arrow pointing to a component, no visible text or symbols.

2.

POZOR!

Opasnost od oštećene površine!

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

3D rendering of a mechanical component with concentric rings and mounting holes (no text or symbols visible)

1. Uklonite brtvu vrata.

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

1. Uklonite bravu vrata.

Popravak

3.8.2 Postavljanje brave vrata

Interior view of a washing machine showing internal components and ventilation ducts (no text or symbols visible)

Front view of a white and red washing machine with a circular vent, no visible text or symbols.

Sl. 1: Poklopac donje grupe

Zahtjev:

Close-up of a washing machine with red plastic components and a magnified inset showing internal tubing (no text or symbols visible)

Popravak

1. 1. Odvijte vijak (1).

2. Pritisnite zadržnu točku i uklonite prema dolje (2).

1. Gurnite poklopac donje grupe i uklonite prema naprijed.

Interior view of a washing machine showing internal components and a blue arrow indicating a flow direction (no text or symbols)

1. Izvucite crijevo iz poklopca.

Close-up of a white electronic device with a blue arrow pointing to a component, no visible text or symbols.

2.

OPREZ

Interior view of a washing machine showing internal components and labeled parts (no text or symbols beyond numbered annotations)

Popravak

1. Uklonite prednju ploču.

Oprava

Close-up of a washing machine door with visible internal components and mounting holes (no text or symbols)

3D mechanical assembly diagram showing internal components and directional arrows (no text or symbols)

3D rendering of a washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Close-up of a car interior showing a blue arrow pointing to a component, with no visible text or symbols.

2.

POZOR!

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

3D rendering of a mechanical component with concentric rings and mounting brackets (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

Interior view of a washing machine showing internal components like gears and hoses (no text or labels visible)

Front view of a white and red industrial washing machine with a circular vent (no visible text or symbols)

Close-up of a washing machine with red plastic components and a blue directional arrow indicating flow or movement (no text or symbols visible)

Oprava

Interior view of a washing machine showing internal components and a blue arrow indicating a flow direction (no text or symbols)

Close-up of a white washing machine interior with visible wiring and a blue arrow pointing to the component (no text or symbols)

2.

POZOR

Interior view of a washing machine showing internal components and labeled parts (no text or symbols beyond numbered annotations)

Oprava

Reparation

Close-up of a washing machine front panel with blue circular annotations highlighting internal components (no text or symbols visible)

1. Fjern betjeningspanelet.

3.1.2 Montering af betjeningspanel

3D mechanical assembly diagram showing internal components and directional arrows (no text or symbols)

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

1. Fjern døren opad.

1. Fjern dørhængslet.

Close-up of a white refrigerator interior with a blue arrow pointing to the lid area (no text or symbols visible)

1.

BEMAERK!

Fare for beskadiget overflade!

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

1. Fjern frontpanelet.

2. Afbryd alle slangeforbindelser.

3D rendering of a mechanical component with concentric rings and mounting brackets (no visible text or symbols)

1. Fjern dørpakningen.

Close-up of a metallic circular object with two red circular markers on the side (no text or symbols visible)

1. Fjern dørlåsen.

Reparation

▶ Sørg for at sikre apparater mod at glide.

Interior view of a washing machine showing internal components like hoses and gauges (no text or labels visible)

Front view of a white and red industrial washing machine with a circular vent (no visible text or symbols)

Fig. 1: Gruppeafdækning forneden

Preindstilling:

Close-up of a washing machine with red plastic components and a blue directional arrow indicating flow (no text or symbols visible)

Reparation

Close-up of a white washing machine interior showing internal components and a blue arrow indicating a motion or force (no text or symbols visible)

Close-up of a white industrial machine component with visible wiring and a blue arrow pointing to a component (no text or symbols)

2.

Interior view of a washing machine showing internal components and mounting holes (no text or symbols visible)

Reparation

1. Fjern frontpanelet.

3.11.2 Montering af frontpanel

Reparatie

Close-up of a washing machine door with visible internal components and two blue circular annotations highlighting specific parts (no text or symbols present)

3.2.2 Wasmiddellade monteren

3D cutaway diagram of a mechanical component showing internal parts and directional arrows (no text or symbols)

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

3.5.2 Deurcomponenten monteren

Close-up of a car interior showing a tire, cable, and a blue arrow pointing to the wheel (no text or symbols visible)

2.

LET OP!

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

3D rendering of a mechanical component with concentric rings and mounting brackets (no visible text or symbols)

Close-up of a metallic circular object with two red circular markers and a small square on the side (no text or symbols visible)

Interior view of a washing machine showing internal components like gears and hoses (no text or labels visible)

Front view of a white and red industrial washing machine with a circular vent (no visible text or symbols)

Close-up of a washing machine with red tubing inserted, showing internal components and a blue directional arrow (no text or symbols)

Reparatie

Interior view of a washing machine showing internal components and a blue arrow indicating a motion or flow direction (no text or symbols present)

Close-up of a white appliance with visible internal components and a blue arrow pointing to a component (no text or symbols)

2.

⚠️ VOORZICHTIG

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

Repair hints - Washing machine

i Concerning this document.... 103

1.1 Important information.... 103

1.1.1 Purpose.... 103

1.2 Explanation of symbols 103

1.2.1 Danger levels.... 103

1.2.2 Hazard symbols 103

1.2.3 Structure of the warnings.... 104

1.2.4 General symbols.... 104

Tools and aids.... 105

Repair 106

3.1 Replacing fascia panel.... 106

3.1.1 Removing fascia panel 106

3.1.2 Installing fascia panel 107

3.2 Replacing detergent drawer 108

3.2.1 Removing detergent drawer.... 108

3.2.2 Installing detergent drawer.... 108

3.3 Replacing detergent drawer handle 109

3.3.1 Removing detergent drawer handle.... 109

3.3.2 Installing detergent drawer handle.... 109

3.9.1 Removing drum light.... 117

3.9.2 Installing drum light.... 117

3.10 Replacing bottom cover.... 118

3.10.1 Removing bottom cover 118

3.10.2 Installing the cover 119

3.11 Replacing front panel 120

3.11.1 Removing front panel.... 120

3.11.2 Installing front panel.... 121

i Concerning this document

1.1 Important information

1.1.1 Purpose

These repair hints support consumer to repair appliances by himself according to the applicable eco-design regulation (as of 03/2021).

They contain information how to exchange defined spare parts including warnings and risks.

In case of questions, please contact our customer service. We will only be liable for damages if the repair hints have been followed properly.

1.2 Explanation of symbols

1.2.1 Danger levels

The warning levels consist of a symbol and a signal word. The signal word indicates the severity of the danger.

Warning level Meaning
Danger	Non-observance of the warning message will result in death or serious injuries.
Warning	Non-observance of the warning message could result in death or serious injuries.
Caution	Non-observance of the warning message could result in minor injuries.
Notice	Non-observance of the warning message could result in damage to property.

Table 1: Danger levels

1.2.2 Hazard symbols

Hazard symbols are symbolic representations which give an indication of the kind of danger.
The following hazard symbols are used in this document:

	Hazard symbol Meaning
		General warning message
		Danger from electrical voltage
		Risk of explosion
		Danger of cuts
		Danger of crushing

i Concerning this document

Hazard symbol Meaning
		Danger from hot surfaces
		Danger from strong magnetic field
		Danger from non-ionizing radiation

Table 2: Hazard symbols

1.2.3 Structure of the warnings

Warnings in this document have a standardised appearance and a standardised structure.

Type and source of danger!

Possible consequences of ignoring the danger / warning.

▶ Measures and prohibitions for preventing the danger.

The following example shows a warning that warns against electric shock due to live parts. The measure for avoiding the danger is mentioned.

Risk of electric shock due to live parts!

Death by electrocution

- Disconnect appliances from electrical supply at least 60 seconds before starting repairs.

1.2.4 General symbols

The following general symbols are used in this document:

Gen. symbol Meaning
	Identification of a special tip (text and/or graphic)
	Identification of a simple tip (only text)
	Identification of a link to a video tutorial

Gen. symbol Meaning
	Identification of required tools
	Identification of required preconditions
	Identification of a condition (if ..., then ...)
	Identification of a result
[Start] Identification of a key or button
[00123456] Identification of a material number
Status Identification of displayed text / window(in the appliance's display)

Table 3: General symbols

Tools and aids

Designation Details Images
Auxiliary tool[15000155]	Tool for loosening out of plastic parts
Screwdriver Torx T20 with bore hole [00340764]	100 mm, for screws with safety pin
Torque spanner [15000441]	Torque spanner 20 - 100 Nm
Slot screwdriver [00340854]	Blade 3.5 mm x 0.6 mm x 100 mm, Protective Insulation 1000 V AC
Slot screwdriver [00340855]	Blade 5.5 mm x 1.0 mm x 125 mm, Protective Insulation 1000 V AC
Needle-nose pliers, angled pattern [00341269]	Length 200 mm
Side-cutting pliers [00342182]	Length: 200 mm

Designation Details Images
Combination wrench[00340811]	Wrench size 10°mm, M6	_AW3A]
Combination wrench[00340814]	Wrench size 13°mm, M8
Combination wrench[00340817]	Wrench size 17 mm, M10	_CHHX]
Combination wrench[15000459]	Wrench size 16°mm, M10

Repair

3.1 Replacing fascia panel

Sharp housing edges!

Cut injuries

▶ Wear protective gloves.

Slipping of tilted appliances!

Bone fractures / crush injuries

- Secure appliances against slipping.

Risk of falling parts due to released screws!

Injury because of falling parts.

▶ Secure component from falling down.

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bot- tom.

- Secure component from falling down.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Appliances is freely accessible.
Detergent drawer has been removed.→ Page 108

3.1.1 Removing fascia panel

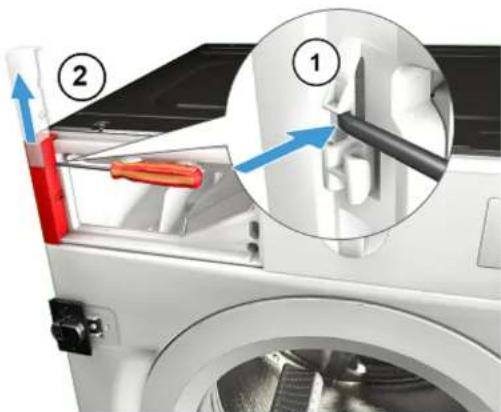

1. 1. Release catch element (1).
2. Remove cover (2).

Repair

1. Remove screws. 3. 1. Release catch elements (1, 2).

Close-up of a washing machine front panel with blue circular annotations highlighting internal components (no text or symbols visible)

1. Pull fascia panel to the front (3).

1. Remove fascia panel.

3.1.2 Installing fascia panel

▶ Install in reverse order.

Repair

3.2 Replacing detergent drawer

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.

3.2.1 Removing detergent drawer

1. Pull out detergent drawer.
   2.1. Press down on insert (1).

2. Remove detergent drawer (2).

3.2.2 Installing detergent drawer

▶ Install in reverse order.

Repair

3.3 Replacing detergent drawer handle

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Detergent drawer has been removed.→ Page 108

3.3.1 Removing detergent drawer handle

1. Release catch elements.

3D cutaway diagram of a mechanical assembly showing internal components and directional arrows (no text or symbols)

1. Remove detergent drawer handle.

3.3.2 Installing detergent drawer handle

▶ Install in reverse order.

Repair

3.4 Replacing door

Open hinge areal

Finger crushing / entrapment

▶ Do not reach into the hinge area.

▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Door is opened.
√ Furniture panel has been removed.

3.4.1 Removing door

1.

Notice

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bottom.

▶ Secure component from falling down.

Risk of falling parts due to released screws!

Injury because of falling parts

- Secure component from falling down.

Remove screws (1).

3D rendering of a washing machine with a red arrow pointing to the door panel (no text or symbols visible)

1. Remove door upwards.

▶ Install in reverse order.

Repair

3.5 Replacing door components

Open hinge areal

Finger crushing / entrapment

▶ Do not reach into the hinge area.

▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Furniture panel has been removed.
√ Door has been removed.→ Page 110

3.5.1 Removing door components

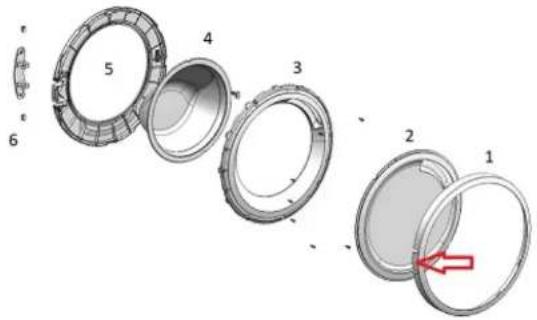

▶ Disassemble door from outside to inside.

3.5.2 Installing door components

▶ Install in reverse order.

Repair

Finger crushing / entrapment

▶ Do not reach into the hinge area.

▶ Wear protective gloves.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.

1. Release two screws.
2. Remove door.
3. Disassemble door from outside to inside.

1. Remove door hinge.

▶ Install in reverse order.

Repair

3.7 Replacing door seal

Sharp housing edges!

Cut injuries

▶ Wear protective gloves.

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bot-

tom.

- Secure component from falling down.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Appliances is freely accessible.
√ Detergent drawer has been removed.→ Page 108
√ Fascia panel has been removed.
√ Door has been removed. → Page 110
√ Bottom cover has been removed.→ Page 118

1. Loosen the retainer on the drum light.

Close-up of a white washing machine's rear door with a blue arrow pointing to the wheel (no visible text or symbols)

1.

Notice

Risk of damaged surface!

Surface of appliance can be scratched by using wrong tools.

▶ Only use plastic tools to replace the tension ring.

Remove tension ring from gasket with a plastic tool.

1. Release door seal from front panel.
2. Release cable connector from door lock.

Repair

1. Loosen the screws in the indicated order.

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

1. Remove front panel.

2. Disconnect all hose connections.

3D rendering of a mechanical component with concentric rings and mounting brackets (no visible text or symbols)

1. Remove door seal.

▶ Install in reverse order.

Repair

3.8 Replacing door lock

As a manufacturer, we are obliged to provide consumers with the spare part door lock including repair instructions in accordance with Regulation (EU) 2019/2023. However, we would like to point out that after replacing a door lock, an electrotechnical safety test by a qualified electrician is required before the device is put into operation. This person must be verifiably qualified according to the country-specific laws, regulations and standards.

Risk of electric shock due to live parts!

Danger to life through electric shock in case of improper repair

▶ Electric parts should be repaired by a qualified electricians.

After the repair have a safety test according VDE 0701 or country-specific regulations performed.

Sharp housing edges!

Cut injuries

▶ Wear protective gloves.

Slipping of tilted appliances!

Bone fractures / crush injuries

▶ Secure appliances against slipping.

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bot- tom.

- Secure component from falling down.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.

√ Appliances is freely accessible.
√ Furniture panel has been removed.
√ Fascia panel has been removed.
√ Door has been removed.→ Page 110
√ Tension ring has been removed.
√ Front panel has been removed.
√ Door seal has been removed.

1. Disconnect door lock plug.
2. Release door lock.

Close-up of a metallic circular object with two red circular markers and a small square on the surface (no text or symbols visible)

1. Remove door lock.

Repair

▶ Install in reverse order.

Repair

3.9 Replacing drum light

Sharp housing edges!

Cut injuries

▶ Wear protective gloves.

Slipping of tilted appliances!

Bone fractures / crush injuries

- Secure appliances against slipping.

Risk of falling parts due to released screws!

Injury because of falling parts.

- Secure component from falling down.

Risk of falling parts due to released screws!

Damage to other parts of the appliance or at customers home e.g. bot- tom.

- Secure component from falling down.

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Appliances is freely accessible.
√ Detergent drawer has been removed.→ Page 108
√ Fascia panel has been removed.

3.9.1 Removing drum light

Interior view of a washing machine showing internal components like hoses and gauges (no text or labels visible)

1. Pull drum light holder out of appliance.
2. Disconnect electrical connections.
3. Remove drum light from drum light holder.

3.9.2 Installing drum light

▶ Install in reverse order.

Repair

3.10 Replacing bottom cover

Front view of a white and red industrial washing machine with a circular vent (no visible text or symbols)

Fig. 1: Bottom group cover

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Furniture panel has been removed.

3.10.1 Removing bottom cover

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
1. Remove bottom cover.

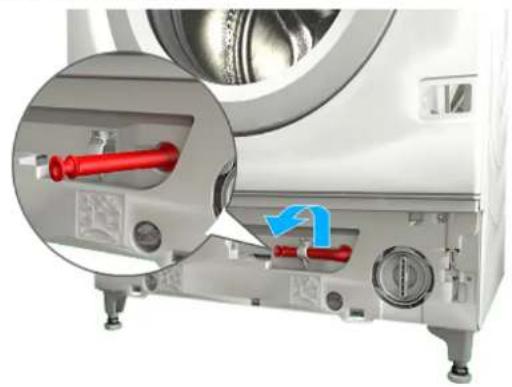

1. Detach hose from the holder.


Close-up of a washing machine with red plastic tubing and blue directional arrow indicating a component (no text or symbols visible)

Repair

1. 1. Unscrew the screw (1).

2. Press retaining point and remove downwards (2).

1. Pull bottom group cover and remove forwards.

Interior view of a washing machine showing internal components and a blue arrow indicating a flow direction (no text or symbols present)

1. Pull hose out of the cover.

3.10.2 Installing the cover

▶ Install in reverse order.

Repair

3.11 Replacing front panel

Prerequisite:

√ Appliance is disconnected from power supply.
√ Appliance is disconnected from water supply.
√ Appliances is freely accessible.
√ Detergent drawer has been removed.→ Page 108
√ Furniture panel has been removed.
√ Door has been removed.→ Page 110
√ Door seal has been removed.

3.11.1 Removing front panel

1. Loosen the retainer on the drum light.

Close-up of a white washing machine interior with visible wiring and a blue arrow pointing to the component (no text or symbols)

2.

Caution

Risk of falling parts due to released screws! Injury because of falling parts.

- Secure component from falling down.

Notice

Risk of falling parts due to released screws! Damage to other parts of the appliance or at customers home e.g. bottom.

▶ Secure component from falling down.

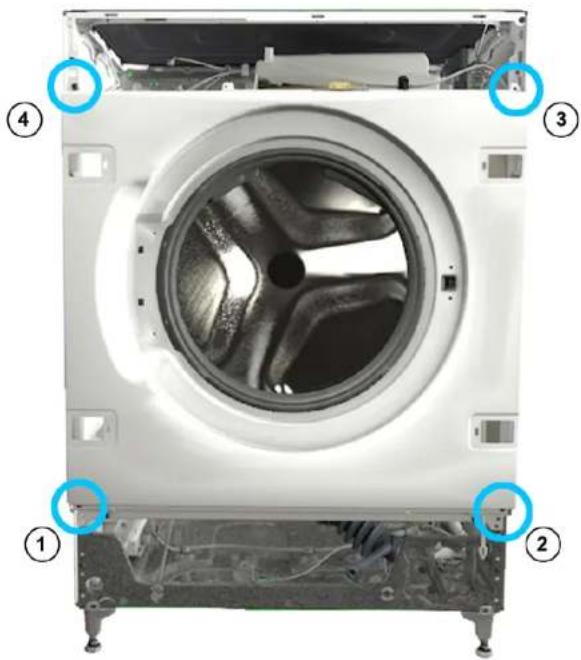

Loosen the screws in the indicated order.

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

Repair

1. Remove front panel.

3.11.2 Installing front panel

▶ Install in reverse order.

Remonditeave - Pesumasin

i Selle dokumendiga seoses 123

1.1 Tähtis teave 123

1.1.1 Eesmärk 123

1.2 Sümbolite selgitus 123

1.2.1 Ohutasemed.... 123

Remont

Close-up of a washing machine door with visible internal components and two blue circular annotations highlighting specific parts (no text or symbols present)

3.2.2 Pesuaine sahtli paigaldamine

▶ Paigaldage vastupidises järjekorras.

Remont

3D mechanical assembly diagram showing internal components and directional arrows (no text or symbols)

3D rendering of a washing machine with a red arrow pointing to the door panel (no text or symbols visible)

3.5.2 Ukse osade paigaldamine

▶ Paigaldage vastupidises järjekorras.

Remont

Close-up of a white washing machine interior with visible wiring and a blue arrow pointing to a component (no text or symbols)

2.

TÄHELEPANU!

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

3D rendering of a mechanical component with concentric rings and mounting brackets (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

1. Eemaldage ukselukk.

Remont

Interior view of a washing machine showing internal components like coiled hoses and ventilation ducts (no text or symbols visible)

Front view of a white and red industrial washing machine with a circular vent (no visible text or symbols)

Joonis 1: Pōhja multikate

Nõue:

Close-up of a washing machine with red plastic components and a blue directional arrow indicating flow (no text or symbols visible)

Remont

Interior view of a washing machine showing internal components and a blue arrow indicating a flow direction (no text or symbols present)

Close-up of a white car interior with a blue arrow pointing to a cable or component, no visible text or symbols.

2.

ETTEVAATUST!

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

Remont

1. Eemaldage esipaneel.

3.11.2 Esipaneeli paigaldamine

▶ Paigaldage vastupidises järjekorras.

Korjaus

1. Poista ruuvit. 3. 1. Vapauta lukitusosat (1, 2).

Close-up of a washing machine front panel with blue circular annotations highlighting internal components (no text or symbols visible)

3.2.2 Pesuainelokeron asentaminen

3D cutaway diagram of a mechanical component showing internal parts and directional arrows (no text or symbols)

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols)

Close-up of a mechanical component with a blue arrow pointing to a component, no visible text or symbols.

2.

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

3D rendering of a mechanical component with concentric rings and mounting brackets (no visible text or symbols)

1. Poista luukun tiiviste.

Close-up of a metallic circular object with three red circles and a small square on the surface (no text or symbols visible)

Interior view of a washing machine showing internal components like gears and hoses (no text or labels visible)

Front view of a white and red industrial washing machine with a circular vent (no visible text or symbols)

Close-up of a washing machine with red plastic tubing and blue directional arrow indicating a component (no text or symbols visible)

Korjaus

Interior view of a washing machine showing internal components and a blue arrow indicating a flow direction (no text or symbols present)

Close-up of a white washing machine interior with visible wiring and a blue arrow pointing to the component (no text or symbols)

2.

HUOMAA

Interior view of a washing machine showing internal components and labeled parts (no text or symbols beyond numbered annotations)

Korjaus

1. Poista etupaneeli.

3.11.2 Etupaneelin asentaminen

Réparation

Close-up of a washing machine door with visible internal components and two blue circular annotations highlighting specific parts (no text or symbols present)

3D cutaway diagram of a mechanical component showing internal parts and directional arrows (no text or symbols)

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Close-up of a white car interior with visible battery, ventilation ducts, and a blue arrow pointing to a component (no text or symbols)

2.

ATTENTION

Risque de dommage superficiel !

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

3D rendering of a mechanical component with concentric rings and mounting brackets (no visible text or symbols)

1. Retirer le joint de porte.

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

1. Retirer la fermeture de porte.

Réparation

Interior view of a washing machine showing internal components and ventilation ducts (no text or symbols visible)

Front view of a white and red industrial washing machine with a circular vent (no visible text or symbols)

Close-up of a washing machine with red plastic components and a blue directional arrow indicating flow or movement (no text or symbols visible)

Réparation

Interior view of a washing machine showing internal components and a blue arrow indicating a flow direction (no text or symbols present)

Close-up of a white car interior with visible battery, ventilation duct, and cable (no text or symbols)

1.

PRUDENCE

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

Réparation

Instandsetzen

Close-up of a washing machine door with visible internal components and two blue circular annotations highlighting specific parts (no text or symbols present)

3D mechanical assembly diagram showing internal components and directional arrows (no text or symbols)

3D rendering of a washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Close-up of a white washing machine interior with visible wiring and a blue arrow pointing to a component (no text or symbols)

2.

ACHTUNG

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

3D rendering of a mechanical component with concentric rings and mounting brackets (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

Interior view of a washing machine showing internal components like hoses and gauges (no text or labels visible)

Front view of a white and red washing machine with a circular vent, no visible text or symbols.

Close-up of a washing machine with red tubing inserted, showing internal components and a blue directional arrow (no text or symbols)

Instandsetzen

Interior view of a washing machine showing internal components and a blue arrow indicating a motion or flow direction (no text or symbols present)

Close-up of a white mechanical component with a blue arrow pointing to a cable or connector (no visible text or symbols)

1.

VORSICHT

Interior view of a washing machine showing the front wheel, casing, and base components (no text or symbols visible)

Instandsetzen

Επισκευή

Close-up of a washing machine front panel with blue circular annotations highlighting internal components (no text or symbols visible)

3D mechanical assembly diagram showing internal components and directional arrows (no text or symbols)

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Close-up of a washing machine's rear door with a blue arrow pointing to the wheel (no text or symbols visible)

2.

ΠΡΟΣΟΧΗ!

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

3D rendering of a mechanical component with concentric rings and mounting brackets (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

Interior view of a washing machine showing internal components like gears and hoses (no text or labels visible)

Front view of a white and red industrial washing machine with a circular vent (no visible text or symbols)

Close-up of a washing machine with red plastic components and a magnified inset showing internal tubing (no text or symbols visible)

Επισκευή

Interior view of a washing machine showing internal components and a blue arrow indicating a motion or flow direction (no text or symbols present)

Close-up of a car interior showing a tire, dashboard, and cable (no visible text or symbols)

2.

Interior view of a washing machine showing internal components and labeled parts (no text or symbols beyond numbered annotations)

Επισκευή

Javítás

Close-up of a washing machine door with visible internal components and two blue circular annotations highlighting specific parts (no text or symbols present)

3D mechanical assembly diagram showing internal components and directional arrows (no text or symbols)

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Close-up of a car interior showing a blue arrow pointing to a component, with no visible text or symbols.

2.

FIGYELEM!

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

3D rendering of a mechanical component with concentric rings and mounting brackets (no visible text or symbols)

Close-up of a metallic circular object with two red circular markers and a small square on the surface (no text or symbols visible)

Interior view of a washing machine showing internal components and ventilation ducts (no text or symbols visible)

Front view of a white and red industrial washing machine with a circular vent (no visible text or symbols)

Close-up of a washing machine with red plastic components and a blue directional arrow indicating flow (no text or symbols visible)

Javítás

Interior view of a washing machine showing internal components and a blue arrow indicating a motion or flow direction (no text or symbols present)

Close-up of a white electronic device with a blue arrow pointing to a component, showing internal wiring and a tire (no text or symbols visible)

1.

VIGYÁZAT

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

Javítás

Riparazione

Close-up of a washing machine door with visible internal components and two blue circular annotations highlighting specific parts (no text or symbols present)

3D cutaway diagram of a mechanical assembly showing internal components and directional arrows (no text or symbols)

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Close-up of a white electronic device with a blue arrow pointing to a component, showing internal wiring and a circular fan (no text or symbols visible)

2.

ATTENZIONE!

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

3D rendering of a mechanical component with concentric rings and mounting brackets (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

Interior view of a washing machine showing internal components like gears and hoses (no text or labels visible)

Front view of a white and red washing machine with a circular vent, no visible text or symbols.

Close-up of a washing machine with red plastic components and a blue directional arrow indicating motion (no text or symbols)

Riparazione

Interior view of a washing machine showing internal components and a blue arrow indicating a flow direction (no text or symbols)

Close-up of a white car interior with visible tire and cable, no text or symbols present

2.

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

Riparazione

Remonts

Close-up of a washing machine front panel with blue circular annotations highlighting internal components (no text or symbols visible)

3D cutaway diagram of a mechanical component showing internal layered structure with two upward-pointing arrows indicating features (no text or symbols present)

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

1. Nonemiet durtinu enği.

Close-up of a white washing machine interior with a blue arrow pointing to the wheel (no text or symbols visible)

2.

UZMANIBU!

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

1. Nonemiet priekšejo paneli.

2. Atvienojiet visus cauruju savienojumus.

3D rendering of a mechanical component with concentric rings and mounting brackets (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

1. Nonemiet durtinu slēgu.

Remonts

Interior view of a washing machine showing internal components and ventilation ducts (no text or symbols visible)

Front view of a white and red washing machine with a circular vent, no visible text or symbols.

Close-up of a washing machine with red plastic components and a blue directional arrow indicating flow (no text or symbols visible)

Remonts

Interior view of a washing machine showing internal components and a blue arrow indicating a flow direction (no text or symbols present)

Close-up of a white industrial machine component with a blue arrow pointing to a cable or cable outlet (no visible text or symbols)

2.

ESIET PIESARDZİGI

Interior view of a washing machine showing internal components and mounting holes (no text or symbols visible)

Remonts

Remontas

Close-up of a washing machine front panel with blue circular annotations highlighting internal components (no text or symbols visible)

1. Nuimkite antjuostę.

3D mechanical assembly diagram showing internal components and directional arrows (no text or symbols)

3D rendering of a washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Close-up of a white washing machine interior with a blue arrow pointing to the wheel (no text or symbols visible)

2.

DÉMESIO!

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

3D rendering of a mechanical component with concentric rings and mounting brackets (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

Interior view of a washing machine showing internal components like hoses and gauges (no text or labels visible)

Front view of a white and red washing machine with a circular vent, no visible text or symbols.

Pav. 1: Apatinés grupés dangtis

Reikalavimas.

Close-up of a washing machine with red plastic components and a magnified inset showing internal tubing (no text or symbols visible)

Remontas

Interior view of a washing machine showing internal components and a blue arrow indicating a flow direction (no text or symbols present)

Close-up of a white car interior with visible battery, wheels, and a blue arrow pointing to a component (no text or symbols)

1.

PERSPÉJIMAS

Pavojus, kad atpalaidavus varžtus dalys nukris!

Interior view of a washing machine showing internal components and casing (no text or symbols visible)

Remontas

Reparasjon

1. Fjern skruene. 3. 1. Løsne läselementene (1, 2).

Close-up of a washing machine door with visible internal components and two blue circular annotations highlighting specific parts (no text or symbols present)

1. Trekk instrumentpanelet mot forsiden (3).

1. Demonter instrumentpanelet.

3D cutaway diagram of a mechanical component showing internal structure and mounting features (no text or symbols)

3D rendering of a washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Fare for â knuse/sette fast fingre

Close-up of a white mechanical component with a blue arrow pointing to a component, showing internal structure and no visible text or symbols.

2.

OBS!

Fare for skader på overflaten!

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

1. Demonter frontpanelet.

2. Koble fra alle slangekoblingene.

3D rendering of a mechanical component with concentric rings and mounting brackets (no visible text or symbols)

Close-up of a metallic circular object with two red circular markers on the side (no text or symbols visible)

1. Demonter dørlåsen.

Reparasjon

Interior view of a washing machine showing internal components and ventilation ducts (no text or symbols visible)

Front view of a white and red washing machine with a circular vent, no visible text or symbols.

Bilde 1: Nedre gruppedeksel

Forutsetning:

Close-up of a washing machine with red tubing inserted into the housing, showing internal components and a blue directional arrow (no text or symbols)

Reparasjon

Interior view of a washing machine showing internal components and a blue arrow indicating a flow direction (no text or symbols present)

Close-up of a white car interior with visible engine and wheel, featuring a blue arrow pointing to a component (no text or symbols)

1.

FORSIKTIG

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

Reparasjon

1. Demonter frontpanelet.

Naprawy

Close-up of a washing machine door with visible internal components and two blue circular annotations highlighting specific parts (no text or symbols present)

3D cutaway diagram of a mechanical assembly showing internal components and directional arrows (no text or symbols)

3D rendering of a washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Close-up of a mechanical device with a blue arrow pointing to a component, no visible text or symbols

2.

UWAGA!

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

3D rendering of a mechanical component with concentric rings and mounting brackets (no visible text or symbols)

Close-up of a metallic circular object with two red circular markers on the side (no text or symbols visible)

Interior view of a washing machine showing internal components like hoses and gauges (no text or labels visible)

Front view of a white and red industrial washing machine with a circular vent (no visible text or symbols)

Close-up of a washing machine with red plastic components and a blue directional arrow indicating flow (no text or symbols visible)

Naprawy

Interior view of a washing machine showing internal components and a blue arrow indicating a flow direction (no text or symbols)

Close-up of a white industrial machine with visible internal components and a blue arrow pointing to a component (no text or symbols)

1.

⚠ WAŻNE

Interior view of a washing machine showing internal components and labeled parts (no text or symbols beyond numbered annotations)

Naprawy

Reparação

1. Remova os parafusos. 3. 1. Solte os elementos de encaixe (1, 2).

Close-up of a washing machine door with visible internal components and two blue circular annotations highlighting specific parts (no text or symbols present)

1. Puxe o painel dos comandos para a frente (3).

1. Remova o painel dos comandos.

3.1.2 Instalar o painel dos comandos

3.2.2 Instalar a gaveta para detergente

3D cutaway diagram of a mechanical assembly showing internal components and directional arrows (no text or symbols)

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

Close-up of a white car interior with visible tire and cable, no text or symbols present

2.

ATENÇÃO!

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

3D rendering of a mechanical component with concentric rings and mounting brackets (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

Interior view of a washing machine showing internal components like gears and hoses (no text or labels visible)

Front view of a white and red industrial washing machine with a circular vent (no visible text or symbols)

Fig. 1: Tampa do conjunto inferior

Pré-requisito:

Close-up of a washing machine with red plastic components and a blue directional arrow indicating flow or movement (no text or symbols visible)

Reparação

Interior view of a washing machine showing internal components and a blue arrow indicating a motion or flow direction (no text or symbols present)

Close-up of a white car interior with visible engine, wheels, and a blue arrow pointing to a component (no text or symbols)

1.

CUIDADO

Interior view of a washing machine showing internal components and labeled parts (no text or symbols beyond numbered annotations)

Reparação

1. Remova o painel frontal.

3.11.2 Instalar o painel frontal

Repararea

Close-up of a washing machine door with blue circular annotations highlighting internal components (no text or symbols visible)

3D cutaway diagram of a mechanical component showing internal structure and mounting features (no text or symbols)

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

3.5.2 Montarea componentelor uşii

Close-up of a car interior showing a tire, cable, and a blue arrow pointing to the wheel (no text or symbols visible)

2.

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

3D rendering of a mechanical component with concentric rings and mounting brackets (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

Interior view of a washing machine showing internal components like hoses and gauges (no text or labels visible)

Front view of a white and red industrial washing machine with a circular vent (no visible text or symbols)

Close-up of a washing machine with red plastic components and a blue directional arrow indicating flow or movement (no text or symbols visible)

Repararea

Interior view of a washing machine showing internal components and a blue arrow indicating a flow direction (no text or symbols present)

Close-up of a white car interior with visible tire, cable, and ventilation duct (no text or symbols)

2.

ATENTIONARE

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

Oprava

Close-up of a washing machine front panel with blue circular annotations highlighting internal components (no text or symbols visible)

1. Odoberte panel obloženia.

3.1.2 Montáž panelu obloženia

3D mechanical assembly diagram showing internal components and directional arrows (no text or symbols)

3D rendering of a washing machine with a red arrow pointing to the door panel (no text or symbols visible)

1. Odoberte dvere smerom nahor.

3.4.2 Montáž dverí

Close-up of a white electronic device with a blue arrow pointing to a component, showing internal wiring and a tire (no text or symbols visible)

2.

POZOR!

Riziko poškodenia povrchu!

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

3D rendering of a mechanical component with concentric rings and mounting brackets (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

1. Odoberte poistku dvierok.

Oprava

Interior view of a washing machine showing internal components and ventilation ducts (no text or symbols visible)

1. Vytiahnite držiak osvetlenia bubna spotrebiča.
2. Odpojte elektrické pripojenia.
3. Odoberte osvetlenie bubna z držiaka osvetlenia bubna.

Front view of a white and red industrial washing machine with a circular vent (no visible text or symbols)

Close-up of a washing machine with red plastic components and a blue directional arrow indicating flow (no text or symbols visible)

Oprava

1. 1. Odskrutkujte skrutku (1).

2. Zatlačte na zachytávací bod a odoberte ho smerom nadol (2).

Interior view of a washing machine showing internal components and a blue arrow indicating a flow direction (no text or symbols)

1. Vytiahnite hadicu z krytu.

3.10.2 Montáž krytu

Close-up of a white mechanical device with a blue arrow pointing to a component, showing internal structure and no visible text or symbols.

2.

UPOZORNENIE

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

Oprava

Popravilo

1. Odstranite vijake. 3. 1. Sprostite držalne elemente (1, 2).

Close-up of a washing machine door with visible internal components and two blue circular annotations highlighting specific parts (no text or symbols present)

3D cutaway diagram of a mechanical component showing internal layered structure with two upward-pointing arrows indicating features (no text or symbols present)

1. Odstranite ročaj predalčka za detergent.

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

1. Odstranite vrata v smeri navzgor.

Close-up of a white washing machine interior with a blue arrow pointing to the wheel (no text or symbols visible)

2.

POZOR!

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

3D rendering of a mechanical component with concentric rings and mounting holes (no text or symbols visible)

1. Odstranite tesnilo vrat.

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

1. Odstranite varovalo vrat.

Popravilo

Interior view of a washing machine showing internal components and ventilation ducts (no text or symbols visible)

1. Izvlecite držalo luči bobna iz aparata.
2. Odklopite električne priključke.
3. Odstranite luč bobna z držala luči bobna.

Front view of a white and red industrial washing machine with a circular vent (no visible text or symbols)

Close-up of a washing machine with red plastic components and a blue directional arrow indicating flow or movement (no text or symbols visible)

Popravilo

Interior view of a washing machine showing internal components and a blue arrow indicating a flow direction (no text or symbols present)

Close-up of a white appliance with a blue arrow pointing to a component, showing internal wiring and a tire (no text or symbols visible)

2.

PREVIDNO

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

Popravilo

Reparación

Close-up of a washing machine door with visible internal components and two blue circular annotations highlighting specific parts (no text or symbols present)

3.2.2 Montar el compartimento para detergente

▶ Montar en orden inverso.

Reparación

3.3 Sustituir el tirador del compartimento para detergente

Requisito:

3D cutaway diagram of a mechanical component showing internal structure and mounting features (no text or symbols)

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols)

Close-up of a white washing machine interior with visible wiring and a blue arrow pointing to a component (no text or symbols)

2.

ATENCION

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

3D rendering of a mechanical component with concentric rings and mounting brackets (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

Interior view of a washing machine showing internal components and ventilation ducts (no text or symbols visible)

Front view of a white and red industrial washing machine with a circular vent (no visible text or symbols)

Close-up of a washing machine with red plastic components and a blue directional arrow indicating motion (no text or symbols)

Reparación

Interior view of a washing machine showing internal components and a blue arrow indicating a motion or flow direction (no text or symbols present)

Close-up of a white appliance with a blue arrow pointing to a cable or connector, showing internal components and a tire (no text or symbols visible)

1.

PRECAUCIÓN

Interior view of a washing machine showing internal components and casing (no text or symbols visible)

Reparación

Reparation

Close-up of a washing machine door with visible internal components and two blue circular annotations highlighting specific parts (no text or symbols present)

1. Dra kontrollpanelen mot fronten (3).

1. Ta bort kontrollpanelen.

3.1.2 Montera kontrollpanel

3D cutaway diagram of a mechanical component showing internal structure and mounting features (no text or symbols)

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols visible)

3.5.2 Montera luckans komponenter

Close-up of a white mechanical component with a blue arrow pointing to a component, showing internal structure and no visible text or symbols.

1.

OBS!

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

1. Ta bort frontpanelen.

2. Lossa alla slangkopplingar.

3D rendering of a mechanical component with concentric rings and mounting brackets (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

1. Ta bort luckans lás.

Reparation

Interior view of a washing machine showing internal components like wheels and tubing (no text or symbols visible)

Front view of a white and red industrial washing machine with a circular vent (no visible text or symbols)

Close-up of a washing machine with red plastic components and a blue directional arrow indicating motion (no text or symbols)

Reparation

Interior view of a washing machine showing internal components and a blue arrow indicating a flow direction (no text or symbols)

1. Dra ut slangen ur höljet.

3.10.2 Montera höljet

Close-up of a white car interior with a blue arrow pointing to a component, showing no visible text or symbols.

2.

Interior view of a washing machine showing the front wheel, casing, and base panel (no text or symbols visible)

Reparation

1. Ta bort frontpanelen.

3.11.2 Montera frontpanel

Onarim

Close-up of a washing machine door with blue circular annotations highlighting internal components (no text or symbols visible)

3D mechanical assembly diagram showing internal components and directional arrows (no text or symbols)

3D rendering of a gray washing machine with a red arrow pointing to the door panel (no text or symbols)

Close-up of a mechanical component with a blue arrow pointing to a component, no visible text or symbols

1.
   DİKKAT!

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

3D rendering of a mechanical component with concentric rings and mounting brackets (no visible text or symbols)

Close-up of a metallic circular object with three red circular markers on its surface (no text or symbols visible)

Interior view of a washing machine showing internal components and ventilation ducts (no text or symbols visible)

Front view of a white and red industrial washing machine with a circular vent (no visible text or symbols)

Close-up of a washing machine with red plastic components and a blue directional arrow indicating flow or movement (no text or symbols visible)

Onarim

Interior view of a washing machine showing internal components and a blue arrow indicating a flow direction (no text or symbols)

Close-up of a white washing machine interior with visible wiring and a blue arrow pointing to the component (no text or symbols)

1.

DiKKAT

Interior view of a washing machine showing the front wheel, casing, and internal components (no text or symbols visible)

Onarim

1. Ön paneli sökünüz.
