| Product Type | Cordless Hedge Trimmer |
| Brand | EGO |
| Model | HT2410E |
| Voltage | 56 V |
| No-load speed | 3000 strokes per minute (max) |
| Cutting Length | 61 cm |
| Max Cutting Capacity | 26 mm |
| Weight (without battery, without sheath) | 3.1 kg |
| Recommended Operating Temperature | 0°C to 40°C |
| Recommended Storage Temperature | -20°C to 70°C |
| Guaranteed Sound Power Level | 96 dB(A) |
| Sound Pressure Level (operator position) | 86.47 dB(A) (K=3.0 dB(A)) |
| Vibration (front handle) | 1.542 m/s² (K=1.5 m/s²) |
| Vibration (rear handle) | 1.652 m/s² (K=1.5 m/s²) |
| Main Features | Dual safety switches, lock button, ergonomic handles, blade sheath, blade guard |
| Maintenance and Cleaning | Soft brush for vents and blades, resin solvent for sap, dry cloth. Do not use water. Lubricate blades before/after use |
| Safety | Wear safety glasses and hearing protection. Always hold with both hands. Do not touch the blade while operating. Remove battery before maintenance |
| Spare Parts and Repairability | Use only identical replacement parts. Entrust repairs to a qualified EGO authorized repair technician |
| Warranty | See full terms at egopowerplus.eu |
Frequently Asked Questions - HT2410E EGO
User questions about HT2410E EGO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hedge Trimmer in PDF format for free! Find your manual HT2410E - EGO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HT2410E by EGO.
USER MANUAL HT2410E EGO
EN 56 Volt lithium-ion cordless hedge trimmer
DE 56 Volt lithium-ionen kabellose heckenschere 9
FR Taille-haie sans fil lithium-ion 56 v 15
READ OPERATOR'S MANUAL
⚠ WARNING: To ensure safety and reliability, all repairs and replacements should be performed by a qualified service technician.
WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.
SAFETY SYMBOLS
WARNING: The operation of any power tools can result in foreign objects being thrown into your eyes, which can result in severe eye damage. Before beginning power tool operation, always wear safety goggles or safety glasses with side shields and a full face shield when needed. We recommend a Wide Vision Safety Mask for use over eyeglasses or standard safety glasses with side shields.
Safety Alert
To reduce the risk of injury, user must read the operator's manual.
This product is in accordance with applicable EC directives.
Guaranteed sound power level. Noise emission to the environment according to the European community's Directive.
Waste electrical products should not be disposed of with household waste. Take to an authorized recycler.
This product is in accordance with applicable UK legislation.
Never attempt to operate your power tool with one hand. Loss of control of the power tool resulting in serious or fatal injury may result. To reduce the risk of cut injuries, keep hands and feet away from the cutting tool. Never attach a moving cutting tool with your hand or any other part of your body.
Wear Eye Protectionl-Always wear safety goggles or safety glasses with side shields and a full face shield when operating this product.
Max. Cutting capacity of the blade
The length of the blade
Wear ear protection V Voltage
Direct Current SPM Strokes per Minute
mm Millimeter cm Centimeter
n_0
No Load Speed
SPECIFICATIONS
| Model HT2410E HT2000E | |||
| Voltage | 56 V --- | 56 V --- | |
| No-Load Speed Max. 3000 SPM 3000 SPM | |||
| Blade Length 61 cm 51 cm | |||
| Cutting Capacity 26 mm 25 mm | |||
| Weight (without battery pack) | 3.1 kg 2.9 kg | ||
| Recommended Operating Temperature | 0°C-40°C 0°C-40°C | ||
| Recommended Storage Temperature | -20°C-70°C -20°C | C-70°C | |
| Measured sound power level L_WA | 94.47 dB(A)K=1.5 dB(A) | 91.24 dB(A)K=1.03 dB(A) | |
| Sound pressure level at operator's position L_PA | 86.47 dB(A)K=3.0 dB(A) | 83.24 dB(A)K=3.0 dB(A) | |
| Guaranteed sound power level L_WA (according to 2000/14/EC) | 96 dB(A) 92 dB(A) | ||
| Vibration a_n | FrontHandle | 1.542 m/s ^2 K=1.5 m/s ^2 | 1.682 m/s ^2 K=1.5 m/s ^2 |
| RearHandle | 1.652 m/s ^2 K=1.5 m/s ^2 | 1.790 m/s ^2 K=1.5 m/s ^2 | |
■ The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another;
■ The declared vibration total value may also be used in a preliminary assessment of exposure.
NOTICE: The vibration emission during actual use of the power tool can differ from the declared value in which the tool is used; In order to protect the operator, user should wear gloves and ear protectors in the actual conditions of use.
PACKING LIST (FIG. A1)
DESCRIPTION
KNOW YOUR HEDGE TRIMMER (Fig. A1)
- Hanging hole
- Tip protector
- Blade
- Hand guard
-
Front handle
-
Lock-off button
- Rear handle
- Battery-release button
- Latch
- Electric contacts
- Battery-mounting slot
- Batter-ejection
- Rear switch lever
- Front switch lever
- Hanging hole
- Blade guard
WARNING: This product has been shipped completely assembled. The hand guard shall never be removed during use. Once damaged, replace it immediately by a qualified service technician.
WARNING: The safe use of this product requires an understanding of the information on the tool and in this operator's manual, as well as knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules.
OPERATION
WARNING: Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.
WARNING: Always wear eye protection with side shields, along with hearing protection. Failure to do so could result in objects being thrown into your eyes and other possible serious injuries.
WARNING: To prevent accidental starting that could cause serious personal injury, always remove the battery pack from the tool when assembling parts, making adjustments, cleaning, or when not in use.
⚠ WARNING: Do not use any attachments or accessories not recommended by EGO™. The use of attachments or accessories not recommended can result in serious personal injury.
Before each use, inspect the entire product for damaged, missing, or loose parts, such as screws, nuts, bolts, caps, etc. Tighten securely all fasteners and caps and do not operate this product until all missing or damaged parts are replaced.
APPLICATION
HT2410E: You may use this product for trimming the hedges, shrubs and bushes with a branch diameter of less than 26mm (HT2410E) / 25mm (HT2000E).
EN
NOTICE: The tool is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse.
INSTALLING/REMOVING THE BATTERY PACK
Use only with battery packs and chargers listed in fig.A2.
Charge before first use.

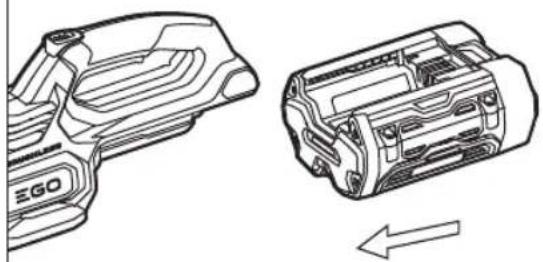

To Install (Fig. B)
Align the battery ribs with the mounting slots and press the battery pack down until you hear a "click".

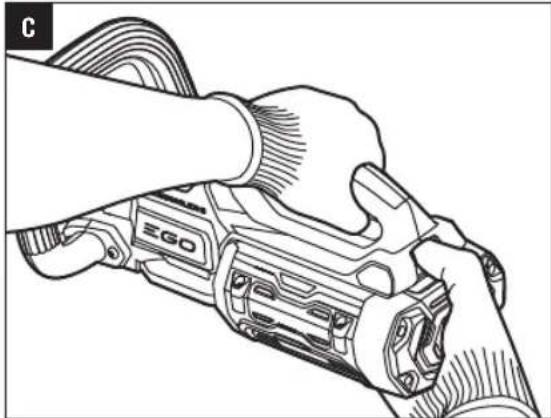

To Remove (Fig. C)
Depress the battery-release button and pull the battery pack out.
WARNING: Always be aware for the location of your feet, children, or pets when pressing the battery-release button. Serious injury could result if the battery pack falls. NEVER remove the battery pack at a high location.

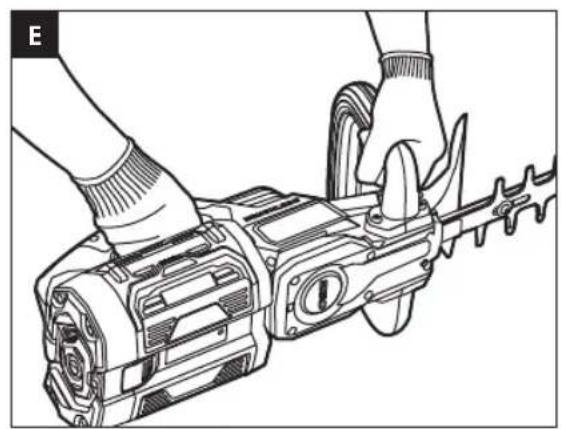

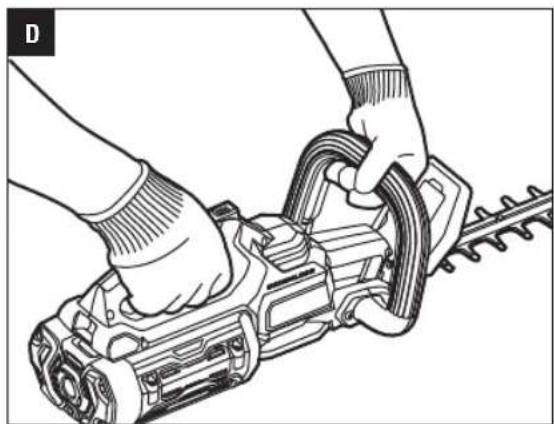

HOLDING THE HEDGE TRIMMER (Fig. D, E & F)
The unit has both a front and rear handle. With the blade directed away from you, hold the unit by both handles. The switch lever in the front handle can be activated on any of the three sides, giving you many choices for a comfortable grip when performing cutting operations.
WARNING: Always keep both hands on the hedge trimmer handles. Never hold shrubs with one hand while operating the hedge trimmer with the other hand. Failure to heed this warning may result in serious injury.
STARTING/STOPPING THE HEDGE TRIMMER
Before operating, remove the shield and hold the trimmer with both hands, one hand on the rear handle and the other on the front handle. Then check for stable footing, upright standing and a proper cutting distance.
To Start
- Install the battery pack.
- Depress and hold the switch lever in the front handle with one hand.
- Press and hold the lock-off button with the thumb of your other hand, then squeeze the rear switch lever with your fingers to start the hedge trimmer. Release the lock-off button and continue to squeeze the trigger for continued operation.
To Stop
Move the hedge trimmer away from the cutting area and release the rear switch lever to stop the hedge trimmer.
WARNING: Always remove the battery pack from the hedge trimmer during work breaks and after finishing work.
USING THE HEDGE TRIMMER
WARNING: If the blade jams on any electrical cord or line, DO NOT TOUCH THE BLADE! IT CAN BECOME ELECTRICALLY LIVE AND VERY DANGEROUS. Continue to hold the hedge trimmer by the insulated rear handle or lay it down and away from you in a safe manner. Disconnect the electrical service to the damaged line or cord before attempting to free the blade from the line or cord. Failure to heed this warning will result in serious personal injury or possible death.
WARNING: Avoid trimming too much at one time or through the heavy shrubbery. This can cause the blades to bind and slow, reducing the cutting efficiency.
NOTICE: The trimmer shall be used to cut stems less than (26mm) thick.
NOTICE: For new growth, a wide sweeping is suitable for the stems fed directly into the cutting blade. For older growth, a sawing movement is good for trimming the thicker stems. A non-powered hand saw or pruning saw is suggested for trimming the large stems first.
Top Cutting
Use a wide sweeping motion. A slight downward tilt of the cutting blades in the direction of motion gives the best cutting results. For better cutting effect, you might as well use the string to guide the hedge level as Fig. G shown.

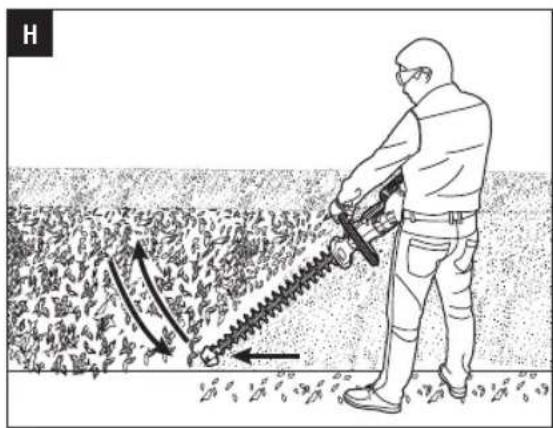

Side Cutting
When trimming the sides of the hedge, begin at the bottom and cut upwards as Fig. H shown. Trim the side of a hedge so that it will be slightly narrower at the top. This shape will expose more of the hedge to sunlight, resulting in a more uniform growth.
MAINTENANCE
WARNING: When servicing, use only identical replacement parts. Use of any other parts may create a hazard or cause product damage. To ensure safety and reliability, all repairs should be performed by a qualified service technician.
WARNING: To avoid serious personal injury, always remove the battery pack from the product when cleaning or performing any maintenance.
CLEANING
■ Use a soft brush to remove debris from all air intakes and cutting blade.
■ To remove pitch and other sticky residue, spray the blades with resin solvent. Run the motor briefly so that the solvent is evenly distributed.
■ Wipe the surface with a dry cloth.
WARNING: Never use water for cleaning your trimmer. Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents. Use clean clothes to remove dirt, dust, oil, grease, etc.

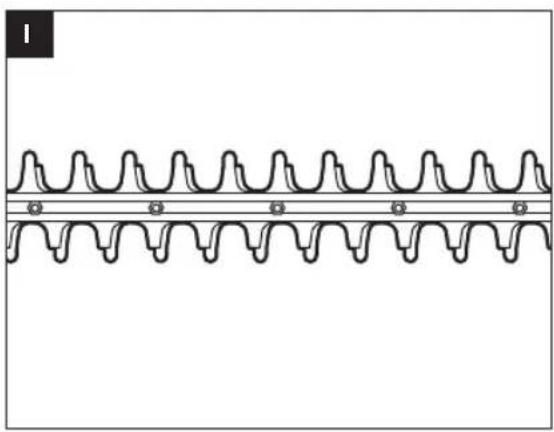

SHARPENING THE CUTTING BLADE
- Start and stop your hedge trimmer until the cutter blade and the guard are slightly offset, as shown in Fig. I. This will allow clearance for the file between cutter teeth and guard teeth.
- Remove the battery pack from your hedge trimmer.
- Clamp the blade assembly in a vise and file the exposed cutting surface of each blade tooth. Remove as little material as possible. Be sure to retain the original angle of each tooth when filing.
- Remove the hedge trimmer from the vise; restart it and stop it to expose the unsharpened edges of the blade teeth.
- Remove the battery pack and repeat the sharpening procedure above.
NOTICE: Do not operate your hedge trimmer with dull or damaged cutting blades. This may cause overload and will give unsatisfactory cutting results.
LUBRICATING THE BLADE (Fig. J)
For best operation and longer blade life, lubricate the hedge trimmer blade with light weight machine oil before and after each use.
Remove the battery pack and lay the trimmer onto a flat surface. Apply the oil along the edge of the top blade.
NOTICE: For extended using period, oil the blade during cutting operation.
⚠ WARNING: Do not oil while the hedge trimmer is running.
TRANSPORTING AND STORING
■ Always place the shield on the blade before storing or transporting the hedge trimmer. Use caution to avoid the sharp teeth of the blade.
■ Clean the hedge trimmer thoroughly before storing.
■ Store the hedge trimmer indoors, in a dry place that is inaccessible to children.
- Keep away from corrosive agents such as garden chemicals and deicing salts.
WARNING: Blades are sharp. When handling the blade assembly, wear non-slip, heavy-duty protective gloves. Do not place your hand or fingers between blades or in any position where they could get pinched or cut. NEVER touch blades or service the unit with battery pack installed.
Protecting the environment
Do not dispose of electrical equipment, used battery and charger into household waste! Take this product to an authorized recycler and make it available for eparate collection. Electric tools must be returned to an environmentally compatible recycling facility.
EN TROUBLESHOOTING
| PROBLEM CAUSE SOLUTION | ||
| Hedge trimmer doesn't work. | The battery pack is not attached to the hedge trimmer.No electrical contact between the trimmer and batteryThe battery pack is depleted.The battery pack is too hot.The hedge trimmer is too hot.The front and rear switch levers are not depressed simultaneously.The blade is jammed. | Attach the battery pack to the hedge trimmer.Remove battery, check contacts and reinstall the battery pack.Charge the battery pack.Remove the battery pack from the tool and allow it to cool until the temperature drops below 67°C.Release both switch levers; allow the trimmer to cool until the temperature drops to normal temperature.Press the lock-off button first and then press the switch levers in the front and rear handle simultaneously.Remove the battery pack from the tool, remove the obstruction carefully, then reinsert the battery and restart the tool. |
| Excessive vibration or noise. | Dry or corroded blades.Blades or blade support is bent.Bent or damaged teeth.Loose blade bolts. | Lubricate the blades, following the section "LUBRICATING THE BLADE" in this manual.Replace with a new blade or support. Contact EGO service center for blade or support replacement service.Replace with a new blade. Contact EGO service center for blade replacement service.Tighten the blade bolts. Using a wrench, turn the bolt clockwise to tighten. |
WARRANTY
EGO WARRANTY POLICY
Please visit the website egopowerplus.eu for full terms and conditions of the EGO Warranty policy.
Max. Cutting capacity of the blade
Sværdets længde
POLITYKA GWARANCYJNA EGO
POUŽÍVANIE NOŽNÍC NA ŽIVÉ PLOTY
CITIȚI MANUALUL DE INSTRUCTIUNI
LUGEGE KASUTUSJUHENDIT
ЗАБЕЛЕЖЕТЕ: For extended using period, oil the blade during cutting operation.
The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.
Električnu opremu, iskorištenu bateriju i punjač ne odlažite u otpad iz kućanstva! Ovaj proizvod odnesite u ovlašteni centar za reciklažu i time omogućite odvojeno sakupljanje. Električne alate potrebno je vratiti u ekološki prihvatljiv pogon za reciklažu.
HR
OTKLANJANJE POGREŠKI
| PROBLEM UZROK RJEŠENJE | ||
| ŠKARE ZA ŽIVICU NE RADE. | Komplet baterija nije učvršćen na šišač živice.Nema električnog kontakta između šišača i baterijeKomplet baterija je ispražnjen.Baterijski modul je prevruć.Sišač živice je prevruć.Prednja i stražnja ručica za prebacivanje ne pritišću se istodobno.Nož je zaglavljen. | Pričvrstite komplet baterija na šišač živice.Izvadite bateriju, provjerite kontakte i ponovno stavite komplet baterija.Napunite komplet baterija.Izvadite baterijski modul iz alata i pričekajte da se ohladi na temperaturu ispod 67°C.Otpustite obje ručice za prebacivanje. Pričekajte da se škare za živicu ohlade dok se temperatura ne spusti na normalnu temperaturu.Najprije pritisnite gumb za deblokadu, a zatim istodobno pritisnite ručice za prebacivanje na prednjem i stražnjem rukohvatu.Izvadite baterijski modul iz alata, oprezno uklonite zapreku, a zatim vratite bateriju i ponovno pokrenite alat. |
| Excessive vibration or noise. | Suh ili korodiran nož.Oštrice ili držač noža su savijeni.Savijeni ili oštećeni zupci.Otpušteni vijci noža. | Podmažite noževe prema uputama u odjeljku „PODMAZIVANJE NOŽA“ u ovom priručniku.Zamijenite novim držačem noža. Za zamjenske dijelove se obratite ovlaštenom servisnom centru tvrtke EGO.Zamijenite novim nožem. Za zamjenu noža obratite se ovlaštenom servisnom centru tvrtke EGO.Zategnite vijke noža. Viličastim ključem zategnite vijak okretanjem udesno. |
JAMSTVO
HR
JAMSTVENA POLITIKA PROIZVOĐAČA EGO
Uzbekistan fnqibn 6yondn
cm
ஙெதுவருதிக
KA
BCEBCNGZSGNGDn
| ∂mωρμοη HT2410E HT2000E | ||
| dsδ3s | 56 ʒmωρμο--- | |
| ωγψζnπασηδηγδην υηδηγδην υηδηγδην υηδηγδην υηδηγδην υηδηγδην υηδηγδην υηδηγδην υηδηγδην υηδηγδην υηδηγδην υηδηγδην υ Φηδηγδην υηδηγδην υηδηγδην υηδηγδην υηδηγδην υηδηγδην υηδηγδην υηδηγδην υηδηγδην υηδηγδην υηδηγδην υθηδηγδην υθηδηγδην υθηδηγδην υθηδηγδην υθηδηγδην υθηδηγδην υθηδηγδην υθηδηγδην υθηδηγδην υθηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υθηδηγδην υθηδηγδην υθηδηγδην υθηδηγδην υθηδηγδην υθηδηγδην υθηδηγδην υθηδηγδην υθηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υθηδηγδην υθηδηγδην υθηδηγδην υθηδηγδην υθηδηγδην υθηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υθηδηγδην υθηδηγδην υθηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υρηδηγδην υρηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υρηδηγδην υφηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υφηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υφηδηγδην υφηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υφηδηγδην υρηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υφηδηγδην υφηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υφηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υρηδηγδην υφηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υρηδηγδην υφηδηγδην υφηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υφηδηγδην υρηδηγδην υρηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υφηδηγδην υφηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υρηδηγδην υρηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υρηδηγδην υφηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υρηδηγδην υφηδηγδην υρηδηγδην υρηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υρηδηγδην υφηδηγδην υρηδηγδην υφηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υφηδηγδην υφηδηγδην υρηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υφηδηγδην υρηδηγδην υρηδηγδην υρηδηγδην υpαρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρριρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρ\rhoρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρρ | 6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6 π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6pi6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6π6mp8π8π10π12π14π16π18π20π22π24π26π28π30π32π34π36π38π40π42π44π46π48π50π52π54π56π58π60π62π64π66π68π70π72π74π76π78π80π82π84π86π88π90π92π94π96π98π100π102π104π106π108π110π112π114π116π118π120π122π124π126π128π130π132π134π136π138π140π142π144π146π148π150π152π154π156π158π160π162π164π166π168π170π172π174π176π178π180π182π184π186π188π190π192π194π196π198π200π202π204π206π208π210π212π214π216π218π220π222π224π226π228π230π232π234π236π238π240π242π244π246π248π250π252π254π256π258π260π262π264π266π268π270π272π274π276π278π280π282π284π286π288π290π292π294π296π298π300π302π304π306π308π310π312π314π316π318π320π322π324π326π328π330π332π334π336π338π340π342π344π346π348π350π352π354π356π358π360π362π364π366π368π370π372π374π376π378π380π382π384π386π388π390π392π394π396π398π400π402π404π406π408π410π412π414π416π418π420π422π424π426π428π430π432π434π436π438π440π442π444π446π448π450π452π454π456π458π460π462π464π466π468π470π472π474π476π478π480π482π484π486π488π490π492π494π496π498π500π502π504π506π508π510π512π514π516π518π520π522π524π526π528π530π532π534π536π538π540π542π544π546π548π550π552π554π556π558π560π562π564π566π568π570π572π574π576π578π580π582π584π586π588π590π592π594π596π598π600π602π604π606π608π610π612π614π616π618π620π622π624π626π628π630π632π634π636π638π640π642π644π646π648π650π652π654π656π658π660π662π664π666π668π670π672π674π676π678π680π682π684π686π688π690π692π694π696π698π700π702π704π706π708π710π712π714π716π718π720π722π724π726π728π730π732π734π736π738π740π742π744π746π748π750π752π754π756π758π760π762π764π766π768π770π772π774π776π778π780π782π784π786π788π790π792π794π796π798π800π802π804π806π808π810π812π814π816π818π820π822π824π826π828π830π832π834π836π838π840π842π844π846π848π850π852π854π856π858π860π862π864π866π868π870π872π874π876π878π880π882π884π886π888π890π900π902π904π906π908π910π912π914π916π918π920π922π924π926π928π930π932π934π936π938π940π942π944π946π948π950π952π954π956π958π960π962π964π966π968π970π972π974π976π978π980π982π984π986π988π990π992π994π996π998π1000π1002π1004π1006π1008π1010π1012π1014π1016π1018π1020π1022π1024π1026π1028π1030π1032π1034π1036π1038π1040π1042π1044π1046π1048π1050π1052π1054π1056π1058π1060π1062π1064π1066π1068π1070π1072π1074π1076π1078π1080π1082π1084π1086π1088π1090π1092π1094π1096π1098π1100π1102π1104π1106π1108π1110π1112π1114π1116π1118π1120π1122π1124π1126π1128π1130π1132π1134π1136π1138π1140π1142π1144π1146π1148π1150π1152π1154π1156π1158π1160π1162π1164π1166π1168π1170π1172π1174π1176π1178π1180π1182π1184π1186π1188π1190π1192π1194π1196π1198π1200π1202π1204π1206π1208π1210π1212π1214π1216π1218π1220π1222π1224π1226π1228π1230π1232π1234π1236π1238π1240π1242π1244π1246π1248π1250π1252π1254π1256π1258π1260π1262π1264π1266π1268π1270π1272π1274π1276π1278π1280π1282π1284π1286π1288π1290π1292π1294π1296π1298π1300π1302π1304π1306π1308π1310π1312π1314π1316π1318π1320π1322π1324π1326π1328π1330π1332π1334π1336π1338π1340π1342π1344π1346π1348π1350π1352π1354π1356π1358π1360π1362π1364π1366π1368π1370π1372π1374π1376π1378π1380π1382π1384π1386π1388π1390π1392π1394π1396π1398π1400π1402π1404π1406π1408π1410π1412π1414π1416π1418π1420π1422π1424π1426π1428π1430π1432π1434π1436π1438π1440π1442π1444π1446π1448π1450π1452π1454π1456π1458π1460π1462π1464π1466π1468π1470π1472π1474π1476π1478π1480π1482π1484π1486π1488π1490π1492π1494π1496π1498π1500 π1502 π1504 π1506 π1508 π1510 π1512 π1514 π1516 π1518 π1520 π1522 π1524 π1526 π1528 π1530 π1532 π1534 π1536 π1538 π1540 π1542 π1544 π1546 π1548 π1550 π1552 π1554 π1556 π1558 π1560 π1562 π1564 π1566 π1568 π1570 π1572 π1574 π1576 π1578 π1580 π1582 π1584 π1586 π1588 π1590 π1592 π1594 π1596 π1598 π1600 π1602 π1604 π1606 π1608 π1610 π1612 π1614 π1616 π1618 π1620 π1622 π1624 π1626 π1628 π1630 π1632 π1634 π1636 π1638 π1640 π1642 π1644 π1646 π1648 π1650 π1652 π1654 π1656 π1658 π1660 π1662 π1664 π1666 π1668 π1670 π1672 π1674 π1676 π1678 π1680 π1682 π1684 π1686 π1688 π1690 π1692 π1694 π1696 π1698 π1700 π1702 π1704 π1706 π1708 π1710 π1712 π1714 π1716 π1718 π1720 π1722 π1724 π1726 π1728 π1730 π1732 π1734 π1736 π1738 π1740 π1742 π1744 π1746 π1748 π1750 π1752 π1754 π1756 π1758 π1760 π1762 π1764 π1766 π1768 π1770 π1772 π1774 π1776 π1778 π1780 π1782 π1784 π1786 π1788 π1790 π1792 π1794 π1796 π1798 π1800 π1802 π1804 π1806 π1808 π1810 π1812 π1814 π1816 π | |
azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuth azimuthimuth
33079999999999999999999999999999999999999999999999999999999999999999999999999999
doi:10.103456789 doi:10.103456789 doi:10.103456789 doi:10.103456789 doi:10.103456789 doi:10.103456789 doi:10.103456789 doi:10.1034602 doi:10.1034602 doi:10.1034602 doi:10.1034602 doi:10.1034602 doi:10.1034602 doi:10.1034602 doi:10.1034602 doi:10.10456789 doi:10.10456789 doi:10.10456789 doi:10.10456789 doi:10.10456789 doi:10.10456789 doi:10.10456789 doi:10.10456789 doi:10.10456789 doi:10.10456789 doi:10.10456789 doi:10.10456789 doi:10.10456789 doi:10.10456789 doi:10.10456789 doi:2.2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-2-
ඉංංංංංංංං
Before operating, remove the shield and hold the trimmer with both hands, one hand on the rear handle and the other on the front handle. Then check for stable footing, upright standing and a proper cutting distance.
POKRETANJE/ZAUSTAVLJANJE MAKAZA ZA ŽIVICU
Prije rukovanja uklonite štitnik i objema rukama držite makaze za živicu. Jednu ruku držite na stražnjem rukohvatu, a drugu na prednjem rukohvatu. Zatim provjerite držanje i ravnotežu, uspravan položaj tijela i propisnu udaljenost za rezanje.
Pokretanje
- Postavite komplet baterija.
- Jednom rukom pritisnite ručicu za prebacivanje na prednjem rukohvatu i držite je pritisnutom.
- Palcem druge ruke pritisnite dugme za deblokadu i držite ga pritisnutim, a zatim za pokretanje makaza za živicu prstima stisnite stražnju ručicu za prebacivanje. Otpustite dugme za deblokadu i nastavite stiskati okidač za kontinuirani rad.
Zaustavljanje
.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה
- HT2410E/HT2000E
- EN READ ALL INSTRUCTIONS!
- READ OPERATOR'S MANUAL
- SAFETY SYMBOLS
- PACKING LIST (FIG. A1)
- DESCRIPTION
- KNOW YOUR HEDGE TRIMMER (Fig. A1)
- OPERATION
- APPLICATION
- EN
- INSTALLING/REMOVING THE BATTERY PACK
- To Install (Fig. B)
- To Remove (Fig. C)
- HOLDING THE HEDGE TRIMMER (Fig. D, E & F)
- STARTING/STOPPING THE HEDGE TRIMMER
- To Start
- To Stop
- USING THE HEDGE TRIMMER
- Top Cutting
- Side Cutting
- MAINTENANCE
- CLEANING
- SHARPENING THE CUTTING BLADE
- LUBRICATING THE BLADE (Fig. J)
- TRANSPORTING AND STORING
- Protecting the environment
- EN TROUBLESHOOTING
- WARRANTY
- EGO WARRANTY POLICY
- POLITYKA GWARANCYJNA EGO
- POUŽÍVANIE NOŽNÍC NA ŽIVÉ PLOTY
- CITIȚI MANUALUL DE INSTRUCTIUNI
- LUGEGE KASUTUSJUHENDIT
- OTKLANJANJE POGREŠKI
- JAMSTVO
- HR
- JAMSTVENA POLITIKA PROIZVOĐAČA EGO
- 33079999999999999999999999999999999999999999999999999999999999999999999999999999
- ඉංංංංංංංං
- POKRETANJE/ZAUSTAVLJANJE MAKAZA ZA ŽIVICU
- Pokretanje
- Zaustavljanje
Brand : EGO
Model : HT2410E
Category : Hedge Trimmer
