TL-SF1016DS - Network switch TP-LINK - Free user manual and instructions

Brand	TP-Link
Model	TL-SF1016DS
Product type	Unmanaged network switch
Number of ports	16 RJ45 ports 10/100 Mbps
Speed	10/100 Mbps (auto-negotiation)
Switching method	Store-and-forward
Switching capacity	3.2 Gbps
MAC address table	8K
Memory buffer	2.4 Mbits
Power supply	External power adapter 9V DC / 0.6A
Power consumption	4.5 W maximum
Dimensions (W x D x H)	175 x 105 x 28 mm
Weight	1.2 kg
Case material	Metal
Mounting	Desktop or wall-mountable (kit included)
Ventilation	Fanless (silent)
Operating temperature	0°C to 40°C
Operating humidity	10% to 90% (non-condensing)
Key features	Auto-MDI/MDIX, IEEE 802.3x flow control, port-based QoS (IEEE 802.1p)
Care and cleaning	Clean with a soft, dry cloth. Do not use chemical products.
Safety	Use only indoors. Do not expose to moisture or heat sources. Disconnect the adapter during thunderstorms.
Spare parts and repairability	No user-serviceable parts. Contact customer service in case of failure.
General information	2-year warranty (depending on retailer). Compatible with all network equipment.

Frequently Asked Questions - TL-SF1016DS TP-LINK

How to connect the TP-Link TL-SF1016DS switch?

Plug the power adapter into the switch and into an electrical outlet. Connect your devices (computers, router, etc.) to the RJ45 ports using Ethernet cables. The switch automatically detects the speed (10/100 Mbps) and cable type (straight or crossover) thanks to the Auto-MDI/MDIX function.

What to do if the LED indicators do not turn on after connection?

Check that the power adapter is properly plugged in and the switch is powered on. Ensure the Ethernet cables are fully inserted into the ports. Test with another cable or device. If no indicators light up, the adapter or switch may be defective.

Can I use Cat6 cables with this switch?

Yes, the switch is compatible with Cat5, Cat5e, Cat6 and higher cables. However, the maximum speed is limited to 100 Mbps per port, so a Cat6 cable will not provide additional speed, but it ensures better reliability and reduced interference.

Is the switch compatible with my internet router (Livebox, Freebox, etc.)?

Yes, the TP-Link TL-SF1016DS works with all routers and internet boxes. Simply connect one of the switch's ports to an available Ethernet port on your router. The switch will then extend the network to your other devices.

How to mount the switch on the wall?

The switch comes with a wall-mounting kit. Attach the supplied brackets to the back of the switch, then screw them to the wall using appropriate anchors for your wall type. Ensure the switch is level and stable. Wall mounting is recommended to save space.

What is the power consumption of the switch?

The maximum consumption is about 4.5 watts. This makes it very energy efficient, running 24/7 without high cost. It also features an energy-saving function that reduces consumption based on network traffic.

Does the switch support PoE (Power over Ethernet)?

No, the TP-Link TL-SF1016DS does not support PoE. It requires a power outlet via the supplied adapter. If you need to power devices over Ethernet, choose a dedicated PoE switch.

How to reset the switch?

This switch is an unmanaged model, so it has no reset function. Simply disconnect it from power for a few seconds then reconnect to restart it. Its default settings are automatic.

Does the switch get hot during operation?

The metal casing dissipates heat well. It may become warm, but this is normal. The switch is designed to operate without a fan (fanless), so it is silent. Avoid placing it in a confined space or near a heat source.

Where can I find the complete user manual?

The manual is available for free download on notice-facile.com or on the TP-Link official website. You can also use the notice-facile AI assistant for help on specific points.

USER MANUAL TL-SF1016DS TP-LINK

Unmanaged Rackmount Switch

CONTENTS

Deutsch....01

English....04

Español....07

Ελληνικά....10

Français....13

Italiano....16

Português....19

Suomi....22

Nederlands....25

Svenska....28

Norsk....31

Dansk....34

Türkçe....37

Installation

- Tischmontage

- Einschalten

Installation

- Desktop Installation

To install the device on the desktop, please follow the steps below:

1. Set the device on a flat surface strong enough to support the entire weight of the device with all fittings.
2. Remove the adhesive backing papers from the rubber feet.
3. Turnover the device and attach the supplied rubber feet to the recessed areas on the bottom at each corner of the device.

- Rack Installation

To install the device in a rack, follow the instructions described below:

1. Check the grounding and stability of the rack.

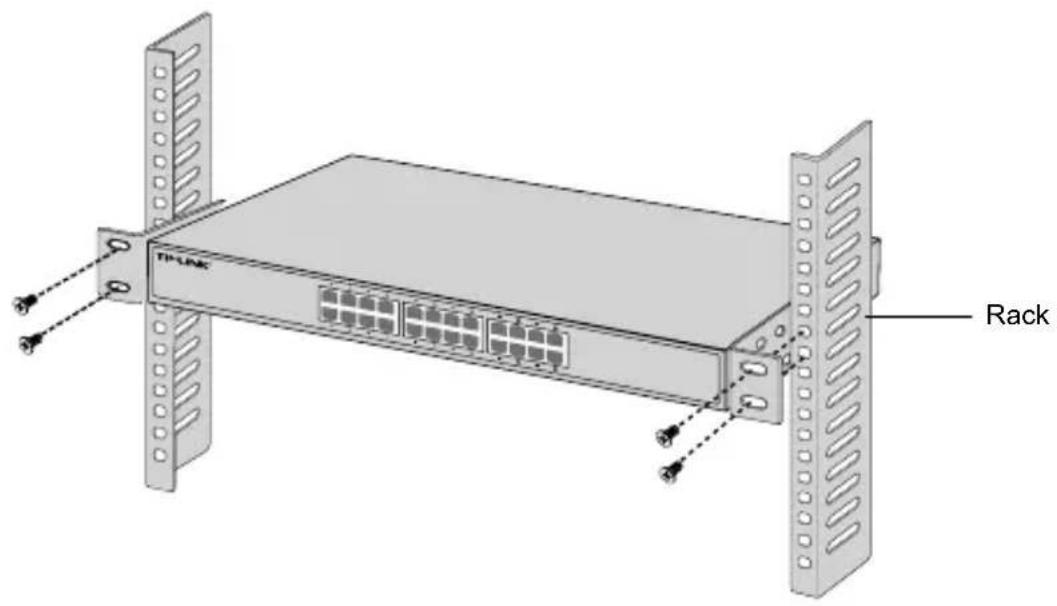

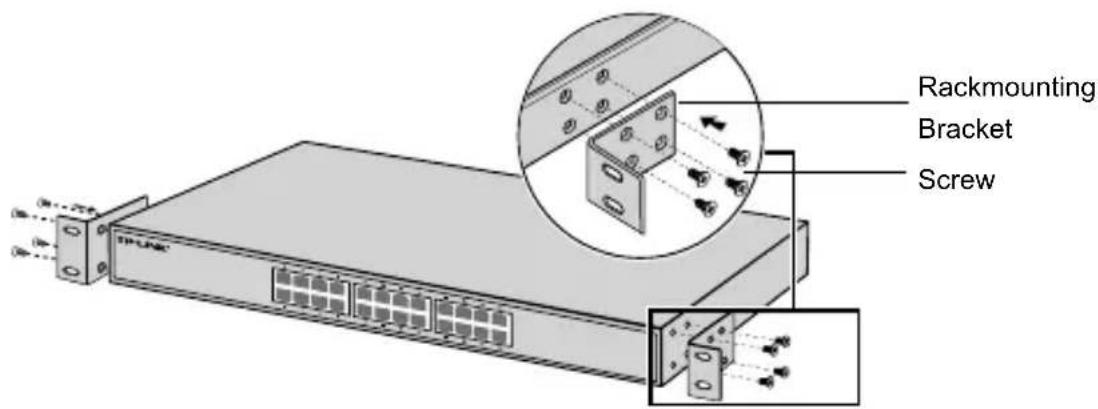

2. Secure the supplied rack-mounting brackets to each side of the device with supplied screws.

1. After the brackets are attached to the device, use suitable screws (not provided) to secure the brackets to the rack.

Connection

- Ethernet Port

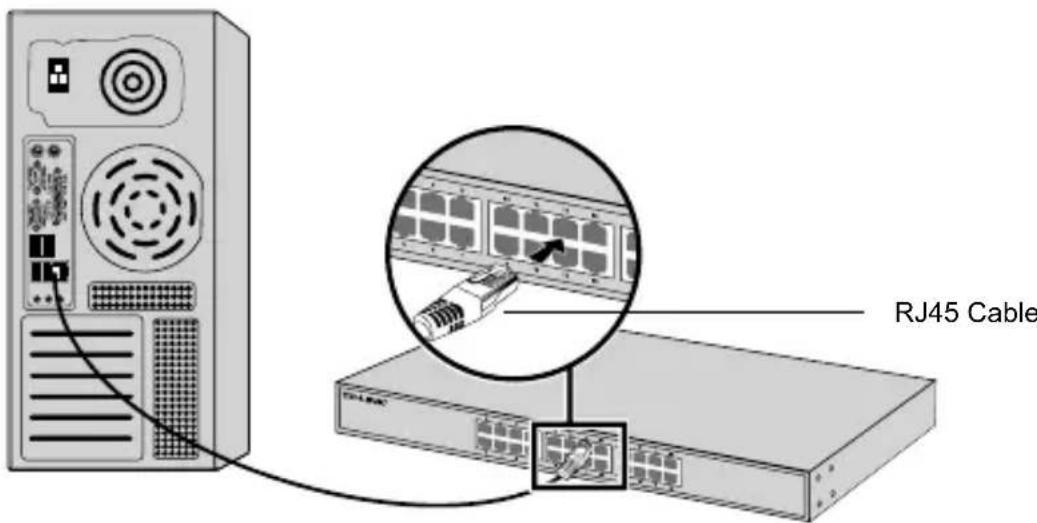

Connect an Ethernet port of the switch to the computer by RJ45 cable as the following figure shown.

- Power On

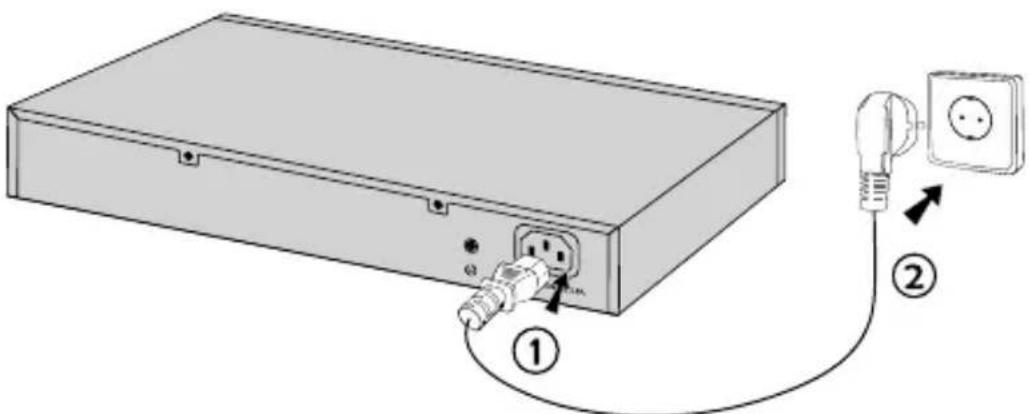

Plug the female connector of the provided power cord into the power socket of the device, and the male connector into a power outlet.

Instalación

- Encender

Εγκατάσταση

Installation

- Pose libre

Installazione

Instalação

Asennus

- Pöytäasennus

Installatie

- Desktop installatie

Installation

- Desktop-installation

Montering

- Skrivebordsmontering

Installation

- Stationær installation

Kurulum

- Masaüstü Kurulumu
