Product Type	Multifunctional High-Definition Dash Cam (DVR)
Processor	AC5601
Display	2-inch TFT, 320×240 resolution
Camera	GC2053 with night vision
Recording Format	MOV (H.264)
Video Resolution	1920×1080 @ 30 fps
Image Format / Resolution	JPG / 12 MP
Viewing Angle	140°
Lens	4-layer glass
Storage	microSD card (Class 10 or above), max 64 GB
Connectivity	micro-USB 2.0
Power Supply	5 V / 1 A via car charger
Battery	180 mAh, 3.7 V (for emergency recording and proper shutdown)
Frequency	50/60 Hz
Main Functions	Continuous loop recording, motion detection, G-sensor impact lock, parking monitor, time stamp, audio recording, file protection, interval recording
Special Features	GPS (not specified in manual, but model may support via external accessory; check firmware)
Languages	Czech, German, Estonian, English, Hungarian, Latvian, Lithuanian, Polish, Romanian, Russian, Slovak, Ukrainian
Installation	Windshield mount, connect to cigarette lighter socket
Maintenance & Cleaning	Keep lens clean; turn off device before cleaning; do not use chemicals or detergents
Safety Precautions	Use only original charger; avoid fire sources, physical impacts, electromagnetic radiation; do not disassemble
Spare Parts & Repairability	Contact service center for repairs; no user-serviceable parts; use only manufacturer-approved accessories
Certifications	EMC 2014/30/EU compliant; Declaration of Conformity available online

Frequently Asked Questions - R200 NV Navitel

How do I install the dash cam?

Insert a microSD card (Class 10, 8-64 GB), format it inside the DVR, attach the mount to the windshield, connect the car charger to the cigarette lighter and to the DVR, then adjust the camera angle. The device will start recording automatically when powered.

Why do I need to format the SD card in the device?

Formatting the SD card inside the Navitel R200 NV eliminates data errors and ensures proper recording. Go to Menu > Format SD-card and confirm.

How does loop recording work?

Loop recording splits video into files of a set duration. When the card is full, the oldest unprotected files are overwritten. Protected files (locked) are never deleted.

What is motion detection and how do I use it?

Motion detection automatically starts recording when movement is detected in front of the camera. Recording stops after 20 seconds of no movement. Enable it in the menu.

How do I protect a video from being overwritten?

During recording, press the Mode button to lock the current file. In playback mode, select a file, press Menu > Protect, then choose Lock Current or Lock All. Locked files show a key icon.

What does the G-sensor do?

The G-sensor detects sudden impacts or collisions and automatically locks the current video file to prevent it from being overwritten. Sensitivity can be adjusted in the menu.

How does the Parking Monitor work?

When the car is parked and the device is off, the Parking Monitor detects vibrations and automatically turns on the dash cam to record a protected video of the event.

Can I use the dash cam without the car charger?

The built-in battery (180 mAh) only powers emergency recording in parking mode and safe shutdown. For continuous recording, the device must be connected to an external power source (5V/1A).

How do I reset the device if it freezes?

Use a paperclip or similar tool to press the Reset button on the side of the device. This restarts the dash cam without losing your settings.

Where can I download the user manual?

The manual is available for free download in PDF format from the Navitel support website. You can also view it online at notice-facile.com.

USER MANUAL R200 NV Navitel

cz Tlačítka

Tasten

Nupud

Thank you for purchasing this NAVITEL® product.

NAVITEL R200 NV is a multifunctional high-definition DVR with many functions and features that are described in this User Manual. Please read the manual carefully before using the device and keep it for future reference.

Device layout

1. MicroSD slot
2. Reset
3. Microphone
4. Display
5. LED indicator (record)
6. LED indicator (charge)
7. Mode
8. Menu
9. OK
10. Up
11. Down
12. Power
13. Mount
14. Micro-USB port
15. Speaker

Specifications

Processor AC5601
Display 2", 320×240, TFT
Camera GC2053 (night vision)
Recording format MOV (H.264)
Video resolution 1920×1080, 30 fps
Image format JPG
Image resolution 12 MP
View angle 140°
Lens 4-layer glass
Storage microSD card
MicroSD card capacity Max. 64 GB

USB micro-USB 2.0
Frequency 50/60 Hz
Battery 180 mAh, 3.7 V
Power 5 V, 1 A
Microphone / speaker	Yes
Language	Czech,Deutsch,Estonian,English,Hungarian,Latvian,Lithuanian,Polish,Romanian,Russian,Slovak,Ukrainian

Note: the specifications may change due to upgrades.

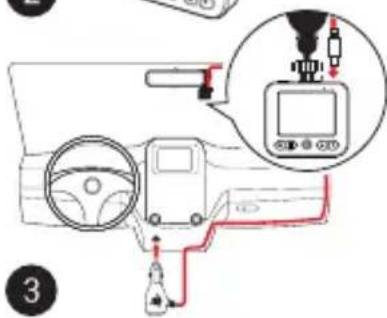

Installation

1. Put the microSD card into the DVR. Use a high-speed SD card (Class10 or above); capacity should be within 8-64 GB.

2. To avoid malfunctions of the DVR and / or SD-card, don't insert and remove SD-card during DVR operation.

3. Before using a microSD card, please format it inside the DVR to avoid data errors. For formatting the SD-card in Menu mode select Format SD-card and confirm it.

4. Secure the device on the windshield with the holder.

5. Connect the car charger to the cigarette lighter socket.
6. Connect the car charger to the DVR (micro-USB).
7. Adjust the camera position.
8. Turn the power on; check whether the device is installed correctly. If the device is installed correctly, the indicator will glow red; the device will start up and begin recording (indicated by flashing blue light).

Precautions

• Use only the original charger adapter. Using another adapter may negatively affect the device's battery. Use accessories only approved by manufacturer.
• Permissible ambient temperature in operating mode: 0 to +35 °C. Storage temperature: +5 to +45 °C. Relative humidity: 5% to 90% without condensation (25 °C).
• Put the device away from fire sources to avoid explosion or fire.
• Do not expose the device to physical impacts.
• Avoid contacting the device with sources of electromagnetic radiation.
• Keep the lens clean. Do not use chemicals or detergents to clean the product; always turn off the device before cleaning.
• Strictly follow the laws and regulatory acts of the region where the device is used. This device can not be used for illegal purposes.
• Do not disassemble or repair device by yourself. In case of device failure, contact the service center.

Buttons

Button Functions
	Press and hold for 3 seconds to turn the device on / off.Press to turn the screen on / off.
	In Record mode (STBY), press to switch between Record, Capture and Playback modes.In Record mode (REC), press to lock a file (protected file cannot be deleted or overwritten).In Menu press to choose the next menu section.
	Press to enter Menu mode.In Menu press to choose the next menu section.
	In Record mode (STBY), press to start recording; press again to stop recording.In Capture mode, press to take a picture.In Playback mode, press to select a file, or pause / resume video.In Menu, press to select a menu item.
	In Record mode, press Down to turn the microphone on / off.In Playback mode, press to select the previous / next file.In Menu, press to select the previous / next menu item.
Reset If the device is not responding, press to reset.

Note: the built-in battery is designed only for recording an emergency event in parking mode and turning off the device correctly when the power is turned off; for the full operation of the device in any mode, a constant power connection is required.
NAVITEL s.r.o. hereby declares that the device NAVITEL R200 NV is compatible with the European directive EMC 2014/30/EU. The full text of Declaration of conformity is available at the following internet address: www.navitel.cz/en/declaration_of_conformity/r200nv

Device functions

Format SD-card	Formatting a microSD card in the DVR is necessary for the correct operation of the device. Before using a microSD card or in case of data error, please format the microSD card. For formatting the SD-card in Menu mode select Format SD-card and confirm it.
Record	Connect the device to an external power supply and it will start recording automatically (indicated by the flashing blue light). Press the OK button to stop recording. Press OK again to record another video. Each video will be saved automatically.
Capture	In Record mode (STBY), press the Mode button to enter Capture mode, press the OK button to take a photo (it will be saved automatically).
Playback	In Record mode (STBY), press the Mode button twice to enter Playback mode; press the Up and Down buttons to select a file; press the OK button to play a file. During playback, press OK to pause/unpause; press the Up and Down buttons to fast forward / rewind.
Loop recording	This feature allows you to save a video as a set of files given in the duration menu. If the memory card runs out of space, the unprotected files will be overwritten in the order in which they were created.
Interval record	Recording parameters: 100 ms - recording at 10 frames per second (fps), 200 ms - 5 fps recording, 500 ms - 2 fps recording. Only fast playback of a recording is available (30 fps). Normal playback is not possible.
Motion detection	When an object is moving the device will automatically start recording. If the object does not move for more than 20 seconds, recording stops.
Record audio Record	video with or without sound.
Lock file	In Record mode (REC), press Mode to protect the current recording. A key symbol will appear at the bottom of the screen. Press again to remove protection. In Playback mode, select a file, press Menu and select Protect, then Lock Current or Lock All. Protected files cannot be deleted or overwritten. Select Unlock Current / Unlock All to remove protection.
Stamp This function adds date stamp to the record.
G-sensor If the vehicle is hit by something, the DVR will automatically lock the current video.
Parking monitor	In shutdown state, if vibration is detected, the device will turn on automatically and start recording. The file will be protected (locked).
Battery	Red indicator lights up when the device is plugged into an external power supply; as the battery is charging, the red light becomes green.
LCD OFF	The device can automatically shut off the screen to reduce power consumption; time interval can be set in the LCD OFF menu.
USB-connection *	When connecting the device to a PC using a USB cable, two connection options will appear:1) Mass Storage: play, copy and delete files.2) Record: standard mode.

* This function is available only in firmware version 20200505_AC5601 and higher.
