Product type	Angle grinder
Brand	Black & Decker
Model	KG65
Disc diameter	115 mm
Power	650 W
No-load speed	11 000 rpm
Spindle size	M14
Cable length	3 m
Power supply	Mains 230 V ~ 50 Hz
Weight	2 kg
Double insulation	Yes
Sound pressure level	97.7 dB(A)
Sound power level	110.7 dB(A)
Vibration level	< 2.5 m/s²
Main functions	Grinding, cutting, sanding
Switch	Sliding switch with lock for continuous use
Safety	Adjustable guard, spindle lock
Maintenance and cleaning	Clean with a damp cloth and mild soap
Warranty	2 years parts and labor
Repairability	Approved Black & Decker service center, original parts recommended

Frequently Asked Questions - KG65 BLACK & DECKER

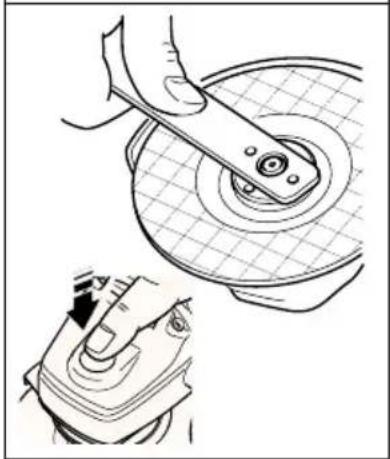

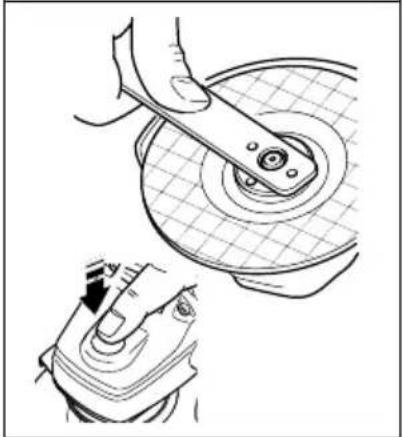

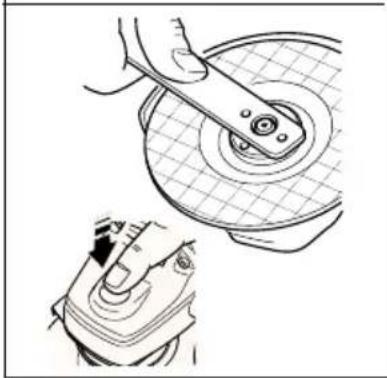

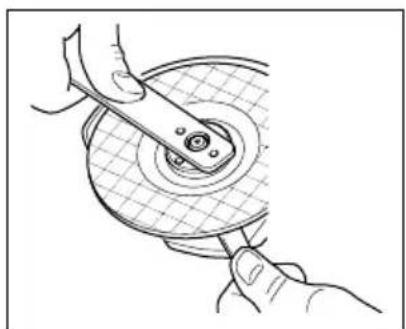

How to change the grinding disc?

Unplug the tool. Use the supplied key to loosen the outer flange while locking the spindle with the shaft lock button. Remove the old disc and place the new one, checking the direction. Tighten the outer flange firmly.

How to adjust the protective guard?

Unplug the tool. Loosen the guard clamp bolt, position the guard at the desired angle to protect your hands and direct debris, then tighten the bolt.

What to do in case of overload?

Overload can damage the motor. If the tool overheats, run it at no load for one to two minutes until it cools down. Avoid applying excessive pressure.

What type of disc to use for cutting metal?

Use a cutting disc for metal. The maximum diameter is 115 mm (KG65/KG72) or 125 mm (KG90), with a maximum thickness of 3.5 mm and a center hole of 22 mm.

How to clean the grinder?

Use a slightly damp cloth with mild soap. Do not use harsh household cleaners, petrol, turpentine, or solvents. Avoid liquid entering the interior.

Can I use an extension cord?

Yes, up to 30 meters of Black & Decker two-phase extension cord without loss of power. Use only an outdoor-rated extension cord if necessary.

How to use the switch for continuous operation?

Push the sliding switch forward, then press the front section until it locks. To stop, press the rear of the switch.

Which accessories are recommended?

Use only original Black & Decker accessories, designed to maximize performance. For sanding, use a backing pad with the abrasive disc.

How to maintain the ventilation slots?

Regularly check that the air inlets and motor housing are free of dust. Wipe them with a clean cloth or blow low-pressure air to clean them.

Where can I get my tool repaired?

Contact an approved Black & Decker service center. In France, call 3611 Black & Decker or ask for the list of dealers. The 2-year warranty covers repairs if the tool has not been dismantled.

USER MANUAL KG65 BLACK & DECKER

Line drawing of a power tool with a circular blade and handle, no text or symbols present

KG65

KG72

KG90

Australia Black & Decker (A'asia) Pty Ltd Tel: [phone]-288 Maroondah Highway, North Croydon, Victoria 3136 Fax: [phone]
Belgique/België Black & Decker Belgium NV Tel: [phone]Weihoek 1, 1930 Zaventem Fax: [phone]
Danmark Black & Decker Tlf: 70-20 15 10Hejrevang 26 B, 3450 Allerød Fax: [phone]
Deutschland Black & Decker GmbH Tel: [phone]Black & Decker Straße 40, 65510 Idstein		Fax: [phone]
Ελλάς	Black & Decker (Ελλάς) AEΛεωφ. Συγγρού 154Αθήνα 176 71	Tηλ: 01 9242870-75Service: 01 9242876-7Fax: [phone]
España	Black & Decker de España SACtra. de Acceso a Roda de Bará, km 0,743883-Roda de Bará, Tarragona	Tel: [phone]Tlx: 56631 BLADE EFax: 977 299139
France	Black & Decker (France) Sarl Tel: [phone]Le Paisy69570 Dardilly, Lyon	Tlx: 300 250Fax: [phone]
Helvetia	Black & Decker AG ElektrowerkzeugeRütistraße 14, CH-8952 SchlierenSchweiz/Suisse	Tel: [phone]Tlx: 54462 BDZH CHFax: 01 730 70 67
Italia	Black & Decker Italia SpAViale Elvezia 2, 20052 Monza (Mi)	Tel: [phone]Fax: [phone]Numero verde: 167 21 39 35
Nederland	Black & Decker (Nederland) BVFlorijnstraat 10, 4879 AH Etten-Leur	Tel: [phone]Fax: [phone]
New Zealand	Black & Decker483 Great South Road, Penrose, Auckland	Tel: [phone]Fax: [phone]
Norge	Black & Decker (Norge) A/S Tel: [phone]Strømsveien 344, 1081 Oslo	Fax: [phone]
Österreich	Black & DeckerWerkzeugevertriebs GmbHErlaaerstraße 165, Postfach 69, 1230 Wien	Tel: [phone]Tlx: 13228 BLACK AFax: 0222 66 116 14
Portugal	Black & DeckerRua Egas Moniz 173, Apartado 19S. João do Estoril, 2768 Estoril, Codex	Tel: [phone]Tlx: 16 607 BLADEC PFax: 467 15 80
South Africa	Black & Decker South Africa (Pty) LtdSuite no 107, PostNet X65, Halfway House 1685	Tel: [phone]Fax: [phone]
Suomi	Black & Decker OyRälssitie 7 C, 01510 Vantaa	Puh: 09-825 45 40Fax: [phone]
	Frälsevägen 7 C01510 Vanda	Tel: [phone]Fax: [phone]
Sverige	Black & Decker ABBox 603, 421 26 Västra Frölunda, Besöksadr. Ekonomivägen 11	Tel: [phone]Fax: [phone]
Türkiye	Black & Decker Elektrikli Ev (Aletleri Türkiye Distribütörü):Vestel Dayanıklı Tüketim, Malları Paz. A.Ş., Eski BüyükdereCad. İETT Garajı Yanı, 80650 4. Levent - İstanbul	Tel: [phone] (10 hat)Fax: [phone]
United Kingdom	Black & Decker210 Bath Road, Slough Tlx: 848317 BAND MHBerkshire SL1 3YD	Tel: [phone]Fax: [phone]

KÆRE KUNDE,

On the purchase of your Black & Decker product.

To ensure the best results from your power tool please read these safety and usage instructions carefully. If you have any questions or queries after reading this manual please do not hesitate to call your local service and information centre on 0345 230230 (UK only).

¡ENHORABUENA!

Line drawing of hands performing a medical procedure on an eye (no text or symbols present)

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing a hand adjusting a bolted component with a threaded shaft (no text or labels)

Technical line drawings of four different mechanical fastener or clamp components (no text or symbols)

Illustration of hands using a tool to cut a circular component with a mesh pattern (no text or symbols)

Technical illustration of a mechanical assembly with a tool interacting with a circular component (no text or symbols)

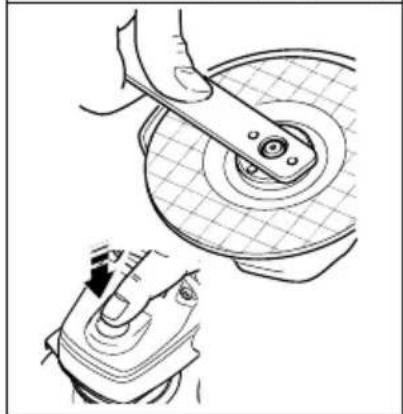

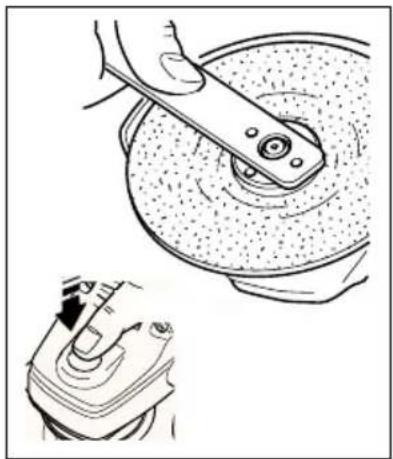

KG72/KG90:

Illustration of hands using a tool to adjust a mechanical component (no text or symbols visible)

Technical illustration showing three steps of a mechanical assembly: tool pressing, disc rolling, and assembly with a bolt (no text or symbols)

Line drawing of a hand using a power tool to press or clean material (no text or symbols)

Line drawing of a hand using a tool to cut a component, with a 15-degree angle标注 (no text or symbols beyond the angle marker)

Brian Cooke - Director of Engineering

Black & Decker, Spennymoor, Co Durham DL16 6JG, UK

Line drawing of hands performing a medical procedure on an eye (no text or symbols present)

Line drawing of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing a bolted joint inserted into a housing (no text or symbols)

Technical line drawings of mechanical fasteners or fasteners (no text or symbols)

Illustration of hands using a tool to cut a circular component with a mesh pattern (no text or symbols)

Technical illustration showing a hand using a tool to lift a circular component, with a close-up of the device's base (no text or symbols present)

Illustration of a hand using a tool to adjust a mechanical component (no text or symbols visible)

Technical illustration showing mechanical assembly steps: tool, cross-section view, and final assembly (no text or symbols)

Line drawing of a hand using a power tool to lift a car (no text or symbols)

Illustration of a hand using a tool to cut a component, with a 15-degree angle标注 (no text or symbols beyond the angle marker)

Brian Cooke - Director of Engineering

Black & Decker Ltd, Spennymoor, County Durham DL16 6JG, United Kingdom

Line drawing of a hand holding a small object near an eye (no text or symbols)

Line drawing of hands using a sewing machine to adjust a sewing machine (no text or symbols visible)

Mechanical assembly diagram showing a hand adjusting a bolted component with a threaded screw (no text or symbols)

Technical line drawing of mechanical fasteners or connectors (no text or symbols)

Illustration of hands using a tool to cut a circular component with a mesh pattern (no text or symbols)

Technical illustration of a hand using a tool to lift a car wheel (no text or symbols present)

KG72/KG90:

Illustration of hands using a tool to adjust a mechanical component (no text or symbols visible)

Illustration of a hand using a tool to cut a circular component (no text or symbols visible)

Technical illustration showing a hand operating a disc and a lathe presser inspecting a multi-tiered mechanical component (no text or symbols present)

Line drawing of a hand using a power tool to cut a car wheel (no text or symbols)

Illustration of a hand using a tool to cut a mechanical part, with a 15-degree angle标注 (no text or symbols beyond the angle marker)

Small angle grinder user manual

SAFETY INSTRUCTIONS

Warning! When using electric tools, the following basic safety precautions should always be taken to reduce the risk of fire, electric shock and personal injury. Read all these instructions before attempting to operate this product and save these instructions.

For safe operation:

• We recommend that you take appropriate measures for the protection of hearing if the sound pressure of 85 dB (A) is exceeded.
• Keep the work area clean. Cluttered areas and benches invite injuries.
• Consider work area environment. Do not expose power tools to rain and do not use power tools in damp or wet locations. Keep the work area well lit. Do not use power tools where there is a risk to cause fire or explosion.
• Guard against electric shock. Avoid body contact where possible with earthed or grounded surfaces (e.g. pipes, radiators, ranges, refrigerators).
• Keep children away. Do not let visitors touch the tool or extension cord. All visitors should be kept away from work area.
• Store idle tools. When not in use, tools should be stored in a dry, high or locked place, out of reach of children.
• Do not force the tool. It will do the job better and more safely at the rate for which it was intended.
• Use the right tool. Do not force small tools or attachments to do the job of a heavy duty tool. Do not use tools for purposes not intended; for example, do not use a circular saw to cut tree limbs or logs.
• Dress properly. Do not wear loose clothing or jewellery as they can be caught in moving parts. Rubber gloves and non-skid footwear are recommended when working outdoors. Wear protective hair covering to contain long hair.
• Use safety glasses. Use a face or dust mask as well if the operation is dusty or if using in enclosed spaces.
• Do not abuse the cord. Never carry the tool by its cord or yank it to disconnect it from the socket. Keep the cord away from heat, oil and sharp edges.
• Secure your work. Use clamps or a vice to hold your work. It is safer than using your hand and it frees both hands to operate the tool.
• Do not overreach. Keep proper footing and balance at all times.
• Maintain tools with care. Keep cutting tools sharp and clean for better and safer performance. Follow instructions for lubricating and changing

accessories. Inspect tool cords periodically and if damaged have repaired by an authorised service facility. Inspect extension cords periodically and replace if damaged. Keep handles dry, clean and free from oil and grease.

• Disconnect tools. Disconnect when not in use, before servicing and when changing accessories such as blades, bits and cutters.
• Remove adjusting keys and wrenches. Form the habit of checking to see that keys and adjusting wrenches are removed from the tool and replaced in the storage area before switching on.
• Avoid unintentional starting. Do not carry a plugged-in tool with a finger on the switch. Ensure the switch is off when plugging in.
• Use outdoor extension cords. When a tool is used outdoors, use only extension cords intended for outdoor use and so marked.
• Stay alert. Watch what you are doing. Use common sense. Do not operate tools when you are tired.
• Connect dust extraction equipment. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used, especially in confined areas.
• Check damaged parts. Before further use of the tool, a guard or other part that is damaged should be carefully checked to determine whether it will operate properly and perform its intended function. Check for alignment of moving parts, free running of moving parts, breakage of parts, mounting and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorised service centre unless otherwise indicated in this instruction manual. Have defective switches replaced by an authorised service centre. Do not use the tool if the switch does not turn it on and off.
• Warning! The use of any accessory or attachment, other than recommended in this instruction manual, may present a risk of personal injury.
• Have your tool repaired by a qualified person. This electrical tool is in accordance with the relevant safety requirements. Repairs should only be carried out by qualified persons using original spare parts, otherwise this may result in considerable danger to the user.

ADDITIONAL SAFETY INSTRUCTIONS FOR SMALL ANGLE GRINDERS

- Use the guard and ensure it is fitted correctly.

ENGLISH

• Check mounting flanges and the disc are correctly fitted and are undamaged.
• Ensure you are using the correct size and type of disc for the task.
• Ensure the disc, wire brush and sanding accessories are rated in excess of the spindle rpm of your angle grinder. Allow a newly assembled wheel to idle off-load for 30 seconds before starting any operation.

Save these instructions!

DOUBLE INSULATION

Your tool is double insulated. This means that all the external metal parts are electrically insulated from the mains power supply. This is done by placing insulation barriers between the electrical and mechanical components making it unnecessary for the tool to be earthed. Note: Double insulation does not take the place of normal safety precautions when operating this tool. The insulation system is for added protection against injury resulting from a possible electrical insulation failure within the tool.

ELECTRICAL SAFETY

Be sure your supply is the same as the voltage given on the rating plate. This tool is fitted with a two-core cord and plug.

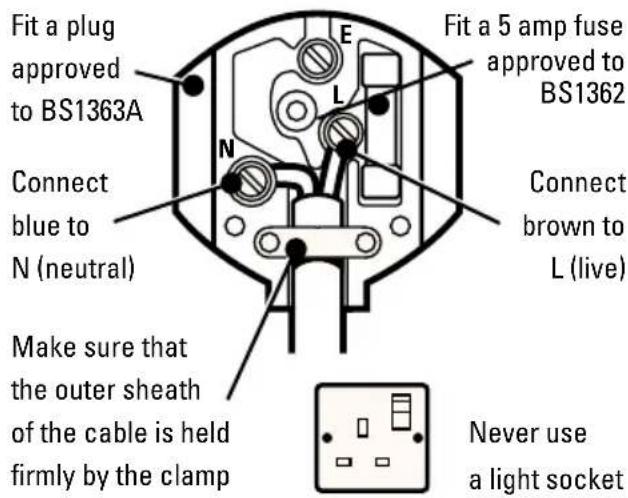

MAINS PLUG REPLACEMENT (UK ONLY)

Should the mains plug need replacing and you are competent to do this, proceed as instructed below. If you are in doubt, contact a Black & Decker service repair agent or a qualified electrician.

- Disconnect the plug from the power supply.

- Cut off the plug and dispose of safely. A plug with bared copper conductors is very dangerous if engaged in a live socket outlet.

- Only fit BS1363A approved plugs fitted with the correctly rated fuse. Note: Fuses do not give personal protection against electric shock.

- The cable wire colours, or a letter, will be marked at the connection point of most good quality plugs. Attach the wires to their respective points in the plug (see diagram). Brown = L (live), blue = N (neutral).

- Before replacing the top cover of the plug ensure that the cable restraint is holding the outer sheath of the cable firmly and that the two leads are correctly fixed at the terminal screws.

- Your product is supplied with a non-rewireable plug, if the fuse cover is missing or damaged do not use the plug.

Warning! Never connect live or neutral wires to the earth pin marked E or ±

Australia and New Zealand only

Should the mains pug or cordset of this equipment be damaged it must only be replaced by an authorised Black & Decker service agent as special purpose tools are required.

EXTENSION CABLES

You can use up to 30m (100ft) of Black & Decker 2-core extension cable (or 3-core extension cable in Australia and New Zealand) without undue loss of power.

Note: An extension cable should not be used unless absolutely necessary. Use of an improper extension cable could result in a risk of fire and electric shock. If an extension cable must be used, make sure it is properly wired and in good electrical condition.

UNWANTED TOOLS AND THE ENVIRONMENT

Should you find one day that the tool needs replacement or is of no further use, think of the protection of the environment. Black & Decker service agents will accept old tools and will dispose of them in an environmentally safe way.

THE BLACK & DECKER GUARANTEE (UK, AUSTRALIA AND NEW ZEALAND ONLY)

If your Black & Decker product becomes defective due to faulty materials and workmanship, within 24 months from the date of purchase, we guarantee to either replace all defective parts or at our discretion, replace the unit free of charge provided that:

- The product is returned to us or our authorised repairers with evidence of date of purchase.

• The product has not been used for trade, professional or hire purposes.

• The product has not been subjected to misuse or neglect.
• The product has not sustained any damage through foreign objects, substances or accidents.
  • Repairs have not been attempted by anyone other than our authorised repair distributors.
  This guarantee is offered as an extra benefit and is additional to your statutory rights.

AFTER SALES SERVICE FOR YOUR BLACK & DECKER PRODUCT (UK, AUSTRALIA AND NEW ZEALAND ONLY)

Black & Decker offers a nationwide network of authorised service agents. The use of other than genuine Black & Decker accessories and parts may damage or reduce the performance of your Black & Decker product and may also endanger the user. The terms and conditions of the warranty may also be effected.

OUR AFTER SALES SERVICE POLICY (UK, AUSTRALIA AND NEW ZEALAND ONLY)

It is our aim that all Black & Decker customers should be totally satisfied with their Black & Decker product and after sales service, but if help or advice is needed please contact a local Black & Decker authorised repair agent manager who will be happy to help. Full details of our unique after sales service can be obtained from any of our Black & Decker authorised repair agents.

ACCESSORIES

The performance of any power tool is dependent upon the accessory used. Black & Decker accessories are engineered to high quality standards and are designed to enhance the performance of the power tool. Buying a Black & Decker accessory will ensure that you get the very best from your Black & Decker power tool. Black & Decker accessories available include metal and stone cutting discs, grinding discs, wire brushes and sanding discs.

TECHNICAL DATA

The level of sound pressure of this tool is in accordance with EEC legislation. You must wear ear protection when using this tool.

KG65 KG72 KG90\*

Disc diameter 115mm 115mm 125mm

Power input 650W 720W 800W

* Not available in the UK.

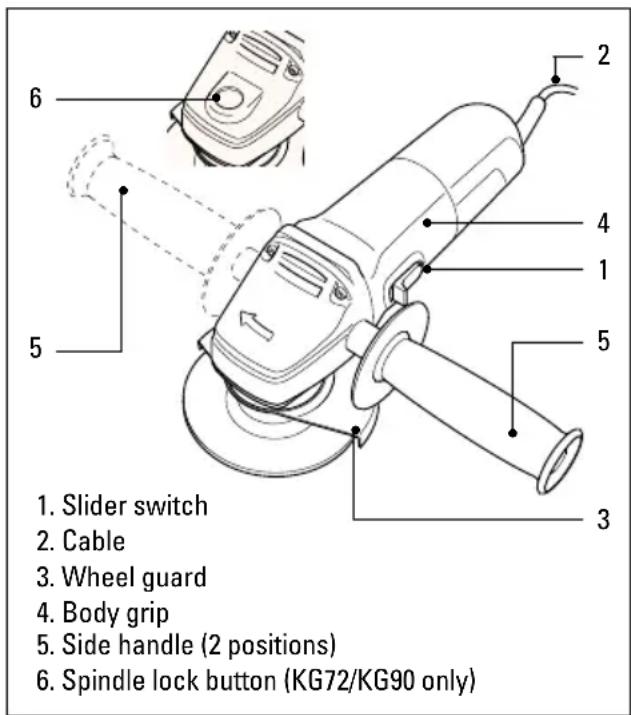

FEATURES

Line drawing of hands using a tool to adjust or install a circular component (no text or symbols)

To switch your angle grinder on, push the slider switch forward. For continuous operation, push the slider switch

forward and push the front down until it locates in the lock position. To switch your angle grinder off, press the rear of the slider switch. Spring action returns the switch to the off position.

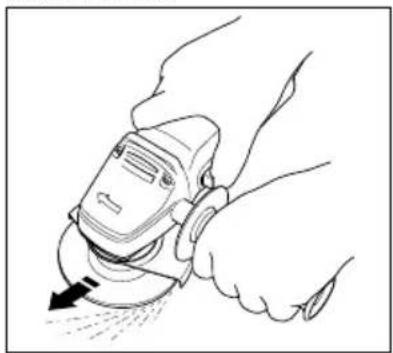

Adjust the guard to protect your hands and to direct grinding debris.

Disconnect the plug from the electricity supply.

Line drawing of hands using a power tool to adjust a component (no text or symbols visible)

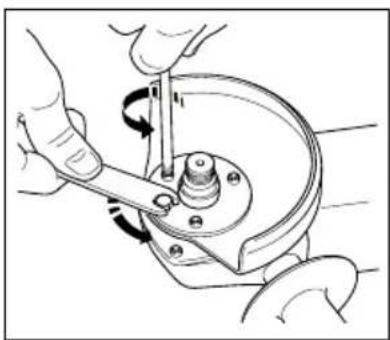

Loosen the clamp bolt. Position the guard at the required angle. Always tighten the clamp bolt.

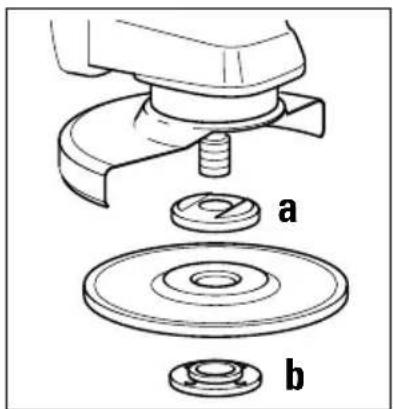

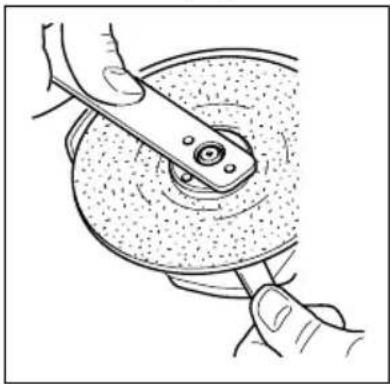

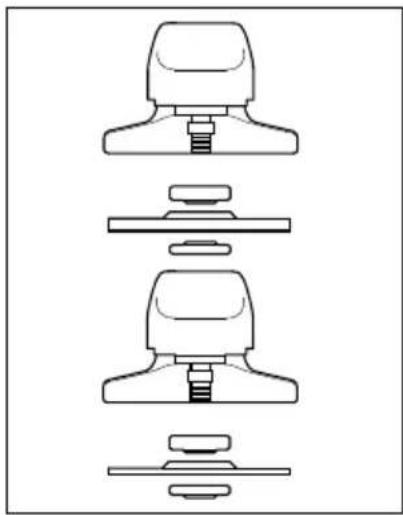

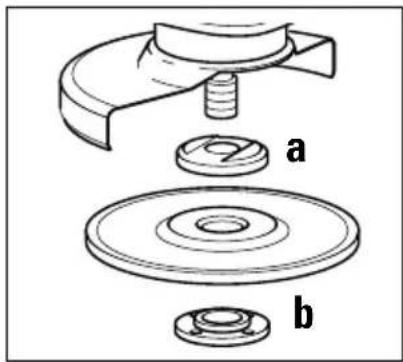

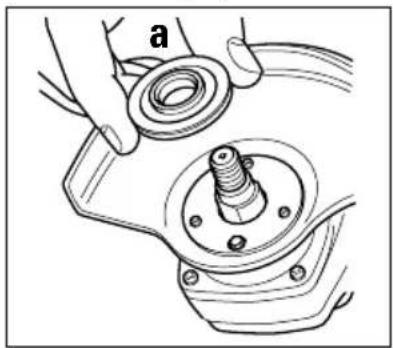

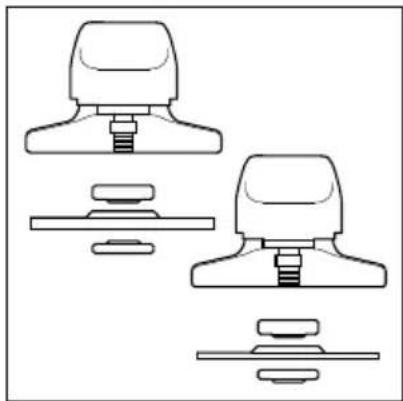

FITTING THE DISCS

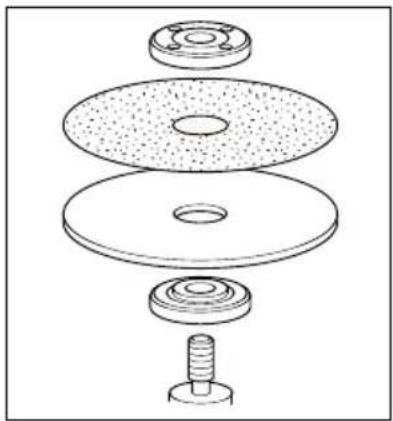

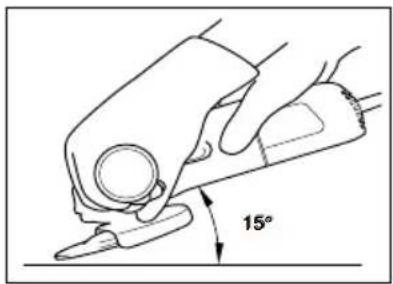

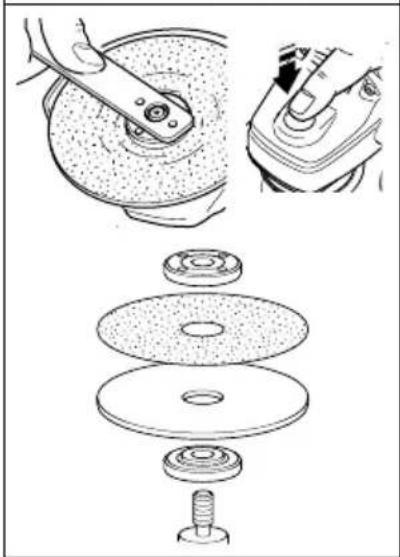

Grinding and finishing

Use a rigid abrasive disc with a depressed centre for surface grinding and finishing. The maximum diameter

ENGLISH

disc you can use is 115mm (KG65/KG72) and 125mm (KG90). The maximum thickness is 6mm and the centre hole is 22mm.

Cutting metal

Use a cutting disc for cutting rod, pipe and metal section. The maximum diameter you can use is 115mm (KG65/KG72) and 125mm (KG90). The maximum thickness is 3.5mm and the centre hole is 22mm.

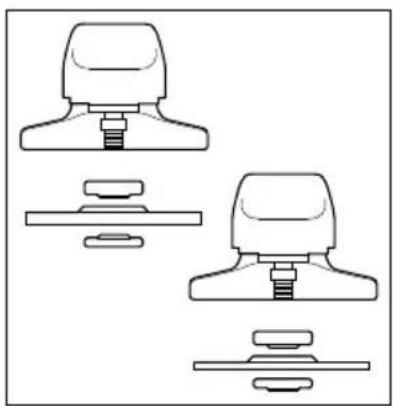

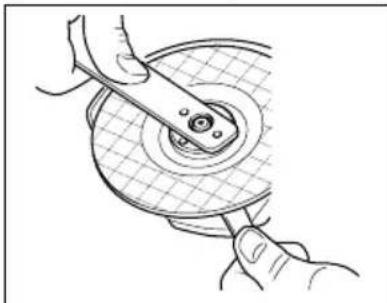

Cutting masonry

Use a flat cutting disc. The maximum diameter you can use is 115mm (KG65/KG72) and 125mm (KG90). Always approach the work at the angle at which you will cut. Maintain this angle throughout the cut and do not exert a side load on the disc.

Proceed as follows:

Disconnect the plug from the electricity supply.

Mechanical assembly diagram showing a hand adjusting a bolted component with a threaded shaft (no text or labels)

Ensure the guard is fitted.

Place the inner flange (a) on the spindle. Ensure it is located on the two flats.

Place the abrasive disc on the spindle and inner flange (a). Ensure it is correctly located.

Technical line drawings of mechanical components (no text or symbols)

Fit the threaded outer flange (b), making sure it is facing in the correct direction for the type of disc fitted. For grinding discs, the flange (b) is fitted with the raised portion facing

towards the disc. For cutting discs, the flange (b) is fitted with the inner portion facing away from the disc.

Illustration of hands using a tool to adjust or install a circular component (no text or symbols visible)

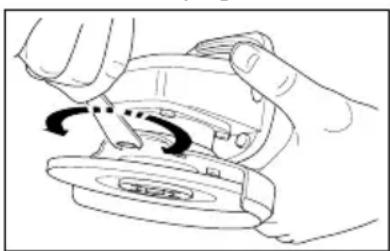

Hold the spanner on the flats of the spindle to prevent rotation of the disc and tighten the outer flange with the spanner provided.

Technical illustration of a hand using a tool to clean or adjust a circular component, with no visible text or symbols.

KG72/KG90 only: Press in the spindle lock button and rotate the spindle until it locks. Keeping the lock button pressed in, tighten the outer flange with the spanner provided.

REMOVING THE GUARD (SANDING ONLY)

Disconnect the plug from the electricity supply. Remove the disc.

Mechanical diagram showing hands operating a mechanical component with a rotating knob (no text or symbols)

Remove the clamp bolt and the three retaining screws.

FITTING ABRASIVE DISCS

Use an abrasive disc with the backing pad for sanding with your angle grinder.

Disconnect the plug from the electricity supply.

Illustration of hands using a tool to cut a car tire (no text or symbols visible)

Remove the guard. Place the flange on the spindle. Place the backing pad on the spindle and inner flange, ensuring it is correctly located. Mount the fibre backed abrasive

ENGLISH

Technical illustration of a car brake caliper and its impact sensor assembly (no text or symbols)

disc on the backing pad. Fit the threaded outer flange and tighten as explained in 'Fitting the discs'.

Exploded view diagram of a mechanical assembly showing layered components (no text or labels)

HANDY HINTS

Line drawing of a hand using a power tool to lift a motor, showing motion direction (no text or symbols)

Hold your angle grinder firmly with one hand around the side handle and the other around the body of your angle grinder.

• Always position the guard so that as much of the exposed disc as possible is pointing away from you.
- Be prepared for a stream of sparks when the disc touches the metal.

Illustration of a hand using a tool to cut a mechanical part, with a 15-degree angle标注 (no text or symbols beyond the angle marker)

When grinding, always maintain the correct angle between the disc and the work surface (15°). This increases the removal capacity

of the disc and avoids unnecessary overloading.

OVERLOAD

Overloading will cause damage to the motor of your angle grinder. This can happen if your angle grinder is subjected to heavy duty use for prolonged periods of use. Do not in any circumstances, attempt to exert too much pressure on your angle grinder to speed up your work. The abrasive discs operate more efficiently when a light pressure is exerted, thus avoiding a drop in the speed of your angle grinder (see Tool care).

TOOL CARE

Keep guards, air vents and the motor housing as clear as possible of dust and dirt. Wipe with a clean cloth and blow through with a low-pressure air supply. Excessive build-up of metal dust can cause tracking of electrical current from the internal parts to exposed metal parts. Do not overload your angle grinder. Overloading causes a reduction in speed and efficiency, causing your angle grinder to become too hot. If this happens, operate your angle grinder under no load for one or two minutes until it has cooled to normal operating temperature. Switching your angle grinder off under load will reduce the life of the switch.

CLEANING

Use only mild soap and a slightly damp cloth to clean your angle grinder. Many household cleaners contain chemicals which could seriously damage the plastic. Also, do not use petrol, turpentine, lacquer or paint thinners or similar products. Never let any liquid get inside the tool and never immerse any part of the tool into liquid.

EC DECLARATION OF CONFORMITY

We declare that units: KG65, KG72, KG90 conform to 89/392/EEC, 89/336/EEC, EN55014, 73/23/EEC, EN55104, EN50144, HD400, EN61000

A weighted sound pressure 97.7dB (A) A weighted sound power 110.7dB (A) Hand/arm weighted vibration <2.5m/s²

Brian Cooke - Director of Engineering Black & Decker Ltd, Spennymoor, County Durham DL16 6JG United Kingdom

The Black & Decker policy is one of continuous improvement to our product and as such we reserve the right to change the product specification without prior notice.

Line drawing of a hand adjusting a car seatbelt (no text or symbols)

Illustration of hands using a handheld device to interact with a curved arrow (no text or symbols)

Mechanical assembly diagram showing a hand adjusting a bolted component with a threaded shaft (no text or symbols)

Technical line drawing of a mechanical component with two views (top and side), no text or symbols present.

ESPAÑOL

Two-panel line drawing showing hands using a tool to cut a circular component, with one view showing the process (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand using a tool to cut a circular object with a knob (no text or symbols)

Technical illustration showing mechanical assembly steps: top panel shows wheel fastening and disassembly, bottom panel shows cross-sectional views of a disc assembly (no text or symbols)

Line drawing of a hand using a power tool to press or adjust a motor (no text or symbols present)

MODE D'EMPLOI DE VOTRE MEULEUSE D'ANGLE

Line drawing of hands performing a medical procedure on an eye (no text or symbols present)

Line drawing of a hand using a power tool to adjust or install a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing a hand holding a bolt and nut, with no visible text or symbols

Technical line drawing of a mechanical component with two views (top and side), no text or symbols present.

Illustration of hands using a tool to cut a circular component with concentric rings (no text or symbols)

Technical illustration of a mechanical assembly with a tool interacting with a circular component (no text or symbols present)

Mechanical diagram showing hands using a tool to adjust a mechanical component (no text or symbols visible)

Illustration of a hand using a tool to cut a circular component (no text or symbols visible)

Technical illustration showing mechanical assembly steps: top panel shows tool pressing a circular component, bottom panel shows cross-sectional view of a multi-layered disc assembly with a bolt (no text or symbols)

Line drawing of a hand using a power tool to press or clean material (no text or symbols)

Illustration of a hand using a tool to cut a component, with a 15° angle标注 (no text or symbols beyond the angle marker)

Line drawing of hands using a tool to adjust or install a circular component (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing a hand adjusting a bolted nut on a flanged base (no text or symbols)

Technical diagram of a mechanical assembly showing three labeled parts (a, b, and a) with no visible text or symbols.

Technical line drawing of mechanical fasteners or fasteners (no text or symbols)

Illustration of hands using a tool to cut or adjust a circular component (no text or symbols visible)

Illustration of a hand using a tool to cut a circular component, with a magnified inset showing the process (no text or symbols)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical illustration showing assembly steps of a mechanical component, including tool, presser, and assembled parts (no text or symbols)

ITALIANO

CONSIGLI UTILI

Line drawing of a hand using a power tool to work on a mechanical component (no text or symbols present)

Illustration of a hand using a tool to cut a component, with a 15-degree angle标注 (no text or symbols beyond the angle marker)

Brian Cooke - Director of Engineering Black & Decker Ltd, Spennymoor, County Durham DL16 6JG, United Kingdom

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Mechanical assembly diagram showing a hand adjusting a bolted component with a threaded screw (no text or labels)

Technical line drawings of mechanical components (no text or symbols)

Two-step diagram showing hand tool application on a circular component, with no visible text or symbols

Illustration of hands using a tool to adjust a mechanical component (no text or symbols visible)

Line drawing of a hand using a power tool to cut a motor (no text or symbols present)

Illustration of a hand using a tool to cut a mechanical part, with a 15-degree angle标注 (no text or symbols beyond the angle marker)

Brian Cooke - Hoofd Engineering Black & Decker Ltd, Spennymoor, County Durham DL16 6JG, United Kingdom

Bruksanvisning for vinkelsliper

SIKKERHETSINSTRUKSJONER

Skivediameter 115mm 115mm 125mm

Strøm 650W 720W 800W

Frittgående hastighet (o/min.) 11,000 11,000 11,000

Line drawing of a hand holding a small object near an eye (no text or symbols)

Når du skal slå på vinkelsliperen, skyver du bryteren forover. For kontinuerlig drift skyver du bryteren forover,

Line drawing of hands using a sewing machine to adjust or install a component (no text or symbols visible)

Løsne

klemmeskruen. Plasser vernet i ønsket vinkel. Husk og alltid stramme klemmeskruen.

SETTE PÅ SLIPESKIVENE

Pass på at oppgitt o/min. for tilbehøret alltid overstiger spindelomdreiningene for vinkelsliperen.

Slipe og polere

Mechanical assembly diagram showing a hand adjusting a bolted component with a threaded shaft (no text or symbols)

Technical line drawings of four different mechanical fasteners or fasteners (no text or symbols present)

Illustration of hands using a tool to adjust or install a circular component (no text or symbols visible)

Technical illustration of a car tire disc being cut with a tool, showing mechanical assembly (no text or symbols)

TA AV VERNET (KUN VED SLIPING)

Mechanical assembly diagram showing hands operating a tool on a mechanical component with rotating arrows (no text or symbols)

Technical illustration showing three steps of a mechanical assembly: tool, disc, and washer (no text or symbols)

Line drawing of a hand using a power tool to cut a circular saw (no text or symbols present)

Hold vinkelsliperen fast med en hånd på sidehåndtaket og den andre rundt selve vinkelsliperen.

Line drawing of a hand using a tool to lift a flat surface, with a 15-degree angle标注 (no text or symbols beyond the angle marker)

VEDLIKEHOLD AV MASKINEN

Brian Cooke - Director of Engineering Black & Decker Ltd, Spennymoor, County Durham DL16 6JG, United Kingdom

Line drawing of hands performing a medical procedure on an eye (no text or symbols present)

Line drawing of hands using a sewing machine to adjust or install a component (no text or symbols visible)

Mechanical diagram showing a hand adjusting a bolt and nut assembly (no text or symbols)

Technical diagram showing a mechanical assembly with labeled parts (a and b), no text or symbols present.

Technical line drawing of mechanical fasteners or connectors (no text or symbols)

Illustration of hands using a tool to adjust or install a circular component (no text or symbols visible)

Illustration of a hand using a tool to clean or adjust a circular component, with no visible text or symbols.

KG72/KG90:

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand using a tool to cut a circular component (no text or symbols visible)

Technical illustration showing a mechanical assembly with a disc, washer, and base plate (no text or symbols)

Line drawing of a hand using a power tool to cut a motor (no text or symbols present)

Illustration of a hand using a tool to lift a small object, with a 15-degree angle标注 (no text or symbols beyond the angle marker)

Black & Decker Ltd, Spennymoor, County Durham

DL16 6JG, United Kingdom

Line drawing of hands operating a car wheel (no text or symbols)

Line drawing of hands using a sewing machine to adjust or install a component (no text or symbols visible)

Mechanical diagram showing a hand using a tool to adjust a bolt on a component (no text or symbols visible)

Technical diagram of a mechanical assembly showing a clamping mechanism with labeled parts (a and b), no text or symbols present.

SUOMI

Technical line drawing of a mechanical component assembly (no text or symbols)

Illustration of hands using a tool to cut a circular component with a mesh pattern (no text or symbols)

Illustration of a hand using a tool to lift a car wheel, with a magnified inset showing the process (no text or symbols)

KG72/KG90:

Mechanical assembly diagram showing hands using a tool to adjust a component (no text or symbols visible)

Illustration of a hand using a tool to cut a circular component (no text or symbols visible)

Technical illustration showing a mechanical assembly with a tool and a close-up of a multi-tiered circular component (no text or symbols present)

Line drawing of a hand using a power tool to press or adjust a car (no text or symbols present)

Illustration of a hand using a tool to lift a flat surface, with a 15-degree angle标注 (no text or symbols beyond the angle marker)

Brian Cooke - Director of Engineering

Black & Decker Ltd, Spennymoor, County Durham

DL16 6JG, United Kingdom

SVERIGE

1. Strömbrytare
2. Sladd
3. Sprängskydd
4. Handtag
5. Sidohandtag (2 lägen)
6. Spindellåsknapp

Line drawing of hands adjusting a circular component on a mechanical part (no text or symbols)

Illustration of hands using a sewing machine to adjust or install a component (no text or symbols visible)

Mechanical assembly diagram showing a hand holding a bolt and a threaded component inserted into a housing (no text or symbols)

Technical diagram of a mechanical assembly showing three labeled parts (a, b, and a) without any text or symbols.

Technical line drawings of mechanical fasteners or connectors (no text or symbols)

Illustration of hands using a tool to adjust or install a circular component (no text or symbols visible)

Technical illustration of a car brake caliper and hand tool (no text or symbols)

KG72/KG90:

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical illustration showing three steps of a car tire machining process: cutting, rolling, and finishing (no text or symbols present)

Line drawing of a hand using a power tool to clean or wear a surface (no text or symbols)

Brian Cooke - Director of Engineering Black & Decker, Spennymoor, Co Durham DL16 6JG, UK

Indkøbsdato

Kaufdatum

Ημερομηνία αγοράσ

Date of purchase

Fecha de compra

Date d'achat

Data d'acquisto

Aankoopdatum

Innkjøpsdato

Data de compra

Ostopäivä

Inköpsdatum

Forhandler adresse

Händleradresse

Διεύθυνση αντι ροσώ ου

Address of dealer

Dirección del detallista

Cachet du revendeur

Indirizzo del rivenditore

Adres van de dealer

Forhandlerens adresse

Morada do revendedor

Jälleenmyyjän osoite

Återförsäljarens adress

Navn/Name/Ovoμα/Name/Nombre/Nom/Nome/Naam/Navn/Nome/Nimi/Namn:____Adresse/Adresse/ΔιεύθυνσηAddress/Dirección/Adresse/Indirizzo/Adres/Adresse/Morada/Osoite/Adress:________By/Wohnort/Πόλη/Town/Ciudad/Ville/Cittá/Plaats/By/Localidade/Paikkakunta/By:________Postnr./Postleitzahl/Kωδικόσ/Postcode/Code postal/Código/Codice postale/Postcode/Postnr./Código postal/Postinumero/Postnr.:____Er maskinen en gave?/Ist diese Maschine ein Geschenk?/Η μηχανή είναι δώρο?/Is this product a gift?/?Ha recibido usted esta herramienta como regalo?/S'agit-il d'un cadeau?/Si tratta di un regalo?/Kreeg u deze

machine cadeau?/Er maskinen en gave?/Recebeu esta ferramenta como presente?/Onko kone lahja?/Är maskinen en gåva?Ja/Ja/Naú/Yes/Sí/Oui/Si/Ja/Ja/Sim/Kyllä/JaNej/Nein/Oχι/No/No/Non/No/Nee/Nei/Não/Ei/NejHvor meget kostede maskinen?/Was war der Preis dieses Werkzeuges?/Ποιά είναι η τιμή του εργαλείου αυτού?/What was the price of this tool?/?Cual fue el precio de esta herramienta?/Prix payé?/Quanto ha pagato questo prodotto?/Wat was de prijs van dit produkt?/Hvor meget kostet maskinen?/?Que preço pagou por esta ferramenta?/?Paljonko kone maksoi?/?Hur myket kostade maskinen?____Er dette din første B&D maskine?/?Ist diese Maschine Ihre ertse B&D Maschine?/?Eivai to εργαλείο αυτό-/+Is this tool-/?Es esta herramienta que comprado-/Est-ce-/Questo prodotto è-/Is deze machine-/Er dette din første B&D maskin?/?Esta ferramenta é-/Onko tämä ensimmäinen B&D-koneesi?/?Är detta Din första B&D-velu?↑

Ja/ein Erstkauf?/?η ρώτη σασ αγορὰ? / your first purchase?/?la primera de este tipo?/?un ler achat?/?il suo primo acquisto?/?uw eerste aankoop?/?Ja/a sua primeira compra?/?Kyllä/JaNej/Ersatzkauf?/?για αντικατάσταση?/?a replacement?/?un reempalzo?/?un achat de remplacement?/?una sostituzione?/?een vervanging?/?Nei/uma substitução?/?Ei/NejForhandler adresse/Händleradresse/Διεύθυνση αντι ροσώ ou /Address of dealer/Dirección del detallista/Cachet du revendeur/Indirizzo del rivenditore/Dealeradres/Forhandlerens adresse/Morada do revendedor/Jälleenmyyjän osoite/Återförsäljarens adress:Cat. no. KG__/_ ____

Venligst sæt kryds i ruden såfremt De ikke måtte ønske at modtage information fra anden virksomhed end Black & Decker.Bitte ankreuzen, falls Sie weiteres Informationsmaterial von Black & Decker erhalten möchten.. Παρακαλείσθε να σημειώσετε εάν δέν θέλετε να άρετε ληροφορίεσ αλλησ εταιρείασ εκτόσ τησ Black & Decker.. Data protection act: Tick the box if you prefer not to receive information from us or others.. Señale en la casilla sino quiere recibir información de otras empresas.. Si vous ne souhaitez pas recevoir d'informations de la part d'autres sociétés que Black & Decker, cochez cette case.. Barrate la casella se non desiderate ricevere informazioni da altre aziende.. A.u.b.dit vakje aankruisen indien u geen informatie wenst te ontvangen van andere bedrijven dan Black & Decker.. Vennligst kryss av dersom De ikke ønsker informasjon fra andre bedrifter enn Black & Decker.. Por favor, assinale com uma cruz se desejar receber informação de outras empresas, além da Black & Decker.. Merkitkää rasti ruutuun, mikäli ette halua vastaanottaa informaatiota muulta taholta kuin Black & Deckeriltä.. Vänligen kryssa för i rutan om Ni inte vill ha information från andra företag än Black & Decker.

Dänmark	Ventigst klip denne del ud qg send frankert til Black & Deckeridit land.	Per faveore ritagilate questa parte, inservitela in una busta confrancobollo e speditela subito dopo J'acquisito del prodottaoall indirizzo della Black & Decker nella vostra nazione (vedi sopra).	Italieno	Soverege	Ver vanšing klipp ur denna del. Skiry Ditt namn och adress paaet frankerat kuvert, och sind det genast till Black & Deckersecti Ditt land (se ovan).	ecel immediatement apres votre achat.
Deutsch	Bitte schiniden Sie diesen Aschinit ab, stacken ihn in einhenblack ander Adresse Ihres Landes.	Knip dit gedelete uit, zend het in een gefrankeerde,geardresseerde envelop direct na uw aankoop naar het	Nederlands		for tavor, recorte esta parte, colouve-a num envelope selado eanderegado e envie-o logo apros a compra do seu produtout dit product og legg det i en adresset konvolut itlBlack & Decker (Norge) A/S (se adresse over).	Portugues	Portugues	For tavor, recorte esta parte, colouve-a num envelope selado eanderegado e envie-o logo apros a compra do seu produtopara o enderego da Black & Decker do seu pais.	Suomi Leikkaa irti tima osa, laita se ohiesen kuoren ja postitakuori yllia olevan parkalisseen Black & Decker ositteeseen.	Far vanšing klipp ur denna del. Skiry Ditt namn och adress paaet frankerat kuvert, och sind det genast till Black & Deckersecti Ditt land (se ovan).	Decoupez cette partie et envoyez-la sous envelope timbree af,radresse de Black & Decker dans votre pays (voir ci-dessus),
Elnviwa	Tappackau kohite auto to koupatti kcal TaxUpoplore tooquizovo uetd tvv ayopd tou polovtor oao otny elzubuvonto Black & Decker otny elzaboa (Paz e cuw).	Kinp dit gedelete uit, zend het in een gefrankeerde,			If you live in Australia or New Zealand, please register by phone.
English	Please cut out this section, put into a stamped addressedenvelope and post immediately after the purchase of yourproduct to the Black & Decker addresses in your country (above).		Portugues		if you live in Australia or New Zealand, please register by phone.
Español	Despues de haber comprado su herramimenta envie usted, porfavor, esta tarjeta a la central de Black & Decker en su pais.		Soverege
Français	Decoupez cette partie et envoyez-la sous envelope timbree af,radresse de Black & Decker dans votre pays (voir ci-dessus),

Australia	Call 1900 937766 (max. call charge $2.00 e
Belgium/Beige	Weihoeck 1, 1930 Zaventem
Dammark	Heieraving 26B, 3450 Allerod
Deutschland	Black & Decker Star 40, D-65510 Idstein
Eradis Black & Decker Eviaco, Zuypou 154, 17671 Kaaltheta
España	43883 Roda de Bara (Tarragona)
France	BP21, 69571 Darilly Cedex
Helvetia	Ruitstrafe 14, 8952 Schilernen, Schweiz/Sv
Italia	Viale Eivezia 2, 20052 Monza (MiI)

Nederland	Florinstraat 10, 4879 AH Eitten-Leur	Call 0900 97766 (max. call charge $2.00 ex. tax)
New Zealand	Strømsveien 344, 1081 Oslo	Erlaer Stråge 165, 1231 Wien
Österreich	Erlaer Stråge 165, 1231 Wien
Portugal Rua Egas, Moniz 173, S. João do Estorni, 2768 Estorni Codex	After sales service, PO Box 5303, Johannesburg 2000
South Africa	Black & Decker OY, Ralisstite 7C, 01510 Vantaa
Suomi	Box 603, 421 26 Vistaa Frolundad	PO Box 821, Slough, Berkshire, SL1 3AR
Sverige	Box 603, 421 26 Vistaa Frolundad
UK & Ireland	PO Box 821, Slough, Berkshire, SL1 3AR

• GARANTI KORT • GARANTI EKARTE • KAPTA E°° YHZH • GUARANTEE CARD • TARJETA DE GARANITA • CARTE DE GARANITE • TACILLADO DI GARANIZIA • GARANTI-E-KART • GARANTI KORT • CARTAO DE GARANITA • TAKUKORITI • GARANTIBEVIS
