Product Type	Angle Grinder
Model	2750-220
Brand	Black & Decker
Voltage	220 V
Wheel Diameter	4-1/2" (115 mm)
Power Source	Corded Electric
Double Insulated	Yes
Switch Type	Paddle switch with lock-off lever and lock-on button
Spindle Lock	Yes, for wheel changes
Auxiliary Handle	Included, mountable left or right
Guard	Included, adjustable, must be used with depressed center wheels
No-Load Speed	As marked on nameplate (typical ~10,000 RPM)
Lubrication Interval	Every 60 days to 6 months by authorized service center
Motor Brushes	CHECKPOINT system; auto-stop when worn; replace at authorized center
Cleaning	Blow dust out with compressed air; use dry rag only; no solvents
Applications	Grinding, sanding, wire brushing
Recommended Accessories	Depressed center wheels, sanding discs, wire cup brushes
Safety Features	Double insulation, lock-off switch, guard, eye protection requirement
Warranty	1 year free maintenance; full warranty against defects
Included in Box	Grinder, auxiliary handle, guard, wrench (assumed)

Frequently Asked Questions - 2750-220 BLACK & DECKER

How do I change the grinding wheel?

Disconnect the tool. Press the spindle lock button to lock the spindle. Use the wrench to loosen the clamp washer. Remove the old wheel, place the new wheel on the spindle, and tighten the clamp washer firmly.

How does the paddle switch work?

To start, slide the lock-off lever rearward while depressing the paddle. Release the paddle to stop. To lock on, press the lock button while holding the paddle depressed; squeeze and release paddle to unlock.

What safety precautions should I take?

Always wear eye protection. Use the guard and auxiliary handle. Avoid loose clothing. Keep work area clean and well-lit. Disconnect before changing accessories.

How often should I lubricate the grinder?

Lubricate every 60 days to 6 months depending on usage. This should only be done by an authorized service center.

How do I know when to replace the motor brushes?

The CHECKPOINT system automatically stops the tool when the brushes are worn. Take it to an authorized Black & Decker service center for replacement.

Can I use this grinder for sanding?

Yes, with abrasive discs on a backing pad. Hold the tool at a 10-15° angle to the work surface for best results.

How do I install a wire cup brush?

Disconnect the tool. Ensure the brush speed rating is equal or higher than the grinder's no-load speed. Thread the brush onto the spindle and tighten.

What is the auxiliary handle for?

The auxiliary handle provides better control and reduces risk of injury. It can be mounted on either side of the front housing. Use it at all times.

How do I clean the grinder?

Regularly blow dust and grit out of the motor housing with compressed air. Use a clean, dry rag for exterior. Never use solvents or harsh chemicals.

What accessories are recommended?

Use depressed center wheels (with guard), sanding discs, and wire cup brushes. Always check speed ratings. Only use accessories rated for the tool's speed.

USER MANUAL 2750-220 BLACK & DECKER

Black & Decker (U.S.) Inc. • 701 East Joppa Road, Towson, Maryland 21286 Printed in U.S.A. (JAN96-CD-1) Form No. 154559 Copyright © 1996

Instruction Manual

2750-220

4-1/2" Small Angle Grinder

Getting the most out of your tool.

Please take time to read this manual and pay particular attention to the safety rules we've provided for your protection. Don't forget to send in your owner's registration card. If you have any questions about your tool please call:

1-800-9-BD TOOL (1-800-923-8665)

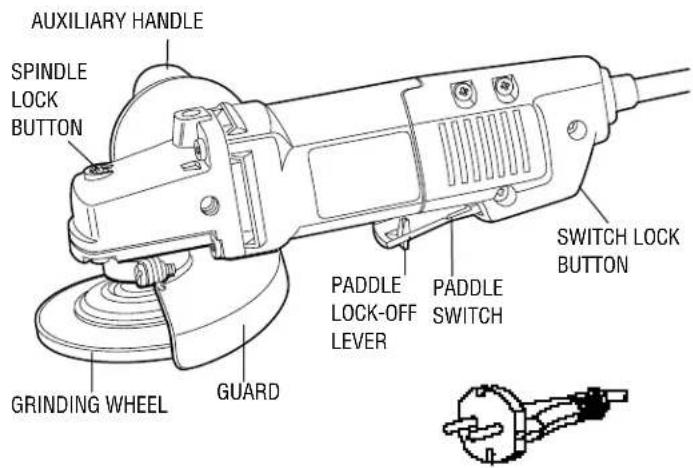

2750-220 4-1/2" Angle Grinder with 220 volt plug

FOR YOUR SAFETY - ALL TOOLS

WARNING: When using electric tools, basic safety precautions should be followed to reduce risk of fire, electric shock, and personal injury, include the following:

READ ALL INSTRUCTIONS

Double Insulation

Double insulated tools are constructed throughout with two separate of electrical insulation or one double thickness of insulation between and the tool's electrical system. Tools built with this insulation system not intended to be grounded. As a result, your tool is equipped with prong plug which permits you to use extension cords without conce maintaining a ground connection.

NOTE: Double insulation does not take the place of normal s precautions when operating this tool. The insulation system is for protection against injury resulting from a possible electrical insu failure within the tool.

CAUTION: WHEN SERVICING USE ONLY IDENTICAL REPLACE PARTS. Repair or replace damaged cords.

Safety Instructions For All Tools

• KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
• CONSIDER WORK AREA ENVIRONMENT. Don't expose power tools to rain. Don't use power tools in damp or wet locations. Keep work area well lit. Do not use tool in presence of flammable liquids or gases.
• GUARD AGAINST ELECTRIC SHOCK. Prevent body contact with grounded surfaces. For example; pipes, radiators, ranges, and refrigerator enclosures.
• KEEP CHILDREN AWAY. Do not let visitors contact tool or extension cord. All visitors should be kept away from work area.
• STORE IDLE TOOLS. When not in use, tools should be stored in dry, and high or locked-up place — out of reach of children.
• DON'T FORCE TOOL. It will do the job better and safer at the rate for which it was intended.
• USE RIGHT TOOL. Don't force small tool or attachment to do the job of a heavy-duty tool. Don't use tool for purpose not intended.
• DRESS PROPERLY. Do not wear loose clothing or jewelry. They can be caught in moving parts. Rubber gloves and non-skid footwear are recommended when working outdoors. Wear protective hair covering to contain long hair.
  • USE SAFETY GLASSES. Also use face or dust mask if operation is dusty.
• DON'T ABUSE CORD. Never carry tool by cord or yank it to disconnect from receptacle. Keep cord from heat, oil, and sharp edges.
• SECURE WORK. Use clamps or a vise to hold work. It's safer than using your hand and it frees both hands to operate tool.
• DON'T OVERREACH. Keep proper footing and balance at all times.

• MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and safer performance. Follow instructions for lubricating and changing accessories. Inspect tool cords periodically and if damaged, have repaired by authorized service facility. Inspect extension cords periodically and replace if damaged. Keep handles dry, clean, and free from oil and grease.

• DISCONNECT OR LOCK OFF TOOLS when not in use, before servicin when changing accessories, such as blades, bits, cutters.

• REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of check see that keys and adjusting wrenches are removed from tool before to it on.
• AVOID UNINTENTIONAL STARTING. Don't carry tool with finger on s Be sure switch is off when plugging in.
• EXTENSION CORDS. Make sure your extension cord is in good con. When using an extension cord, be sure to use one heavy enough to the current your product will draw. An undersized cord will cause a d line voltage resulting in loss of power and overheating. The following shows the correct size to use depending on cord length and nam ampere rating. If in doubt, use the next heavier gage. The smaller the number, the heavier the cord.
• OUTDOOR USE EXTENSION CORDS. When tool is used outdoors, us extension cords intended for use outdoors and so marked.

Minimum Gage for Cord Sets
Volts Total Length of Cord in Feet

120V 0-25 26-50 51-100 101-150

240V 0-50 51-100 101-200 201-300

Ampere Rating

More Not more American Wire Gage Than Than

0	-	6	1	8	1	6	1	6
6 - 10	18		16		14		12
10	-	12	16		16		14	12
12	-	16 14	12		Not Recommended

• STAY ALERT. Watch what you are doing. Use common sense. Do not operate tool when you are tired.
• CHECK DAMAGED PARTS. Before further use of the tool, a guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless otherwise indicated elsewhere in this instruction manual. Have defective switches replaced by authorized service center. Do not use tool if switch does not turn it on and off.

ADDITIONAL SAFETY INSTRUCTION

• ALWAYS WEAR EYE PROTECTION.
- KEEP GUARDS IN PLACE.
- Use only grinding wheels having a maximum operating speed at least as "No Load RPM" marked on the tool's nameplate.
- Before using, inspect recommended accessory for cracks or flaws. If s crack or flaw is evident, discard the accessory. The accessory should be inspected whenever you think the tool may have been dropped.
- When starting the tool (with a new or replacement wheel installed) hot tool in a well protected area and let it run for one minute. If the wheel undetected crack or flaw, it should burst in less than one minute. Never the tool with a person in line with the wheel. This includes the operator
- In operation, avoid bouncing the wheel or giving it rough treatment. occurs, stop the tool and inspect the wheel.
- Always use guards with depressed center wheels or flaring cup gr wheels.
- Clean your tool out periodically.
- CAUTION: Some wood contains preservatives such as copper chro arsenate (CCA) which can be toxic. When sanding these materials extr should be taken to avoid inhalation and minimize skin contact.

SAVE THESE INSTRUCTIONS FOR FUTURE USE

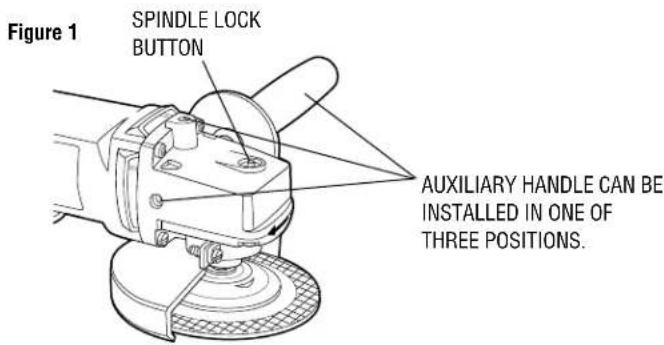

Auxiliary Handle

An auxiliary handle is furnished with your grinder and can be installed on either side of the front housing. THIS HANDLE SHOULD BE USED AT ALL TIMES to maintain complete control of the tool.

TOOL OPERATION

Paddle Switch

To start the grinder, slide the lock off lever to the rear of the tool while you are depressing it at the same time. To turn the tool off, release the paddle. The switch can be locked on by engaging the lock button located near the rear of the tool while holding the paddle depressed. Always be sure that the tool is not locked on before plugging it in. To turn the tool off when it is locked on, squeeze and release the paddle once.

Spindle Lock Button

Turn off and unplug grinder. In order to prevent the spindle of the tool, rotating while installing or removing accessories, a spindle lock button been provided in the gear head of the machine, as shown in Figure 1. De spindle lock button and rotate the spindle until the lock pin engages with the spindle. NEVER DEPRESS THE LOCK BUTTON WITH THE RUNNING OR COASTING.

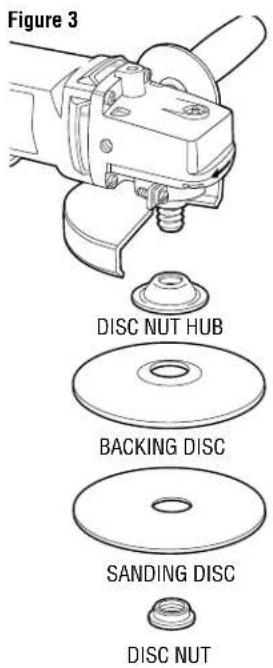

Sanding With Abrasive Discs (Figure 3)

To install sanding discs:

1. TURN OFF TOOL AND DISCONNECT FROM POWER SUPPLY.
2. Push the hub of the disc nut through the center of the sanding di far as it will go, and also through the backing disc.

3. Put the assembled discs on the tool spindle and engage the dis into the disc nut hub.

4. Thread the assembly clockwise, completely down on the spindle.

5. Engage the lock button to lock the spindle in place.

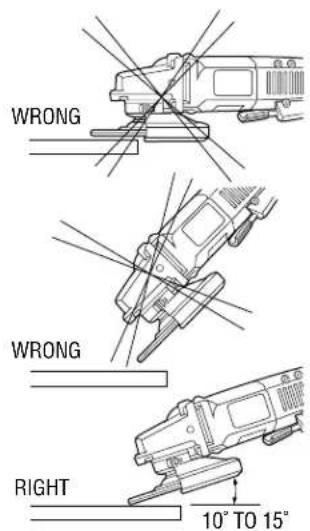

When using a sanding disc, hold the tool at an angle of 10^-15^ to the work as shown in Figure 4. If only the outer edge of the sanding disc is used, a rough cut surface will result. If the sanding disc is pressed flat against the work, the surface will be irregular and bumpy, and the tool will be difficult to control.

Figure 4

To remove disc:

1. Engage spindle lock button to lock the spindle in place.
2. Using a cloth or glove to protect your hand, turn disc asse counterclockwise to remove it from the tool spindle.

Depressed-Center Wheels

Depressed center wheels may be used for moderate metal removal on flat or contoured surfaces (see Figure 5).

CAUTION: Never use depressed center wheels without the proper guard.

To install depressed center wheels:

1. TURN OFF TOOL AND DISCONNECT FROM POWER SUPPLY.
2. Be sure the guard assembly is securely attached to the spindle housing. Position guard so that the open part of the guard is facing away from the operator.
3. Put the backing flange onto the tool spindle.
4. Check rated speed on depressed center wheel. Never use wheel with rated speed lower than the speed in the "WARNING" statement on the nameplate of the tool.

RAISED PORTION OF FLANC TOWARD SPINDLE

DEPRESSED CENTER W

1. Place the depressed center wheel on the tool spindle.
2. Thread the clamp washer on tool spindle, hold the tool spindle by engaging the lock button, and tighten clamp washer with wrench.

When using a depressed center wheel, hold the tool so that an angle of approximately 30^ exists between the wheel and the work.

Wire Brushing

Common applications for wire cup brushes include cleaning welds, angles, corners and removal of paint.

1. Disconnect tool from power source. Rest grinder on its back with spindle facing up.
2. Ensure that the rated speed of the wire brush is equal to or higher than the rated speed of the grinder found on the nameplate.
3. Thread wire cup brush onto spindle and tighten.
4. Always wear eye protection and appropriate protective clothing.

Precautions To Take When Sanding Paint

1. Sanding of lead based paint is NOT RECOMMENDED due to the difficulty of controlling the contaminated dust. The greatest danger of lead poisoning is to children and pregnant women.
2. Since it is difficult to identify whether or not a paint contains lead without a chemical analysis, we recommend the following precautions when sanding any paint:

PERSONAL SAFETY

a. No children or pregnant women should enter the work area where the paint sanding is being done until all clean up is completed.
b. A dust mask or respirator should be worn by all persons entering the work area. The filter should be replaced daily or whenever the wearer has difficulty breathing.

NOTE: Only those dust masks suitable for working with lead pain and fumes should be used. Ordinary painting masks do not offer protection. See your local hardware dealer for the proper N.I.C approved mask.

c. NO EATING, DRINKING or SMOKING should be done in the work to prevent ingesting contaminated paint particles. Workers should and clean up BEFORE eating, drinking or smoking. Articles of drink, or smoking should not be left in the work area where dust or settle on them.

ENVIRONMENTAL SAFETY

a. Paint should be removed in such a manner as to minimize the am of dust generated.
b. Areas where paint removal is occurring should be sealed with p sheeting of 4 mils thickness.
c. Sanding should be done in a manner to reduce tracking of pain outside the work area.

CLEANING AND DISPOSAL

a. All surfaces in the work area should be vacuumed and thoro cleaned daily for the duration of the sanding project. Vacuum filte should be changed frequently.
b. Plastic drop cloths should be gathered up and disposed of along any dust chips or other removal debris. They should be placed in: refuse receptacles and disposed of through regular trash pi procedures.
During clean up, children and pregnant women should be kept from the immediate work area.
c. All toys, washable furniture and utensils used by children show washed thoroughly before being used again.

MAINTENANCE ACCESSORIES

Cleaning

Blowing dust and grit out of the motor housing using compressed air is a necessary regular maintenance procedure. Dust and grit containing metal particles often accumulate on interior surfaces and could create an electrical shock hazard if not frequently cleaned out. ALWAYS WEAR SAFETY GLASSES.

CAUTION: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. Use clean, dry rag only.

Lubrication

B&D tools are properly lubricated at the factory and are ready for use. Tools should be relubricated regularly every sixty days to six months, depending on usage. (Tools used constantly on production or heavy-duty jobs and tools exposed to heat may require more frequent lubrication.) This lubrication should only be attempted by trained power tool repairpersons, such as those at B&D service centers or in other qualified service organizations.

Motor Brushes

Your tool is equipped with the B&D CHECKPOINT™ system. When the brushes become worn out, the tool will automatically stop and prevent damage to the motor. Brush replacement should be performed by B&D authorized service centers.

IMPORTANT!

To assure product safety and reliability, particularly for double insulated tools, repairs, maintenance and adjustment (excluding maintenance described in this manual) should be performed by B&D service centers or authorized service centers, using identical B&D replacement parts.

NOTE: Use accessories recommended per chart below:

Accessory Type Notes	Usage
DEPRESSED CENTER WHEEL	Use guard supplied with Tool	Use for moderate m and masonry rem on flat or contour surfaces
SANDING DISCS		Use for smoothing v and sharp edges, i automotive body p
WIRE CUP BRUSHES	MAX- 4' KNOTTED WHEEL MAX- 2-3/4' CUP WHEEL	Use for rust removal surface preparati before painting

Depressed center grinding wheels must fit within the confines of the and must be rated higher than the recommended speed as marked (a nameplate.

CAUTION: Strands of wire cup brushes may break and fly off while in Users and others in the area should wear adequate eye, face and protection. Use only wire cup brushes that are rated at or greater than RPM shown on the tool's nameplate.

WARNING: To reduce the risk of injury, always use proper guards grinding and wear eye protection.

CAUTION: The use of any non-recommended accessory may be hazardous. Recommended accessories for use with your tool are available at extra cost from your distributor or local service center. A complete listing of service centers is included with your tool.

If you need any assistance in locating any accessory call: 1-800-9-BD TOOL (1-800-923-8665) or contact Black & Decker (U.S.) Inc., Consumer Services Department, 626 Hanover Pike, P.O. Box 618, Hampstead, MD 21074.

Every B&D tool is of the highest quality.

If you wish to contact us regarding this product, please call t free between 8:00am and 8:00pm ET, seven days a week:

1-800-9-BD TOOL

(1-800-923-8665)

One Year Free Maintenance

All B&D tools for Industry and Construction are covered under a one-free maintenance program where B&D will inspect your tool for safety provide necessary maintenance or repairs, including normal wear and parts, for one year, FREE OF CHARGE.

Full Warranty

All B&D tools for Industry and Construction are warranted to be free of defects in materials or workmanship. Upon thorough examination of B&D will repair or replace, at our option, any product that is determining be defective.

Conditions

The service/safety check and the warranty do not apply to: repairs may be attempted by anyone other than an authorized B&D service location; m abuse, neglect, improper application of the tool; missing parts; or n wear and tear (after first year of ownership). Please return the complete transportation prepaid, to any B&D factory owned or B&D authc service center location (list provided with tool or see yellow pages "Tools Electric").
