SPBT4100BK - Loudspeaker NEDIS - Free user manual and instructions

Product type	Bluetooth speaker
Brand	Nedis
Model	SPBT4100BK
Bluetooth version	5.0
Bluetooth range	Up to 10 m
Power (RMS)	3 W
Peak power	9 W
Frequency response	100 Hz - 20 kHz
Impedance	4 Ω
Sensitivity	81 dB
Speaker size	40 mm
Power supply	5 V DC, 0.5 A (via micro USB port)
Battery type	Lithium-ion (non-removable)
Battery capacity	400 mAh
Charging time	Up to 1.5 hours
Playback time	Up to 3 hours
Built-in microphone	Yes (hands-free)
TWS function	Yes (stereo pairing between two speakers)
Control	Multifunction button (power on/off, play/pause, call management)
Maintenance	Clean with a soft dry cloth
Safety	Do not expose to water or moisture; non-removable battery
Repairability	No user-serviceable parts; refer to qualified technician
General information	Made in China; Distributor: Nedis B.V., Netherlands

Frequently Asked Questions - SPBT4100BK NEDIS

How to pair the speaker with my phone?

Turn on the speaker by pressing and holding the power button for 2 seconds. The LED indicator flashes and a tone sounds. Enable Bluetooth on your phone and select SPBT4100 from the list of available devices.

How to charge the speaker?

Plug the provided micro USB cable into the micro USB port of the speaker and into a USB adapter (5 V, 0.5 A). The LED indicator lights red during charging and turns off when the battery is full. Charging time is approximately 1.5 hours.

What is the battery life?

The playback time is approximately 3 hours at moderate volume. The battery is a Lithium-ion type with a capacity of 400 mAh.

How to use the TWS (True Wireless Stereo) function?

To pair two identical speakers, turn both on. On one of them, press the power button twice. The LED flashes to indicate TWS mode. The other speaker connects automatically. Then, pair your phone with one of the speakers as usual.

How to answer a phone call?

On an incoming call, press the power button once to answer. To hang up, press the same button again.

What to do if the speaker does not turn on?

Check that the battery is charged. Connect the speaker to a power source using the micro USB cable. If it still doesn't turn on, press and hold the power button for 5 seconds.

How to clean the speaker?

Use a soft dry cloth to wipe the surface. Do not use solvents, abrasive products, or liquids. Avoid getting water into the openings.

Is the speaker waterproof?

No, the speaker is not waterproof. Do not expose it to water, moisture, or splashes. Use only in a dry environment.

How to update the speaker firmware?

No firmware updates are planned for this model. The speaker operates with factory settings.

Where to find the detailed manual online?

The detailed manual is available on the Nedis website at the following address: ned.is/spbt4100bk. You can also scan the QR code on the packaging.

USER MANUAL SPBT4100BK NEDIS

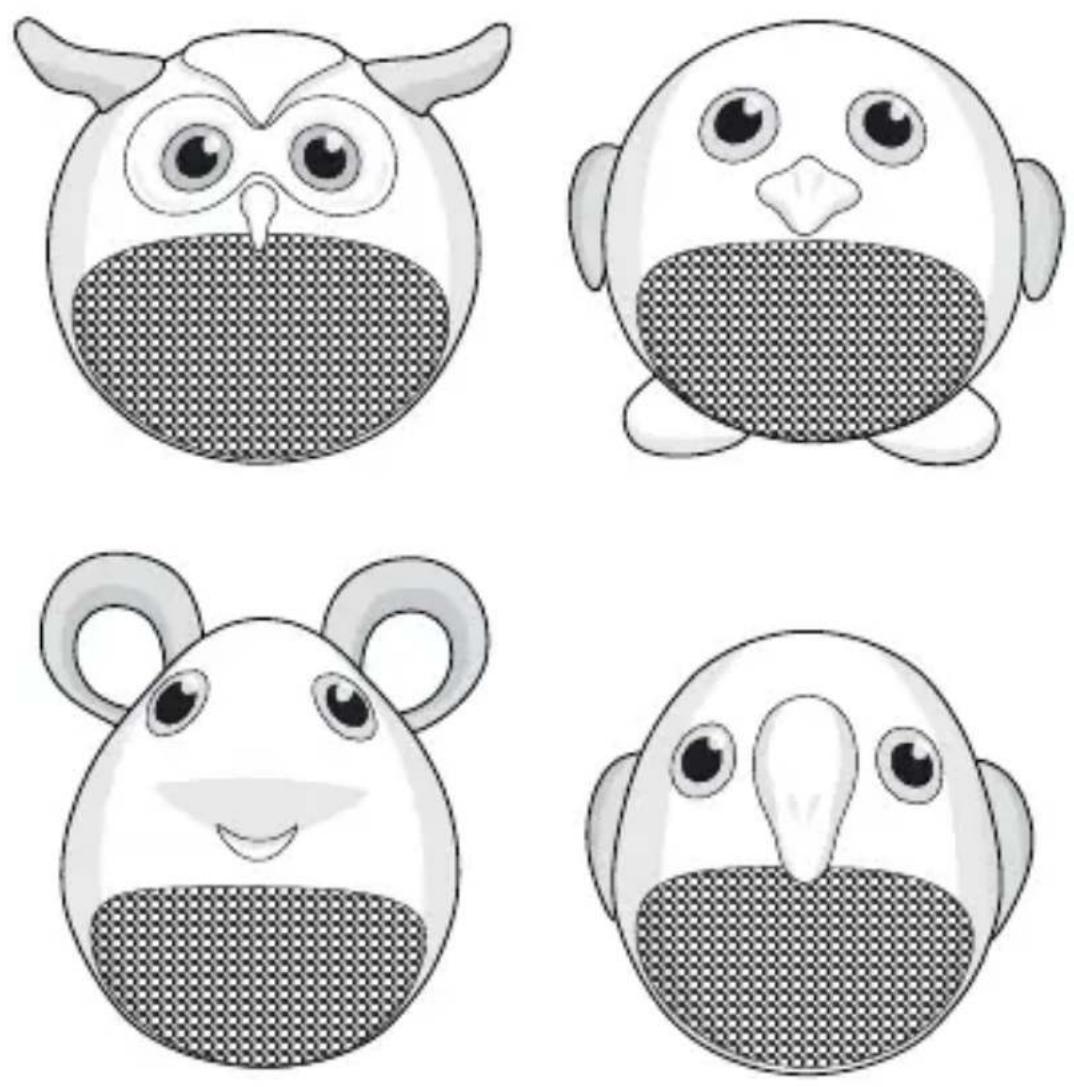

Bluetooth® Speaker with a unique and fun design

SPBT4100BG | SPBT4100BK SPBT4100GY | SPBT4100RD

EN Quick start guide 4

DE Kurzanleitung 8

ned.is/spbt4100bg ned.is/spbt4100bk

ned.is/spbt4100gy ned.is/spbt4100rd

A

Bluetooth® Speaker

SPBT4100BG | SPBT4100BK

SPBT4100GY | SPBT4100RD

For more information see the extended manual online:

ned.is/spbt4100bg | ned.is/spbt4100bk

ned.is/spbt4100gy | ned.is/spbt4100rd

Intended use

The Nedis SPBT4100BG | SPBT4100BK | SPBT4100GY | SPBT4100RD is a Bluetooth speaker that plays audio from your media device.

The product is exclusively intended for playing music from a Bluetooth device and for answering and making hands-free phone calls.

This product is not a toy, it is intended as a speaker.

The product is not intended for professional use.

Any modification of the product may have consequences for safety, warranty and proper functioning.

Specifications

Product Bluetooth	*Speaker
Article number SPBT4100BG | SPBT4100BK | SPBT4100GY | SPBT4100RD
Power input 5 VDC; 0.5 A
Bluetooth® version 5.0
Bluetooth® frequency range 2402 - 2480 MHz
Bluetooth® signal range Up to 10 m
Frequency response 100 Hz - 20 KHz
Max. radio transmit power 4.92 dBm
Max. antenna gain -0.58 dBi
Peak power 9 W
Power (RMS) 3 W
Impedance 4 Ω
Sensitivity 81 dB
Driver size 40 mm
Battery type Lithium-ion (602040)
Charging time Up to 1.5 hours
Battery capacity 400 mAh
Play time Up to 3 hours
Built-in microphone Yes

Main parts (image A)

1 Power button

2 Microphone

3 Micro USB cable

4 Micro USB port

5 Status indicator LED

Safety instructions

WARNING

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep this document for future reference.
• Only use the product as described in this document.
• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
• This product can be used by children aged from 6 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be done by children without supervision.
• Not to be used by very young children (0-3 years).
• Usage by children should be supervised at all times.
• Do not drop the product and avoid bumping.
• This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.
• Disconnect the product from the power source and other equipment if problems occur.

• Do not expose the product to water or moisture.

• Do not use the product where splashing of water might occur e.g. bathrooms, swimming pools or close to a washbowls.

• This product is equipped with a non-removable internal battery. Do not attempt to replace the battery yourself.
• Provide enough ventilation during charging.
• Do not expose the product to direct sunlight, naked flames or heat.
• Do not open the product.
• Do not use the product at locations where the use of wireless devices is prohibited due to potential interference with other electronic devices, which may cause safety hazards.
• Listening on high volume for a long time will damage your hearing.

Charging the product

1. Plug the micro USB cable A ③ into the micro USB port A ④.
2. Plug the other end of A ③ into a USB adapter.
3. The status indicator LED A ⑤ lights up red.

A15 turns off when the product is fully charged.

Pair with Bluetooth

1. Press and hold the power button A ① for 2 seconds to switch on the product.
2. A ⑤ blinks and the product emits a tone to indicate pairing mode is active.
3. Enable Bluetooth on the device you want to pair the speakers with.
4. Select "SPBT4100" from the list of available Bluetooth devices on your device.

True Wireless Stereo (TWS)

TWS only works with two speakers of the same type.

1. Disable Bluetooth on the device you want to pair the speakers with.
2. Switch on both speakers.
3. Double press A ① on one of the speakers.
4. After a few seconds A ⑤ blinks and the product emits a tone to indicate pairing mode is active.
5. A ⑤ of the other speaker lights up.
6. Enable Bluetooth on the device you want to pair the speakers with.
7. Select "SPBT4100" from the list of available Bluetooth devices on your device.
8. Double press A ① of one of the speakers, to switch off the TWS function.

Controlling the music

- Press A ① to play or pause the music.

Making phone calls

• To answer an incoming call, press A ①.
• To end a call, press A ①.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product SPBT4100BG | SPBT4100BK | SPBT4100GY | SPBT4100RD from our brand Nedis ^® , produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via:

webshop.nedis.com/spbt4100bg#support webshop.nedis.com/spbt4100bk#support webshop.nedis.com/spbt4100gy#support webshop.nedis.com/spbt4100rd#support

For additional information regarding the compliance, contact the customer service:

Web: www.nedis.com E-mail: [e-mail] Phone: [phone] (during office hours) Nedis B.V., de Tweeling 28 5215 MC 's-Hertogenbosch, the Netherlands
