SPBT4110YW - Loudspeaker NEDIS - Free user manual and instructions

Product type	Bluetooth speaker
Brand	Nedis
Model	SPBT4110YW
Bluetooth version	5.0
Bluetooth range	Up to 10 m
Frequency response	100 Hz - 20 kHz
Peak power	9 W
RMS power	3 W
Impedance	4 Ω
Sensitivity	81 dB
Speaker size	40 mm
Built-in microphone	Yes
Battery type	Lithium-ion (602040)
Battery capacity	400 mAh
Charging time	Up to 1.5 hours
Playback time	Up to 3 hours
Power supply	5 V DC; 0.5 A
Connector	Micro USB port (charging)
TWS function	Yes (with two identical speakers)
Intended use	Music playback and hands-free calling
Maintenance	Clean with a dry cloth, do not use abrasive products
Operating temperature	Do not expose to excessive heat or direct sunlight
Country of origin	China

Frequently Asked Questions - SPBT4110YW NEDIS

How to turn the SPBT4110YW speaker on and off?

Press and hold the power button (A①) for 2 seconds to turn the speaker on or off.

How to pair the speaker with my phone?

Turn on the speaker, enable Bluetooth on your phone, then select 'SPBT4110' from the list of available devices. The LED indicator flashes during pairing.

How to use the TWS (True Wireless Stereo) function?

To pair two SPBT4110 speakers, disable Bluetooth on your device, turn on both speakers, then press twice the power button on one of them. The speakers will pair automatically. Then enable Bluetooth and select 'SPBT4110'.

How long does the battery last?

The battery provides up to 3 hours of music playback and requires about 1.5 hours for a full charge.

How to charge the speaker?

Plug the included micro USB cable into the speaker's micro USB port, then connect the other end to a USB adapter. The red light turns on during charging and turns off once charging is complete.

Is the speaker waterproof?

No, the speaker is not waterproof. Avoid any contact with water and moisture. Do not use it near a bathtub, pool, or in the rain.

How to answer a phone call?

When receiving a call, press the power button once to answer. Press again to end the call.

Can I replace the battery myself?

No, the battery is internal and non-removable. Do not attempt to open or replace it yourself. Contact a qualified technician if there is a problem.

What to do if the speaker does not turn on?

Make sure the battery is charged. Plug in the charging cable and wait a few minutes. If the light does not turn on, try a different cable or adapter. If the problem persists, contact customer service.

How to control music?

Use the power button (A①) to play/pause music. Note that there are no volume controls on the speaker; use your connected device to adjust the volume.

USER MANUAL SPBT4110YW NEDIS

Bluetooth® Speaker with a unique and fun design

SPBT4110BK | SPBT4110BN

SPBT4110NC | SPBT4110PK

SPBT4110Y W

EN Quick start guide 4

DE Kurzanleitung 8

ned.is/spbt4110bk ned.is/spbt4110bn

ned.is/spbt4110nc ned.is/spbt4110pk

ned.is/spbt4110yw

A

Bluetooth® Speaker

SPBT4110BK | SPBT4110NC

SPBT4110YW | SPBT4110BN

SPBT4110PK

For more information see the extended manual online:

ned.is/spbt4110bk | ned.is/spbt4110nc |

ned.is/spbt4110yw | ned.is/spbt4110bn |

ned.is/spbt4110pk

Intended use

The Nedis SPBT4110BK | SPBT4110NC | SPBT4110YW | SPBT4110BN | SPBT4110PK is a Bluetooth speaker that plays audio from your media device.

The product is exclusively intended for playing music from a Bluetooth device and for answering and making hands-free phone calls.

This product is not a toy, it is intended as a speaker.

The product is not intended for professional use.

Any modification of the product may have consequences for safety, warranty and proper functioning.

Specifications

Product Bluetooth	*Speaker
Article number SPBT4110BK | SPBT4110NC | SPBT4110YW | SPBT4110BN | SPBT4110PK
Power input 5 VDC ; 0.5 A
Bluetooth® version 5.0
Bluetooth® frequency range 2402 - 2480 MHz
Bluetooth® signal range Up to 10 m
Frequency response 100 Hz - 20 KHz
Max. radio transmit power 3.89 dBm (SPBT4110BK: 3.47 dBm)
Max. antenna gain -0.58 dBi
Peak power 9 W
Power (RMS) 3 W
Impedance 4 Ω
Sensitivity 81 dB
Driver size 40 mm
Battery type Lithium-ion (602040)
Charging time Up to 1.5 hours
Battery capacity 400 mAh
Play time Up to 3 hours
Built-in microphone Yes

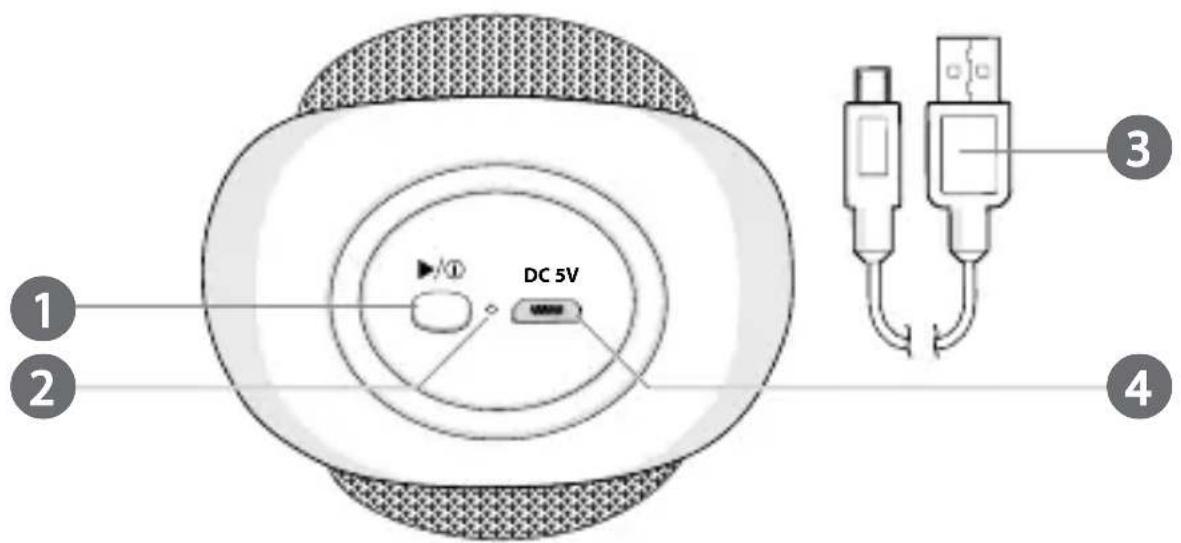

Main parts (image A)

1 Power button

2 Status indicator LED

3 Micro USB cable

4 Micro USB port

Safety instructions

WARNING

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep this document for future reference.
• Only use the product as described in this document.
• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
• This product can be used by children aged from 6 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be done by children without supervision.
• Not to be used by very young children (0-3 years).
• Usage by children should be supervised at all times.
• Do not drop the product and avoid bumping.
• This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.

- Disconnect the product from the power source and other equipment if problems occur.

- Do not expose the product to water or moisture.

- Do not use the product where splashing of water might occur e.g. bathrooms, swimming pools or close to a washbowls.

- This product is equipped with a non-removable internal battery. Do not attempt to replace the battery yourself.

- Provide enough ventilation during charging.

- Do not expose the product to direct sunlight, naked flames or heat.

- Do not open the product.

- Do not use the product at locations where the use of wireless devices is prohibited due to potential interference with other electronic devices, which may cause safety hazards.

- Listening on high volume for a long time will damage your hearing.

Charging the product

1. Plug the micro USB cable A ③ into the micro USB port A ④.

2. Plug the other end of A ③ into a USB adapter.

3. The status indicator LED A ② lights up red.

A12 turns off when the product is fully charged.

Pair with Bluetooth

1. Press and hold the power button A ① for 2 seconds to switch on the product.

2. A ② blinks and the product emits a tone to indicate pairing mode is active.

3. Enable Bluetooth on the device you want to pair the speakers with.

4. Select "SPBT4110" from the list of available Bluetooth devices on your device.

True Wireless Stereo (TWS)

TWS only works with two speakers of the same type.

1. Disable Bluetooth on the device you want to pair the speakers with.

2. Switch on both speakers.

3. Double press A ① on one of the speakers.

4. After a few seconds A ② blinks and the product emits a tone to indicate pairing mode is active.

5. A ② of the other speaker lights up.

6. Enable Bluetooth on the device you want to pair the speakers with.

7. Select "SPBT4110" from the list of available Bluetooth devices on your device.
8. Double press A ① of one of the speakers, to switch off the TWS function.

Controlling the music

- Press A ① to play or pause the music.

Making phone calls

• To answer an incoming call, press A ①.
• To end a call, press A ①.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product SPBT4110BK | SPBT4110NC | SPBT4110YW | SPBT4110BN | SPBT4110PK from our brand Nedis ^® , produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via:

webshop.nedis.com/spbt4110bk#support webshop.nedis.com/spbt4110nc#support webshop.nedis.com/spbt4110yw#support webshop.nedis.com/spbt4110bn#support webshop.nedis.com/spbt4110pk#support

For additional information regarding the compliance, contact the customer service:

Web: www.nedis.com E-mail: [e-mail] Phone: [phone] (during office hours) Nedis B.V., de Tweeling 28 5215 MC 's-Hertogenbosch, the Netherlands
