Product type	Portable Bluetooth speaker
Brand	Nedis
Model	SPBT4110NC
Color	Black
Dimensions	18 x 6 x 6 cm
Weight	300 g
Power supply	Rechargeable lithium-ion battery 1200 mAh via micro USB port
Battery life	Up to 8 hours
Connectivity	Bluetooth 5.0
Bluetooth range	Up to 10 meters
Main functions	Bluetooth playback, microSD player, FM radio, 3.5 mm auxiliary input, hands-free function
Output power	5 W RMS
Signal-to-noise ratio	> 80 dB
Maintenance and cleaning	Wipe with a soft, dry cloth. Do not use abrasive products.
Safety	Do not expose to water or moisture. Do not open the product.
Spare parts and repairability	Micro USB cable provided. Built-in battery not replaceable by user.
Package contents	1 speaker, 1 micro USB cable, 1 3.5 mm audio cable, 1 user manual
General information	Compact portable speaker ideal for outdoor use.

Frequently Asked Questions - SPBT4110NC NEDIS

How do I pair the speaker with my phone?

Activate Bluetooth on your phone and on the speaker (power button). Search for 'SPBT4110NC' in the list of available devices and select it. If a PIN code is requested, enter 0000.

How to recharge the battery?

Connect the provided micro USB cable to the speaker's charging port and to a USB power adapter (not included) or a computer. The indicator lights up red during charging and turns off when the battery is full.

What is the battery life of the speaker?

Battery life is approximately 8 hours at moderate volume. It may vary depending on the volume and type of music.

How to use the hands-free function?

When the speaker is connected to a phone, press the answer button to take a call. Press again to hang up. The built-in microphone allows you to talk wirelessly.

Can I listen to music via a microSD card?

Yes, insert a microSD card (up to 32 GB) into the dedicated slot. Playback starts automatically. Use the control buttons to navigate between tracks.

How to use the FM radio?

Press the mode button to select FM radio. Then, press and hold the play button to start automatic station search. Use the next/previous buttons to change stations.

Can I connect a wired audio source?

Yes, plug a 3.5 mm audio cable (provided) into the AUX input of the speaker and your device. Playback starts automatically in AUX mode.

What to do if the speaker does not turn on?

Make sure the battery is charged. Plug it into the charger and wait a few minutes. If it still doesn't turn on, try resetting by holding the power button pressed for 10 seconds.

How to clean the speaker?

Use a soft, dry cloth to wipe the surface. Do not use chemical or abrasive products. Avoid water entering the openings.

What is the Bluetooth range?

The range is approximately 10 meters in open field. Obstacles (walls, furniture) may reduce this distance.

USER MANUAL SPBT4110NC NEDIS

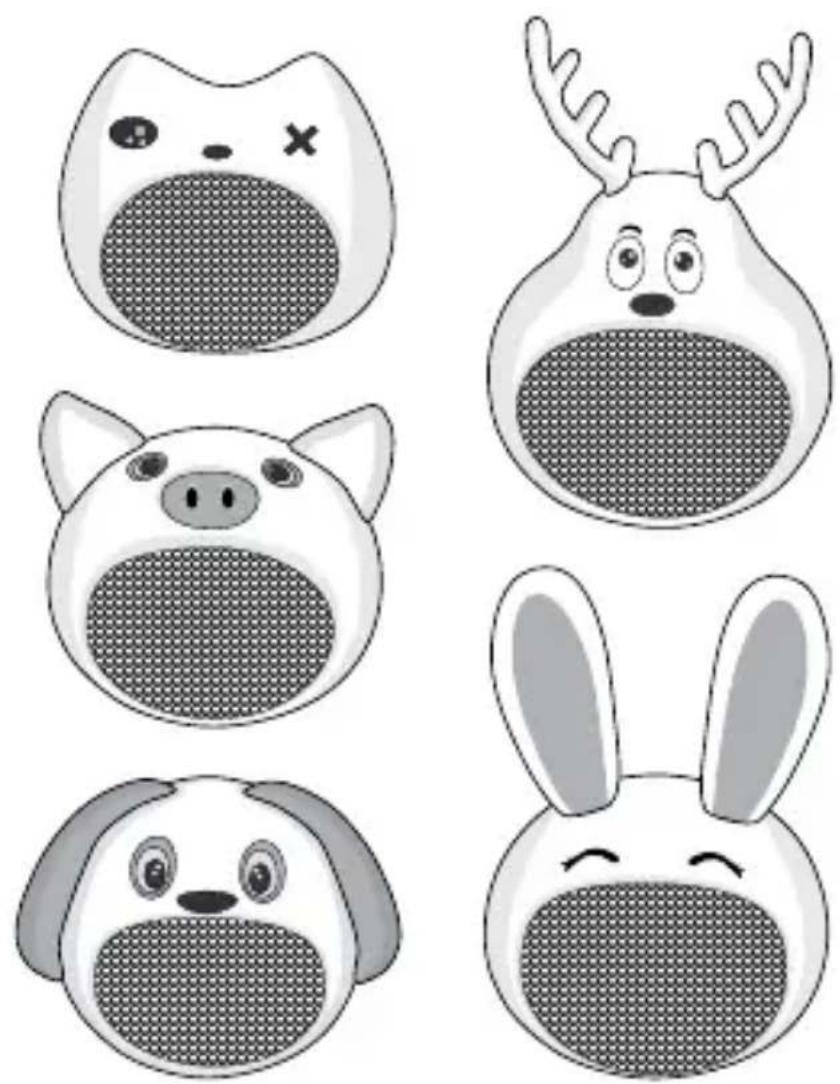

Bluetooth® Speaker with a unique and fun design

SPBT4110BK | SPBT4110BN

SPBT4110NC | SPBT4110PK

SPBT4110Y W

EN Quick start guide 4

DE Kurzanleitung 8

ned.is/spbt4110bk ned.is/spbt4110bn

ned.is/spbt4110nc ned.is/spbt4110pk

ned.is/spbt4110yw

A

Bluetooth® Speaker

SPBT4110BK | SPBT4110NC

SPBT4110YW | SPBT4110BN

SPBT4110PK

For more information see the extended manual online:

ned.is/spbt4110bk | ned.is/spbt4110nc |

ned.is/spbt4110yw | ned.is/spbt4110bn |

ned.is/spbt4110pk

Intended use

The Nedis SPBT4110BK | SPBT4110NC | SPBT4110YW | SPBT4110BN | SPBT4110PK is a Bluetooth speaker that plays audio from your media device.

The product is exclusively intended for playing music from a Bluetooth device and for answering and making hands-free phone calls.

This product is not a toy, it is intended as a speaker.

The product is not intended for professional use.

Any modification of the product may have consequences for safety, warranty and proper functioning.

Specifications

Product Bluetooth	*Speaker
Article number SPBT4110BK | SPBT4110NC | SPBT4110YW | SPBT4110BN | SPBT4110PK
Power input 5 VDC ; 0.5 A
Bluetooth® version 5.0
Bluetooth® frequency range 2402 - 2480 MHz
Bluetooth® signal range Up to 10 m
Frequency response 100 Hz - 20 KHz
Max. radio transmit power 3.89 dBm (SPBT4110BK: 3.47 dBm)
Max. antenna gain -0.58 dBi
Peak power 9 W
Power (RMS) 3 W
Impedance 4 Ω
Sensitivity 81 dB
Driver size 40 mm
Battery type Lithium-ion (602040)
Charging time Up to 1.5 hours
Battery capacity 400 mAh
Play time Up to 3 hours
Built-in microphone Yes

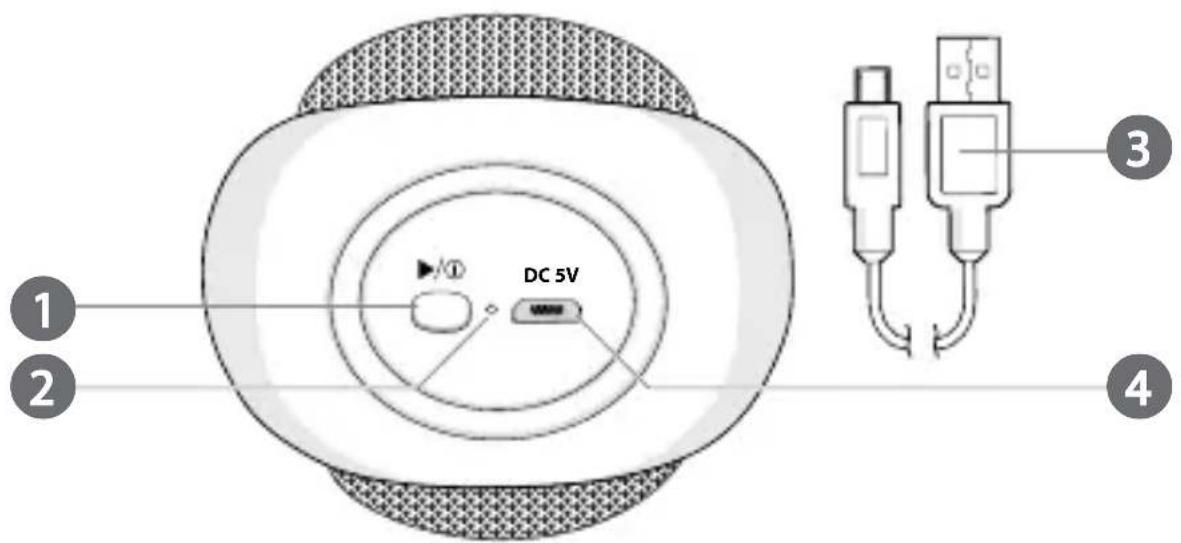

Main parts (image A)

1 Power button

2 Status indicator LED

3 Micro USB cable

4 Micro USB port

Safety instructions

WARNING

• Ensure you have fully read and understood the instructions in this document before you install or use the product. Keep this document for future reference.
• Only use the product as described in this document.
• Do not use the product if a part is damaged or defective. Replace a damaged or defective product immediately.
• This product can be used by children aged from 6 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be done by children without supervision.
• Not to be used by very young children (0-3 years).
• Usage by children should be supervised at all times.
• Do not drop the product and avoid bumping.
• This product may only be serviced by a qualified technician for maintenance to reduce the risk of electric shock.

- Disconnect the product from the power source and other equipment if problems occur.

- Do not expose the product to water or moisture.

- Do not use the product where splashing of water might occur e.g. bathrooms, swimming pools or close to a washbowls.

- This product is equipped with a non-removable internal battery. Do not attempt to replace the battery yourself.

- Provide enough ventilation during charging.

- Do not expose the product to direct sunlight, naked flames or heat.

- Do not open the product.

- Do not use the product at locations where the use of wireless devices is prohibited due to potential interference with other electronic devices, which may cause safety hazards.

- Listening on high volume for a long time will damage your hearing.

Charging the product

1. Plug the micro USB cable A ③ into the micro USB port A ④.

2. Plug the other end of A ③ into a USB adapter.

3. The status indicator LED A ② lights up red.

A12 turns off when the product is fully charged.

Pair with Bluetooth

1. Press and hold the power button A ① for 2 seconds to switch on the product.

2. A ② blinks and the product emits a tone to indicate pairing mode is active.

3. Enable Bluetooth on the device you want to pair the speakers with.

4. Select "SPBT4110" from the list of available Bluetooth devices on your device.

True Wireless Stereo (TWS)

TWS only works with two speakers of the same type.

1. Disable Bluetooth on the device you want to pair the speakers with.

2. Switch on both speakers.

3. Double press A ① on one of the speakers.

4. After a few seconds A ② blinks and the product emits a tone to indicate pairing mode is active.

5. A ② of the other speaker lights up.

6. Enable Bluetooth on the device you want to pair the speakers with.

7. Select "SPBT4110" from the list of available Bluetooth devices on your device.
8. Double press A ① of one of the speakers, to switch off the TWS function.

Controlling the music

- Press A ① to play or pause the music.

Making phone calls

• To answer an incoming call, press A ①.
• To end a call, press A ①.

Declaration of Conformity

We, Nedis B.V. declare as manufacturer that the product SPBT4110BK | SPBT4110NC | SPBT4110YW | SPBT4110BN | SPBT4110PK from our brand Nedis ^® , produced in China, has been tested according to all relevant CE standards and regulations and that all tests have been passed successfully. This includes, but is not limited to the RED 2014/53/EU regulation.

The complete Declaration of Conformity (and the safety datasheet if applicable) can be found and downloaded via:

webshop.nedis.com/spbt4110bk#support webshop.nedis.com/spbt4110nc#support webshop.nedis.com/spbt4110yw#support webshop.nedis.com/spbt4110bn#support webshop.nedis.com/spbt4110pk#support

For additional information regarding the compliance, contact the customer service:

Web: www.nedis.com E-mail: [e-mail] Phone: [phone] (during office hours) Nedis B.V., de Tweeling 28 5215 MC 's-Hertogenbosch, the Netherlands
