| Product type | Ultrasonic cleaner |
| Brand and model | SilverCrest SUR 48 C4 |
| Power supply | 220-240 V ~, 50/60 Hz, 50 W |
| Ultrasonic frequency | 48 kHz |
| Protection class | II (double insulation) |
| Tank capacity | Approx. 0.6 L (MAX marking) |
| Maximum dimensions of objects | 14 cm x 9.5 cm |
| Adjustable cleaning times | 90, 180, 280, 380, 480 seconds |
| Included accessories | Basket, bracelet holder, pin with spacer ring |
| Compatible materials | Gold/silver jewelry, glasses (mineral lenses), CD/DVD, dentures, razors |
| Non-compatible materials | Porous/fragile stones, wood, leather, horn, textiles, mechanical watches |
| Intended use | Private domestic use, ultrasonic cleaning |
| Warranty | 3 years |
| Customer service | France: 0800 919270, Belgium: 0800 12089 |
| Article number (IAN) | 390783_2201 |
Frequently Asked Questions - SUR 48 C4 SILVERCREST
User questions about SUR 48 C4 SILVERCREST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Ultrasonic cleaner in PDF format for free! Find your manual SUR 48 C4 - SILVERCREST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SUR 48 C4 by SILVERCREST.
USER MANUAL SUR 48 C4 SILVERCREST

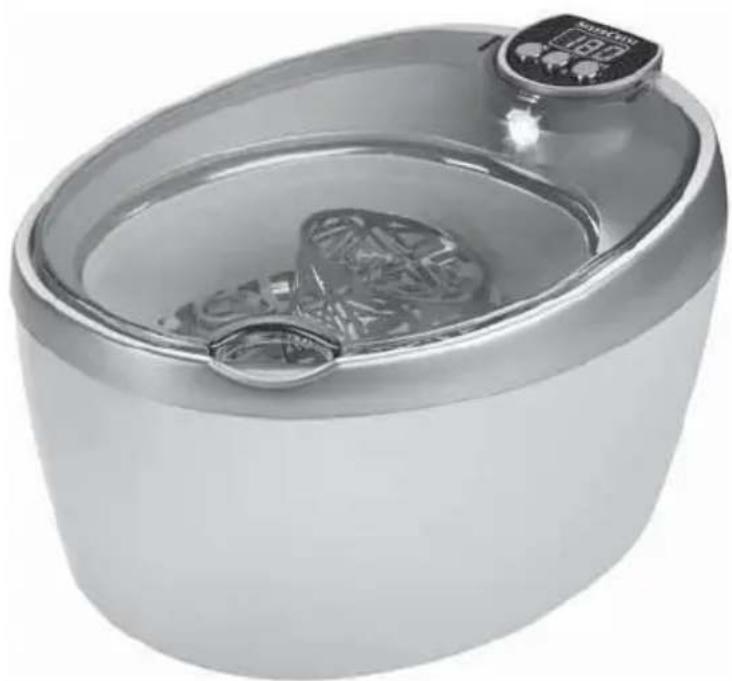

GB IE
ULTRASONIC CLEANER
Operating instructions
FR BE
NETTOYEAR À ULTRASONS
Mode d'emploi
CZ
ULTRAZVUKOVÝ ČISTIČ
Návod k obsluze
SK
ULTRAZVUKOVÝ ČISTIACI PRÍSTROJ
Návod na obsluhu
DK
ULTRALYDSRENSER
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
DE AT CH
GB/IE Operating instructions Page 1
Contents
Introduction 2
Information concerning these operating instructions 2
Copyright 2
Limitation of liability 2
Intended use 2
Warning notes 3
Safety....4
Risk of electrocution 4
Basic safety guidelines 4
Appliance-specific safety instructions 6
Unsuitable for ultrasonic cleaning 7
Before use 8
Package contents and transport inspection 8
Before initial use 8
Electrical connection 8
Operating components 9
Handling and operation....9
How ultrasonic cleaning works 9
Filling the appliance with cleaning fluid 9
Examples of use 10
Fill the appliance with jewellery/metal items 11
Add spectacles 12
Add watch 12
Add CDs/DVDs 12
Switching the appliance on and off 12
Cleaning 14
Storage 14
Troubleshooting 14
Fault causes and rectification 15
Disposal....15
Appendix 16
Technical data 16
Notes on the EU Declaration of Conformity 16
Kompernass Handels GmbH warranty 17
Service 18
Importer 18
Introduction
Information concerning these operating instructions
Congratulations on the purchase of your new appliance.
You have selected a high-quality product. The operating instructions are part of this product. They contain important information on safety, usage and disposal. Before using the product, familiarise yourself with all handling and safety guidelines. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner(s).
Copyright
This documentation is protected by copyright.
Any copying or reproduction, including in the form of extracts, or any reproduction of images (even in a modified state), is permitted only with the written authorisation of the manufacturer.
Limitation of liability
All the technical information, data and instructions regarding installation, connection and operation contained in these operating instructions corresponds to the latest information available to us at the time of printing and takes our previous experience and know-how into account.
No claims can be derived from the details, illustrations and descriptions in these instructions.
The manufacturer assumes no responsibility for damage caused by failure to observe these instructions, improper use, incompetent repairs, unauthorised modifications or for the use of non-approved replacement parts.
Intended use
This appliance is intended only for the cleaning of jewellery, spectacles, false teeth, CDs/DVDs, razor heads, watches and similar items.
Not all items may be cleaned with the appliance (see section Unsuitable for ultrasonic cleaning). This appliance is intended for domestic use only, it may not be used for commercial purposes. Do not use the appliance outdoors. This appliance is not designed for use with an external time switch or any other separate remote control system. Do not clean any objects with scratched surfaces as existing scratches may be made worse by an ultrasonic treatment. The appliance is not intended for any other purposes, nor for use beyond the scope described. No claims of any kind for damage arising as a result of incorrect use will be accepted. The risk shall be borne solely by the user.
Warning notes
The following warning notice types are used in these operating instructions:
DANGER!
A warning notice at this hazard level indicates an imminently hazardous situation.
If the hazardous situation is not avoided, it could result in death or serious physical injury.
▶ Follow the instructions in this warning notice to avoid the risk of death or serious injury.
WARNING!
A warning notice at this hazard level indicates a potentially hazardous situation.
Failure to avoid this hazardous situation could result in injury.
▶ Follow the instructions in this warning notice to prevent injury.
CAUTION!
A warning notice at this hazard level indicates a potential for property damage.
Failure to avoid this situation could result in property damage.
▶ Follow the instructions in this warning notice to prevent property damage.
NOTE
▶ A note provides additional information that will assist you in using the appliance.
Safety
In this section, you will find important safety instructions for using the appliance. This appliance complies with statutory safety regulations. Improper use may result in personal injury and property damage.
Risk of electrocution
DANGER!
Risk of fatal injury from electrocution!
Contact with live cables or components can result in fatal injury!
Please observe the following safety guidelines to prevent electrical hazards:
▶ Do not use the appliance if the power cable or the plug are damaged.
▶ Before using the appliance again, have a new mains power cable fitted by an authorised specialist.
The appliance housing may not be opened under any circumstances. There is a risk of electric shock if live connections are touched and the electrical and mechanical structure is changed.
Basic safety guidelines
To ensure safe operation of the appliance, follow the safety guidelines set out below:
■ Check the appliance for visible external damage before use. Do not operate an appliance that has been damaged or dropped.
If the appliance's mains power cable is damaged, it must be replaced by the manufacturer, the manufacturer's customer service department or by a qualified technician so that risks can be avoided.
This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Children must not play with the appliance. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.
This appliance is suitable for indoor use only.
■ Children must be supervised to ensure that they do not play with the appliance.
- Keep the appliance out of the reach of children.
■ All repairs must be carried out by authorised specialist companies or by the Customer Service department. Improper repairs can pose significant risks to the user. It will also invalidate any warranty claims.
■ Defective components must always be replaced with original replacement parts. Only by using original replacement parts can it be assured that the safety requirements are being complied with.
■ Protect the appliance from moisture, spray and dripping water and penetration by liquids. Risk of electric shock!
■ Do not immerse the appliance, the cable or the mains plug in water and do not use the appliance outdoors. Risk of electric shock!
If any liquid enters the appliance, disconnect the mains plug immediately. Arrange to have the appliance checked before putting it into operation again after a period of remission.
■ Do not touch the appliance and the plug with wet hands.
■ Connect the mains plug only to a properly installed, easily accessible plug socket whose voltage corresponds to the specifications on the rating plate. The plug socket must remain easily accessible even following connection.
■ Ensure that the power cable cannot be damaged by sharp edges or hot spots. Do not wind the power cable around the appliance.
■ When using the appliance, ensure that the power cable is not squeezed or crushed.
■ Before cleaning, maintenance or periods of non-use, disconnect the mains adapter from the power socket.
■ Always disconnect the power cable from the mains power socket by pulling on the plug; never pull on the cable.
■ Do not touch the appliance and the plug with wet hands.
Appliance-specific safety instructions
■ The appliance may only be used only on a level, non-slip surface and never on a soft pad.
■ To prevent an overflow during the cleaning process, the stainless steel bath should not be filled above the MAX marking.
■ Always use the basket insert when cleaning small parts to prevent scratches to the components themselves or the stainless steel bath. If several items are being cleaned at the same time, ensure that they do not come into contact with each other in order to prevent scratches.
■ Always use the basket insert when cleaning spectacles or jewellery. When placing spectacles in the basket insert, always make sure their lenses face upwards.
■ Rinse your spectacles and jewellery with clear water after each cleaning.
■ During the cleaning process, do not touch the inner surface of the stainless steel bath or the cleaning fluid. Ultrasonic waves can damage your health.
■ Do not clean any objects with scratched surfaces as existing scratches may be made worse by an ultrasonic treatment.
■ Never use the appliance without water as this may damage the appliance.
■ After using the appliance five times in a row without a break, complete the cleaning process and let it cool down to room temperature.
■ Place the appliance on a firm, level surface.
■ Do not place the appliance and its accessories on or in the vicinity of surfaces that are hot or could heat up, e.g. electric hobs.
NOTE
▶ No user action is required to switch the product between 50 and 60 Hz. The product adapts automatically to either 50 or 60 Hz.
Unsuitable for ultrasonic cleaning
Objects unsuitable for ultrasonic cleaning include:
■ Porous or sensitive stones (jewellery) such as emeralds, coral, pearls, mother-of-pearl, turquoise, opal, malachite, lapis lazuli, tiger's eye, black onyx, etc.
■ Objects with scratched surfaces, as existing scratches may be made worse by an ultrasonic treatment.
■ Items made of wood, leather, horn, tortoiseshell or fabrics.
■ Special types of fashion jewellery, such as silver plated costume jewellery.
■ Screws and fittings that are not firmly attached can come loose during the cleaning process. Clean these items no more than once a month and for only for a short period (maximum 90 seconds).
■ Do not clean mechanical watches in this appliance. Their accuracy may be adversely affected.
Do not clean any non-waterproof watches inside the appliance.
If you are not sure if a piece of jewellery can be cleaned in this appliance or whether it might be damaged, ask the retailer from whom you purchased the item in question.
Before use
Package contents and transport inspection
The appliance is supplied with the following components as standard:
• 1 ultrasonic cleaner
- 1 basket insert
• 1 bracelet holder
- 1 spindle with spacer ring
• These operating instructions
NOTE
▶ Check the package for completeness and for signs of visible damage.
▶ If any items are missing or damaged as a result of defective packaging or insufficient care during transportation, contact the Service hotline (see the section Service).
Before initial use
■ Remove all packaging materials and all transport locks from the appliance.
Electrical connection
To ensure safe and trouble-free operation of the appliance after making the electrical connection, please observe the following advice:
DANGER!
Danger due to ultrasonic waves!
▶ During the cleaning process, do not touch the inner surface of the stainless steel bath or the cleaning fluid: ultrasonic waves can cause serious health damage.
CAUTION!
▶ Before connecting the appliance, compare the connection data (voltage and frequency) on the rating plate with that of your mains power supply. These data must agree so that no damage is sustained by the appliance.
▶ Ensure that the mains power cable is not damaged and is not running over hot surfaces and/or sharp edges.
▶ Ensure that the mains power cable is not taut or knotted.
▶ Always remove the mains plug from the wall socket after each use.
Operating components
1 Display
② ON button
3 SET button
4 OFF button
5 Operating LED
6 Lid
7 Stainless steel bath
8 MAX mark for maximum fill level
9 Basket insert for small items
10 Bracelet holder
11 Spacer ring
12 Spindle for a maximum of 2 CDs/DVDs
Handling and operation
This section provides you with important information on handling and using the appliance.
How ultrasonic cleaning works
The ultrasonic field created in the cleaning fluid during operation generates rapidly alternately waves with high and low pressure. These waves produce air bubbles on the surface of the item being cleaned which quickly burst open again. This process works mechanically on the surfaces of the item and thus loosens dirt and other residues. It can, however, also deepen already existing scratches.
Filling the appliance with cleaning fluid
Open the li6.
◆ Fill the stainless steel bat⑦ with the cleaning fluid.
The parts to be cleaned must be covered with the cleaning fluid.
Do not exceed the maximum fill level MAX⑧ even after placing the item in the fluid.
NOTE
▶ Cold, clean tap water is generally best suited as cleaning fluid. The cleaning effect can be enhanced by the addition of approximately 3 drops of washing-up liquid. Do not use caustic cleaners, ammonia, bleach or heavily perfumed detergents.
The cleaning performance is dependent on the amount of water: the more water, the lower the cleaning performance.
Place the objects to be cleaned in the ultrasonic cleaner. The item to be cleaned only needs to be covered in water. Use the ⑨, ⑩ c ⑪ ⑫ inserts.
Now close the li6.
Examples of use
NOTE
▶ Place only objects in the basket insert ⑨ or in the stainless steel bath ⑦ whose base is max. 14 cm wide and 9.5 cm long. This max. size does not apply to CDs and clocks that are attached to the inserts ⑩, ⑪r ⑫.
The cleaning liquid must not exceed the maximum fill level MA.8 - also after the objects have been inserted.
Jewellery/metal items
CAUTION! WARNING of material damage!
▶ Do not clean any objects with scratched surfaces as existing scratches may be made worse by an ultrasonic treatment.
The appliance is not suitable for cleaning sensitive or porous stones such as pearls, mother-of-pearl or coral, turquoise, opal, azurite, malachite, tiger's eye and similar semi-precious stones. Ask the jeweller who sold you the jewellery if it is suitable for cleaning with ultrasound and, if applicable, cleaning additives.
▶ Screws and fittings that are not firmly attached may come loose during the cleaning process. Clean such items no more than once a month and for only for a short period (maximum 90 seconds).
▶ Do not clean mechanical watches in this appliance.
The accuracy may be adversely affected.
The appliance is suitable for the cleaning of gold/silver jewellery and jewellery made of other metals, such as necklaces, rings, bracelets, as well as metal cutlery, coins, medals, metallic components, etc.
◆ Place small objects such as rings in the basket insert 9.
To avoid scratching, the objects should not touch each other. As the basket insert ⑨ absorbs ultrasonic waves, it reduces the effectiveness and several cleaning cycles may be required.
To clean the metal straps of waterproof watches, place the watch on the bracelet holder 10 so that the watch housing is at the top.
Spectacles/magnifying glasses
CAUTION! WARNING of material damage!
▶ Do not clean any objects with scratched surfaces as these scratches may be made worse by an ultrasonic treatment.
▶ Optical lenses may not be cleaned in the ultrasonic bath for longer than max. 90 seconds.
▶ Polycarbonate (plastic) lenses may not be cleaned in an ultrasonic bath. Ask your optician what material the lenses are made of.
▶ Screws and fittings that are not firmly attached may come loose during the cleaning process. Clean items no more than once a month and for only for a short period (maximum 90 seconds).
The appliance is not suitable for cleaning spectacle frames made of delicate materials such as horn or tortoiseshell.
Place the spectacles in the basket insert with the lenses facing upwards to prevent scratches.
CDs / DVDs
CAUTION! WARNING of material damage!
▶ Do not clean any objects with scratched surfaces as existing scratches may be made worse by an ultrasonic treatment.
▶ Do not clean CDs/DVDs repeatedly and only clean them for a short period (90 seconds).
▶ When cleaning CDs/DVDs, use only water without any detergent: washing-up liquid can damage the label.
◆ Back up data from CDs/DVDs before cleaning.
Place a CD/DVD on the spindle ^12 . Use the spacer ring 11 you wish to clean 2 CDs/DVDs at the same time.
Sanitary products/writing materials
■ You can use the ultrasonic cleaner to clean dentures/braces, shaving heads of electric shavers, razor blades and similar sanitary items. The appliance is also suitable for cleaning the nibs of fountain pens, ballpoint pen casings and printer nozzles.
Fill the appliance with jewellery/metal items
Lay the objects to be cleaned in the basket insert.9. It is possible to clean both an individual item as well as several items simultaneously.
Place the basket insert carefully into the stainless steel bath 7.
Add spectacles
◆ Always place the spectacles in the basket insert with the lenses facing upwards. Never clean more than one pair of spectacles at the same time.
◆ Place the basket insert carefully into the stainless steel bath ⑦.
Add watch
If you only want to clean the wristwatch strap and protect the movement/watch case: Place the wristwatch on the supplied bracelet holder 10.
Place the bracelet holde ^10 carefully in the stainless steel bath ^7 .
CAUTION! WARNING of material damage!
▶ Never clean any non-waterproof watches inside the appliance!
▶ Also note that seals on waterproof watches may become fatigued over time and may not withstand the stress of cleaning. To conserve the movement/watch case, the bracelet holder 10 can be used.
If you want to clean the watch case and watch wristband: Place the watch in the basket insert ⑨ so that the watch case glass is not scratched. When loading, be sure to place the watch with the watch case glass facing up to avoid scratches.
◆ Place the basket insert carefully in the stainless steel bath 7.
Add CDs/DVDs
Place a CD on the shaft of the spindle 12. If you want to clean two CDs at the same time, place the spacer ring 11 on the CD and the shaft.
◆ Place the second CD on the spacer ring ^11 .
Place the spindle ^12 carefully into the stainless steel bath 7.
Switching the appliance on and off
Start the cleaning process
◆ Insert the power plug into a mains wall socket.
◆ 180 (seconds) appears onto the display.
◆ Press the SET butto 3 repeatedly until the desired cleaning time (090, 180, 280, 380 or 480 seconds, depending on the degree of soiling) appears on the display 1
NOTE
▶ 090 seconds: Recommended for light soiling and items such as spectacles.
▶ 180 seconds: Standard time for normal soiling.
▶ 280 seconds: Recommended for the first cleaning with the ultrasonic cleaner.
▶ 380 seconds: Recommended for the initial cleaning when several items are being cleaned.
▶ 480 seconds: Recommended for heavy soiling.
After selecting a suitable time for the level of soiling, start the cleaning process by pressing the ON button 2.
■ During the cleaning procedure, you will hear a chirping sound.
■ The operating LED5 lights up during the cleaning process.
■ The time counts down to zero on the display ^1 and then the appliance switches off automatically.
To check the progress, even during the cleaning process, the cleaning process can be paused by pressing the OFF button 4.
◆ Press the ON button 2 to resume the process.
After the cleaning process finishes, disconnect the appliance from the power, open the lid ⑥ and carefully remove the respective item from the stainless steel bath ⑦.
◆ Rinse the cleaned parts thoroughly with clean water before drying them with a soft and dry cloth.
NOTE
▶ Most dirt particles detach or loosen after the first cleaning. If there is still dirt residue after the cleaning, take a soft cloth and remove it by wiping gently. If you have still not removed all of the dirt particles, repeat the cleaning process once the appliance has cooled down.
DANGER!
▶ Always disconnect the appliance from the socket after use and before pouring out the cleaning fluid.
To pour out the cleaning fluid, hold the appliance over a sink, flip up the li6 and tip out the water via the front opening.
Cleaning
WARNING!
Observe the following safety information to avoid hazards and property damage:
▶ Always pull out the plug before cleaning the appliance.
▶ Only clean the appliance when it is switched off and cooled down.
CAUTION!
Possible damage to the appliance.
Moisture can cause damage to the appliance.
▶ To avoid irreparable damage to the appliance, ensure that no moisture enters it during cleaning.
■ Never immerse the appliance in water and protect it from splashing or sprayed water.
■ Clean the housing only with a soft damp cloth and a mild detergent.
■ Clean the insert 9, 10 c11 und 12 warm, running water and dry all parts thoroughly afterwards.
Storage
■ Disconnect the mains power plug if you do not intend to use the appliance for an extended period of time.
■ Store the appliance in a dry environment.
Troubleshooting
This section contains important information about fault identification and rectification.
WARNING!
Observe the following safety information to avoid hazards and property damage:
▶ Repairs to electrical appliances should only be carried out by specialists trained by the manufacturer. Improper repairs can cause considerable risks to users and damage to the appliance.
Fault causes and rectification
The following table will help you to identify and rectify minor malfunctions:
| Malfunction Possible cause Remedy | ||
| The appliance does not function. | The plug is not connected to the mains. | Insert the power plug into the socket. |
| The display lights up but the appliance does not clean. | The appliance is not switched on. | Switch the appliance on by pressing the ON 2 button. |
NOTE
▶ If the above-mentioned solutions do not resolve the problem, please contact Customer Service (see chapter Service).
Disposal
WARNING!
▶ Packaging materials should not be used as a plaything. Risk of suffocation.
The packaging protects the appliance from damage during transport. The packaging materials have been selected for their environmental friendliness and ease of disposal, and are therefore recyclable.
Returning the packaging to the material cycle conserves raw materials and reduces the amount of waste generated. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.
Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: Plastics, 20-22: Paper and cardboard, 80-98: Composites.
The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies.
The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.
Your local community or municipal authorities can provide information on how to dispose of the worn-out product.
The product is recyclable, subject to extended producer responsibility and is collected separately.
Appendix
Technical data
| General | |
| Input voltage 220 - 240 V ~ (alternating current) | |
| Mains voltage frequency 50/60 Hz | |
| Output 50 W | |
| Oscillation frequency approx. 48 kHz | |
| Protection class | II / ☐ (double insulation) |
Notes on the EU Declaration of Conformity
This appliance complies with the essential requirements and other relevant provisions of the European Electromagnetic Compatibility Directive 2014/30/EU, the Low Voltage Directive 2014/35/EU and the RoHS Directive 2011/65/EU.
The entire EU Declaration of Conformity is available from the importer.
This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.
Warranty conditions
The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.
If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.
If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.
Warranty period and statutory claims for defects
The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.
The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.
The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.
This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
■ Please have the till receipt and the item number (IAN) 390783_2201 available as proof of purchase.
■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.
This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 390783_2201.
Service
GB Service Great Britain
Tel.: 0800 404 7657
E-Mail: kompernass@lidl.co.uk
IE Servicelreland
Tel.: 1800 101010
E-Mail: kompernass@lidl.ie
IAN 390783_2201
Importer
Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Inhaltsverzeichnis
Einführung 20
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DEUTSCHLAND
www.kompernass.com
Table des matières
Introduction 38
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
ALLEMAGNE
www.kompernass.com
Inhoud
Inleiding....60
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
DUITSLAND
www.kompernass.com
Obsah
Úvod....78
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NĚMECKO
www.kompernass.com
Spis treści
W step....96
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NIEMCY
www.kompernass.com
Obsah
Úvod....114
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NEMECKO
www.kompernass.com
Índice
Introducción....132
The product is recyclable, subject to extended producer responsibility and is collected separately.
Anexo
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
ALEMANIA
www.kompernass.com
Indholdsfortegnelse
Introduktion 150
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
TYSKLAND
www.kompernass.com
Indice
Introduzione....168
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANIA
www.kompernass.com
Tartalomjegyzék
Bevezető 186
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NÉMETORSZÁG
www.kompernass.com
Kazalo
Uvod....204
Informacije o teh navodilih za uporabo....204
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
NEMČIJA
www.kompernass.com
Pooblaščeni serviser
ServisSlovenija
Tel.: 080 080 917
E-Mail: kompernass@lidl.si
IAN 390783_2201
Garancijski list
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Last Information Update · Stand der Informationen · Version des informations
Stand van de informatie · Stav informací · Stan informacji · Stav informácií
Estado de las informaciones · Tilstand af information · Versione delle informazioni
- ULTRASONIC CLEANER / ULTRASCHALL- REINIGUNGSGERÄT / NETTOYEUR À ULTRASONS SUR 48 C4
- ULTRASONIC CLEANER
- NETTOYEAR À ULTRASONS
- ULTRAZVUKOVÝ ČISTIČ
- ULTRAZVUKOVÝ ČISTIACI PRÍSTROJ
- ULTRALYDSRENSER
- Contents
- Introduction 2
- Safety....4
- Before use 8
- Operating components 9
- Handling and operation....9
- Cleaning 14
- Storage 14
- Troubleshooting 14
- Disposal....15
- Appendix 16
- Introduction
- Information concerning these operating instructions
- Copyright
- Limitation of liability
- Intended use
- Warning notes
- DANGER!
- A warning notice at this hazard level indicates an imminently hazardous situation.
- WARNING!
- A warning notice at this hazard level indicates a potentially hazardous situation.
- CAUTION!
- A warning notice at this hazard level indicates a potential for property damage.
- NOTE
- Safety
- Risk of electrocution
- Risk of fatal injury from electrocution!
- Contact with live cables or components can result in fatal injury!
- Basic safety guidelines
- Appliance-specific safety instructions
- Unsuitable for ultrasonic cleaning
- Before use
- Package contents and transport inspection
- Before initial use
- Electrical connection
- Danger due to ultrasonic waves!
- Operating components
- Handling and operation
- How ultrasonic cleaning works
- Filling the appliance with cleaning fluid
- Examples of use
- Jewellery/metal items
- CAUTION! WARNING of material damage!
- Spectacles/magnifying glasses
- CDs / DVDs
- Sanitary products/writing materials
- Fill the appliance with jewellery/metal items
- Add spectacles
- Add watch
- Add CDs/DVDs
- Switching the appliance on and off
- Start the cleaning process
- Cleaning
- Possible damage to the appliance.
- Storage
- Troubleshooting
- Fault causes and rectification
- Disposal
- Appendix
- Technical data
- Notes on the EU Declaration of Conformity
- Warranty conditions
- Warranty period and statutory claims for defects
- Scope of the warranty
- Warranty claim procedure
- Service
- Importer
- Inhaltsverzeichnis
- Einführung 20
- Table des matières
- Introduction 38
- Inhoud
- Inleiding....60
- Obsah
- Úvod....78
- Spis treści
- W step....96
- Úvod....114
- Índice
- Introducción....132
- Anexo
- Indholdsfortegnelse
- Introduktion 150
- Indice
- Introduzione....168
- Tartalomjegyzék
- Bevezető 186
- Kazalo
- Uvod....204
- Pooblaščeni serviser
- Garancijski list
- KOMPERNASS HANDELS GMBH
Brand : SILVERCREST
Model : SUR 48 C4
Category : Ultrasonic cleaner
