| Product type | Steam cleaner |
| Brand | KARCHER |
| Model | SC5850C |
| Dimensions (L x W x H) | 439 x 301 x 304 mm |
| Weight (without accessories) | 6.0 kg |
| Power supply | 220-240 V, 1~50 Hz |
| Heating power | 1800 W (steam cleaner), 700 W (iron) |
| Maximum operating pressure | 0.4 MPa |
| Heat-up time | 4 minutes |
| Continuous steam flow rate | 50 g/min |
| Maximum steam flow rate | 130 g/min |
| Vapohydro flow rate | 230 g/min |
| Water tank capacity | 1.5 L |
| Boiler capacity | 0.5 L |
| Protection rating | IPX4 |
| Protection class | I |
| Main functions | Steam, Vapohydro, iron (optional) |
| Supplied accessories | Steam gun, jet nozzle, turbo steam brush, floor nozzle, terry cloth cover, microfiber abrasive cloth, extension tubes |
| Safety | Child safety, pressure switch, thermostat, pressure relief valve |
| Maintenance | Boiler descaling with KÄRCHER descaling sticks, wash cloths at 60°C |
| Warranty | According to conditions in force in the country of distribution |
Frequently Asked Questions - SC5850C KARCHER
User questions about SC5850C KARCHER
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Steam cleaner in PDF format for free! Find your manual SC5850C - KARCHER and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SC5850C by KARCHER.
USER MANUAL SC5850C KARCHER
| Deutsch | 5 |
| English | 16 |
| Français | 27 |
| Italiano | 38 |
| Nederlands | 49 |
| Español | 60 |
| Português | 71 |
| Dansk | 82 |
| Norsk | 92 |
| Svenska | 102 |
| Suomi | 113 |
| Ελληνικά | 123 |
| Türkçe | 134 |
| Русский | 145 |
| Magyar | 157 |
| Čeština | 168 |
| Slovenščina | 179 |
| Polski | 189 |
| Româneşte | 200 |
| Slovenčina | 211 |
| Hrvatski | 222 |
| Srpski | 232 |
| Български | 243 |
| Eesti | 254 |
| Latviešu | 264 |
| Lietuviškai | 275 |
| Українська | 286 |
| العربية | 311 |
| DE Kurzanleitung | SV Snabbguide | RO Instructiuni pe scurt |
| EN Quick reference | FI Pikaohje | SK Krátky návod |
| FR Instructions abrégées | EL Σύντομες οδηγίε | HR Krakte upute |
| IT In sintesi | TR Kısa Kullanım Talimati | SR Kratko uputstvo |
| NL Korte handleiding | RU Краткое руководство | BG Кратко упътване |
| ES Descripción breve | HU Rövid bevezetés | ET Lühijuhend |
| PT Instruções resumidas | CS Stručný návod | LV Îsa lietošanas instrukcija |
| DA Kort brugsanvisning | SL Kratko navodilo | LT Trumpa instrukcija |
| NO Kortveiledning | PL Skrócona instrukcja obsługi | UK Стислий посібник |
Inhalt
| General information | EN | 5 |
| Safety instructions | EN | 6 |
| Description of the Appliance | EN | 7 |
| Quick Reference | EN | 8 |
| Operation | EN | 8 |
| How to Use the Accessories | EN | 10 |
| Maintenance and care | EN | 12 |
| Troubleshooting | EN | 13 |
| Technical specifications | EN | 14 |
| Special accessories | EN | 15 |
General information
Dear Customer,
Please read and comply with these original instructions prior to the initial operation of your appliance and store them for later use or subsequent owners.
Proper use
Use the steam cleaner only for private households.
The appliance is intended to be used with steam and can be used with the appropriate accessories as described in these operating instructions. You will not need any detergent. Please adhere to the safety instructions.
Symbols in the operating instructions
⚠️ Danger
Immediate danger that can cause severe injury or even death.
⚠ Warning
Possible hazardous situation that could lead to severe injury or even death.
Caution
Possible hazardous situation that could lead to mild injury to persons or damage to property.
Symbols on the machine
CAUTION – Please read the operating instructions!
Steam CAUTION - Danger of scalding
Environmental protection
The packaging material can be recycled. Please do not place the packaging into the ordinary refuse for disposal, but arrange for the proper recycling.
Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old appliances. Please dispose your old appliances using appropriate collection systems.
Notes about the ingredients (REACH)
You will find current information about the ingredients at:
www.kaercher.com/REACH
Scope of delivery
The scope of delivery of your appliance is illustrated on the packaging. Check the contents of the appliance for completeness when unpacking.
In the event of missing accessories or any transport damage, please contact your dealer.
Warranty
The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre.
Please submit the proof of purchase. (See address on the reverse)
Safety instructions
Danger
■ The appliance may not be used in areas where a risk of explosion is present.
If the appliance is used in hazardous areas the corresponding safety provisions must be observed.
■ Never use the appliance in pools containing water.
■ The device should not be used to clean electrical appliances such as oven, exhaust, micro-wave, televisions, lamps, hair-dryer, electrical heating systems, etc.
■ Check the faultless condition of the appliance and the accessories before using it. Otherwise, the appliance must not be used. Please check in particular the power cord, the maintenance lock, and the steam hose.
If the power cord is damaged, please arrange immediately for the exchange by an authorized customer service or a skilled electrician.
■ Please arrange for the immediate exchange of a damaged steam hose. You may only use a steam hose that is recommended by the manufacturer (see spare parts list for the order number).
■ Never touch the mains plug and the socket with wet hands.
■ Never use the appliance to clean objects containing hazardous substances (e.g. asbestos).
■ Never touch the steam jet from a short distance with your hands and never direct the steam jet to persons or animals (risk of scalds).
■ The maintenance lock must not be opened during operation.
⚠ Warning
■ The appliance may only be connected to an electrical supply which has been installed in accordance with IEC 60364.
■ The appliance may only be connected to alternating current. The voltage must correspond with the type plate on the appliance.
In wet rooms, e.g. bathrooms, connect the appliance to sockets with a series connected RCD adapter.
■ Unsuitable extension cables can be hazardous. Only use a splashproof extension cable with a minimum section of 3 × 1 mm^2 .
■ The connection between power cord and extension cable must not lie in water.
If couplings of the power cord or extension cable are replaced the splash protection and the mechanical tightness must be ensured.
■ The operator must use the appliance correctly. When working with the appliance, he must consider the local conditions and pay due care and attention to other persons, in particular children, who are nearby.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
■ Never leave the appliance unattended when it is in operation.
■ Be very careful while cleaning tiled walls with sockets.
Caution
■ Make sure that the power cable or extension cables are not damaged by running over, pinching, dragging or similar. Protect the power cable from heat, oil, and sharp edges.
■ Never fill solvents, solvent-containing liquids or undiluted acids (e.g. detergents, benzene, paint thinner, and acetone) into the water reservoir as these substances affect the materials used on the appliance.
■ The appliance must not be carried during cleaning.
■ The appliance must provide of a stable ground.
■ Use and store the unit only in accordance with the specifications in the description and/or figure.
■ The steam switch must not be locked during the operation.
■ Protect the appliance from rain. Do not store outside.
Safety Devices
Caution
Safety devices protect the user and must not be modified or bypassed.
Pressure controller
The pressure controller keeps the boiler pressure during the operation as constant as possible. The heating is turned off if the maximum operating pressure of 4 bar is reached in the boiler and is reactivated in case of a pressure drop in the boiler due to steam tapping.
Boiler thermostat
If, in case of a malfunction, there is no water in the boiler, the temperature in the boiler rises. The boiler thermostat turns off the heating. Once the boiler is filled, normal operation can continue.
Safety thermostat
The safety thermostat turns off the appliance if the boiler thermostat and the pressure controller fails and the appliance overheats in case of a malfunction. Please contact your local KÄRCHER customer service to arrange for the reset of the safety thermostat.
Maintenance lock
The maintenance lock acts as a pressure control valve at the same time. It seals the boiler against the steam pressure that builds up in the boiler.
If the pressure controller is defect and the steam pressure in the boiler rises, the pressure control valve, and steam is emitted through the maintenance lock to the outside.
Please contact your local KÄRCHER customer service before you put the appliance into operation again.

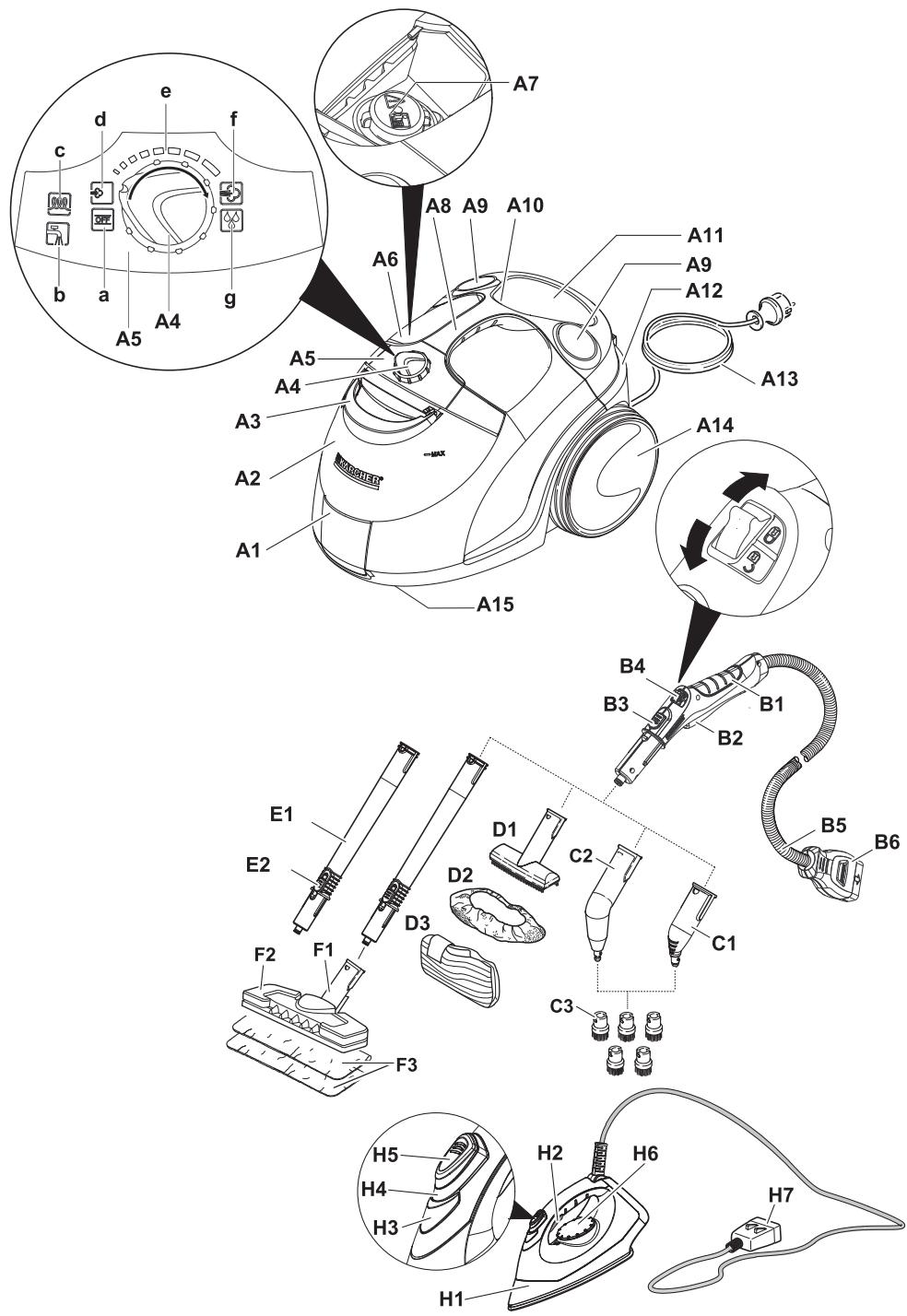

Description of the Appliance
These operating instructions describe the maximum equipment. Depending on the model, there are differences in the scopes of delivery (see packaging).
→ Illustrations on fold-out page!
A1 Appliance connector with cover
A2 Water reservoir
A3 Carry handle for water reservoir

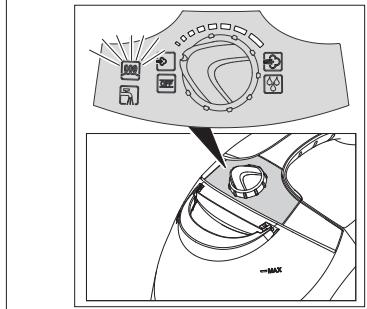

A4 Selector switch
A5 Operating panel
a Display - OFF position
b Display - water shortage (RED)
c Display - heater (GREEN)
d Min. steam level
e Selection range of steam level
f Max. steam level
g Steam level Vapohydro function
A6 Locking door for accessories compartment
A7 Maintenance lock
A8 Carrying handle
A9 Holder for accessories
A10 Accessories storage
A11 Storage for mains connection cable
A12 Storage holder for floor nozzle
A13 Mains cable with mains plug
A14 Running wheels (2 ea.)
A15 Steering roller
B1 Steam gun
B2 Steam lever
B3 Unlocking button
B4 Child lock
B5 Steam hose
B6 Steam plug
C1 Detail nozzle
C2 Steam turbo brush
C3 Round brush (5x)
D1 Hand nozzle
D2 Terry cloth cover
D3 Microfibre abrasive cover
E1 Extension tubes (two tubes)
E2 Unlocking button
F1 Floor nozzle
F2 Retaining clip
F3 Terry floor cloth
Option
H1 Steam pressure iron
H2 Upper steam button
H3 Display - heater (ORANGE)
H4 Lower steam button
H5 Steam lock
H6 Temperature controller
H7 Steam plug
Quick Reference
→ Illustrations on Page 2
1 Fill the water reservoir up to the "MAX" marking.
2 Insert the steam plug into the appliance connector.
3 Plug in the main plug.
Switch on the appliance by turning the selector switch.

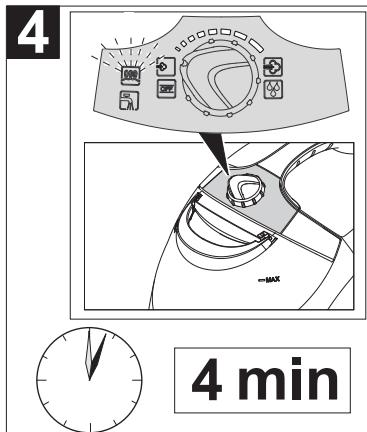

4 Display - heater blinks green.
Wait until the heater display lights up permanently green.

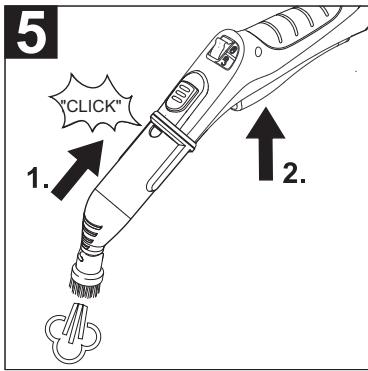

5 Connect the accessories to the steam gun.
The steam cleaner is ready to use.
Operation
→ Illustrations on fold-out page!
Attaching the Accessories

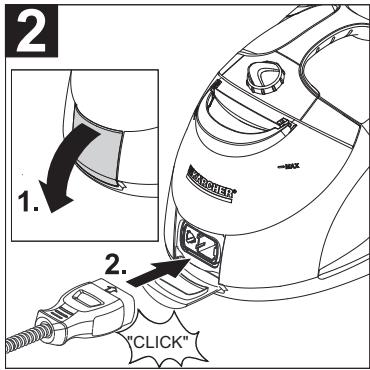

→ Illustration 2
Open the cover of the appliance socket.
→ Tightly insert the steam plug into the appliance connector. The plug must click into place audibly.
To disconnect: Press the cover of the appliance connector down and disconnect the steam plug from the appliance connector.

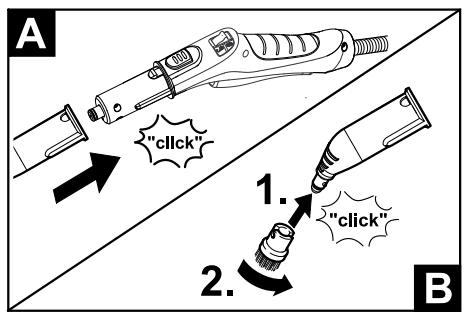

→ Illustration A - B
Connect the required accessories (see Chapter "How to use the accessories") to the steam gun. Insert the open end of the accessory on the steam gun and push onto the steam gun until the un-locking button of the steam gun locks into place.

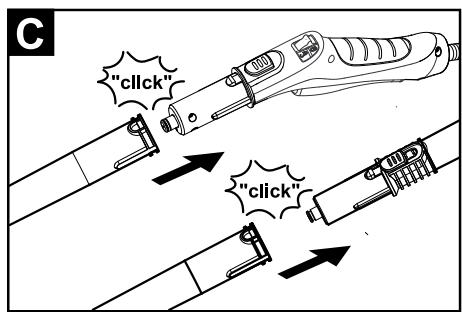

→ Illustration C
Use the extension tubes if necessary. To do so, connect one or both extension tubes to the steam gun. Insert the required accessories on the free end of the extension tube.
Removing the Accessories
⚠️ Danger
Hot water may drip out of the accessory parts while you are detaching them! Never detach accessory parts while steam streams out - risk of scalding!
→ Move the child protection unit toward the back (steam lever locked).

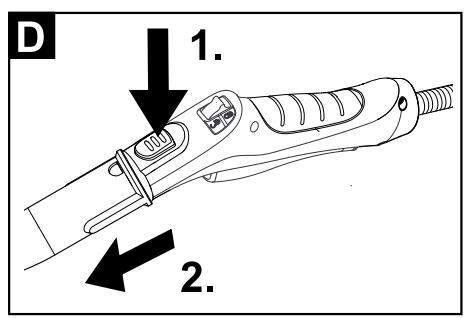

→ Illustration D
To detach the accessory parts, press the unlocking button and pull the items apart.
Filling the Water Reservoir
The water reservoir may be refilled at any time.
Caution
Do not use condensation water from the drier!
Do not fill with detergent or other additives (for example fragrances)!
Do not use pure distilled water! Max. 50% distilled water and 50% tap water.
Do not use collected rain water!

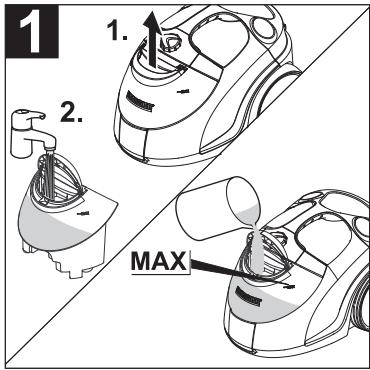

→ Illustration 1
You can remove the water reservoir to fill it or you can fill it directly on the appliance.
Take off water reservoir
→ Pull the water reservoir straight up.
→ Fill the water reservoir up to the "MAX" marking while positioned vertically under the water tap.
→ Insert the water reservoir and press downwards until it arrests.
Directly on the appliance
→ Pour water from a container into the funnel inlet. Fill up to the "MAX" marking.

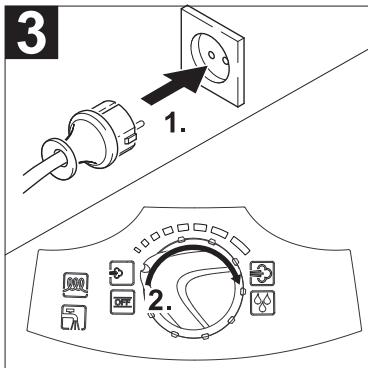

Turning on the Appliance
→ Place the unit securely on a firm surface.
→ Insert the mains plug into a socket.
→ Rotate the selector switch to steam level selection range from the OFF position.
Display - heater blinks green.
Note: If there is no or not enough water in the steam boiler, the water pump starts and supplies water from the reservoir into the steam boiler. The filling process may take several minutes.
→ Wait until the heater display lights up permanently.
The steam cleaner is ready to use.
Note: The appliance briefly closes the valve every 60 seconds. This will prevent the valve from sticking. There will be a slight audible click. The steam delivery is not impaired by this.
Refilling Water
In case of water shortage, the water shortage display lights up red and a signal can be heard.
Note: Every time there is not enough water in the steam boiler, the pump automatically supplies water from the water reservoir into the steam boiler. If the water reservoir is empty, the water pump is not able to fill the steam boiler and the steam tapping is blocked.
→ Fill the water reservoir up to the "MAX" marking.
Note: The water pump tries to fill the steam boiler in short intervals. If the filling is successful, the steam tapping is released immediately, and the red display goes out.
Adjusting the Steam Quantity
The emerging steam is regulated by a selector switch. Depending on the type of contamination and its severity, this selector switch offers adjustment possibilities from the minimum steam level (slight contamination) to the max. steam level (severe contamination).
For severe contamination located in difficult to access areas, there is the vapohydro function.
Adjusting the steam quantity
→ Set selector switch to the required steam volume.
→ While operating the steam switch, always direct the steam gun at a separate piece of cloth until the steam is emitted evenly.
Turning Off the Appliance
→ Rotate the switch to the OFF position to turn off the appliance.
→ Disconnect the mains plug from the socket.
→ Press the cover of the appliance connector to the bottom and disconnect the steam plug from the appliance connector.
→ Empty the residual water from the water reservoir.
Storing the Appliance

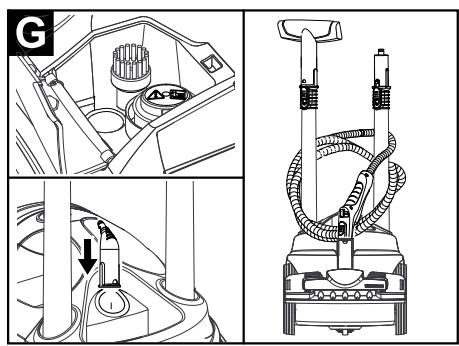

Illustration F - G
→ Store the round brush in the accessory compartment.
→ Insert the manual nozzle onto each extension pipe.
→ Put the extension pipes into the large accessory holders.
→ Insert the point stream nozzle into the accessory storage compartment.
→ Hook the floor nozzle into the parking position.
→ Wrap the steam hose around the extension pipes and insert the steam pistol into the floor nozzle.
→ Stow away the mains cable in the accessory holder for the mains cable.
How to Use the Accessories
Important application instructions
Cleaning floor surfaces
It is recommended to sweep or vacuum the floor prior to using the steam cleaner. This way, the floor is already cleared of dirt/loose particles prior to the wet cleaning.
Refreshing textiles
Prior to treatment with the steam cleaner, always check the reaction of the textiles in an inconspicuous location: Steam at first, then let dry and then check for colour or shape changes.
Cleaning of Coated or Lacquered Surfaces
When cleaning painted or plastic-coated surfaces, as found on kitchen and living room furniture, doors, parquet; wax, furniture polish, plastic surfaces or paint can come loose or stains can be created. When cleaning these surfaces, briefly steam a cloth and wipe the surfaces with it.
Caution
Never direct the steam jet at glued edges as the edge band may loosen. Do not use the steam cleaner on unsealed wooden or parquet floors.
Cleaning of Glass
In case of low outside temperatures, especially in the winter, warm up the window pane by slightly steaming the entire glass surface. This will prevent tensions on the surface which might lead to glass breakage.
Then clean the window surface with the hand nozzle and attachment. Use a squee-gee to remove the water or wipe the surfaces dry.
Caution
Do not direct steam onto the sealed locations of the window frame to prevent damage.
Steam gun
You can use the steam gun without any additional accessories, e.g.:
- to remove odours and wrinkles from hanging clothes by steaming them at a distance of 10 to 20 cm.
– to remove dust from plants. Here, keep a distance of 20-40 cm. - for moist dusting, by briefly steaming the cloth and wiping the furniture with it.
Detail nozzle
The closer this nozzle is to the contaminated area, the higher the cleaning effect, as the temperature and the steam are highest at the nozzle output. Especially suited for cleaning difficult access locations, joints, fittings, drains, sinks, toilets, blinds and heaters. Heavy lime scale can be drenched in vinegar prior to steam-cleaning. Let the vinegar penetrate for about 5 minutes.
Round brush
The round brush can be installed onto the detail nozzle as an accessory. Attached brushes can therefore be used to remove heavy soiling.
Caution
Not suited for the cleaning of sensitive surfaces.
→ Illustration B
Attach the round brush to the detail nozzle.
Steam turbo brush
The steam turbo brush is set swinging by the emitted steam and is suited ideally for the easy cleaning of extreme dirt at places in the kitchen and the bathroom that are difficult to access.
Caution
Using the turbo steam brush for longer periods can lead to circulation problems in the hand caused by hands (finger cramps, cold fingers). Please take a break if that happens. It is not possible to specify a generally valid operation time, since this depends on several factors:
- Proneness to blood circulation deficiencies (cold, numb fingers).
– A firm grip impedes blood circulation. - Continuous operation is worse than an operation interrupted by pauses.
In case of regular, long-term operation of the turbo steam brush and in case of repeated occurrence of the symptoms (e.g. cold, numb fingers) please consult a physician.
Hand nozzle
Pull the terry cloth cover over the hand nozzle. Especially well-suited for small washable areas, shower stalls and mirrors.
Microfibre abrasive cover
Pull up the microfibre abrasive cover over the hand nozzle.
Especially well-suited for removing calcium and soap residues in the bath-room (for e.g shower cabins, tiled walls).
Can be washed at 60 °C ; please do not use any fabric softener. Not suitable for drier.
Floor nozzle
Suited for all washable walls and floor coverings, e.g. stone floors, tiles and PVC floors. Work slowly on very dirty surfaces to allow the steam to act on the dirt for a longer period of time.
Note: Detergent residue or care emulsions that are still present on the surfaces to be cleaned, can lead to smears when steam cleaned. However, these will disappear with repeated cleaning procedures.

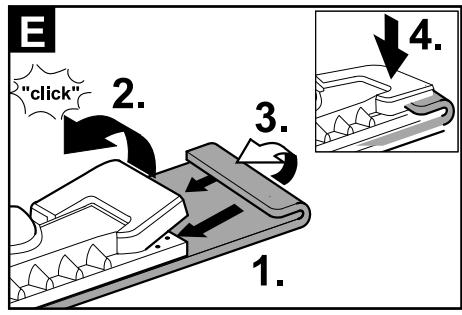

→ Illustration E
Attach the floor cloth to the floor nozzle.
1 Fold the floor cloth the long way and place the floor nozzle on top of it.
2 Open holding clamps.
3 Place the cloth ends into the openings.
4 Close the holding clamps.
Caution
Do not insert fingers between the clamps.
Parking the floor nozzle

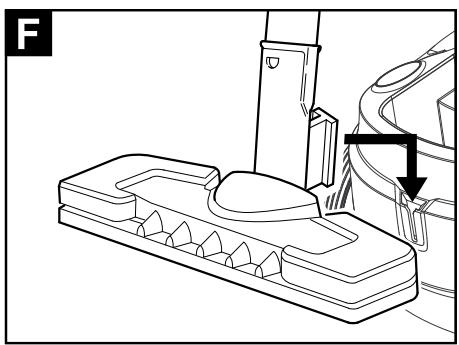

→ Illustration F
During work breaks, hook the floor nozzle into the parking holder.
Steam iron
⚠️ Danger
■ The steam pressure iron must not be used if it has been dropped, shows visible signs of damage or if it leaks.
The steam pressure iron is hot and so is the steam jet! Point out to other people the possible risk of being scalded or burnt. Never direct the steam jet at people or animals (risk of scalding). Do not touch any electrical leads or combustible objects with the hot steam pressure iron.
⚠ Warning
■ The steam pressure iron and its connecting cable must be kept out of reach of children under the age of 8 during the heating and cooling down periods.
■ The steam pressure iron must be used and placed on a stable surface.
Note: We recommend using the Kärcher ironing table with active steam extraction (2.884-933.0). This ironing table has been designed to match your new steam cleaner. It facilitates and, thus, accelerates the ironing process substantially. In any case, you should use an ironing table which is covered with a mesh-type underlay allowing the steam to pass through.
Note: Please do not select the VapoHydro function while the steam pressure iron is plugged in to prevent the laundry to be ironed from getting wet.
→ Make sure that there is fresh tap water in the boiler of the steam cleaner.
→ Tightly insert the steam plug of the iron into the appliance connector. The plug must click into place audibly.
Display - iron will light up green permanently.
→ Start-up the steam cleaner according to the description.
Recommended steam levels:
| Level | Textiles |
| Min. steam level | Slightly wrinkled clothes |
| Max. steam level | Jeans |
→ Wait until the steam cleaner is ready to use.
Steam ironing
All fabrics can be steam ironed. Delicate imprints or fabrics should be ironed on the reverse or according to the manufacturer's specifications.
Note: For these sensitive textiles, we recommend using the KÄRCHER non-stick ironing sole BE 6006 (Ordner no. 2.860-142.0).
→ Adjust the temperature control of the steam iron within the notched range ( ·s /MAX).
→ As soon as the heater display of the iron switches off, you can start ironing.
Note: The sole plate must be hot to prevent the steam from condensing on the sole plate and dripping onto the garment to be ironed.
→ Use the top or bottom steam switch.
- Steaming at intervals: Press the steam switch. Steam will be emitted while the switch is pressed.
- Continuous steaming: Pull the latch for the steam switch toward the rear until it locks in. Steam will escape continuously. To unlock, push the lock forward.
→ Direct the first burst of steam at the start of the ironing process or after ironing breaks at a separate piece of cloth until the steam is emitted evenly.
→ You can hold the iron in an upright position to apply steam to curtains, dresses, etc.
Dry ironing
Note: Even if you iron without steam, there must be water in the boiler.
→ Adjust the temperature of the iron according to the garment you want to iron.
| • | Synthetics |
| •• | Wool, silk |
| ••• | Cotton, linen |
Note: Please observe the ironing and washing instructions in your garment.
→ As soon as the heater display of the iron switches off, you can start ironing.
Maintenance and care
⚠️ Danger
Always disconnect the mains plug and allow the steam cleaner to cool down before performing any maintenance work.
Rinsing the steam boiler
Rinse the steam cleaner boiler at the latest after 8 boiler fillings.
→ Disconnect the mains plug from the socket.
→ Allow the steam cleaner to cool down.
→ Empty the water reservoir or remove it from the appliance.
→ Remove the accessories from the accessory compartments.

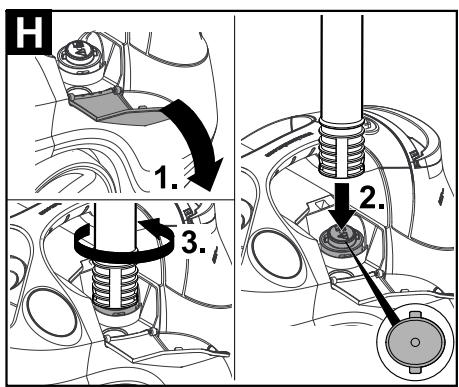

Illustration H
→ Open the locking door of the accessory compartment.
→ Remove the accessories from the accessory compartment.
→ Open the maintenance lock. For this, place the open end of an extension pipe onto the maintenance lock, lock it into the guide and unscrew it.
→ Fill the boiler with water and shake it strongly. This dissolves lime scaling residing on the boiler bottom.

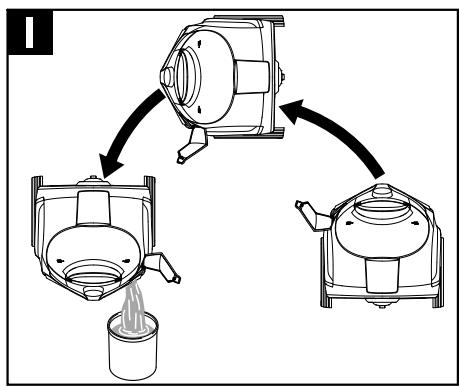

→ Completely empty the steam boiler to remove existing water (see fig. Ⅱ).
Descaling the Steam Boiler
As limes cale builds up on the boiler walls, we recommend to de scale the boiler in the following intervals (RF = reservoir fillings):
| Degree of hard-ness | ° dH | mmol/l | RF | |
| I | soft | 0-7 | 0-1,3 | 100 |
| II | medium | 7-14 | 1,3-2,5 | 90 |
| III | hard | 14-21 | 2,5-3,8 | 75 |
| IV | very hard | >21 | >3,8 | 50 |
Note: Please contact your Conservancy Board or the local water supply company to inquire about the hardness of your water.
→ Disconnect the mains plug from the socket.
→ Allow the steam cleaner to cool down.
→ Empty the water reservoir or remove it from the appliance.
→ Remove the accessories from the accessory compartments.
Illustration H
→ Open the locking door of the accessory compartment.
→ Remove the accessories from the accessory compartment.
→ Open the maintenance lock. For this, place the open end of an extension pipe onto the maintenance lock, lock it into the guide and unscrew it.
→ Completely empty the steam boiler to remove existing water (see fig. Ⅱ).
⚠ Warning
Only use products approved by KÄRCHER to exclude any damages of the appliance.
→ User the KÄRCHER decalcifier sticks (order no. 6.295-206) to decalcify the water. Please follow the dosing instructions on the packaging while using the decalcifying solution.
Caution
Use caution when filling and emptying the steam cleaner. The descaling solution can have an aggressive effect on delicate surfaces.
→ Pour the descaling solution into the boiler and allow it to react for approximately 8 hours.
⚠ Warning
Do not screw the maintenance lock onto the appliance during the decalcifying.
Do not use the steam cleaner as long as there is decalcifying agent in the boiler.
→ Completely empty the descaling solution after 8 hours. A small amount of the solution will remain in the boiler. Therefore, you should rinse the boiler two to three times with cold water to remove any residues of the descaler.
→ Completely empty the steam boiler to remove existing water (see fig. Ⅱ).
→ Screw the maintenance lock in using the extension pipe.
→ Fill water reservoir (see page 8).
→ The steam cleaner is ready to use.
Care of the Accessories
Note: The floorcloth and the terry cloth cover have been pre-washed and can be used immediately for working with the steam cleaner.
→ You can wash dirty floorcloths and terry cloth covers in the washing machine at 60^ C. Do not use a liquid softener as this would affect the ability of the cloths to pick up dirt. You may tumble dry the cloths.
Troubleshooting
Often, failures have simple causes and you can do the troubleshooting yourself using the following overview. If you are in doubt or if the failure is not listed here please contact the authorized customer service.
⚠️ Danger
Always disconnect the mains plug and allow the steam cleaner to cool down before performing any maintenance work.
Repair works may only be performed by the authorized customer service.
Long heating-up time
Steam boiler is decalcified
→ Descale the steam boiler.
No steam
Display - water shortage blinks red and signal is emitted.
No water in the water reservoir.
→ Fill the water reservoir up to the "MAX" marking.
Display - water shortage lights up red.
No water in the steam boiler. Overheating protection of the pump was triggered.
→ Turn off the appliance.
→ Fill the water reservoir up to the "MAX" marking.
→ Turn on the appliance.
Water reservoir has not been inserted properly or is calcified.
→ Remove the water reservoir and rinse it.
→ Insert the water reservoir and press downwards until it arrests.
Steam lever cannot be pressed anymore
Steam switch is secured with the lock / child-proof lock.
→ Move the child protection unit forward.
Steam iron "spits out" water!
→ Set the thermostat to level ⋯.
→ Rinse or decalcify the boiler of the steam cleaner.
Steam level VapoHydro selected
→ Turn the selector switch to the steam level selection range.
After breaks during ironing, water drops will come out of the steam pressure iron.
During longer breaks from ironing, the steam in the steam line can condense.
→ Direct the first burst of steam at a separate piece of cloth.
High water output
Steam boiler is decalcified
→ Descale the steam boiler.
Spare parts
Use only original KÄRCHER spare parts. You will find a list of spare parts at the end of these operating instructions.
Technical specifications
| Electrical connection | |
| Voltage | 220-240 V1~50 Hz |
| Protection class | IPX4 |
| Protective class | I |
| Performance data | |
| Heating output | 1800 W |
| Heating output steam iron | 700 W |
| Operating pressure max. | 0,4 MPa |
| Heating time | 4 Minutes |
| Steam volume | |
| – Continuous steaming | 50 g/min |
| – Steam push max. | 130 g/min |
| – Vapohydro | 230 g/min |
| Filling quantity | |
| Water reservoir | 1,5 l |
| Boiler capacity | 0,5 l |
| Dimensions | |
| Weight (without accessories) | 6,0 kg |
| Length | 439 mm |
| Width | 301 mm |
| Height | 304 mm |
Subject to technical modifications!
Special accessories
Order number
Microfibre cloth set, bath 2.863-171
2 soft floor cloths made of plush velour, 1 abrasive cover for the hand nozzle, 1 polishing cloth for the mirrors and fixtures
Microfibre cloth set, kitchen 2.863-172
2 soft floor cloths made of plush velour, 1 soft cover made of plush velour, 1 cloth for the streak-free cleaning of stainless steel surfaces
Microfibre cloth set, soft floor 2.863-173
2 soft floor cloths made of velvet velour
Microfibre cloth set, soft cover2.863-174
2 soft covers made of plush velour
Terry-cloth rags 6.369-357
5 floor cloths made of cotton
Terry-cloth covers 6.370-990
5 covers made of cotton
Round brush kit 2.863-058
4 round brushes for the detail nozzle
Round brush kit with brass bristles 2.863-061
Removal of especially stubborn dirt ideal for insensitive surfaces.
Power nozzle with extension 2.884-282 for point stream nozzle
To remove tough contamination, especially in areas that are difficult to reach.
Round brush with scraper 2.863-140
Round brush with two rows of heat-resistant bristles and a scraper. Not suitable for sensitive surfaces.
Turbo steam brush 2.863-159
For cleaning tasks where you would usually have to scrub.
Textile care nozzle 4.130-390
For freshening up clothes and textiles.
Decalcifying sticks (9 pieces) 6.295-206
Active ironing board AB 1000 2.884-933
For excellent ironing results with substantial time-saving (only for 230 V).
Steam pressure iron 2.863-209
Non-stick ironing sole 2.860-142
Suitable for ironing sensitive materials.
Contenu
www.kaercher.com/REACH
H3 Affichage - chauffage (ORANGE)
www.kaercher.com/REACH
Fornitura
www.kaercher.com/REACH
Leveringsomvang
H3 Weergave - Verwarming (ORANJE)
H4 Schakelaar Stoom (bovenaan)
Geen water in de watertank.
→ Watertank vullen tot marking "MAX".
Geen water in stoomketel. Beveiliging te- gen oververhitting van de pomp is in wer- king gezet.
www.kaercher.com/REACH
www.kaercher.com/REACH
www.kaercher.com/REACH
Leveringsomfang
www.kaercher.com/REACH
Leveringsomfang
Leveringsomfang for apparatet er vist på emballasjen. Kontroller at innholdet i pakken er fullstendig, när du pakker ut.
H4 Bryter Damp (oppe)
H5 Låsing for bryter Damp
H6 Temperaturregulator
H7 Dampplugg
Kortveiledning
Stille inn dampmengde
www.kaercher.com/REACH
Toimitus
www.kaercher.com/REACH
Συσκευασία
www.kaercher.com/REACH
Teslimat kapsamı
www.kaercher.com/REACH
Szállítási tétel
www.kaercher.com/REACH
Obsah dodávky
H6 Regulator temperature
H7 Parni vtič
Kratko navodilo
www.kaercher.com/REACH
Zakres dostawy
H6 regulator temperature
Mult stimate client,
www.kaercher.com/REACH
Articolele livrate
www.kaercher.com/REACH
Rozsah dodávky
www.kaercher.com/REACH
Opseg isporuke
H6 Regulator temperature
H7 Parni utikač
Kratke upute
www.kaercher.com/REACH
Obim isporuke
Sadržaj isporuke Vašeg uređaja je prikazan na ambalaži. Pre vađenja uređaja iz ambalaže proverite da li je sadržaj potpun.
Ako pribor nedostaje ili je došlo do oštećenja prilikom transporta, molimo da o tome obavestite svog prodavca.
Garancija
U svakoj zemlji važe garantni uslovi koje je izdala naša nadležna distributivna organizacija. Eventualne smetnje na uređaju za vreme trajanja garancije uklanjamo besplatno, ukoliko je uzrok greška u materijalu ili proizvodnji. U slučaju koji podleže garanciji obratite se sa potvrdom o kupovini Vašem prodavcu ili najbližoj ovlašćenoj servisnoj službi.
www.kaercher.com/REACH
Обем на доставката
www.kaercher.com/REACH
Tarnekomplekt
H3 Kütte indikaator (ORANŽ)
Lisavarustuse monteerimine
→ Joonis 2
Avage seadme pistikupesa kate.
www.kaercher.com/REACH
Piegādes komplekts
www.kaercher.com/REACH
Komplektacija
www.kaercher.com/REACH
Комплект постачання
