USER MANUAL SC 4100C, SC 4100 CB, SC 4100C KARCHER

Line drawing of a vacuum cleaner (no text or symbols)

Deutsch 5

English 15

Français 25

Italiano 36

Nederlands 46

Español 56

Português 67

Dansk 77

Norsk 86

Svenska 95

Suomi 104

Ελληνικά 113

Türkçe 123

Русский 133

Magyar 143

Čeština 153

Slovenščina 163

Polski 173

Românește 183

Slovenčina 193

Hrvatski 203

Srpski 212

Български 222

Eesti 232

Lietuviškai 241

Latviešu 250

Українська 260

Register and win! www.kaercher.com

DE Kurzanleitung	SV Snabbguide	RO Instrucțiuni pe scurt
EN Quick reference	FI Pikaohje	SK Krátky návod
FR Instructions abrégées	EL Σύντομες οδηγίε	HR Krakte upute
IT In sintesi	TR Kīsa Kullanım Talimati	SR Kratko uputstvo
NL Korte handleiding	RU Краткое руководство	BG Кратко упътване
ES Descripción breve	HU Rövid bevezetés	ET Lühijuhend
PT Instruções resumidas	CS Stručný návod	LV Îsa lietošanas instrukcija
DA Kort brugsanvisning	SL Kratko navodilo	LT Trumpa instrukcija
NO Kortveiledning	PL Skrócona instrukcja obsługi	UK Стислий посібник

Diagram showing three stages of a water pump operation: pouring from a bottle, adding water, and finally adding an outlet (no text or labels)

2 1. 2. "CLICK"

3 2. 1.

4

5 "CLICK"

3 min

Diagram illustrating a medical procedure with labeled components including sun, I, and eye symbols

Illustration of an open book with a grid layout and a curved arrow indicating rotation (no text or symbols)

A "click" 1. "click" 2. B

"click" "click"

D 1. 2.

E 1. 2. 3. 4.

Line drawing of a mechanical device with a handle and gear base (no text or symbols)

Line drawing of a cleaning or cleaning tool with hoses and a base (no text or symbols)

1. 2. 3.

A5 A6 A7 A8 A9 A10 A11 A8 A12 A13 A4 A3 A2 A1 A14 A15 G1 E1 E2 F1 F2 F3 D1 D2 C1 C2 C3 B4 B3 B1 B2 B5 B6 H5 H4 H3 H2 H6 H7

Inhalt

Inhalt DE 5

Description of the Appliance .... EN 6

Safety instructions ..... EN 6

Operation.... EN 8

How to Use the Accessories .... EN 9

Maintenance and care ..... EN 11

Troubleshooting ..... EN 13

Technical specifications ..... EN 14

Special accessories ..... EN 14

General information

Dear Customer,

Please read and comply with these original instructions prior to the initial operation of your appliance and store them for later use or subsequent owners.

Proper use

Only use the steam cleaner for private household applications. The unit is meant for steam cleaning and can be used with appropriate accessories as described in these operating instructions. Especially mind the safety instructions during use.

Symbols in the operating instructions

⚠️ Danger

Immediate danger that can cause severe injury or even death.

⚠ Warning

Possible hazardous situation that could lead to severe injury or even death.

Caution

Possible hazardous situation that could lead to mild injury to persons or damage to property.

Symbols on the machine

Steam

CAUTION - Danger of scalding

Environmental protection

The packaging material can be recycled. Please do not place the package to the ordinary refuse for disposal, but ge for the proper recycling.

Old appliances contain valuable materials that can be recycled. Please arrange for the proper recycling of old licences. Please dispose your old appli- s using appropriate collection sys-

Notes about the ingredients (REACH)

You will find current information about the ingredients at:

The scope of delivery of your appliance is illustrated on the packaging. Check the contents of the appliance for completeness when unpacking.

In the event of missing accessories or any transport damage, please contact your dealer.

Quick Reference

→ Illustrations on Page 2

1 Fill the water reservoir up to the "MAX" marking.

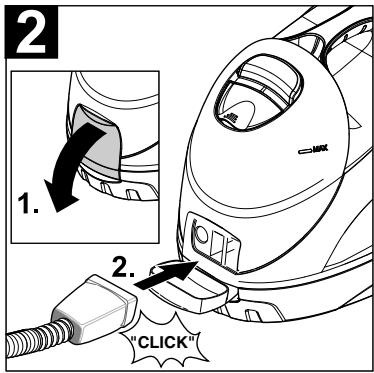

2 Insert the steam plug into the appliance connector.

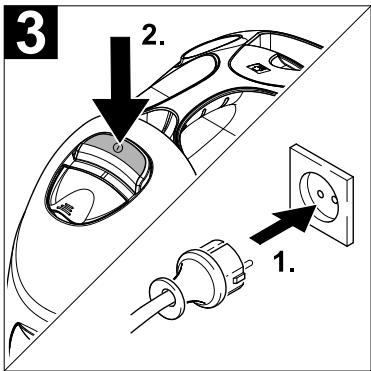

3 Plug in the main plug.
Turn on the appliance.

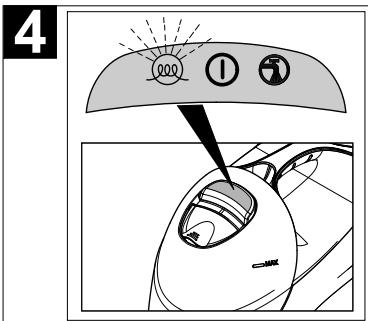

4 Indicator lamp "Heating on" is blinking (green)
Wait until the indicator lamp (heater) lights up permanently.

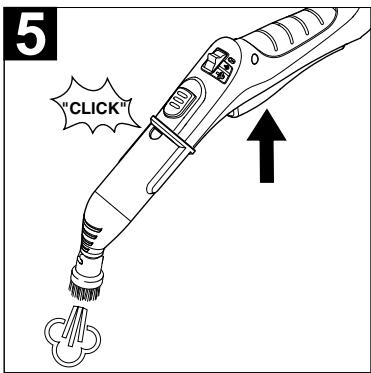

5 Connect the accessories to the steam gun.
The steam cleaner is ready to use.

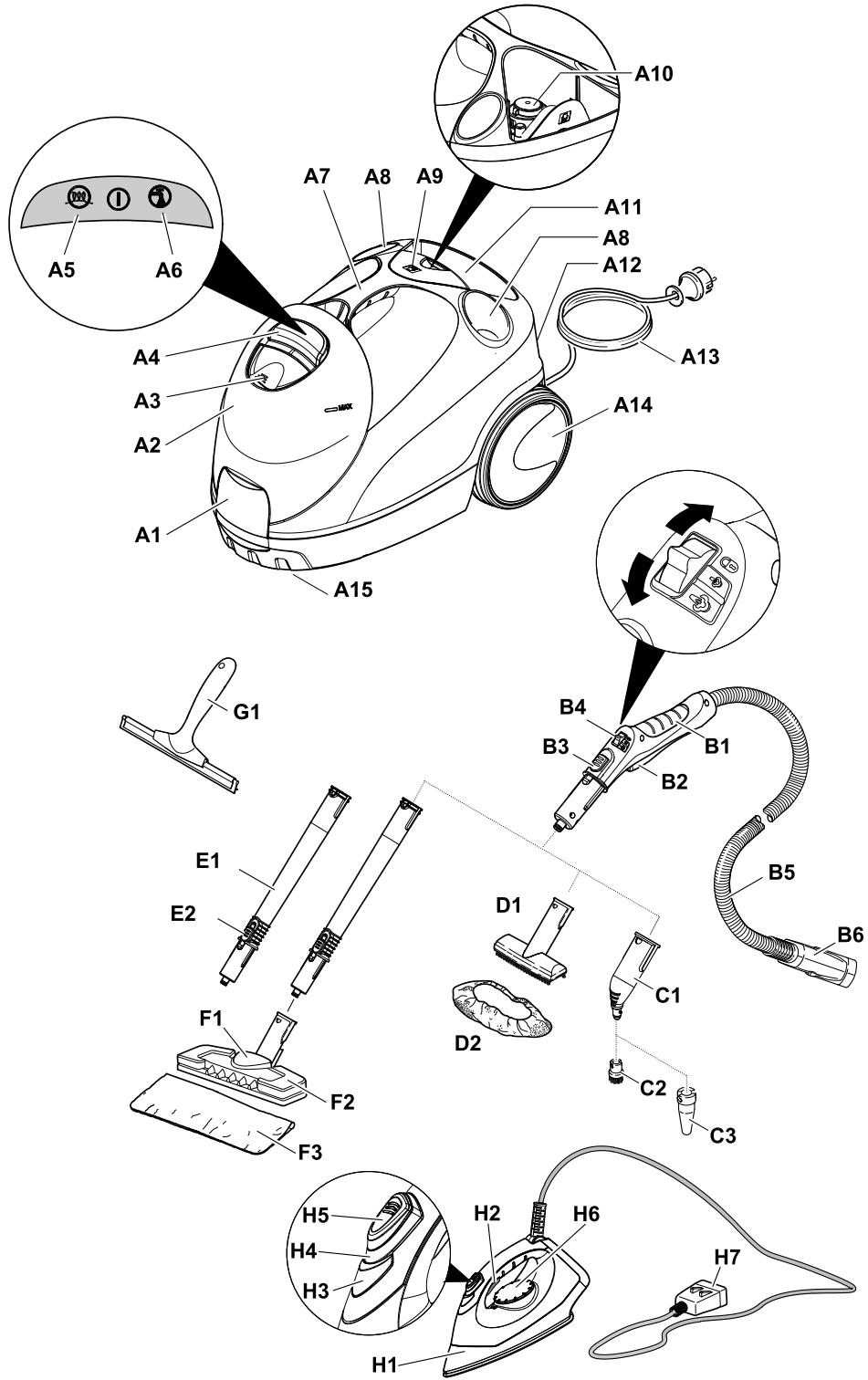

Description of the Appliance

These operating instructions describe the maximum equipment. Depending on the model, there are differences in the scopes of delivery (see packaging).

→ Illustrations on fold-out page!

A1 Appliance connector with cover

A2 Water reservoir

A3 Locking door for water reservoir

A4 Switch - ON/OFF

A5 Indicator lamp - heating (GREEN)

A6 Indicator lamp "water shortage" (RED)

A7 Carrying handle

A8 Holder for accessories

A9 Accessory compartment mit locking door

A10 Maintenance lock

A11 Storage for mains connection cable

A12 Parking holder

A13 Mains cable with mains plug

A14 Transport wheel (2x)

A15 Steering roller

B1 Steam gun

B2 Steam lever

B3 Unlocking button

B4 Selector switch for the steam volume (with child protection)

B5 Steam hose

B6 Steam plug

C1 Detail nozzle

C2 Round brush

C3 Power nozzle

D1 Hand nozzle

D2 Terry cloth cover

E1 Extension tubes (two tubes)

E2 Unlocking button

F1 Floor nozzle

F2 Retaining clip

F3 Floor cleaning cloth

G1 Window wiper

Option

H1 Steam iron

H2 Upper steam button

H3 Indicator lamp - steam iron heating

H4 Lower steam button

H5 Steam lock

H6 Temperature controller

H7 Steam plug

Safety instructions

⚠️ Danger

■ The appliance may not be used in areas where a risk of explosion is present.
If the appliance is used in hazardous areas the corresponding safety provisions must be observed.
■ Never use the appliance in pools containing water.
The device should not be used to clean electrical appliances such as oven, exhaust, micro-wave, televisions, lamps, hair-dryer, electrical heating systems, etc.
Check the faultless condition of the appliance and the accessories before using it. Otherwise, the appliance must not be used. Please check in particular the power cord, the maintenance lock, and the steam hose.
If the power cord is damaged, please arrange immediately for the exchange by an authorized customer service or a skilled electrician.
■ Please arrange for the immediate exchange of a damaged steam hose. You may only use a steam hose that is recommended by the manufacturer (see spare parts list for the order number).
■ Never touch the mains plug and the socket with wet hands.
■ Never use the appliance to clean objects containing hazardous substances (e.g. asbestos).
■ Never touch the steam jet from a short distance with your hands and never direct the steam jet to persons or animals (risk of scalds).
■ The maintenance lock must not be opened during operation.

⚠ Warning

■ The appliance may only be connected to an electrical supply which has been installed in accordance with IEC 60364.
■ The appliance may only be connected to alternating current. The voltage must correspond with the type plate on the appliance.

In wet rooms, e.g. bathrooms, connect the appliance to sockets with a series connected RCD adapter.
■ Unsuitable extension cables can be hazardous. Only use a splashproof extension cable with a minimum section of 3 × 1 mm^2 .
■ The connection between power cord and extension cable must not lie in water.
If couplings of the power cord or extension cable are replaced the splash protection and the mechanical tightness must be ensured.
■ The operator must use the appliance correctly. When working with the appliance, he must consider the local conditions and pay due care and attention to other persons, in particular children, who are nearby.
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
■ Never leave the appliance unattended when it is in operation.
■ Be very careful while cleaning tiled walls with sockets.
■ Make sure that the power cable or extension cables are not damaged by running over, pinching, dragging or similar. Protect the power cable from heat, oil, and sharp edges.
■ Never fill solvents, solvent-containing liquids or undiluted acids (e.g. detergents, benzene, paint thinner, and acetone) into the water reservoir as these substances affect the materials used on the appliance.
■ The appliance must not be carried during cleaning.

Caution

■ The appliance must provide of a stable ground.
■ Use and store the unit only in accordance with the specifications in the description and/or figure.
■ The steam switch must not be locked during the operation.
■ Protect the appliance from rain. Do not store outside.

Safety Devices

Caution

Safety devices protect the user and must not be modified or bypassed.

Pressure controller

The pressure controller keeps the boiler pressure during the operation as constant as possible. The heating is turned off if the maximum operating pressure of 4 bar is reached in the boiler and is reactivated in case of a pressure drop in the boiler due to steam tapping.

Boiler thermostat

If there is no water in the boiler the temperature in the boiler rises. The boiler thermostat turns off the heating. The heating is prevented from being turned on again until the boiler has been filled.

Safety thermostat

If the boiler thermostat fails and the appliance overheats, then the safety thermostat turns off the appliance.

Please contact your local KÄRCHER customer service to arrange for the reset of the safety thermostat.

Maintenance lock

The maintenance lock acts as a pressure control valve at the same time. It seals the boiler against the steam pressure that builds up in the boiler.

If the pressure controller is defect and the steam pressure in the boiler rises, the pressure control valve, and steam is emitted through the maintenance lock to the outside.

Please contact your local Kärcher customer service before you put the appliance into operation again.

Operation

→ Illustrations on fold-out page!

Attaching the Accessories

→ Open the cover of the appliance socket.
→ Tightly insert the steam plug into the appliance connector. The plug must click into place audibly.

→To disconnect: Press the cover of the appliance connector down and disconnect the steam plug from the appliance connector.

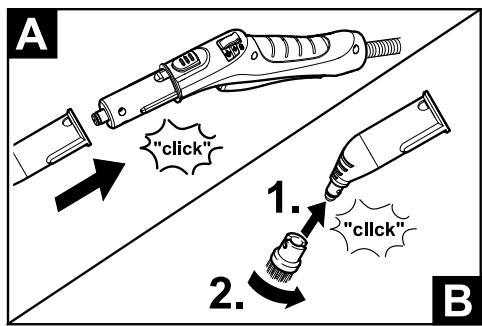

→ Illustration A - B

Connect the required accessories (see Chapter "Using accessories) to the steam gun. Insert the open end of the accessory on the steam gun and push onto the steam gun until the unlocking button of the steam gun locks into place.

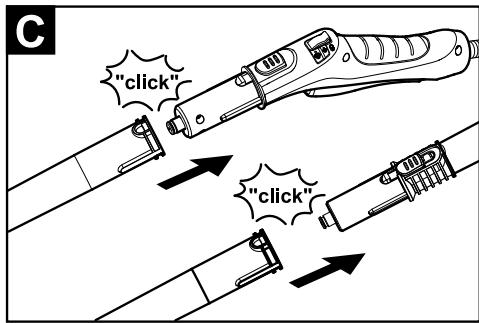

→ Illustration ©

Use the extension pieces if necessary. To do so, connect one or both extension pieces to the steam gun. Insert the required accessories on the free end of the extension piece.

Removing the Accessories

Danger

Hot water may drip out of the accessory parts while you are detaching them! Never detach accessory parts while steam streams out - risk of scalding!

→ Move the selector switch for the steam volume back (steam lever locked).

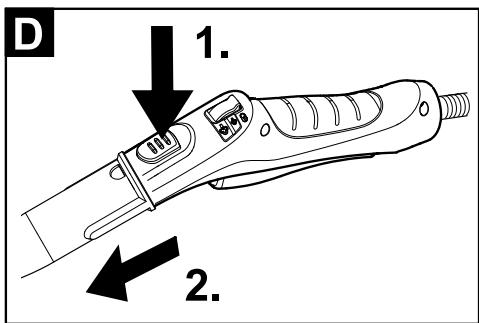

→ Illustration D

To detach the accessory parts, press the unlocking button and pull the items apart.

Filling the Water Reservoir

The water reservoir may be refilled at any time.

Caution

Do not use condensation water from the drier!

Do not fill in detergents or other additives!

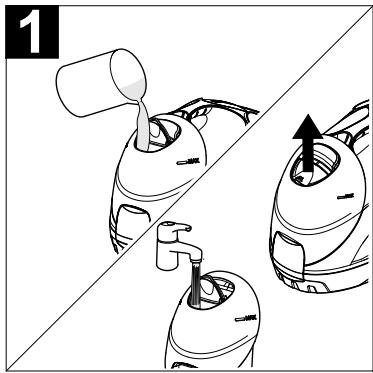

→ Illustration 1

You can remove the water reservoir to fill it or you can fill it directly on the appliance.

Take off water reservoir.

→ Pull the water reservoir straight up.
→ Fill the water reservoir up to the "MAX" marking while positioned vertically under the water tap.
→ Insert the water reservoir and press downwards until it arrests.

Directly on the appliance

→ Pour water from a container into the funnel inlet. Fill up to the "MAX" marking.

Turning on the Appliance

→ Place the unit securely on a firm surface.
→ Insert the mains plug into a socket.
→ Press the ON/OFFswitch to turn on the appliance.

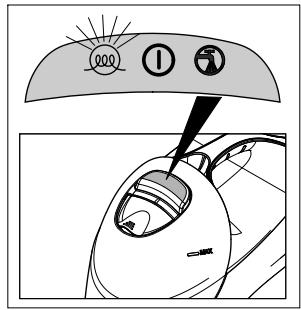

Indicator lamp "Heating on" is blinking (green)

Note: If there is no or not enough water in the steam boiler, the water pump starts and supplies water from the reservoir into the steam boiler. The filling process may take several minutes.

→ Wait until the indicator lamp (heater) lights up permanently.

The steam cleaner is ready to use.

Note: The appliance closes the valve every 60 seconds. This prevents the calcifying of the appliance. There will be a slight audible click. The steam delivery is not impaired by this.

Refilling Water

In case of water shortage, the indicator lamp "water shortage" glows red in the water reservoir and a signal can be heard.

Note: Every time there is not enough water in the steam boiler, the pump automatically supplies water from the water reservoir into the steam boiler. If the water reservoir is empty, the water pump is not able to fill the steam boiler and the steam tapping is blocked.

→ Fill the water reservoir up to the "MAX" marking.

Note: The water pump tries to fill the steam boiler in short intervals. If the filling is successful, the steam tapping is release immediately, and the red indicator lamp goes out.

Adjusting the Steam Quantity

Use the selector switch for the steam volume to regulate the discharged steam. The selector switch has three positions:

Maximum steam volume

Reduced steam volume

No steam - child protection

Note: In this lever position, the steam lever cannot be used.

→ Set selector switch to the required steam volume.
→ While operating the steam switch, always direct the steam gun at a separate piece of cloth until the steam is emitted evenly.
Note: The heating of the steam cleaner is turned on in regular intervals during the operation of the appliance in order to maintain the pressure in the boiler at a constant level. Then the indicator lamp (heater) blinks green.

Turning Off the Appliance

→ Press the ON/OFFswitch to turn off the appliance.
→ Disconnect the mains plug from the socket.
→ Press the cover of the appliance connector to the bottom and disconnect the steam plug from the appliance connector.
→ Empty the residual water from the water reservoir.

Storing the Appliance

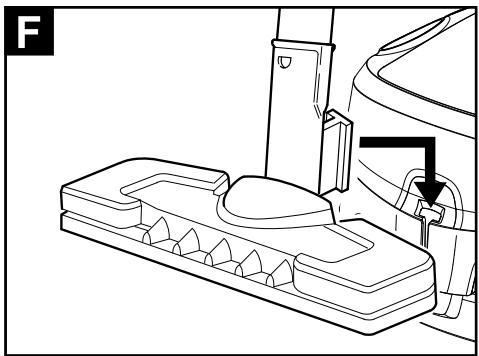

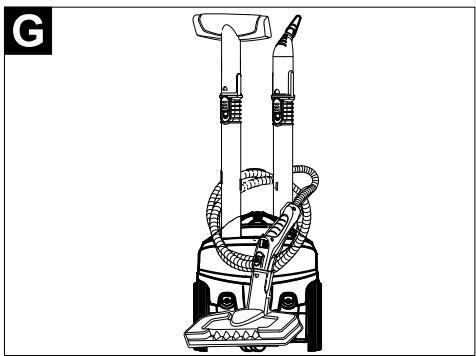

Illustration F - G

→ Store the power nozzle and the round brush in the accessory compartment.
→ Insert the manual nozzle and detail nozzle onto each extension pipe.
→ Put the extension pipes into the large accessory compartments.
→ Hook the floor nozzle into the parking position.
→ Wrap the steam hose around the extension pipes and insert the steam pistol into the floor nozzle.
→ Stow away the mains cable in the accessory holder for the mains cable.

How to Use the Accessories

Important application instructions

Cleaning of Textiles

Prior to treatment with the steam cleaner, always check the reaction of the textiles in an inconspicuous location: Steam heavily at first, then let dry and then check for colour or shape changes.

Cleaning of Coated or Lacquered Surfaces

Be careful when you clean kitchen and living room furniture, doors, parquet, lacquered or plastic-coated surfaces. The wax, furniture polish, plastic surfaces or paint can come loose or stains can be created. Therefore, always clean these surfaces with a steamed cloth only.

Caution

Never direct the steam jet at glued edges as the edge band may loosen. Do not use the steam cleaner on unsealed wooden or parquet floors.

Cleaning of Glass

In case of low outside temperatures, especially in the winter, warm up the window pane by slightly steaming the entire glass surface. This will prevent tensions on the surface which might lead to glass breakage.

Caution

Do not direct steam onto the sealed locations of the window frame to prevent damage.

Steam gun

You can use the steam gun without any additional accessories, e.g.:

• to remove odours and wrinkles from hanging clothes by steaming them at a distance of 10 to 20 cm.
  – to remove dust from plants. Here, keep a distance of 20-40 cm.
• for moist dusting, by briefly steaming the cloth and wiping the furniture with it.

Detail nozzle

The closer this nozzle is to the contaminated area, the higher the cleaning effect, as the temperature and the steam are highest at the nozzle output. Especially suited for cleaning difficult access locations, joints, fittings, drains, sinks, toilets, blinds and heaters. Heavy limescale can be drenched in vinegar prior to steam-cleaning. Let the vinegar penetrate for about 5 minutes.

Round brush

The round brush can be installed onto the detail nozzle as an accessory. Attached brushes can therefore be used to remove heavy soiling.

Caution

Not suited for the cleaning of sensitive surfaces.

→ Illustration B

Attach the round brush to the detail nozzle.

Power nozzle

The power nozzle can be installed onto the detail nozzle as an accessory.

The power nozzle increases the emission speed of the steam. Therefore, it is well-suited for cleaning very tough dirt, blowing out corners, grooves, etc.

→ Illustration B

Attach the power nozzle to the detail nozzle according to the round brush.

Hand nozzle

Pull the terry cloth cover over the hand nozzle. Especially well-suited for small washable areas, shower stalls, mirrors or furniture cloth material.

Floor nozzle

Suited for all washable wall and floor coverings, e.g. stone floors, tiles and PVC floors. Work slowly on very dirty surfaces to allow the steam to act on the dirt for a longer period of time.

Note: Detergent residue or care emulsions that are still present on the surfaces to be cleaned, can lead to smears when steam cleaned. However, these will disappear with repeated cleaning procedures.

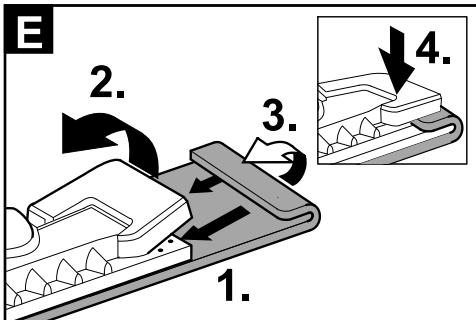

→ Illustration E

Attach the floor cloth to the floor nozzle.

1 Fold the floor cloth the long way and place the floor nozzle on top of it.
2 Open holding clamps.
3 Place the cloth ends into the openings.
4 Close the holding clamps.

Caution

Do not insert fingers between the clamps.

Parking the floor nozzle

→ Illustration F

During work breaks, hook the floor nozzle into the parking holder.

Window wiper

Application:

• Windows, mirrors
  – Glass surfaces on showers
• other smooth surfaces

→ Perform a fat dissolving basic cleaning using the hand nozzle and a terry cloth cover before using the window wiper.
→ Apply steam to the glass surface from a distance of approximately 20 cm until the surface is moistened evenly.
→ Strip the glass surface in straight lines from the top to the bottom using the rubber lip of the window wiper. Wipe the rubber lip and the bottom edge of the window dry after each strip.

Steam iron

⚠️ Danger

■ The steam iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.
■ Hot steam iron and hot steam escaping! Point out to other people the possible risk of being scalded or burned.

Never direct the steam jet at people or animals (risk of scalding). Do not touch any electrical leads or combustible objects with the hot steam iron.

⚠ Warning

- Keep the steam iron and its cord out of reach of children less than 8 years of

age when it is energized or cooling down.

■ The steam iron must be used and rested on a stable surface.

Note: We recommend using the Kärcher ironing table with active steam extraction (2.884-933.0). This ironing table has been designed to match your new steam cleaner. It facilitates and, thus, accelerates the ironing process substantially. In any case, you should use an ironing table which is covered with a mesh-type underlay allowing the steam to pass through.

→ Tightly insert the steam plug of the iron into the appliance connector. The plug must click into place audibly.
→ Make sure that there is fresh tap water in the boiler of the steam cleaner.
→ Start-up the steam cleaner according to the description.
→ Wait until the steam cleaner is ready to use.

Steam ironing

All fabrics can be steam ironed. Delicate imprints or fabrics should be ironed on the reverse or according to the manufacturer's specifications.

Note: For these sensitive textiles, we recommend using the KÄRCHER non-stick ironing sole BE 6006 (Bestell-Nr. 2.860-142.0).

→ Adjust the temperature control of the steam iron within the notched range ( ·s/MAX ).
→ As soon as the indicator lamp of the heater of the iron switches off, you can start ironing.
Note: The sole plate must be hot to prevent the steam from condensing on the sole plate and dripping onto the garment to be ironed.

→ Use the top or bottom steam switch.

- Steaming at intervals: Press the steam switch. Steam will be emitted while the switch is pressed.

- Continuous steaming: Pull the latch for the steam switch toward the rear until it locks in. Steam will escape continuously. To unlock, push the lock forward.

→ Direct the first burst of steam at the start of the ironing process or after ironing

breaks at a separate piece of cloth until the steam is emitted evenly.

→ You can hold the iron in an upright position to apply steam to curtains, dresses, etc.

Dry ironing

Note: Even if you iron without steam, there must be water in the boiler.

→ Adjust the temperature of the iron according to the garment you want to iron.

•	Synthetics
••	Wool, silk
•••	Cotton, linen

Note: Please observe the ironing and washing instructions in your garment.

→ As soon as the indicator lamp of the heater of the iron switches off, you can start ironing.

Maintenance and care

⚠️ Danger

Always disconnect the mains plug and allow the steam cleaner to cool down before performing any maintenance work.

Rinsing the steam boiler

Rinse the steam cleaner boiler at the latest after 10 boiler fillings.

→ Disconnect the mains plug from the socket.
→ Allow the steam cleaner to cool down.
→ Empty the water reservoir.
→ Remove the accessories from the accessory compartments.

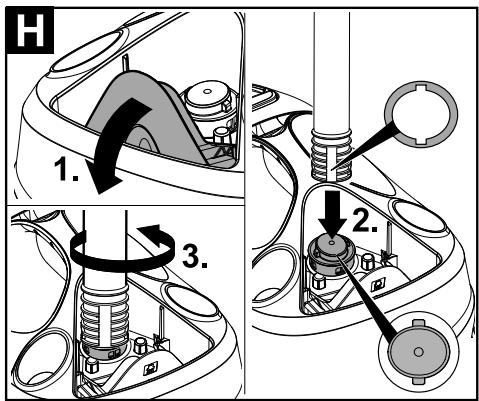

Illustration H

→ Open the locking door of the accessory compartment.
→ Remove the accessories from the accessory compartment.
→ Open the maintenance lock. For this, place the open end of an extension pipe onto the maintenance lock, lock it into the guide and unscrew it.
→ Fill the boiler with water and shake it strongly. This dissolves lime scaling residing on the boiler bottom.

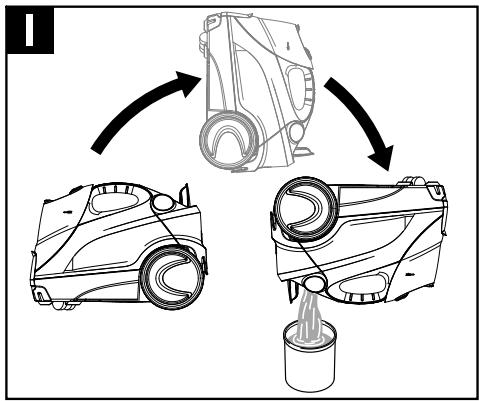

→ Completely empty the steam boiler to remove existing water (see Fig. 1).

Descaling the Steam Boiler

As limescale builds up on the boiler walls, we recommend to descale the boiler in the following intervals (RF=reservoir fillings):

Degree of hard-ness		° dH	mmol/l	RF
I	soft	0-7	0-1,3	100
II	medium	7-14	1,3-2,5	90
III	hard	14-21	2,5-3,8	75
IV	very hard	>21	>3,8	50

Note: Please contact your Conservancy Board or the local water supply company to inquire about the hardness of your water.

→ Disconnect the mains plug from the socket.
→ Allow the steam cleaner to cool down.
→ Empty the water reservoir.
→ Remove the accessories from the accessory compartments.

Illustration H

→ Open the locking door of the accessory compartment.
→ Remove the accessories from the accessory compartment.
→ Open the maintenance lock. For this, place the open end of an extension pipe onto the maintenance lock, lock it into the guide and unscrew it.
→ Completely empty the steam boiler to remove existing water (see Fig. Ⅲ).

⚠ Warning

Only use products approved by KÄRCHER to exclude any damages of the appliance.

→ User the KÄRCHER decalcifier sticks (order no. 6.295-047) to decalcify the water. Please follow the dosing instructions on the packaging while using the decalcifying solution.

Caution

Use caution when filling and emptying the steam cleaner. The descaling solution can have an aggressive effect on delicate surfaces.

→ Pour the descaling solution into the boiler and allow it to react for approximately 8 hours.

⚠ Warning

Do not screw the maintenance lock onto the appliance during the decalcifying.

Do not use the steam cleaner as long as there is decalcifying agent in the boiler.

→ Completely empty the descaling solution after 8 hours. A small amount of the solution will remain in the boiler. Therefore, you should rinse the boiler two to three times with cold water to remove any residues of the descaler.
→ Completely empty the steam boiler to remove existing water (see Fig. Ⅱ).
→ Allow the storage compartment for the mains cable to dry.
→ Screw the maintenance lock in using the extension pipe.
→ Fill water reservoir (see page 8).
→ The steam cleaner is ready to use.

Care of the Accessories

Note: The floorcloth and the terry cloth cover have been pre-washed and can be used immediately for working with the steam cleaner.

→ You can wash dirty floorcloths and terry cloth covers in the washing machine at 60^ C. Do not use a liquid softener as this would affect the ability of the cloths to pick up dirt. You may tumble dry the cloths.

Troubleshooting

Often, failures have simple causes and you can do the troubleshooting yourself using the following overview. If you are in doubt or if the failure is not listed here please contact the authorized customer service.

⚠️ Danger

Always disconnect the mains plug and allow the steam cleaner to cool down before performing any maintenance work.

Repair works may only be performed by the authorized customer service.

Long heating-up time

Steam boiler is decalcified.

→ Descale the steam boiler.

No steam

Indicator lamp - "water shortage" blinks red and signal sounds.

No water in the water reservoir.

→ Fill the water reservoir up to the "MAX" marking.

Indicator lamp "water shortage" glows red.

No water in the steam boiler. Overheating protection of the pump was triggered.

→ Turn off the appliance.
→ Filling the Water Reservoir
→ Turn on the appliance.

Water reservoir has not been inserted properly or is calcified.

→ Remove the water reservoir and rinse it.
→ Insert the water reservoir and press downwards until it arrests.

Steam lever cannot be pressed anymore

Steam switch is secured with the lock / child-proof lock.

→ Move the selector switch for the steam volume to the front.

Steam iron "spits out" water!

→ Set the thermostat to level ⋯.
→ Rinse or decalcify the steam boiler.

After breaks during ironing, water drops will come out of the steam iron.

During longer breaks from ironing, the steam in the steam line can condense.

→ Direct the first burst of steam at a separate piece of cloth.

High water output

Steam boiler is decalcified.

→ Descale the steam boiler.

Spare parts

Use only original KÄRCHER spare parts. You will find a list of spare parts at the end of these operating instructions.

Warranty

The warranty terms published by the relevant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in manufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre.

Please submit the proof of purchase. (See address on the reverse)

Technical specifications

Electrical connection
Voltage	220-240 V1~50/60 Hz
Protective class	I
Protection class	IPX4
Performance data
Heating output	1800 W
Heating output steam iron	700 W
Operating pressure max.	0,35 MPa
Heating time	3 Minutes
Max. steam quantity	40 g/min
Filling quantity
Water reservoir	1,0 l
Boiler capacity	0,5 l
Dimensions
Weight (without accessories)	4,2 kg
Length	384 mm
Width	241 mm
Height	275 mm

Subject to technical modifications!

Special accessories

	Order number
Micro-fibre cloth set, bath	2.863-171
2 soft floor cloths made of plush velour, 1 abrasive cover for the hand nozzle, 1 polishing cloth for the mirrors and fixtures
Micro-fibre cloth set, kitchen	2.863-172
2 soft floor cloths made of plush velour, 1 soft cover made of plush velour, 1 cloth for the streak-free cleaning of stainless steel surfaces
Micro-fibre cloth set, floor	2.863-172
2 soft floor cloths made of plush velour
Micro-fibre cloth set, soft cover	2.863-174
2 soft covers made of plush velour
Terry-cloth rags	6.369-357
5 floor cloths made of cotton
Terry-cloth covers	6.370-990
5 covers made of cotton
Textile care nozzle	4.130-390
For freshening up clothes and textiles.
Round brush kit	2.863-058
4 round brushes for the detail nozzle
Turbo steam brush	2.863-159
For cleaning tasks where you would usually have to scrub
Decalcifier sticks	6.295-047
Steam iron	2.863-209
Non-stick ironing sole	2.860-142
Suitable for ironing sensitive materials.
Active ironing board AB 1000	2.884-993
For excellent ironing results with substantial time-saving (only for 230 V)

Contenu

Contenu FR 5

H4 Schakelaar Stoom (bovenaan)

Geen water in de watertank.

→ Watertank vullen tot marking "MAX".

Controlelampje - te weinig water brandt rood.

Geen water in stoomketel. Beveiliging te- gen oververhitting van de pomp is in wer- king gezet.

H4 Bryter Damp (oppe)

H5 Låsing for bryter Damp

H6 Temperaturregulator

H7 Dampplugg

→ Still valgbryteren for dampmengden for-over.

Dampstrykejernet "spytter" vann!

→ Still temperaturregulatoren til trinn ⋯.
→ Skyll eller avkalk dampgeneratoren

H6 Regulator temperature

H7 Parni vtič

Varnostna navodila

⚠️ Nevarnost

H6 regulator temperature

Mult stimate client,

H6 Regulator temperature

H7 Parni utikač

Sigurnosni napuci

⚠️ Opasnost

A5 Zeleni indikator grejača

A6 Crveni indikator nedostatka vode

A7 Ručka za nošenje

A8 Držač pribora

H6 Regulator temperature

H7 Parni utikač

Sigurnosne napomene

⚠️ Opasnost

Lisavarustuse monteerimine

6975 Creditview Road Unit #2

Mississauga, Ontario L5N 8E9

1-800-465-4980

CH

Kärcher AG

Industriestraße 16

8108 Dällikon

0844 850 863

CZ

Kärcher spol s r.o.

Modletice č.p. 141

251 01 Říčany u Prahy

0323 606 014

D

Kärcher Cleaning Systems A.E.

31-33, Nikitara str. &

Konstantinoupoleos str.

13671 Acharnes

210-2316 153

H

Kärcher Hungária Kft

Tormásrét ut 2.

2051 Biatorbágy

[phone]

HK

Kärcher Limited

Unit 10, 17/F.

APEC Plaza

49 Hoi Yuen Road

Kwun Tong, Kowloon

[phone]

|

Kärcher S.p.A.

Via A. Vespucci 19

21013 Gallarate (VA)

848 - 99 88 77

IRL

Karcher Limited

12 Willow Business Park

Nangor Road

Clondalkin Dublin 12

(01) 409 77 77

KOR

Karcher Co. Ltd. (South Korea)

Youngjae B/D, 50-1, 51-1

Sansoo-dong, Mapo-ku

Seoul 121-060

032-465-8000

MAL

Karcher Cleaning Systems Sdn. Bhd.

No. 8, Jalan Serindit 2

Bandar Puchong Jaya

47100 Puchong, Selangor

[phone]

MEX

Karcher México, SA de CV

Av. Gustavo Baz No. 29-C

Col. Naucalpan Centro

East Tamaki, Auckland

[phone]

P

Neoparts - Com. e Ind. Automóvel, S.A.

Av. Infante D. Henrique, Lote 35

1800-218 Lisboa

218558300

PL

Kärcher Sp. zo.o.

UI. Stawowa 140

31-346 Kraków

[phone]

PRC

Kärcher Cleaning Systems Co., Ltd.

Part B, Building 30,

No. 390 Ai Du Road

Shanghai Waigaoquiao 200131

[phone]

RO

Karcher Romania s.r.l.

Sos. Odaii Nr. 439

013606 Bucureşti

0372709001

RUS

000 «Керхер»

109147, Москва

5 Toh Guan Road East

01-00 Freight Links

Express Distripark

Singapore 608831

6897-1811

SK

Kärcher Slovakia, s.r.o.

Beniakova 2

94901 Nitra

037 6555 798

TR

Kärcher Servis Ticaret A.S.

9 Eylül Mahallesi

307 Sokak No. 6

Gaziemir / Izmir

[phone]

TWN

Karcher Limited

5F/6. No.7

Wu-Chuan 1st Rd

Wu-Ku Industrial Zone

Taipei County

[phone]

UA

Kärcher Ukraine

Kilzeva doroga, 9

03191, Kyiv

(044) 594 75 75

UAE

Karcher FZE

Jebel Ali Free Zone

RA 8, XB 1, Jebel Ali, Dubai

[phone]

USA

Alfred Karcher, Inc

2170 Satellite Blvd

Suite 350

Duluth, GA 30097

678-935-4545; 877-527-2437

ZA

Kärcher (Pty.) Limited

144 Kuschke Street

Meadowdale

Edenvale 1614

[phone]

KARCHER®

www.kaercher.com
