Smoof BL1000V - Blender Eldom - Free user manual and instructions

Product Type	Vacuum Blender
Brand	Eldom
Model	Smoof BL1000V
Power Consumption	750 W
Voltage / Frequency	220-240 V ~ 50 Hz
Max Speed	24,000 rpm
Mixing Container Capacity	1.5 L
Vacuum Container Capacity	0.9 L
Maximum Continuous Operation Time	2 minutes
Required Rest Time	1 minute
Modes	Auto, Vacuum, Juice, Smoothie, Pre-Cleaning, Speed Control
Safety Features	Lock button, overheat protection, automatic shutoff
Blade Material	Stainless steel (sharp)
Body Material	Plastic
Dimensions (estimated)	400 x 180 x 180 mm
Weight (estimated)	3.5 kg
Dishwasher Safe Parts	Containers (without seals) on upper shelf, max 50°C
Cleaning Instructions	Wipe body with damp cloth; wash containers in warm soapy water; do not immerse body
Included Accessories	Mixing container with lid and seals, vacuum container with lid and valve, blade assembly, cap with valve
Warranty	Personal household use; blade not covered
Repairability	Authorized service centers; blade is consumable and replaceable

Frequently Asked Questions - Smoof BL1000V Eldom

How do I assemble the mixing container?

Place the sealing gasket on the blade, then insert the blade into the container and turn anti-clockwise until it stops. Next, put the cap with the valve onto the container and place the container onto the motor body until it locks.

Can I blend ice with this blender?

Yes, but use small ice cubes. If the blade jams, immediately switch off the blender, unplug it, and let it cool for at least 15 minutes before removing the obstruction.

How does the vacuum function work?

Use the vacuum container and press the VACUUM button (5). The appliance will suck out the air. Then you can store the container in the fridge. The vacuum lasts up to 4 hours.

What is the maximum temperature of ingredients?

Do not process ingredients hotter than 50°C to avoid damaging the blender.

How do I clean the blender?

For a simple clean, fill the container with water and use the Pre-Cleaning mode. For thorough cleaning, wash the container and lid in warm soapy water or on the top shelf of a dishwasher (max 50°C). Wipe the motor body with a damp cloth. Be careful with the sharp blade.

What do I do if the blender stops during operation?

Check if the operation time has exceeded 2 minutes – if so, let the appliance cool down for at least 5 minutes. Also ensure the lock is properly closed. If the problem persists, contact an authorized service center.

Can I use the vacuum container for long-term storage?

Yes, the vacuum container keeps the contents fresh for up to 4 hours after the vacuum process. Store it in the refrigerator for best results.

Is the blender dishwasher safe?

Only the mixing and vacuum containers (without seals or blade) can be washed on the upper shelf of a dishwasher at a maximum temperature of 50°C.

What is the warranty coverage?

The blender is warranted for personal household use. The blade is a consumable part and is not covered by the warranty.

How do I open the vacuum container after use?

Pull the handle of the valve on the cap to release the negative pressure before attempting to open the container. Otherwise, it may be impossible to open.

USER MANUAL Smoof BL1000V Eldom

Exterior view of a modern kitchen blender with control knobs and power button (no text or symbols visible)

BLENDER PRÓŻNIOWY

VACUUM BLENDER

VAKUOVÝ MIXÉR

VAKUUMBLENDER

ВАКУУМНЫЙ БЛЕНДЕР

VÁKUOVÝ MIXÉR

VÁKUUMOS TURMIXGÉP

BATIDORA AL VACÍO

PL

EN

CZ

DF

RU

SK

HU

ES


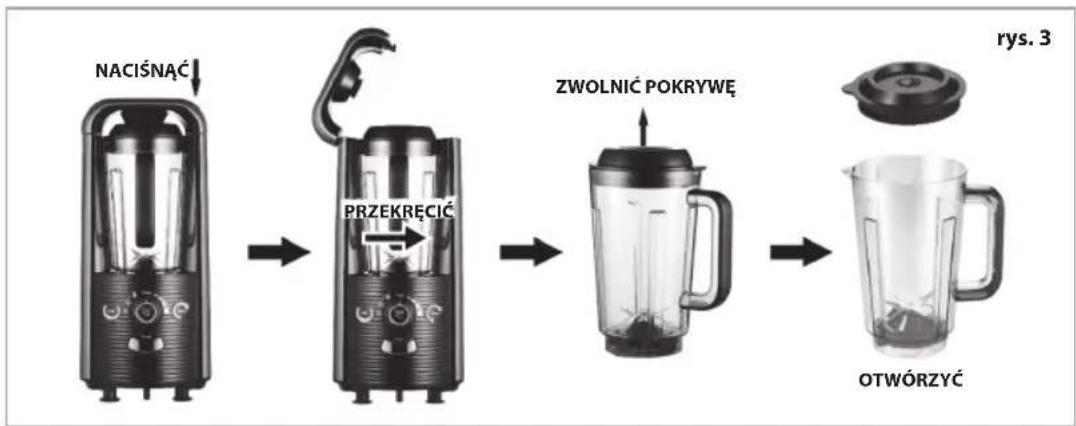

DEMONTAŻ POJEMNIKA MIKSUJĄCEGO

MONTAŻ POJEMNIKA PRÓŻNIOWEGO

TRYBY PRACY

Please read all these instructions carefully before using this appliance.

1. Connect the appliance only to a suitably earthed socket compatible with the parameters indicated in the instructions
2. To protect against electrical shock, do not immerse cord, plug or appliance itself in water or other liquids.
3. Do not use outdoors
4. Close supervision is necessary when appliance is used by or near children.
5. Make sure you observe the maximum time of continuous operation of the appliance. Exceeding the time limit and failing to provide appropriate breaks during the operation of the appliance may cause irreparable damage to the engine.
6. Do not place any of the following materials inside the unit: Paper, cardboard, plastic and the like.
7. Do not turn the device on when the container is not properly placed on the casing of the engine or when the lid with measure is not properly placed.
8. Always place your hand on top of the blender when you are operating the device
9. Before taking the container out from the casing of the engine or before raising the lid, turn the device off (switch in the position "0") and wait until the blade will completely stop. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
10. Do not let cord hang over edge of table or counter or touch hot surfaces.
11. Oversized foods or metal utensils must not be inserted in the appliance as they may cause a fire or risk of electrical shock.

12. A fire may occur if the appliance is covered or touching flammable material including curtains, draperies, walls and the like when in operation.

13. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.

14. It is essential to pay attention not to plug in too many receivers into one power supply circuit.
15. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, involving a risk of electrical shock.
16. Never use the appliance if the supply cord is damaged. If found damaged in any way, consult the producer's authorized service centre. The list of service centres is to be found in the appendix and on www.eldom.eu
17. Refer servicing to an authorized service centre. Modifying the appliance or using spare parts or elements other than the original ones is forbidden and can expose the user to hazard
18. Eldom sp. z o.o. shall not be responsible for any damages occurring as a result of improper usage To avoid any risks, if the power cord is damaged, it should be replaced with a new one at an authorised Manufacturer's Servicing Point. The list of Servicing Points can be found in the attachment and on www.eldom.eu.

The blade is a consumable part and as such is not covered by the warranty.

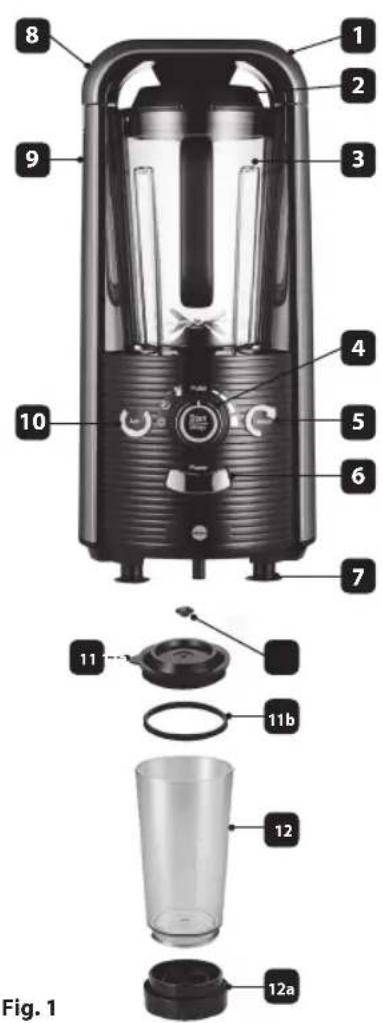

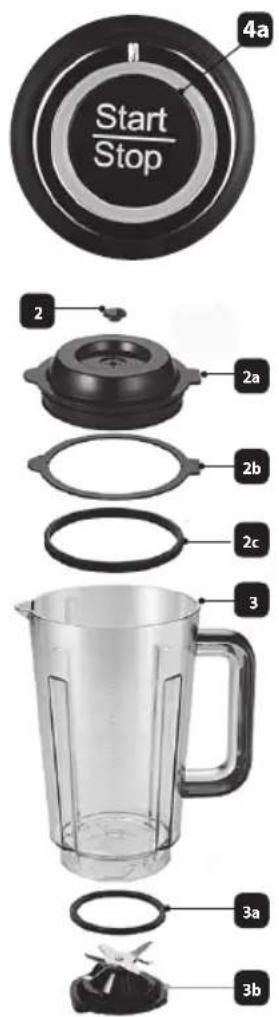

GENERAL DESCRIPTION

1. Lock button

2. Mixing container cap

2a. Valve

2b Top seal

2c. Bottom seal

1. Mixing container

3a. Blade seal

3b Blade

4 Regulator

4a START/STOP button

5 VACUUM button

6 Main switch

7 Anti-slippery feet

8 Lock

9 Body

10 AUTO button

11 Vacuum container cap

11a Valve

11b Sealing gasket

12 Vacuum container

12a Base of the container

Fig. 1

SPECIFICATION

• power consumption: 750 W
• power supply voltage: 220–240 V \~ 50 Hz
• allowed uninterrupted operation: 2 min.
• pause before restarting operation: 1 min.
• capacity:

· mixing container: 1.5 l

· vacuum container: 0.9 l

- speed: max. 24,000 rpm

INTENDED USE

The BL1000V vacuum blender is intended for processing food products. It is suitable for both traditional use and mixing, e.g. vegetables or fruit, without access of air. With the modern technology, the processed products are more tasteful and healthier. The vacuum container included in the set will allow longer storage of mixed products.

OPERATION

Before the first use, all parts of the blender that come in contact with food must be thoroughly cleaned (see: Cleaning and maintenance).

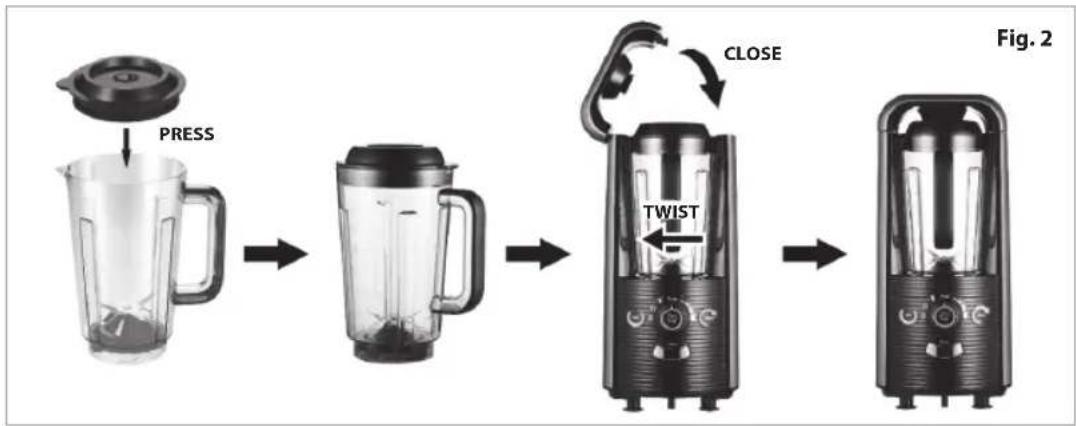

ASSEMBLY OF MIXING CONTAINER

• place the sealing gasket (3a) on the blade (3b), and then the entire unit into the container (3) and turn anti-clockwise until stopped. To remove the blade, turn into the other direction,
• place the cap (2) with the installed seals and the valve (according to Fig. 1) on the container (3) and place the unit in the body (9) as in Fig. 2

DISMANTLING MIXING CONTAINER

ASSEMBLY OF VACUUM CONTAINER

OPERATING MODES

AUTO: the appliance will suck out the air and proceed to the mixing cycle. To activate this mode, press the button (10). The operation is interrupted with the button pressed again (10).

VACUUM: sucking out of the air. To activate this mode, press the button (5). The operation is interrupted with the button pressed again (5).

JUICE: to activate this mode, set the regulator (4) on the icon 📋 and press and hold the Start/Stop button.

SMOOTHIE: to activate this mode, set the regulator (4) on the icon ☺ and press and hold the Start/Stop button (4a). The operation is interrupted with the button pressed again (4a).

PRE-CLEANING: to activate this mode, set the regulator (4) on the icon ⏻ and press and hold the Start/Stop button (4a). The operation is interrupted with the button pressed again (4a).

SPEED CONTROL: turn the regulator (4) in the direction of the icon ↘, and select the rotation speed. To interrupt the operation, reverse the regulator (4) to the left.

In the AUTO mode, sucking out is activated automatically. In the other modes, mixing of products without air it is possible after pressing the button (6), and selecting the mode.

To switch off the appliance immediately, irrespective of the mode of operation, press the button (6).

NOTE: The lock (8) must never be opened during the operation of the appliance.

DIRECTIONS

- First connect the appliance to the network compliant with the information provided on it. It will be signalled with a short beep and backlighting of the buttons.

MIXING

- Place food products in the assembled container (3) - do not exceed the maximum position.

Temperature of the ingredients should not be higher than 50^ C.

• Place the complete cap (2) on the container and place the unit in the body (Fig. 2). Without the properly installed container (3) and the properly closed lock (8) the blender will not switch on.
• Press the button (6), and select the mode of operation.
• The maximum time of continuous operation of the appliance is 2 minutes. If this time is exceeded, immediately switch off the device and wait at least 5 minutes before switching it on again.
• Exceeding the maximum time of work may result in damaging of the device and loss of the warranty.
• When the operation is complete, dismantle the container (3) (Fig. 3).
• If the VACUUM mode is used, to remove the cap of the container, first pull the handle of the valve (2a) to reduce negative pressure. Otherwise, opening of the container may be impossible.

NOTE: If the blade is jammed, immediately switch off the blender, disconnect it from the network and leave to cool down for at least 15 minutes. Eliminate the cause of jamming.

STORAGE

• Place food products in the assembled container (12) - do not exceed the maximum position. Temperature of the ingredients should not be higher than 50°C.
• Place the complete cap (11) (Fig. 1) on the container and place the unit in the body (Fig. 4). Without the properly installed container (12) and the properly closed lock (8) the blender will not switch on.
• Press the button (5) and wait for the appliance to stop running.
• Unlock the appliance and remove the container from the body. After removing the container from the appliance, negative pressure in the container will last for up to 4 hours.

- To remove the cap of the container, first pull the handle of the valve (11a) to reduce negative pressure. Otherwise, opening of the container may be impossible.

• CLEANING AND MAINTENANCE

SIMPLE CLEANING OF THE MIXING CONTAINER:

• Empty the container and fill it with water, place in the body of the appliance and select the PRELIMINARY CLEANING mode.
• Pour out the water from the container and wash it.

THOROUGH CLEANING:

- Clean the device right after its use.

- Before cleaning, switch off the device, remove the plug from the socket and wait for the blade to stop rotating.

- Clean the body of the device with a damp cloth. Do not immerse the body in water and do not rinse it under running water.

- Do not use abrasive agents, cleaning powders, acetone, alcohol, etc.

- Wash the elements in warm water with addition of washdish with a brush and rinse under running water.

- Be extremely careful when washing the blade (3a), as it is very sharp.

- The containers (3,12), without the additional elements installed, may be washed in a dishwasher, placed on the upper shelf. Make sure that they are placed away from the heating element.

The maximum temperature is 50^ C.

PROBLEM POSSIBLE CAUSE SOLUTION
The appliance is not running	No power supply	Connect the power supply
	Appliance assembled incorrectly	dismantle the appliance and assemble it again
Appliance is operating, but not the whole contents of the jug is mixed	Product bits too large	Cut products into smaller pieces
	Ice blocks too large	Use smaller ice blocks
Red control lights are on	The arm (8) locked incorrectly	Open the lock and close it again
Appliance switching off during the operation	Operation cycle ended	Restart the appliance
	Operation time exceeded: appliance overheated	Leave the appliance to cool down
	Appliance damaged	Contact the service point
Appliance significantly slowing down during the operation	Products too hard	Cut products into smaller pieces and mix in smaller volumes

ENVIRONMENTAL PROTECTION

• the appliance is made of materials which can be recovered or recycled
• the appliance should be handed over to the appropriate centre of collection and recycling of electrical and electronic equipment.

WARRANTY

• the appliance is intended for personal use at a household,
• it is not intended for professional purposes,
• in case of misuse, the warranty is rendered null and void.

BEZPEČNOSTNÍ PODMÍNKY

REŽIMY PRÁCE

6 Interruptor general

7 Pies antideslizantes

8 Bloqueo

9 Cuerpo

10 Botón AUTO


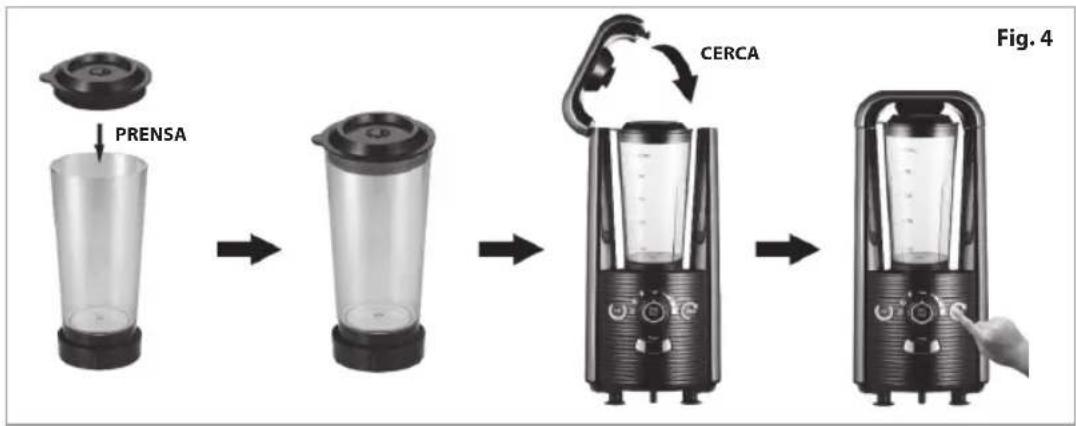

MONTAJE DEL RECIPIENTE AL VACÍO

MODOS DE TRABAJO
