Fitto BLP10Z - Blender Eldom - Free user manual and instructions

Brand	Eldom
Model	Fitto BLP10Z
Product Type	Personal Blender
Power	300 W
Supply Voltage	230 V ~50 Hz
Max Continuous Operation	30 seconds
Idle Time Before Recommencing	1 minute
Container Capacity	600 ml (approx.)
Blade Material	Stainless steel
Housing Material	Plastic
Control Type	Push-button (press and hold)
Safety Features	Lock prevents operation if container not attached; blade stop before removal
Accessories Included	Container, blade, universal cap, base with socket
Cap Features	Mouthpiece with plug, hook for carrying
Cleaning Method	Cap and container dishwasher safe (top shelf, max 50°C); blade hand wash with brush; housing wipe with damp cloth
Intended Use	Home use only; for preparing beverages
Not Suitable For	Whipping eggs, mashing potatoes, hot liquids >50°C, hard seeds/peel, raw meat, dry ingredients

Frequently Asked Questions - Fitto BLP10Z Eldom

How do I start the blender?

Ensure the container is properly locked in the base, then press and hold the on/off button (F). The blender operates only while the button is pressed.

What is the maximum operating time?

Do not run the blender continuously for more than 30 seconds. After that, let it rest for at least 1 minute before using again.

Can I put the container in the dishwasher?

Yes, the cap (A) and container (B) are dishwasher safe. Place them on the top shelf away from the heating element, with a maximum temperature of 50°C.

The blade is stuck. What should I do?

Immediately turn off the blender, unplug it, and let it cool for 15 minutes. Remove the blocking object carefully. Do not force the motor.

Can I blend hot liquids?

No. The blender is not designed for hot liquids above 50°C. Always allow ingredients to cool before blending.

Is the blade sharp?

Yes, the blade (C) is very sharp. Handle with extreme caution when cleaning or attaching. Do not immerse the blade completely in water.

Can I blend ice or frozen fruit?

The manual does not specifically mention ice. Avoid hard items like seeds or hard peels that could damage the blade. For best results, cut fruit into small pieces (1.8-2.5 cm).

What should I do if the blender won't start?

Check that the container is properly locked in the base (turn clockwise). The blender has a safety lock that prevents operation if the container is not correctly attached.

Can children use this blender?

Children aged 8 years and older may use the blender under supervision if they understand the risks. Children should not play with the appliance or clean it without supervision.

How to use the universal cap?

After blending, unscrew the blade and attach the cap (A) to the container. The cap has a mouthpiece with a plug and a hook for attaching to a belt or backpack, making it a portable drinking bottle.

USER MANUAL Fitto BLP10Z Eldom

Modern kitchen blender with orange and white casing, no visible text or symbols on body

Green and white photo of a modern kitchen blender with a small spoon, no visible text or symbols on the device body.

BLENDER PERSONALNY • PERSONAL BLENDER • MIXÉR STANDMIXER • БЛЕНДЕР ИНДИВИДУАЛЬНЫЙ • MIXÉR MIXER • LICUADORA PERSONAL

WSKAZÓWKI BEZPIECZEŃSTWA

Hand holding a white jar with a lid and arrow indicating rotation (no text or symbols)

Close-up of a hand using a tool to press or adjust a white object, with a downward arrow indicating motion (no text or symbols visible)

Close-up of a blender with a white arrow pointing to the side (no text or symbols visible)

Close-up of a clear plastic bottle with a black lid and handle, no visible text or symbols

PRZEZNACZENIE

• Before first use thoroughly read all instructions.
• Connect the power cord only to a wall socket with an earthing pin whose parameters comply with those indicated in the instructions.
• Pay attention not to add too many receivers to one power circuit.
• Regularly check whether the power cord or the entire appliance (in particular the blade (C)) is not damaged. Do not use the appliance if there is any damage.
• Do not use in the open air.
• Do not route the cord near hot surfaces.
• Always use the appliance on a flat and level surface.
• During operation, keep your hand on the container and press it lightly.
• Before removing the container from the socket (D), turn off the appliance and wait until it stops completely.
• Do not turn the appliance on without products.
• Never turn the appliance on if the container (B) has not been properly placed in the socket (D) or if the blade (C) is not mounted properly.
• Do not leave the appliance unattended.
• Use only the supplied original accessories.
• The appliance can be used by children aged 8 and older, by persons with limited physical and mental capabilities, and by persons who have no experience nor knowledge of the equipment, only under supervision or if instructed on the safe use of the appliance in way that guarantees that the associated risks are understood. Children shall not play with the appliance. Children

shall not clean nor maintain the device without supervision.

- Never exceed the maximum duration of continuous operation of the appliance (30 seconds). If this time is exceeded, immediately turn off the device and wait at least 1 min. before turning it on again.

- Do not insert materials such as paper, cardboard, plastic, metal, etc into the container.

- Do not use the appliance to mince products that are too hard for fragmentation (e.g. raw meat, meat with bones, etc.).

- Do not place large food items nor metal objects into the appliance. It might jam the cutting mechanism, start fire or electrocute the user.

- Before cleaning, or if the appliance is not in use, remove the plug from the wall socket.

- The blade is sharp; exercise caution when cleaning.

- Do not immerse the cord or the motor housing in water nor in any other liquid. Always wipe with a damp cloth. Do not clean the appliance with metal items, whose pieces may break off and short-circuit the electrical parts, which can cause an electric shock.

- The device can be repaired only at an authorised service centre (the list of service centres is provided in the appendix and on the website: www.eldom.eu). Carrying out any upgrades or using any non-original spare parts or components is forbidden and jeopardises the safety of use.

- Appliance for home use only.

- Eldom Sp. z o. o. is not liable for any damage resulting from improper use of the appliance.

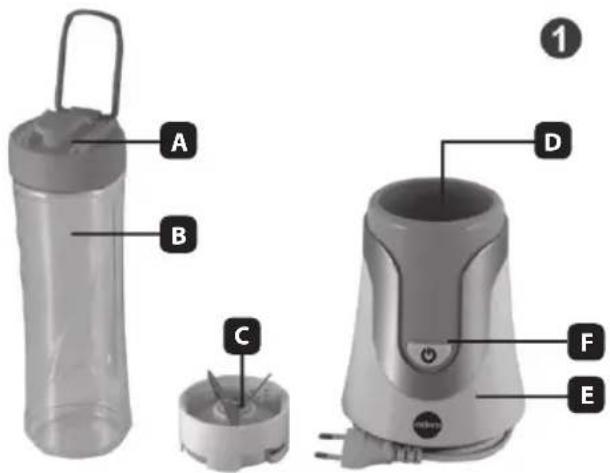

DESCRIPTION OF PARTS (Fig. 1)

A. Universal cap
B. Container
C. Blade
D. Socket
E. Base
F. On/off switch

TECHNICAL DATA

power: 300 W

supply voltage: 230V \~50Hz

max. time of continuous operation: 30 seconds

idle time before recommencing operation: 1 minute

Hand holding a small jar with a lid, showing a downward arrow indicating rotation (no text or symbols)

Close-up of a hand holding a small object with a downward arrow indicator (no text or symbols)

Close-up of a blender with a white arrow pointing to the side (no text or symbols visible)

Close-up of a clear plastic bottle with a black lid and handle, no visible text or symbols

PURPOSE

The purpose of the BLP10 personal blender is quick preparation of tasty and nutritious beverages. The universal cap (A) changes the container (B) into a convenient drinking bottle equipped with a handy mouthpiece for drinking, and with a hook for connecting it to e.g. a belt or a backpack.

HOW TO USE

Before first use, wash all the parts of the blender that come into contact with food: cap (A), container (B) and blade (C).

Note:

The blade is sharp. Never completely immerse the blade in water. Before attaching the blade, dry it thoroughly.

- Place the container (B) on a flat and horizontal surface, with the opening facing up, and insert the

ingredients in the container. The ingredients should be cut into small pieces. The ingredients should not stand out above the maximum level marked on the container (B).

• Attach the blade (C) onto the container (B) and tighten it (Fig. 2).
• Rotate the container (B) and place it in the socket (D) as shown by the markings (Fig. 3).
• Lock the container (B) in the base (E) by turning it clockwise (Fig. 4).

The device is protected against activation if the container (A) is not properly attached.

• Connect the device to the mains.
• To start the device, press and hold the (F) button. The shredder will continue operation as long as the (F) button is pressed. For best results activate the device in short pulses.

Do not activate the device, if it is empty.

Do not exceed the maximum time of continuous operation of the device. Any failure to comply with the above, as well as any failure to keep the device idle for the required time may irreparably damage the motor.

If the blade (C) becomes blocked, immediately switch the blender off, disconnect it from the mains, and allow it to cool down for at least 15 minutes. Remove the blocking object.

• Before removing the container (B) from the base (E), wait for the blade to stop.
• Rotate the container (B), place it on a flat surface and unscrew the blade (C).
• Pour the contents of the container into a glass or attach the cap (A). The cap (A) is equipped with a handy mouthpiece with a plug, and a handle (fig. 5).

Useful tips

• For best results add the ingredients in the following sequence: liquids, fresh vegetables and fruit, yoghurt.
• Cut any hard fruits and vegetables into small pieces 1.8-2.5 cm in length.

Do not use the device to:

• whip eggs,
• mash potatoes,
• mix hot liquids (above 50 °C),
• shred fruit with seeds or hard peel – it may damage the blade,
• shred raw meat,
• shred only dry ingredients,

CLEANING AND MAINTENANCE

The device is easiest to clean immediately after use.

Before cleaning, switch the device off, pull out the plug from the mains socket and wait for the blade (C) to stops rotating.

Do not use abrasives, powders, acetone, alcohol, etc for cleaning.

Clean the components with a brush and warm water with some detergent. Rinse with running water.

Pay attention during cleaning the blade (C). It is very sharp. Never completely immerse the blade (C) in water.

Clean the housing with a damp cloth. Never immerse the housing in water nor rinse it with running water.

The cap (A) and the container (B) can be cleaned in a dishwasher, on the top shelf.

Make sure that they are located away from the heater. The maximum temperature is 50 °C.

BEZPEČNOSTNÍ DOPORUČENÍ

Hand holding a small jar with a lid, showing a downward arrow indicating rotation (no text or symbols)

Close-up of a hand holding a small object with a downward arrow indicating action (no text or symbols visible)

Close-up of a blender with a white arrow pointing to the side (no text or symbols visible)

Close-up of a clear plastic bottle with a black lid and handle, no visible text or symbols

URČENÍ

Hand placing a small object into a glass jar with arrows indicating rotation (no text or symbols)

Close-up of a hand holding a pen or tool over a small object, with an arrow indicating downward motion (no text or symbols visible)

Close-up of a blender with a white arrow pointing to the side (no text or symbols visible)

Close-up of a clear plastic can with a black lid and handle, no visible text or symbols

GERÄTEGEBRAUCH

Hand holding a white jar with a lid and arrow indicating rotation (no text or symbols)

Close-up of a hand using a tool to press or adjust a white object, with a downward arrow indicating motion (no text or symbols visible)

Close-up of a blender with a white arrow pointing to the side (no text or symbols visible)

Close-up of a clear plastic bottle with a black lid and handle, no visible text or symbols

ПРЕДНАЗНАЧЕНИЕ

Hand holding a white plastic jar with a downward arrow indicating rotation (no text or symbols)

Close-up of a hand holding a small object with a downward arrow indicator (no text or symbols)

Close-up of a blender with a white arrow pointing to the handle (no text or symbols visible)

Close-up of a clear plastic can with a metallic clip, no visible text or symbols

URČENIE

Hand placing a small object into a glass jar with arrows indicating rotation (no text or symbols)

Close-up of a hand holding a tool with a white object, showing a mechanical component (no text or symbols visible)

Close-up of a mechanical component with a white arrow indicating rotation (no text or symbols visible)

Close-up of a clear plastic can with a metallic clip, no visible text or symbols

RENDELTETÉS

Hand placing a small object into a glass jar with arrows indicating rotation (no text or symbols)

Close-up of a hand holding a tool with a white object, showing a mechanical component (no text or symbols visible)

Close-up of a transparent cylindrical device with a white arrow pointing to its side (no text or symbols visible)

Close-up of a clear plastic can with a metallic clip, no visible text or symbols

APLICACIÓN
