Ori BK3S - Blender Eldom - Free user manual and instructions

Product Type	Blender
Brand	Eldom
Model	Ori BK3S
Power	500 W
Voltage	220-240 V ~ 50/60 Hz
Maximum Continuous Operation Time	2 minutes
Required Rest Time	5 minutes
Container Material	Glass
Container Capacity	1.5 liters
Speed Settings	2 speeds + Pulse
Control Positions	1 (liquids), 2 (thick consistency), P (pulse for ice)
Safety Flange	Prevents operation if not properly installed
Blade Material	Stainless steel (sharp)
Dishwasher Safe Parts	Plug, cover, container (upper shelf, max 50°C)
Body Cleaning	Wipe with damp cloth; do not immerse
Maximum Ingredient Temperature	50°C
Recommended Max Fill Level	1250 ml (to prevent splashes)
Intended Use	Personal household use only
Warranty	Valid for personal household use
Service	Authorized service center (list in manual or www.eldom.eu)

Frequently Asked Questions - Ori BK3S Eldom

How long can I run the blender continuously?

The maximum continuous operation time is 2 minutes. After that, you must wait at least 5 minutes before restarting to avoid damaging the motor.

Can I wash the glass container in the dishwasher?

Yes, the plug, cover, and glass container are dishwasher safe. Place them on the upper shelf and ensure the temperature does not exceed 50°C.

What should I do if the blade gets jammed?

Immediately switch off the blender, unplug it, and let it cool for at least 15 minutes. Then carefully remove the cause of the jam. Never attempt to free the blade while the blender is plugged in.

What is the maximum temperature for ingredients?

Ingredients should not exceed 50°C. Be cautious when mixing hot liquids to avoid splashing or damage.

How do I prevent splashing while blending?

Do not fill the jug above the 1250 ml mark. For liquids that foam or expand, keep the level below 2/3 of the maximum volume. Always place your hand on the cover.

Can the blender crush ice?

Yes, use the Pulse (P) mode for ice crushing. Hold the control switch in the 'P' position for short bursts. Always cut solid foods into small pieces (2-3 cm) first.

How should I clean the motor body?

Clean the body with a damp cloth only. Never immerse the body in water or rinse it under running water to prevent electrical shock.

Why won't my blender start?

Check that the flange (rubber seal at the bottom of the container) is properly installed. The blender will not operate if the flange is missing or incorrectly placed. Also ensure the lid is properly closed.

What should I do if the power cord is damaged?

If the supply cord is damaged, it must be replaced by the manufacturer or an authorized service center to avoid hazards. Do not use the blender until repaired.

Is the blender suitable for professional use?

No, this blender is intended for personal household use only. Using it for professional purposes will void the warranty.

USER MANUAL Ori BK3S Eldom

Exterior view of a modern kitchen blender with clear glass and black handle (no text or symbols visible)

BLENDER KIELICHOWY PL

JAR BLENDER EN

STOLNÍ MIXÉR CZ

STANDMIXER DE

БЛЕНДЕР С ЧАШЕЙ RU

STOLNÝ MIXÉR SK

KELYHES TURMIXGÉP

OBSŁUGA

Please read all these instructions carefully before using this appliance.

1. Connect the appliance only to a suitably earthed socket compatible with the parameters indicated in the instructions
2. To protect against electrical shock, do not immerse cord, plug or appliance itself in water or other liquids.
3. Do not use outdoors
4. Close supervision is necessary when appliance is used by or near children.
5. Make sure you observe the maximum time of continuous operation of the appliance. Exceeding the time limit and failing to provide appropriate breaks during the operation of the appliance may cause irreparable damage to the engine.
6. Do not place any of the following materials inside the unit: Paper, cardboard, plastic and the like.
7. Do not turn the device on when the container is not properly placed on the casing of the engine or when the lid with measure is not properly placed.
8. Always place your hand on top of the blender when you are operating the device
9. Before taking the container out from the casing of the engine or before raising the lid, turn the device off (switch in the position "0") and wait until the blade will completely stop. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
10. Do not let cord hang over edge of table or counter or touch hot surfaces.

11. Oversized foods or metal utensils must not be inserted in the appliance as they may cause a fire or risk of electrical shock.

12. A fire may occur if the appliance is covered or touching flammable material including curtains, draperies, walls and the like when in operation.

13. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
14. It is essential to pay attention not to plug in too many receivers into one power supply circuit.
15. Do not clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, involving a risk of electrical shock.
16. Never use the appliance if the supply cord is damaged. If found damaged in any way, consult the producer's authorized service centre. The list of service centres is to be found in the appendix and on www.eldom.eu
17. Refer servicing to an authorized service centre. Modifying the appliance or using spare parts or elements other than the original ones is forbidden and can expose the user to hazard
18. Eldom sp. z o.o. shall not be responsible for any damages occurring as a result of improper usage To avoid any risks, if the power cord is damaged, it should be replaced with a new one at an authorised Manufacturer's Servicing Point. The list of Servicing Points can be found in the attachment and on www.eldom.eu.

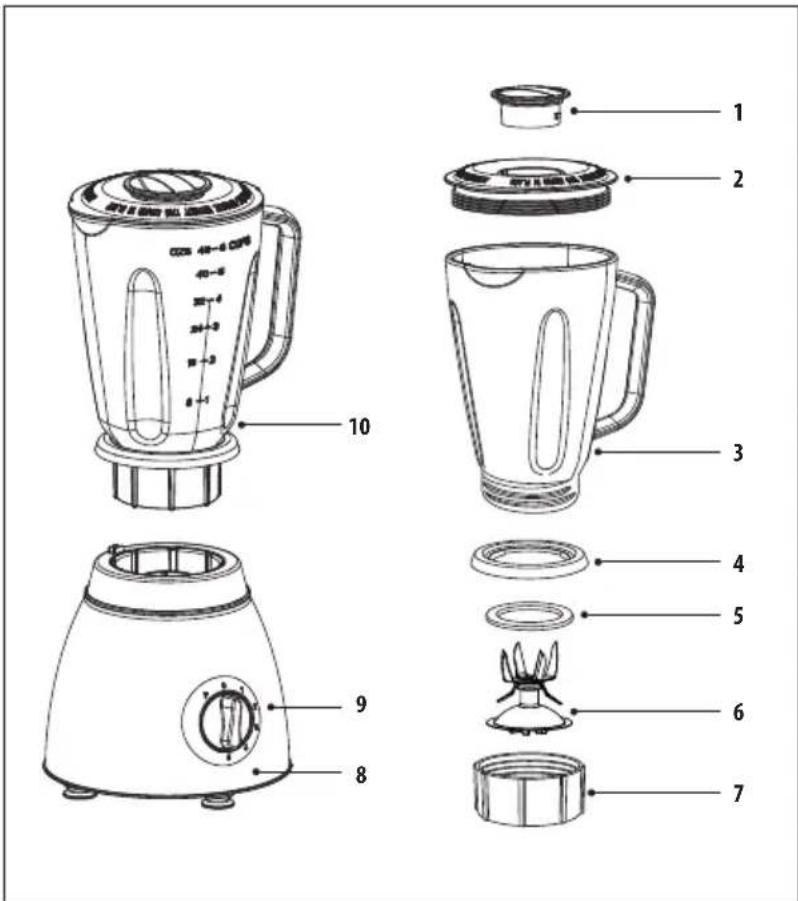

GENERAL DESCRIPTION

1. Plug
2. Cover
3. Glass container
4. Flange
5. Cutting unit sealing
6. Blade
7. Cutting unit base
8. Body
9. Control switch
10. Assembled container (1,5l)

TECHNICAL DATA

• power: 500W
• mains voltage: 220-240 V\~50/60 Hz
• maximum time of continuous operation: 2 minutes
• break before continuation of operation: 5 minute

MAINTENANCE

Before the first use, all parts of the blender that come in contact with food must be thoroughly cleaned (see: Cleaning and maintenance).

INSTALLATION OF THE GLASS CONTAINER:

• Place the flange (4) on the bottom of the container (3),
• Place the sealing (5) on the blade (6) and insert in the base of the cutting unit (7),
• Place the assembled cutting unit base on the bottom of the container (3) and tighten up
• Place the glass container on the body (8). The flange must strongly adhere to the body.
• Place the cover (2) on the container and carefully press down.
• Insert the plug (1) to the hole in the cover (2) and turn clockwise to close.

NOTE. The blender will not run without the properly set flange (4).

OPERATION:

• Make sure that the blender is switched off (the switch (9) in the position "0").
• Make sure that the plug of the appliance is inserted in the socket with earthing.

• Place food products in the container (3), not exceeding the maximum position. Temperature of the ingredients should not be higher than 50°C.

• Replace the cover (2) and the plug (1); (see: installation of the glass container).

• Switch on the motor with the control switch (9). The position of the switch must be adjusted to the food products in the container (see the table: speed control).
• The maximum time of continuous work of the device may be 2 minutes. If this time is exceeded, immediately switch off the device and wait at least 5 minutes before its restarting.
• Exceeding the maximum time of work may result in damaging of the device and loss of the guarantee.
• Before removing the container from the motor body, make sure that the device is switched off (the control switch in the position "0")

CAUTION

If the blade is jammed, immediately switch off the blender, disconnect it from the network and leave the device to cool down for at least 15 minutes. Eliminate the cause of jamming.

SPEED CONTROL FOR
POSITION 1 liquids
POSITION 2 products of very condensed consistence,mixing liquids and solid ingredients
PULSE(hold the switch in the “P” position)	breaking ice and short-time work

RECOMMENDATIONS

• To prevent splashes, do not fill the jug above the mark of the 1250 ml level.
• If liquids are processed that foam or expand during mixing, do not fill the jug to a level higher than 2/3 of the maximum volume.
• To achieve the best results in preparing mush and puree, place small portions to the container instead of large ones.
• In case of processing solid products, first cut them into smaller bits (2-3 cm).
• When using the blender, always keep your hand on the cover of the device.
• Be cautious when mixing hot liquids.
• To mix ingredients of solid consistence, using the blender in the pulse mode is recommended to prevent jamming of the blades.

CLEANING AND MAINTENANCE

Simple cleaning of the container:

• Empty the container and fill it with water.
• Place the container on the motor body and turn the switch several times to the "P" position.
• Pour out the water from the container and wash it.

Thorough cleaning

• Clean the device right after its use.
• Before cleaning, switch off the device, remove the plug from the socket and wait for the blade to stop rotating.
• Do not use abrasive agents, cleaning powders, acetone, alcohol, etc., for cleaning.
• Wash the elements in warm water with addition of washdish with a brush and rinse under running water.
• Exercise special care when washing the blade (6), as it is very sharp.

- The blade (6) must not be fully immersed in water.

- Clean the body of the device with a damp cloth. Do not immerse the body in water and do not rinse it under running water.

- The plug, the cover, and the container may be washed in a dishwasher, placing it on the upper shelf.

- Make sure that they are placed away from the heating element. The maximum temperature is 50^ C.

ENVIRONMENTAL PROTECTION

• the appliance is made of materials which can be recovered or recycled
• the appliance should be handed over to the appropriate centre of collection and recycling of electrical and electronic equipment

WARRANTY

• the appliance is intended for personal use at a household,
• it is not intended for professional purposes,
• in case of misuse, the warranty is rendered null and void. Warranty terms and conditions: see the attachment.
