Orbi BLN700 - Blender Eldom - Free user manual and instructions

Product Type	Blender
Model	Orbi BLN700
Brand	Eldom
Intended Use	Preparation of beverages, soups, smoothies
Operation Type	Manual press and hold or lock for continuous run
Maximum Continuous Operation	2 minutes
Minimum Pause Before Restart	30 seconds
Blades Included	Grinding blade (E) for dry ingredients; Cutting blade (F) for soft fruits/vegetables
Containers Included	2 plastic cups (C, D) with caps (A) and handles (B)
Dishwasher Safe Parts	Caps and containers only (top rack, max 50°C)
Hand Wash Only	Blades; motor body wipe with damp cloth
Safety Features	Earthing pin plug; overheating protection via user instructions; sharp blade caution
Not Suitable For	Hot liquids >70°C, raw meat, hard bones, beating eggs, puree, stones in fruit
Power Cord	With earthing pin
Material	Plastic (containers and body)
User Age	8 years and older with supervision

Frequently Asked Questions - Orbi BLN700 Eldom

How do I use the blender?

Place the filled container (C or D) with the appropriate blade (E or F) onto the base (G). Press down to start, or push down and turn clockwise to lock for continuous operation. Turn counter-clockwise and release pressure to unlock and stop.

Can I blend hot liquids?

No. Do not pour liquids hotter than 70°C into the blender, as it may damage the unit. Allow hot liquids to cool first.

Can I grind coffee beans or sugar?

Yes, use the grinding blade (E) for dry ingredients like coffee beans or sugar. Oilseeds (e.g., linseed) must not be ground.

Can I wash the blades in a dishwasher?

No. The blades (E and F) are sharp and must not be fully immersed in water. Wash them carefully by hand with warm water and dish soap, then dry thoroughly before installation.

What is the maximum operating time?

Do not operate the blender continuously for more than 2 minutes. After that, wait at least 30 seconds before restarting to prevent motor damage.

Can I blend raw meat?

No. The blender is not designed for raw meat or meat with bones. Hard or frozen items may jam the blade or damage the motor.

How do I lock the container for continuous operation?

Push the container (C or D) down into the seat (G) and turn it clockwise. The blender will run continuously. To unlock, turn counter-clockwise and release pressure.

Can children use this blender?

Children aged 8 and older can use it only under adult supervision. Children must not play with the blender or clean it without supervision.

What is the function of blade E versus blade F?

Blade E is for grinding dry hard ingredients (e.g., coffee beans, sugar). Blade F is for cutting soft fruits and vegetables. Do not use blade E for wet or oily items.

How do I clean the motor body?

Unplug the blender and wipe the motor body (H) with a damp cloth only. Do not immerse in water or rinse under running water. Avoid abrasive cleaners.

USER MANUAL Orbi BLN700 Eldom

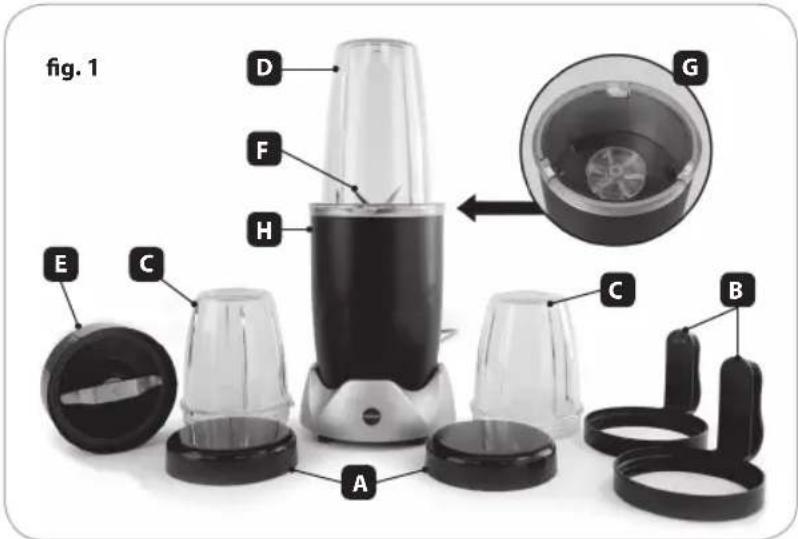

Product photo of a black and white blender with open lid, plastic cup, and black plastic clip (no text or symbols visible)

Diagram of a blender with a rotating top and lid, showing the process from front view (no text or symbols)

UŻYTKOWANIE URZĄDZENIA

• Before first use thoroughly read all instructions.
• Connect the power cord only to a wall socket with an earthing pin whose parameters comply with those indicated in the instructions.
• Pay attention not to add too many receivers to one power circuit.
• Regularly check whether the power cord or the entire appliance (in particular the blade (E,F) is not damaged. Do not use the appliance if there is any damage.
• Do not use in the open air.
• Do not route the cord near hot surfaces.
• Always use the appliance on a flat and level surface.
• During operation, keep your hand on the container and press it lightly.
• Before removing the container from the socket (G), turn off the appliance and wait until it stops completely.
• Do not turn the appliance on without products.
• Never turn the appliance on if the container (C,D) has not been properly placed in the socket (G) or if the blade (E,F) is not mounted properly.
• Do not leave the appliance unattended.
• Use only the supplied original accessories.

• The appliance can be used by children aged 8 and older, by persons with limited physical and mental capabilities, and by persons who have no experience nor knowledge of the equipment, only under supervision or if instructed on the safe use of the appliance in way that guarantees that the associated risks are understood. Children shall not play with the appliance. Children shall not clean nor maintain the device without supervision.

• Never exceed the maximum duration of continuous operation of the appliance (2 minutes). If this time is exceeded, immediately turn off the device and wait at least 30 sec. before turning it on again.

• Do not insert materials such as paper, cardboard, plastic, metal, etc into the container.
• Do not use the appliance to mince products that are too hard for fragmentation (e.g. raw meat, meat with bones, etc.).
• Do not pour in hot liquids.
• Do not place large food items nor metal objects into the appliance. It might jam the cutting mechanism, start fire or electrocute the user.
• Before cleaning, or if the appliance is not in use, remove the plug from the wall socket.
• The blade is sharp; exercise caution when cleaning.
• Do not immerse the cord or the motor housing in water nor in any other liquid. Always wipe with a damp cloth. Do not clean the appliance with metal items, whose pieces may break off and short-circuit the electrical parts, which can cause an electric shock.
• The device can be repaired only at an authorised service centre (the list of service centres is provided in the appendix and on the website: www.eldom.eu). Carrying out any upgrades or using any non-original spare parts or components is forbidden and jeopardises the safety of use.
• Appliance for home use only.
• Eldom Sp. z o. o. is not liable for any damage resulting from improper use of the appliance.

Allowed uninterrupted operation:

2 minutes

pause before restarting operation:

30 seconds

INTENDED USE

The BLN700 Blender is dedicated for quick preparation of tasty and nourishing beverages, soups and smoothies, etc. The handles (B) are used to turn the containers (C,D) into handy cups, and the caps help store freshly prepared dishes.

Diagram showing a device being processed into a plastic jar, with no visible text or symbols.

OPERATION

Before the first use, wash all parts of the blender that come into contact with food: caps (A), containers (C,D) and blades (E,F).

The (E) blade is intended for grinding, e.g. coffee beans, sugar, etc. Oilseeds (e.g. linseed) must not be ground.

The (F) blade is intended for cutting, e.g. fruit and soft vegetables.

Note. The (E,F) blades are sharp. The blades must not be fully immersed in water. They should be thoroughly dried before installation.

- Put one of the containers (C,D) on flat, horizontal surface, with the opening upwards and fill it with food products. Cut the products into small pieces. The

ingredients must not reach higher than the maximum level marked on the containers (C,D).

- Set one of the blades (E,F) on the container (C,D), appropriate for the processed products, and turn (Fig. 2).

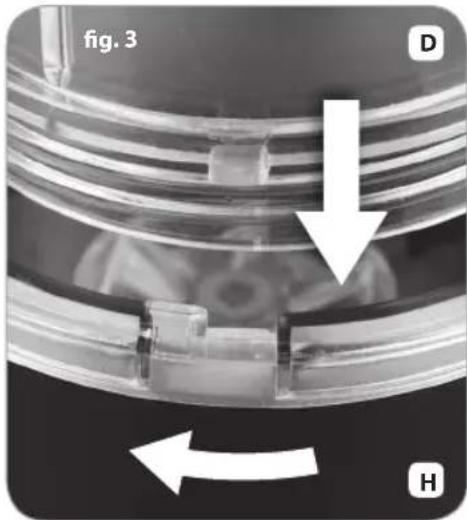

- Turn the container (C,D) and set in the seat (G) (Fig. 3).

- Connect the device to the mains.

- The blender will start after pressing the container (C,D) to the body. The device will run as long as the container (C,D) is pressed. To lock the container in the seat (G), push it down and turn clockwise. Turning the container (C,D) counter clockwise and releasing pressure will unlock the container.

Do not turn on an empty device.

Use the device observing the allowed operation time.

Exceeding operating time and insufficient breaks may result in irreversible damage of the motor. If the (E,F) blade gets stuck, immediately turn off the blender, disconnect it from the mains and eliminate the cause of the problem. Leave the device to cool down for at least 15 minutes.

• Wait for the blade (E,F) to stop before removing the container (C,D) from the base (E,F).
• Turn the container (C,D), put on flat surface and unscrew the blade (E,F).
• Pour the content to a glass, connect the handle (B) or the cap (A).

Tips

• To achieve the best results, add ingredients in the following order: liquids, fresh vegetables and fruit, yogurt.
• Hard fruit and vegetables cut into small pieces (1.8 to 2.5 cm).
• use the blade (E) only for dry ingredients.

The device must not be used:

• to beat eggs,
• to prepare puree,
• to mix warm liquids (over 70°C),
• to grind fruit with stones or hard skin (the blade may be damaged),
• to grind raw meat,

CLEANING AND MAINTENANCE

Clean the device right after its use. Before cleaning, switch off the device, pull out the plug from the socket and wait until the knife (E,F) stops.

No abrasive agents, cleaning agents, acetone, alcohol, etc., should be used to clean the unit.

Wash the elements in warm water with addition of dishwash with a brush and rinse under running water.

Wash the blades (E,F) with special care, as they are sharp. The blades (E,F) must not be fully immersed in water.

Clean the body (H) of the device with a damp cloth. Do not immerse the body (H) in water and do not rinse it under running water.

The caps (A) and the containers (B) may be washed in a dishwasher, placed on the top rack. Make sure that they are placed away from the heating element. The maximum temperature is 50^ C.

BEZPEČNOSTNÍ DOPORUČENÍ

Diagram showing a cylindrical container being rotated by a curved arrow, with no text or symbols present.

OBSLUHA

Diagram of a blender with a rotating top and base, showing internal structure and rotation arrow (no text or symbols)

BEDIENUNG

Diagram showing a cylindrical container being rotated by a curved arrow, with no text or symbols present.

ОБСЛУЖИВАНИЕ

Diagram of a blender jar with rotating top and side view, labeled 'fot. 2' (no text or symbols on the diagram itself)

OBSLUHA

Diagram showing a cylindrical container being rotated by an arrow, with no text or symbols present.

MANEJO
