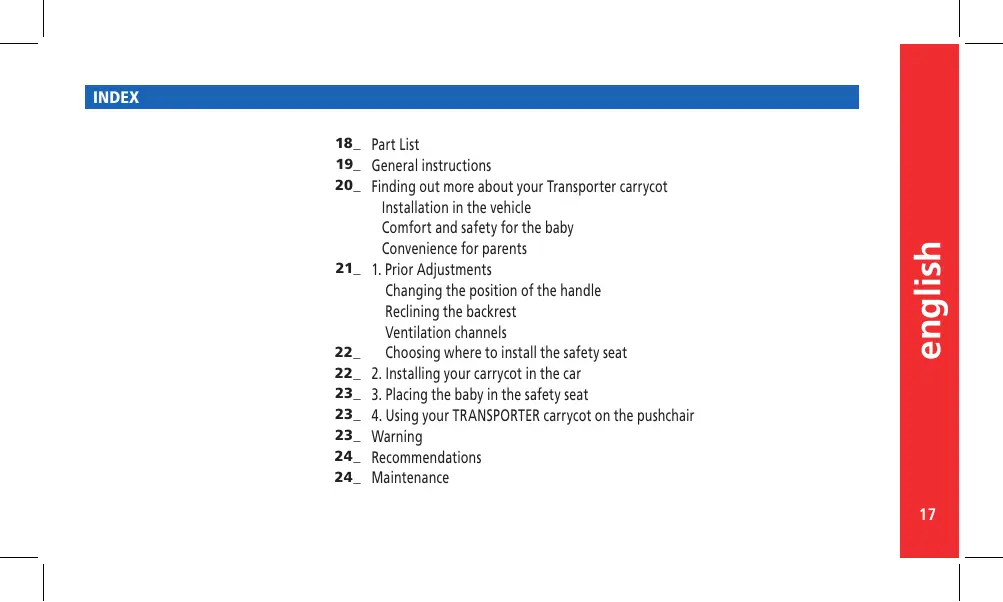

USER MANUAL TRANSPORTER JANE

Installation in the vehicle Comfort and safety for the baby Convenience for parents

1. Prior Adjustments

Changing the position of the handle Reclining the backrest Ventilation channels Choosing where to install the safety seat

2. Installing your carrycot in the car

3. Placing the baby in the safety seat

4. Using your TRANSPORTER carrycot on the pushchair

Warning Recommendations Maintenance english 18_ Part List 19_ General instructions 20_ Finding out more about your Transporter carrycot

TRANSPORTER PART LIST

1- CARRYING HANDLE

2- HANDLE POSITIONING LEVER WITH

DOUBLE SAFETY CATCH

3- HANDLE PRO FIX BUTTON

4- INTEGRAL 3-POINT SAFETY BELT

5- INTEGRATED KARABINER

6- PRO FIX CONNECTOR

7- SIDE VENTILATION CHANNELS

8- LOWER VENTILATION CHANNELS

9- LOWER VENTILATION BUTTON

10- STRAP TIGHTENER RELEASE BUTTON

11- STRAP TIGHTENER

12- INSTRUCTIONS COMPARTMENT

13- INCORRECT INSTALLATION SAFETY DEVICE.

14- BACKREST

15- HIGH DENSITY FOAM MATTRESS

16- BACKREST RECLINING DEVICE

• Your new TRANSPORTER from JANÉ is a safety carrycot designed to protect your baby in the car from newborn up to a maximum of 10 kg.
• TRANSPORTER has passed the demanding safety tests of European Regulation ECE 44/04 for groups 0 and 0+.
• TRANSPORTER is compatible with most car seats. However, when the car manufacturer states that the seats are suitable for the installation of “Universal” type seats, this means that there is total compatibility.
• You can also use your TRANSPORTER with any of the JANÉ chassis that has the PROFIX system.
• It is very important to read these instructions carefully before using the TRANSPORTER seat for the first time. Make sure that everyone who is ever going to use the seat is also familiar with its correct installation and use. It has been discovered that a significant number of people who use safety seats do not install the seat correctly, understanding the instruction manuals and applying the instructions correctly is just as important for safety as the actual seat.

GENERAL INSTRUCTIONS Your TRANSPORTER safety carrycot can be installed on the back seat of your car. It is advisable to always install the head part on the middle seat, never next to the door. It is very important not to use second-hand products, as JANÉ can only guarantee complete safety with items used by their first buyer. It is only suitable for cars fitted with three anchoring point automatic belts, approved according to Regulation ECE-16 or other equivalent rules. DO NOT use with a two anchoring point belt. JANÉ recommends that you replace your TRANSPORTER safety seat with a new one if it has been subjected to violent stresses in an accident. Not all safety systems are exactly the same, so we advise that you check your TRANSPORTER in the car in which it is going to be fitted. Check that all the straps are in the correct position and duly adjusted to your TRANSPORTER. Make sure that none of the straps are twisted. The child must understand that he must not play with the straps or fasteners under any circumstances. english In order to protect your baby adequately and to ensure their comfort and stability in the car, the following instructions must be strictly followed:

TRANSPORTER Getting to know the TRANSPORTER safety seat

Your TRANSPORTER safety seat has been designed taking into account the latest advances in terms of safety and it has been tested under the toughest conditions. It has the following features: Installation in the vehicle: System of integrated fasteners on the frame. This makes it easier to install when compared to separate karabiners. Structure reinforced with a honeycomb panel. This increases the resistance of the whole product to pass the strictest safety tests. Safety device preventing incorrect installation. This prevents the TRANSPORTER carrycot from being installed in the vehicle when the backrest is reclined. Raised fasteners. This prevents the carrycot from rotating in the event of an accident. Comfort and safety for the baby: High-density foam mattress. Integrated 3-point seat belts, greater fastening surface area that spreads the strain out better in the event of an accident. Ventilation in the frame to improve breathability. Includes a windbreak membrane to prevent the baby from feeling cold in winter and allows breathability in summer. Shock absorbing material on the whole surface area in contact with the baby. Automatic reclining backrest. Convenience for parents: Pro-Fix fasteners compatible with all the JANÉ chasses. Carrying handle. Removable upholstery.

Prior adjustments Changing the position of the handle Position 1: Hood folded. Position 2: Carrying position. Position for fitting and removing the carrycot from a JANÉ chassis and for carrying, as well as for use in the vehicle. To change the position, press the double safety catch and then the lever on the handle and turn the handle to the required position. Reclining the backrest The backrest of the new TRANSPORTER carrycot can be automatically adjusted using the adjustment device. There are two clear different positions (Fig 1b): AUTO Position: The backrest will always be in the lowest position, with the baby always lying down during the journey. (1) STROLLING Position: The backrest can be reclined by up to 20º when it is installed on your JANÉ pushchair or out of the car.(2) Ventilation channels Your TRANSPORTER safety carrycot has two types of ventilation channels to improve the breathability of the product and the comfort of your baby: Side ventilation channel. Fitted with a membrane to prevent the wind and cold from entering, while at the same time allowing the inside of the carrycot to breathe. english The carrying handle has 2 positions (figure 1a), each one of them has a specific function: Lower ventilation channel. Pressing the button on the lower part of the head area gives you two extra ventilation channels for the hottest seasons. (Fig 1c)

Choosing where to install the safety seat TRANSPORTER Choosing the correct place for the safety seat in the car can reduce the risk of injury to your baby in the event of an accident. The safety carrycot should be installed on the back seat and in a sideways position. TRANSPORTER takes up two seats, you can choose between one side and the central seat, thereby allowing an adult to travel alongside, or completely centred. If you decide on the side central seat, position the TRANSPORTER so that the head part is as far away as possible from the door.

Installing your carrycot in the car In the reclining position, TRANSPORTER must be fitted cross-wise on the back seats. Decide on which seats after reading the section on “Choosing where to install the safety seat”. 2a - Fasten the two straps you have chosen, the fasteners are on the abdominal part of the belt, this area is marked in light blue in the diagrams. 2b - If you have not lowered the backrest to the lying down position, the incorrect installation safety device will not allow you to insert the belt into the fastener. 2c - Open the fastener of the belt by turning the lock 2d - Insert the abdominal part of the belt into the fastener and close the fastener again. 2e - Lastly, tighten both belts. 2f - To take the TRANSPORTER seat out of the vehicle, open the fastener of the belt by turning the lock and take the seat belt off.

Placing the baby in the safety carrycot 3a - Unfasten the buckle. 3b - Loosen the harness by pulling the shoulder straps while pressing the tightening button. 3c - Place the baby in the safety carrycot making sure that he is lying down on the base with his back completely flat. Clip the two upper ends of the clasp together. 3d - Insert them in the central lock and press until you hear a click. 3e - Tighten the shoulder straps and pull on the tightening strap.

Using your TRANSPORTER carrycot on the pushchair TRANSPORTER can be anchored on any JANÉ chassis that has the PROFIX system. 4a - To fit the safety seat on a chassis, insert the connections in the cavity of the chassis and press until you hear a click. 4b - To release your TRANSPORTER from the chassis, press the button on the handle and pull the seat upwards. WARNING Never leave the baby on their own. Always remember to carry your baby with the safety harnesses correctly buckled. For the correct development of your baby, we recommend you let him rest in the lying down position (for babies up to 10kg.) Any alteration or addition to the device without proper authorisation from JANÉ may seriously alter the safety of the retaining system. Failure to follow the instructions carefully for the correct use of the retaining system may be dangerous for the safety of the baby. This safety device cannot be used without its cover, or be replaced by another cover that is not the original, as this is an integral part of the safety features of the system. Check that the seat has been positioned correctly. Ensure that the belt has not been caught between the folding seats or doors. It is only suitable for cars fitted with three anchoring point automatic belts, approved according to Regulation ECE-16 or other equivalent rules. DO NOT use with a two anchoring point belt. english

Not all safety systems are exactly the same, so we advise that you check your TRANSPORTER in the car in which it is going to be fitted. It is very important not to use second-hand products, as JANÉ can only guarantee complete safety with items used by their first buyer. Never leave the child alone. RECOMMENDATIONS Keep this instruction book for future reference. Always store it in the compartment on the base. Ensure that inside the car, both luggage and any other object liable to cause injury in the event of an accident are properly fastened or stored. The TRANSPORTER safety seat should be properly fixed with the safety belts, even when not in use, as in the event of an accident it may be thrown about, causing injury to the occupants of the vehicle. Remember not to use the TRANSPORTER safety seat in cars fitted with a front airbag, unless it is disconnected or disabled, for which you should consult the car manufacturer or retailer. MAINTENANCE Do not expose the cover to sunlight for long periods. When the seat is not in use, cover it or store it in the boot. Wash the plastic parts with warm water and soap, carefully drying all the components afterwards. The upholstery can be removed for washing. Follow the instructions below:

• Remove the rubber band that goes underneath one of the car seat belt fasteners and undo the clasps from the other.
• Also the plastic flaps that are on the sides of the carrycot.
• Remove the upholstery from the edges of your TRANSPORTER carrycot.
• Undo the safety harness clasp and pass it through the slot in the mattress upholstery.
• Take the upholstery off the backrest and pass the shoulder straps through the slots.
• Pull the mattress and take the upholstery off by opening the central part. Wash by hand at a temperature never higher than 30° C. To refit the cover, follow the same steps in reverse order. You can access the link: www.jane.es/seguretat/animatic/ for further information on fitting your new TRANSPORTER. INDEX 29_ 30_ 30_ 31_ 31_ 31_ 32_ 32_
