Montecarlo R1 Xtend - Car seat JANE - Free user manual and instructions

Product Type	Baby/Child Car Seat
Brand	JANE
Model	Montecarlo R1 Xtend
Weight Group	Group 0+/1 (0-18 kg)
Orientation	Rear-facing (up to 18 kg) and forward-facing (from 9 kg)
Safety Standard	ECE R44/04
Dimensions (L x W x H)	65 x 45 x 60 cm
Seat Weight	7.5 kg
Power Supply	None (mechanical seat)
Main Functions	5-point harness, adjustable recline, height-adjustable headrest, reinforced side protection, installation with seat belt or Isofix system (optional)
Care and Cleaning	Removable cover, machine washable at 30°C, clean plastic parts with soapy water
Safety	Tested according to European standard ECE R44/04, side impact absorption, harness positioning indicator
Spare Parts and Repairability	Spare parts available (covers, foams, buckles) from the manufacturer or authorized dealers
General Information	Versatile car seat suitable from birth to about 4 years (18 kg), ergonomic design, Spanish manufacturer

Frequently Asked Questions - Montecarlo R1 Xtend JANE

How to install the Montecarlo R1 Xtend car seat?

Install the seat rear-facing up to 18 kg using the vehicle's seat belt or the Isofix system (if available). Follow the color indicators on the seat for correct positioning. Refer to the manual for detailed diagrams.

Up to what age can I use the seat rear-facing?

The Montecarlo R1 Xtend allows rear-facing use up to 18 kg, about 4 years. It is recommended to keep the child in the rear-facing position as long as possible for better protection.

How to clean the seat cover?

The cover is removable and machine washable at 30°C. Use a gentle cycle and mild detergent. Do not tumble dry, let it air dry. Plastic parts can be cleaned with a damp cloth.

Can I use this seat with Isofix?

Yes, the seat is compatible with the Isofix system (only for rear-facing position). Depending on the version, Isofix connectors may be included or purchased separately. Check compatibility with your vehicle.

How to adjust the seat recline?

Pull the handle located under the front of the seat to adjust the recline to several positions. In rear-facing position, choose a comfortable recline for the child. In forward-facing position, the seat should be more upright.

Is the 5-point harness height adjustable?

Yes, the harness adjusts in height together with the headrest. Adjust it so it is at the level of the child's shoulders (rear-facing: at shoulder level; forward-facing: above the shoulders).

What is the lifespan of the Montecarlo R1 Xtend seat?

The lifespan is generally 10 years from the date of manufacture (indicated on a label under the seat). After an accident, the seat must be replaced even if it appears intact.

Can I use this seat on an airplane?

Yes, the seat is certified for airplane use (according to FAA standards). Install it forward-facing using the airplane seat belt. Check with the airline beforehand.

How to know if installation is correct?

Ensure the seat does not move more than 2.5 cm at the base. Use the color indicators on the belt path. The harness must be well adjusted (no twists, no more than one finger between the strap and the child).

Where to find spare parts?

Spare parts (covers, foams, buckles, Isofix connectors) are available from the manufacturer JANE or authorized dealers. Contact customer service via the official website to order.

USER MANUAL Montecarlo R1 Xtend JANE

Interior view of a baby car seat with gray and black sections, no visible text or symbols

español 6

english 14

français 22

deutsch 30

italiano 38

português 46

nederlands 54

norsk 62

svenska 70

Illustration of a car seatbelt with a child inside, showing two blue seats and a red belt (no text or symbols)

Illustration of a child's seatbelt being lifted, showing the seatbelt being inserted (no text or symbols present)

Illustration of a car seatbelt buckle being lifted by hands, showing seatbelt and seatbelt plug (no text or symbols)

Illustration of hands installing or adjusting a blue medical device with red buttons, no text or symbols present

Illustration of hands inserting a device into a blue bag with red buttons (no text or symbols)

ÍNDICE

General instructions 8

Installing your Xtend Abdominal Protector in the Car 10

Warnings 11

Recommendations 12

Maintenance 13

• Your new Xtend abdominal protector is an accessory for the JANE group 2-3 seats. With this accessory the JANE group 2-3 seats can be used as group 1 (for children between 9 and 18 Kgs).
• Xtend has passed the required safety tests of the European directive ECE 44/04 for group 1 with the following seats:

Montecarlo Montecarlo Plus Momo Racing INDY team INDY team Plus Superguard

- To increase the child's safety, your Xtend abdominal protector has:

- Shock absorbing material.

- To improve the comfort and the way it adapts to the child, your Xtend abdominal protector has:

• Upholstery that can be taken off and washed.
• Ventilation channels going from the front part.
• Extra padding.

GENERAL INSTRUCTIONS

In order to suitably protect the child and ensure his comfort and security in the car, it is necessary to observe the following instructions:

• The seat with the abdominal protector has been designed to be installed on the rear or front seats of the car, whenever they are fitted with three-point seat belts and a frontal AIR-BAG is not connected. However, for maximum safety we advise you to install it on the rear seat whenever possible.
• It is only suitable for vehicles fitted with automatic three-point seat belts, certified by regulation ECE-16 or other equivalent standards. DO NOT use with a two-point seat belt, as this is

very dangerous in the event of sudden braking or an accident.

• In some vehicles the seat belt strap with the clasp is positioned quite far forward, and it may be in contact with the edge of the booster seat, which means it is not safe. If this is the case, try moving the seat forwards or install it on another seat.
• Not all safety systems are exactly the same, which is why we advise you to test the Xtend

abdominal protector in the vehicle in which it will be installed.

• It is very important not to use second hand products, as JANÉ, S.A. can only guarantee the complete safety of articles used by the original buyer.
• JANÉ, S.A. advises you to replace the Xtend abdominal protector with a new one when it has been subjected to violent stress in an accident.
• Check that all the straps are positioned correctly and duly adjusted to fit the child. Make sure that no strap is twisted. The child must un-

derstand that he must not play with the straps or clasps under any circumstances.

• The Xtend abdominal protector is designed for use in the car, therefore it must not be used out of the car.
  For more information regarding the use and installation of the Xtend abdominal protector consult our web page: www.jane.es.

Installing your Xtend Abdominal Protector In The Car.

Place the seat on the car seat in accordance with the advice and warnings given in the GENERAL INSTRUCTIONS.

1A Sit the child in the seat and fit the abdominal protector on him.
1B Pass the seat belt over the abdominal protector and fasten it.

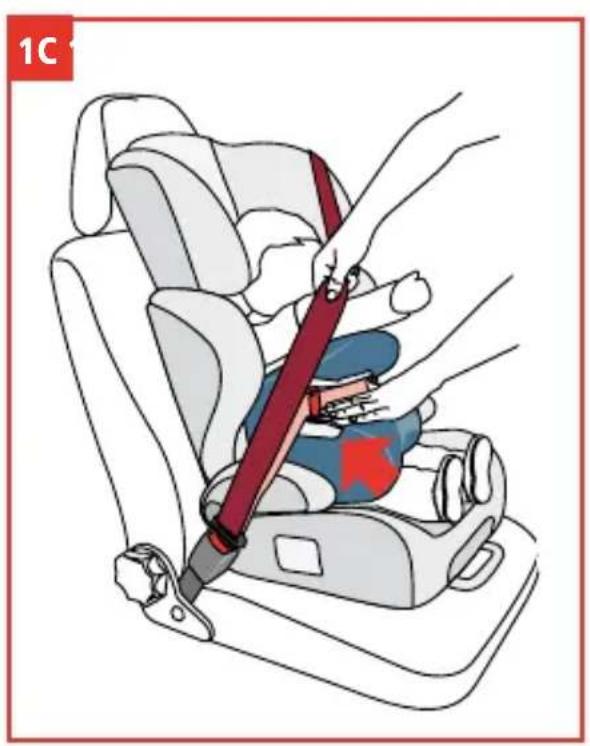

1C Pass the abdominal seat belt through the red guides of the protector and tighten it.
1D Pass the shoulder belt through the red guide and tighten the whole lot.

To take the child out of the seat, you only have to unfasten the seat belt and remove the protector.

When it is not in use, DO NOT leave the seat or the abdominal protector unfastened in the vehicle, fasten them again with the seat belt or store them in the luggage compartment.

When you put the child back in the seat again, make sure that none of the straps are twisted or out of place and check they are flat against the belt guide area.

WARNINGS

• Never leave the child alone.
• Any alteration or addition to the device without the authorisation of JANE, S.A. may seriously alter the safety of the retention system.
• The instructions for the correct use of the retention system must be carefully followed to ensure the child's safety.
• This safety device must not be used without its upholstery, and it must not be replaced by another one different from the original, as it forms an integral part of the system's safety characteristics.
• Do not recline the seat when it is in use. To lower or raise the booster seat, you should adjust the length of the seat belt. Do this when the vehicle has stopped.
• This retention system can only be used in conjunction with a booster seat with a backrest classified as group 2-3 from the JANÉ group. These include the Indy Team, Indy Team Plus, Montecarlo, Montecarlo Plus, Momo Racing and Superguard.

RECOMMENDATIONS

• Keep this instruction book for future reference.
• Always store it in the compartment on the side of the abdominal protector.
• Make sure that inside the vehicle, any luggage or other object which may cause damage in the event of an accident is correctly fastened or stored.
• The Xtend abdominal protector must be correctly fastened with the seat belts, even if it is not in use, as in the event of an accident it could get flung about and injure the occupants of the vehicle.
• Remember not to use the Xtend abdominal protector in vehicles fitted with a frontal AIRBAG, unless it can be disconnected or deactivated. You can find this out by consulting the vehicle manufacturer or retailer.
• Check that it does not get caught between the fold down seats or the doors of your vehicle.

MAINTENANCE

• Do not expose the upholstery to the sun for prolonged periods of time, when the protector is not in use cover it up or store it in the luggage compartment.
• Wash the plastic parts with soap and warm water, and then dry all the components thoroughly.
• The upholstery can be taken off for washing. Follow the instructions below:

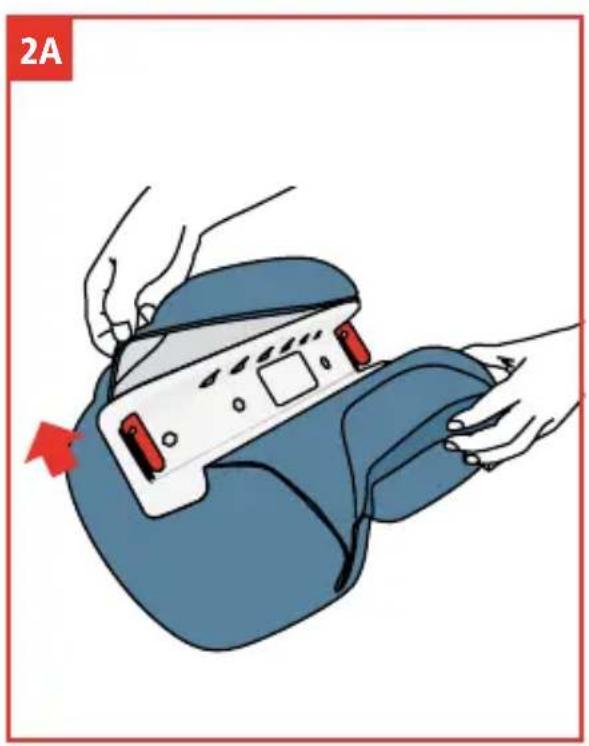

2A Remove the from around the plastic part.
2B Pull the upper part of the upholstery backwards.

- Wash at a temperature not exceeding 30^ .

- Do not tumble dry.

- To fit the upholstery again, follow the same steps in reverse order.
