USER MANUAL STRATA JANE

Part list General instructions 1 More about the STRATA safety seat. Choosing where to install the safety seat 2 Adjustments before use Adjusting the height of the shoulder straps Changing the position of the handle 3 Installing the seat in the car 4 Putting the baby into the safety seat 5 Installing Strata in a pushchair Warning Recommendations Maintenance 18-19

22-23 22-23 22-23 24-25 26-27

TABLE OF CONTENTS

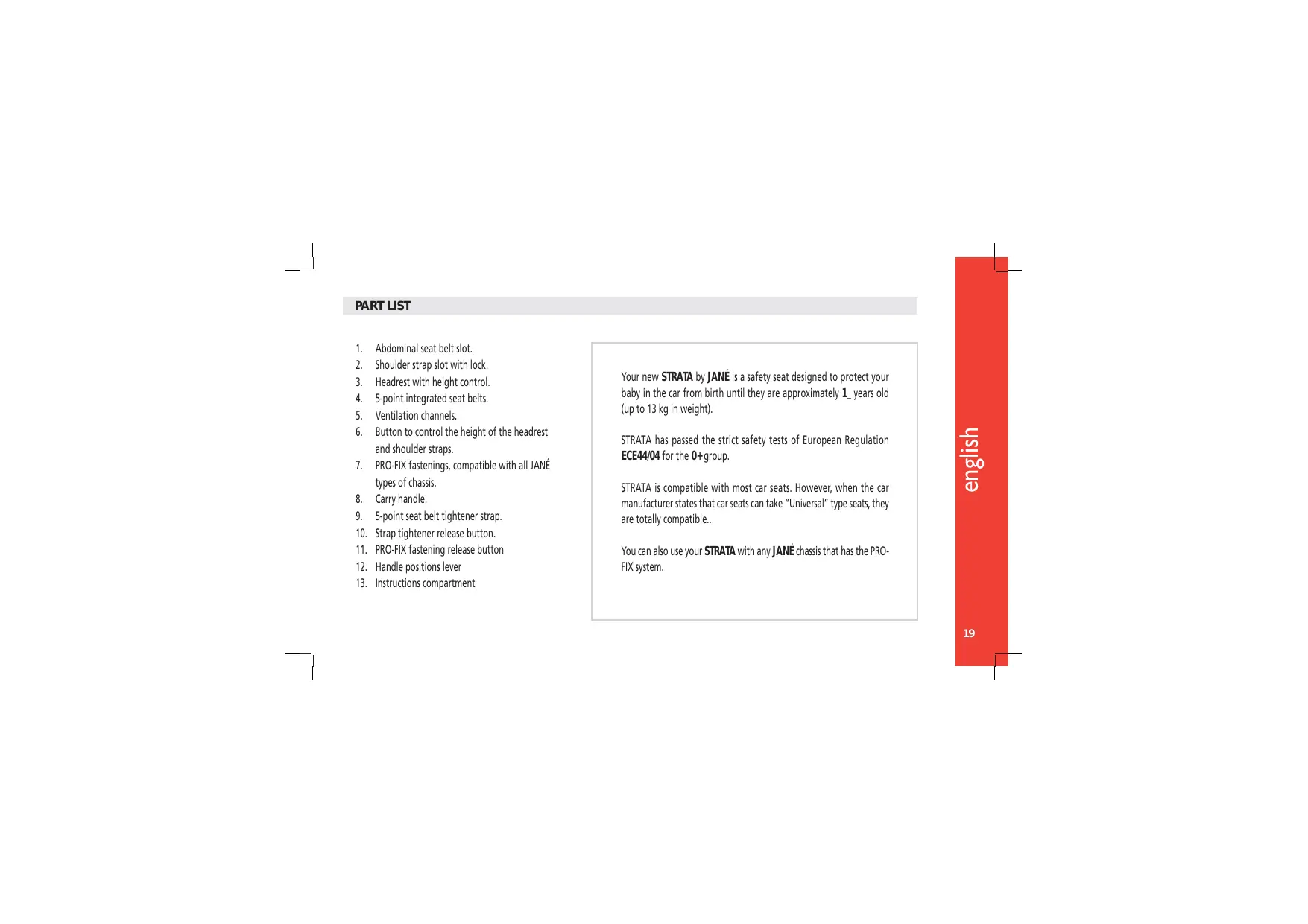

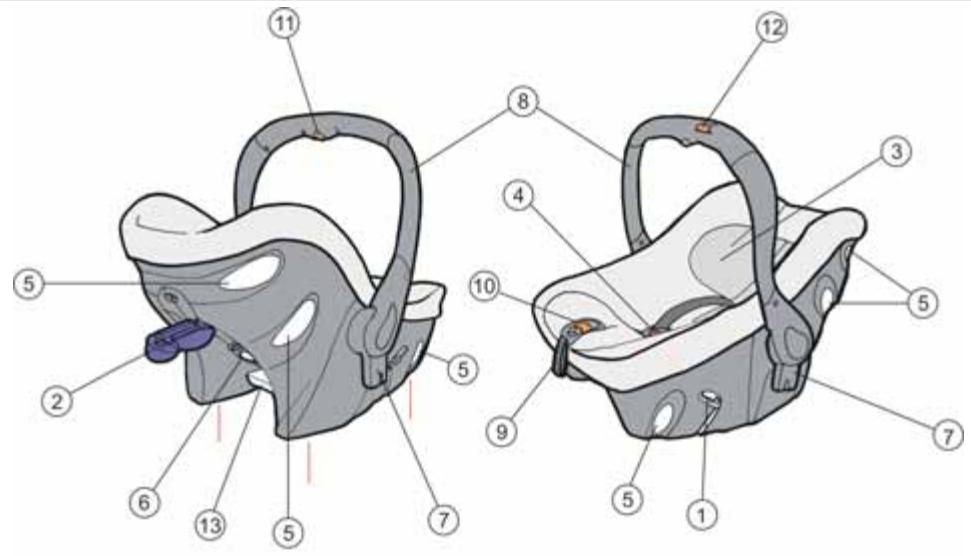

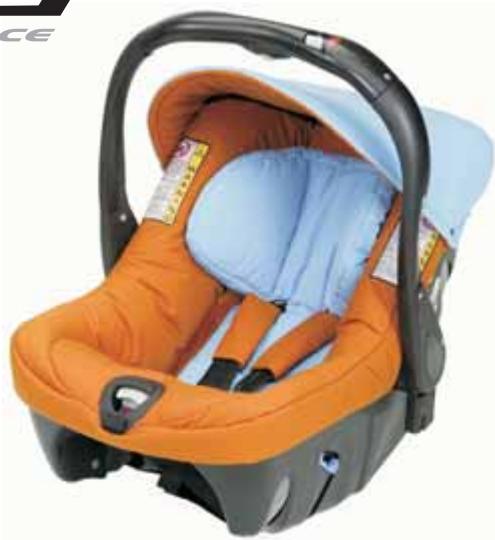

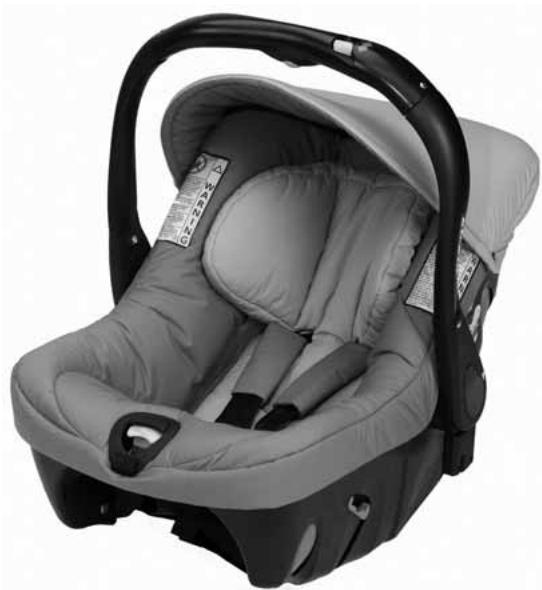

Abdominal seat belt slot. Shoulder strap slot with lock. Headrest with height control. 5-point integrated seat belts. Ventilation channels. Button to control the height of the headrest and shoulder straps. PRO-FIX fastenings, compatible with all JANÉ types of chassis. Carry handle. 5-point seat belt tightener strap. Strap tightener release button. PRO-FIX fastening release button Handle positions lever Instructions compartment Your new STRATA by JANÉ is a safety seat designed to protect your baby in the car from birth until they are approximately 1_ years old (up to 13 kg in weight). STRATA has passed the strict safety tests of European Regulation ECE44/04 for the 0+ group. STRATA is compatible with most car seats. However, when the car manufacturer states that car seats can take “Universal” type seats, they are totally compatible.. english

You can also use your STRATA with any JANÉ chassis that has the PROFIX system.

GENERAL INSTRUCTIONS STRATA You must follow these instructions to ensure that your baby is adequately protected, comfortable and securely fastened inside the car:

• Your STRATA safety seat can be installed on both the front seat, if it is not fitted with an Air-Bag, and the back seat of the car. In any event, we recommend that you fit on the back seats. If you position it on the front seat of the car, this must NOT have an AIR-BAG or it must be disconnected.
• It is only valid for cars fitted with automatic three-point fastening seat belts, approved in accordance with Regulation ECE-16, or other equivalent regulations. Do NOT use it with a two-point fastening belt.
• Not all safety systems are exactly the same, so we recommend that you check your STRATA in the car where you are going to install it.
• It is very important that you do not use second-hand products, as JANÉ can only guarantee complete safety on items used by their initial buyer.

• JANÉ recommends that you replace your STRATA safety seat with a new one when it has undergone violent pressure following an accident.
• Check that all the seat belts are in the correct position and correctly adjusted to your STRATA. Ensure that none of the seat belts is coiled up.
• To help your baby grow correctly, we advise that you do not over-use the safety seat on long journeys, and that you frequently lay them stretched out in a Moses basket or bed. Your STRATA safety seat has been designed with the latest safety developments in mind and has been tested under the toughest conditions. It has the following features: Installation in cars:
• Slot for passing belts through under the body of the seat that enables it to be installed in cars with shorter seat belts. It also leaves the baby's feet area free.
• Car seat belt locking feature that enables the seat to be tightened for greater stability
• Chassis ready for installation on a base with ISOfix system (optional). Install the seat in your car with a simple click and no need to thread seat belts through. Comfort and safety for your baby:
• Headrest to support the head.

• The base raises automatically to the headrest's low positions, so extending the seat as far as it will go. Recommended for the first few months when a sitting position makes it difficult for the baby to breathe.
• 5-point integrated seat belts, greater fastening surface that distributes weight better in the event of an accident.
• Ventilation in the chassis making it breathable.
• Impact-absorbent material on the entire surface that comes into contact with the baby. Comfort for the parents:
• Control the height of the seat belts with the simple press of a button. Avoid difficulties in installing and uninstalling straps when you need to change the height of the seat belts.
• Pro-Fix fastenings compatible with all JANÉ types of chassis.
• 4-position carry handle.
• Removable cover. english 1 More about the STRATA safety seat. Choosing where to install the safety seat Choosing the right place where you want to install the safety seat in the car will reduce the risk of injury to your baby in the event of an accident. As far as possible, install the safety seat on the back seats. We strongly recommend that the baby is accompanied by someone sitting next to them to take care of their every need. Of the three back seats, the middle one is the safest. If you are travelling alone with your baby, it is good if you can see them without having to take your eyes off the road. Put them in the passenger seat providing that it is NOT fitted with an Air-Bag or IT IS DISCONNECTED. Under no circumstances allow yourself to be distracted from the road to see to your baby. Stop the car in a safe place.

2 Adjustments before use Adjusting the height of the shoulder straps STRATA To ensure that they offer maximum protection, the shoulder straps on the STRATA safety seat must be set just above the baby's shoulders. Check this height with the baby seated correctly in the safety seat. The lowest positions of the headrest, which are for the first few months of use, are connected to an automatic system that raises the base of the seat.

The STRATA safety seat has a quick system for controlling the height of the shoulder straps. Simply press a button and slide the headrest. 2a STRATA has 6 heights for the shoulder straps. To change position, press the switch on the backrest and slide it into the desired position. 2b Release the switch and move the headrest until it reaches the nearest locking position, when you should hear a click. Check that it is locked by pulling the headrest. WARNING Check and adjust the height of the shoulder straps as the baby grows. Changing the position of the handle The handle has 4 positions (2c), each of which has a specific function: Position 1: Stability, the handle stops it from tipping over when on a flat surface. Position 2: Intermediate position. In this position, the handle is integrated into the casing. Position 3: Carrying. Position for installing and removing the seat in a JANÉ chassis and for carrying. Position 4: AUTO. For car journeys. To change position, press the lever on the handle (2d) and turn the handle until you reach the desired position.

3 Installing the seat in the car STRATA The STRATA safety seat must be installed FACING THE OPPOSITE DIRECTION IN WHICH THE CAR IS TRAVELLING. Decide on the seat after reading the “Choosing where to install the safety seat” section.

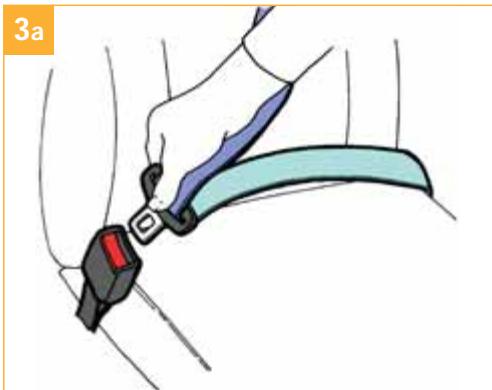

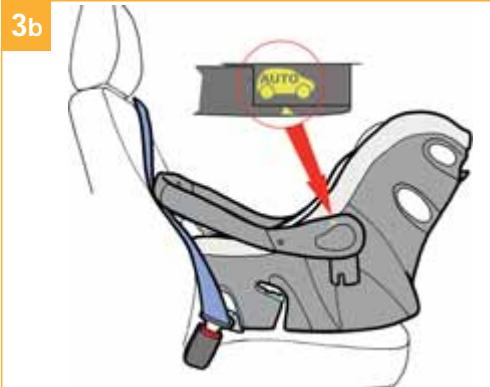

3a - Fasten the 3-point seat belt. 3b - Put the seat on the car seat. Put the handle to the AUTO position, the most advanced position. The arrow on both sides of the handle should be pointing to the body of the casing.

If you install the seat with the ISOfix base option (optional) follow the instructions that you will find on the base.

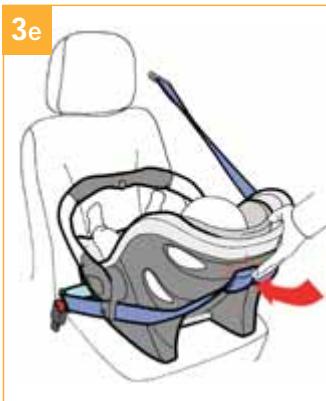

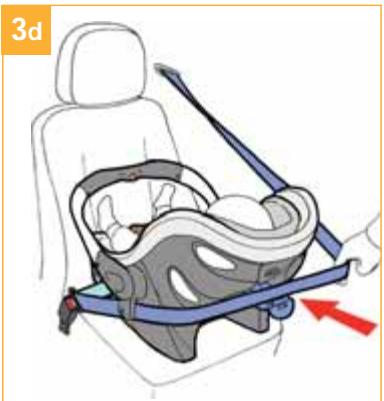

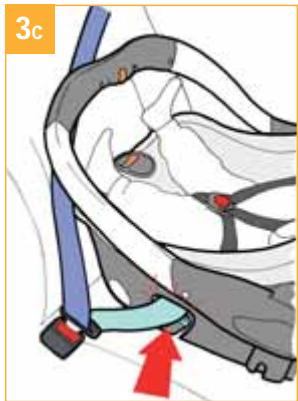

english 3c Pass the abdominal part of the car seat belt through the front slots on the side of the casing. 3d You should pass the part of the car shoulder strap behind the seat. 3e Tighten that part of the strap and shut the locking clip. Make sure that the seat is firmly fastened by pulling on it.

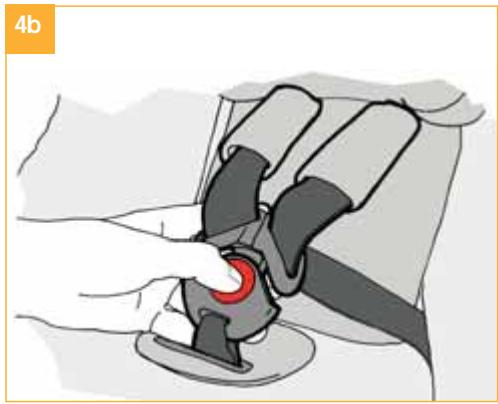

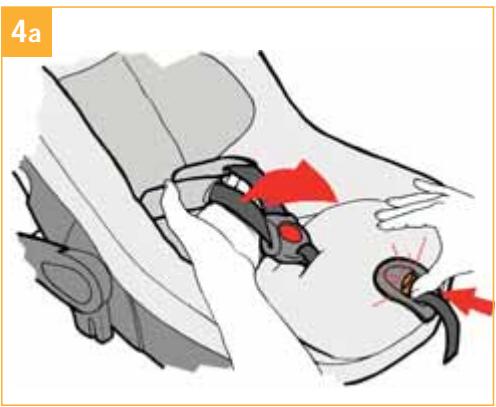

4 Putting the baby into the safety seat. 4a Loosen the harness by puling on the shoulder straps while pressing the tightener button. STRATA

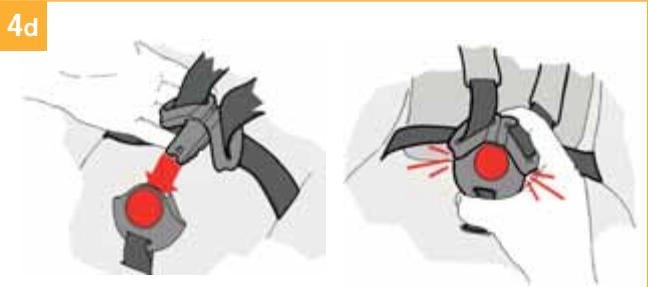

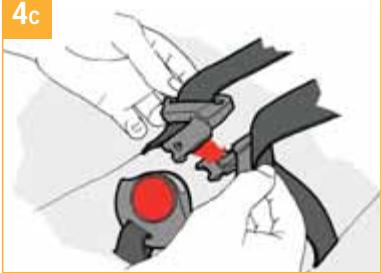

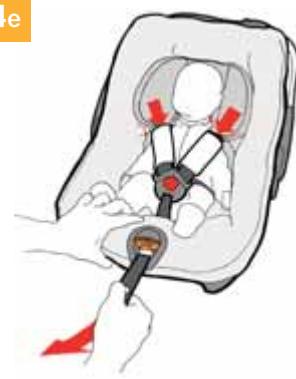

4c Put the baby in the safety seat, making sure that they are sitting back in it and that their back is straight. Join the top ends of the clasps. 4d Insert them in the fastener and press until you hear a click. 4e Tighten the shoulder straps and pull the tightener strap.

5 Installing Strata in a pushchair. Your Strata carrycot can be fastened to any JANÉ chassis that has the PRO-FIX system. STRATA

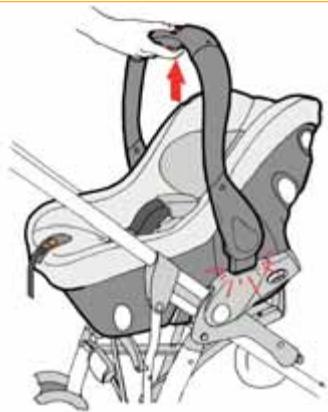

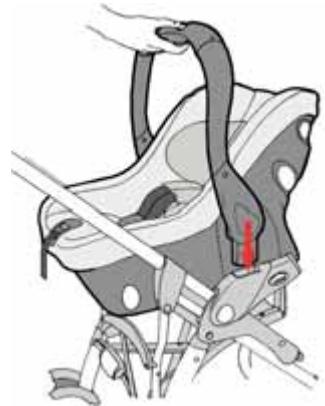

5a - To fasten the safety seat to a chassis, insert the connections in the cavities on the chassis and press until you hear a click. 5b - To release your Strata from the chassis, press the switch on the handle and pull the seat upwards.

• Keep this instruction book for future reference. Always keep it in its compartment under the safety seat.
• Make sure that inside the car, luggage and any other object likely to cause harm in an accident are correctly fastened or stored.
• The STRATA safety seat must be fastened correctly with the seat belts or ISOfix base, even if it is not in use, as it could be thrown around in an accident and harm the occupants of the car.

• Remember not to use the STRATA safety seat in cars fitted with front air-bags, unless they can be disconnected or deactivated. You will need to check this with the car manufacturer or seller. MAINTENANCE
• Do not expose the cover to extended periods of sunlight. While the seat is not in use, cover it or store it in the boot.
• Wash the plastic parts in warm soapy water and dry all the components thoroughly. The cover can be removed for washing for which you should follow these instructions:
• Casing cover. Remove the 6 elastic bands and clasps under the edge of the casing. Pass the clasp that goes between the legs through the buttonhole. Remove the cover from the tightener button area and finally undo the Velcro on the central part and remove the cover upwards.
• Headrest cover. First remove the cover on the headrest skirt. Pull the headrest cover off.
• Wash by hand and never above 30ºC.
• Follow the same procedure but in reverse to put the cover back on. english WARNING
• Never leave your baby on their own.
• Any changes or additions to the Strata without the correct authorisation from JANÉ may seriously affect the safety of the restraining system.
• Not following the instructions on how to use the restraining system may endanger your baby's safety.
• This safety device cannot be used without its cover, or replaced with one that is not the original, as it is an integral part of the system's safety features.
• Check that the seat has been positioned correctly.
• Make sure that the seat belt is not trapped between the folding seats or doors. You can access the www.jane.es/seguretat/animatic/ link for more information about how to assemble your STRATA seat.
