| Product type | LED spherical solar light for outdoor |
| Brand | Livarno Lux |
| Model | IAN 273027 |
| Dimensions (height x diameter) | approx. 51 x 25 cm (without stake); stake: 10 cm |
| Weight | approx. 0.5 kg |
| Power supply | 1 rechargeable Ni-MH AAA 1.2V / 300mAh battery + polycrystalline solar cell 50mA |
| Bulb type | 1 non-replaceable LED (0.2W) |
| Protection rating | IP44 (protected against water splashes) |
| Lighting duration | approx. 6 to 8 hours (fully charged) |
| Start-up | Automatic via dusk sensor (ON/OFF switch) |
| Operating temperature | Withstands temperatures below -20°C |
| Package contents | 1 stake, 2 spacers (7 cm and 25 cm), 1 globe, 1 solar module with LED and battery, instructions |
| Assembly | Insert the stake into the ground; adjustable height via spacers |
| Maintenance | Clean with a dry, lint-free cloth; replace battery every 12 months |
| Safety | Keep batteries away from children; do not use indoors; do not expose to vibrations |
| Replaceable battery | Yes, by user (open housing with screwdriver) |
| Replaceable LED | No, product must be disposed of if defective |
| Warranty | 3 years |
| Intended use | Outdoor decorative lighting only, not for room lighting |
| Disposal | Do not dispose of with household waste; recycle batteries and device according to local regulations |
Frequently Asked Questions - IAN 273027 Livarno Lux
User questions about IAN 273027 Livarno Lux
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Lighting in PDF format for free! Find your manual IAN 273027 - Livarno Lux and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. IAN 273027 by Livarno Lux.
USER MANUAL IAN 273027 Livarno Lux
Operation and Safety Notes
NL BE
LED-SOLAR-BOLLAMP
GB / IE Operation and Safety Notes Page 14
GEFAHR EXPLOSIONSGE-
GEFAHR VERLETZUNGS-
GEFAHR EXPLOSIONSGE-
Intended use......Page 15
Parts Description......Page 15
Scope of delivery....Page 15
Technical Data Page 16
Safety instructions......Page 16
Product-specific safety instructions Page 17
Safety instructions for rechargeable batteries......Page 17
Initial use
Mounting the light....Page 18
Installing the light Page 18
Preparing the light prior to initial use......Page 18
Switching the light on/off......Page 19
Replacing the rechargeable battery Page 19
Troubleshooting Page 19
Maintenance / Cleaning......Page 20
Disposal Page 20
Warranty Page 21
Solar-powered LED light ball
- Intended use
The solar light is intended as an outdoor accent light. The product is not intended for commercial use.
■ Not suitable for ordinary lighting in household room illumination.
This product is suitable for extreme temperatures below -20 °C.
The solar module built into this product converts sunlight into electricity and stores it in the rechargeable NiMH battery. The light switches on at dusk.
The in-built light-emitting diodes are a very long-life and energy-saving light source.
The light duration depends on the amount of sunlight, the angle at which light hits the solar panel, and the temperature (the battery capacity varies by temperature). A vertical angle of light at temperatures above the freezing point is ideal.
The battery does not achieve maximum capacity until after several charge and discharge cycles.
- Parts Description
1 Ground spike
2 Spacer tube approx. 7 cm
3 Spacer tube approx. 20 cm (on IAN 273025); approx. 17 cm (on IAN 273026); approx. 25 cm (on IAN 273027)
4 Sphere
5 Solar module
6 On/Off switch
7 Cross-head screws (housing)
8 Housing
9 Cross-head screws (cover)
10 Cover
11 Rechargeable AAA battery
12 Solar cell
- Scope of delivery
Immediately after unpacking, verify the parts are complete and the product is in proper condition.
1 Ground spike 1
1 Spacer tube approx. 7 cm 2
1 Spacer tube approx. 20 cm (on IAN 273025); approx. 17 cm (on IAN 273026); approx. 25 cm (on IAN 273027) 3
1 Sphere 4
1 Solar module incl. LED and rechargeable Ni-Mh battery, AAA/1.2 V/300 mAh 5
1 Installation instructions
- Technical Data
Rechargeable
battery: 1 x rechargeable
Ni-Mh battery/AAA/
1.2 V / 300 mAh
Illuminant: 1 x LED (not replaceable)
Rated power: 0.2 W per LED
Protection type: IP44 (splash-proof)
Solar cell: 50 mA, multicrystalline
Dimensions:
Solar light
(excl. ground spike): approx. 42 x 20 cm (h x ∅)
(on IAN 273025);
approx. 34 x 15 cm (h x ∅)
(on IAN 273026);
approx. 51 x 25 cm (h x ∅)
(on IAN 273027)
Ground spike: 10 cm (h)
● Safety instructions
BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INSTRUCTIONS AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PRODUCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS!
RISK AD WARNING!
ACCIDENT AND DANGER
TO LIFE FOR INFANTS AND
CHILDREN!
- Keep rechargeable batteries away from children. Do not leave the batteries lying around. There is a danger that these will be swallowed by children or pets. If they are accidentally swallowed seek immediate medical attention.
Children or persons lacking knowledge or experience in handling the device or have limited physical, sensory or mental abilities, must not use the device without supervision or instruction by a person responsible for their safety. Children must be supervised at all times to prevent them from playing with the device.
■ Never leave children unsupervised with the packaging material. The packaging material poses a suffocation hazard. Children frequently underestimate the dangers. Please always keep the product out of the reach of children.
This product is not a toy and should be kept out of the reach of children. Children are not aware of the dangers associated with handling electrical products. - Do not use the product if you detect any type of damage.
DANGER - EXPLOSION
HAZARD! Do not use the solar light in explosive environments con-
taining flammable vapours, gasses or dusts.
●Product-specific safety instructions
- Do not expose the solar light to strong vibration or high mechanical loads.
■ Make sure the solar cell is free of dirt and free of snow and ice in winter. Otherwise the performance of the solar panel will be diminished. - Cold temperatures negatively impact the battery operating time. Clean and store the solar light in a dry, warm location during extended periods of non-use, e.g. in winter.
In the event of damage, repairs or other problems with the solar light, please contact an electrician. The LEDs cannot be replaced.
DANGER - EXPLOSION
HAZARD! Use only rechargeable batteries of the recommended
type. Other rechargeable or single-use batteries could explode during charging.
DANGER - RISK OF IN-
JURY! When removing the solar light, be sure to also remove the
base and ground stake to prevent hazards (e.g. tripping).
DANGER - FIRE HAZARD!
Never switch the solar light on inside the packaging.
● Safety instructions for rechargeable batteries
- Outdated or used rechargeable batteries may leak chemicals which will damage the product. Therefore remove the rechargeable batteries when not using the solar light for extended periods.
DANGER - FIRE HAZARD!
Never short-circuit rechargeable batteries. Otherwise the recharge-
able batteries may overheat, become a fire hazard or explode.
DANGER - EXPLOSION
HAZARD! Never throw rechargeable batteries into fire or water.
WARNING - WEAR
SAFETY GLOVES! Leaked or damaged rechargeable batteries
could cause chemical burns on contact with the skin; you should therefore wear suitable protective gloves at all times if such an event occurs.
DANGER - RISK OF
CHEMICAL BURNS! Leaking batteries can cause chemical burns.
Be careful not to allow the battery fluid to come into contact with your skin or your eyes. If this does happen, immediately try to remove the battery fluid under cold running water. Seek medical attention to be safe.
- Initial use
- Mounting the light
☐ Remove the individual parts from the packaging and assemble the solar light as shown in Figure A. There are two options: the spacer tube 3 will make the solar light approx. 42 cm (on IAN 273025); approx. 34 cm (on IAN 273026); approx. 51 cm (on IAN 273027) tall (see Fig. B), the spacer tube 2 will make it approx. 29 cm (on IAN 273025); approx. 24 cm (on IAN 273026); approx. 34 cm (on IAN 273027) tall (see Fig. C).
☐ Insert the selected spacer tube 2 or 3 into the designated opening on the solar module 5 (see Fig. A).
☐ Then insert the ground stake 1 into the bottom of the spacer tube 2 or 3 (see Fig. A).
• Installing the light
Note: The solar light can be installed without a power source.
Only use the solar light with the included ground stake 1.
☐ Push the assembled solar light far enough into the ground (lawn, flower bed) so it is stable. Since the light relies on sunlight, consider and observe the following points prior to installation.
- Select a location where the solar module 5 is exposed to direct sunlight during the day.
- Position the solar light so the solar module 5 is not covered or in the shade (trees, roof ridge, etc.).
- Be sure the solar module 5 is not impacted by another light source, e.g. yard or street lighting, as this will prevent the light from switching on at dusk. Remember many light sources will only switch on due to the time or movement during the night.
● Preparing the light prior to initial use
Note: The solar light features a twilight sensor and an On / Off switch 6. When fully charged the light on time is approx. 6 to 8 hours.
☐ Unscrew the sphere 4 from the solar module 5 counter-clockwise. Set the On / Off switch 6 to the ON position before using it for the first time.
☐ Screw the sphere 4 clockwise all the way into the solar module 5 and place the solar light in the sun.
- Switching the light on / off
☐ Slide the On / Off switch 6 to the ON position. The solar light will automatically switch on at dusk. At dawn the light will automatically switch off.
☐ Slide the On / Off switch 6 to the OFF position. The solar light is permanently switched off.
●Replacing the rechargeable battery
Note: The rechargeable battery 11 is designed for prolonged operation. However, it may need to be replaced after being used for a long time. Rechargeable batteries are subject to natural wear and the output may decrease. For optimal performance the batteries should be replaced every 12 months.

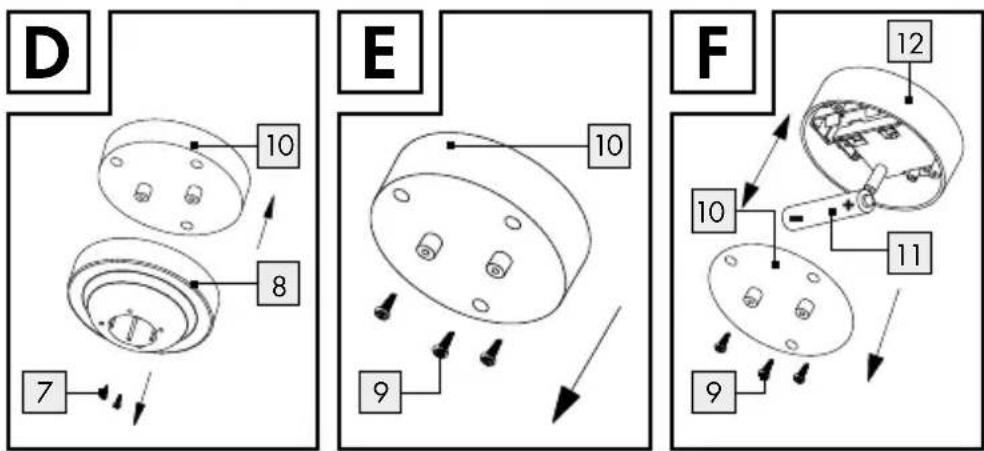

Replace the rechargeable battery as shown in figures D-F.
□ Unscrew the sphere 4 counter-clockwise.
☐ Slide the On / Off switch 6 on the solar module 5 to the OFF position.
Remove the solar module 5 from the spacer tube 2 or 3.
☐ Loosen the two screws 7 on the underside counter-clockwise using a suitable cross-tip screwdriver and remove the housing 8 from the remainder of the module (see Fig. D).
☐ Then also loosen the three screws 9 on the underside of the cover counter-clockwise using a suitable cross-tip screwdriver and remove the cover 10 from the remainder of the module (see Fig. E).
☐ Remove the battery 11 and replace with a new, charged rechargeable battery of the same type (see „Technical Data“). Please note the polarity (+ / -) when inserting the rechargeable battery (see Fig. F).
□ Now reattach the cover 10 to the solar cell 12 and secure clockwise using the three screws 9.
☐ Then reattach the housing 8 and secure clockwise using the two screws 7.
☐ Reattach the solar module 5 to the spacer tube 2 or 3.
☐ Slide the On / Off switch 6 to the ON position again.
□ Screw the sphere 4 all the way into the solar module 5, turning clockwise.
- Troubleshooting
Note: The device contains sensitive electronic components. Radio transmitting equipment in the immediate vicinity may therefore cause interference. These could be e.g. mobile phones, two-way radios, CB radios, radio / other remote controls and microwaves. If you notice the device is malfunctioning,
remove any sources of interference from the area around the device.
Notice: Electrostatic discharge can lead to malfunctions. In the event of such malfunctions, briefly remove and reinsert the rechargeable batteries.
Note: The performance of the rechargeable battery is better in summer than in winter due to the weather.
| Error Cause Solution | ||
| LEDs don't light up | Surroundings are too bright or light from other light sources is hitting the solar light | Change the location (away from e.g. yard or street lighting) |
| Weak LED light | Battery not fully charged or defective | Charge the rechargeable battery with a charger or replace with a new rechargeable battery (see “Replacing the battery”) |
| LEDs don't light up | LEDs defective | The LEDs cannot be replaced. Dispose of the product properly (see “Disposal”) |
● Maintenance / Cleaning
Note: The LEDs cannot be replaced. The solar light is maintenance-free.
■ Never use caustic cleaners.
☐ Regularly clean the solar light with a dry, lint-free cloth. Use a slightly moist cloth to remove any stubborn dirt.
☐ Replace the rechargeable batteries if the operating time decreases noticeably after some time despite good sun exposure (see chapter "Replacing the rechargeable battery"). Only use the correct size and recommended type of rechargeable batteries (see section „Technical data”).
- Disposal
The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.
Contact your local community or municipal administration for more details on how to dispose of your worn-out product.
To help protect the environment, please dispose of the product properly, not without household waste, when it has reached the end of its useful life. Please
contact your local authority for information on collection points and their opening hours.
Defective or used rechargeable batteries must be recycled according to Directive 2006/66/EC and its amendments. Return rechargeable batteries and / or the device to the recycling facilities provided.
Improper disposal of rechargeable batteries may result in environmental damage!
Rechargeable batteries may not be disposed with household waste. They may contain toxic heavy metals and are subject to hazardous waste regulations. The chemical symbols of the heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead. Therefore dispose of used batteries through your local collection site.
- Warranty
The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.
The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it - at our choice - free of charge to you.
The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.
The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.
CE IP44
