USER MANUAL IAN 101260 Livarno Lux
LED CEILING LIGHT
GB
LED CEILING LIGHT
Assembly, operating and safety instructions
SI
LED-STROPNASVETILKA
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
PL
GB Assembly, operating and safety instructions Page 5

Introduction
Intended use....Page 6
Scope of delivery....Page 6
Parts description Page 6
Technical Data Page 6
Safety
Safety notices....Page 6
Preparation
Required tools and material....Page 7
Prior to installation....Page 8
Start-up
Mounting the light....Page 8
Directing the spotlight....Page 8
Changing the bulb....Page 8
Maintenance and Cleaning......Page 9
Disposal Page 9
Warranty and Service
Warranty Declaration......Page 9
Service address....Page 9
Declaration of conformity....Page 9
Manufacturer......Page 10
LED Ceiling Light
- Introduction

Congratulations on your new product. You have selected a high quality product. Please be sure to carefully read the complete operating instructions. Fold out the page with the illustrations. These instructions are part of the product and contain important information on setup and handling. Always follow all safety instructions. Before using this product for the first time verify the correct voltage and that all parts are properly installed. Should you have any questions or you are unsure about operating the product, please contact the dealer or service centre. Please keep these instructions in a safe place and pass them on third parties as applicable.
Intended use
This light is only suitable for indoor use in dry and enclosed spaces. The light can be fastened to any normally inflammable surface. This product is intended for private household use only.
Scope of delivery
Check immediately after unpacking that the parts are complete and that the product is in proper condition.
1 Ceiling light, model 3560-042L or 3563-048L
2 LED lamp, GU 10, 5 W (model 3560-042L)
2 LED lamp, E 14, 5 W (model 3560-042L)
4 LED lamp, GU 10, 5 W (model 3563-048L)
2 Glass plates (model 3560-042L)
1 Glass plate (model 3563-048L)
2 Chrome-plastic trim (model 3560-042L)
4 Chrome-plastic trim (model 3563-048L)
2 Screws (mounting bracket)
2 Retaining screws (connection housing)
2 Dowels
6 Pins (model 3560-042L)
6 Protective rings (rubber) (model 3560-042L)
1 Instructions for use
Parts description
1 Mounting bracket
2 Rawlplug
3 Retaining screws (connection housing)
4 Screws (mounting bracket)
5 Terminal block
6a Mains connection cable (external)
6b Protective tube
7 Connection housing
8 Lamp glass (model 3560-042L)
9 Pin (model 3560-042L)
10 Spotlight (model 3560-042L)
11 Chrome-plastic decorative ring
12 Glass plate
13 LED lamp
14 Distance support
15a Washer (large)
15b Washer (small)
16 Locating screw
16a Stainless steel plate
17 Protective ring (model 3560-042L)
18 Lamp (model 3560-042L)
Technical Data
Item no.: 3563-048L or 3560-042L
Operating voltage: 230-240V\~50Hz
Light bulb: LED lamp, GU 10, 5 W LED lamp, E 14, 5 W
Rated power max.: 4 x 5 W
Protection class: 1/
Protection type: IP20
Safety

Safety notices
Damage due to failure to comply with these operating instructions will invalidate the guarantee! We
assume no liability for consequential damage! We assume no liability for material damage or personal injury due to improper handling or failure to comply with the safety instructions!

Avoid the risk of fatal injury from electric shock
■ Ensure that a qualified electrician, or a person trained to carry out electrical installations, performs the electrical installation.
Always check the light, power supply, and mains cable for damage before plugging it in. Never use the light if it shows any signs of damage.

CAUTION! A damaged mains cable indicates a life-threatening danger due to electric shock. In the event of damage, repairs or other problems with the light please contact the service centre or a qualified electrician.
Prior to installation, remove the fuse or switch off the circuit breaker (0 setting) in the fuse box.
Prior to installation verify the mains voltage on site corresponds with the operating voltage required for the light (230–240 V\~).
- Ensure that the light does not come into contact with water or other liquids under any circumstances.
Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.
Do not install the light on a wet or conductive substrate!

Prevent fire and injury hazards

RISK OF INJURY! Check each lamp and lamp glass for damage immediately after unpacking.
Do not mount the light with defective lamps and/or lamp lenses. In this case contact the service centre for a replacement.

RISK OF BURNS! Ensure that the

luminaire has been switched off and has cooled before touching it, to
avoid burn injuries. Lamps develop a lot of heat in the area of the lamp head.

Allow the lamp to cool off completely.

Replace defective bulbs with new ones immediately. Before changing bulbs, always first remove the fuse or switch off the circuit breaker.


FIRE HAZARD! Fit the light so that it is at least 0.5 m away from the material to be illuminated. Excessive
heat can result in a fire.

Do not leave the light or packaging material lying unattended. Plastic film or bags, plastic parts, etc. can be dangerous for children to play with.

Safe working

Only use 230-240 V\~ LED lamps with an E14 socket and a maximum power of 5 Watts (model 3560-042L) or LED lamp GU 10 with a maximum power of 5 Watt (model 3560-042L or 3563-048L).
Mount the light so that it is protected from moisture and dirt.

Carefully prepare for assembly and allow yourself adequate time. Organise all parts and any necessary additional tools or materials before starting so they are easy to reach.

Always be attentive! Always pay attention to what you are doing and use common sense. Never install the light if you are having difficulty concentrating or do not feel well.

Preparation

Required tools and material
The tools and materials specified are not included. This information and these values are non-binding and are only provided as a reference.
The nature of the material is determined by the individual local conditions.
- Pencil/making tool
- Voltage tester
- Screwdriver
- Electric drill
- Bit (ø approx. 0.6 cm)
- Side cutting pliers
- Ladder
- Prior to installation
Important: The electrical connection must be established by a qualified electrician or a person trained to perform electrical installations. This person must be familiar with the properties of the light and the connection regulations.
Familiarise yourself with all the instructions and diagrams in this manual, as well as with the light itself, before you install it.
Before installation ensure that the circuit, to which the light will be connected, is not energised. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position).
☐ Use the voltage tester to verify the de-energised status.
- Start-up
- Mounting the light

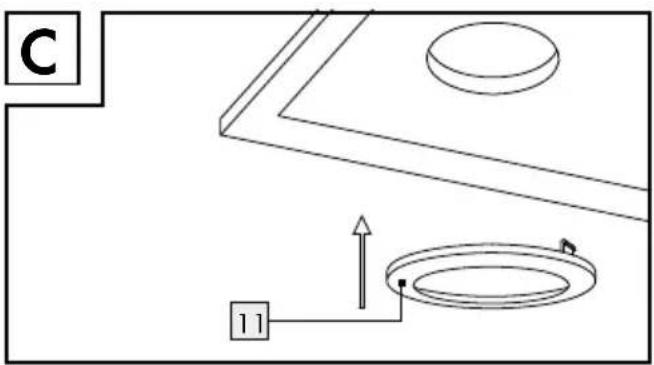

☐ Install the chrome-plastic trim onto the smooth side of the glass plate 12 by pressing them into the designated openings on the glass plate 12.

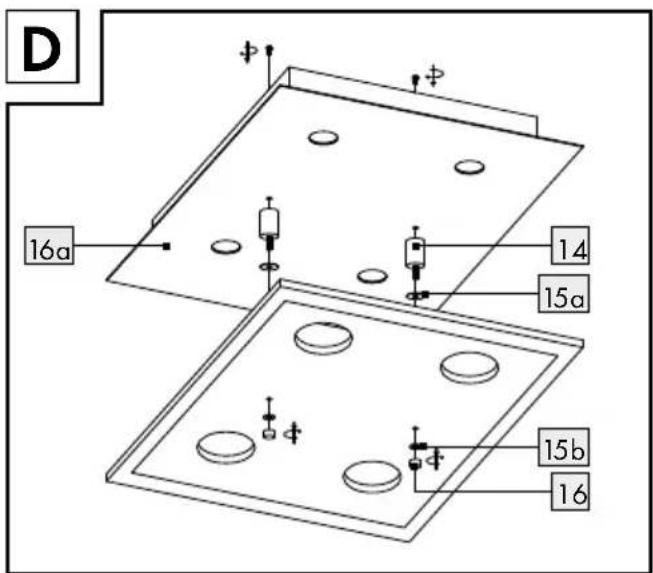

Place the stainless steel plate 16a onto the light (model 3563-048L).
☐ Secure the spacer bracket 14 to the light with the screws provided.
Place the washers (large)15a onto the spacer 14.
☐ Now place the glass plate 12 onto the bracket and secure with the plain washer (small) 15b and fixing screw 16.
Remove the screws visible at the side of the connection housing 7 and remove the mounting bracket 1 at the back.
☐ Use the slotted holes in the mounting bracket intended for the screws to mark the bores.
Now drill the fixing holes (approx. 6 mm, depth approx. 40 mm). Ensure that you do not damage the supply line.
☐ Feed the mains cable (external) 6a through the protective tubes 6b.
☐ Insert the rawlplugs into the bores.
☐ Fasten the mounting bracket with the provided screws 4.
Now connect the connection cable of the light to the mains connection cable (external) 6a using the included terminal block 5.
Note: Be sure to correctly connect each of the individual wires of the mains connection cable (external): live wire, black or brown = symbol L, neutral wire, blue = symbol N, earth wire, green-yellow = symbol ⊥.
Now use the screws to connect the light to the mounting bracket 1.
☐ Use a clean, lint-free cloth to insert the lamps.
Carefully insert the GU10 LED light (model 3560-042L, 3563-048L) into the socket and secure with a 14 turn clockwise. Verify it is correctly seated.
☐ Model 3560-042L: Push a protective ring 17 into each opening on the lamp glass 8.
☐ Secure the lamp glass to the spotlight 10 using the pins 9.
□ Row the light bulb 18 clockwise into the socket. Verify it is correctly seated.
Your light is now ready to use.
- Directing the spotlight (model 3560-042L)
☐ Only change the direction of the spotlights when the light is switched off.
☐ Allow the lamp to cool off completely.
☐ Position the individual spotlights by their base. The spots can be turned by approx. 320^ .
- Changing the bulb
CAUTION! RISK OF ELECTRIC SHOCK!
First disconnect the light from the mains when replacing the lamp. To do so, remove the fuse or switch off the circuit breaker in the fuse box (position 0).
☐ Allow the lamp to cool off completely.
☐ Turn the defective E14 LED lamp (model 3560-042L) counter-clockwise out of the socket, remove the defective GU10 LED lamp (model 3560-042L, 3563-048L) with a 14 turn counter-clockwise.
☐ Use a clean, lint-free cloth to replace a bulb.
Only use 230-240 V\~ LED lamps with an E14 socket and a maximum power of 5 Watts (model 3560-042L) or LED lamp GU 10 with a maximum power of 5 Watt (model 3560-042L or 3563-048L).
☐ Screw the new E14 LED lamp (model 3560-042L) clockwise into the socket. Carefully insert the GU10 LED light (model 3560-042L, 3563-048L) into the socket and secure with a 14 turn clockwise. Verify it is correctly seated.
● Maintenance and Cleaning
CAUTION! RISK OF ELECTRIC SHOCK!
Disconnect the light from the mains circuit before cleaning. To do so, remove the fuse or switch off the circuit breaker in the fuse box (0 position).
CAUTION! RISK OF ELECTRIC SHOCK!
For electrical safety, never clean the light with water or other liquids, or immerse it in water.
CAUTION! DANGER OF BURN INJU-
RIES! Allow the light to cool completely.
Do not use solvents, benzene or similar substances. They could damage the light.
☐ Only use a dry, lint-free cloth for cleaning.
- Disposal
The package and packaging materials consist entirely of environmentally friendly materials. They can be disposed of at your local recycling facility.

The symbol of the wheelie bin with the line through it indicates within the European Union, this product must be disposed
of through separate refuse collection. This applies to the product and to all components bearing this symbol. Do not dispose of products bearing this
symbol in your normal household waste, but instead they must be taken for recycling to a collection site for electrical and electronic appliances. Recycling helps to reduce the consumption of raw materials and protects the environment.
Batteries must not be disposed of in the household trash! Return batteries and / or the device to a a local recycling facility.
● Warranty and Service
WarrantyDeclaration
This product has a 3 year guarantee from the date of purchase extended only to the original buyer, not transferable. Please keep your receipt as proof of purchase. The guarantee applies to material or manufacturing defects only. It does not cover wear items or damage caused by improper use. Any modifications will void the guarantee. This warranty does not limit your legal rights. Please phone the service centre for guarantee claims. This is the only way to return your product free of charge.
Serviceaddress
Please have your receipt and the article number (e.g. IAN 12345) ready as your proof of purchase when enquiring about your product.
Declaration of conformity
This product fulfils the requirements of the applicable European and national directives (Electromagnetic Compatibility 2004/108/EC, Low Voltage
Directive 2006/95/EC, Ecodesign Directive 2009/125/EC, RoHS Directive 2011/65/EU). Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.
Manufacturer
59929 Brilon (Germany)
