Brand	Hoover
Model	HBG520S
Product type	Suspended cooker hood for gas/electric stove
Power supply	220-240 V ~ 50 Hz
Motor power	Approx. 200 W (estimated)
Lighting	LED 2.5 W (DBS-2.5/65-H-120/33)
Number of speeds	4 (Low, Medium 2, Medium 1, High)
Control	Touch panel and RF remote control (433.92 MHz)
Timer	Yes, 5 minutes with automatic shut-off
Grease filter	Metal, dishwasher safe (max 50°C)
Charcoal filter	Optional (to be installed separately)
Minimum installation height (above a gas stove)	65 cm
Maximum recommended distance above cooking surface	150 cm
Ceiling load capacity	Minimum 120 kg
Housing dimensions (estimated)	900 x 500 x 150 mm (W x D x H)
Weight (estimated)	Approx. 25 kg
Safety function	Automatic speed reduction after 7 minutes at high speed
Maintenance	Clean filters and surfaces regularly
Available spare parts	LED bulb, grease filters, remote control
Repairability	Replacement of lighting and filters by user; other interventions by professional
Standards	CE, Directive 2014/53/EU (radio), WEEE 2012/19/EU

Frequently Asked Questions - HBG520S HOOVER

How to clean the grease filters of the hood?

The grease filters are made of metal. Clean them by soaking in hot water (40-50°C) with liquid detergent for 2-3 minutes, then gently scrub with a soft brush. You can also place them in the dishwasher at 50°C. Never use corrosive detergent. Before any cleaning, unplug the appliance.

How to connect the remote control to the hood?

After plugging in the hood, press the panel button for 5 seconds (within 15 seconds of powering on): the indicators flash. Then press any button on the remote control to confirm the connection. To clear a previous code, press and hold the button again for 5 seconds, then repeat.

What minimum distance should I maintain between the hood and my cooktop?

For a gas stove, the minimum distance between the surface of the pots and the lowest part of the hood is 65 cm. For an electric stove, consult the manufacturer's recommendations. The maximum recommended height is 150 cm for optimal operation.

How to set the timer on the hood?

Make sure the hood is running (motor and light on). Press the timer button: the display shows '5' and the countdown begins (5, 4, 3, 2, 0). At '0', the hood turns off completely. If you change speed during the countdown, the count recalculates.

What to do if the remote control does not work?

First check the batteries of the remote control. If the problem persists, reset the connection: unplug the hood, plug it back in, then press the panel button for 5 seconds to enter pairing mode. Then press a button on the remote control. If that does not work, contact customer service.

How to replace the LED bulb of the hood?

First unplug the power supply. Use a screwdriver to remove the screws of the lighting panel. Disconnect the terminal block and replace the bulb with a new one of type DBS-2.5/65-H-120/33 (2.5 W, 220-240 V). Handle the bulb with a cloth to avoid direct contact. Screw the panel back on.

Does the hood automatically turn off after a certain time?

Yes, a safety function automatically reduces the speed of the hood after 7 minutes of operation at high speed (level 4) or at level 1, switching to level 2. This prevents prolonged use at full power. The manual timer turns off the hood after 5 minutes.

Can I use the hood with a gas cooktop?

Yes, but make sure the room is properly ventilated. Never flambé food under the hood and maintain a minimum distance of 65 cm between the hood and the gas cooktop. Do not connect the exhaust duct to a system used by other combustion appliances.

How to install the hood on the ceiling?

The installation must be carried out by a professional. The ceiling must support at least 120 kg and have a thickness greater than 30 mm. Fix two suspension plates with expansion screws, then assemble the angle bars at the desired height. Connect the exhaust duct and fix the hood body to the plates. Consult the full manual for detailed steps.

Where can I find the full manual of the Hoover HBG520S hood?

The full manual in French is available for free on notice-facile.com. You can download it in PDF format. It contains all installation, use, maintenance instructions and diagrams.

USER MANUAL HBG520S HOOVER

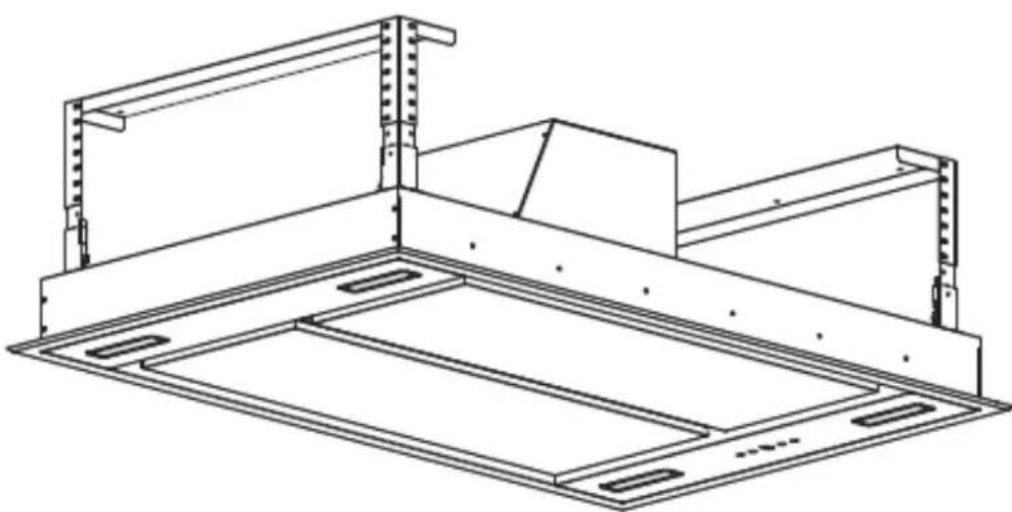

Technical line drawing of a structural frame assembly (no text or symbols)

ENGLISH(EN)----page 001

GERMAN(DE)----page 019

FRENCH(FR)----page 039

DUTCH(NL)----page 059

PORTUGUESE(PT)----page 079

CECO(CZ)----page 100

ITALIANO (IT)----page 120

POLISH (PL) --page 141

SLOVAK (SK)----page 160

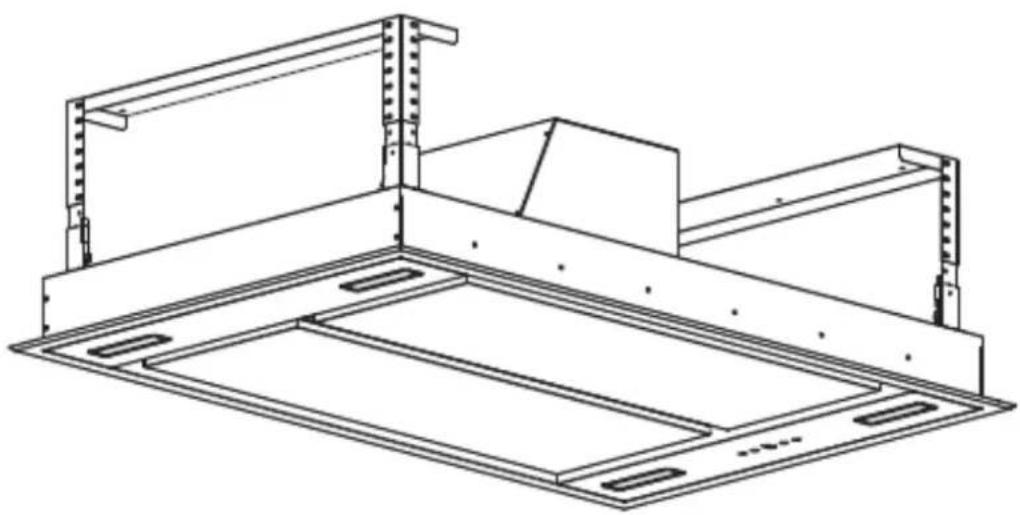

Instruction Manual

Technical line drawing of a structural frame assembly (no text or symbols)

This Installation manual only applicable to Detachable ceiling decorative board

WARNING

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

The instructions shall state the substance of the following:

– there shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room);

– the details concerning the method and frequency of cleaning;

– there is a fire risk if cleaning is not carried out in accordance with the instructions;

– do not flambé under the range hood;

- CAUTION: Accessible parts may become hot when used with cooking appliances.

The installation instructions shall include the substance of the following:

– the air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room);

- the minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood. (When the range hood is located above a gas appliance, this distance shall be at least 65 cm.

– regulations concerning the discharge of air have to be fulfilled.

The installation instructions for range hoods with accessible metallic enclosures of class II construction shall include details that indicate the location and maximum permitted lengths for any fixing or mounting screw or other fixing device that penetrates into the range hood to attach an accessory such as a facia or duct fitting.

Where fixing or mounting screws, or other fixing devices are used, that penetrate into the range hood with an accessible metallic enclosure of class II construction, to attach an accessory, the instructions shall indicate the required location of these screws or fixing devices and include the substance of the following warning.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards

With this the Candy Hoover Group, declares that this appliance marked with complies with the essential requirements of the Directive 2014/53/EU.

To receive a copy of the declaration of conformity, please contact the manufacturer at: www.candy-group.com.

SAFETY PRECAUTION

Keep children away from the product when it is operating and do not allow them to play with or near the product.

The cooer hood is for domestic use only, not suitable for barbecue, roast shop and other commercial use.

All installat ion work must be carried out by a competent person or qualified electrician

The cooker hood and its filter mesh should be cleaned regularly in order to keep in good working order.

The cooker hood must be disconnected to from the power supply before cleaning procedures

Clean the cooker hood according to the instruction manual to avoid the risk of electric shock or product damage.

Do not light up any fire directly under the cooker hood.

If there is any fault with your cooker hood, please call the service department immediately

Please ensure there is enough ventilation when you are using the cooker hood and hob at the same times.

Do not connect the ducting system of the cook-er hood to existing ventilation system which it is being use for gas hob or other fuel burning appliance.

Make sure that the voltage (V) and d wattage (W) shown on the cooker hood label are same as the local require before installation and use.

To ensure the cooker hood perform in perfect condition, please read the instruction manual c arefully be fore in stallation and usag e, keep it in a right place

In order get our best service on cooker hood, Please keep the maintenance card and invoice. Othe rwise, the warrant y service will be void.

◇

Controls

Several button on the controls panel which perform different function separately (refer to photo 1)

When you initially connect your hood to the electrical supply. The LCD display backlight will turn on. The backlight will be turn off after 30 seconds if no buttons are pressed.

Photo 1

Light control

- Press the light button once to turn the cooker hood light on. Press the light button again to turn the cooker hood light off. The lighting button it is controlled separately and will not affect any other functions.

Power control

- Press the power button once, power indicator light on and the cooker hood run at Medium 2 speed, with moto speed button and lighting button light on. Press the Power button again, the cooker hood will be power off and the indicator light off together, the cooker hood in standby mode.

Speed increasing selection

- The speed function totally with 4 speed selection. Low, Medium2, Medium1, High speed. The speed symbol will appear from LCD display as: "1", "2", "3", "4".

- Press the button, the indicator light on. The motor run at low speed."1" will appear on LCD display.

- When the motor run at low speed, you may press the button shift motor speed to medium2, "2" speed symbol will appear on LCD display.

- When the motor run at medium2 speed, you may press the button shift motor speed to medium1, "3" speed symbol will appear on LCD display.

When the motor run at medium1 speed, you may press the button shift motor speed to high, "4" speed symbol will appear on LCD display.

When the motor run at high speed, press the working at high speed mode.

button, the motor keep

- When the hood on shift working, the motor speed run at High and Medium1 speed cumulative work for 7 minutes it will automatically shift to speed medium2.

Speed decreasing selection

- Press the button once, the speed level will be decreased to a lower

one, the speed level no. will appear on LCD display. Press there repeated till the speed level to "0", the cooker hood will be switch off and the indicator light off together.

Timer control

- When the cooker hood in working mode, included motor speed run and light turn on, you are able to setting the timer.

Before setting the timer, keep the hoods at the speed you would like it be, press the timer button. Timer delay for 5 minutes, "5" appear on LCD display. The no. will be decrease to "4,3,2" in every minute. When "0" appear on the display, the power will be shut off. Motor stop working and the lighting will be turn off at the same time.

• After setting the timer, the timer will recalculate if the motor speed shifted.

Connecting the remote control

• A New remote control has to establish a new connection to the cooker hood when used for first time. One remote control could possibly control several cooker hoods at the same time.

Connection process between remote control and cooker hood

- Press for 5 seconds within 15 seconds of cooker hood plug in, the indicators light begin flashing, the cooker hood is in connection mode, press any bottom on remote control to confirm the connection. The connection process finished and the remote control can be used for speed selection, lighting and timer setting.

‘If you want to connect again, you will need to clear the code that has been set up previously.

• To clear the code, press

for 5 seconds, the indicators light begin

flashing, the cooker is in connection mode. Then, press seconds, the previous connection code is cleared.

again for 5

- When the previous code has been cleared, the cooker hood back to standby

mode, press for 5 seconds, the indicate light flashing from one button to another, the cooker hood it in connection mode, then, press any bottom on remote control to confirm the connection.

- The remote control can set up the turning on/ increasing motor speed, turning off/Decreasing motor speed, timer on/off and light on/off functions.

Remote control

Lighting

Press button once, the light is on, press again, the light is off. The lighting button it is controlled separately and will not affect any other functions.

Turning on/ Increasing motor speed

1^st press, Low speed

2^nd press, Medium 2 speed

3^rd press Medium 1 speed

4^th press High speed

- When the hood on shift working, the motor speed run at High and Medium1 speed cumulative work for 7 minutes it will automatically shift to speed medium2.

Turning off/ Decreasing motor speed

Press the button and the motor begins shift to a lower speed and the LCD screen display the speed level. Repeating press the button, it keeps on decreasing the motor speed to till the cooker hood turning off.

Timer

Press the button to set up the timer on/off function.

- When the cooker hood in working mode, included motor speed run and light turn on, you are able to setting the timer. Set timer delay for 5 minutes. After 5 minutes, the power will be shut off. Motor stop working and the lighting will be turn off at the same time.

·After setting the timer, the timer will recalculate if the motor speed shifted.

Installation

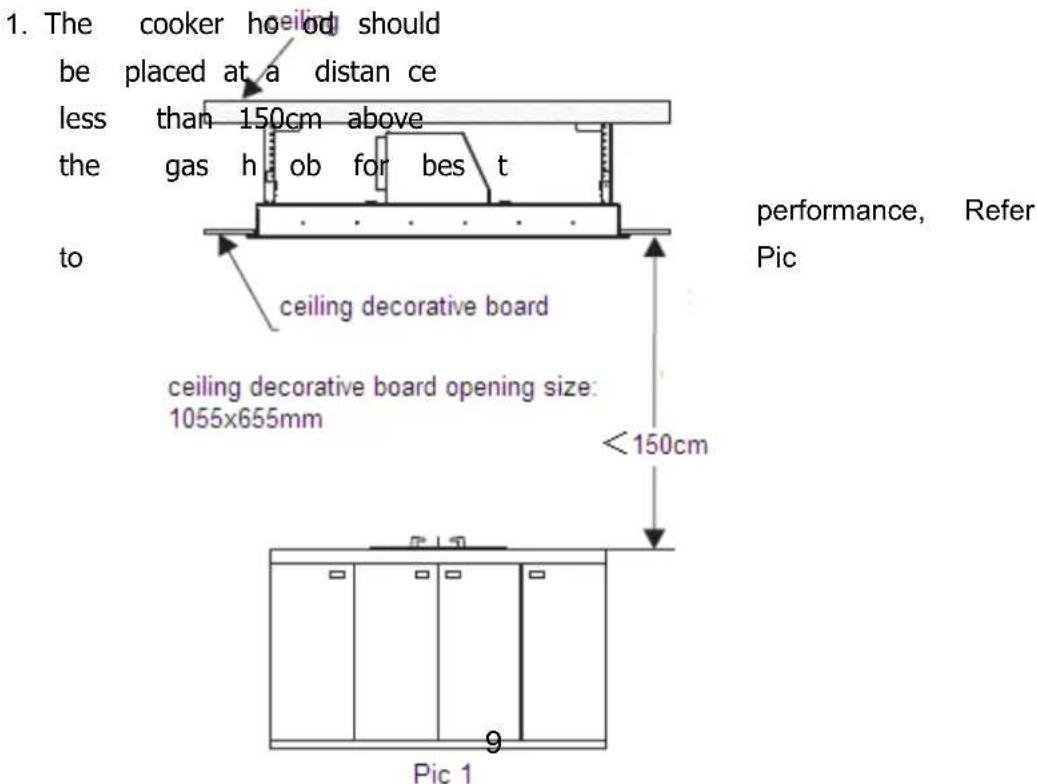

1. The ceiling should be able to bear at least 120KG in weights and the thickness must more than 30mm.

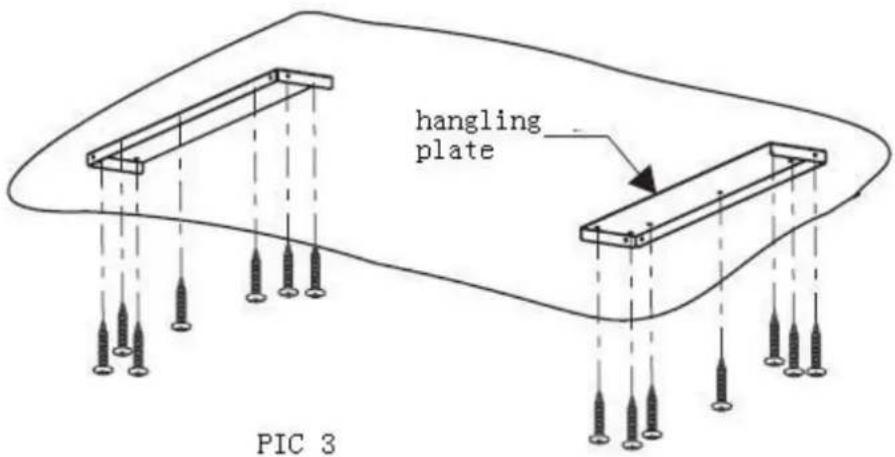

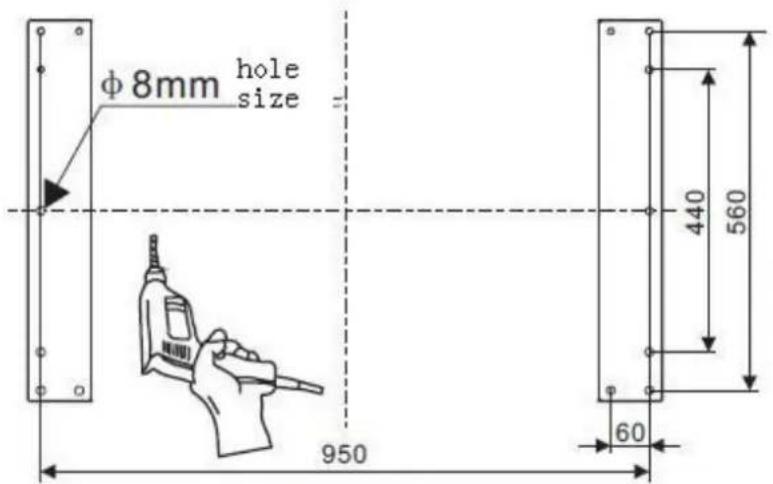

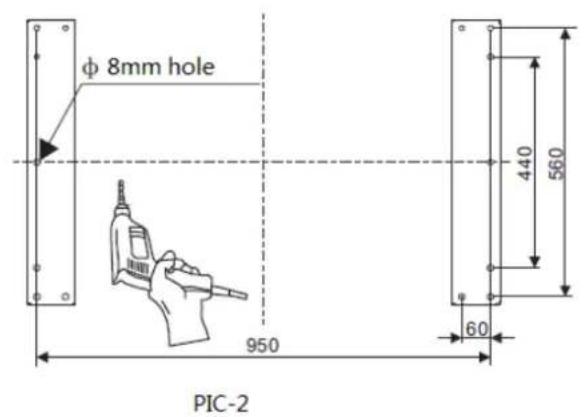

2. Positon the hanging plate on the ceiling and then mark the position of screw holes(refer to pic 2). Drill 14 pcs holes at diame ter 8mm on the ceiling and 2pcs of han ging plate should be se curely fixted to ceiling by using 14pcs expansion screws( or 14pcs ST6 x40MM tappi ng screws and wall plugs). Refer pic 3

Pic 2

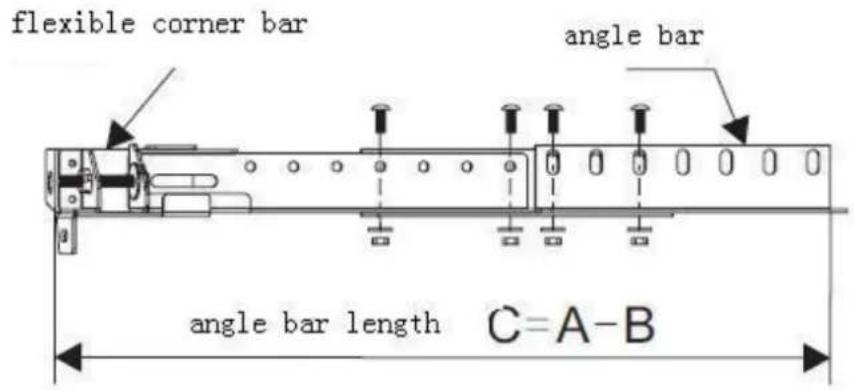

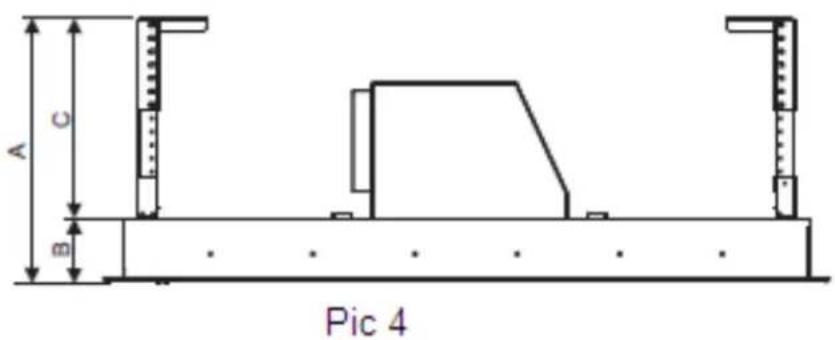

1. Calculate t he length of angle bar(refer to pic 4/5), adjust the corner connector bar to the r required height, then fix t hem with angle bar u sing the 10mm x M4 nut and b olts with metal washer (32pcs), the angle bar must have an overlap of at least 36mm.

Pic 5

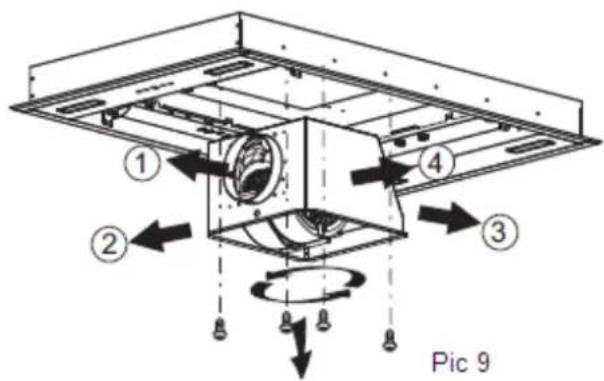

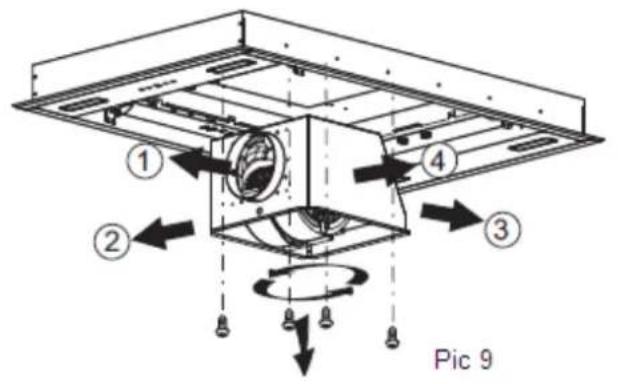

1. As pic 9 shown, choose the direction of the outlet①/②/③/④

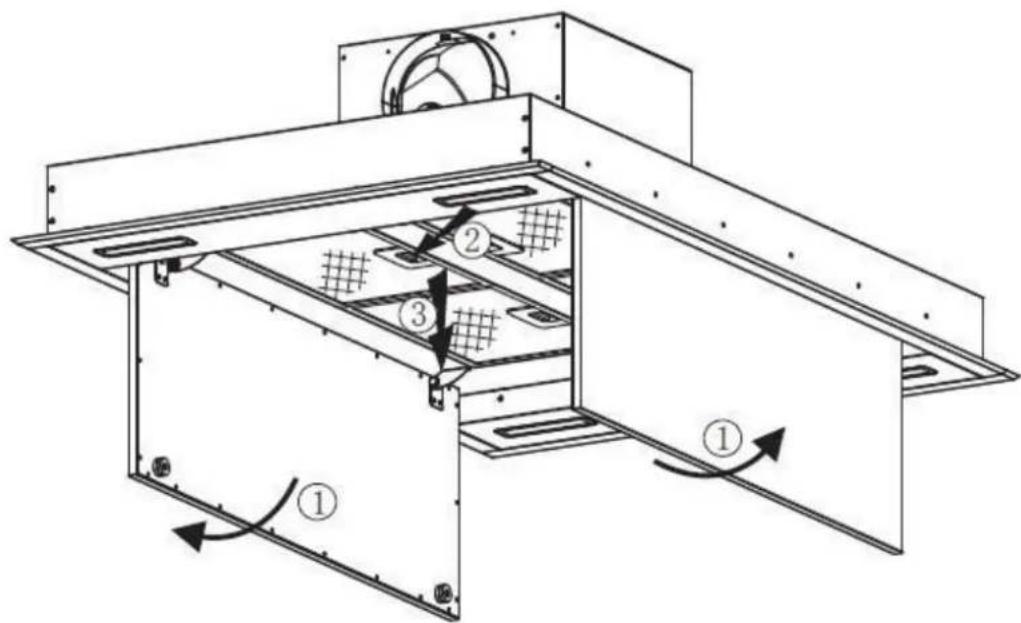

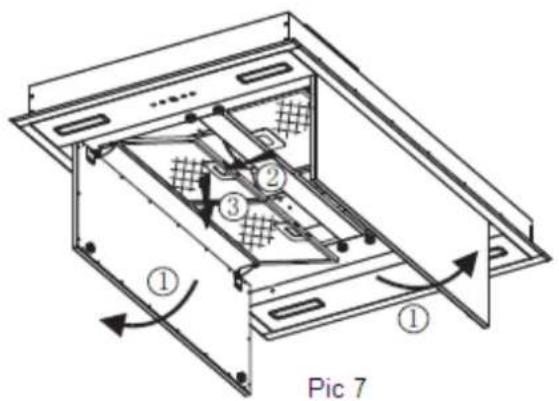

a. Refer to Pic 7, open the decorative plate in order, and take out the filter.

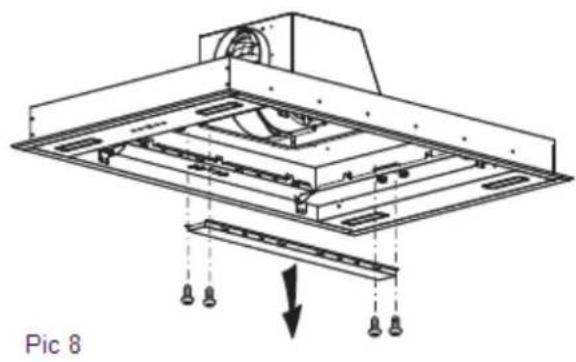

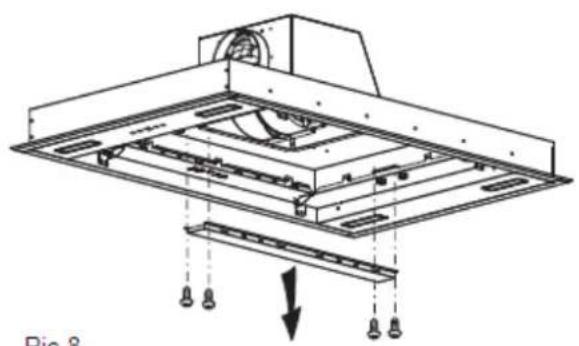

b. Refer to Pic 8, unscrew and take away the 4 pcs ST4*8mm screws that on the panel decorative strip.
c. Unscrew the 8pcs machine silk from the bottom of the cabinet housing and rotate it by 90^ / 180^ / 270^ to choose the direction of the outlet, then screw the 8 pcs machine silk to fix the housing well;
d. Install the panel decorative strip and filter well apply to the reverse order of a/b steps above, meanwhile, install the expansion pipe to the outlet (refer to pic 10).

Technical diagram of a mechanical assembly with hanging components and a downward arrow indicating motion (no text or symbols)

Pic 8

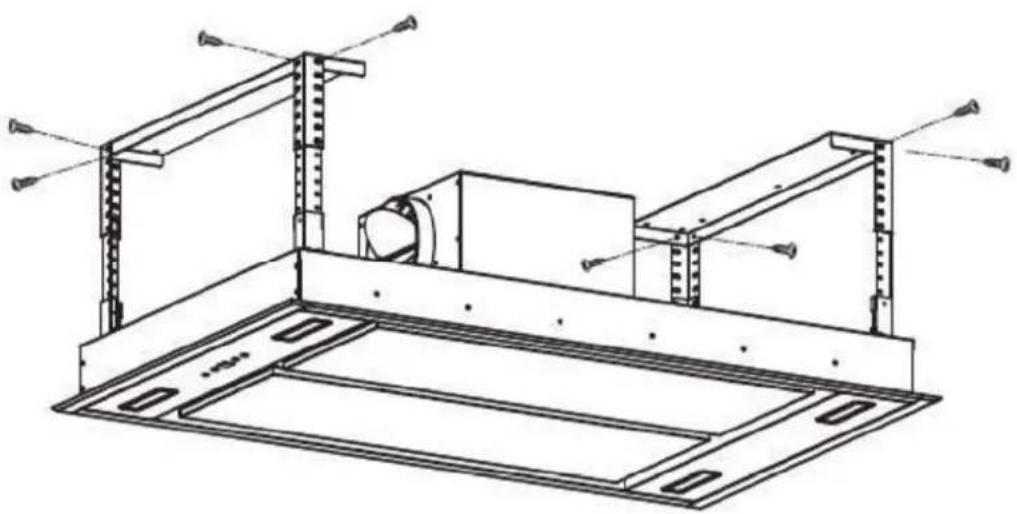

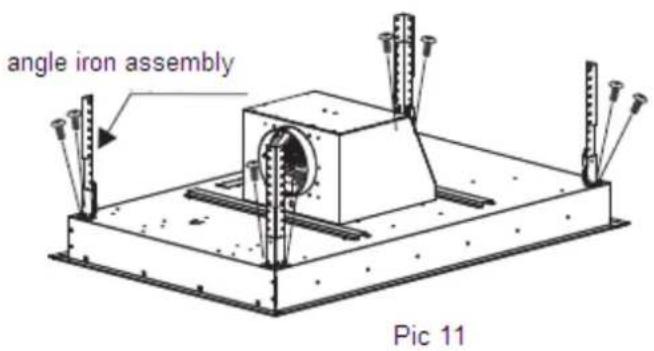

1. Use M4X 10MM screws(8pcs) to fix the corner connector bar (4pcs) onto the main body of the cooker hood. Refer pic 11&pic 12.

Technical diagram of a mechanical assembly with two plates and mounting brackets, labeled 'Pic 12' (no text or symbols on the diagram itself)

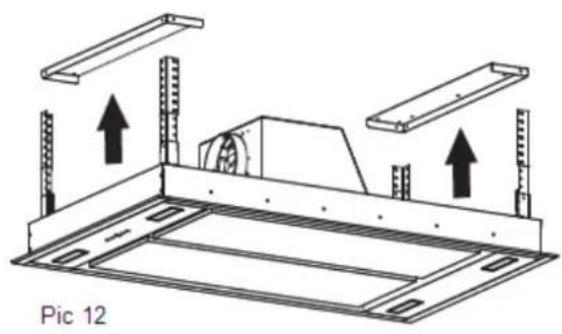

Lift the main body of the cooker hood toward the hanging plate, use M4 x 12mm bolts and nut with metal washer (8pcs) to attach the angle bar to the hanging plate(2pcs). the ducting hose should be connected to your external ducting at this stage. Refer to pic 12/13

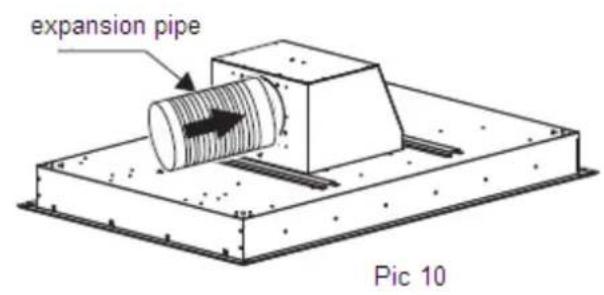

Important: 1. the ducting hose must be securely fixed onto the body of the cooker hood. 2. All the he screws must be fully tightened.

Technical line drawing of a mechanical assembly with supports and a central component (no text or symbols)

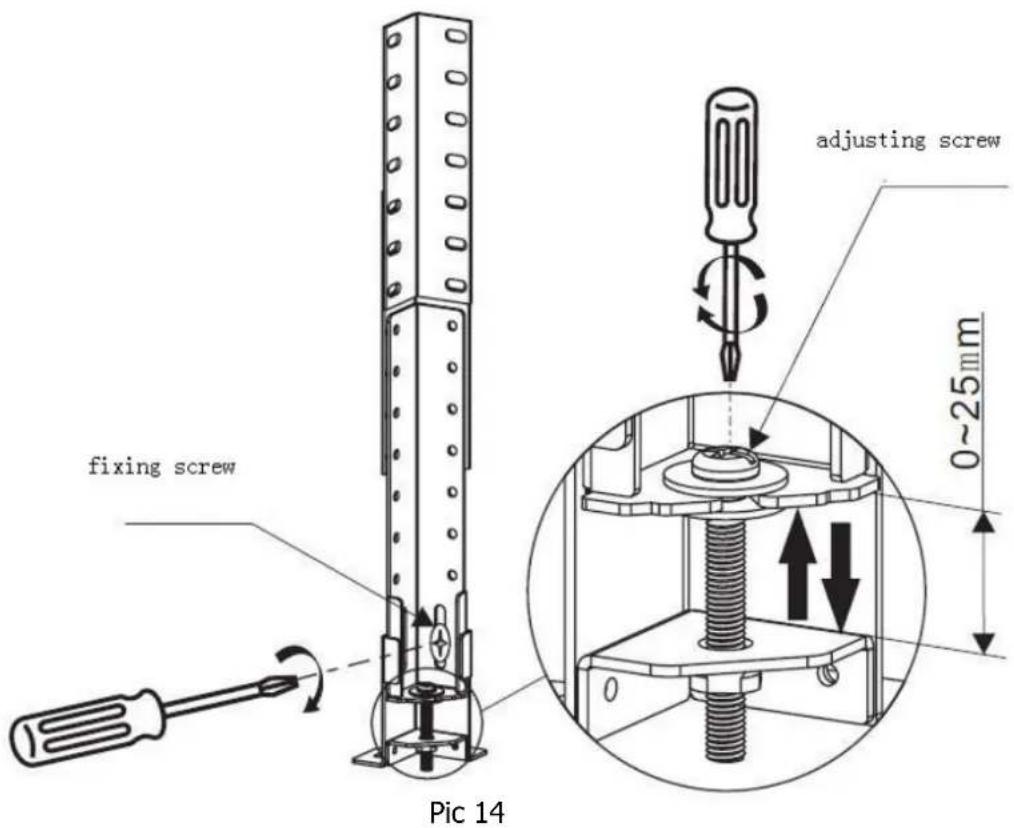

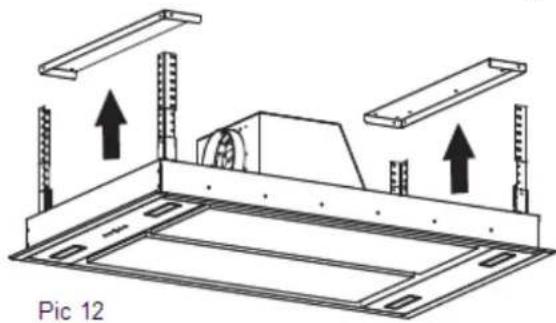

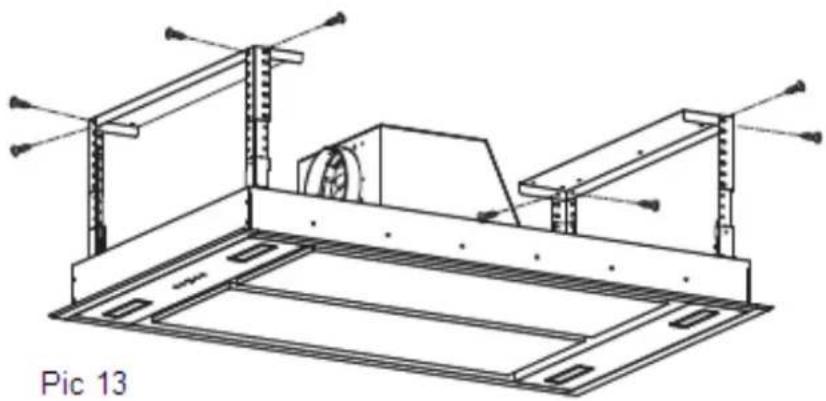

1. When the main body of the cooker hood is fixed on the hanging plate, if you want to set the body of the cooker hood in hori zontal position and a djust it to the required height , you may use straight or cross screwdriver to adjust the screw on the fl exible corner. The detail setting meth od refer to pic 14, adjust th e s crew on each flexibl e corner by using g th e screw driver towards clockwise di rection, the body of the cooker hood will move up to hanging plate. When you a djust th e screw on each fl exible corner by using the screwdriver towards anticlockwise direct ion, the body of the co oker hood will move down to the floo r. The body of the cook er hood in horizontal position and d required height ar e well f ixed. Use th e cross sc rewdriver tighten the fixing screw on the flexible corner.

Care and Cleaning

Removing the clean the grease filters

1. Remove the grease filters of the cook hood should following the cleaning procedure as pic 13 shown.

2. Cleaning the grease filter you may refer to following method:

A. Sock the grease filter in 40°-50°warm water and washing up liquid for about 2 -3 minutes. Then use a soft brush to lo osen a ny gr ease deposits have formed. Wash it in a soft way, otherwise the filter will be damage.

B. You may use the dish washer to clean the grease filter. Put the filters into the dishwasher with washing up liquid. Set the temperature of 50^

C for water in t he dishwasher. And t hen turn on the switch for washing function.

C. All the grease filters are made by metal, never use the corrosion cleaning liquid for washing the grease filter.

Important: Before cleaning, always ensure that you have shut of the power supply of the cooker hood.

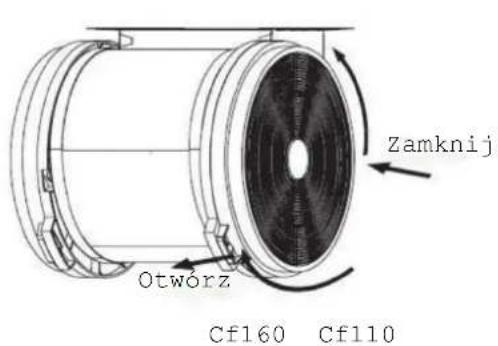

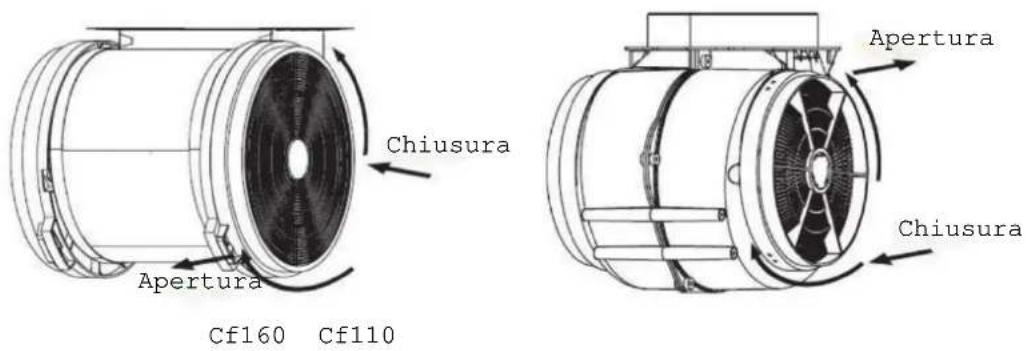

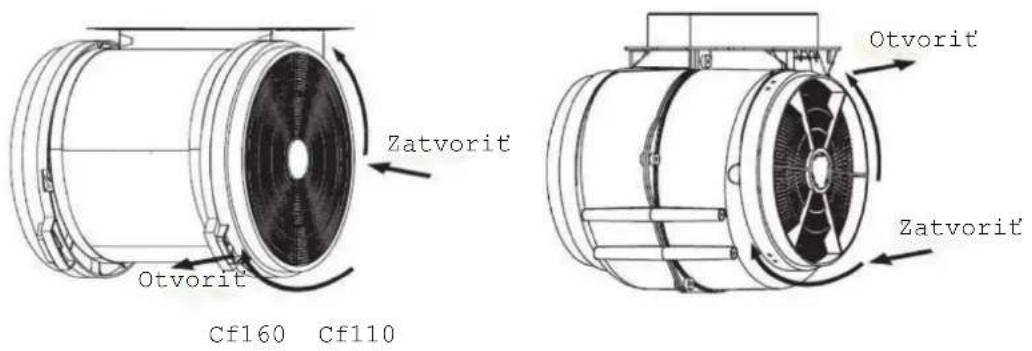

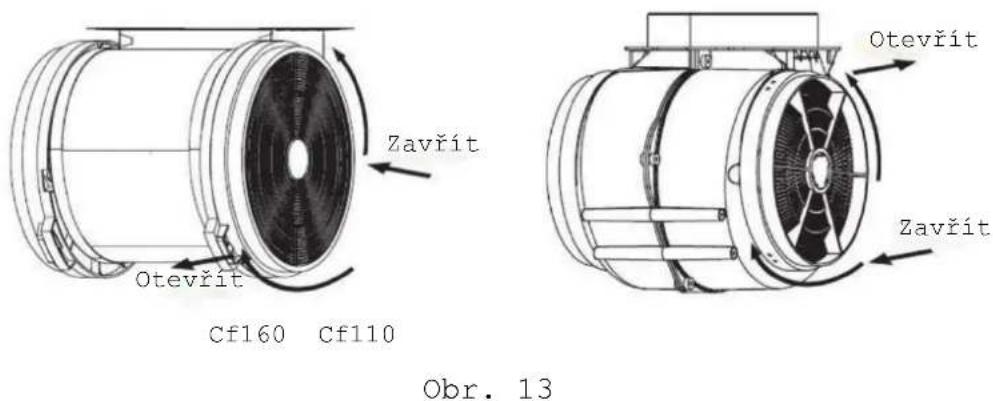

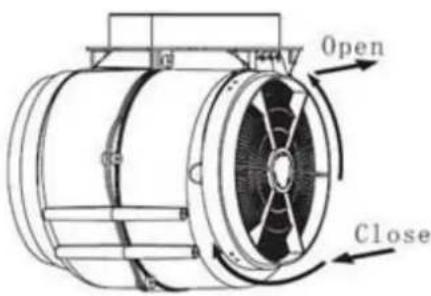

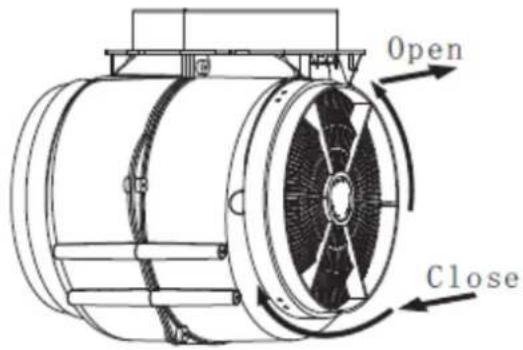

Fix the carbon filter into the cooker hood, installation and disassemble please refer to pic 13

PIC 13

Cf110

BULB REPLACEMENT

Important :

✧ The bulb must be replaced by the manufacturer, its servi ce agent or similarly qualified persons.✧ Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it is completely cool down before any direct contact to hands.✧ When handling gl obes hol d with a cloth or gloves to ensure perspiration does not come in contact with the gl obe as this can reduce the life of the globe.

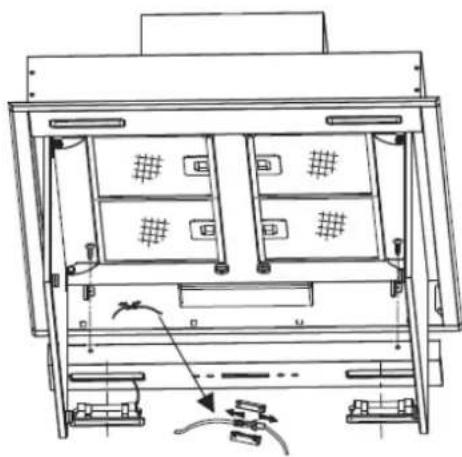

Changing a lamp bulb for LED

Use the screw driver loosen the ST4*8MM self tapping screw (2pcs) from the lighting panel, ta ke out t he lighting fixture. Open the terminal box that connected with the wire, disconnect the wire connector and replace the lamp.

• ILCOS D code for this lamp is: DBS-2.5/65-H-120/33
• LED modules -rectangle lamp
• Max wattage: 2.5 W
  – Voltage range: AC 220-240V
• Dimensions:

Technical line drawing of a mechanical or electronic device with internal compartments and mounting points (no text or symbols)

RC remote controller-radio equipment intentionally emitting radio waves

Parameter	Specifications
Wireless Standard	ETSI EN 300 220-2 V3.1.1
Frequency Range	433.92 MHz ± 50 kHz
Max Trasmit Power	-27.21dbm
Minimum Receiving Sensitivity	/
Channel	1

ENVIRONMENTAL PROTECTION:

This product is marked according to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle other materials.

WEEE shall not be treated as household waste. For more information, please contact your local or regional authorities.

Note :

a. In order to reduce the environmental impact (e.g. energy use) of the cooking process, please be sure that your product is installed according to the user manual, keep the operation place ventilated, keep the

extraction duct be direct and short as possible as it can be.

b. For the product with manual operation mode, we suggest switch the motor off within 10 minutes after finishing the cooking process.
c. Please be sure to dismantle related components according to the user manual when maintaining for non-destructive, protect the parts to make the re-installed work can be favoring and avoid damage.

By placing the CE ( ) marking on this product, we declare, on our own responsibility, compliance to all of European safety, health and environmental requirements stated in the legislation for this product.

Bedienungshandbuch

Technical line drawing of a structural frame assembly (no text or symbols)

Beleuchtung

Technical line drawing of a mechanical assembly with supports and a central component (no text or symbols)

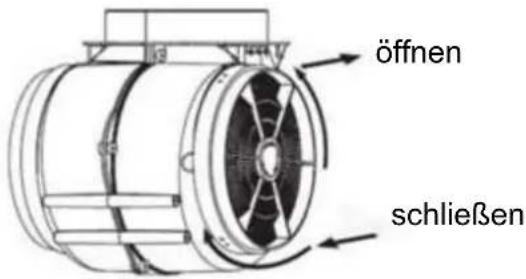

Abb. 13

ABB. 15

Technical line drawing of an internal rack or storage unit with multiple compartments and mounting hardware (no text or symbols)

Technical line drawing of a structural frame assembly (no text or symbols)

Éclairage

Technical line drawing of a mechanical assembly with supports and a central component (no text or symbols)

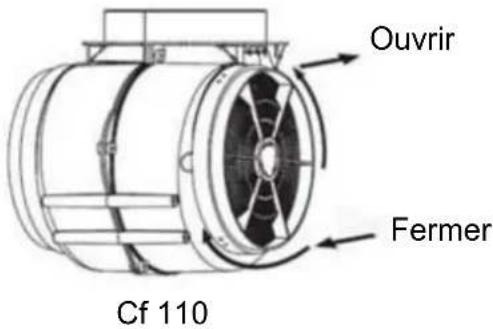

Fig. 13

Fig. 15

Fig. 15

REEMPLACEMENT D'UNE LAMPE

Important :

Technical line drawing of a rack-mounted device with internal compartments and mounting hardware (no text or symbols)

Technical line drawing of a structural frame assembly (no text or symbols)

Verlichting

Technical diagram of a structural frame with two horizontal plates and vertical supports, showing upward force arrows (no text or symbols)

Afb. 12

Technical line drawing of a mechanical assembly with supports and a central component (no text or symbols)

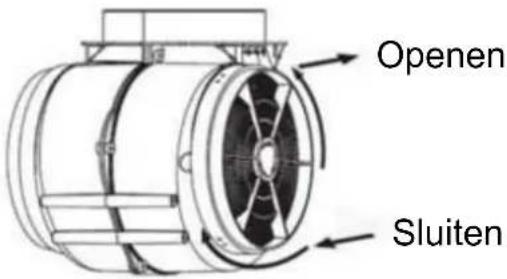

AFB. 13

AFB.

Cf 110

AFB. 15

LAMP VERVANGEN

Belangrijk:

Technical line drawing of a multi-chamber electronic device with no visible text or symbols

Technical line drawing of a structural frame assembly (no text or symbols)

Índice

Diagram of airflow around a mechanical structure with directional arrows indicating movement (no text or symbols)

PIC-5

Technical diagram of a mechanical assembly with labeled components and directional arrows (no readable text or symbols)

Pic 11

Technical diagram of a mechanical assembly with two metal plates and mounting brackets, labeled 'Pic 12' (no text or symbols on the diagram itself)

Technical line drawing of a mechanical assembly with supports and a central component (no text or symbols)

Pic 14

Iluminação

Abstract line drawing of a stylized animal figure with a circular head and arrow, no text or symbols present.

Cf110

NOTA:

Technical line drawing of a server rack with multiple compartments and connectors (no text or symbols)

RC remote controller-radio equipment intentionally emitting radio waves

Parameter	Specifications
Wireless Standard	ETSI EN 300 220-2 V3.1.1
Frequency Range	433.92 MHz ± 50 kHz
Max Trasmit Power	-27.21dbm
Minimum Receiving Sensitivity	/
Channel	1

Technical line drawing of a structural frame assembly (no text or symbols)

Osvětlení

Technical diagram of a mechanical assembly with two vertical supports and a central component, showing upward arrows indicating motion (no text or symbols present)

Obr. 10

Technical line drawing of a structural frame assembly with mounting brackets and support beams (no text or symbols)

Obr. 11

Obr. 13

Výměna žárovky

Technical line drawing of a mechanical assembly with mounting brackets and a tool (no text or symbols)

Obr. 15

Technical line drawing of a ceiling structure with mounting bracket and hanging fixture (no text or symbols)

Obr. 16

Technical line drawing of a server rack with internal compartments and cable connections (no text or symbols)

Obr. 17

OCHRANA ŽIVOTNÍHO PROSTŘEDÍ

Technical line drawing of a structural frame assembly (no text or symbols)

Illuminazione

Technical line drawing of a mechanical assembly with two vertical supports and an internal component, no text or symbols present.

Figura 10

Technical line drawing of a mechanical assembly with mounting brackets and structural supports (no text or symbols)

Figura 11

Figura 13

Figura 13

Technical line drawing of a mechanical assembly with a tool and base plate (no text or symbols)

Figura 15

Technical line drawing of a ceiling structure with mounting bracket and hanging fixture (no text or symbols)

Figura 16

Technical line drawing of a server rack with internal compartments and cable connections (no text or symbols)

Figura 17

Technical line drawing of a structural frame assembly (no text or symbols)

Oświetlenie

Technical line drawing of a mechanical assembly with two vertical supports and an internal component, no text or symbols present.

RYS. 10

Technical line drawing of a mechanical assembly with mounting brackets and structural supports (no text or symbols)

RYS. 11

RYS. 13

Technical line drawing of a mechanical assembly with mounting brackets and a tool (no text or symbols)

RYS. 15

Technical line drawing of a ceiling structure with mounting bracket and hanging fixture (no text or symbols)

RYS. 16

Technical line drawing of an internal rack-mounted device with multiple compartments and connectors (no text or symbols)

OCHRONA ŚRODOWISKA:

Technical line drawing of a structural frame assembly (no text or symbols)

Osvetlenie

Obr. 5

Technical line drawing of a mechanical assembly with two vertical supports and an internal component, no text or symbols present.

OBR. 10

Technical line drawing of a mechanical assembly with mounting brackets and structural supports (no text or symbols)

OBR. 11

OBR. 13

OBR. 13

Technical line drawing of a mechanical assembly with a tool and base plate (no text or symbols)

OBR. 15

Technical line drawing of a ceiling structure with mounting brackets and a hanging lamp (no text or symbols)

OBR. 16

Technical line drawing of a server rack with multiple drive bays and cable connectors (no text or labels)

OCHRANA ŽIVOTNÉHO PROSTREDIA:
