HECH616/3X AUS - Range hood HOOVER - Free user manual and instructions

Product Type	Range Hood
Brand	Hoover
Model	HECH616/3X AUS
Width	600 mm
Depth	500 mm
Height (min-max)	600-1000 mm
Weight	15 kg
Power Supply	220-240 V, 50 Hz
Motor Power Consumption	150 W
Lighting Power	LED, 2 x 3 W
Number of Speeds	3
Max Extraction Capacity	780 m³/h
Noise Level (max speed)	55 dB(A)
Filter Type	Aluminum grease filter, Charcoal filter (optional)
Control Type	Push buttons
Installation Type	Wall-mounted
Exhaust Outlet Diameter	150 mm
Ducting Mode	Recirculation or External exhaust
Safety Features	Overheat protection, Auto shut-off timer
Maintenance	Clean grease filter monthly, replace charcoal filter every 3-6 months
Replacement Parts	Grease filter, Charcoal filter, LED bulbs
Energy Class	A+

Frequently Asked Questions - HECH616/3X AUS HOOVER

How do I install the Hoover HECH616/3X AUS range hood?

Installation must be performed by a qualified professional. Ensure the hood is securely mounted on a wall at least 65 cm above gas hobs and 50 cm above electric hobs. Connect to a 220-240 V power supply and attach the exhaust duct if using external extraction.

How often should I clean the grease filter?

The aluminum grease filter should be cleaned every month with warm water and mild detergent, or in the dishwasher at low temperature. A dirty filter reduces performance.

How do I replace the charcoal filter?

The charcoal filter is needed for recirculation mode. It should be replaced every 3 to 6 months depending on usage. Unlock the filter panel, remove the old filter, and insert the new one. Ensure it is properly seated.

Why is my range hood not working?

Check if the power cable is plugged in and the circuit breaker is on. Also ensure that the filters are not clogged. If the hood still doesn't work, contact Hoover customer support.

Can I use the hood in recirculation mode?

Yes, the Hoover HECH616/3X AUS can be used in recirculation mode by installing a charcoal filter. This mode is ideal when external exhaust is not possible.

What is the noise level of the hood?

The noise level varies by speed. At maximum speed, it is approximately 55 dB(A), which is comparable to a quiet conversation.

How do I change the LED lights?

Turn off power first. Use a flat screwdriver to gently pry out the LED module. Disconnect the plug and replace with a compatible LED module (2 x 3 W). Reassemble in reverse order.

What is the maximum extraction capacity?

The maximum extraction capacity is 780 m³/h, which is suitable for medium to large kitchens.

Does the hood have a timer function?

Yes, the hood includes an auto shut-off timer that can be set to turn off automatically after a selected time to save energy.

Where can I purchase spare parts?

Spare parts such as grease filters, charcoal filters, and LED bulbs can be purchased from Hoover authorized dealers or online parts stores. Refer to the user manual for part numbers.

USER MANUAL HECH616/3X AUS HOOVER

1. Thank you for choosing our cooker hood. Please read the instruction manual carefully before use.
2. The installation work must be undertaken by a qualified and competent fitter.
3. The manufacturer disclaims all liability for any damage or injury caused as a result of not following instructions for installation contained in the following text.
4. By placing the C€ marking on this product, we declare, on our own responsibility, compliance to all of European safety, health and environmental requirements stated in the legislation for this product.

The cooker hood is used on 220/240v, 50Hz.

(2) FEATURE

1. The cooker hood uses high quality materials, and is made with a streamlined design.
2. Equipped with a large power low noise electric motor and centrifugal leaf, it produces strong suction, low noise, non stick grease filter and easy to clean.
3. Special wind tunnel construction and oil collector design, free dirt will be absorbed in a second.

(3) INSTALLATION

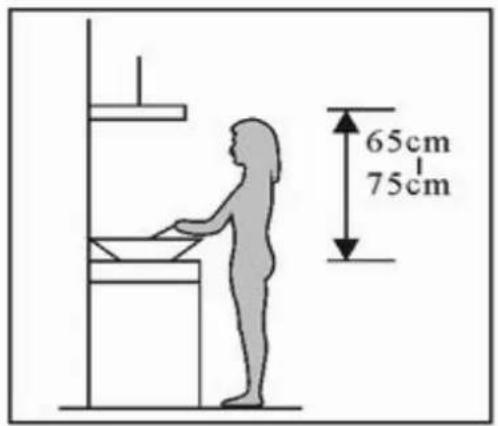

3.1 The cooker hoods should be placed at a distance of 65-75cm from the cooking surface for best effect. See pic1.
3.2 To install onto the wall every 100mm drill 3 holes of ∅8mm on a suitable place in line with the hook on the hood.
3.3 Insert expended screws into the holes.

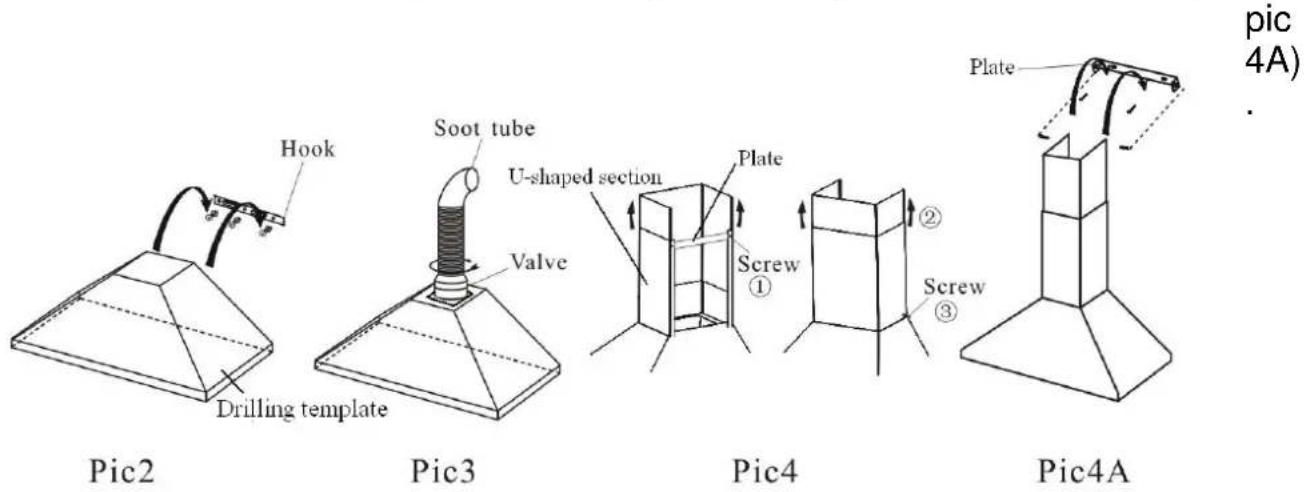

3.4 Fix the hook on the wall, put Drilling template on the hook. See pic2.
3.5 Add the soot tube to the one way valve, and put it outdoor. See pic3.

3.6 Calculate the final height of the U-shaped section, pull out the inside U-shaped section to a suitable height. (See pic4). Finally, drill 2 holes of ∅8mm on a suitable place in line with the 2^nd plate. Repeat 3.3. Put the inside U-shaped on the 2^nd plate and tighten the two screws (see

65cm 75cm

Pic1

Hook Drilling template Soot tube U-shaped section Valve Plate Screw ① ② Screw ③ Pic2 Pic3 Pic4 Pic4A Plate pic 4A)

(4) NOTICE OF INSTALLATION

1. Before installation, please ensure the area is clean to avoid suction of the remaining bits of broken wood and dust.
2. It cannot share the same air ventilation tube with other appliance such as gas tube, warmer tube, and hot wind tube.

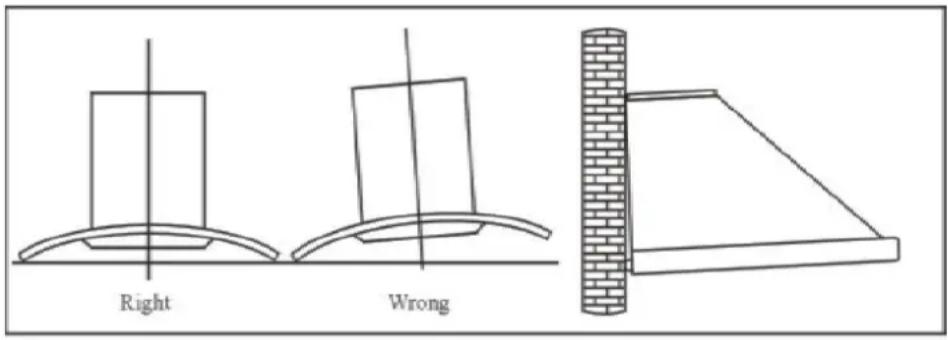

3. The bending of ventilation tube should be≥120°, parallel or above the start point and should be connected to the external wall.
4. After installation, make sure that the extractor is level to avoid grease collection at one end.

Right Wrong

Pic5

(5) SAFETY WARNING

• Never let the children operate the machine
• The cooker hood is for home use only, not suitable for barbecue, Roast shop and other commercial purpose.
• Please ask the technical person to do the assembling.
• The cooker hood and its filter mesh should be clean regularly in order to keep in good working order.
• Before cleaning, please switch the power off at the main supply.
• Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.
• If there is any fault with the appliance, please call the service department to arrange a service engineer.

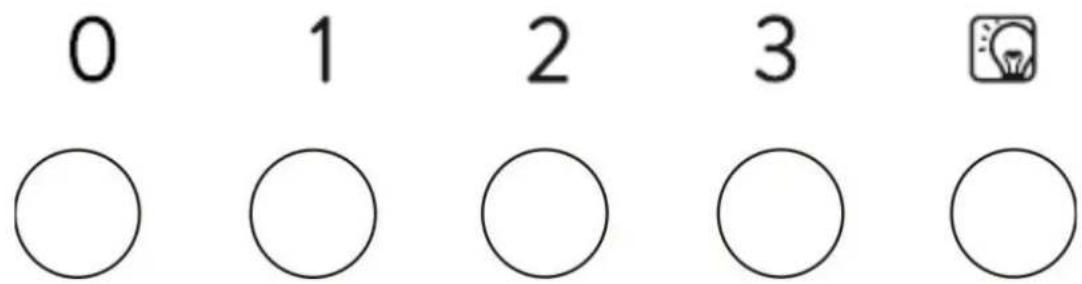

(6) USE – (Speed adjustment. See pictures)

Push button

1. Push stop button, and the motor will stop.
2. Push the Low button, the buzzer will buzz once, and the motor runs at low speed.
3. Push the Mid button, the buzzer will buzz once, and the motor runs at mid speed.
4. Push the High button, the buzzer will buzz once, and the motor runs at high speed.
5. Push the light button and the two lights will come on. Push it again and the light will turn off.

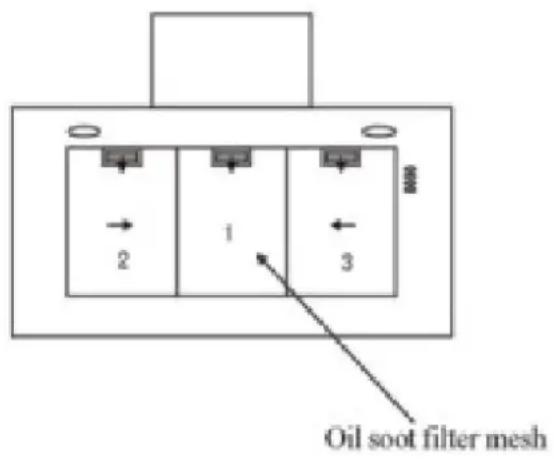

7.1 The cleaning of the carbon grease filter mesh

The filter mesh is made of high-density stainless steel. Please do not use the corrosive detergent on it. Keeping this filter clean will keep the appliance running correctly. Please strictly follow the guidelines below.

Method 1: Put the mesh into 40-50 c clean water, pour on detergent, and soak for 2-3 mins. Wear gloves and clean with a soft brush.

Please do not apply too much pressure, as the mesh is delicate and will damage easy.

Method 2: If instructed to do so, it can be put into a dishwasher, set the temperature at around 60 degrees.

2 1 3 Oil soot filter mesh

7.2 Notice of cleaning cooker hood

A. To protect the main body from corrosion over a long period of time, the cooker hood should be cleaned with hot water plus non corrosive detergent every two months.
B. Please do not use abrasive detergent for it will damage the body.
C. Keep the motor and other spare parts free from water, as this will cause damage to the appliance.
D. Before cleaning the appliance please remember to cut off power
E. The carbon filter shouldn't be exposed to heat.
F. Please don't tear open the fixed bar around the carbon filter
G. If the plug or cord is damaged, please replace it with special soft cord.

(8) TROUBLESHOOTING

Fault	Cause Solution
Light on, but motor does not work	The leaf blocked Get rid of the blocking
	The capacitor damaged Replace capacitor
	The motor jammed bearing damaged	Replace motor
	The internal with of motor off or a bad smell from the motor	Replace motor
Light does not work, motor does not work	Beside the above mentioned, check the following:
	Light damaged Replace lights
	Power cord looses Connect the wires as per the electric diagram
Oil leakage	One way valve and the air ventilation entrance are not tightly sealed	Take down the one way valve and seal with glue
	Leakage from the connection of U-shaped section and cover	Take U-shaped section down and seal with soap or paint
Shake of the body	The leaf damaged and causes shaking	Replace the leaf
	The motor is not tightly hanged	Lock the motor tightly
	The body is not tightly hanged	Fixed the body tightly
	The distance between the body and the gas top too long	Readjust the distance Insufficient
	Too much ventilation from open doors or windows	Choose a new place and resemble the machine
The machine inclines	The fixing screw not tight enough	Tighten the hanging screw and make it horizontal
	The hanging screw not tight enough	Tighten the hanging screw and make it horizontal

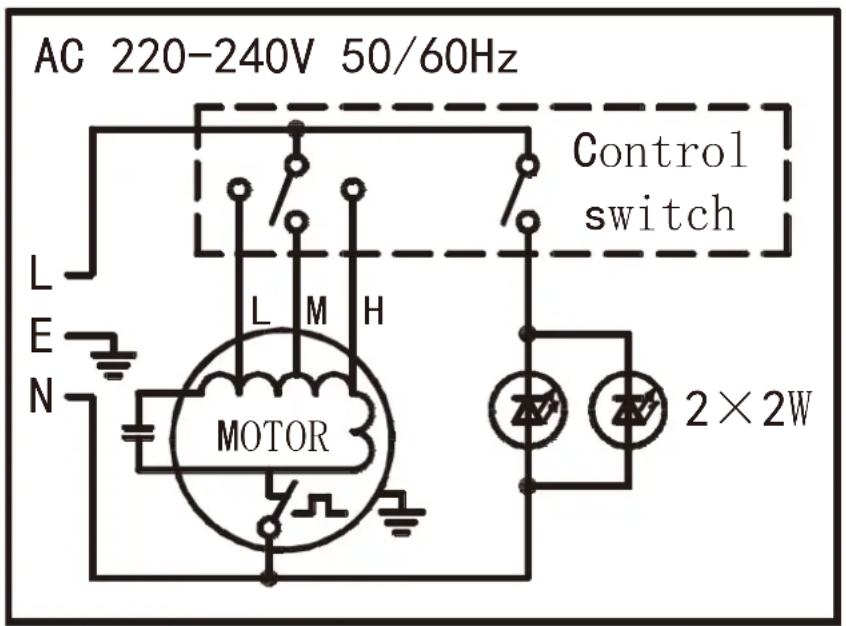

Electrical Diagram

AC 220-240V 50/60Hz L E N M H L M H MOTOR Control switch 2×2W

Main Parameters

Rated Input 220V-240V,	50Hz
Rated Power 104W
Lighting Power	2W X 2
Motor Power 100W
Drive Mode Single Motor
Speed Speed I Speed II	Speed III
Air tube diameter 150MM
Noise ≤ 56.9 Db(A)

(9) SERVICE CENTRE

Before calling the Service Centre

If the hood is not working, we recommend that:

- you check the troubleshooting on chapter 8.

- you check that the cooker hood is properly plugged into the power supply

If the cause of the fault cannot be detected:

disconnect the hood from the mains, do not touch the hood and call the after sales service.

Before calling the Service Centre remember to make a note of the serial number on the serial number specifications plate

The hood is supplied with a guarantee certificate that ensures that it will be repaired free of charge at the Service Centre.

Symbol of a trash bin with crossed lines and a black rectangular base (no text or labels)

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be

caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
