USER MANUAL NZ 210 Travel ECG

Ecoel iron with blue and white casing, showing front and back views (no text or symbols visible)

NZ 210 Travel

CZ

NAPAŘOVACÍ ŽEHLIČKA

NÁVOD K OBSLUZE

SK

NAPAROVACIA ŽEHLIČKA

NÁVOD NA OBSLUHU

PL

ŻELAZKO NA PARE

INSTRUKCJA OBSŁUGI

HU

GÖZÖLÖS VASALÓ

HASZNÁLATI ÚTMUTATÓ

DE

DAMPFBÜGELEISEN

BEDIENUNGSANLEITUNG

GB

STEAM IRON

INSTRUCTION MANUAL

HR/BIH

PARNO GLAČALO

UPUTE ZA UPORABU

SI

PARNI LIKALNIK

NAVODILA

SR/MNE

PEGLA NA PARU

UPUTSTVO ZA UPOTREBU

ET

AURUTRIIKRAUD

KASUTUSJUHEND

LT

GARU LYGINTUVAS

INSTRUKCIJŲ VADOVAS

LV

TVAIKA GLUDEKLIS

ROKASGRĀMATA

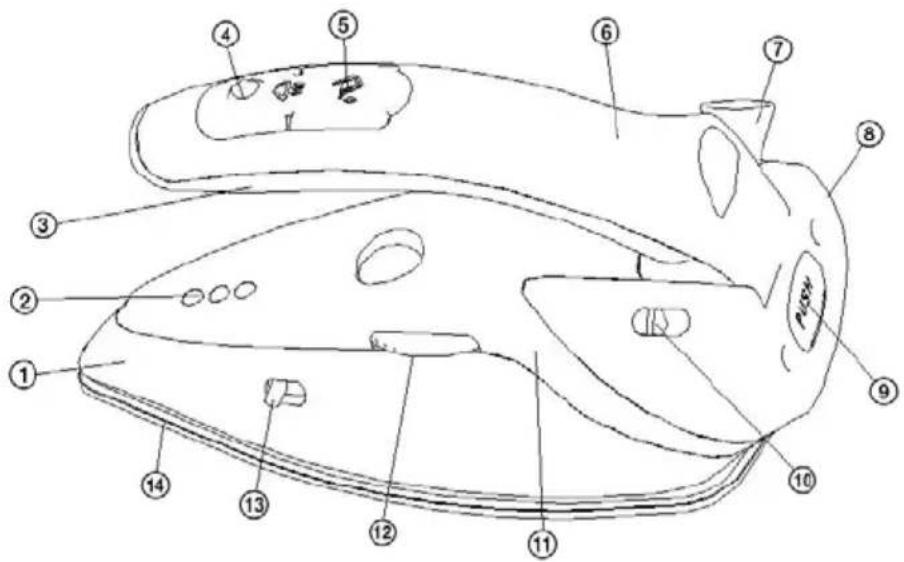

POPIS / POPIS / OPIS / A KÉSZÜLÉK RÉSZEI / BESCHREIBUNG / DESCRIPTION / OPIS / OPIS / OPIS / KIRJELDUS / APRAŠYMAS / APRAKSTS

Labeled diagram of a steam iron with numbered parts for identification

CZ

1. Body of iron
2. Power light
3. Handle
4. Steam burst button
5. Neck filler cover
6. Water container
7. Power input protection
8. Back cover
9. Button to fold the handle
10. Switch to 110-120 or 220-24V
11. Cover
12. Rotary temperature controller
13. Steam regulator
14. Ironing area with openings for steaming

HR/BIH

1. Tijelo glačala
2. Kontrolna žaruljica
3. Ručka
4. Tipka za mlaz pare
5. Poklopac lijevka
6. Spremnik za vodu
7. Štitnik naponskog kabela
8. Stražnji poklopac
9. Tipka za sklapanje ručke
10. Prekidač za mrežu 110-120 ili 220-24V
11. Kućište
12. Okretni regulator temperature
13. Regulator pare
14. Površina za glačanje s otvorima za paru

SI

C. Ed. H. K. E. R. T.

Yellow triangular warning sign with black smoke symbol indicating hot weather

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. These factors must therefore be ensured by the user/users using and operating this appliance. We are not liable for damages caused during shipping, by incorrect use, voltage fluctuation or the modification or adjustment of any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is properly grounded. The outlet must be installed in accordance with applicable electrical codes according to EN.

WARNING: Always make sure that the voltage selector is set to the parameters of the current network.

1. Do not operate iron with a damaged cord. All repairs, including cord replacements, must be carried out at a professional service centre! Do not remove the protective covers from the appliance; there is a risk of electric shock!
2. Protect the appliance from direct contact with water or other liquids to prevent possible electric shock.
3. Take extra care when using a steam iron near children! Keep the iron and its power supply away from children under 8 when it is connected to power or cools.
4. Do not leave the iron running unattended.
5. Do not operate the steam iron outdoors or in a moist environment and do not touch the cord or appliance with wet hands. Risk of electric shock.

6. The iron shall not be used if it has fallen and has visible signs of damage or is not tight.

7. Use the iron only on stable flat surfaces. When placing the iron on the stand, make sure that the surface on which the stand is placed is stable.

8. First, always disconnect the iron from the power outlet before filling the iron with water and before emptying it.

9. We recommend not leaving the iron with the plug in the outlet unattended. Disconnect the cord from the electrical outlet prior to any maintenance. Do not remove the power cord from the outlet by yanking the cord. Unplug the cable from the outlet by grasping the plug.

10. Do not use the iron near or beneath flammable objects, such as close to the curtains. Contact with hot metal parts, hot water or steam may cause burns. When turning the iron upside down, be careful - hot water may be present in the container.

Yellow triangular warning sign with black smoke symbol indicating hot weather

Caution, hot surface!

1. Do not allow the power cord to touch hot surfaces or run the cord over sharp edges.

2. Immediately after use, disconnect the appliance from the power supply and let it cool completely before storing it.

3. Use only distilled water in the iron. Do not fill the iron with other liquids. The filler hole must not be open during use.

4. Do not use any chemical additives, aromatic substances or descaling means and other accessories, not recommended by the manufacturer. You risk losing the warranty by not observing these instructions.

5. Use the steam iron only in accordance with the instructions in this manual. This steam iron is intended for domestic use only. The manufacturer is not liable for damages caused by the improper use of this appliance.

6. The travel iron is not intended for normal use.

7. This appliance can be used by children aged 8 years and older and people with lower physical or mental abilities or lack of experience and knowledge, if they are supervised or have been instructed to

use the product in a safe manner and understand the potential dangers. Children shall not play with the appliance. User cleaning and maintenance must not be performed by unsupervised children.

Do not immerse the body of the appliance in water! – Do not immerse the body of the appliance in water!

DANGER for children

Children must not play with the packaging material. Do not let the children play with plastic bags. Risk of suffocation.

INSTRUCTIONS FOR USE

WARNING: BEFORE EACH USE MAKE SURE THAT THE VOLTAGE SELECTOR IS SET TO THE VALUES OF THE POWER NETWORK, WHICH YOU WANT TO USE.

Network setup

Use a screwdriver to set the iron to the power network parameters you are currently using, see Figure 1.

WARNING: If an adapter is used on a network in another country, make sure that the adapter complies with the applicable standards.

110- 120V ← → 220- 240V

Figure 1: Set network parameters.

Before putting into operation

First, remove the protective film from the ironing pad! The iron must be used and placed on a stable surface. When ironing for the first time, heat the iron to the highest degree without using water. The iron may emit slight smoke and smell, but it disappears soon. The water reservoir can be filled afterwards. Allow the iron to make steam and warm up for at least 1 minute after filling it and powering it and from time to time press the steam button to remove any residuals from the production process. We recommend trying the iron on some common fabric, e.g. a dish towel, prior to using it on your laundry for the first time.

Folding/unfolding the iron

This iron has a folding handle for easier storage.

Before each folding or opening of the handle into working position, first push the PUSH button (No. 9). Do not use brute force.

Filling the water tank

Be sure the iron is unplugged from the electrical outlet before filling with water!

WARNING: Be careful when opening the cover of the neck filler not to pull out the rubber cover of the steam button by mistake.

Hold the iron in a tilted position, turn off the steam and pour water into the open lid of the filling hole up to the max. mark. We recommend that you use distilled water for the iron.

WARNING: Do not fill the iron with water directly, use only the funnel supplied with the iron!

Temperature settings

Before ironing, sort the garments according to the international textile care and labelling codes found on tags. If these are missing, separate the garments based on the type of fabric.

Laundry tag Type of			fabric Temperature control
			Chemical fibres e.g. polyester, viscose	• low temperature
			Silk, wool	•• medium temperature
			Cotton, flax	••• high temperature
			Fabrics which can not be ironed

We recommend that you iron the fabrics with unusual finish (eg sequins, embroidery, prints, etc.) at the lowest temperature.

For blends (eg. 40% cotton, 60% synthetics), set the temperature controller according to the fabric that requires a lower temperature.

If you are not sure of the fabric composition, determine the suitable temperature by performing a test on the least noticeable part of clothing. Start at the lowest temperature and increase it slowly until you reach the ideal temperature.

Never iron spots with traces of perspiration etc.: heat from the iron fixates fabric stains which cannot be removed.

Removal of wax is more effective if you use a medium-temperature dry iron: excess heat burns it and there is a risk of yellow spots.

In order not to make "shiny" stains on silk, wool, or synthetics, iron them in reverse, from the inside.

In order not to make "shiny" stains on velvet, iron it in one direction (with the fiber) and do not press on the iron.

The more laundry is put into the washing machine, the more wrinkled the laundry will be. Laundry becomes more wrinkled even in very high speed spin.

Many fabrics are easier to iron if not completely dry. For example, silk should always be ironed moist.

Use the temperature control to set the ironing temperature according to the type of fabric. A lit indicator signals the heat-up process of the soleplate. When the light indicator turns off it indicates that the desired temperature has been reached and you can start ironing.

The plate temperature indicator occasionally lights up when ironing, indicating the temperature setting is maintained. After finishing your ironing at a high temperature and reducing the temperature, do not continue using the iron until the soleplate temperature indicator lights up again.

Note: Since cooling takes longer than heating, we recommend first ironing fabrics that require a lower temperature. This will reduce downtimes and eliminate the risk of burning the fabric.

IRONING AND STEAMING FUNCTION

Ironing without steam

When ironing without steam set the steam controller to the off steam position and set the temperature controller according to the type of fabric.

Ironing with steam

Set the temperature controller to the ... or MAX position and the steam controller to the steam outlet off position. As soon as the heating indicator switches off, set the steam control to the desired value. Steam will start coming from the openings in the soleplate, you can start ironing.

WARNING: Never direct the steam at persons or animals.

CLEANING, MAINTENANCE AND STORAGE

After use, disconnect the iron from the power supply, open the neck cover, drain the remaining water, set the steam controller to a minimum, and set the temperature controller to a minimum. Before storing the steam iron, always make sure that it has cooled completely and that it is clean and dry. The iron handle can be folded down for easier storage.

Disconnect the appliance from the electrical output prior to performing any maintenance. Cleaning shall always be performed on a cooled appliance!

Any deposits, like residues of starch or fabric softener can be removed with a damp (not wet) cloth or a mild liquid detergent and dried with a soft, dry cloth. Using wire wool or metal objects can scratch the soleplate.

Never clean the iron under running water, do not rinse or immerse the iron into water!

TECHNICAL DATA

Water tank capacity 40 ml

Nominal voltage: 110–120 V \~ 50/60 Hz

220–240 V \~ 50/60 Hz

Nominal input power: 900–1100 W

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

PRODUCT DISPOSAL AFTER END OF LIFE

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product. Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directives on electromagnetic compatibility and electrical safety.

The operating manual is available on internet at www.ecg-electro.eu. Changes of text and technical parameters reserved.

08/05

SIGURNOSNE UPUTE

Yellow triangular warning sign with black smoke symbol indicating hot weather

Yellow triangular warning sign with black smoke symbol indicating hot weather

Pozor, vroča površina!

Warning sign depicting steam rising inside a yellow triangle, indicating hazardous or hazardous material.

Yellow triangular warning sign with black smoke symbol indicating hot weather

Yellow triangular warning sign with black smoke symbol indicating hot weather

Yellow triangular warning sign with black smoke symbol indicating hot weather
