USER MANUAL ROYAL 43 HUSQVARNA

Read the operator's manual carefully and make sure that you understand the contents before using the lawnmower.

Betriebsanleitung

GB IMPORTANT! Read operating instructions carefully before using the mower. Fill the engine with oil. The manufacturer reserves the right to carry out product modifications without further notice. Guarantee, complaint Guarantee and complaint matters are dealt with in accordance with the Sale of Goods Act. Further information may be obtained from your dealer or the supplier.

1. Handle Assembly
2. Grass collector
3. Bottle of oil
4. Instruction Manual
5. Operator Presence Control (OPC)
6. Powerdrive Lever (Royal 43S/SE)
7. Throttle Control (if fitted)
8. Rating Label
   9 Warning Label
9. Keystart (Royal 43SE)
10. Battery Charger (Royal 43SE)

D - INHALT

If not used properly this lawnmower can be dangerous! This lawnmower can cause serious injury to the operator and others, the warnings and safety instructions must be followed to ensure reasonable safety and efficiency in using this lawnmower. The operator is responsible for following the warning and safety instructions in this manual and on the lawnmower.

Never use the mower unless the grassbox or guards provided by the manufacturer are in the correct position.

Explanation of Symbols on your Husqvarna Royal 43, 43S and 43SE

Warning

Read the user instructions carefully to make sure you understand all the controls and what they do.

Always keep the lawnmower onthe ground when mowing. Tiltingor lifting the lawnmower maycause stones to be thrown out

Keep bystanders away. Do not mow whilst people especially children or pets are in the mowing area

Beware or severing toes or hands. Do not put hands or feet near a rotating blade.

Disconnect the spark plug before attempting any maintenance, cleaning or adjustment, or if you are going to leave the lawnmower unattended for any period.

Blade continues to rotate after the machine is switched off. Wait until all machine components have completely stopped before touching them.

General

1. Never allow children or people unfamiliar with these instructions to use the mower. Local regulations may restrict the age of the operator.
2. Only use the lawnmower in the manner and for the functions described in these instructions.
3. Never operate the lawnmower when you are tired, ill or under the influence of alcohol, drugs or medicine.
4. The operator or user is responsible for accidents or hazards occurring to other people or their property.

ENGLISH - 1

Fuel Safety

WARNING - Petrol is highly flammable

• Store fuel in a cool place in a container specifically designed for the purpose. In general plastic containers are unsuitable
• refuel outdoors only and do not smoke while refuelling
• add fuel BEFORE starting the engine. Never remove the cap of the fuel tank or add fuel while the engine is running or when the engine is hot
• if petrol is spilled, do not attempt to start the engine but move the machine away from the area of spillage and avoid creating any source of ignition until petrol vapours have dissipated
• replace all fuel tanks and container caps securely
• move the product away from the fuelling area before starting

Safety Procedures when Charging the Battery (ROYAL 43SE)

1. Check the charger cable regularly for damage or deterioration due to age.
2. Do not use the lawnmower if the charging cable is not in good condition.
3. Do not attempt to charge other products with the charger from this unit.
4. Do not attempt to use this battery with any other charger.
5. Charging should only be carried out in a safe location where neither battery nor cord cable can be trodden on or tripped over.
6. Location should be well-ventilated.
7. During charging, the battery charger becomes warm. This is normal and means the charger is operating properly.
8. Do not cover the battery charger with anything during charging.
9. Ensure that neither the charger nor the battery are exposed to moisture.
10. Avoid extreme temperatures.
11. The charger will not operate below freezing point nor above 40^ .
12. Do not short circuit the battery terminals.

SAFETY PRECAUTIONS

Preparation

1. Do not mow barefoot or in open sandals. Always wear suitable clothing, gloves, and stout shoes.
2. The use of ear protection is recommended.
3. Make sure the lawn is clear of sticks, stones, bones, wire and debris; they could be thrown by the blade.
4. Before using always visually inspect to see that blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades together with their fixings in sets to preserve balance.
5. Have faulty silencers replaced.

Use

1. Do not operate the engine in a confined space where exhaust fumes (carbon monoxide) can collect.
2. Use the lawnmower only in daylight or good artificial light.
3. Avoid operating your lawnmower in wet grass, where feasible.
4. Take care in wet grass, you may lose your footing.
5. On slopes, be extra careful of your footing and wear non-slip footwear.
6. Mow across the face of slopes, never up and down.
7. Exercise extreme caution when changing direction on slopes.
8. Mowing on banks and slopes can be dangerous. Do not mow on banks or steep slopes.
9. Do not walk backwards when mowing, you could trip. Walk never run.
10. Never cut grass by pulling the mower towards you.
11. Release the Operator Presence control to stop the engine before pushing the mower across surfaces other than grass and when transporting the lawnmower to and from the area to be mowed.
12. Never operate the lawnmower with damaged guards or without guards in place.
    13 Do not overspeed the engine or alter governor settings. Excessive speed is dangerous and shortens lawnmower life.
13. Disengage all blade and drive clutches before starting. (page 6)
14. Always start the lawnmower carefully with feet well away from the blades.
15. Do not tilt lawnmower when starting the engine

16. Do not put hands near the grass discharge chute whilst engine is running.

17. Never pick up or carry a lawnmower while the engine is running

18. Spark plug wire may be hot - handle with care.
19. Do not attempt any maintenance on your lawnmower when the engine is hot.
20. Release the Operator Presence Control, to stop the engine, and wait until the blade has stopped:-
21. before leaving the mower unattended for any period;

22. Release the Operator Presence Control, to stop the engine, wait until the blade has stopped, disconnect the spark plug lead and wait until the engine has cooled:-

23. before refuelling

24. before clearing a blockage;
25. before checking, cleaning or working on the appliance;
26. if you hit an object. Do not use your lawnmower until you are sure that the entire lawnmower is in a safe operating condition;
27. if the lawnmower starts to vibrate abnormally. Check immediately. Excessive vibration can cause injury.
28. Reduce the throttle setting during engine shut down and, if the engine is provided with a shut-off valve, turn the fuel off at the conclusion of mowing.

Maintenance and storage

1. Keep all nuts, bolts and screws tight to be sure the lawnmower is in safe working condition.
2. Check the grass collector frequently for wear or deterioration.
3. Replace worn or damaged parts for safety.
4. Only use the replacement blade, blade bolt, spacer and impeller specified for this product.
5. Never store the lawnmower with fuel in the tank inside a building where fumes can reach an open flame or spark.
6. Allow the engine to cool before storing in any enclosure.
7. To reduce fire hazard, keep the engine, silencer, battery compartment and fuel storage area free of grass, leaves or excessive grease.
8. If the fuel tank has to be drained, this should be done outdoors.
9. Be careful during adjustment of the machine to prevent entrapment of the fingers between moving blades and fixed parts of the machine.

B

Product Number

Model Number

Serial Number.

Date of Purchase

Place of Purchase.

PLEASE KEEP PROOF OF PURCHASE

Your product is uniquely identified by a silver and black product rating label. To ensure you have full product information when obtaining spares or advice from one of our approved service centres or if you need to contact our customer service department you should make a note in the space provided of the information shown in Fig B

ASSEMBLY INSTRUCTIONS

Handle Assembly

Fitting the Lower handle to the Lawnmower

1. Remove handle knobs.
2. Fit the lower handle ensuring that the formed ends are located properly in corresponding slots either side of the lawnmower.(C1)
3. Secure the handle with the plastic washers and handle knobs provided. Make sure that the Lower Pull Cord Guide is on the right-hand side when viewed from the rear.

Fitting the Upper Handle to the Lower Handle

1. Attach the upper handlebar.
2. Insert the bolts from the inside.(C2) Note: Place washer between wing nut and handlebar.

Recoil Starter

1. Disconnect the spark plug lead.
2. Pull the Operator Presence Control to release the brake on the engine. (D1 - Royal 43) (D2 - Royal 43S/SE)

1. Locate cord in the pull cord guide on the lower handle.(D3).
2. Locate cord in the pull cord guide on the upper handle.(D4)

You must release the brake by pulling the OPC lever to the handle before pulling out the cord.

Grassbox Assembly

Assembling the Grassbox Screen

• Do not cut or separate the 3 parts of the grassbox screen.

• Fold the screen sides inwards.(E1)

• Align the matching tabs and slots and press firmly together. Ensure clips are engaged. The assembled screen should appear as illustrated.(E2)

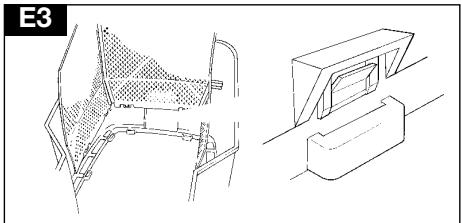

Fitting the Grassbox Screen to the Grassbox Lower

Locate the tabs on the bottom of the grassbox screen into the slots in the base of the grassbox lower and push home.(E3)

Fitting the Grassbox Lid

1. Place the upper lid onto the lower grassbox.(E4)
2. Align the clips with the slots. Push the two halves together, starting from the rear of the box and working forward.(E5) Ensure that all clips are securely connected.

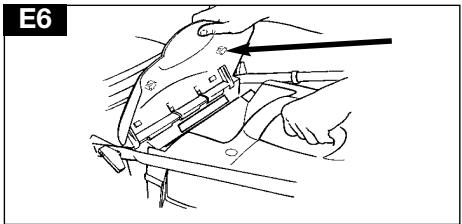

Fitting Fully Assembled Grassbox to Lawnmower

1. Lift safety flap. Locate lugs of the full assembled grassbox into the slots in the top of the deck. Fit location studs on safety flap into location holes on grassbox lid.(E6)
2. Removal is the reverse procedure.

Please Note :- Ensure no gap remains between the safety flap and the grassbox

Where grass collection is not required you can use the lawnmower without the grassbox. Ensure the safety flap is fully closed

Grass Collection Indicator

• IMPORTANT! The machine must be running for the grass collection indicator to operate. Follow instructions in the Use - starting and stopping section.
• Your lawnmower has a grass collection indicator which tells you when the grassbox needs emptying. When the indicator is visible, grass is being collected.(E7)
• When the indicator starts to drop it's time to empty the grassbox.(E8)
• Release the OPC Lever and remove the grassbox for emptying.

Emptying the Grassbox

1. Hold the grassbox as illustrated.(E9)
2. Loose grass will automatically clear on restarting the machine. If the ball indicator does not rise, then manually clean out the discharge shoot.
3. Ensure the discharge chute is clean and

free from debris.

ENGINE NOTES

Oil

1. Check oil level periodically and after every five hours of operation.
2. Add oil as necessary to keep the level to the FULL mark on the dipstick.
3. Use a good quality SAE 30 four stroke oil.
4. To fill with oil:- a) Remove oil filler cap.(F1) b) Fill to the FULL mark on the dipstick.(F2)
5. Change the oil after the first five hours operation and thereafter every 25 working hours.
6. Always change the oil while the engine is warm - but not hot - never attempt any maintenance on a hot engine.

Petrol

1. Use fresh regular grade lead free petrol.
2. NEVER USE LEADED PETROL Using leaded petrol will make the exhaust smoke and cause irreparable damage to engines fitted with a catalytic

converter.

1. Do not fill the fuel tank when the engine is hot.
2. Do not fill the fuel tank while smoking.
3. Do not fill the fuel tank while the engine is running.
4. To avoid introducing dirt into the fuel system, wipe all grass and dirt from the petrol filler cap before unscrewing it.(G1)
5. It is recommended that you fill the tank through a funnel with a filter.(G2)
6. Wipe away spillages before starting.

Please Note :- move the product away from the fuelling area before starting

STARTING - PRIMING THE ENGINE

Please Note:- When starting the engine for the first time, fill with oil and petrol as described above in the Oil and Petrol section.

Priming is usually unnecessary when restarting a warm engine. However, cool weather may require priming to be repeated.

Starting the engine for the first time

1. Advance engine speed control to FAST as illustrated in the Use - starting and stopping section.
2. Push primer bulb (H) firmly five times
3. Follow instructions in the Use - starting and stopping section.
4. If engine fails to start after three pulls of the pull cord, push primer bulb three times and r

Starting engine thereafter

1. Move engine speed control to FAST ' position and push primer bulb firmly three times before starting engine. (if engine stopped because it ran out of fuel, refuel engine - push primer bulb three times.

USE

Starting & Stopping Royal 43

Starting

1. Connect the spark plug lead.
2. Move the Engine Speed Control to the FAST ' position before starting.(J1)
3. Pull the operator presence control (OPC) to release the brake on the engine and the blade.(J2)
4. Pull the recoil starter fully towards you until you feel the full resistance, return the handle slowly then pull the handle firmly towards you to its full extent.(J3)
5. After the engine has started, allow to run for 30 seconds before commencing to use.

Stopping

1. Release the OPC lever.(J2)

THROTTLE CONTROL (if fitted)

1. Fig. J4 represents the FAST (run) position.
2. Fig. J5 represents the SLOW (idle) position.

Starting & Stopping Royal 43S

Starting

1. Follow steps 1-2 for the Royal 43.
2. Pull the operator presence control (OPC) to release the brake on the engine and the blade.(J6).
3. Follow steps 4-5 for the Royal 43.

Engaging the Drive

1. Forward drive is engaged and disengaged with the Powerdrive lever at the top of the handle.(J7)
2. Releasing the Powerdrive Lever stops the forward drive automatically.

Stopping

1. Release the powerdrive lever.(J7)
2. Release the OPC lever.(J6)

Starting & Stopping Royal 43SE

Starting

1. Follow steps 1-3 for the Royal 43S
2. Turn the key and hold until the engine starts.(J8) The key will return to the original position when released.
3. If the engine fails to start when you turn the key your battery may need charging.(See page 7)

Engaging the Drive - See Royal 43S Stopping - See Royal 43S

How to Mow

• Due to engine lubrication limitations, the mower should not be used on slopes in excess of 30^ .
• Start mowing from the outside edge of the lawn, mowing in strips in alternate directions
• Mow twice a week in the growing season, your lawn will suffer if more that one third of its length is cut at one time and this may also result in poor collection.

Please Note:-

Do not overload your Lawnmower

When mowing in long thick grass a first cut with the cutting height adjusted to its highest setting, see
Cutting Height, will help reduce engine overload and will help prevent damage to your lawnmower.

Cutting Height Adjustment

1. Pull the height adjustment lever away from the location slots and move it to the selected position.(K).

MAINTENANCE

IMPORTANT

Release the Operator Presence Control, to stop the engine, wait until the blade has stopped and disconnect the spark plug lead:-

• before clearing a blockage;
• before checking, cleaning or working on the appliance

IMPORTANT

Never use water for cleaning your lawnmower. Do not clean with chemical, including petrol, or solvents - some can destroy critical plastic parts.

Cleaning

• Disconnect the spark plug lead.
• Turn machine on its side with the exhaust uppermost.
• Remove grass from under the deck with a brush.(L1 and L2)
• Using a soft brush - remove grass clippings from the engine air intakes and exhaust (L3), cutting height adjustment area, around the wheels (L4) and the grass collector.
• Wipe over the surface of your lawnmower with a dry cloth.

Cutting System Removing the Blade

• Disconnect the spark plug lead.

• Turn machine on its side with the exhaust uppermost.

• Use spanner to loosen blade bolt by turning anticlockwise. (M)

1. Remove the blade bolt, blade and spacer washer.
2. Inspect for damage and clean as necessary.

Fitting the Blade

1. Fit the blade to the machine with the sharp edges pointing away from the machine.
2. Re-assemble blade bolt through blade and spacer washer.
3. Hold firmly and tighten blade bolt firmly with a spanner. Do not over tighten.

IMPORTANT

Do not attempt any maintenance on your lawn mower when the engine is hot.

Always handle the blade with care - sharp edges could cause injury. USE GLOVES. Renew your metal blade after 50 hours mowing or 2 years whichever is the sooner - regardless of condition. If the blade is cracked or damaged replace it with a new one.

How to Charge the Battery (ROYAL 43SE)

1. Stop your lawnmower.
2. Disconnect the spark plug.
3. Remove the cap from the charging point at the bottom of the wiring loom.(N)
4. Plug charger lead into connection on battery loom.(N)
5. Plug the battery charger into a domestic electric socket.
6. Charging will then commence.
7. Charge for 24 hours.
8. After charging, disconnect the charger from the socket and charging point.(N)
9. Replace the cap on the charging point.(N)
10. The unit is now ready for use.

ENVIRONMENTAL INFORMATION

Electrolux Outdoor Products are manufactured under an Environmental Management System (ISO 14001) using, where practical, components manufactured in the most environmentally responsible manner, according to company procedures, and with the potential for recycling at the end of the products' life.

• Packaging is recyclable and plastic components have been labelled (where practical) for categorised recycling.
• Awareness of the environment must be considered when disposing of 'end-of-life' product.
• If necessary, contact your local authority for disposal information.

BATTERY DISPOSAL

• The battery should be taken to an Approved Service Centre or your local Recycling Station.
• Do NOT dispose of used battery with household waste
• Lead/Acid batteries can be harmful and should be disposed of through the recognised recycling facility in accordance with European Regulation
• Do NOT dispose of battery to water.
• Do NOT incinerate

DISPOSAL OF FUELS AND LUBRICATING OILS

• Wear protective clothing when handling any fuels and lubricants.
• Avoid contact with skin.
• Remove petrol and engine oil before transporting the product.
• Contact your local authority for information of your nearest Recycling/Disposal Station.
• Do NOT dispose of used fuels/oils with household waste
• Waste fuels/oils are harmful, but can be recycled and should be disposed of through the recognised facilities.
• Do NOT dispose of used fuels/oils to water.
• Do NOT incinerate

MAINTENANCE

Battery Replacement

1. The battery is located underneath a cover behind the engine.
2. Stop the lawnmower and disconnect the spark plug.
3. Remove the screws from the cover.
4. Remove cover to gain access to the battery.

IMPORTANT: -Replacement batteries will need to be charged before use.

Ensure that neither the charger nor the battery are exposed to moisture

The battery pack can be replaced by unclipping the battery from its housing and disconnecting the battery pack from the battery leads.

General Guidance on Rechargeable Battery

1. Charging time is 24 hours.
2. Under normal usage the battery will be charged during the running of the engine.
3. To keep in prime condition the battery should be charged at least once every six months.
4. Exceeding the charging period may shorten the battery life.
5. Protect electric cable. Never carry the battery charger by the electric cable only.
6. If after an extended usage period the battery quickly runs down after a full 24 hour charging period, a replacement battery is probably needed.
7. Do not attempt to open the main body casing.
8. Clean only with a dry soft cloth.
9. Never use a damp cloth or flammable liquids such as petrol, white spirits, thinners etc.
10. Dispose of old batteries safely.

The engine brake cable should always be adjusted to stop the engine within 3 sec. CAUTION! For adjustment contact your authorized service dealer.

At the End of the Mowing Season

1. Replace blade, bolts, nuts or screws, if necessary.
2. Clean your lawnmower thoroughly.
3. Ask your local Service Centre to clean the air filter thoroughly and carry out any service or repairs required.
4. Drain engine of oil and petrol.

Storing your Lawnmower

1. Do not store your lawnmower immediately after use.
2. Wait until the engine has cooled to avoid a potential fire hazard.
3. Clean your lawnmower
4. Store in a cool, dry place where your lawnmower is protected from damage.

We strongly recommend that your product is serviced at least every twelve months, more often in a professional application.

Engine Maintenance Schedule

Follow the hourly or calendar intervals, whichever occur first. More frequent service is required when operating in adverse conditions

First 5 hours - Change oil.

Every 5 hours or daily - Check oil lever. Clean finger guard. Clean around muffler.

Every 25 hours or every season - Change oil if operating under heavy load or high ambient temperature. Service air cleaner.

Every 50 hours or every season - Change oil. Inspect spark arrester, if equipped.

Every 100 hours or every season - Clean cooling system*. Replace spark plug.

• Clean more often under dusty conditions, or when airborne debris is present or after prolonged operation cutting tall, dry grass.

Engine Servicing & Guarantee

The engine fitted to your lawnmower is guaranteed by the Engine Manufacturer. To obtain further information contact your dealer.

Fault Finding

Engine Will Not Start

1. Ensure OPC Lever is in the start position.
2. Check that the throttle control lever is in the ' position.
3. Check that there is sufficient fuel in the tank and the cap air vent is clear.
4. Remove and dry the spark plug.
5. Petrol may be stale, replace. Once petrol has been replaced, it may take a little time for fresh petrol to filter through.
6. Check that the blade bolt is tight. A loose bolt could cause difficult starting.
7. If the engine will still not start, immediately disconnect the spark plug lead.
8. CONSULT YOUR LOCAL APPROVED SERVICE CENTRE.

Engine Will Not Turn Over (43SE only)

1. Ensure OPC Lever is in the start position.
2. Battery flat - start your lawnmower manually.
3. If the engine will still not turn over, immediately disconnect the spark plug lead.
4. CONSULT YOUR LOCAL APPROVED SERVICE CENTRE.

Lack of Engine Power and/or Overheating

1. Check that the throttle control lever is in the ' position.
2. Disconnect the spark plug lead and allow the engine to cool down.
3. Clean grass clippings and debris from around the engine and air inlets and the underside of the deck including the chute.
4. Clean the engine air filter (Ask your local Approved Service Centre to clean the engine air filter thoroughly).
5. Petrol may be stale, replace. Once petrol has been replaced, it may take a little time for fresh petrol to filter through.
6. If the engine still lacks power and/or is overheating, immediately disconnect the spark plug lead.
7. CONSULT YOUR LOCAL APPROVED SERVICE CENTRE.

Excessive Vibration

1. Disconnect the spark plug lead.
2. Check that the blade is correctly fitted, see page 7.
3. If the blade is damaged or worn replace it with a new one.
4. If vibration persists, immediately disconnect the spark plug lead.
5. CONSULT YOUR LOCAL APPROVED SERVICE CENTRE.

1. Fig. J4 viser FAST (run) stilling.
2. Fig. J5 viser SLOW (tomgang) stilling.

Electrolux Outdoor Products

Aycliffe Industrial Park

NEWTON AYCLIFFE

Co.Durham DL5 6UP

ENGLAND

Telephone - (00) 44 1325 300303 Fax - (00) 44 1325 310339

UK Customer Helpline- 01325 300303 Fax - 01325 310339

Our policy of continuous improvement means that the specification of products may be altered from time to time without prior notice. Electrolux Outdoor Products manufacture products for a number of well known brands under various registered patents, designs and trademarks in several countries.

© Electrolux Outdoor Products Ltd. Registered Office, Electrolux Works, Oakley Road, Luton LU4 9QQ

Registered number 974979 England

From the Electrolux Group. The world's No.1 choice.

The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
