Product Type	Food processor (stand mixer with hand blender)
Brand	Zelmer
Model	381
Power Supply	230 V AC, 50 Hz
Motor Power	800 W (estimated)
Number of Speeds	5 (0-5) + Turbo button
Bowl Capacity	2 L (stand bowl), 500 ml (mixing cup)
Included Attachments	2 whisks, 2 mixers, liquidising disc, mixing adapter, mixing cup with lid, stand with rotating bowl
Maximum Operating Time	10 min (whisks/mixers), 3 min (adapter/cup)
Rest Period Before Next Use	20 min
Noise Level (LWA)	80 dB/A (with whisks/mixers on stand), 84 dB/A (with mixing cup)
Insulation Class	II (double insulated, no grounding required)
Compliance	CE, LVD 2006/95/EC, EMC 2004/108/EC
Weight	Approx. 3.5 kg
Dimensions (approx.)	30 cm (L) x 20 cm (W) x 40 cm (H)
Cord Length	1.2 m (estimated)
Housing Material	Plastic
Dishwasher Safe Parts	No (metal parts may darken; wash manually)
Intended Use	Domestic
Repair Policy	Repair by qualified service only

Frequently Asked Questions - 381 Zelmer

How do I assemble the mixing cup?

Move the cover on the motor casing, then insert the cup so the 3 buckles align with the nuts. Turn the cup clockwise until you feel resistance, ensuring the buckles are under the motor casing and the fastener clicks.

What is the maximum operation time for the mixing adapter?

The mixing adapter should not be used continuously for more than 3 minutes. After that, allow a 20-minute rest before next use.

Can I wash the metal parts in the dishwasher?

No, metal parts such as whisks and mixers may darken if washed in a dishwasher. Clean them manually with warm water and mild detergent.

Why does my mixer stop during operation?

The mixer may stop due to thermal protection. If operated beyond the recommended time (10 min for whisks/mixers, 3 min for adapter/cup), the motor will shut off automatically. Let it cool for at least 20 minutes before restarting.

How do I use the turbo button?

The turbo button provides maximum speed instantly regardless of the current speed setting. Press and hold it during operation; release to return to the previously set speed.

What attachments are included with the Zelmer 381?

The package includes: 2 whisks, 2 mixers, liquidising disc, mixing adapter, mixing cup with lid and doser, and a stand with rotating bowl. Some models may include a metal cap for the mixing adapter (Silver Line series).

Can I use the mixing cup for hot liquids?

The mixing cup is intended for cold or lukewarm ingredients only. Avoid processing liquids above 60°C to prevent damage.

How do I clean the motor unit?

Unplug the device and wipe the motor casing with a damp cloth. Never immerse the motor in water or rinse under running water.

What does the liquidising disc do?

The liquidising disc is used for pureeing cooked fruits and vegetables (e.g., carrots, potatoes, tomatoes) by pressing them through a sieve. It is assembled on a whisk before insertion.

Is the Zelmer 381 suitable for kneading yeast dough?

Yes, use the mixers (not whisks) for dense doughs. For 0.5 kg flour, start at speed I for 30 seconds, then increase to speed V until smooth. Maximum operating time is 10 minutes.

USER MANUAL 381 Zelmer

zelmer

Modern kitchen mixer with hand mixer and side dishes (no visible text or labels)

1	MINI MACH (LIC KONKOM) 2015/10/31	NO. 78	HATARTAN KONKOM 2017/10/31	21.25	1	MINI MACH (LIC KONKOM) 2017/10/31	NO. 43
2	MACH SOLD ROBOT 2016/10/31	11.10	MOBEN 2017/10/31	20.25	1	MOBEN 2017/10/31	NO. 43
3	MACH SOLD ROBOT 2016/10/31	10.20	PICKY POT TO KONKOM 2017/10/31	21.25	1	PICKY POT TO KONKOM 2017/10/31	NO. 43

281 381 Mikee Mixer

B

201.2	√	√	√	√	√	-
201.3	√	√	√	√	√	-
201.4	√	√	√	√	√	-
201.5	√	√	√	√	√	-
201.6	√	√	√	√	√	-
201.7	√	√	√	√	√	-
201.8	√	√	√	√	√	-
201.9	√	√	√	√	√	-

©

D

E

F

G

H

1

PL

Stanami Milan

The following author is a key powertrainian, yet the other has been a special electricity provider.

dav. i prava, podzany, wada, zadzany, a zadzany, i prava, podzany, o zadzany, a zadzany, i prava, podzany, o zadzany, a zadzany, i prava, podzany, o zadzany, a zadzany, i prava, podzany, o zadzany, a zadzany, i prava, podzany, o zadzany, a zadzany, i prava, podzany, O

The following described information is subject to the lack of knowledge and knowledge of the research, but not relevant to the research methodology. The research methodology is also described in this section.

The following table provides the information in English: The information is provided by the United Kingdom. The information is presented in a tabular format with the following table:

5.14.14

In the case of the condition, we could have a greater extent to be an important factor in the application of a specific process. We also have a significant effect on the

Truist

1. Napremopark politezovskemink Papitezovskemink politezovskemink

The vysta, wycia z gürzna sod podajak a powe Branach, rizem, wyciebata do war pandy powyj 30°C - rizem adacal' inou, lizem adacal, rizem avodis, and rizem po pol bevaywate.

Barny, wrochka, wrochka, wrochka, wrochka, wrochka, wrochka, wrochka, wrochka, wrochka, wrochka, wrochka, wrochka, wrochka, wrochka, wrochka, wrochka, wrochka, wrochka, wrochka, wrochka, wrochki, wrochki, wrochki, wrochki, wrochki, wrochki, wrochki, wrochki, wrochki, wrochki, wrochki, wrochki, wrochki, wrochki, wrochki, wrochki, wrochki, wrochki, wrochki, wrochki, wrochk

The work was reappeared by the main project, and the project was created by the project. The project was created by the main project.

The first, the first of the first, was a result that was the second. The second, the second, was the third, was the fourth.

He said, was said that he had been a good way to be able to take place.

not a poliole (webbend orgatope 640)

In fact, it is not a one-time time. In the time of the year, in 1980, the time was 30 minutes.

In Mio. 1940, 2007, 18:30 a 1500 mm

PRACA Z TARCZA PRZECIERAJĄCĄ (Rys. E)

Functionarea cu discul de pasare (Fig. E)

Congratulations on your choice of our appliance, and welcome among the users of Zelmer products.

In order to achieve best possible results we recommend using exclusively original Zelmer accessories. They have been specially designed for this product.

We kindly ask you to read carefully the operation manual. We call your special attention to safety precautions. Keep this operation manual for future reference.

Important safety precautions

Danger! / Warning! Health hazard

Do not start up the device, with a visibly damaged cord or casing.

the non-detachable part of the cord is damaged, it should be replaced by the producer or at a proper service point or by a qualified person in order to avoid any hazards.

The appliance can only be repaired by qualified service personnel. Improper servicing may cause a serious hazard to the user. In case of defects please contact a qualified service center.

Do not take out working elements from the bowl, when mixer is on.

Do not touch the rotating equipment with your hands, mixing adapter and mixing cup blades are especially dangerous. They are very sharp!

Turn off the device and unplug it from an outlet before replacing the equipment or approaching moving parts during use.

always unplug the power cord before cleaning.

Keep special caution during operation in presence of children.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Due to safety reasons, the products can only be blended in the mixing cup when the lid is properly attached to the cup. It is forbidden to insert any items to the inside of the cup such as: spoons, spatulas, etc. It may lead to damage to the mixer or breaking of the elements inside the cup which may directly enter the product being blended and this in turn poses a threat to the health or even life.

Caution! Not observance can result in damage to possessions

Plug the mixer to AC mains supply 230 V only.

Do not unplug by pulling the cord.

Do not expose the mixer and its equipment to the temperature above 60°C. You can damage your mixer.

Do not immerse the mixer motor in water, nor clean it under running water.

Do not clean the equipment when assembled on the motor.

Do not clean the casing with aggressive detergents, such as emulsion, milk, paste, etc. They can remove the graphic symbols such as: scales, labels, caution signs, etc.

Do not use mixing adapter without immersing it in products, in case of liquids, their level should not be higher then the half of adapter height.

Be careful not to flood the inner of mixing adapter casing with water – after assembling on the motor part, the motor can get flooded.

Do not use the mixer with empty mixing cup.

Be careful not to flood the bottom space of mixing cup, containing clutch - after assembling on the motor part, the motor can get flooded.

Do not put simultaneously the mixer and whisk with toothed bar into the motor socket. In the moment of start-up the mixer shall get damaged.

Do not use the mixing adapter nor the mixing cup longer than 3 min., whereas the mixers and whisks not longer than 10 min.

stion Information on the product and suggestions for its use

The appliance is intended for domestic use. In case it is used for food business purposes, the warranty conditions shall change.

After operation unplug the Power cord and wind on the mixer motor part.

Do not wash metal parts in a dishwasher. Aggressive cleaning agents used in such machines cause that a/m parts get darker. Clean them manually with traditional washing up liquids.

But the mixer and whisk with toothed bar into the motor socket marked with a star.

The manufacturer cannot accept any liability for damage to the oven or personal injury resulting from improper usage.

Technical data

Technical parameters are quoted at product nameplate.

Permitted motor operation time:

with mixers, whisks 10 min. -

with mixing adapter or mixing cup 3 min. -

Interval time before next operation (min.) 20 min.

Noise caused by the device (LWA):

with mixers, whisks, mixing adapter, -

on the stand 80 dB/A

with mixing cup (mixer 381) 84 dB/A –

The mixers are produced in II insulation class, they don't

need grounding.

ZELMER mixers meet current norms requirements.

The devices meet the requirements of the directives:

Low Voltage Device (LVD) - 2006/95/EC. -

Electromagnetic compatibility (EMC) - 2004/108/EC.

The product is marked with CE on the name plate.

Appliance elements (Fig. A)

1 Mixer motor
2 Pusher button
3 Switch lever
4 Turbo button
5 Whisks or mixers sockets
6 Mixing adapter hole
7 Handle insert
8 Mixers: left/right with toothed bar
9 Whisks: left/right with toothed bar
10 Liquidising dics
11 Mixing attachment (The metal cap is available only in the "Silver Line" series)
12 Cup
13 Mixing cup
14 Doser
15 Lid
16 Knife cup
17 Stand
18 Head
19 Grip knob
20 Fastening button
21 Rotating bowl
22 Blade

ZELMER mixers types

(Fig. B)

√ basic mixer equipment
○ additional equipment, which you can buy in shops

Device description

• The mixer has 5 speed positions. The lever is used to set up the particular rotation speed according to the numbers: 0, 1, 2, 3, 4, and 5 on pusher button, which helps to remove (push out) the mixers or whisks from the mixer motor part.
• Additionally, the drive has „turbo” button which helps to get the maximum rotation speed immediately, regardless the speed set with the lever. Such buttons are placed both on the right and left sides of the casing intended for the convenience of both left and right-handed users. The „turbo” button is automatically blocked in „0” position.
• There are 2 sockets (holes), for whisks or mixers assembling, placed on the bottom of the motor part.
• The insert handle, placed on the top of the motor part, is made of the material increasing the comfort of holding the mixer motor part.
• There is a hole for mixing adapter or mixing cup assembling at the back of motor casing. The hole is covered with a mobile cover.
  There is a clamp and a fastener in the lower part of motor casing, for power cord winding around the motor casing.

Mixer start-up and position setting (rotation speed)

(Fig. C)

① Place the ON/OFF switch in the „0” position - the leftmost position. Install the selected tool.
② Plug in the appliance.
③ Switch on the appliance by sliding the switch to the right.
④ If you want to increase the rotation shift the lever in position „5” direction, choose the desired rotation speed.
⑤ In order to increase the rotation immediately, regardless set speed, press and hold one of „turbo” buttons (on the right or left side of the casing).
⑥ When you want to return to the previously selected speed release „turbo” button.

Preparing for operations

Operation with whisks or mixers (Fig. D)

• The whisks are intended to whipping eggs white foam, cream, rubbing yolks with sugar, cream and pancakes or omelettes dough preparation.
  ● The mixers are intended to work the rubbed dough, yeast dough, cheeses cakes, imbirbread cakes, etc.
• The whisks and mixers shall be assembled in sockets on the bottom of the robot.

① Press until you feel the refusal – when the clamps get fastened.

When assembled improperly, the parts fall apart during operation.

② Insert the mixer or whisk with toothed bar into the socket marked with a star.

reverse assembling of the mixers can cause lifting up the dough (taking the dough out of bowl).

level of products inside the bowl should not exceed the hight of mixers or whisks working part (L).

Operation with liquidising disc (Fig. E)

liquidizing disc is used for liquidizing boiled fruit and vegetables such as: carrots, potatoes, tomatoes, apples through the sieve. It partly replaces the function of the mixing adapter.

① Insert the liquidizing disc on the whisk with toothed bar from the bottom side.
② Insert the whisk into the socket marked with a star.

Cup (12)

Made of transparent material is used as a container when mixing adapter is used.

Operation with mixing adapter (Fig. F)

You can use the mixing adapter for:

-ixing liquids,
●crumbling boiled vegetables and raw, soft fruit,
• preparing different mayonnaise and pastes,
- preparing soups for infants.
● rushing ice (metal adapter only).

You can assemble the adapter after moving the cover.

① Gently press the bolt and slide towards the direction shown in the figure.
② Insert the threaded part into the motor casing hole and screw it turning right until you feel the refusal.

equate screwing of the mixing adapter can result in clutch damage or the adapter damage.

③ Put the adapter into the processed product and switch the mixer on.

Operation with mixing cup (Fig. G)

the mixer in your hand all the time during operation.

Mixing cup is intended for infant soups preparation, milk shakes or pancake dough.

has the label „500 ml max” on both sides, which indicates the maximum level of product to fill the cup and graphic scale to determine the volume 200 ml to 500 ml (according to the symbols in the drawing beside).

① After moving the cover (like during assembling the adapter) assemble the cup the following way: Insert the

mixing cup on the motor part so that the 3 buckles visible at the bottom of the cup got into the nuts of the motor casing.

② Holding the motor casing handle turn the cup clockwise direction until you feel the refusal.
You shall obtain the proper connection, when the 3 buckles get under the motor casing, and the fastener on the cup rib move on the other side of the spherical buckle on the motor casing.
③ Fill the cup with products and put the cover with the doser on – you can add next products to the cup during operation.

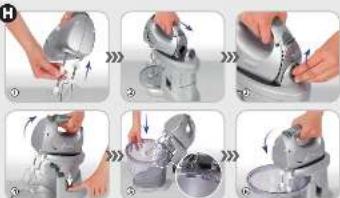

Operation with stand including turnable bowl (Fig. H)

The stand with assembled motor part makes the operation with whisks or mixers easy, as the user does not have to hold the device.

The stand head driver automatically makes the head move pendulum-like and simultaneously turns the bowl with the mixed product.

You can use the stand with specially prepared whisks and mixers only. The device equipped with stand includes also one mixer and one whisk with toothed bar.

① Insert the mixers or whisks into the motor casing (as described above).
② Assemble the drive in the stand head after moving the cover (like during assembling the adapter) the following way: Insert the drive fasteners (which are located near the holes for whisks assembling) under the stand head fastener.
③ Turn the control clamp to the limit in such a way that the hand is positioned vertically.
④ Press the fastener button and simultaneously deflect the stand head with the motor part back.
⑤ If the bowl with products a bit up and then insert it on the three insertions and place it at the stand base.
⑥ Place the stand head with the motor part in horizontal position (you will hear the clicking sound of fastener blocking clamps).

Start-up the mixer with the switch lever and it will make the bowl turn and the head with drive move pendulum-like.

r block or stop the oscillatory movement during operation. It may cause damage to the housing.

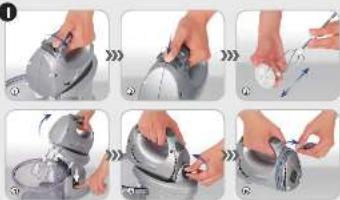

After operation

(Fig. I)

① Switch the mixer off and unplug it.
Depending on assembled equipment:
② Push the whisks or mixers out with a pushing button.
③ Disassemble the liquidizing disc from the whisk.

Disassemble the mixing adapter or mixing cup in reverse way to assembling it.

④ Deflect the stand head with the motor part back.
⑤ Turn the clamp knob in counter clockwise direction as much as possible and put the motor out of the head fasteners.
⑥ Wind the power cord on the motor part and put the last winding under the insert.

Cleaning and maintenance

Remember to unplug before clearing and maintenance.

• clean the whisks and mixers with warm water with cleaning agents.
• clean the mixing adapter and mixing cup by mixing clean, warm water (after plugging the mixer to mains supply).
• clean the cogged rim of rotational bowl with dishes cleaning brush.
  Do not wash the mixing adapter or the mixing cup in dishwasher.
  Burn the bowl upside down after cleaning and pour out the water, which could remain under the cogged rim.
  Dry the mixer equipment after cleaning and store in dry place.
• clean the motor or stand casing with dump cloth and then dry it.

Ecology – environment protection

Each user can protect the natural environment. It is neither difficult nor expensive. In order to do it: Put the cardboard packing into recycling paper container, Put the polyethylene (PE) bags into container for plastic.

When worn out, dispose the appliance to particular disposal centre, because of the dangerous elements of this appliance, which can be hazardous for natural environment.

Please do not dispose into domestic waste disposal!!!

The manufacturer does not accept any liability for any damages resulting from unintended use or inappropriate handling.

The manufacturer reserves his rights for modifying the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade aesthetic or other reasons, without notifying it in advance.

DISH EQUIPMENT			THE AMOUNT OF PROCESSED PRODUCT	RECOMMENDED SPEED OPERATION TIME
Soup for infants mixing adapter 1 litre I position 10 s, next V position 40 - 60 s
Vegetable puree for infants	mixing adapter	0,5 litre (with a sieve)	I position 10 s, next V position	1 - 1,5 min.
	liquidizing disc I position
Cream soup	mixing adapter 1 litre I position 10 s, next V position 30 - 45 s
	mixing cup 0,5 litre IV position or V position 2 min.
Fruit latte	mixing adapter 0,5 litre V position 30 - 60 s
	mixing cup	0,15 kg of fruit and 0,3 litre of kefir	IV position or V position	1 - 1,5 min.
Greens: parsley, dill ...	mixing adapter	1 bundle	II position	30 s
Pancake dough	whisks	1 litre I position 15 s, next V position 1 - 1,5 min.
	mixing cup 0,5 litre III, IV or V position 1 min.
Egg white foam	whisks	White of 5 eggs	V position	2 - 3 min.
Sponge cake dough	whisks	Made of 6 eggs	IV position	7 - 8 min.
Butter cream	whisks	0,25 kg of vegetable butter	III or IV position	4 - 5 min.
Whipped cream	whisks	1 litre	II position 15 s, next IV position
Potatoes puree	whisks	1 kg	I position 15 s, next V position	40 - 60 s
Potatoes and cheese dumplings stuffing	whisks	1 kg of potatoes and 0,5 kg of cottage cheese	position 15 s, next IV position	40 - 60 s
Cottage cheese with cream		whisks	0,5 kg	III position
Gingerbread dough	watery	whisks	0,5 kg of flour	I position 30 s, next III position
	dense	mixers
Yeast dough		mixers	0,5 kg of flour	I position 30 s next V position
