Product Type Smart Switch Module Dual
Brand Tesla
Model ESW-1WAB-EU
Connectivity Wi-Fi 2.4 GHz IEEE 802.11b/g/n
Frequency Band 2.412 - 2.4835 GHz
Max. RF Power <20 dBm
Input Power 100-240V AC, 50/60Hz
Maximum Load per Channel 5A
Dimensions 48 mm × 48 mm × 18 mm
Installation Behind traditional switches or sockets, in wall box
Control App Tesla Smart (iOS & Android)
Wiring Compatibility Single-pole, 2-gang, multi-control switches
Reset Method Hold button or toggle 6 times
Safety Turn off circuit breaker before installation; shock hazard warning
Certifications CE, EU Declaration of Conformity

Frequently Asked Questions - Smart Switch Module Dual TESLA

Do I need a neutral wire for installation?
Yes, a neutral wire is required. Check connection diagrams 1-4 in the manual for proper wiring.
Can I use this module with a dimmer switch?
No, this module is not designed for use with dimmer switches. It works with standard on/off switches.
How do I reset the module?
Two methods: (1) Press and hold the reset button for 3 seconds. (2) Toggle the connected switch 6 times within 2 seconds.
What Wi-Fi frequency does it require?
It works only on 2.4 GHz Wi-Fi networks. 5 GHz is not supported.
Can I control the module away from home?
Yes, via the Tesla Smart app on your smartphone from anywhere with internet access.
How do I pair the module with the app?
Open the Tesla Smart app, tap '+', select Switches > Tesla Smart Switch Module Dual, and follow the in-app instructions to complete pairing.
What is the maximum load per channel?
Each channel can handle up to 5A (resistive load). Verify total load does not exceed this limit.
Can I use it with a three-way switch setup?
Yes, it supports multi-control switches (more than two switches). Refer to connection diagram 4 in the manual.
Is the module compatible with Alexa or Google Home?
Yes, after pairing with the Tesla Smart app, you can link it to Alexa or Google Home for voice control.
What should I do if the module does not respond?
First, check Wi-Fi connection and ensure the module is powered. Try a reset (hold button 3s or toggle 6 times). If still unresponsive, re-pair in the app.

User questions about Smart Switch Module Dual TESLA

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Home Automation in PDF format for free! Find your manual Smart Switch Module Dual - TESLA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Smart Switch Module Dual by TESLA.

USER MANUAL Smart Switch Module Dual TESLA

Communication: WiFi 2.4G

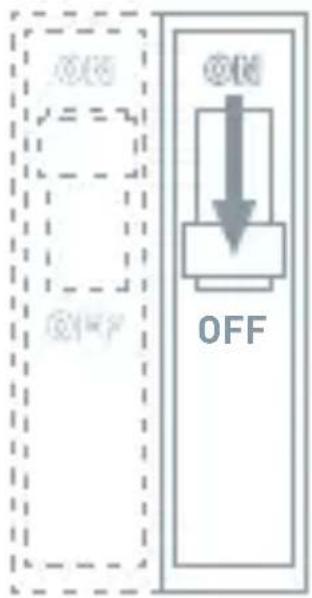

3 Turn power off at circuit breaker!

OFF OFF

TESLA Smart Switch Module Dual - Turn power off at circuit breaker! - 2

WARNING: SHOCK HAZARD.

May result in serious injury or death. Turn off power at circuit breaker or fuse before installing.

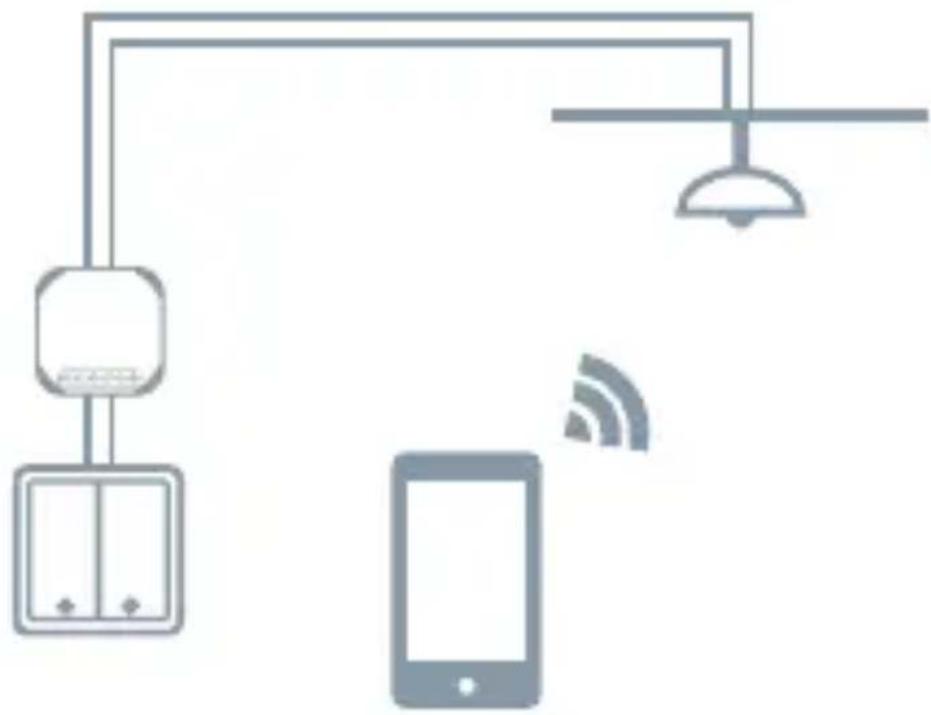

4 Intelligent Traditional switches
TESLA Smart Switch Module Dual - WARNING: SHOCK HAZARD. - 1

natural_image Diagram showing a smart home connection with a device, smartphone, and lamp (no text or symbols)

Install behind the traditional switch

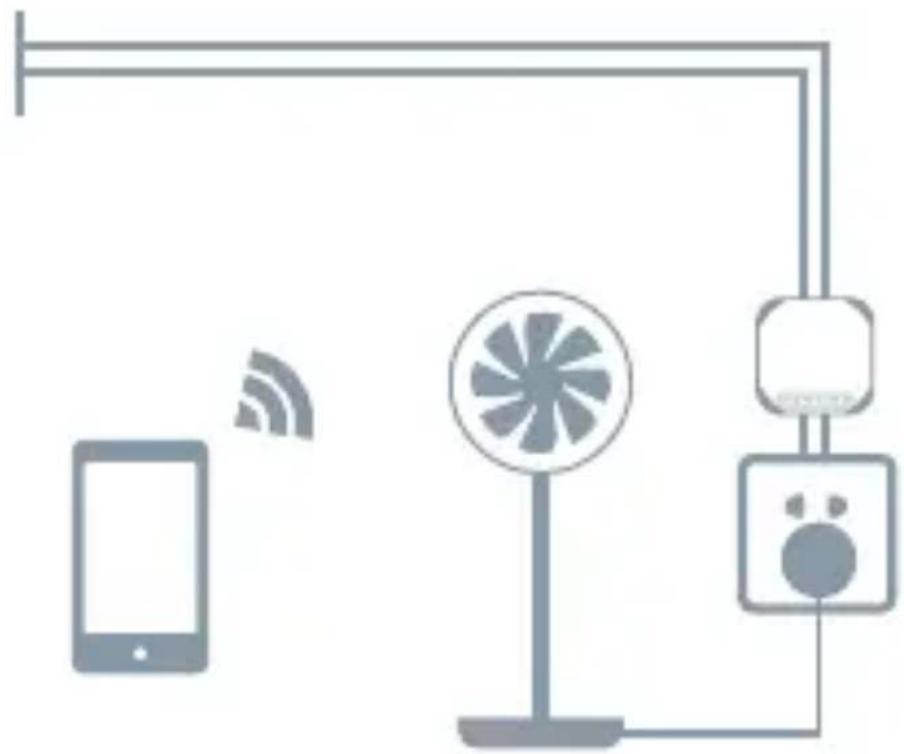

5 Intelligent traditional socket
TESLA Smart Switch Module Dual - WARNING: SHOCK HAZARD. - 2

natural_image Diagram showing a smartphone connected to a fan and a power adapter, with no text or symbols present.

Install behind the traditional socket

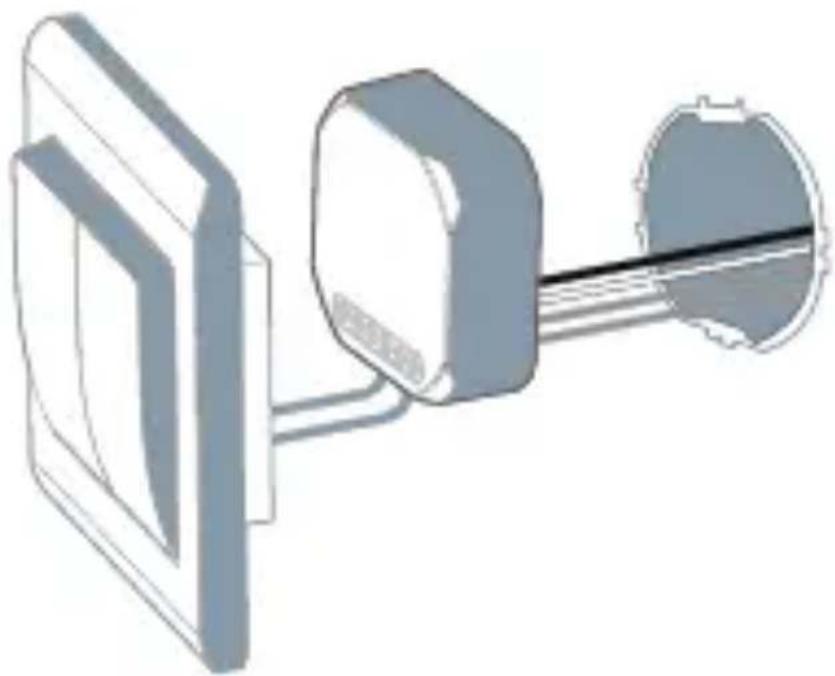

6 Hidden in a box

TESLA Smart Switch Module Dual - Hidden in a box - 1

natural_image 3D diagram of a mechanical assembly with two components connected by rods (no text or symbols visible)

Install in original wall box

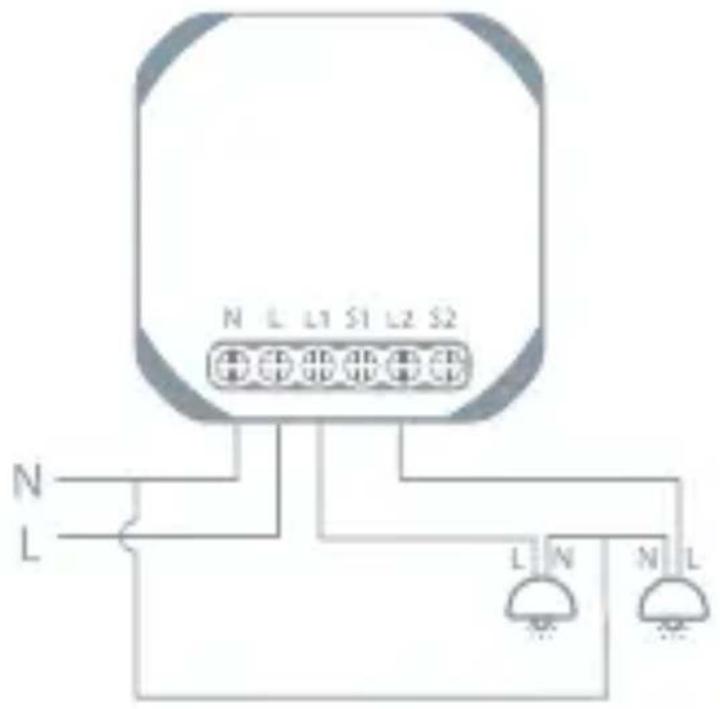

7 Connection diagram 1

N L L1 S1 L2 S2 N L L N N L

Without switch

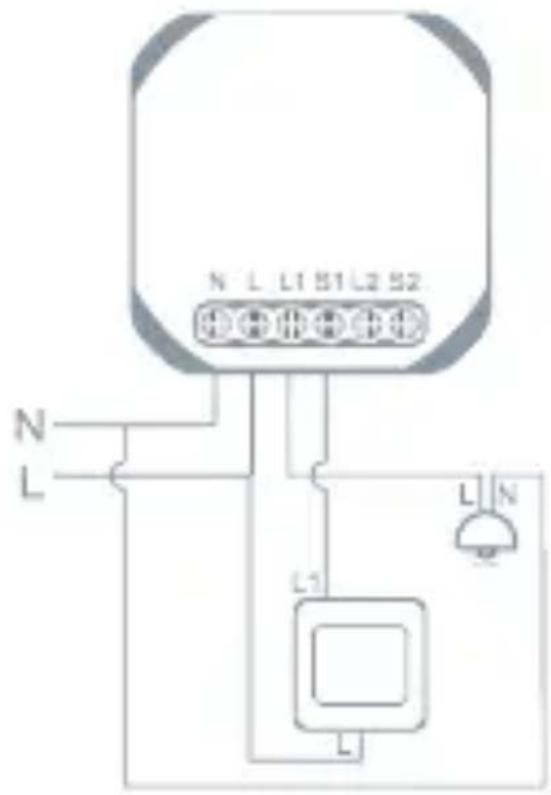

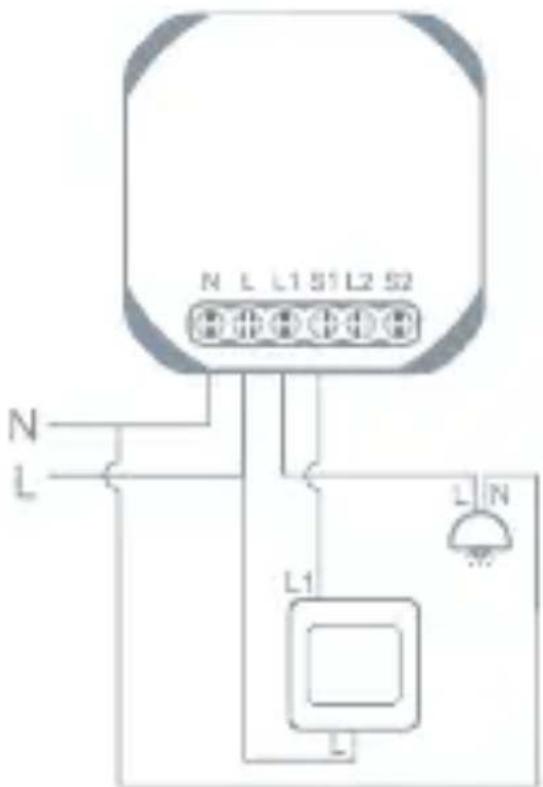

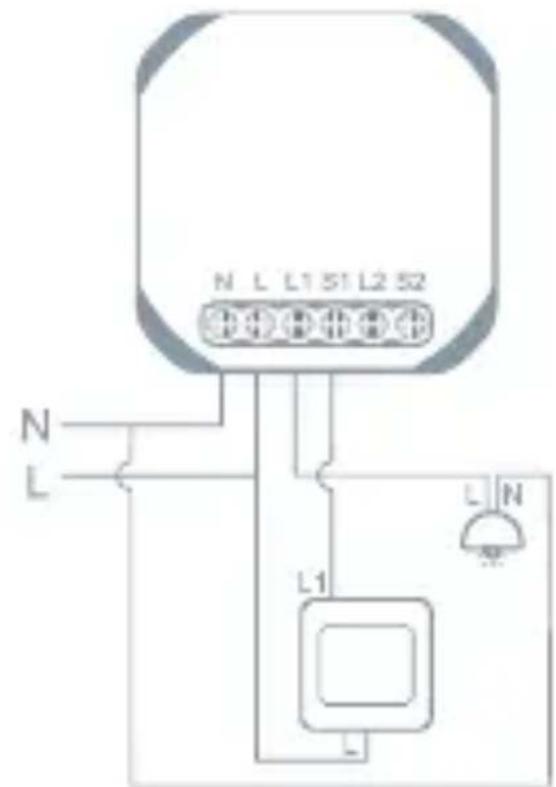

8 Connection diagram 2
N L L1 S1 L2 S2 L N L1 L N

With 1 GANG Switch

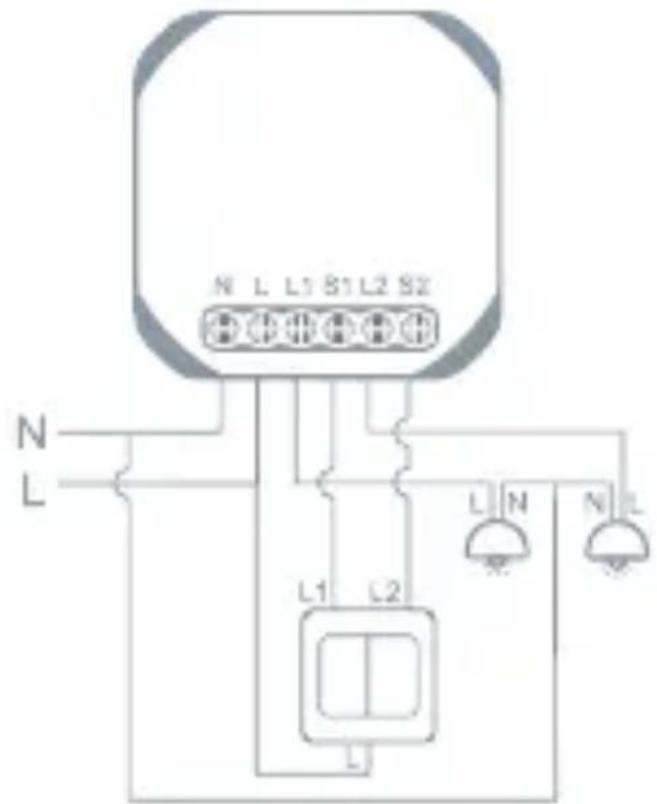

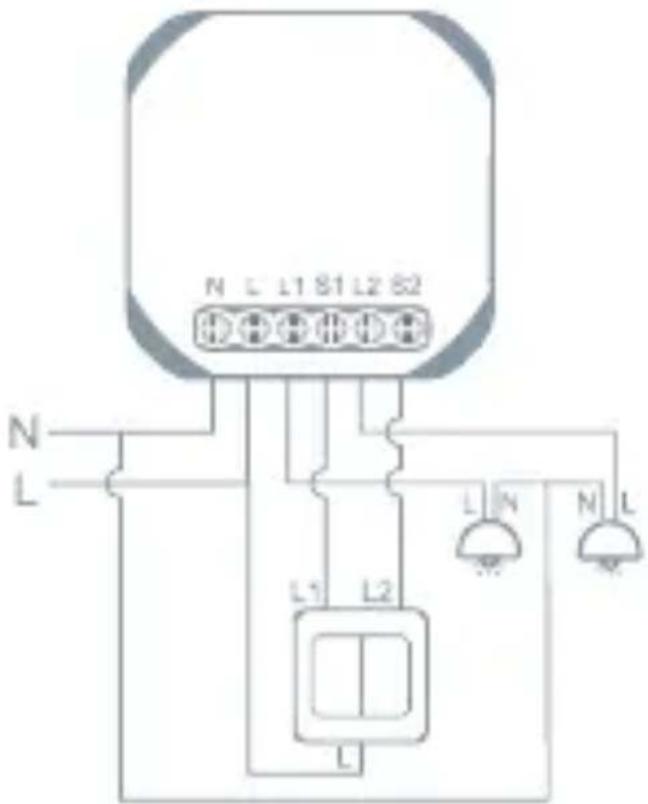

9 Connection diagram 3
N L L1 S1 L2 S2 L L1 L2 L N N L

With 2 GANG Switch

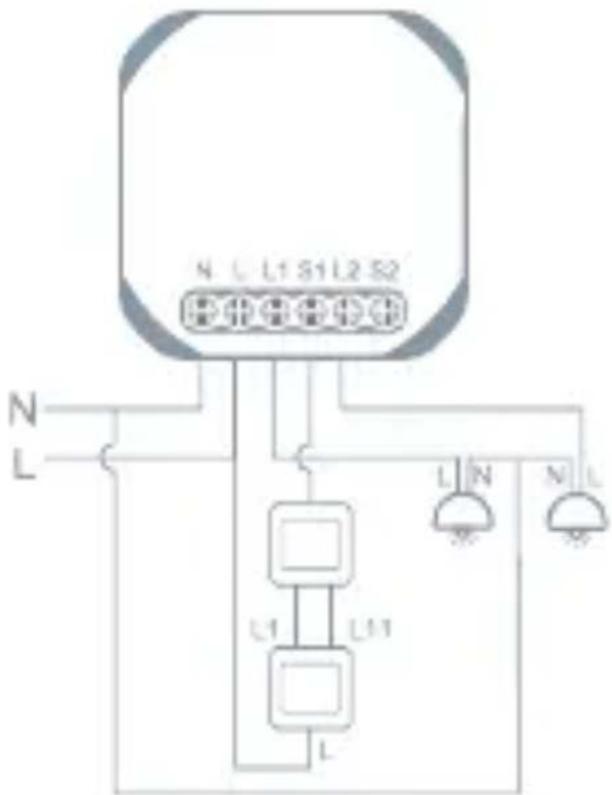

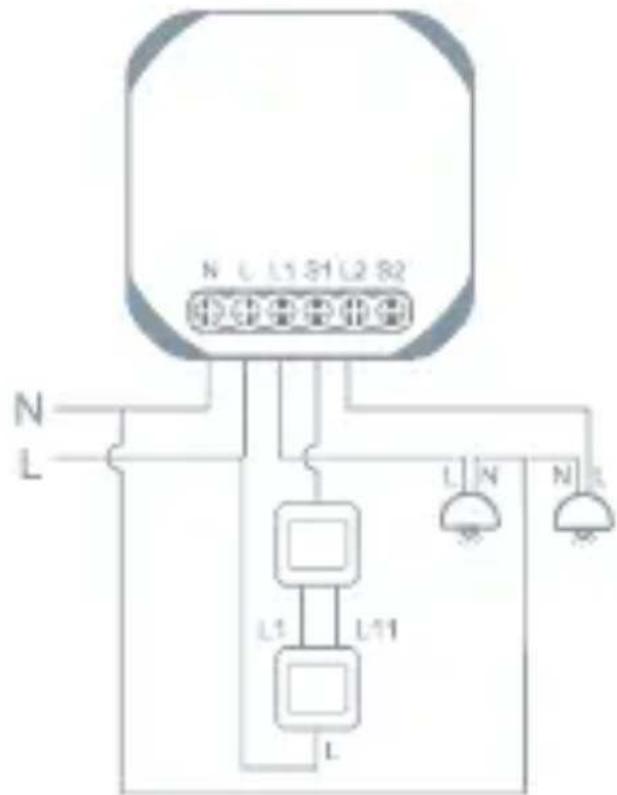

10 Connection diagram 4
N L L1 S1 L2 S2 L N L L1 L11 L

With Multi-Control Switches

11 Download the app

  • Tesla Smart is available for both iOS and Android OS. Search the name 'Tesla Smart' in App Store or Android Market, or scan the QR-Code to download the App and register or login your account.
  • Make sure that the smartphone is connected to the 2.4Ghz network.

QR code image containing encoded data, no visible human-readable text

12 Connect the device

  • Open Tesla Smart app and click "+" sign to Add new device
  • Select Switches - Tesla Smart Switch Module Dual
  • Follow the instructions to add the Tesla Smart Switch Module Dual step by step
    • Control device with APP

Cloud Service Service Oblabro Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Service Services

File menu Name: Edit Edit Mode: Edit Type: Edit Date: Edit Time: Edit Status: Edit Address: Edit Address: Edit Address: Edit Address: Edit Address: Edit Address: Edit Address: Edit Address: Edit Address: Edit Address: Edit Address: Edit Address: Edit Address: Edit Address: Edit Address: Edit Address: Edit Address: Edit Address: Edit Address: Edit Address: Edit Address: Edit Address: Edit Address: Edit Address: Edit Address: Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Edit Authority Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Update Microsoft Windows 2007-0123 - Microsoft Windows 2007-0123 - Microsoft Windows 2007-0123 - Microsoft Windows 2007-0123 - Microsoft Windows 2007-0123 - Microsoft Windows 2007-0123 - Microsoft Windows 2007-0123 - Microsoft Windows 2007-0123 - Microsoft Windows 2007-04/20 - Microsoft Windows 2007-04/20 - Microsoft Windows 2007-04/20 - Microsoft Windows 2007-04/20 - Microsoft Windows 2007-04/20 - Microsoft Windows 2007-04/20 - Microsoft Windows 2007-04/20 - Microsoft Windows 2007-04/20 - Facebook Server 2007-0123 - Facebook Server 2007-0123 - Facebook Server 2007-0123 - Facebook Server 2007-0123 - Facebook Server 2007-0123 - Facebook Server 2007-0123 - Facebook Server 2007-0123 - Facebook Server 2007-0123 - Facebook Server 2007- Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print: Print:

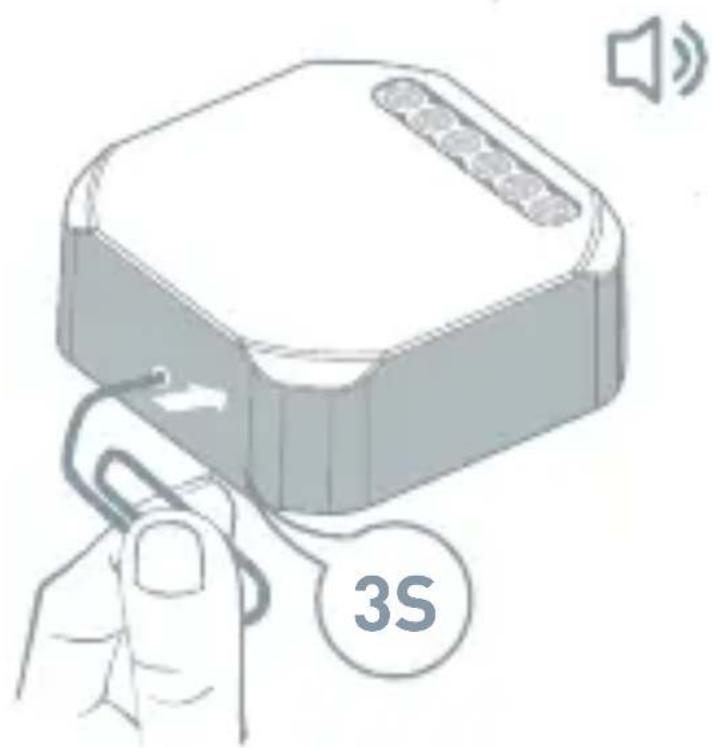

13 Reset Option 1

TESLA Smart Switch Module Dual - Reset Option 1 - 1

natural_image Illustration of a hand holding a 3S device with sound waves, no text or symbols present

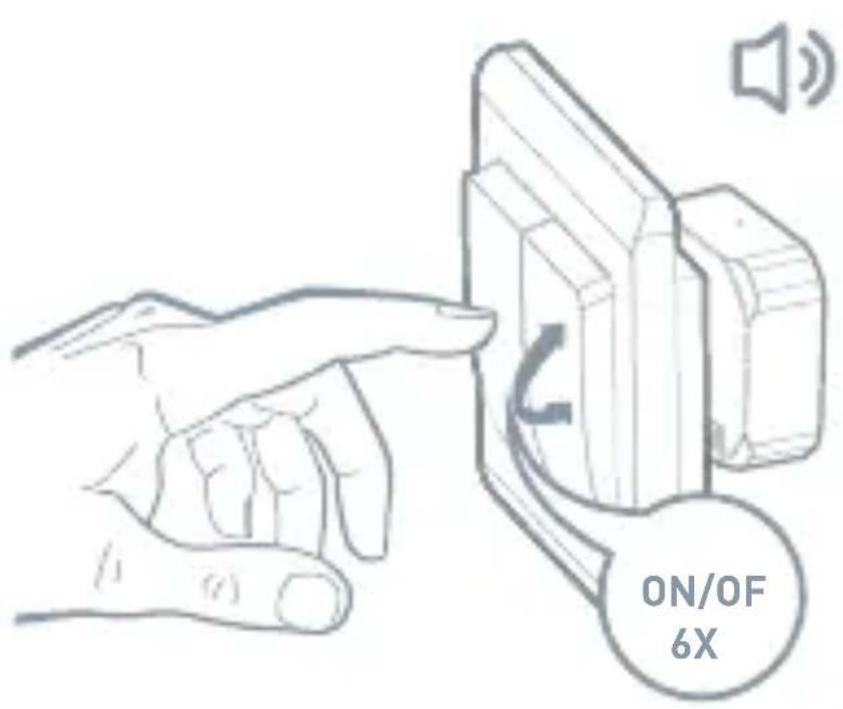

14 Reset Option 2
ON/OF 6X

INFORMATION ABOUT DISPO- SAL AND RECYCLING

This product is marked with the symbol for separate collection. The product must be disposed of in accordance with the regulations for disposal of electrical and electronic equipment (Directive 2012/19/EU on waste electrical and electronic equipment). Disposal together with regular municipal waste is prohibited. Dispose of all electrical and electronic products in accordance with all local and European regulations at the designated collection points which hold the appropriate authorisation and certification in line with the local and legislative regulations. Correct disposal and recycling help to minimise impacts on the environment and human health. Further information regarding disposal can be obtained from the vendor, authorised service centre or local authorities.

Connectivity: Wi-Fi 2,4 GHz IEEE 802.11b/g/n Frequency band: 2.412 - 2.4835 MHz Max. radio-frequency power (EIRP): < 20 dBm

EU DECLARATION OF CONFORMITY

Hereby, Witty, s.r.o declares that the radio equipment type ESW-1WAB-EU is in compliance with EU directives. The full text of the EU declaration of conformity is available at the following internet address: teslasmart.com/declaration

CE

Manufacturer

Tesla Global Limited Gee Chang Industrial Building, 121 Des Voeux Road Central 852 00 Hong Kong www.teslasmart.com

TESLA Smart Switch Module Dual - Manufacturer - 1

TESLA

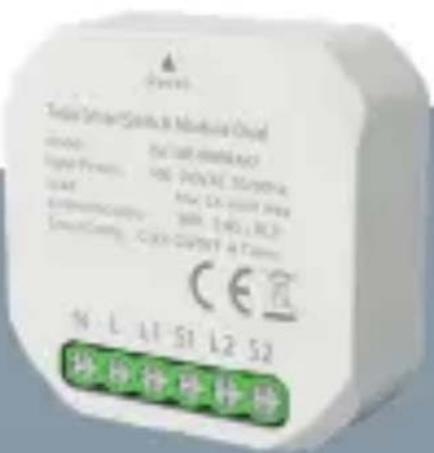

Table1 SmartSears & Modulus Head MODEL: No. 10000000000000000000000000000000000000000000000000000000000000000000000000000000 Type: P#### Model: No. 1462-3578974 CE N L 41 51 L2 52 特许检验检验

SMART SWITCH MODULE DUAL

BENUTZERHANDBUCH

EN

DE

CZ

SK

PL

HU

SL

HR

UA

RU

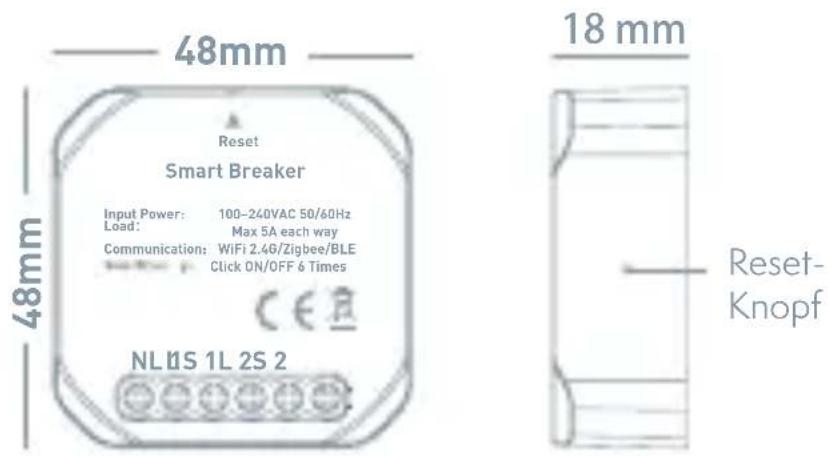

1 Dimension

48mm Reset Smart Breaker Input Power: 100-240VAC 50/60Hz Load: Max 5A each way Communication: WiFi 2.4G/Zigbee/BLE Click ON/OFF & Times 18 mm 48mm NLUS 1L 2S 2 Reset- Knopf

2 Spezifikation

WARNUNG: STROMSCHLAGGEFAHR.

natural_image Diagram showing a smart home connected to a device via a lamp and smartphone, with no text or symbols present.
natural_image Diagram showing a smartphone connected to a fan and a device via wireless signal lines (no text or symbols)
natural_image 3D diagram of a mechanical assembly with two components connected by rods (no text or symbols visible)

In Original-Wanddose installieren.

7 Anschlussplan 1

N L L1 S1 L2 S2 N L L N N L

Ohne Schalter.

8 Anschlussplan 2
N L L1 S1 L2 S2 L N L L1 L N

13 Reset-Option 1
TESLA Smart Switch Module Dual - Anschlussplan 1 - 3

natural_image Illustration of a hand holding a 3S device with sound waves, no text or symbols present

14 Reset-Option 2
ON/OF 6X

natural_image Diagram showing a smart home connected to a device via a lamp and smartphone, with no text or symbols present.
natural_image Diagram showing a smartphone connected to a fan and a device via wireless signal lines (no text or symbols)
natural_image 3D diagram of a mechanical assembly with two components connected by rods (no text or symbols visible)

Bez vypínače

8 Schéma zapojení 2
N L L1 S1 L2 S2 L N L L1 L N

TESLA Smart Switch Module Dual - Anschlussplan 1 - 6

natural_image Illustration of a hand holding a 3S device with sound waves, no text or symbols present
natural_image Diagram showing a smartphone connected to a fan and a device via a network (no text or symbols)
natural_image 3D diagram of a mechanical assembly with two components connected by rods (no text or symbols visible)

Bez vypínača

Pre dvojité prepínače

10 Schéma pripojenia 4
N L L1 S1 L2 S2 L N L L1 L11 L

12 Pripojenie zariadenia

natural_image Illustration of a hand holding a 3S device with sound waves, no text or symbols present
natural_image Diagram showing a smart home connection with a device, smartphone, and lamp (no text or symbols)
natural_image Diagram showing a smartphone connected to a fan and a device via a cable, with no text or symbols present.
natural_image 3D diagram of a mechanical assembly with two components connected by rods (no text or symbols visible)

Bez przełącznika

natural_image Illustration of a hand holding a 3S device with sound waves, no text or symbols present
natural_image Diagram showing a smart home connected to a device via a lamp and wireless signal (no text or symbols)
natural_image Diagram showing a smartphone connected to a fan and a device via wireless signal lines (no text or symbols)
natural_image 3D diagram of a mechanical assembly with two components connected by rods (no text or symbols visible)

Kapcsoló nélkül

1 GANG kapcsolóval

2 GANG kapcsolóval

natural_image Illustration of a hand holding a 3S device with sound waves, no text or symbols present
natural_image Diagram showing a smart home connected to a device via a wall-mounted device and a smartphone, with no text or symbols present.

Namestite za tradicionalno stikalo

natural_image Diagram showing a smartphone connected to a fan and a device via wireless signals (no text or symbols)
natural_image 3D diagram of a mechanical assembly with two components connected by rods (no text or symbols visible)

Namestite v originalno stensko škatlo

7 Shema ožičenja 1

N L L1 S1 L2 S2 N L L N N L

Brez stikala

8 Shema ožičenja 2
N L L1 S1 L2 S2 L N L L1 L N

Za klasična stikala

9 Shema ožičenja 3
N L L1 S1 L2 S2 L N L L1 L2 L L N N L

Za dvojna stikala

10 Shema ožičenja 4
N L L1 S1 L2 S2 L N L L1 L11 L

12 Povezava naprave

natural_image Illustration of a hand holding a 3S device with sound waves, no text or symbols present
natural_image Diagram showing a smart home connected to a device via a lamp and wireless signal (no text or symbols)

Instalirajte iza tradicionalne sklopke

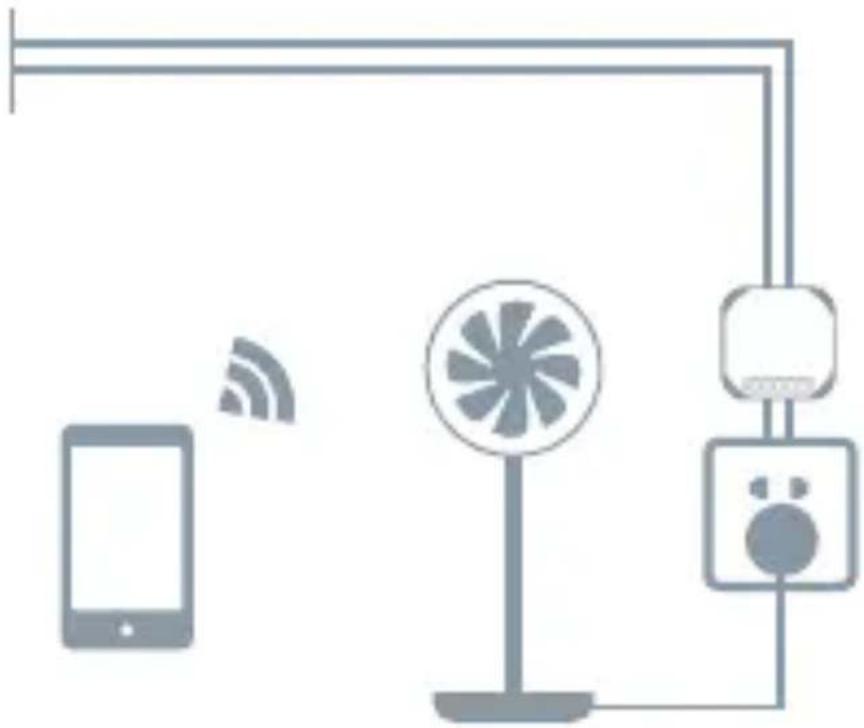

5 Inteligentna tradicionalna utičnica

TESLA Smart Switch Module Dual - Inteligentna tradicionalna utičnica - 1

natural_image Diagram showing a smartphone connected to a fan and a power outlet, with no text or symbols present.
natural_image 3D diagram of a mechanical assembly with two components connected by rods (no text or symbols visible)

Instalirajte u originalnu zidnu kutiju

7 Shema ožičenja 1

N L L1 S1 L2 S2 L N L L N N L

Bez prekidača

8 Shema ožičenja 2
N L L1 S1 L2 S2 N L L1 L N

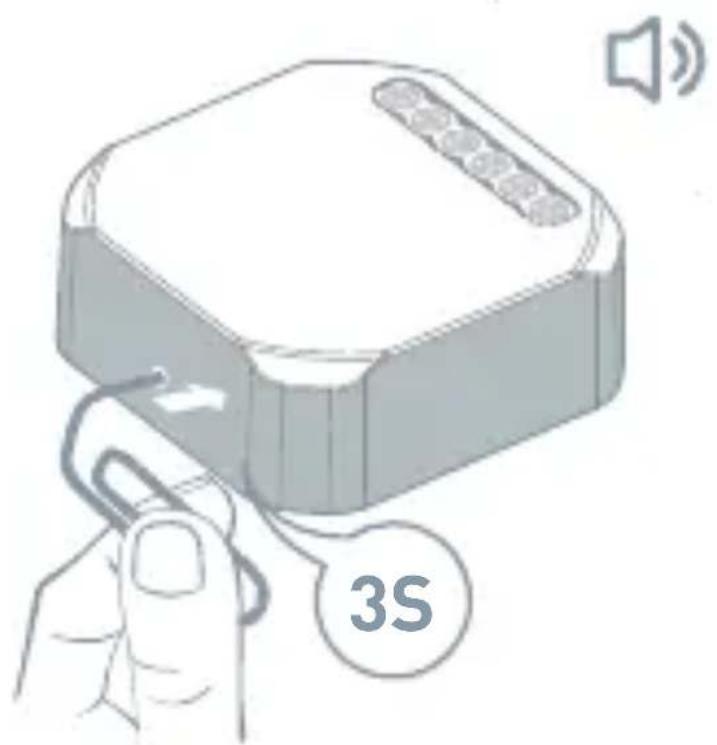

13 Opcija rešetiranje 1

TESLA Smart Switch Module Dual - Opcija rešetiranje 1 - 1

natural_image Illustration of a hand holding a 3S device with sound waves, no text or symbols present

14 Opcija rešetiranje 2
ON/OF 6X

INFORMACIJE O ODLAGANJU I RECIKLIRANJU

Svi proizvodi s ovom oznakom moraju se zbrinuti u skladu s propisima o zbrinjavanju električne i elektroničke opreme (Direktiva 2012/19 / EU). Njihovo odlaganje zajedno s običnim komunalnim otpadom je nedopustivo. Sve električne i elektroničke uređaje odložite u skladu sa svim lokalnim i europskim propisima na određena sabirna mjesta s odgovarajućim odobrenjem i certificiranjem u skladu s lokalnim i zakonodavnim propisima. Pravilno odlaganje i recikliranje pomažu umanjiti utjecaj na okoliš i ljudsko zdravlje. Za više informacija o zbrinjavanju obratite se prodavaču, ovlaštenom servisnom centru ili lokalnim vlastima.

EU IZJAVA O SUKLADNOSTI

Witty, s.r.o ovime izjavljuje da je radijska oprema tipa

ESW-1WAB-EU u skladu s Direktivom 2014/53/EU.

Gee Chang Industrial Building,

121 Des Voeux Road Central

852 00 Hong Kong

www.teslasmart.com

TESLA Smart Switch Module Dual - EU IZJAVA O SUKLADNOSTI - 1

TESLA

Tesla SmartControl & Maintenance Head MODEL: 2017-04-06 Type: Priceline ISO: 900-500X 350MHz CEAT: 800x 1000MHz ECONOMICS: 300V, 140Ω, 1.0Ω SmartControl: COLD CAPSIT & TAPES N L 41 51 L2 52 特许维修维修

SMART SWITCH MODULE DUAL

natural_image Diagram showing a smart home connected to a device via a lamp, with no text or symbols present.
natural_image Diagram showing a smartphone connected to a fan and a device via wireless signal lines (no text or symbols)
natural_image 3D diagram of a mechanical assembly with two components connected by rods (no text or symbols visible)

Без випинання

natural_image Illustration of a hand holding a 3S device with sound waves, no text or symbols present

Gee Chang Industrial Building,

121 Des Voeux Road Central

852 00 Hong Kong

www.teslasmart.com

TESLA Smart Switch Module Dual - SMART SWITCH MODULE DUAL - 1

TESLA

Tesla SmartControl & Maintenance Head MODEL: 2017-04-06 Type: Priceline ISO: 900-500X 350MHz CEAT: 800x 1000MHz ECONOMICS: 300V, 140Ω, 1.0Ω SmartControl: COLD CAPSIT & TAPES N L 41 51 L2 52 特许维修维修

SMART SWITCH MODULE DUAL

natural_image Diagram showing a smart home connected to a device via a wall-mounted switch and a smartphone with wireless signal (no text or symbols)
natural_image Diagram showing a smartphone connected to a fan and a power outlet, with no text or symbols present.
natural_image 3D diagram of a mechanical assembly with two components connected by rods (no text or symbols visible)

Без переключателя

13 Вариант сброса 1
TESLA Smart Switch Module Dual - SMART SWITCH MODULE DUAL - 1

natural_image Illustration of a hand holding a 3S device with sound waves, no text or symbols present

14 Вариант сброса 2
ON/OF 6X

Заходи Безпеки

Gee Chang Industrial Building,

121 Des Voeux Road Central

852 00 Hong Kong

www.teslasmart.com

SMART SWITCH MODULE DUAL

Manufacturer Tesla Global Limited Gee Chang Industrial Building, 121 Des Voeux Road Central 852 00 Hong Kong www.teslasmart.com
