USER MANUAL Smart Switch Dual TESLA

TSL-SWI-WIFI1/ TSL-SWI-WIFI2

TESLA

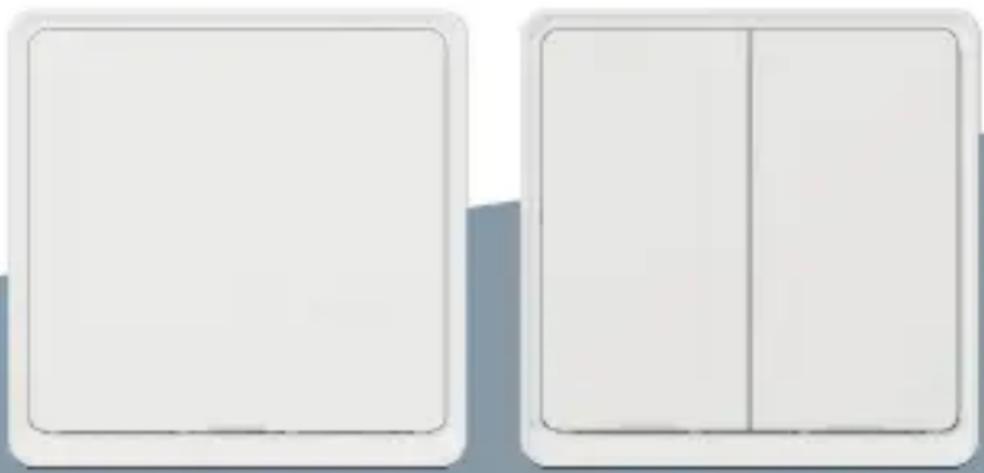

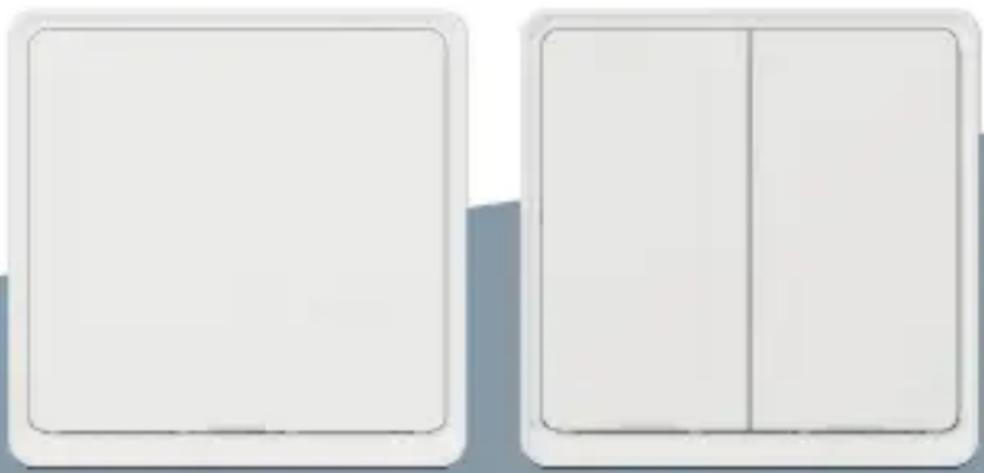

Two white rectangular panels with rounded corners, one side blank and one side split vertically (no text or symbols)

TESLA SMART SWITCH/DUAL

(With Neutral Required)

QUICK START GUIDE

- Voice/APP Control

- Smart Home Automation with Multi devices

- Silent switch with LED Indication

Product Indtoruction

Smart switch products are suitable for electrical equipment such as lightning, fans, curtains, etc., through the network, voice and APP remote control functions, with various sensors to easily achieve home automation.

Specification

Input Power: 200~240V AC 50/60Hz

Resistive load: INC 3•300W, LED 5•300W

Communication: WiFi 2.4G

Standby Power: ≤0.5W

Working Temperature: -10°C ~ 45°C

Working Humidity: <90%

Life Cycle: 50k times

Dimension: 86x86x37.5mm

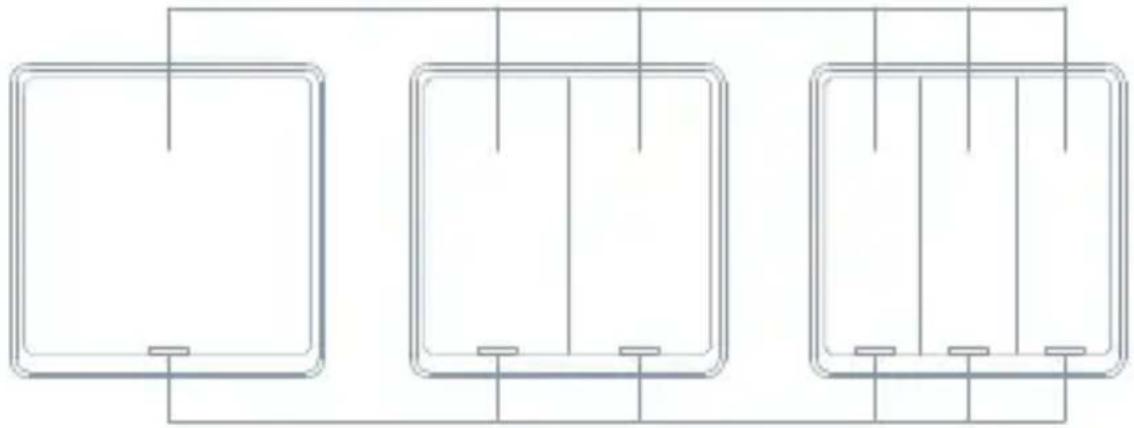

Product outline

On/Off button

Three identical rectangular panels with vertical lines and small base blocks, connected by a horizontal line (no text or symbols)

Indicator LED

Indicator Light Status

Light Color Green Light Status Switch Status:
White OFF The switch	turn off
	ON The switch	turn on
	Flicker The switch is in quickconfigure mode
Green ON The switch	turn off
	OFF The switch	turn on

Contents Supplied

Blank white square tablet with rounded corners and a small screen at the bottom (no text or symbols)

Switch

Screws

Tools You'll Need

Screwdriver

Flat-head Screwdriver

Voltage tester

Line drawing of a pair of needle pliers (no text or symbols)

Pliers

Approximately 30 minutes of your time to install and setup the Switch

Installation

WARNING: RISK OF ELECTRIC SHOCK

This product installation requires handling 100-240 volt wiring. Follow each step carefully. If any concerns handling wiring, hire a qualified electrician. Ensure all work meets applicable local and national codes.

1 Turn Off The Breaker

Turn off the circuit break and use the electrical tester to test the power.

ON OFF

2 Connection Diagram

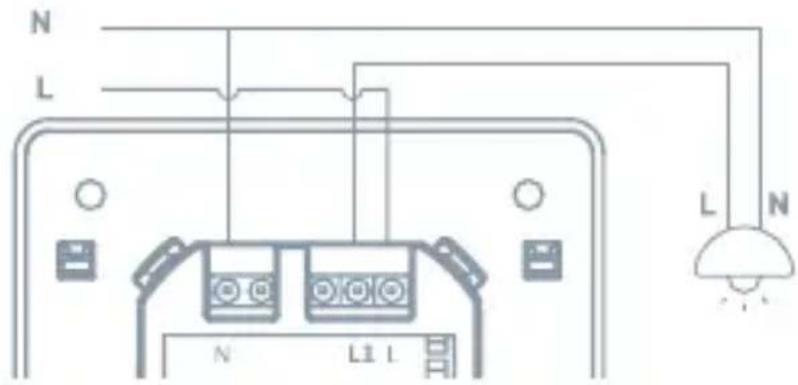

1 GANG

N L L N N L1 L

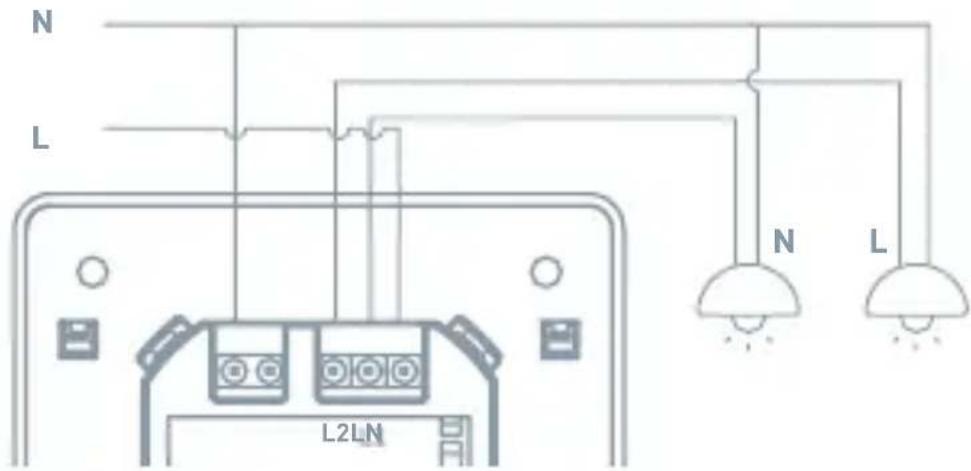

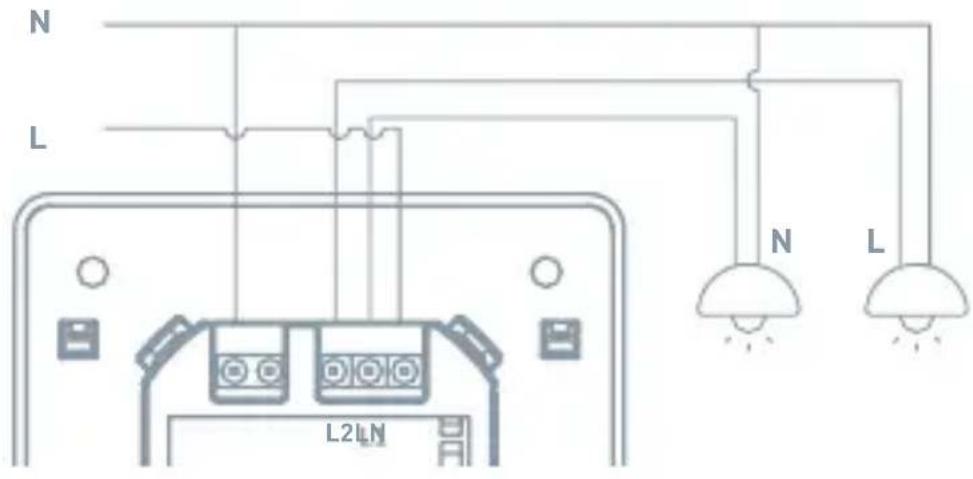

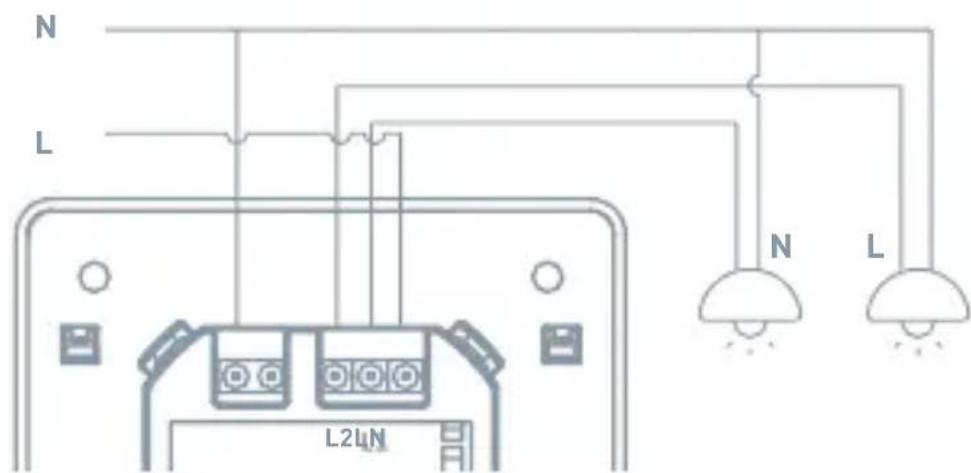

2 GANG

N L N L L2LN

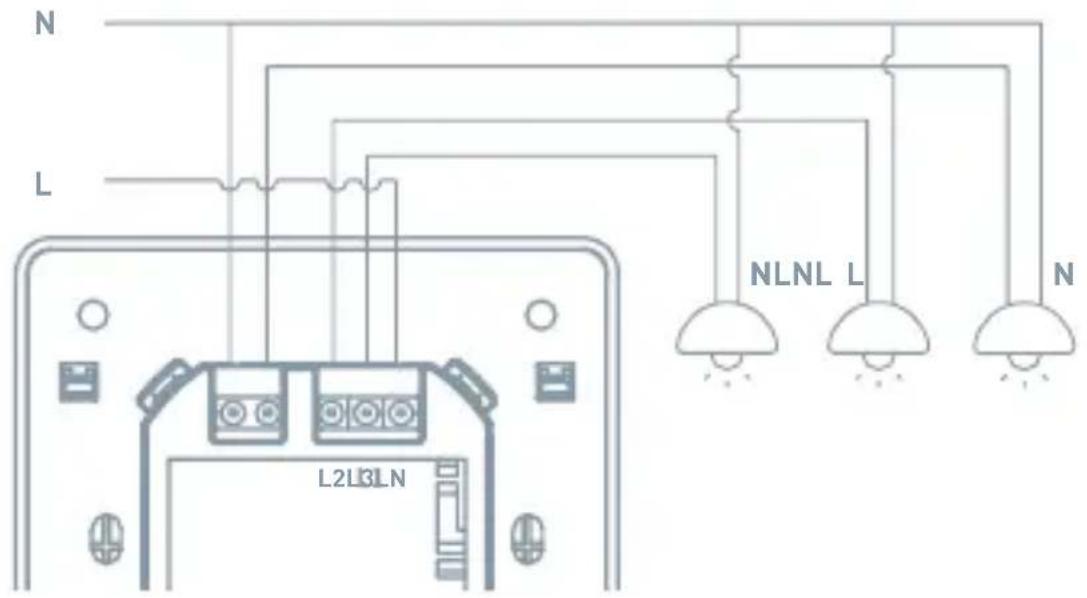

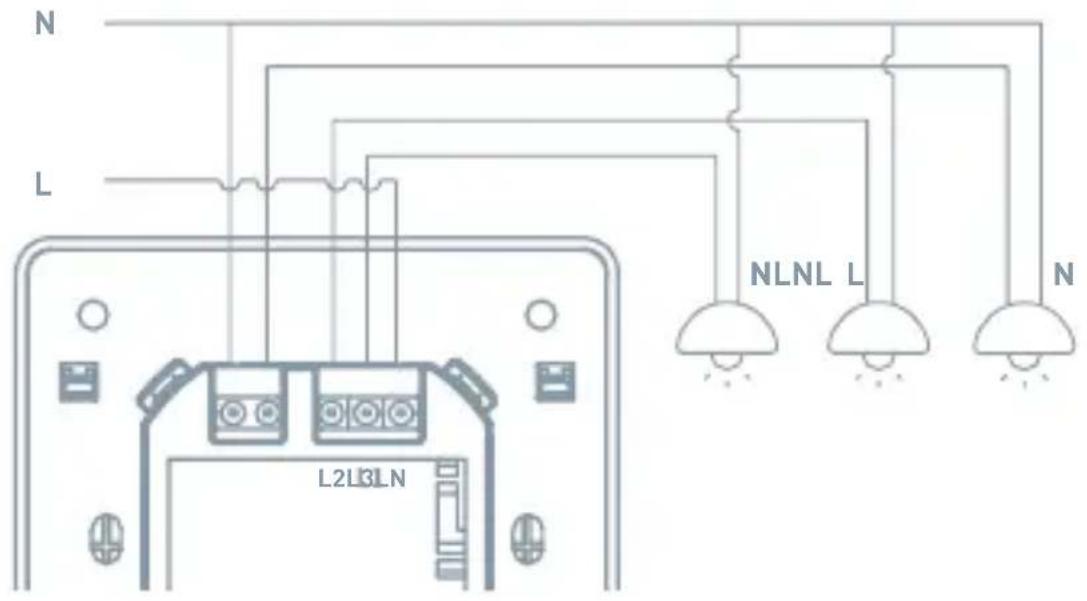

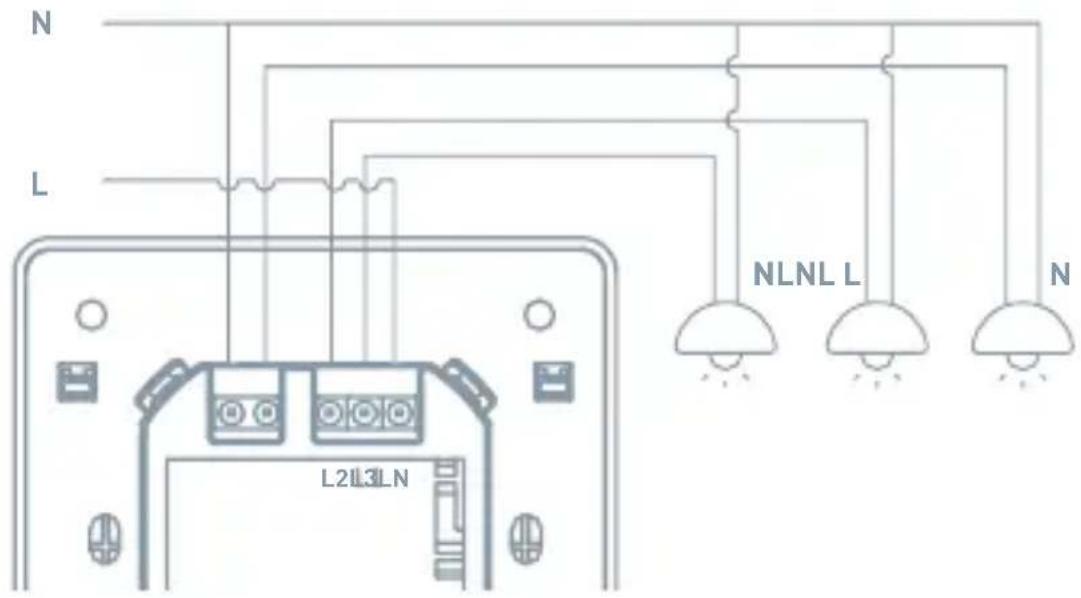

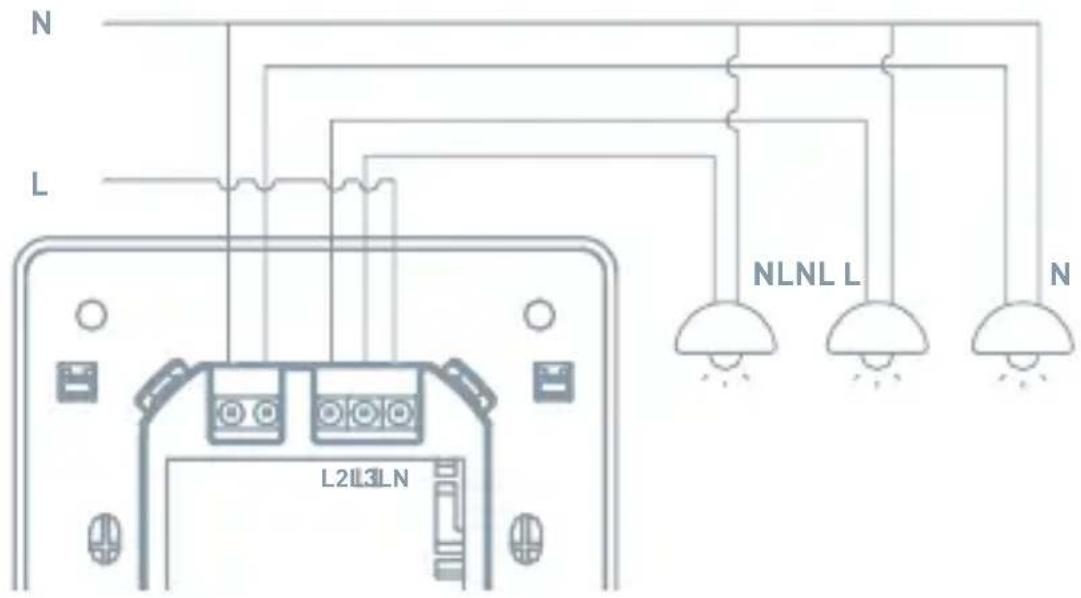

3 GANG

N L L2L3LN NLNL L N

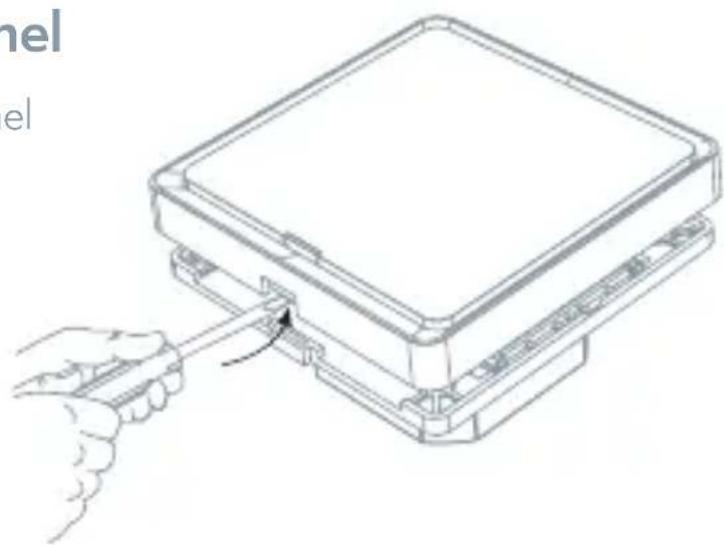

3 Remove The Panel

Remove the switch panel cover of the switch.

Line drawing of a mechanical assembly with a hand pulling a tool, no text or symbols present

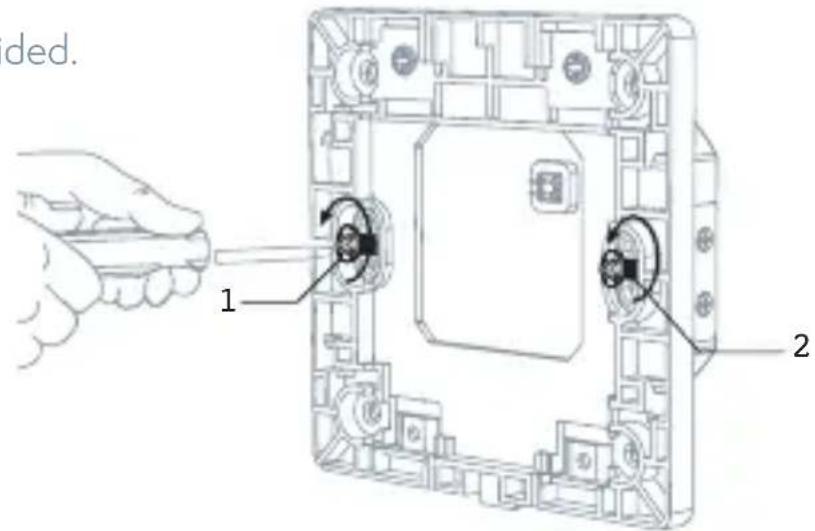

4 Mount The Switch

Use the screws provided.

ded. 1 2

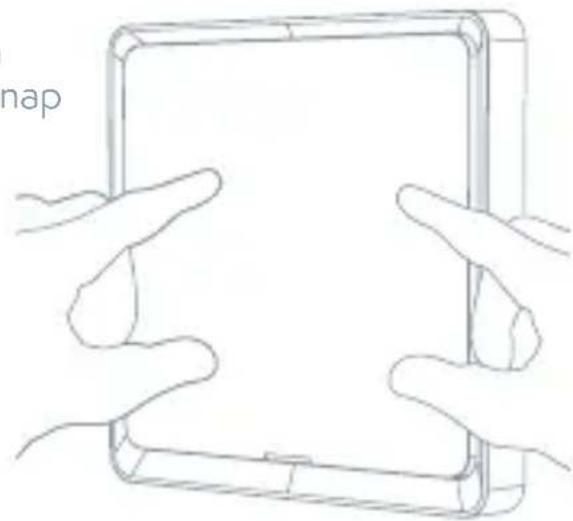

5 Attach The Wallplate

Attach the adapter to the switch using the screws provided and snap on the wallplate.

Line drawing of two hands holding a tablet device (no text or symbols)

Turn On The power

Turn the power back on at the circuit breaker

ON OFF

APP Operation

1 Preparation for use

- Tesla Smart is available for both iOS and Android OS. Search the name 'Tesla Smart' in App Store or Android Market, or scan the QR-Code to download the App and register or login your account.

• Make sure that the smartphone is connected to the 2.4Ghz network.

QR code image containing encoded data, no visible human-readable text

2 Connect the device

• Open Tesla Smart app and click "+" sign to Add new device
• Select Switches - Tesla Smart Switch
• Please follow the instructions to add the Tesla Smart Switch step by step

Oblačno 12.0°C 75.0°C 100.0% 90% Breakfast Repair Improvement Yota Smart Edge...

19:15 V PFizer manual Automatics Circuitry control SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton SwitchButton

3 Control Switch

• Control switch with APP

Troubleshooting

1. Switch has not power on? The smart switch products need to be powered by the neutral line. If there is no neutral line in the inch-Manor location, the smart switch can not work
2. Can not connect to APP? Make sure the mobile phone and devices (gateways) in a same Wi-Fi network, and the device power an get into pair mode, make sure the device has good signal to support communication.
3. How far can be controlled? Please make sure that the distance between the product and the Wi-Fi router or gateway does no- exceed 25 meters, If the partition wall is used but the material and thickness of the wall will have a greater impact communication, based on the actual situation, users can consider adjusting the location of the Wi-Fi router or gateway or increasing Wi-Fi routers or gateways to ensure normal product communication.
4. Can the Switch still work if the network is disconnected? In the event of a network disconnection, the status indicator will flash. At this time, all APP control, smart linkage and other network functions will be invalid but the local control will not be affected.

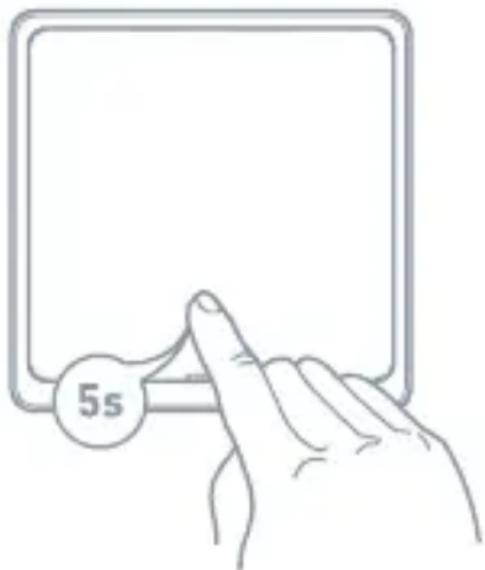

Reset

Press and hold switch button for 5s until LED flash to reset the switch and get into quick configure mode.

Remark:

1. Smart phone and device must connect to same Wi-Fi during setup mode
2. The device must be added to the account before it can be controlled remotely
3. After the device is successfully accessed, other users can obtain control of the product through the sharing function.

Line drawing of a hand holding a tablet device with a 5-second label (no other text or symbols)

INFORMATION ABOUT DISPOSAL AND RECYCLING

This product is marked with the symbol for separate collection. The product must be disposed of in accordance with the regulations for disposal of electrical and electronic equipment (Directive 2012/19/EU on waste electrical and electronic equipment). Disposal together with regular municipal waste is prohibited. Dispose of all electrical and electronic products in accordance with all local and European regulations at the designated collection points which hold the appropriate authorisation and certification in line with the local and legislative regulations. Correct disposal and recycling help to minimise impacts on the environment and human health. Further information regarding disposal can be obtained from the vendor, authorised service centre or local authorities.

EU DECLARATION OF CONFORMITY

Hereby, Tesla Global Limited declares that the radio equipment type ESW-1WAA-EU, ESW-2WAA-EU is in compliance with EU directives. The full text of the EU declaration of conformity is available at the following internet address: tsl.sh/doc

Connectivity: Wi-Fi 2,4 GHz IEEE 802.11b/g/n

Frequency band: 2.412 - 2.4835 MHz

Max. radio-frequency power (EIRP): < 20 dBm

CE RoHS

Manufacturer

Tesla Global Limited Far East Consortium Building, 121 Des Voeux Road Central Hong Kong www.teslasmart.com

TSL-SWI-WIFI1/ TSL-SWI-WIFI2

TESLA

Two white rectangular panels with rounded corners, one side blank and one side with vertical lines (no text or symbols)

TESLA SMART SWITCH/DUAL

Three identical rectangular panels with vertical lines and small base markers, connected by a horizontal line (no text or symbols)

LED-Kontrollleuchte

Blank white square with rounded corners and a small rectangular cutout at the bottom (no text or symbols)

Schalter

Schrauben

Line drawing of a pair of needle pliers (no text or symbols)

Zange

WARNUNG: STROMSCHLAGGEFAHR

N L L N N L1 L

2 GANG

N L N L L24N

3 GANG

N L L2L3LN NLNL L N

Line drawing of two hands holding a tablet device (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Illustration of a hand pressing a 5-second cable on a tablet device (no text or symbols beyond the label)

Far East Consortium Building,

121 Des Voeux Road Central

Hong Kong

www.teslasmart.com

TSL-SWI-WIFI1/ TSL-SWI-WIFI2

TESLA

Two white rectangular panels with rounded corners, one side blank and one side with vertical lines (no text or symbols)

TESLA SMART SWITCH/DUAL

Three identical rectangular panels with vertical lines and small base blocks, connected by a horizontal line (no text or symbols)

LED kontrolka

Stav kontrolky

Blank white square with rounded corners and a small rectangular cutout at the bottom (no text or symbols)

Spínač

Šroubky

Potřebné nářadí

Šroubovák

Plochý šroubovák

Zkoušečka napětí

Line drawing of a pair of needle pliers (no text or symbols)

Kleště

N L L N N L1 L

2 GANG

N L N L L2LN

3 GANG

N L L2L3LN NLNL L N

3 Sejměte panel

Line drawing of a mechanical device with a hand operating a tool, no text or symbols present

Line drawing of two hands holding a tablet device (no text or symbols)

Zapněte napájení

QR code image containing encoded data, no visible human-readable text

18:05 Home Oblačno WBC 15.0% 100% 20% Breakfast Honey Green Free Smart Zogen... Green

Pfizer manual Automatic

3 Ovládejte vypínač

Line drawing of a hand pressing a 5-second tag on a tablet device (no text or symbols beyond the label)

INFORMACE O LIKVIDACI A RECYKLACI

Far East Consortium Building,

121 Des Voeux Road Central

Hong Kong

www.teslasmart.com

TSL-SWI-WIFI1/ TSL-SWI-WIFI2

TESLA

Two white rectangular panels with rounded corners, one side blank and one side with vertical lines (no text or symbols)

TESLA SMART SWITCH/DUAL

Three identical rectangular panels with vertical lines and small base markers, connected by a horizontal line (no text or symbols)

LED kontrolka

Stav kontrolky

Blank white square tablet with rounded corners and a small screen at the bottom (no text or symbols)

Spínač

Skrutky

Potrebné náradie

Skrutkovač

Plochý skrutkovač

Skúšačka napätia

Line drawing of a pair of needle pliers (no text or symbols)

Kliešte

N L L N N L1 L

2 GANG

N L N L L2LN

3 GANG

N L L2L3LN NLNL L N

3 Odstráňte panel

Line drawing of two hands holding a tablet device (no text or symbols)

Zapnite napájanie

QR code image containing encoded data, no visible human-readable text

2 Pripojenie zariadenia

Ablačno 0.5°C 76.3% 100%44% Breakfast Breaker Accounting Home Audio Office Kitchen Games From Smart Tools... www.mn

18:15 V Pistor manual C A Automatic Clarity relmable Dialdehyde New/Cond Switch New/Cond Switch/Dual Dialdehyde New/Cond Switch/Dual Dialdehyde New/Cond Switch/Dual Dialdehyde New/Cond Switch/Dual Dialdehyde New/Cond Switch/Dual Dialdehyde New/Cond Switch/Dual Dialdehyde New/Cond Switch/Dual Dialdehyde New/Cond Switch/Dual Dialdehyde New/Cond Switch/Dual Dialdehyde New/ Cond Switch/Dual Dialdehyde New/ Cond Switch/Dual Dialdehyde New/ Cond Switch/Dual Dialdehyde New/ Cond Switch/Dual Dialdehyde New/ Cond Switch/Dual Dialdehyde New/ Cond Switch/Dual Dialdehyde New/ Cond Switch/Dual Dialdehyde New/ Cond Switch/Dual Dialdehyde New/ Cond Switch/Dqual Dialdehyde New/ Cond Switch/Dqual Dialdehyde New/ Cond Switch/Dqual Dialdehyde New/ Cond Switch/Dqual Dialdehyde New/ Cond Switch/Dqual Dialdehyde New/ Cond Switch/Dqual Dialdehyde

Far East Consortium Building,

121 Des Voeux Road Central

Hong Kong

www.teslasmart.com

TSL-SWI-WIFI1/ TSL-SWI-WIFI2

TESLA

Two white rectangular panels with rounded corners, one side blank and one side split vertically (no text or symbols)

TESLA SMART SWITCH/DUAL

Three identical rectangular panels with vertical lines and small base markers, connected by a horizontal line (no text or symbols)

Kontrolka LED

Stan kontrolki

Blank white square frame with rounded corners and a small rectangular cutout at the bottom (no text or symbols)

Włącznik

Śrubki

Potrzebne narzędzia

Wkrętak

Wkrętak płaski

Wskaźnik napięcia

Line drawing of a pair of needle pliers (no text or symbols)

Kleszcze

N L L N N L1

2 GANG

N L N L L2LN

3 GANG

N L L2L3LN NLNL L N

3 Usuń panel

Line drawing of a device with a hand inserting a cable into a housing (no text or symbols)

Technical diagram showing a hand using a tool to insert a component, labeled with parts 1 and 2.

Line drawing of two hands holding a tablet device (no text or symbols)

Włącz zasilanie

QR code image containing encoded data, no visible human-readable text

Home Oblačno New Smart Cable New Smart Cable

Pidon manufini Automatic Producing Manufini Automotive Cablecable Automotive Battery Battery Battery Transitions by type Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Auto Automotive Battery Automotive Battery Automotive Battery Automotive Battery

3 Obsługa Włącznika

Line drawing of a hand holding a tablet device with a 5-second label (no text or symbols on the device itself)

INFORMACJE O UTYLIZACJI I RECYKLINGU

Far East Consortium Building,

121 Des Voeux Road Central

Hong Kong

www.teslasmart.com

TSL-SWI-WIFI1/ TSL-SWI-WIFI2

TESLA

Two white rectangular panels with rounded corners, one side blank and one side with vertical lines (no text or symbols)

TESLA SMART SWITCH/DUAL

Three identical rectangular panels with vertical lines and small base blocks, connected by a horizontal line (no text or symbols)

LED ellenőrzőfény

Blank white square tablet with rounded corners and a small icon at the bottom (no text or symbols)

Kapcsoló

Kis csavarok

Line drawing of a pair of pliers (no text or symbols)

Fogó

N L L1 L N N

2 GANG

N L N L L2LN

3 GANG

N L L2L3LN NLNL L N

Technical diagram showing a hand holding a screwdriver inserted into a device casing with labeled parts 1 and 2.

Line drawing of two hands holding a tablet device (no text or symbols)

QR code image containing encoded data, no visible human-readable text

Illustration of a hand pressing a button on a tablet device labeled '5s' (no other text or symbols)

MEGSEMMISÍTÉSI ÉS ÚJRAHASZNOSÍTÁSI INFORMÁCIÓK

Far East Consortium Building,

121 Des Voeux Road Central

Hong Kong

www.teslasmart.com

TSL-SWI-WIFI1/ TSL-SWI-WIFI2

TESLA

Two white rectangular panels with rounded corners, one side blank and one side with vertical lines (no text or symbols)

TESLA SMART SWITCH/DUAL

Three identical rectangular panels with vertical lines and small base markers, connected by a horizontal line (no text or symbols)

Kontrolna lučka LED

Stanje kontrolne lučke

Barva lučke Stanje	lučke Stanje stikala
Bela OFF Izklopljeno	stikalo
	ON Vklopljeno stikalo
	Utripa Stikalo je v načinu hitre konfiguracije
Zelena ON Izklopljeno	stikalo
	OFF Vklopljeno stikalo

Vsebina pakiranja

Blank white square frame with rounded corners and a small rectangular cutout at the bottom (no text or symbols)

Stikalo

Vijaki

Potrebno orodje

Izvijač

Ploski izvijač

Preizkuševalec toka

Line drawing of a pair of needle pliers (no text or symbols)

Klešče

N L L N N L1 L

2 GANG

N L L2LN N L

3 GANG

N L L2L3LN NLNL L N

vijake. 1 2

Line drawing of two hands holding a tablet device (no text or symbols)

Vklopite napajanje

QR code image containing encoded data, no visible human-readable text

2 Povezava naprave

19:15:4 Horse Oblačno Breakfast House Clearing TVita Smart Zipline...

Pilot menu Aloquatic Balance in €/bar Dutrition Sweiss Trade Short Switch Trade Short Switch Oral Trade Short Switch Oral Balance Balance Trade Short Switch Oral Balance Trade Short Switch Oral Balance Balance Balance Balance Balance Balance Balance

Line drawing of a hand holding a tablet with a 5-second label (no other text or symbols)

INFORMACIJE O ODSTRANJEVANJU IN RECIKLIRANJU

Far East Consortium Building,

121 Des Voeux Road Central

Hong Kong

www.teslasmart.com

TESLA

TESLA SMART SWITCH

Manufacturer

Tesla Global Limited

Far East Consortium Building,

121 Des Voeux Road Central

Hong Kong

www.teslasmart.com
