Smart Switch - Home Automation TESLA - Free user manual and instructions

Product Type	Smart Switch (Single/Dual variants)
Model	TSL-SWI-WIFI1 (single), TSL-SWI-WIFI2 (dual)
Dimensions	86 x 86 x 37.5 mm
Weight	Approx. 150 g (estimated)
Power Supply	200-240V AC, 50/60Hz
Communication	Wi-Fi 2.4 GHz IEEE 802.11b/g/n
Standby Power	≤0.5W
Max Load (Resistive)	INC 3-300W, LED 5-300W
Working Temperature	-10°C to 45°C
Working Humidity	<90% RH
Life Cycle	50,000 times
Control Methods	Voice (via smart assistant), App (Tesla Smart), Manual button
LED Indicator	White and green status lights for on/off and configuration
Installation	Requires neutral wire; approximately 30 minutes
Smart Home Integration	Compatible with Tesla Smart ecosystem, multi-device automation
Reset Function	Press and hold button for 5 seconds until LED flashes
Safety	CE and RoHS certified; disposal per WEEE directive
Included Accessories	Switch unit, screws, wallplate
Tools Required	Screwdriver, flat-head screwdriver, voltage tester, pliers
Warranty	Standard 2-year warranty (implied)

Frequently Asked Questions - Smart Switch TESLA

Does the Tesla Smart Switch require a neutral wire for installation?

Yes, the smart switch products need to be powered by the neutral line. If there is no neutral line at the installation location, the smart switch cannot work.

Can the switch still function if the Wi-Fi network is disconnected?

Yes, local manual control will still work. However, all network-dependent functions (APP control, smart linkage, etc.) will be disabled, and the indicator will flash.

How do I reset the Tesla Smart Switch?

Press and hold the switch button for 5 seconds until the LED starts flashing. This resets the switch and puts it into quick configure mode.

What is the maximum load that the switch can handle?

The switch supports resistive loads up to 300W for incandescent bulbs (INC) and up to 300W for LED bulbs. Ensure not to exceed these ratings.

Which app is used to control the Tesla Smart Switch?

The Tesla Smart app, available for iOS and Android. Search for 'Tesla Smart' in the App Store or Google Play.

Can I control multiple Tesla Smart Switches together?

Yes, via the Tesla Smart app you can group multiple devices and create automations for smart home scenarios.

How difficult is the installation?

Installation is straightforward but requires handling 200-240V wiring. If you are not comfortable, hire a qualified electrician. Estimated time: 30 minutes.

What do the LED indicator colors mean?

White LED: off = switch off, on = switch on, flashing = quick configure mode. Green LED: on = switch off, off = switch on.

What is the operating temperature range?

The switch can operate in temperatures from -10°C to 45°C, with humidity below 90%.

Is the Tesla Smart Switch compatible with voice assistants?

Yes, it supports voice control via smart assistants like Amazon Alexa or Google Assistant when integrated through the Tesla Smart app.

USER MANUAL Smart Switch TESLA

TSL-SWI-WIFI1/ TSL-SWI-WIFI2

TESLA

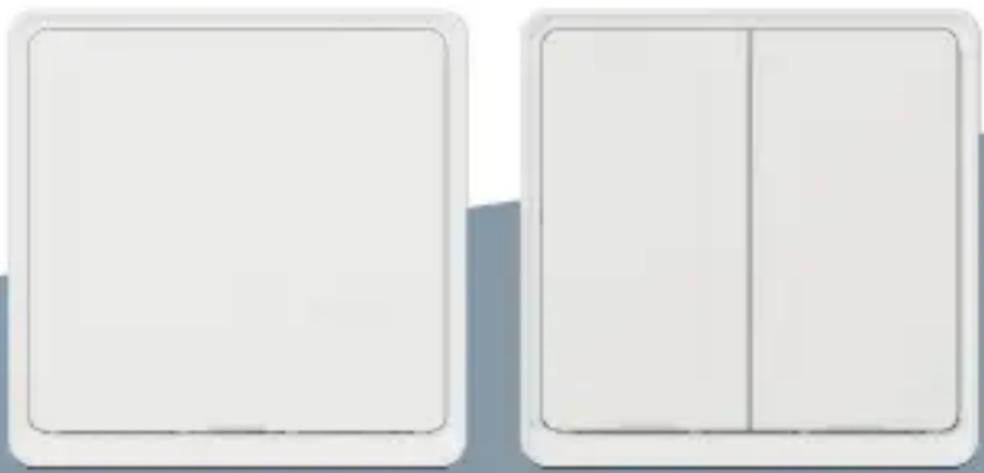

Two white rectangular panels with rounded corners, one side blank and one side split vertically (no text or symbols)

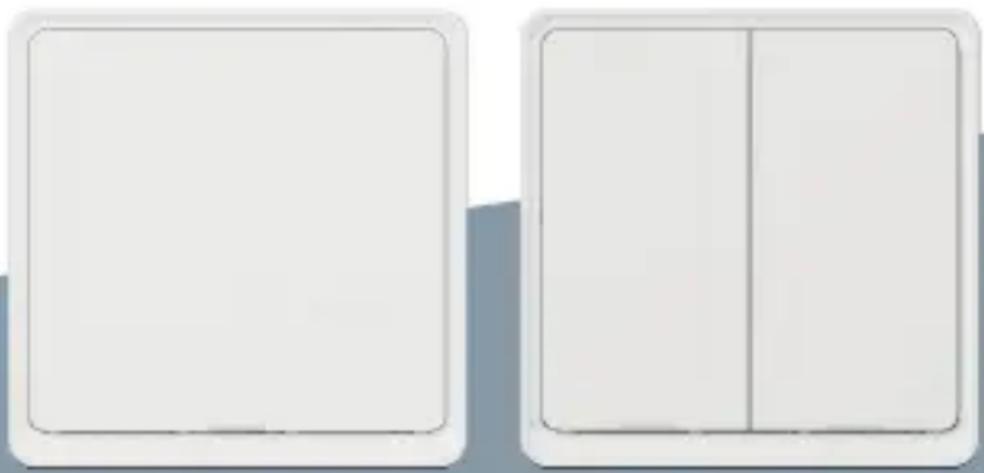

TESLA SMART SWITCH/DUAL

(With Neutral Required)

QUICK START GUIDE

- Voice/APP Control

- Smart Home Automation with Multi devices

- Silent switch with LED Indication

Product Indtoruction

Smart switch products are suitable for electrical equipment such as lightning, fans, curtains, etc., through the network, voice and APP remote control functions, with various sensors to easily achieve home automation.

Specification

Input Power: 200~240V AC 50/60Hz
Resistive load: INC 3•300W, LED 5•300W
Communication: WiFi 2.4G
Standby Power: ≤0.5W
Working Temperature: -10°C ~ 45°C
Working Humidity: <90%
Life Cycle: 50k times
Dimension: 86x86x37.5mm

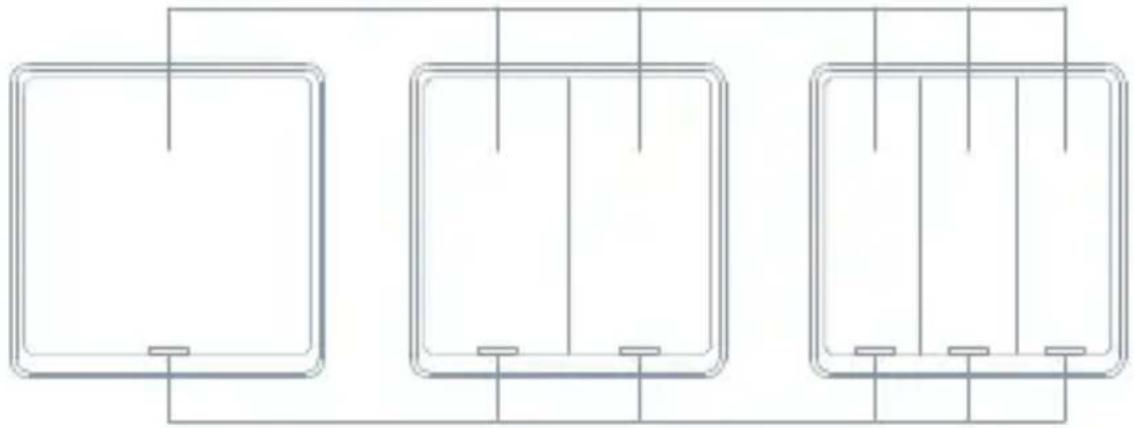

Product outline

On/Off button

Three identical rectangular panels with vertical lines and small base blocks, connected by a horizontal line (no text or symbols)

Indicator LED

Indicator Light Status

Light Color Green Light Status Switch Status:
White OFF The switch	turn off
	ON The switch	turn on
	Flicker The switch is in quickconfigure mode
Green ON The switch	turn off
	OFF The switch	turn on

Contents Supplied

Blank white square tablet with rounded corners and a small screen at the bottom (no text or symbols)

Switch

Screws

Tools You'll Need

Screwdriver

Flat-head Screwdriver

Voltage tester

Line drawing of a pair of needle pliers (no text or symbols)

Pliers

Approximately 30 minutes of your time to install and setup the Switch

Installation

WARNING: RISK OF ELECTRIC SHOCK

This product installation requires handling 100-240 volt wiring. Follow each step carefully. If any concerns handling wiring, hire a qualified electrician. Ensure all work meets applicable local and national codes.

1 Turn Off The Breaker

Turn off the circuit break and use the electrical tester to test the power.

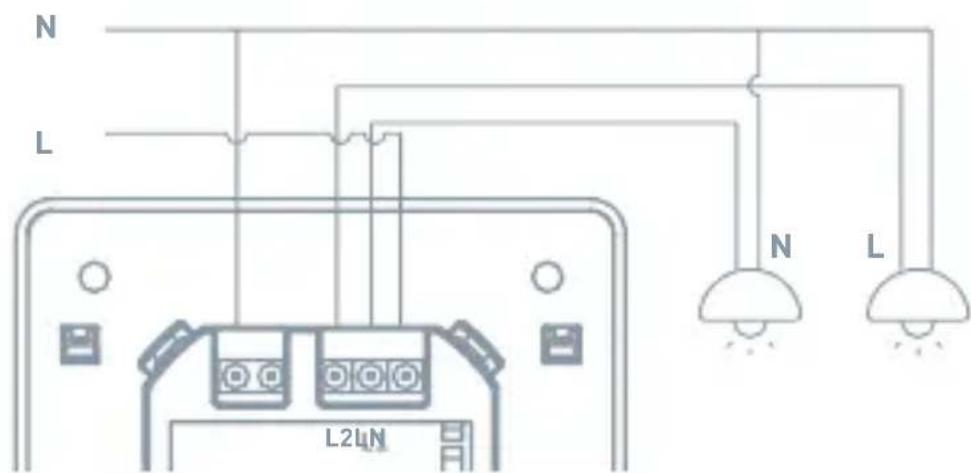

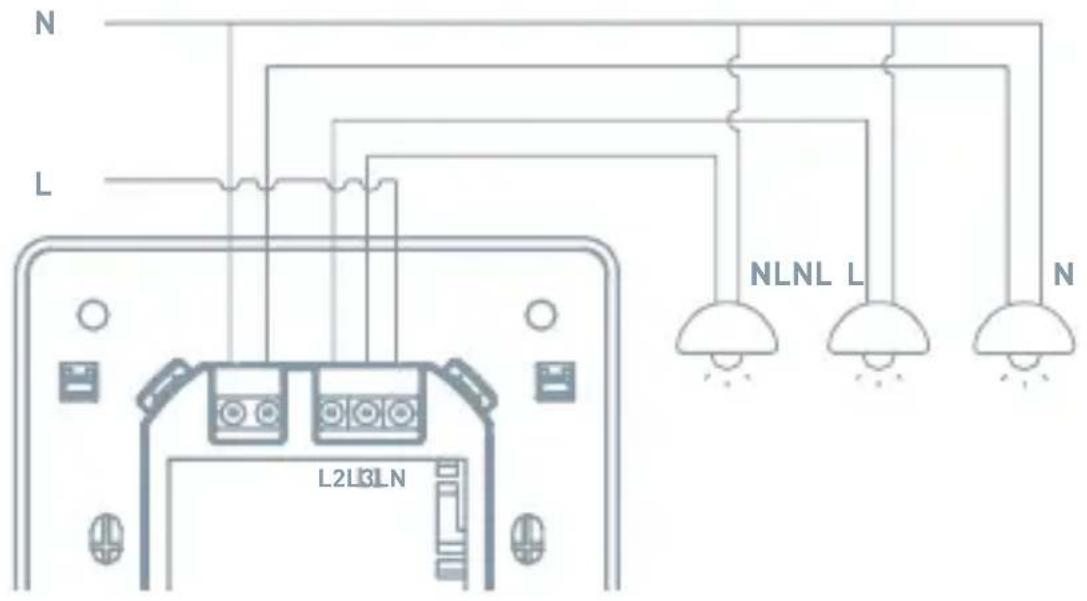

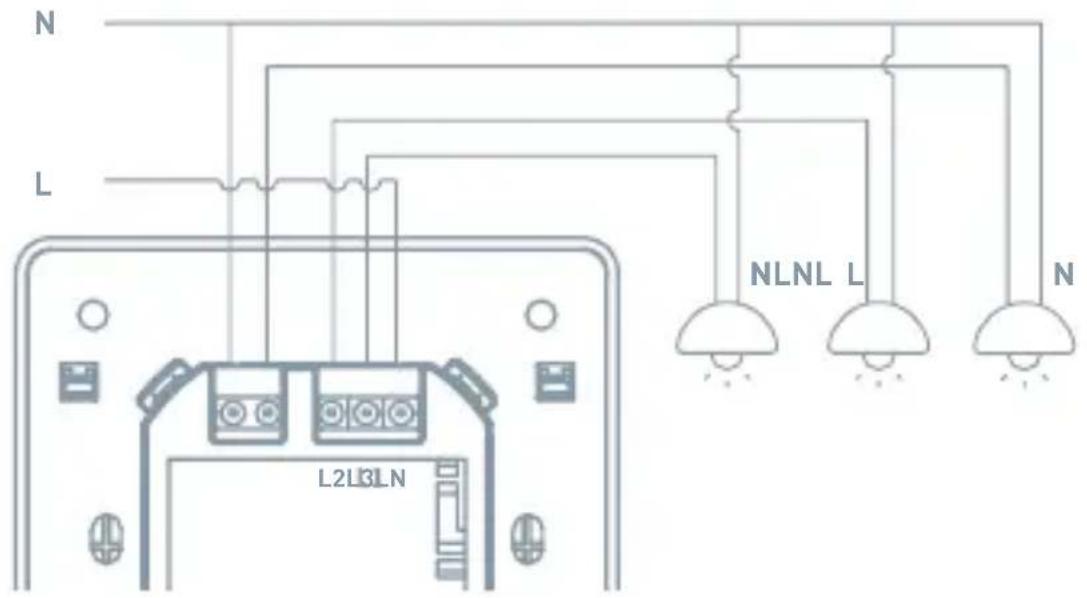

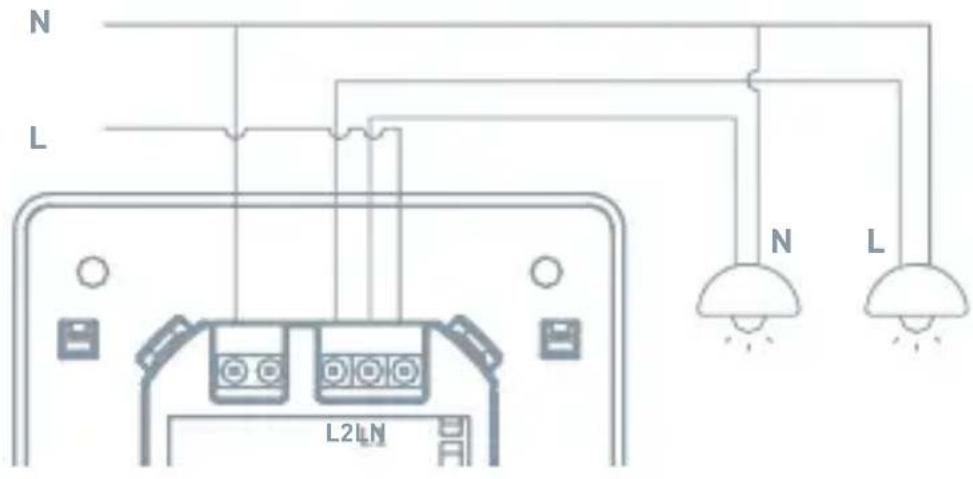

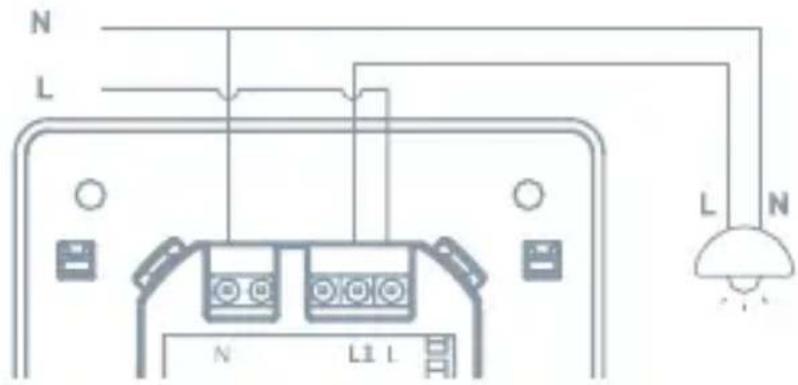

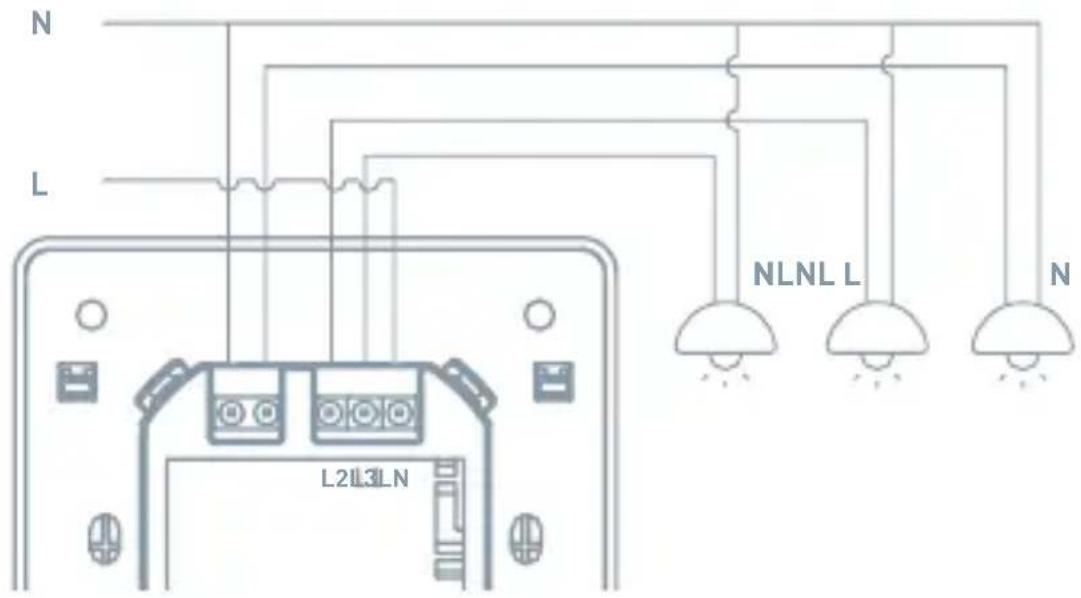

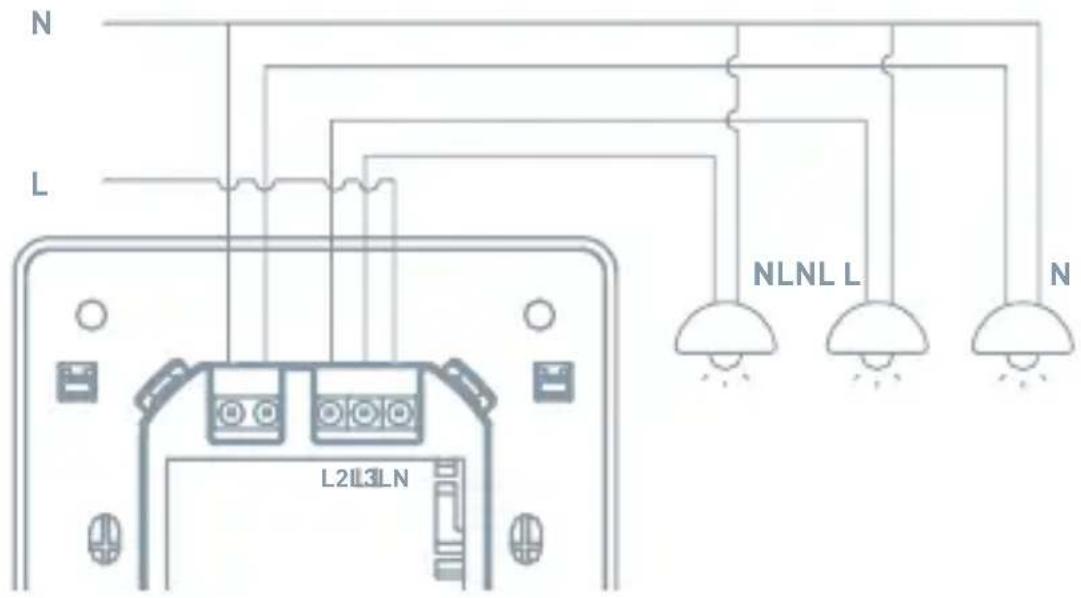

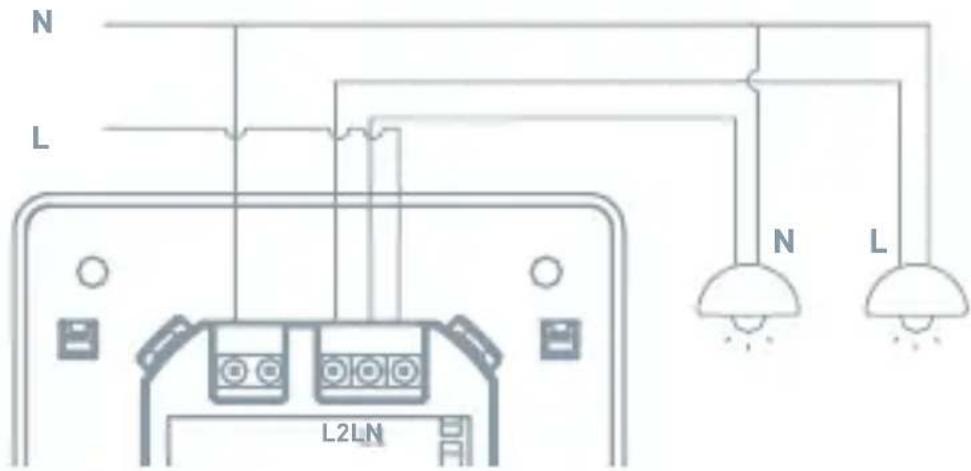

2 Connection Diagram

1 GANG

2 GANG

3 GANG

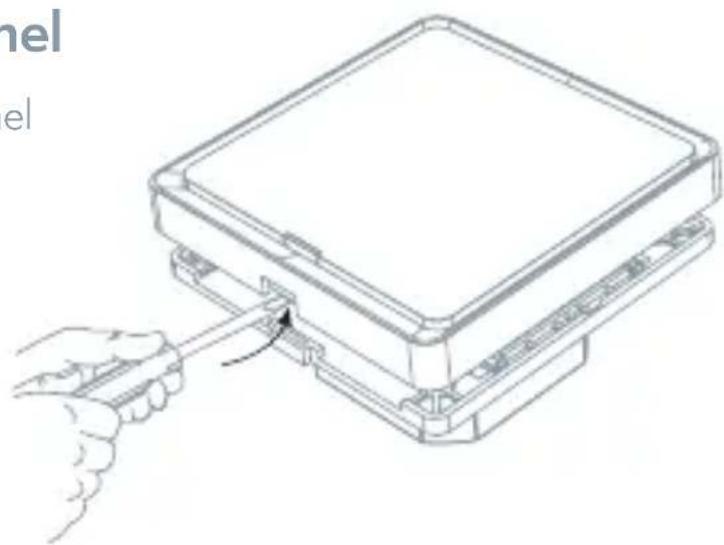

3 Remove The Panel

Remove the switch panel cover of the switch.

Line drawing of a mechanical assembly with a hand pulling a tool, no text or symbols present

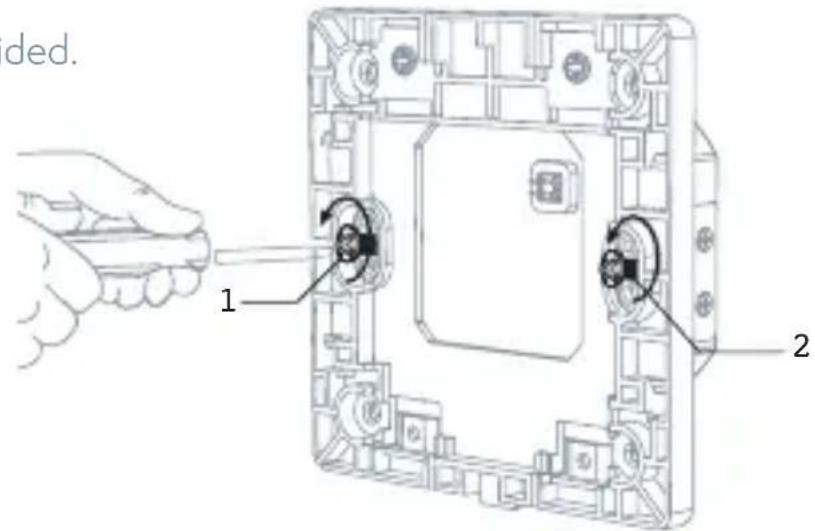

4 Mount The Switch

Use the screws provided.

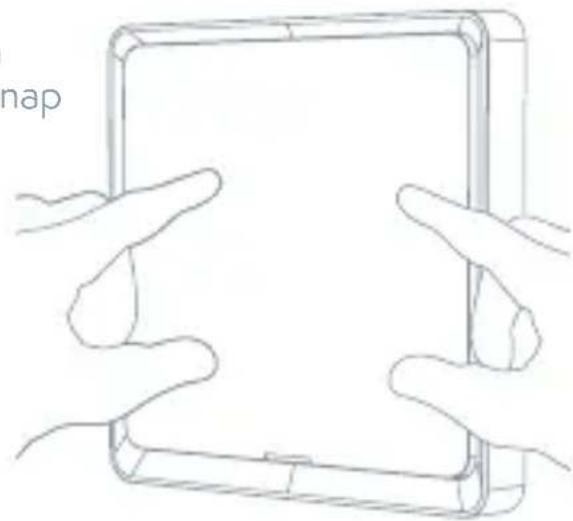

5 Attach The Wallplate

Attach the adapter to the switch using the screws provided and snap on the wallplate.

Line drawing of two hands holding a tablet device (no text or symbols)

Turn On The power

Turn the power back on at the circuit breaker

APP Operation

1 Preparation for use

- Tesla Smart is available for both iOS and Android OS. Search the name 'Tesla Smart' in App Store or Android Market, or scan the QR-Code to download the App and register or login your account.

• Make sure that the smartphone is connected to the 2.4Ghz network.

2 Connect the device

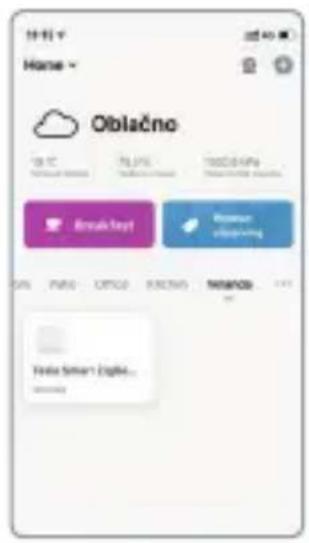

• Open Tesla Smart app and click "+" sign to Add new device
• Select Switches - Tesla Smart Switch
• Please follow the instructions to add the Tesla Smart Switch step by step

3 Control Switch

• Control switch with APP

Troubleshooting

1. Switch has not power on? The smart switch products need to be powered by the neutral line. If there is no neutral line in the inch-Manor location, the smart switch can not work
2. Can not connect to APP? Make sure the mobile phone and devices (gateways) in a same Wi-Fi network, and the device power an get into pair mode, make sure the device has good signal to support communication.
3. How far can be controlled? Please make sure that the distance between the product and the Wi-Fi router or gateway does no- exceed 25 meters, If the partition wall is used but the material and thickness of the wall will have a greater impact communication, based on the actual situation, users can consider adjusting the location of the Wi-Fi router or gateway or increasing Wi-Fi routers or gateways to ensure normal product communication.
4. Can the Switch still work if the network is disconnected? In the event of a network disconnection, the status indicator will flash. At this time, all APP control, smart linkage and other network functions will be invalid but the local control will not be affected.

Reset

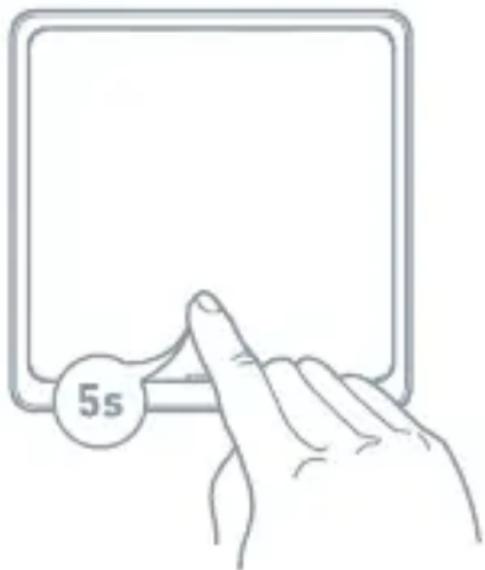

Press and hold switch button for 5s until LED flash to reset the switch and get into quick configure mode.

Remark:

1. Smart phone and device must connect to same Wi-Fi during setup mode
2. The device must be added to the account before it can be controlled remotely
3. After the device is successfully accessed, other users can obtain control of the product through the sharing function.

Line drawing of a hand pressing a button on a tablet device labeled '5s' (no other text or symbols)

INFORMATION ABOUT DISPOSAL AND RECYCLING

This product is marked with the symbol for separate collection. The product must be disposed of in accordance with the regulations for disposal of electrical and electronic equipment (Directive 2012/19/EU on waste electrical and electronic equipment). Disposal together with regular municipal waste is prohibited. Dispose of all electrical and electronic products in accordance with all local and European regulations at the designated collection points which hold the appropriate authorisation and certification in line with the local and legislative regulations. Correct disposal and recycling help to minimise impacts on the environment and human health. Further information regarding disposal can be obtained from the vendor, authorised service centre or local authorities.

EU DECLARATION OF CONFORMITY

Hereby, Tesla Global Limited declares that the radio equipment type ESW-1WAA-EU, ESW-2WAA-EU is in compliance with EU directives. The full text of the EU declaration of conformity is available at the following internet address: tsl.sh/doc

Connectivity: Wi-Fi 2,4 GHz IEEE 802.11b/g/n

Frequency band: 2.412 - 2.4835 MHz

Max. radio-frequency power (EIRP): < 20 dBm

Manufacturer

Tesla Global Limited Far East Consortium Building, 121 Des Voeux Road Central Hong Kong www.teslasmart.com
