Product Type	Digital Video Recorder (Dash Cam)
Brand	Navitel
Model	CMR300
Display	5" IPS
Video Resolution	1080 FHD 1920x1080P @ 30 fps
Photo Resolution	2048 x 1536 (8 MP)
Recording Format	MOV
Image Format	JPG
Storage	microSD card (max 64 GB, Class 10 or above)
Battery	300 mAh 3.7V rechargeable
Power Supply	DC 5V 1.5A
Working Current	700 mA
CPU	MSTAR MSC8328
G-Sensor	Yes (3-axis)
Parking Monitor	Yes (vibration detection auto recording)
Loop Recording	Yes (adjustable file duration)
Sound Recording	On/Off (via Down button)
Rear Camera Input	Yes (supports optional rear camera)
Reverse Image	Auto switch to rear camera when reversing (if connected)
Stamp	Date/time or logo overlay
Screen Saver	Yes (adjustable timeout)
Microphone	Built-in
Speaker	Built-in
Buttons	OK, Menu, Power, Up/Down
Reset	Yes (pin hole)
Operating Temperature	0 to +35°C
Languages	Czech, English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Romanian, Russian, Slovak, Spanish, Chinese (simplified/traditional), and more

Frequently Asked Questions - CMR300 Navitel

How do I format the microSD card?

Insert the microSD card into the device, then go to Menu > Setup and select Format SD-card. Confirm to format. This is recommended before first use or if data errors occur.

How do I start video recording?

Connect the device to an external power supply. It will start recording automatically. Press the OK button to stop recording, and press again to start a new video.

How can I protect a video from being deleted?

During recording, press the Menu button to lock the current file. A key icon will appear. Locked files cannot be overwritten or deleted.

How does the Parking Monitor feature work?

In shutdown state, if vibration is detected, the device turns on, starts recording, and locks the file. If no vibration for over a minute, it shuts down automatically. This requires constant power connection.

What memory card should I use?

Use a high-speed microSD card of Class 10 or above, with capacity between 8 GB and 64 GB. Format the card inside the device before use.

How do I change the language?

Go to Menu > Language and select your desired language from the list. The device supports multiple languages including English, Czech, French, German, and more.

What should I do if the device freezes or stops responding?

Press the Reset button using a pin or paperclip. This will restart the device. If the problem persists, check the power connection and SD card.

How do I install the rear camera?

Mount the rear camera on the rear window or license plate frame. Route the cable to the DVR and connect to the Rear camera port. For automatic switching when reversing, connect +12V to the reverse light wire (recommend professional installation).

Can I record without sound?

Yes. In Video Recording mode, press the Down button to toggle the microphone on/off. When off, audio is not recorded.

How do I view recorded videos?

Press and hold the Menu button to enter Capture mode, then press and hold again to enter Playback mode. Use Up/Down to select a file, and press OK to play. During playback, press Up/Down to fast forward/rewind.

USER MANUAL CMR300 Navitel

Side mirror with navigation screen displaying a highway scene, alongside a NAVTEL camera (no visible text or symbols on the device itself)

NAVITEL CMR300

Digital Video Recorder

Úvod

Vážený zákazníku!

Line drawing of a mechanical valve component (no text or symbols)

NAVITEL

Einleitung

Line drawing of a mechanical valve component (no text or symbols)

Sissejuhatus

Lugupeetud klient!

Täname, et ostsite NAVITEL® toote.

Line drawing of a mechanical valve component (no text or symbols)

NAVITEL

Introduction

Dear Customer!

Thank you for purchasing this NAVITEL® product.

NAVITEL CMR300 DVR is a multifunctional high-definition digital video recorder with many functions and features that are described in this User Manual. Please read the manual carefully before using the device and keep it for future reference.

Device layout

1. Speaker 8. Camera
2. Clamps 9. Menu
3. Microphone 10. Down
4. microSD slot 11. OK
5. Rear camera port 12. Up
6. USB port 13. Power
7. Reset

Buttons

Button Functions
OK	In Video Recording mode, press to start recording; press again to stop.In Capture mode, press to take a picture.In Playback mode, press to select a file, or pause/resume a video. Hold for 3 seconds to switch between the selection of files from the front/rear camera.In the menu, press to select a menu item.
Menu	Press to access Settings menu. Press again to access Setup menu.Press and hold for 3 seconds to switch between Video Recording, Capture, and Playback modes.Press to exit any selected menu.In Video Recording mode, press to lock a file (protected file cannot be deleted or overwritten).
Power	Press and hold for 3 seconds to turn the device on/off.Press shortly to switch the screen on/off.
Up/Down	In the menu, press to highlight the next/previous menu item or file.In Video Recording mode press Down to turn the microphone on/off.In Video Recording mode press Up to show/hide screen with the view from rear camera.
Reset If the device is not responding, press to reset.

Note: The built-in battery is designed only for recording an emergency event in parking mode and turning off the device correctly when the power is turned off. For the full operation of the device in any mode, a constant power connection is required.

NAVITEL s.r.o. hereby declares that the device NAVITEL CMR300 is compatible with the European directive EMC 2014/30/EU.

The full text of Declaration of conformity is available at the following internet address:

www.navitel.cz/en/declaration_of_conformity/cmr300

NAVITEL

Specifications

CPU MSTAR MSC8	328
Display 5" IPS
Recording format MOV
Video resolution	1080 FHD 1920x1080P/30 fps
Image format JPG
Image resolution 2048x1536
Storage microSD card
microSD card capacity 64 GB max
USB	mini-USB 2.0

Power DC 5 V 1.5 A
Frequency 50 Hz/60 Hz
Battery	300 mAh 3.7VRechargeable battery
Working current 700 mA
Microphone/speaker Supported
Rear camera Supported
Language	Chinese simplified, Chinese traditional, Czech, English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Romanian, Russian, Slovak, Spanish, Ukrainian

Note: the specifications may change due to upgrades.

Device functions

Format SD-card

Formatting a microSD card in the DVR is necessary for the correct operation of the device. Before using a microSD card or in case of data error, please format the microSD card. For formatting the SD-card in Menu mode select Format SD-card and confirm it.

Video Connect the device to an external power supply and it will start recording automatically. Press the OK button to stop recording. Press OK again to record another video. Each video will be saved automatically.


In Video Recording mode, press and hold for 3 seconds Menu button to enter Capture mode, take a photo (it will be saved automatically).

Playback

In Capture mode, press and hold for 3 seconds the Menu button twice to enter Playback mode; press ons to select a file; press the OK button to play a file. During playback, press OK to the Up and Down keys to fast forward/rewind.

Lock file

In Video Recording mode, press Menu to protect the current recording. A key symbol will appear at the bottom of the screen. In Playback mode, select a file, press Menu and select Protect, then Lock Current files cannot be deleted or overwritten. Select Unlock Current / Unlock All to remove protection.

Capture menu

Press Up/Down buttons to choose the size of pictures and exposure.

Sound Record Choose this option to record video with or without sound.

Loop recording

This feature allows you to save a video as a set of files given in the duration menu. If the memory card runs out of space, the unprotected files will be overwritten in the order in which they were created.

G-sensor If this function is on, when vehicle is hit by something, the DVR will automatically lock the current video.

NAVITEL

Parking monitor In shutdown state, if vibration is detected, the device will turn on automatically and start recording. The file will be protected (locked). If nothing happens for over a minute, the device will shut down.

Reversing image If the rear camera is available, when the car is reversing, the device will automatically switch to full screen and show the rear camera image.

Stamp This function adds date stamp or device logo to the record. Click OK to select type of stamp or to switch the function off.

Screen saver The device can automatically shut off the screen to reduce power consumption; time interval can be set in the Screen Saver menu.

DVR installation and starting

DVR installation

1. Put the SD card into the DVR. Use a high-speed microSD card (Class10 or above); capacity should be within 8-64 GB.

• To avoid malfunctions of the DVR and / or SD-card, don't insert and remove SD-card during DVR operation.

• Before using a microSD card, please format it inside the DVR to avoid data errors. For formatting the SD-card in Menu mode select Format SD-card and confirm it.

• Install DVR on your car mirror with the clamps. Do not use excessive force to avoid any damages.

• Connect the car charger to the cigarette lighter socket. Connect mini-USB interface to the car charger with the charger cable.
• Adjust the camera position.

Starting

1. Turn the power on; check whether the device is installed correctly.
2. If the device is installed correctly, when engine starts, the device will start simultaneously and begin recording automatically.
3. When reverse gear is turned on and properly connected, the image from the rear view camera is displayed, at the same time recording from the front camera of the DVR stops and recording starts from the rear camera.

Precautions

1. Use only the original charger adapter. Using another adapter may negatively affect the device's battery.
2. Do not use the device in humid or hot environment.
3. Keep the lens clean.
4. Do not disassemble the device and do not perform repairs by yourself.
5. Strictly follow the laws and regulatory acts of the region where the device is used. This device can not be used for illegal purposes.
6. Permissible ambient temperature in operating mode: 0 to +35 °C. Storage temperature: +5 to +45 °C. Relative humidity: 5% to 90% without condensation (25 °C).

Rear camera

With the help of rear camera you can get a high-resolution image behind your car for safe parking or recording while driving. Modern double recording technology allows saving recordings both in front and behind the car for fixing any unforeseen situation.

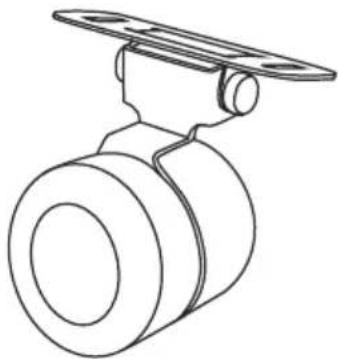

Rear camera installation

There are two options of using rear camera.

Option 1. DVR camera for getting view behind the car. Install the camera on the rear window with a sticker, put the wire through the cabin, connect the wire to the rear camera port.

Option 2. Combination of DVR camera and rear camera for back view when parking. Install the camera on the rear window inside the car, or outside on the license plate frame. In this case, it is required to apply +12 V when driving backwards. This will allow the device to automatically switch the image from the front to the rear camera in the parking mode.

Note: It is strongly recommended that works on installing the camera and connecting +12 V should be done by qualified personnel with the necessary skills. Cable routing may require special tools or attachments. Make sure these works are safe.
