Product type	Car camera (DVR)
Brand	Navitel
Model	PR700 GPS
Processor	MSTAR AIT8339
Display	2.7" TN, 320×240
Camera sensor	SONY 307 (night vision)
Video resolution	Full HD 1920×1080, 30 fps
Image resolution	2 MP
View angle	170°
Lens	6-layer glass
Storage	MicroSD card (max 64 GB, Class 10 or above)
Battery	500 mAh
Power input	5 V, 1.5 A
Wi-Fi	Yes
GPS	Built-in GPS chipset and antenna
Recording features	Loop recording, G-sensor, Parking monitor, Lock file, Record audio, Stamp, LCD off
Speed display	Digital speed via GPS
Camera alerts	GPS-based speed camera and warning notifications
Connectivity	mini-USB (GPS antenna), micro-USB (data/power)
App support	Navitel DVR Center (iOS/Android via Wi-Fi)
Languages	Czech, English, French, German, Hungarian, Italian, Polish, Romanian, Russian, Slovak, Spanish, Ukrainian

Frequently Asked Questions - PR700 GPS Navitel

How to install the microSD card?

Insert a high-speed microSD card (Class 10 or above, 8-64 GB) into the slot. Format the card inside the DVR via Menu > Format SD-card before first use to avoid data errors. Do not insert or remove the card during recording.

How to connect the DVR to Wi-Fi and use the app?

Enable Wi-Fi in the DVR Menu (Wi-Fi: On). On your mobile, download Navitel DVR Center from the app store. In the app, select your DVR from the list (Wi-Fi name shown in DVR Menu > Wi-Fi Navitel) and connect. Use the default password or change it in DVR Menu > Wi-Fi password.

How does the parking monitor work?

When the device is off and vibration is detected (e.g., impact), it automatically turns on and starts recording. The recorded file is locked (protected). To enable, go to Menu settings and turn on Parking Monitor.

What to do if there is no GPS signal?

Weak GPS signal can be caused by bad weather or obstructions. Ensure the mount with GPS antenna is properly connected to the mini-USB port (not the micro-USB). Drive in an open area for better reception. The device will display '---' if no signal.

How to lock a recording to prevent deletion?

During recording, press the Power button briefly to lock the current file (lock icon appears). Alternatively, in Video mode, select a file, press Menu > Protect > Lock Current or Lock All. Locked files cannot be overwritten or deleted.

Can I use the device for speed camera alerts?

Yes, enable Camera Info in the settings. The DVR will display speed, distance to camera, and a progress bar. It uses GPS data to warn about known cameras and warnings. You can also set overspeed permission (-5 to +25 km/h) for sound notifications.

How to format the SD card?

Go to Menu > Format SD-card and confirm. Formatting is recommended before first use or when data errors occur. Use the DVR itself, not a computer, to ensure proper formatting.

What is the battery life and how is it charged?

The built-in 500 mAh battery is designed for emergency parking mode and safe shutdown, not for continuous use. For full operation, connect the car charger to the cigarette lighter. The red indicator lights up when charging; it dims as the battery fills, and goes out when full.

How to reset the device if it freezes?

Use a paperclip or similar object to press the Reset button on the device. This will restart the DVR without losing settings. If problems persist, ensure the SD card is formatted and the firmware is up to date.

Can I view and share videos on my phone?

Yes, via the Navitel DVR Center app. Connect your phone to the DVR's Wi-Fi network, then you can view live video, play back recordings, save, delete, and share videos and photos. The app also allows firmware updates and settings configuration.

USER MANUAL PR700 GPS Navitel

cz Tlačítka

Diagram of a device with a sensor and antenna, no text or symbols present

Hinweise

Ettevaatusabinõud

Thank you for purchasing this NAVITEL® product.

NAVITEL PR700 GPS is a multifunctional high-definition DVR with many functions and features that are described in this User Manual. Please read the manual carefully before using the device and keep it for future reference.

EN

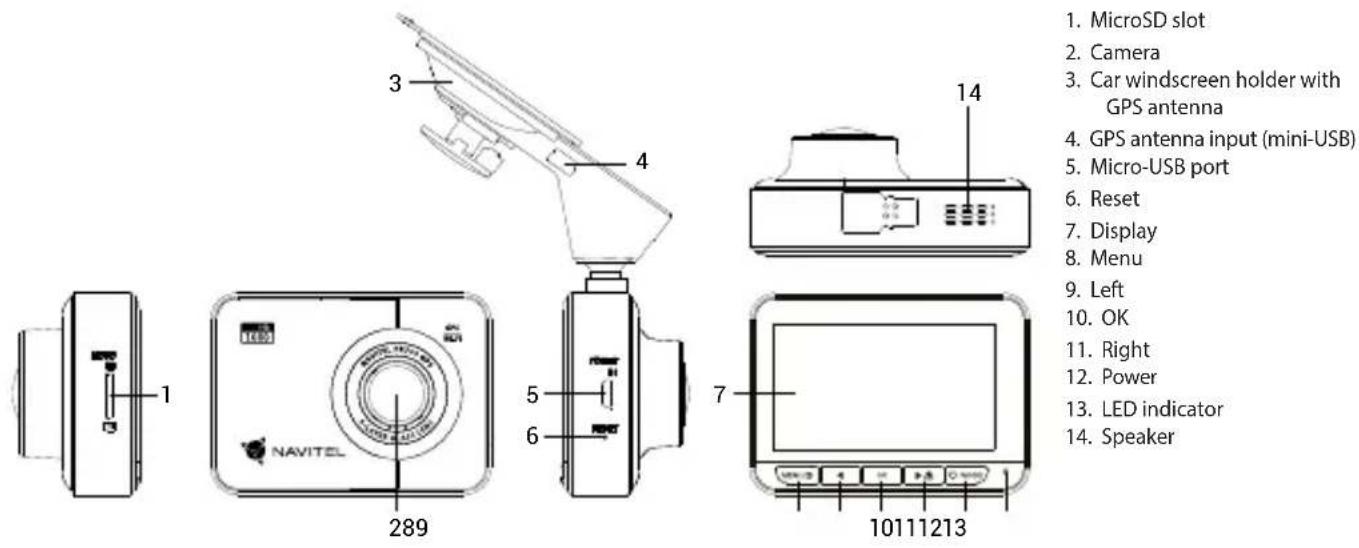

Device layout

1. MicroSD slot

2. Camera

3. Car windscreen holder with GPS antenna

4. GPS antenna input (mini-USB)

5. Micro-USB port

6. Reset

7. Display

8. Menu

9. Left

10. OK

11. Right

12. Power

13. LED indicator

14. Speaker

Specifications

Processor MSTAR AIT8339

Display 2.7", 320×240, TN

Camera SONY 307 (night vision)

Recording format MOV

Video resolution Full HD (1920×1080), 30 fps

Image format JPG

Image resolution 2 MP

View angle 170°

Lens 6-layer glass

Storage MicroSD card

MicroSD card capacity Max. 64 GB

USB mini-USB / micro-USB
Battery	500 mAh(capacity increased)
Power 5 V, 1.5 A
Wi-fi	Yes
GPS-alert	cameras / warnings / speed
Language	Czech, English,French, German,Hungarian, Italian,Polish, Romanian,Russian, Slovak,Spanish, Ukrainian

Note: the specifications may change due to upgrades.

Installation

1. Put the microSD card into the DVR. Use a high-speed SD card (Class10 or above); capacity should be within 8-64 GB.

• To avoid malfunctions of the DVR and / or SD-card, don't insert and remove SD-card during DVR operation.

• Before using a microSD card, please format it inside the DVR to avoid data errors. For formatting the SD-card in Menu mode select Format SD-card and confirm it.

• Secure the DVR on the windshield with the mount.

• Connect the car charger to the cigarette lighter socket.
• Connect the car charger to the GPS antenna input (mini-USB). When connecting the car charger directly to the DVR micro-USB port, the GPS operation is not available.
• Adjust the DVR position.
• Turn the power on; check whether the DVR is installed correctly. If the DVR is installed correctly, the indicator will glow red; the DVR will start up and begin recording (indicated by flashing blue light).

Diagram of a device with a mounted sensor and indicator lights, no text or symbols present

Precautions

• Use only the original charger adapter. Using another adapter may negatively affect the device's battery. Use accessories only approved by manufacturer.
• Permissible ambient temperature in operating mode: 0 to +35 °C. Storage temperature: +5 to +45 °C. Relative humidity: 5% to 90% without condensation (25 °C).
• Put the device away from fire sources to avoid explosion or fire.
• Do not expose the device to physical impacts.
• Avoid contacting the device with sources of electromagnetic radiation.
• Keep the lens clean. Do not use chemicals or detergents to clean the product; always turn off the device before cleaning.
• Strictly follow the laws and regulatory acts of the region where the device is used. This device can not be used for illegal purposes.
• Do not disassemble or repair device by yourself. In case of device failure, contact the service center.

Buttons

Button Functions
Power	Press shortly to turn the device on.Press and hold for 2 seconds to turn the device off.Press to switch between Record (STBY), Capture, Video and Photo modes.In Record mode (REC), press to lock / unlock a file (protected file cannot be deleted or overwritten).In Menu, press to exit any menu or list of functions.
Menu	Press to enter Menu mode.In Menu, press to exit any menu or list of functions.
Left / Right	In Record mode, press Right to turn the microphone on / off.In Video / Photo mode, press to select the previous / next file.In Menu, press to select the previous / next menu item.
OK	In Record mode (STBY), press to start recording.In Record mode (REC), press shortly to stop recording.In Record mode (REC), press and hold for 2 seconds to take a picture.In Capture mode, press to take a picture.In Video mode, press to select a file, or pause / resume video.In Photo mode, press to select a file.In Menu, press to select a menu item.
Reset If the device is not responding, press to reset.

Note: the built-in battery is designed only for recording an emergency event in parking mode and turning off the device correctly when the power is turned off; for the full operation of the device in any mode, a constant power connection is required.

Device functions

Format SD-card	Formatting a microSD card in the DVR is necessary for the correct operation of the device. Before using a microSD card or in case of data error, please format the microSD card. For formatting the SD-card in Menu mode select Format SD-card and confirm it.
Record	Connect the device to an external power supply and it will start recording automatically. Press the OK button to stop recording. Press OK again to record another video. Each video will be saved automatically.
Capture	In Record mode (STBY), press the Power button to enter Capture mode, press the OK button to take a photo (it will be saved automatically).
Video	In Record mode (STBY), press the Power button twice to enter Video mode; press the Left / Right buttons to select a file; press the OK button to play a file. During playback, press OK to pause / unpause; press the Left / Right buttons to fast forward / rewind. You can switch between files from the front / rear camera by holding down the Menu button for 2 seconds. The letter in the file name indicates the camera: F - front, R - rear.
Photo	In Capture mode, press the Power button twice to enter Photo mode; press the Left / Right buttons to select a file; press the OK button to play a file. You can switch between files from the front / rear camera by holding down the Menu button for 2 seconds. The letter in the file name indicates the camera: F - front, R - rear.
Lock file	In Record mode (REC), press the Power button to protect the current recording. A lock symbol will appear at the bottom of the screen. In Video / Photo mode, select a file, press Menu and select Protect, then Lock Current or Lock All. Protected files cannot be deleted or overwritten. Select Unlock Current / Unlock All to remove protection.
Loop recording	This feature allows you to save a video as a set of files given in the duration menu. If the memory card runs out of space, the unprotected files will be overwritten in the order in which they were created.
Record audio Record	video with or without sound.
Stamp This function adds date stamp to the record.
LCD OFF	The device can automatically shut off the screen to reduce power consumption; time interval can be set in the Screen Saver menu.
G-sensor If the vehicle is hit by something, the DVR will automatically lock the current video.
Parking monitor	In shutdown state, if vibration is detected, the device will turn on automatically and start recording. The file will be protected (locked).
GPS location	Device supports built-in GPS chipset and GPS antenna, it can show longitude, latitude and other information on your current location. Press GPS Status to check GPS dates. Press On in the GPS Stamp menu to add GPS information to your files.
APP support	You can see and share your videos and photos, taken by DVR, in your mobile phone through special app. The app is connecting via Wi-Fi network and should be installed on your mobile phone.
Battery	Red indicator lights up when the device is plugged into an external power supply; as the battery is charging, the red light will gradually dim; the red light going out means the battery is full.
USB-connection *	When connecting the device to a PC using a USB cable, two connection options will appear:1) Mass Storage: play, copy and delete files.2) Record: standard mode.
Perm.excess	Select an overspeed permission in the settings in the range from -5 to +25 km/h in increments of 5 km/h. If you exceed the set non-fined threshold, you will hear a sound notification.

* This function is available only in firmware version 1.7.37 and higher.

Navitel DVR Center app installation

1. Download and install Navitel DVR Center to your cell phone or tablet, follow your mobile device instructions. You can download application by scan QR code in DVR's Menu (App QR Code) with your cell phone. Choose Wifi in Settings menu, press On.
2. Turn on a Wi-Fi in DVR's Menu (Wi-Fi) and in your mobile device settings.
3. Run the app. Choose your DVR in the list. The DVR's information is in DVR's Menu (Wi-Fi Navitel)..
4. Connect your mobile device to the DVR through Wi-Fi. If necessary use the password. You can change it in DVR's Menu (Wi-Fi password).

5. Using the Navitel DVR Center you can:

6. update DVR's firmware;
   • control DVR functions in Settings menu: configure parking mode, impact sensor, video mode and format your SD card;

7. save, view, delete and send videos and photos as well as watch DVR's video in real time on the mobile device screen.

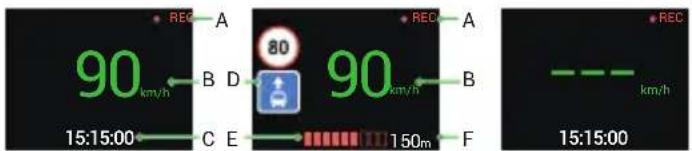

Digital Speed & Camera Info

The Digital speed feature is used to display time and vehicle speed calculated with the help of GPS signal [1]. Modes:

• Speed – current speed is displayed constantly [B],
• Speed + time - current speed [B] and time [C] are displayed.

The Camera info feature notifies the driver about cameras and warnings (hereinafter – Cameras) along the way. When you turn on the Camera info, the current speed and time are displayed. With the approach to the nearest camera the following information is displayed [2]:

• current speed [B],
• camera icon [D],
  • dynamic progress bar indicating approach to the nearest camera [E],
  • distance to the camera [F].

All information is displayed on a black screen.

In Record mode (REC), ●REC or ● are displayed [A].

If the vehicle is still, 0 is displayed.

If there is no GPS-signal, --- [3] is displayed.

Note. A weak GPS signal may be caused by bad weather conditions and other external factors. Please consult your vehicle speedometer.

[1]
[2] [3]
