Product Type	Car Camera (Dash Cam)
Model	R99 4K
Brand	Navitel
Video Resolution	4K (3840 x 2160) at 30 fps
Lens Angle	170° wide angle
Display	2.0 inch LCD
Storage	MicroSD card up to 128 GB (not included)
Night Vision	Yes, with infrared LEDs
GPS	Built-in GPS logger
G-Sensor	Built-in, for impact detection
Parking Mode	Supported (requires hardwire kit)
Power Supply	12-24V car charger (5V/1.5A USB)
Battery	Built-in 200mAh lithium polymer
Dimensions	65 x 55 x 30 mm
Weight	65 g
Operating Temperature	-10°C to 60°C
Loop Recording	Yes, with automatic overwrite
Motion Detection	Yes
Audio Recording	Built-in microphone (can be turned off)
Maintenance	Clean lens with soft cloth; format card monthly
Safety	Do not obstruct driver's view; use approved mount
Spare Parts	Suction mount, charger, adhesive pad available
Repairability	Not user-serviceable; contact Navitel support
General Information	Supports up to 128GB microSD; requires class 10

Frequently Asked Questions - R99 4K Navitel

How do I install the Navitel R99 4K dash cam?

Clean your windshield, attach the suction mount, plug in the car charger, and slide in a microSD card (not included). Adjust the lens angle and press the record button.

What microSD card is recommended for the R99 4K?

A Class 10 or UHS-I microSD card from a reputable brand, with capacity up to 128 GB. Format it in the camera before first use.

How to enable parking mode?

Parking mode requires a hardwire kit (sold separately). Once connected, the camera will automatically switch to low-power monitoring when the engine is off.

Why is my video footage not saving?

Check if the microSD card is properly inserted and formatted. Also, ensure that loop recording is enabled and the G‑sensor is not set too high, which may lock files.

Can I use the camera without a memory card?

No, the Navitel R99 4K requires a microSD card for recording. It does not have internal storage.

How do I adjust the exposure or video quality?

Go to the settings menu on the camera. You can adjust exposure compensation, resolution (4K/1080p), and bitrate. Higher quality uses more storage.

What does the G‑sensor do?

The built-in G‑sensor detects sudden impacts and automatically locks the current recording to prevent overwriting. Sensitivity can be set to Low, Medium, or High.

How do I view recordings on my phone?

The Navitel R99 4K does not have built-in WiFi. To view files, remove the microSD card and use a card reader with your phone or computer.

What is the warranty period?

Navitel provides a 12-month limited warranty from the date of purchase. Keep your receipt for support claims.

How to clean the lens?

Use a soft, lint-free cloth slightly dampened with lens cleaner or water. Do not use abrasive materials that may scratch the lens.

USER MANUAL R99 4K Navitel

Black Navitel 4K digital camera with visible lens and external frame (no text or symbols on body)

NAVITEL R99 4K

Wi-Fi Dashcam

cz Úvod

Vážený zákazníku!

Technical line drawing of a mechanical device with a numbered component (10) and no visible text or symbols

Vnější vzhled

Google Play

App Store AppGallery

Einführung

Lieber Kunde!

Technical line drawing of a mechanical device with a top component and labeled part (10), no readable text or symbols present.

Gerätelayout

Google Play App Store AppGallery

Sissejuhatus

Hea klient!

EE

Täname, et ostsite selle NAVITEL® toote.

Technical line drawing of a mechanical device with a numbered component (10), no visible text or symbols

Seadme paigutus

Google Play

App Store AppGallery

Introduction

Dear Customer!

Thank you for purchasing this NAVITEL® product.

NAVITEL R99 4K is a multifunctional high-definition DVR with many functions and features that are described in this User Manual. Please read the manual carefully before using the device and keep it for future reference.

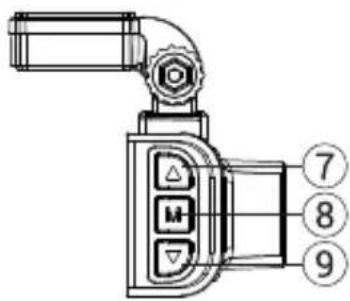

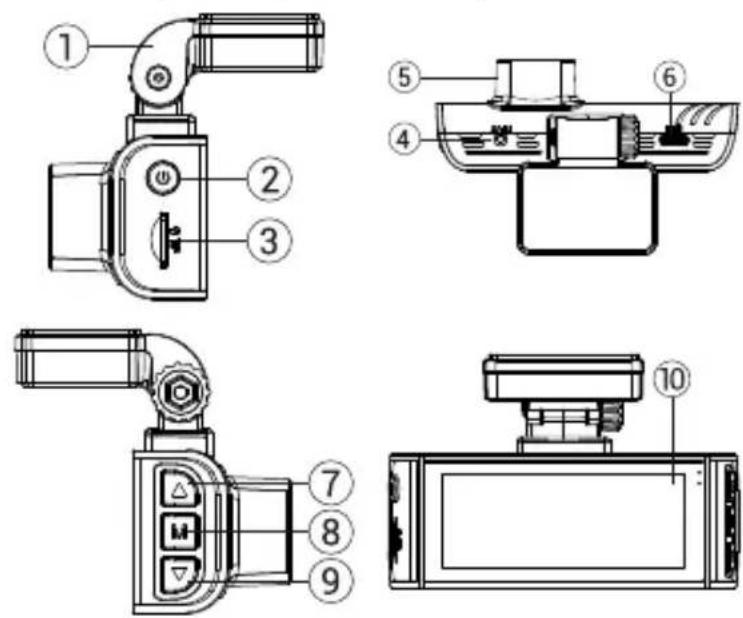

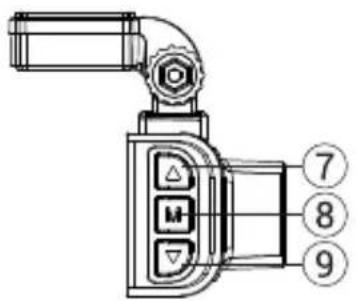

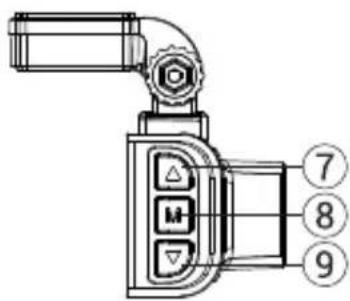

Device layout

1. Windscreen holder 6. USB-C port
2. Power button 7. Up button
3. MicroSD card slot 8. Mode button
4. CAM-IN port 9. Down button
5. Lens 10. Touchscreen

Package contents

• DVR NAVITEL R99 4K • Microfiber cloth
• Windscreen holder with • Electrostatic film
GPS-antenna
• Car charger 12/24 V • Warranty card
- USB — USB-C cable - Gift voucher

Note. The package, appearance, specifications that do not change the overall functionality of the device may be changed by the manufacturer without prior notice.

Specifications

Processor NT96670
Camera sensor SONY	415
Video resolution	3840×2160 (4K)/30 fps2560×1440 (2K)/60 fps1920×1080 (Full HD)/120 fps
Lens 7 glass lenses + IR-layer
View angle 140°
Aperture F=1,75
Video recording format MP4
Display touchscreen IPS 3,18"
Wi-Fi Yes
GPS Yes
G-sensor Yes
Microphone/Speaker Yes

Supercapacitor 2,5 F
Power port USB-C
Power 5,5 V, 2,5 A
MicroSD card capacity		Up to 256 Gb
Car charger	Input DC 12-24V
	USB-C Output	5V/3A9V/2.8A12V/2.5A25W MAX
	USB-A Output	5V/2.5A
Language		English, Hungarian, Spanish, Italian, German, Polish, Romanian, Russian, Slovak, Ukrainian, French, Czech

Note. The built-in power supply is designed only for recording an emergency event in parking mode and turning off the device correctly when the power is turned off. For the full operation of the device in any mode, a constant power connection is required.

Installation

1. Insert the microSD card into the DVR. Use a high-speed SD card (Class U3 or above). Capacity should be within 8-256 GB.

• To avoid malfunctions of the DVR and/or SD-card, don't insert and reset SD-card during DVR operation.

• Before using a microSD card, please format it inside the DVR to avoid data errors. For formatting the SD-card in Menu mode select Format SD-card and confirm it.

• Secure the device on the windshield with the holder.

• Connect the car charger to the cigarette lighter socket.
• Connect the car charger to the DVR.
• Adjust the camera position.
• Make sure the device is installed correctly, turn the power on. The device will start up and begin recording.

Precautions

• Use only the original charger adapter. Using another adapter may negatively affect the device's battery. Use accessories only approved by manufacturer.
• Permissible ambient temperature in operating mode: -10°C to 60°C. Storage temperature: -20°C to 80°C. Relative humidity: 5% to 90% without condensation (25°C).
• Keep the device away from fire sources to avoid explosion or fire.
• Do not expose the device to physical impacts.
• Avoid contacting the device with sources of electromagnetic radiation.
• Keep the lens clean. Do not use chemicals or detergents to clean the product; always turn off the device before cleaning.
• Strictly follow the laws and regulatory acts of the region where the device is used. This device can not be used for illegal purposes.
• Do not disassemble or repair device by yourself. In case of device failure, contact the service center.

NAVITEL s.r.o. hereby declares that the device NAVITEL R99 4K is compatible with the European directive RED 2014/53/EU.

The full text of Declaration of conformity is available at the following internet address:

www.navitel.com/declaration_of_conformity/r99-4k

Device functions

Format SD-card	Formatting a microSD card in the DVR is necessary for the correct operation of the device. Before using a microSD card or in case of data error, please format the microSD card. For formatting the SD-card in Menu mode select Format SD-card and confirm it.
Record	When connected to a power source, the device will turn on and start recording automatically. Click Down button to stop recording. Press the Down button again to record a new video. Each video is automatically saved.
Loop recording	This feature allows you to save a video as a set of files given in the duration menu. If the memory card runs out of space, the unprotected files will be overwritten in the order in which they were created..
Record audio Record	video with or without sound.
Stamp This function adds date stamp to the record.
LCD OFF	The device can automatically shut off the screen to reduce power consumption; time interval can be set in the Screen Saver menu.
G-sensor If the vehicle is hit by something, the DVR will automatically lock the current video

Device functions

GPS location	Device can show longitude, latitude and other information on your current location. Go to Settings -> GPS Status to check GPS dates. Press On in the GPS Stamp option to add GPS information to your files.
Mobile APP support	You can see and share your videos and photos, taken by DVR, in your mobile phone through special app. The app is connecting via Wi-Fi network and should be installed on your mobile phone.
Perm.excess	Select an overspeed permission in the settings in the range from -5 to +25 km/h in increments of 5 km/h. If you exceed the set non-fined threshold, you will hear a sound notification.

You will find the full version of the user manual on the official website www.navitel.com.

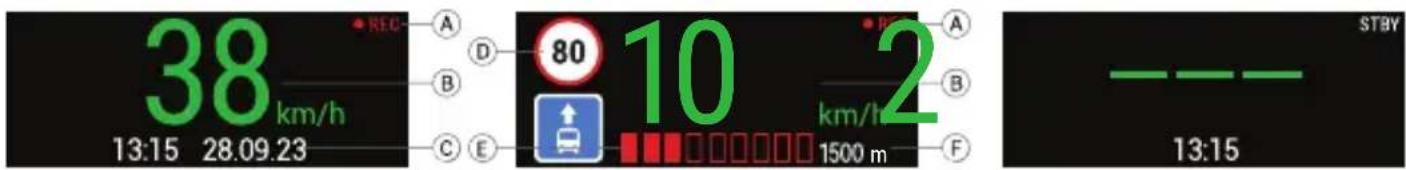

Digital Speed & Camera Info

The Digital speed feature is used to display time and vehicle speed calculated with the help of GPS signal [1]. Modes:

• Speed – current speed is displayed constantly [B],
• Speed + time - current speed [B] and time [C] are displayed.

The Camera info feature notifies the driver about cameras and warnings

(hereinafter – Cameras) along the way. When you turn on the Camera info, the current speed and time are displayed. With the approach to the nearest camera the following information is displayed [2]:

• current speed [B],
• camera icon [D],
  • dynamic progress bar indicating approach to the nearest camera [E],
  • distance to the camera [F].

All information is displayed on a black screen.

In Record mode (REC), ●REC or ● are displayed [A].

If the vehicle is still, 0 is displayed.

If there is no GPS-signal, - - - [3] is displayed.

Note. A weak GPS signal may be caused by bad weather conditions and other external factors. Please consult your vehicle speedometer.

[1] [2] [3]

Navitel DVR Center app installation

1. Download and install Navitel DVR Center on your smartphone or tablet from the application store on your mobile device. You can also download the app by scanning the QR code.
2. Turn on Wi-Fi in the DVR Menu and in the settings of your mobile device.
3. In the Wi-Fi settings on your mobile device, select the DVR from the list of available connections to connect to it. To connect to the DVR, use the password 12345678 or 1234567890.
4. Launch the Navitel DVR Center application and make sure that the application has established a connection with the DVR.
5. Using the Navitel DVR Center application, you can configure the DVR, update its firmware, save captured videos and photos to your mobile device, etc.

Google Play

App Store AppGallery

Bevezetés

Tisztelt Ügyfelünk!

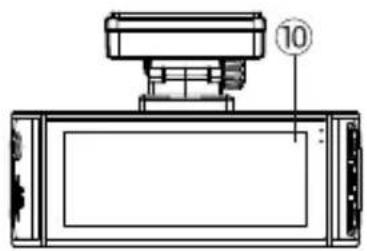

Technical line drawing of a device with a top component and labeled part (10), no readable text or symbols present.

Eszköz elrendezése

Google Play

App Store AppGallery

lvadas

Gerbiamas kliente! Dékojame, kad jsigijote ši NAVITEL® gaminį.

Google Play

App Store AppGallery

levads

Cienijamais klient!

Google Play

App Store AppGallery

Wprowadzenie

Szanowny Kliencie!

Schemat urządzenia

Google Play

App Store AppGallery

Introducere

Dragă client!

Google Play

App Store AppGallery

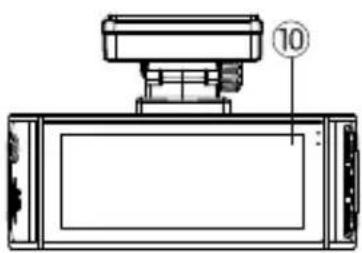

Введение

Technical line drawing of a device with a top component and labeled part (10), no readable text or symbols present.

Внешний вид

Google Play

App Store AppGallery

Technical line drawing of a mechanical assembly with a top component and a labeled part (10), no readable text or symbols present.

Vonkajší vzhľad

1. Držiak čelného skla
2. Tlačidlo pre zapnutie/vypnutie
3. Slot pre kartu MicroSD
4. Port CAM-IN
5. Objektív
6. Port USB-C
7. Tlačidlo hore
8. Tlačidlo režimu
9. Tlačidlo dole
10. Dotykový displej

Obsah balenia
