Product Type	Dash camera (DVR)
Processor	JL5401
Display	2-inch TFT, 320×240
Camera Sensor	GC2023
Video Resolution	1920×1080 @ 30 fps
Image Resolution	12 MP
View Angle	140°
Lens	4-layer glass
Recording Format	MOV (H.264)
Image Format	JPG
Storage	microSD (Class 10 or above), up to 64 GB
USB	micro-USB 2.0
Power Supply	5V, 1A via car charger
Battery	180 mAh, 3.7V (for parking mode and safe shutdown)
Frequency	50/60 Hz
Microphone / Speaker	Built-in
Languages	Czech, Deutsch, Estonian, English, Hungarian, Latvian, Lithuanian, Polish, Romanian, Russian, Slovak, Ukrainian
Key Features	Loop recording, G-sensor, parking monitor, motion detection, interval recording, file locking, date stamp
Cleaning	Keep lens clean; use soft dry cloth; no chemicals
Safety	Use original charger; avoid heat, physical impact, and disassembly

Frequently Asked Questions - R200 Navitel

How do I format the microSD card?

Go to Menu, select 'Format SD-card', and confirm. Always format the card in the device before first use to avoid data errors.

Why is the device not recording?

Ensure the microSD card is inserted correctly and formatted. The device must be connected to power; it starts recording automatically when powered. Check if recording is paused (press OK to resume).

How do I lock a video file?

During recording, press the Mode button to lock the current file (a key icon appears). In Playback mode, select a file, press Menu, choose 'Protect' then 'Lock Current' or 'Lock All'.

What does the G-sensor do?

The G-sensor detects sudden impacts or collisions. When triggered, it automatically locks the current video to prevent overwriting.

How do I enable parking monitor?

Parking monitor activates automatically when the device is off and detects vibration. The device will turn on, record, and lock the file. Ensure the battery is charged.

Can I use a microSD card larger than 64 GB?

No, the device supports microSD cards up to 64 GB (Class 10 or above). Using larger cards may cause errors.

Why does the LED indicator turn red then green?

Red indicates the device is connected to power and charging. Green means the battery is fully charged.

How do I reset the device if it freezes?

Use a paperclip to press the Reset button located near the microSD slot. This will restart the device.

What is interval recording?

Interval recording captures frames at set intervals (100 ms, 200 ms, or 500 ms). Playback is at 30 fps for fast playback; normal playback is not available.

How do I clean the lens?

Turn off the device. Use a soft, dry cloth to gently wipe the lens. Do not use chemicals or detergents.

USER MANUAL R200 Navitel

Black R200 NAVITEL digital camera with dual LCD screen displaying highway scene (no readable text or symbols on device body)

NAVITEL R200

Portable Video Recorder

Úvod

Vážený zákazníku!

cz Tlačítka

Tasten

2

Nupud

Thank you for purchasing this NAVITEL® product.

NAVITEL R200 is a multifunctional high-definition DVR with many functions and features that are described in this User Manual. Please read the manual carefully before using the device and keep it for future reference.

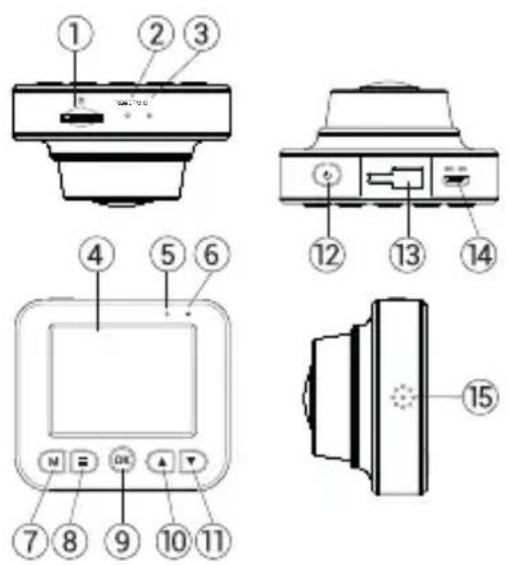

Device layout

1. MicroSD slot
2. Reset
3. Microphone
4. Display
5. LED indicator (record)
6. LED indicator (charge)
7. Mode
8. Menu
9. OK
10. Up
11. Down
12. Power
13. Mount
14. Micro-USB port
15. Speaker

Specifications

Processor JL5401
Display 2", 320×240, TFT
Camera GC2023
Recording format MOV (H.264)
Video resolution 1920×1080, 30 fps
Image format JPG
Image resolution 12 MP
View angle 140°
Lens 4-layer glass
Storage microSD card
MicroSD card capacity Max. 64 GB

USB micro-USB 2.0
Frequency 50/60 Hz
Battery 180 mAh, 3.7 V
Power 5 V, 1 A
Microphone / speaker Yes
Language	Czech,Deutsch,Estonian,English,Hungarian,Latvian,Lithuanian,Polish,Romanian,Russian,Slovak,Ukrainian

Note: the specifications may change due to upgrades.

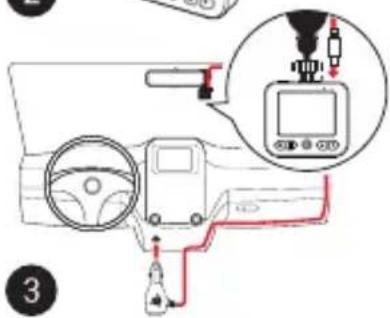

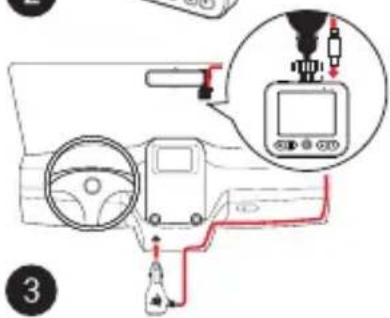

Installation

1. Put the microSD card into the DVR. Use a high-speed SD card (Class10 or above); capacity should be within 8-64 GB.

• To avoid malfunctions of the DVR and / or SD-card, don't insert and remove SD-card during DVR operation.

• Before using a microSD card, please format it inside the DVR to avoid data errors. For formatting the SD-card in Menu mode select Format SD-card and confirm it.

• Secure the device on the windshield with the holder.

• Connect the car charger to the cigarette lighter socket.
• Connect the car charger to the DVR (micro-USB).
• Adjust the camera position.
• Turn the power on; check whether the device is installed correctly. If the device is installed correctly, the indicator will glow red; the device will start up and begin recording (indicated by flashing blue light).

Precautions

• Use only the original charger adapter. Using another adapter may negatively affect the device's battery. Use accessories only approved by manufacturer.
• Permissible ambient temperature in operating mode: 0 to +35 °C. Storage temperature: +5 to +45 °C. Relative humidity: 5% to 90% without condensation (25 °C).
• Put the device away from fire sources to avoid explosion or fire.
• Do not expose the device to physical impacts.
• Avoid contacting the device with sources of electromagnetic radiation.
• Keep the lens clean. Do not use chemicals or detergents to clean the product; always turn off the device before cleaning.
• Strictly follow the laws and regulatory acts of the region where the device is used. This device can not be used for illegal purposes.
• Do not disassemble or repair device by yourself. In case of device failure, contact the service center.

1

2

Buttons

Button Functions
	Press and hold for 3 seconds to turn the device on / off.Press to turn the screen on / off.
	In Record mode (STBY), press to switch between Record, Capture and Playback modes.In Record mode (REC), press to lock a file (protected file cannot be deleted or overwritten).In Menu press to choose the next menu section.
	Press to enter Menu mode.In Menu press to choose the next menu section.
	In Record mode (STBY), press to start recording; press again to stop recording.In Capture mode, press to take a picture.In Playback mode, press to select a file, or pause / resume video.In Menu, press to select a menu item.
	In Record mode, press Down to turn the microphone on / off.In Playback mode, press to select the previous / next file.In Menu, press to select the previous / next menu item.
Reset If the device is not responding, press to reset.

Note: the built-in battery is designed only for recording an emergency event in parking mode and turning off the device correctly when the power is turned off; for the full operation of the device in any mode, a constant power connection is required.
NAVITEL s.r.o. hereby declares that the device NAVITEL R200 is compatible with the European directive EMC 2014/30/EU. The full text of Declaration of conformity is available at the following internet address: www.navitel.cz/en/declaration_of_conformity/r200

Device functions

Format SD-card	Formatting a microSD card in the DVR is necessary for the correct operation of the device. Before using a microSD card or in case of data error, please format the microSD card. For formatting the SD-card in Menu mode select Format SD-card and confirm it.
Record	Connect the device to an external power supply and it will start recording automatically (indicated by the flashing blue light). Press the OK button to stop recording. Press OK again to record another video. Each video will be saved automatically.
Capture	In Record mode (STBY), press the Mode button to enter Capture mode, press the OK button to take a photo (it will be saved automatically).
Playback	In Record mode (STBY), press the Mode button twice to enter Playback mode; press the Up and Down buttons to select a file; press the OK button to play a file. During playback, press OK to pause/unpause; press the Up and Down buttons to fast forward / rewind.
Loop recording	This feature allows you to save a video as a set of files given in the duration menu. If the memory card runs out of space, the unprotected files will be overwritten in the order in which they were created.
Interval record	Recording parameters: 100 ms - recording at 10 frames per second (fps), 200 ms - 5 fps recording, 500 ms - 2 fps recording. Only fast playback of a recording is available (30 fps). Normal playback is not possible.
Motion detection	When an object is moving the device will automatically start recording. If the object does not move for more than 20 seconds, recording stops.
Record audio Record	video with or without sound.
Lock file	In Record mode (REC), press Mode to protect the current recording. A key symbol will appear at the bottom of the screen. Press again to remove protection. In Playback mode, select a file, press Menu and select Protect, then Lock Current or Lock All. Protected files cannot be deleted or overwritten. Select Unlock Current / Unlock All to remove protection.
Stamp This function adds date stamp to the record.
G-sensor If the vehicle is hit by something, the DVR will automatically lock the current video.
Parking monitor	In shutdown state, if vibration is detected, the device will turn on automatically and start recording. The file will be protected (locked).
Battery	Red indicator lights up when the device is plugged into an external power supply; as the battery is charging, the red light becomes green.
LCD OFF	The device can automatically shut off the screen to reduce power consumption; time interval can be set in the LCD OFF menu.
