ZCM7255 - Autres petits appareils de cuisine Zelmer - Free user manual and instructions

Product Type	Espresso Coffee Maker
Brand	Zelmer
Model	ZCM7255
Power	1350 W
Voltage	220-240 V ~ 50/60 Hz
Water Tank Capacity	1.2 L
Dimensions (approx.)	30 x 25 x 30 cm
Weight (approx.)	4.5 kg
Pump Pressure	15 bar
Functions	Single/Double Espresso, Manual Cup, Steam, Hot Water, Frothing
Control Type	Buttons (Single, Double, Manual, Steam, On/Off) and Steam Knob
Indicators	Blue (ready), Red (steam/hot water), Flashing (heating)
Funnel Lock System	Insert and twist to lock
Max Altitude	2000 m
Safety Features	Auto shut-off after brew? (not specified), indicator lights, lock system, keep out of reach of children
Materials	Plastic body, stainless steel funnel and mesh
Accessories Included	Measuring spoon/tamper, metal funnel, two steel meshes (single/double), frothing nozzle
Cleaning & Maintenance	Hand wash removable parts; regular descaling (every 40-80 uses); do not use dishwasher
Descaling Required	Yes, use espresso machine liquid descaler
Warranty	2 years
Certifications	WEEE compliant (Directive 2012/19/EU)
Intended Use	Household only, not for commercial use
Repairability	Only qualified personnel from authorized service center
Color	Black (typical)

Frequently Asked Questions - ZCM7255 Zelmer

How do I preheat the coffee maker before first use?

Before making coffee for the first time, run the machine twice with water only (no coffee). Fill the tank, attach the funnel without coffee, and press the manual cup button to let hot water flow through. This cleans the system.

Why does the indicator light flash blue and then stay on?

Flashing blue means the machine is heating up. After about 2 minutes, the light stays on steadily, indicating the machine is ready for use. For steam or hot water, the light will be red.

What is the maximum water level in the tank?

Do not fill beyond the MAX mark on the water tank. Overfilling may cause leakage or performance issues.

How do I froth milk for cappuccino?

First, make espresso. Fill a jug with cold whole milk (about 100 ml per cappuccino). Press the steam button, wait for red light steady, insert the frothing nozzle about 2 cm into milk, turn the steam knob slowly counterclockwise, and move the jug up and down until frothy. Turn knob to OFF to stop.

How often should I descale the machine?

Descale every 40 uses if using hard water, or every 80 uses for soft water. Use a recommended espresso machine liquid descaler. Follow the descaling steps in the manual and rinse three times with clean water afterward.

What should I do if coffee flow is slow or no steam?

This usually indicates the machine needs descaling. Also ensure the water tank is filled, the funnel is properly locked, and the steam knob is in the OFF position before starting.

Can I put parts in the dishwasher?

No. All removable parts (drip tray, water tank, funnel, mesh, etc.) must be hand washed in hot soapy water and rinsed. Do not use a dishwasher.

How do I clean the steam wand after frothing?

Immediately after turning off the steam, wipe the nozzle with a wet sponge to remove milk residue. Be careful as it may be hot.

What is the warranty period and how to claim?

The product has a 2-year warranty. For service, contact an authorized B&B TRENDS, S.L. technical service center. Keep the receipt and warranty card. Unauthorized tampering voids the warranty.

Is the machine safe for use at high altitudes?

Yes, it is designed for use up to 2000 meters above sea level. Do not use above this altitude.

USER MANUAL ZCM7255 Zelmer

Exterior view of a modern espresso machine with control panel and coffee cup (no text or symbols on main body)

PL INSTRUKCJE UŻYTKOWANIA Ekspres ciśnieniowy do kawy
EN USER MANUAL Expresso coffee maker
DE BENUTZERHANDBUCH Express kaffeemaschine
CZ NÁVOD K POUŽITÍ Espresso kávovar
SK NAVODILA ZA UPORABO Espresso kávovar

HU HASZNÁLATI UTASÍTÁS Expressz kávéfőzőgép
RO INSTRUCTIUNI DE UTILIZARE Maşină de cafea express
RU ИНСТРУКЦИЯ ПО ПРИМЕНЕНИЮ Экспресскофеварка
BG ИНСТРУКЦИИ ЗА УПОТРЕБА Експресна кафемашина
UA ІНСТРУКЦІЯ ПО ЗАСТОСУВАННЮ Кавоварка еспресо

DZIEKUJEMY ZA WYBÓR MARKI ZELMER. MAMY NADZIEJE, ŻE PRODUKT SPEŁNI PAŃSTWA OCZEKIWANIA.

OSTRZEŻENIE

WE WOULD LIKE TO THANK YOU FOR CHOOSING ZELMER. WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

Please read the instructions for use carefully prior to using the product. store these in a safe place for future reference.

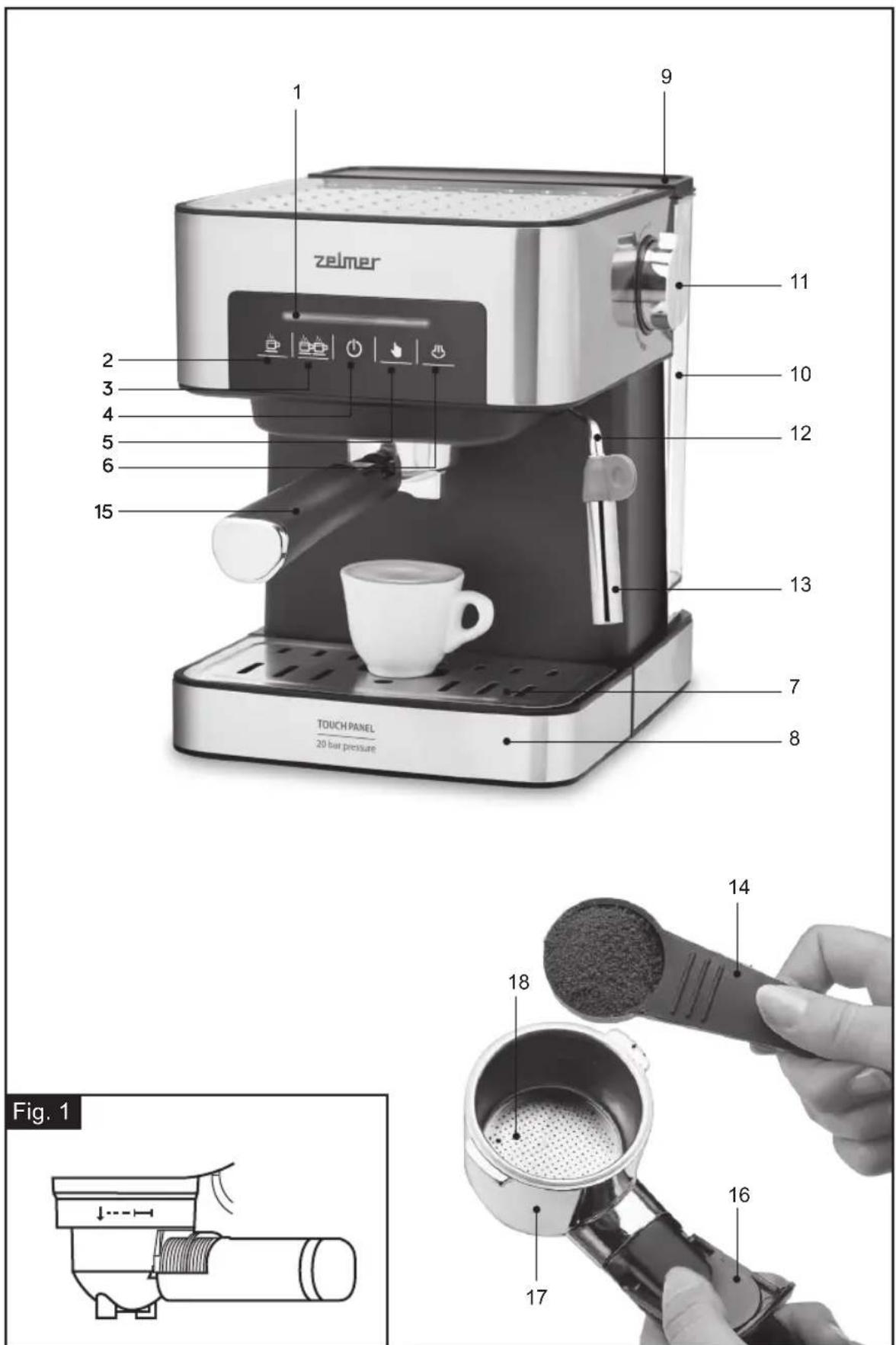

DESCRIPTION

1. Indicator light
2. "Single cup" button
3. "Double cup" button
4. "On/Off" button
5. "Manual cup / hot water" button
6. "Steam" button
7. Removable shelf
8. Drip tray
9. Water tank cover
10. Water tank
11. "Steam / hot water" control knob
12. Steam wand
13. Frothing nozzle
14. Measuring spoon and tamper
15. Funnel handle
16. Metal funnel

17. Stainless steel mesh

18. Press bar (press steel mesh with it when pour coffee residue to avoid its slipping out)

SAFETY INSTRUCTIONS

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

EN

Keep the appliance and its cord out of reach of children aged less than 8 years.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

This appliance is intended to be used in household. It is not intended to be used in applications such as:

staff kitchen areas in shops, offices and other working environments;

farm houses;

by clients in hotels, motels and other residential type environments;

Bed and breakfast type environments.

Proceed according to maintenance and cleaning section of this manual for cleaning.

Never immerse the appliance in water or any other liquid.

During brewing and after use due to residual heat some parts of the machine are hot.

Warning: potential injury from misuse!

This device is designed for use at a maximum altitude up to 2000m above sea level.

IMPORTANT WARNINGS

Any incorrect use or improper handling of the product shall render the warranty null and void.

Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label.

The mains connection cable must not be tangled or wrapped around the product during use. Do not use the device, or connect and disconnect to the supply mains with the hands and / or feet wet.

Do not pull on the connection cord in order to unplug it or use it as a handle.

Never use your coffee machine without water in it.

Unplug the product immediately from the mains in the event of any breakdown or damage and contact an official technical support service.

In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official technical support service may carry out repairs or procedures on the device.

B&B Trends S.L. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings

INSTRUCTIONS FOR USE

Before use

Make sure that all the product's packaging has been removed.

Before making coffee for the first time, we recommend using the coffee maker twice with water only, in order to clean the system.

Filling with water

The water tank (10) must be filled with water before turning the appliance on.

Remove the detachable tank, open its cover (9) and fill the tank. Never fill beyond the level "MAX".

Close the cover.

Replace the tank into the appliance properly.

Pre-heating

To make a cup of good hot espresso coffee, we recommend you preheating the appliance before making coffee, including the funnel, mesh and cup, so that the coffee flavor cannot be influenced by the cold parts.

Select the one cup or two cup mesh (18) and place it (without adding coffee) into the metal funnel (17).

Pull the press bar (16) backward and make sure that the funnel aligns with the groove in the water outlet. Then insert the funnel into the water outlet from the "Insert" position and fix it firmly by turning it counterclockwise until it is at the "lock" position (Fig.1).

Place a cup on the removable shelf (7).

Make sure that the control knob (11) is at the "OFF" position.

Connect the appliance to the power supply.

Press the "on/off" button (4) to switch the appliance on.

The indicator light (1) will flash in blue color for approximately 2 minutes. After this time, the indicator light will stop flashing and will remain lit permanently. The warm-up cycle is completed.

Press the “manual cup” button (5) to make the pump work. Hot water will flow out through the funnel to the cup.

After a time, when you consider that the parts are already pre-heated, press the "manual cup" button (5) again to stop the water flow.

Make expresso coffee

Remove the funnel (17) by turning it in clockwise.

Add ground coffee to the steel mesh (18) with the measuring spoon (14). Then press the grounded coffee tightly with the tamper (14). A spoon of grounded coffee can make about a cup of top-grade coffee.

Pull the press bar (16) backwards and place the corresponding steel mesh (18) for one or two cups into

EN

the metal funnel (17).

Make sure that the funnel aligns with the groove in the water outlet. Insert the funnel into the water outlet from the "Insert" position and fix it firmly by turning it counterclockwise until it is at the "lock" position (Fig.1).

Place a cup on the removable shelf (7).

Press the “single cup” button (2) to prepare a cup of coffee (60ml approximately). When the coffee is ready, 4 beeps will be heard, and coffee flow will stop automatically.

or

Press the “double cup” button (3) to prepare two cups of coffee (100 ml approximately). When the coffee is ready, 4 beeps will be heard, and coffee flow will stop automatically.

or

Press the “manual cup” button (5) to prepare coffee as needed. To stop the coffee flow, press “manual cup” button again. Warning: Do not leave the coffee maker unattended during making coffee while operating manually.

After finishing making the coffee, take the metal funnel out by turning it clockwise, and then pour the coffee residue out with the steel mesh pressed by the press bar. Let them cool down completely, then rinse under running water.

Frothing milk/ making cappuccino

You get a cup of cappuccino when you top up a cup of espresso with frothing milk.

Prepare espresso first with according to the "MAKE ESPRESSO COFFEE" section.

Fill a jug with about 100 grams of milk for each cappuccino to be prepared. You are recommended to use whole milk at refrigerator or room temperature (not hot!).

Note: it is recommended that the diameter of the jug is not less than 70 ± 5 mm, and bear in mind that the milk increases in volume by 2 times, make sure the height of jug is enough.

Make sure that the control knob (11) is at the "OFF" position.

Press the steam button (6). The indicator light (1) will flash in red color until it remains lit permanently.

Insert the frothing nozzle into the milk about two centimeters, froth milk in the way moving vessel round from up to down.

Turn the control knob (11) slowly counterclockwise. Steam will come out from the frothing nozzle (13).

Note: Never turn the control knob rapidly, as the steam will accumulate rapidly in short time which may increase the potential of the risk of spillage.

When the frothing operation is finished, turn the control knob (11) to the "OFF" position.

Note: Clean the frothing nozzle (13) with a wet sponge immediately after steam stops generating, but care not to hurt!

Pour the frothed milk into the espresso prepared. Now the cappuccino is ready. Sweeten to taste and if desired, sprinkle the froth with a little cocoa powder.

Press the "on/off" button (4) to switch the appliance off.

Note: we recommend to allow the coffee maker to cool down at least for 5 min before making coffee again.

Otherwise burnt odor may occur in your espresso coffee.

Producing hot water

The steam wand (12) without the frothing nozzle (13) can be used to make hot beverages like drinking chocolate, water or tea.

Remove the frothing nozzle (13) from the steam wand (12).

Make sure that the control knob (11) is at the "OFF" position.

Press the "on/off" button (4) to switch the appliance on.

Press the "hot water" button (5). The indicator light (1) will be illuminated in red.

Wait for the heating time, the indicator light will stop flashing and will remain lit permanently when the appliance is ready.

Dip the wand (12) into the cup.

Turn the control knob (11) slowly counterclockwise. Hot water will come out from the wand.

When the required quantity is reached, turn the control knob (11) to the "OFF" position.

Press the "on/off" button (4) to switch the appliance off.

Producing steam to heat liquids

Make sure that the control knob (11) is at the "OFF" position.

Press the "on/off" button (4) to switch the appliance on.

Press the steam button (6). The indicator light (1) will be illuminated in red.

Wait for the heating time, the indicator light will stop flashing and will remain lit permanently when the appliance is ready.

Dip the wand (12) into the liquid to be heated.

Turn the control knob (11) slowly counterclockwise. Steam will come out from the wand.

When the desired temperature is reached, turn the control knob (11) to the "OFF" position.

Press the "on/off" button (4) to switch the appliance off.

Decalcification

Regular descaling of the machine protects the coffee machine and positively affects the taste and aroma of the beverage. WARNING: Lack of descaling causes a significant drop in performance and can lead to damage of the device. Failure to descale the coffee machine will void the warranty. Before descaling process, make sure that the coffee machine is disconnected from the power source.

If Coffee brewing takes longer time than in the beginning of use or the steam nozzle does not produce steam, the appliance should be decalcified. If hard water is used, the appliance should be decalcified after it has been used approximately 40 times. If soft water is used the machine can be decalcified after it has been used approximately 80 times. Espresso machine liquid decalcifier may be used for decalcifying the appliance. Before descaling process, make sure that the coffee machine is disconnected from the power source.

1) Pour approximately 250 ml of lukewarm water and then add 250 ml of espresso machine liquid decalcifier (for a correct ratio refer to the manufacturers guide on the preparation of descaling)
2) Place the filter in lock device positon into the device. Then place a cup half-filled with cold water under the steam nozzle and an empty cup under the filter funnel.
3) Connect the device to the power supply.
4) Press the power button.
5) Then press the auto single cup button.
6) When the decalcifier starts to flow down into an empty cup, insert the tip of the steam nozzle into a cup filled with cold water and press the steam button.
7) Wait for a few seconds and switch off the device. After decalcifying, the device must be rinsed three times with clean water. In order to do it, repeat steps 1 to 7 filling the water tank with clean water only.

MANITENANCE AND CLEANING

Do not forget to remove the plug from the socket before cleaning the appliance.

Wipe outside with soft dry cloth when coffee machine is wet, never use metal polish.

The removable items should be washed in hot soapy water. Rinse them before fixing.

Detach the metal funnel through turn it anticlockwise, get rid of coffee residue inside, then you can clean it with cleanser, but at last you must rinse with clear water.

Never use a dishwasher to clean any parts from the machine.

Put the coffee maker in a dry and not very hot place.

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection centre closest to your home.

We hope that you will be satisfied with this product.

WIR DANKEN IHNEN, DASS SIE SICH FÜR ZELMER ENTSCHIEDEN HABEN. WIR HOFFEN, DASS DAS PRODUKT ZU IHRER ZUFRIEDENHEIT FUNKTIONIERT.

WARNUNG

ELIMINAREA PRODUSULUI

B&B TRENDS, S.L. guarantees compliance of this product for the use for which it is intended for a period of two years. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfill or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B&B TRENDS, S.L. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENDS, S.L. authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENDS, S.L., or the careless or improper use of the same shall render this warranty null and void. The warranty must be fully completed and delivered along with the receipt or delivery docket for the effective exercise of rights under this warranty.

This warranty should be retained by the user as well as the invoice, receipt or the delivery docket to facilitate the exercise of these rights. For technical service and after-sales care outside the Polish territory, please submit your query to the point of sale where you purchased the item or check for further aftersales information at www.zelmer.com
