USER MANUAL HI150G ASKO

Simple line drawing of two horizontal bars with labeled segments (no text or symbols)

OPERATING INSTRUCTIONS

Instructions for use of a hidden helper

Board

EN-CS-DA-DE-ES-ET-FI-FR-HR-IT-LV-LT-NL

NO-PL-PT-RU-SK-SL-UK-ZH.CN-ZH.TW

5EN - Warnings ....

46Varjatud a

Installing a Hidden Helper ....

Installing a hidden helper between a washing machine and a dryer ....

48Varjatud

Installing a Hidden Helper onto the appliance 9

49FI - Varoi

Adjusting and fixing the ironing board (before first use) 10

Using a hidden helper 11

Please read the instruction manual and save it for future rence.

To reduce the risk of injury to persons when using the product, follow basic safety instructions and warnings, including the following:

• Before using the product for the first time, please read all instructions and save them for future reference.
• Instructions for use are available on our website at www.asko.com.
• The product is intended solely for household use.
• Do not repair and do not attempt to replace any part of the product or to service it in any other way, unless this is expressly recommended in the instructions for use and maintenance or in the instructions for user repairs. Also, do not attempt any repairs or servicing if you do not understand the instructions entirely or if you lack the skills for such repairs.
• Any product repair and maintenance pertaining to safety or performance should be done by trained experts.
• In case of incorrect use or product servicing by an unauthorized person, the user shall be solely responsible for covering any damage or expenses.
• Do not allow children to play with the product or on the product. Watch children closely when you are using the product near them.
• The product is not intended for use by persons (including children) with impaired physical or mental capabilities or lack of experience and knowledge. Such persons should be instructed on safe use of the product by the person responsible for their safety.
• Do not allow children less than three years of age near the product unless they are supervised at all times.
• Do not let children younger than three years to come near the appliance, unless they are under constant supervision.

EN - Warnings

The following symbols are used throughout the manual and they have the following meanings:

INFORMATION!

Information, advice, tip, or recommendation

WARNING!

Warning –general danger

ELECTRIC SHOCK!

Warning – danger of electric shock

Original instructions

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE!

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

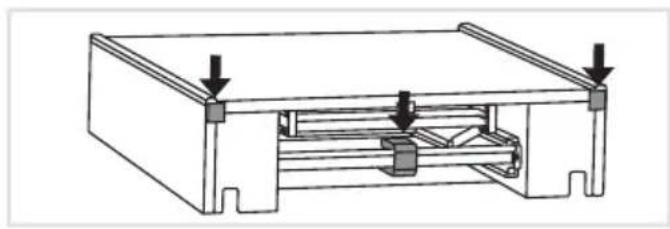

Before the first use, it is necessary to remove all transport protection. The transport elements are intended to protect the hidden helper during transport and must be removed before start-up.

INFORMATION!

The maximum recommended load of the hidden helper is 10 kg, so do not overload it to ensure safe use and prevent possible damage.

Installing a hidden helper between a washing machine and a dryer

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

WARNING!

The hidden helper may only be used with a washing machine and a dryer by the manufacturer Asko.

Diagram showing a lever mechanism with arrows indicating force application, no text or symbols present

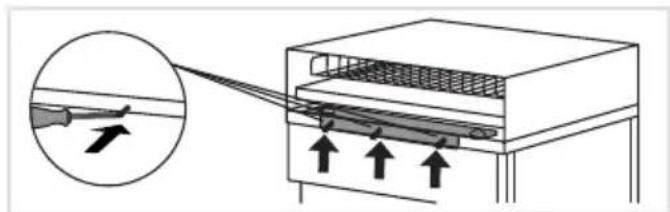

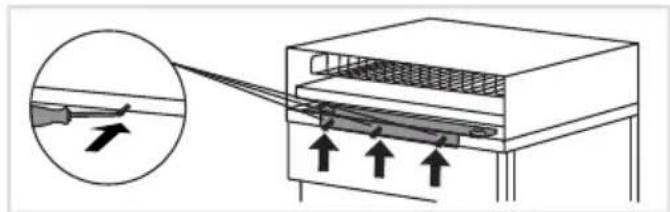

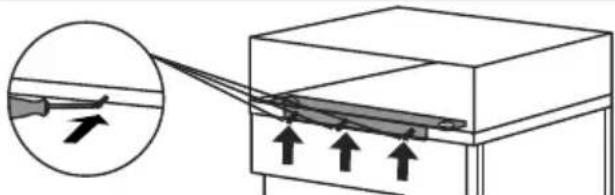

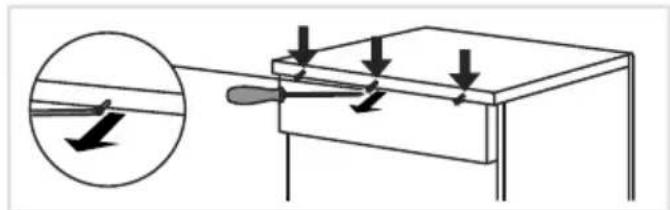

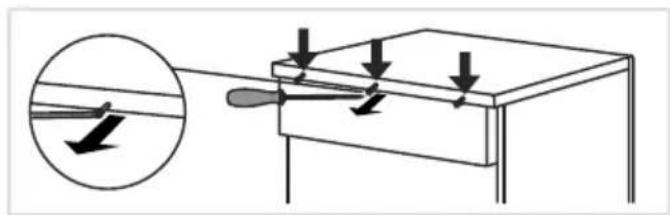

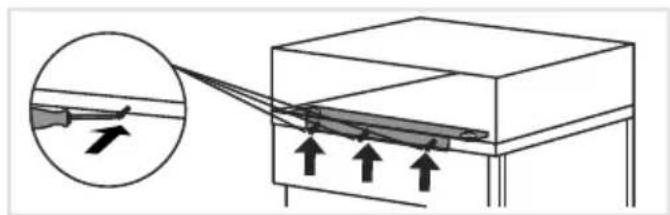

1 On the back of the washing machine, unscrew all three screws.

Diagram of a device with arrows indicating force or movement, showing internal structure and a magnified inset (no text or symbols)

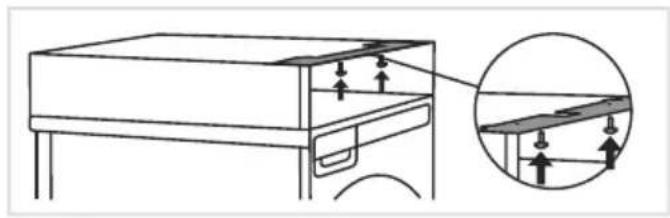

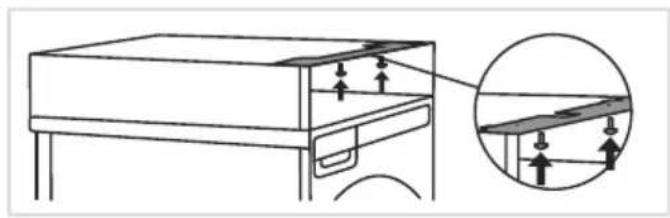

2 Install the hidden helper on the washing machine.

The fixation bracket is supplied in the hidden helper and has been temporarily fixed in the opposite direction during transport.

Before installation, unscrew it and tighten it to the back of the washing machine with three screws. For easier installation, first remove the ironing board (hidden helper) from the front side (see also point 4).

Diagram showing a mechanical assembly with a bracket and a magnified inset of a tool (no text or symbols)

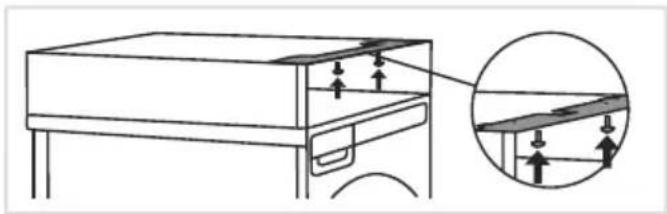

The hidden helper must be screwed onto the washing machine on the left and right sides of the fixation bracket. Use the supplied spanner to tighten the two screws.

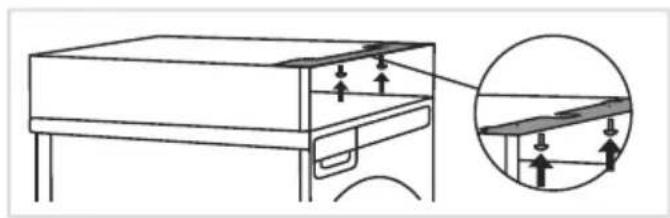

3 Installation of screws and brackets in different models of tumble dryers.

Before installing the tumble dryer, follow the instructions below to properly install the screws and brackets on the back of the hidden helper. Select the appropriate instructions according to the appliance model indicated on the rating plate on the inside of the dryer door. The end positions of the screws and brackets are shown.

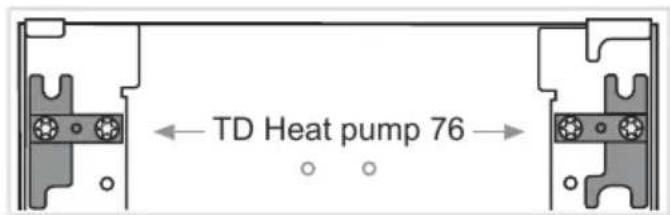

TD Heat pump 76

Tumble dryer with heat pump TD 76 The screws and brackets are pre-installed and ready for proper installation.

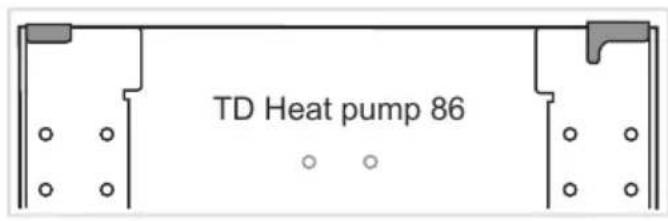

TD Heat pump 86

Tumble dryer with heat pump TD 86 The screws and brackets must be removed from the hidden helper beforehand.

Installing a Hidden Helper

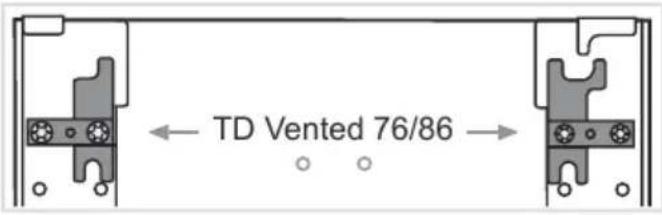

TD Vented 76/86 →

Line drawing of a cabinet with an inset showing a structural detail (no text or symbols)

Diagram showing a mechanical device with a spring scale and a hand holding a button, annotated with dimensions.

Diagram showing two views of a device with arrows indicating motion, no text or symbols present

Diagram showing two views of a computer with a monitor and keyboard, no text or symbols present

Technical diagram of a mechanical assembly with a meshed component and curved pipe connection (no text or symbols)

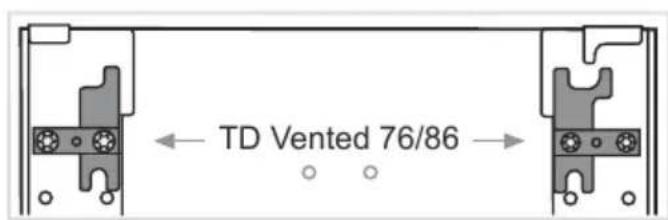

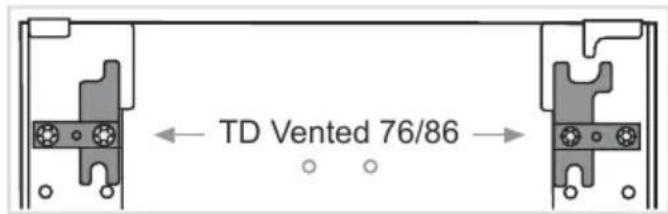

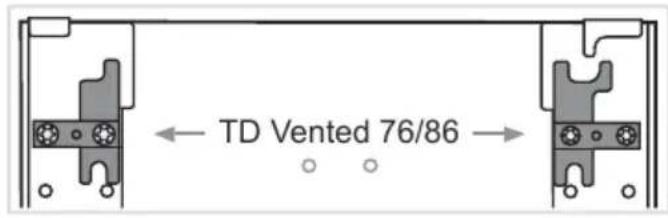

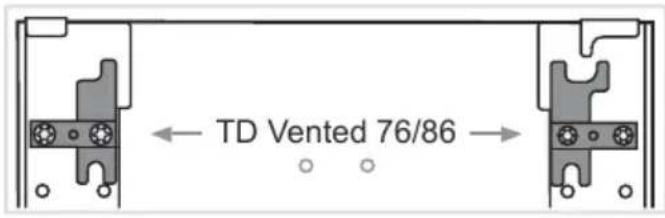

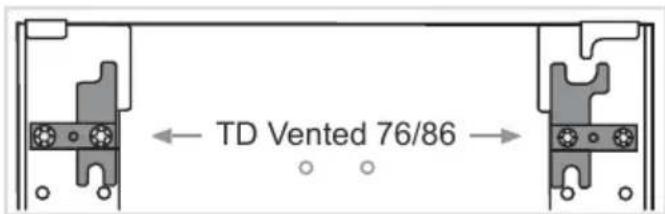

Vented tumble dryer TD 76/86

The brackets must be rotated by 180^ . First, unscrew, rotate and re-screw them.

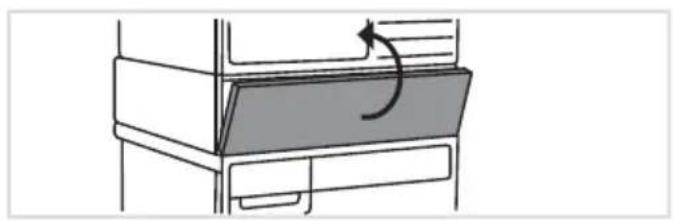

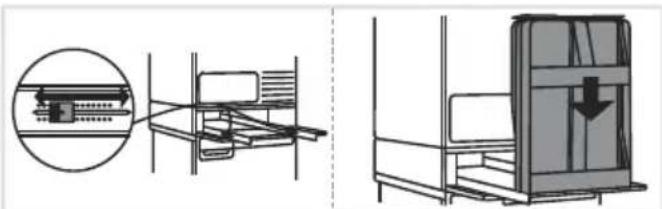

4 Installation of the front feet fixation Open the front cover and unscrew all the screws on the upper inner side and remove the front feet fixation.

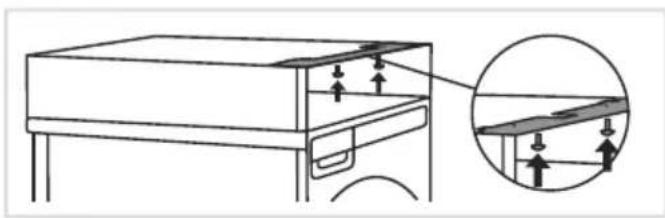

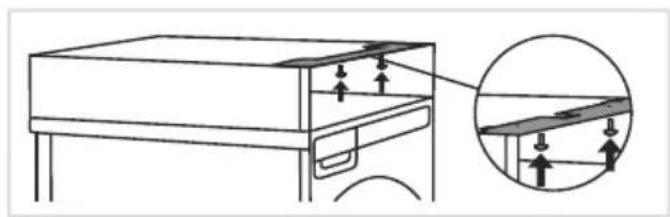

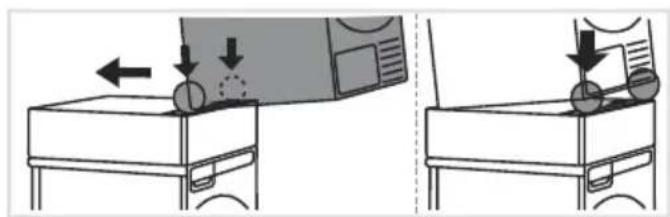

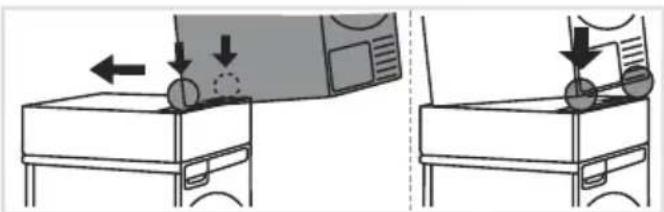

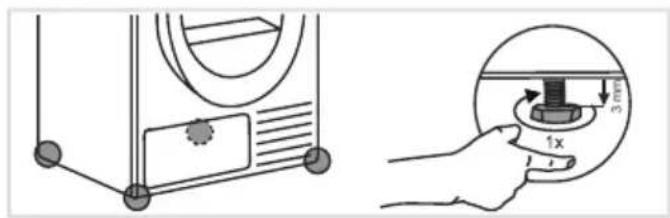

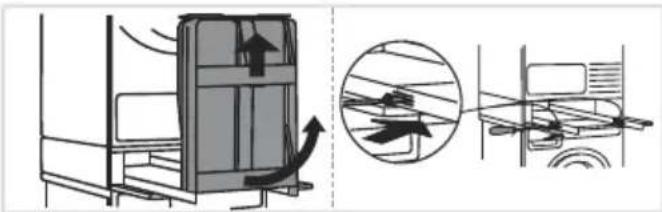

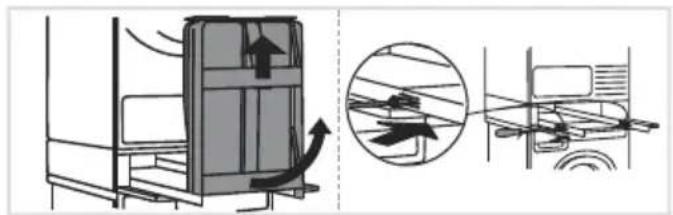

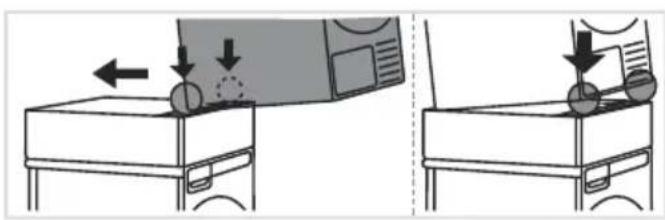

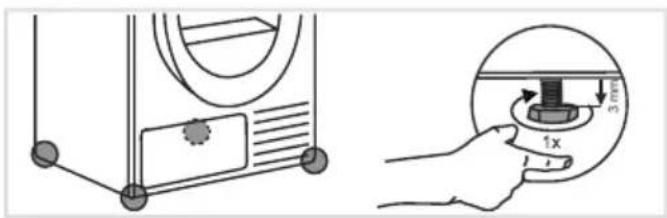

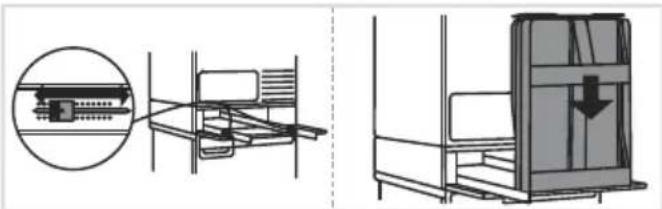

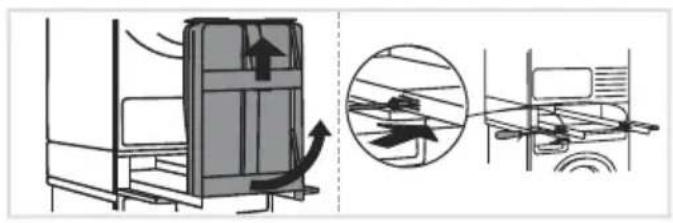

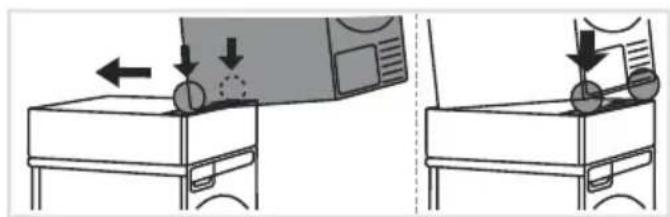

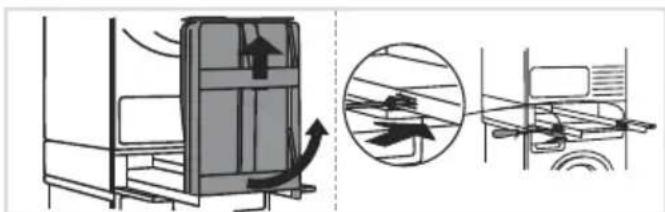

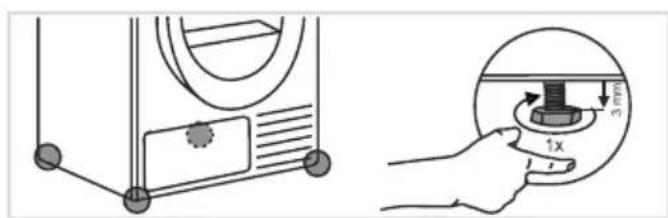

5 Before placing the tumble dryer on the hidden helper, use your hand to unscrew the feet by one turn (do not use a spanner).

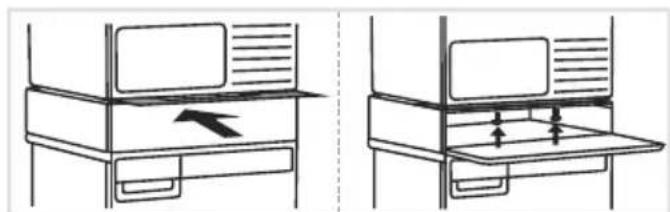

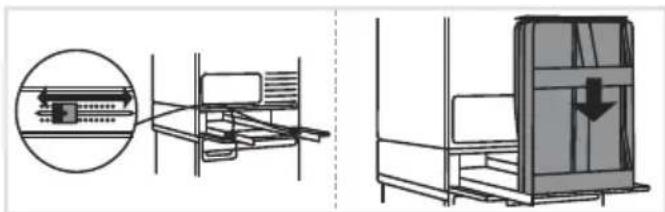

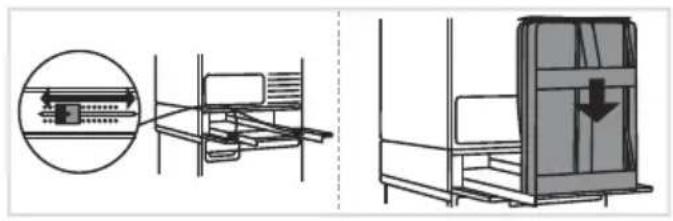

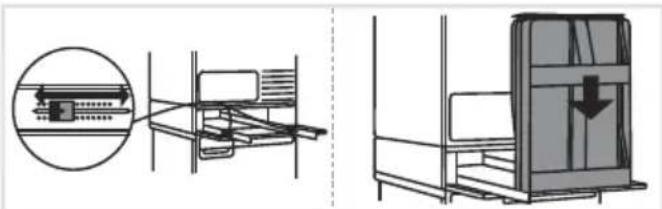

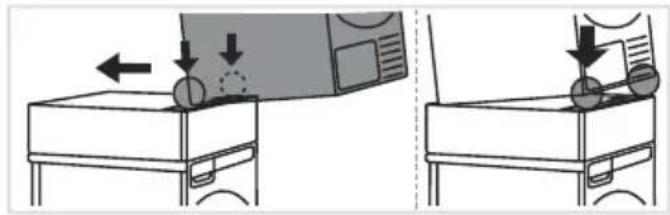

6 Lift the dryer, safely place it onto the pedestal drawer, and push it back until it locks into the pre-set brackets.

The hidden helper must be aligned with the front side of the dryer.

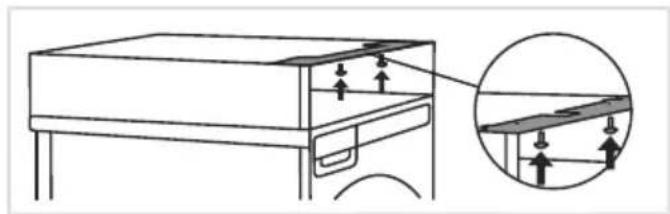

6.1 Once the tumble dryer is installed, reinstall the front feet fixation. Press the front feet fixation tightly against the tumble dryer and reattach it from underneath with the screws.

Then reinsert the ironing board.

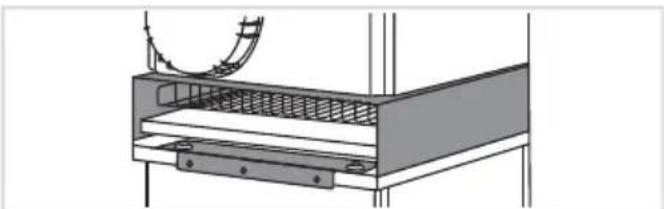

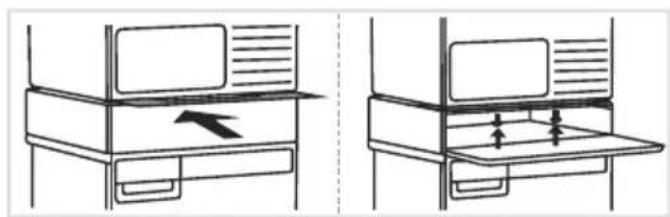

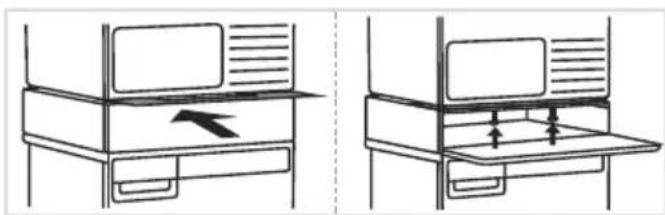

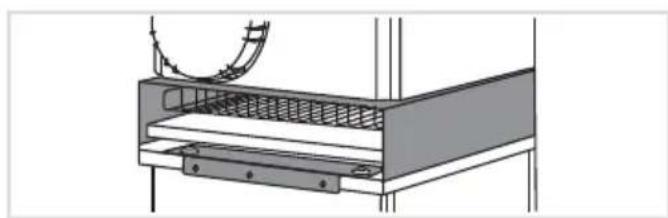

7 Final installation of the hidden helper between the washing machine and dryer, from the back.

Installing a Hidden Helper onto the appliance

Simple line drawing of a rectangular electronic component with no text or symbols

WARNING!

The hidden helper may only be used with a washing machine and a dryer by the manufacturer Asko.

Diagram showing a lever mechanism with arrows indicating force application, no text or symbols present

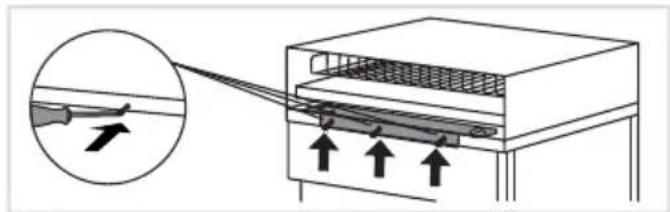

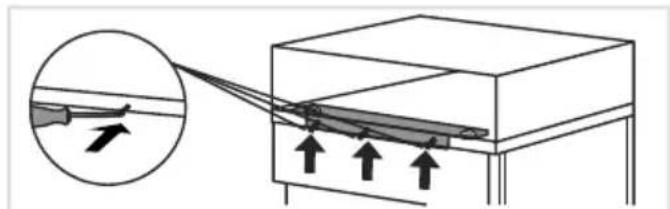

1 On the back of the appliance, unscrew all three screws.

Diagram showing a device with arrows pointing to a component, and an inset magnified view of a tool interacting with it (no text or symbols present)

2 Install the hidden helper on the appliance.

The hidden helper can be installed on a washing machine or tumble dryer.

The fixation bracket is supplied in the hidden helper and has been temporarily fixed in the opposite direction. Before installation, unscrew it and tighten it to the back of the washing machine with three screws, while in the case of a tumble dryer, unscrew only the outer two screws, as an intermediate hole is not provided.

For easier installation, begin by removing the Hidden Helper from the front side, then reattach it once the fixation element has been secured.

Diagram showing a mechanical assembly with a bracket and a magnified inset of a tool (no text or symbols)

The hidden helper must be screwed onto the appliance on the left and right sides of the fixation bracket.

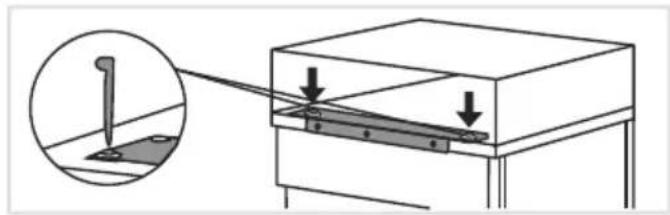

Use the supplied spanner to tighten the two screws.

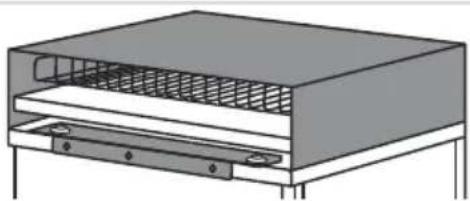

Technical line drawing of a rectangular oven or rack unit with internal grating and mounting base (no text or symbols)

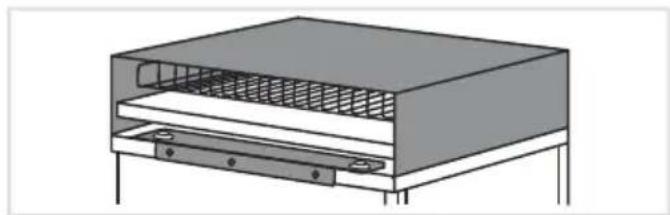

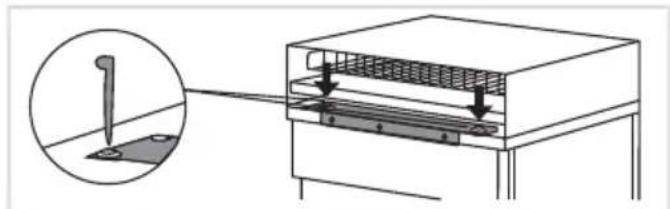

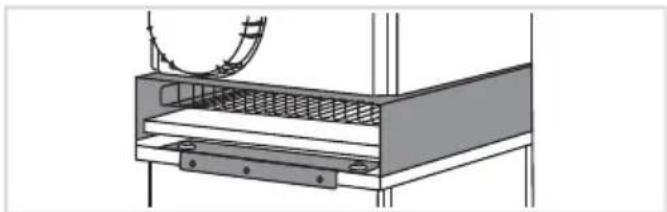

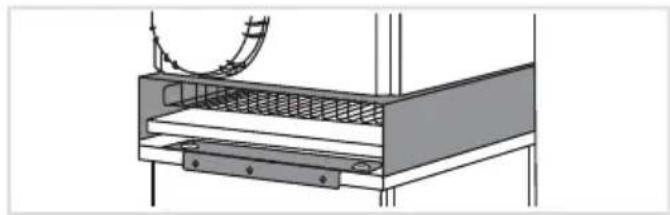

4 Final installation of the hidden helper on a washing machine or tumble dryer from the back.

If the upper brackets are an obstacle, you can remove them for a better visual appearance.

INFORMATION!

Before tightening the fixation bracket, ensure that the edges of the hidden helper are accurately aligned with the edges of the washing machine or tumble dryer.

Adjusting and fixing the ironing board (before first use)

Illustration showing a hand placing a component into a refrigerator while another hand holds a tray with a scroll, both without any text or symbols.

Diagram showing two views of a device with curved arrows indicating motion or rotation (no text or symbols present)

Technical line drawing showing a mechanical assembly and its cross-sectional view (no text or symbols)

Technical line drawing of a mechanical assembly with cross-sectional and top views (no text or symbols)

Diagram showing airflow or ventilation system inside a cabinet, with inset close-up of air ducts and fan (no text or symbols)

Diagram showing a computer setup with an icon of a device inside a chair and a close-up view of the device on a desk (no text or symbols present)

CLICK

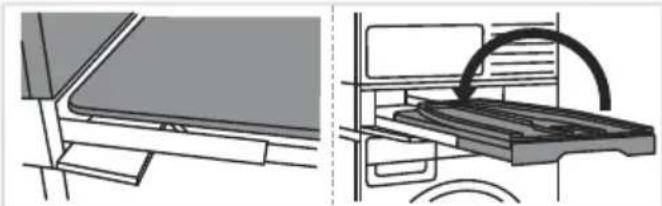

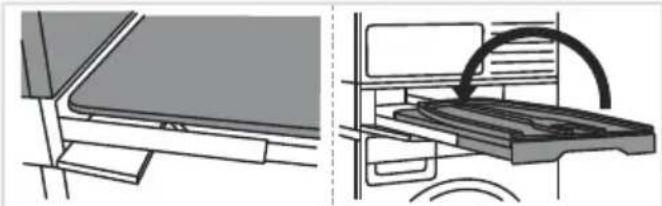

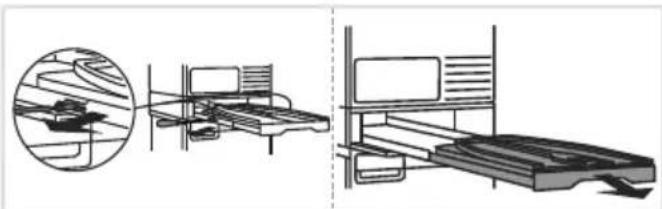

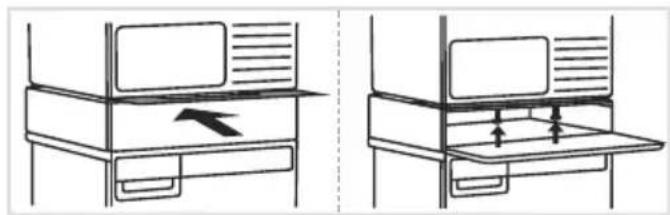

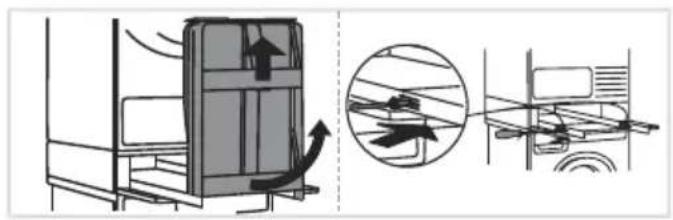

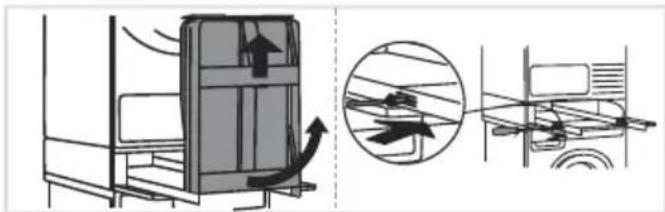

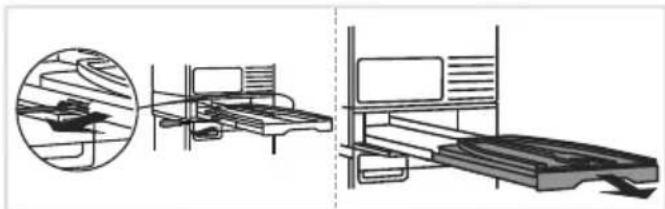

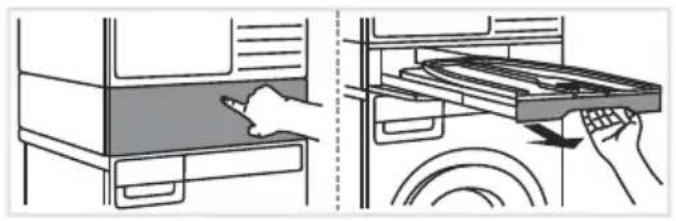

1 Press the hidden helper door to open it. Hold the ironing board handle and pull it fully out towards you.

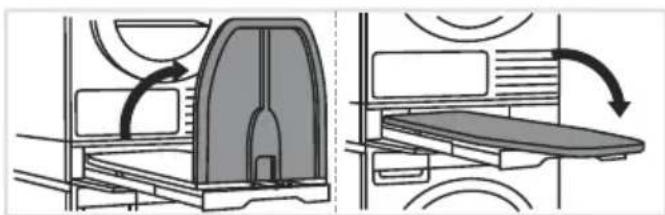

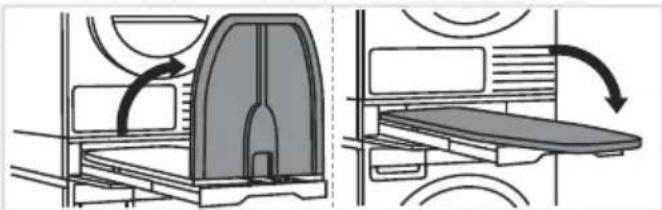

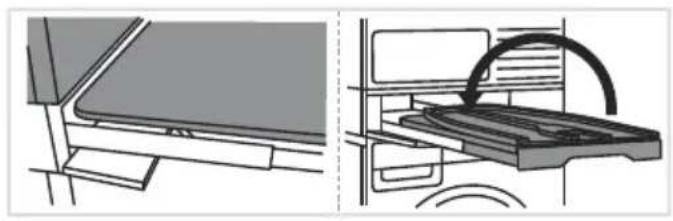

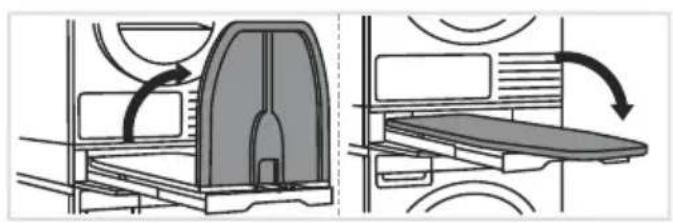

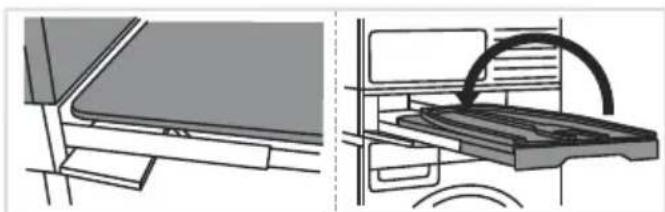

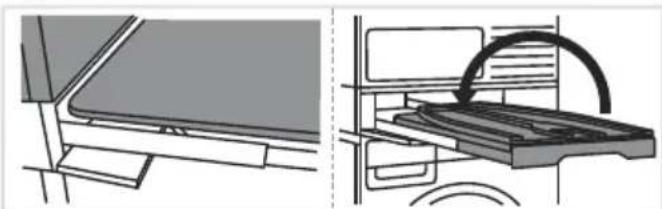

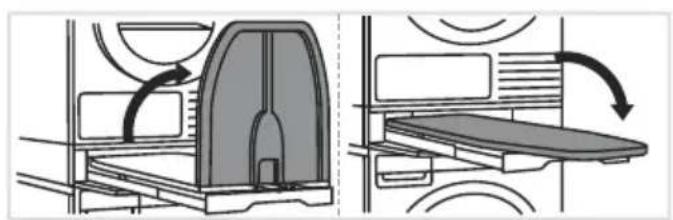

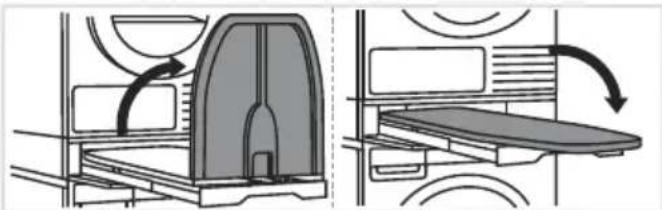

2 Unfold (open) the ironing board in the direction indicated in the figure.

3 Check for stability before using for the first time. When the ironing board is in the locked position, it is very important that its back part is pressed tightly against the dryer.

If the ironing board does not fit tightly, it can be adjusted as necessary. To do this, fold (close) the ironing board and follow steps 4, 5 and 6.

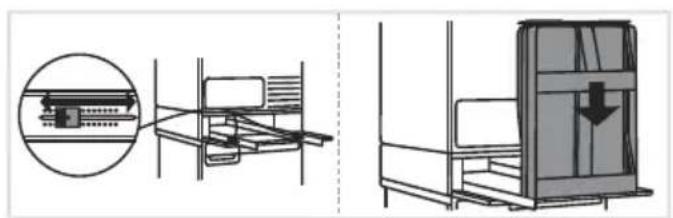

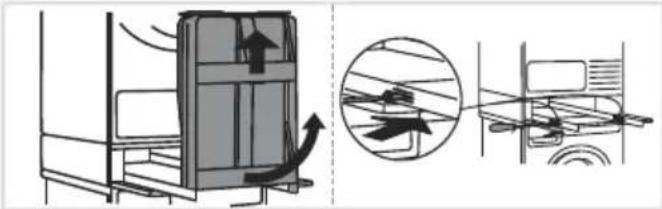

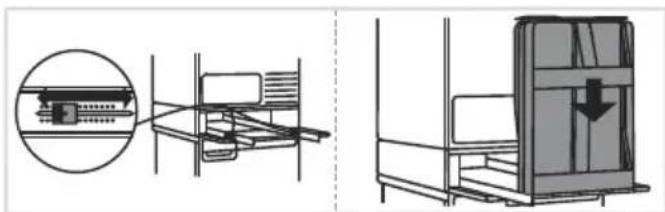

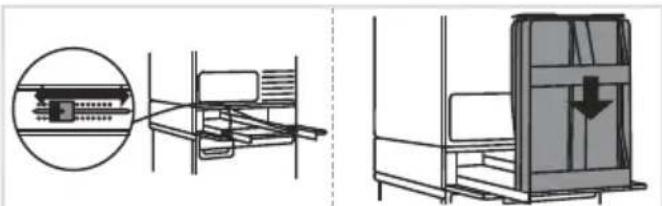

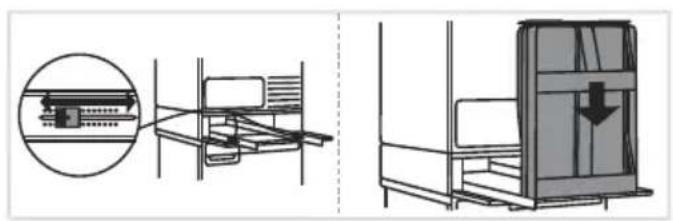

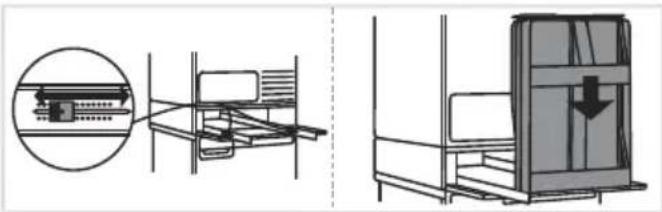

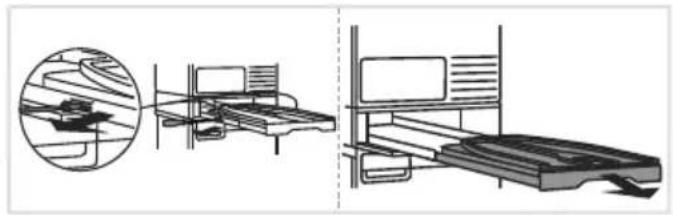

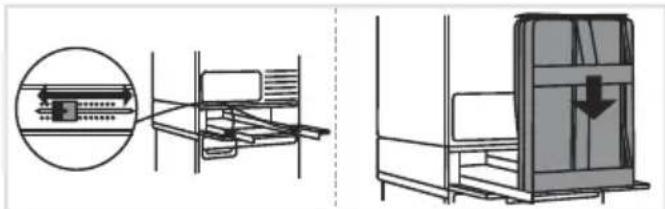

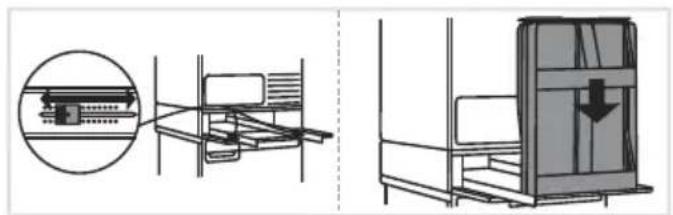

4 Use a screwdriver to carefully undo the screws on the guides on both sides (as shown in the figure) and pull out the ironing board under a right angle (perpendicularly).

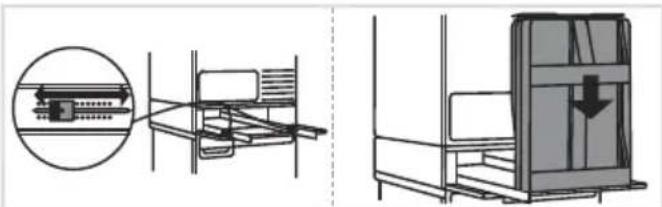

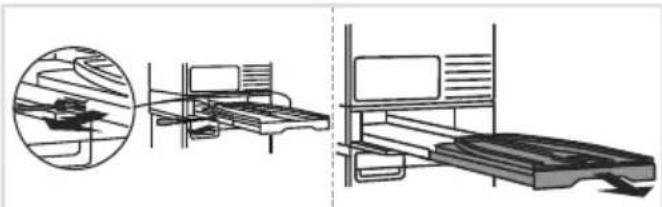

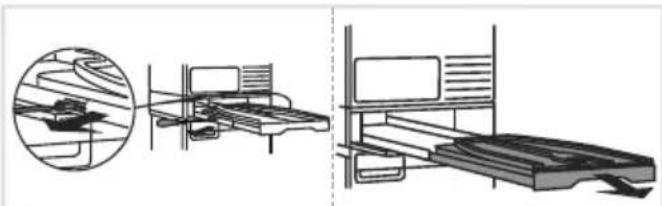

5 Detach the ironing board from the guides in the perpendicular direction, and set the length of the plastic plug extension on both sides.

6 Then, replace and tighten the screws removed in step 4. Replace the ironing board (under a right angle).

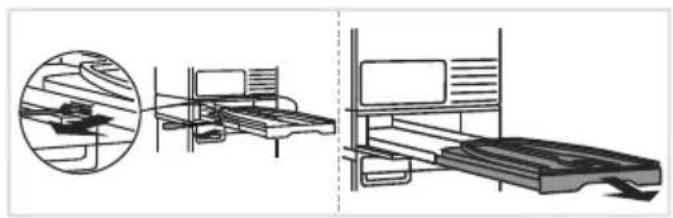

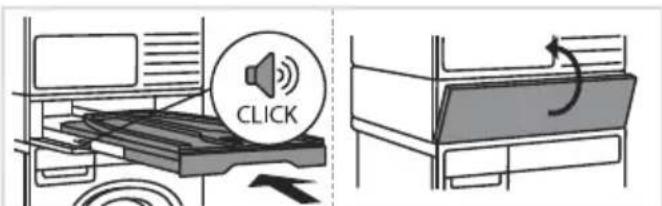

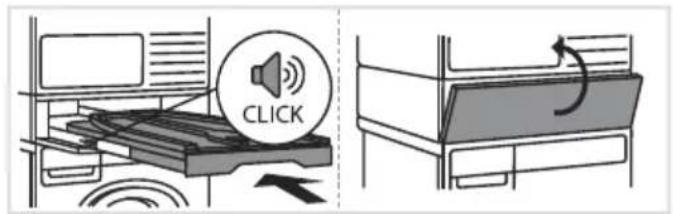

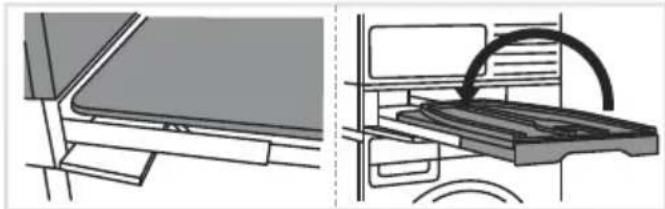

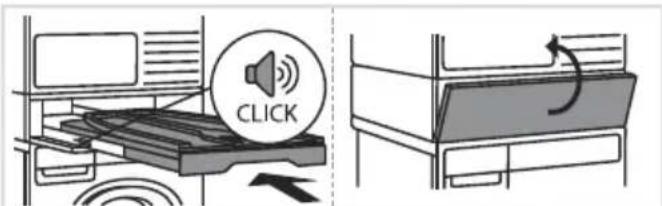

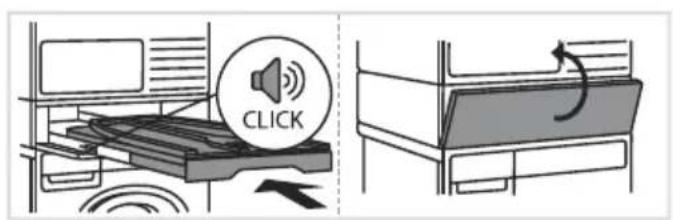

7 When replacing the board (under a right angle), it has to audibly "CLICK" into place. Then, push the ironing board towards the inside of the hidden helper.

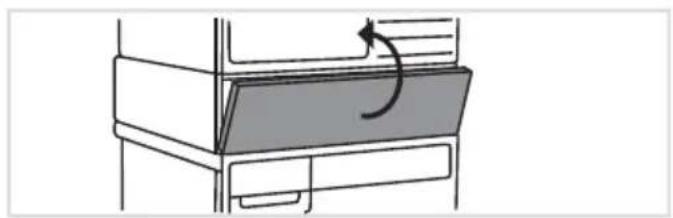

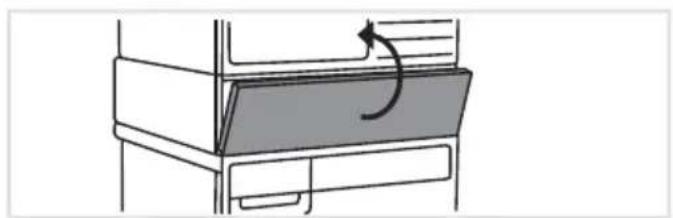

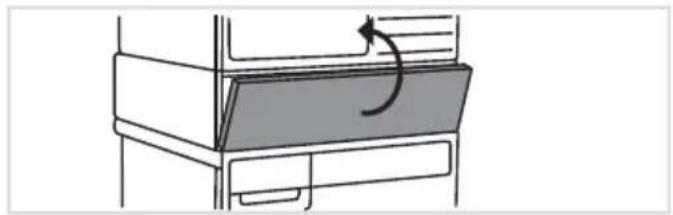

Close the hidden helper door.

Using a hidden helper

Line drawing of a hand pressing down on a kitchen appliance (no text or symbols)

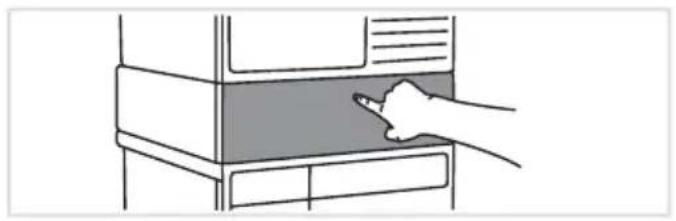

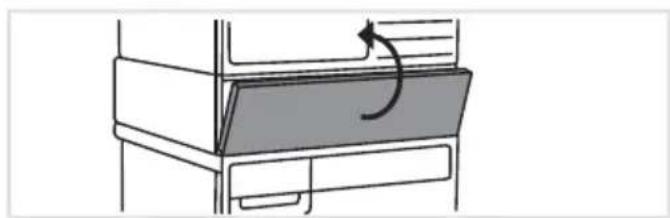

1 Press the hidden helper door to open it.

Line drawing of a hand inserting a component into a device (no text or symbols)

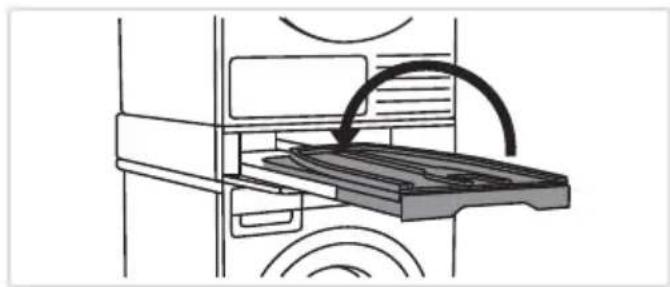

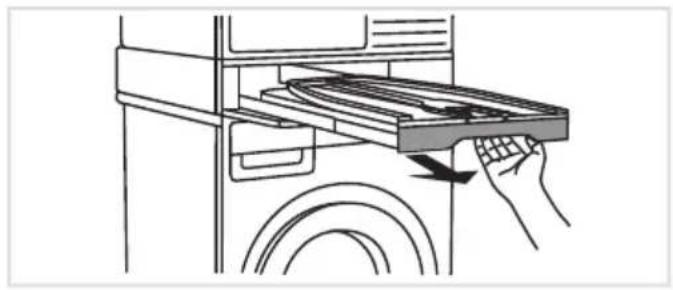

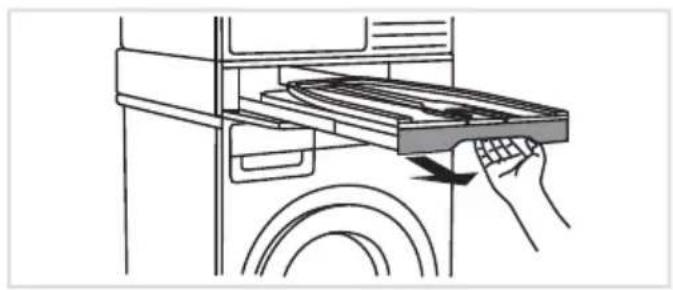

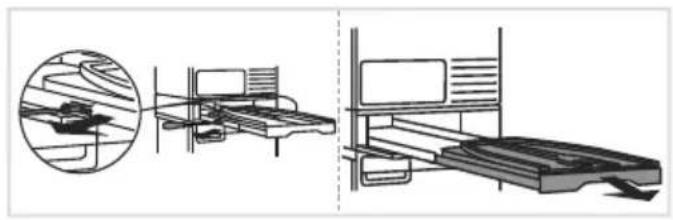

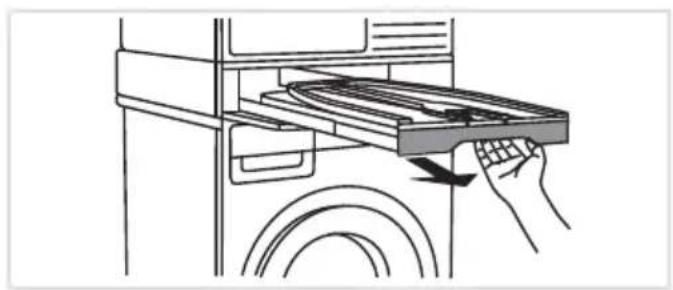

2 Hold the ironing board handle and pull it out towards you as far as it will go.

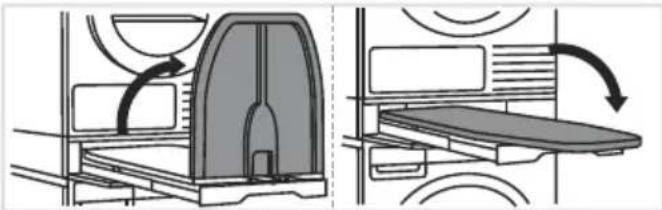

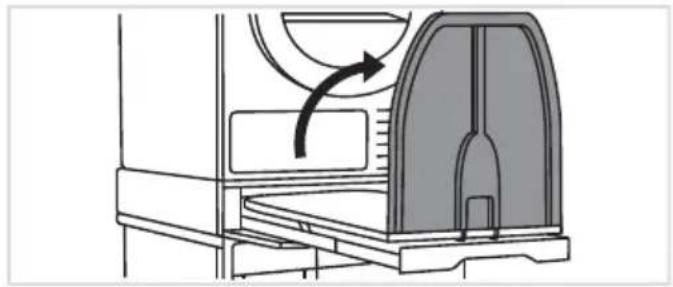

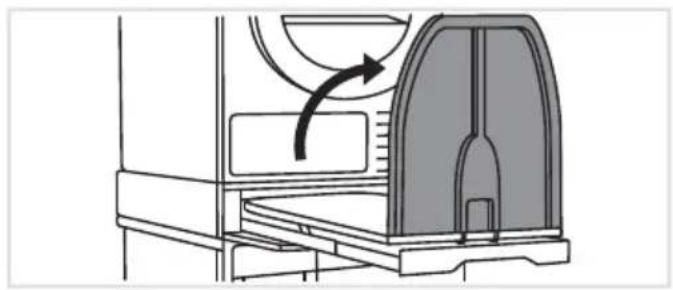

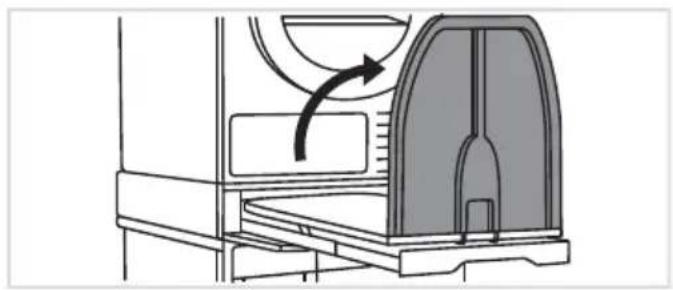

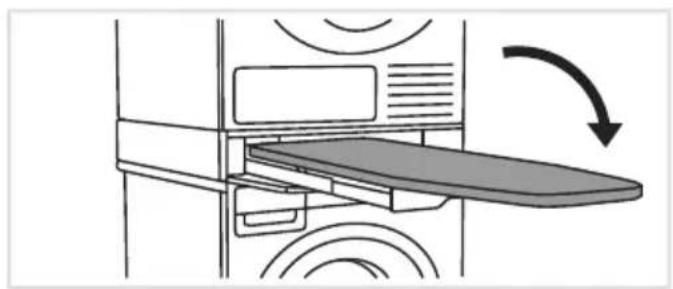

Diagram of a mechanical device with a curved arrow indicating rotation or force direction (no text or symbols present)

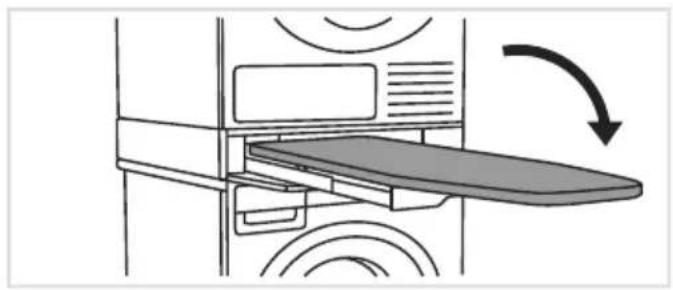

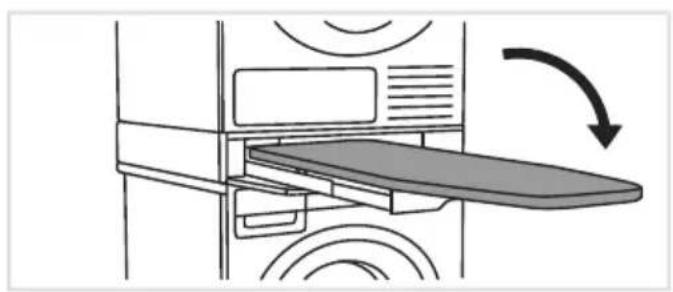

Extend the ironing board into a flat surface.

Diagram of a device with a tray and ventilation system, showing airflow direction (no text or symbols)

The ironing board is ready for ironing.

Diagram of a vehicle battery pack with a curved cable inserted into the tray (no text or symbols)

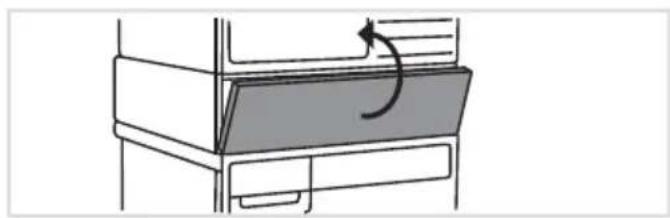

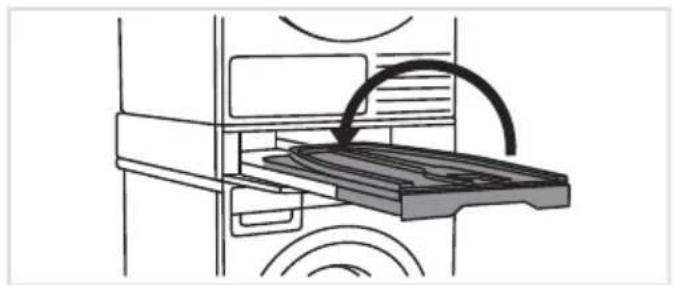

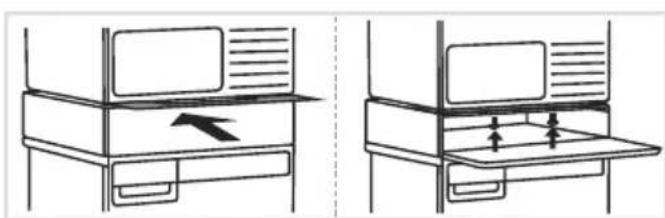

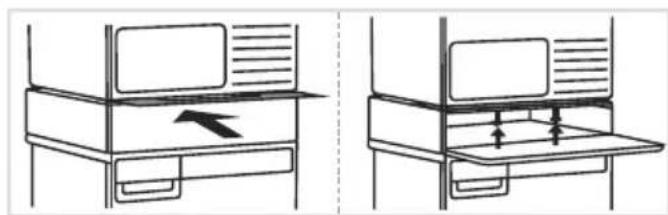

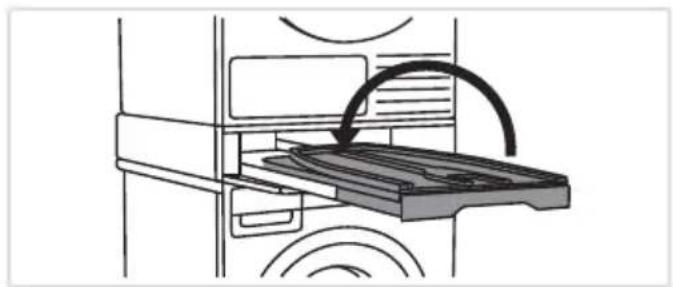

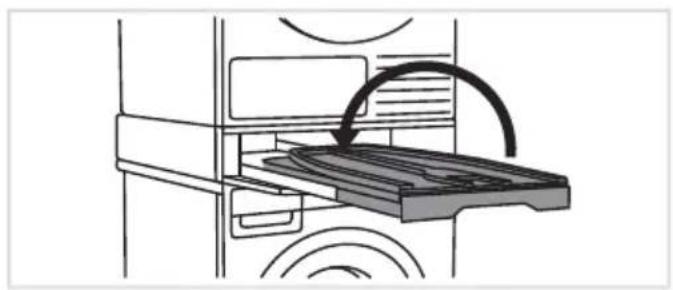

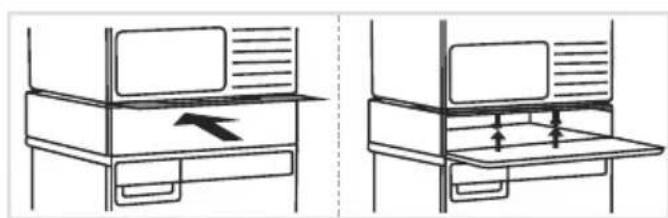

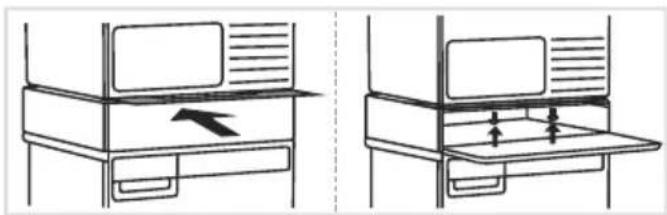

After ironing, fold the ironing board and press it back inside the hidden helper.

Diagram of a refrigerator interior showing a door handle and seat, with an arrow indicating rotation (no text or symbols present)

3 After use push the shelf back inside the hidden helper.

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

Pure architectural line drawing of a building facade with no text, numbers, or symbols

! VAROVÁNÍ!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram of a device with arrows indicating airflow or movement, showing internal structure and a magnified inset (no text or symbols)

Diagram showing a mechanical device with a bracket and a magnified inset of a pin inserted into a base (no text or symbols)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86 →

Line drawing of a cabinet with an inset showing a structural detail (no text or symbols)

Diagram showing a hand operating a device with a 3 mm scale indicator and a magnified view of the component's rotation.

Diagram showing two stages of a device processing process, with arrows indicating movement and no visible text or symbols.

Diagram showing two views of a refrigerator with a double-headed arrow indicating the left side (no text or symbols present)

Technical diagram of a mechanical assembly with a meshed component and curved pipe connection (no text or symbols)

Simple line drawing of a rectangular electronic component with no text or symbols

! VAROVÁNÍ!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram showing light rays interacting with a device, with an inset magnified view of the lens (no text or symbols)

Diagram showing a mechanical assembly with a bracket and a magnified inset of a rod inserted into a base (no text or symbols)

3D technical illustration of a rectangular oven or rack unit with internal grating and mounting base (no text or symbols)

Illustration showing a hand inserting a component into a rack, with no visible text or symbols.

Diagram showing two views of a device with directional arrows indicating rotation or movement (no text or symbols present)

Technical illustration of a laptop computer with an open screen and its rear panel showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with cross-sectional and top views (no text or symbols)

Diagram showing airflow and ventilation system inside a vehicle cabin, with no visible text or symbols

Technical line drawing showing a mechanical assembly with an inset close-up of a component (no text or symbols)

CLICK

Line drawing of a hand pressing down on a kitchen appliance (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Technical diagram of a mechanical device with a curved arrow indicating rotation or force direction (no text or symbols present)

Diagram of a device with a slide and fan, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a vehicle battery pack with a curved arrow indicating direction (no text or symbols)

Diagram of a refrigerator interior with a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

! ADVARSEL!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram of a device with arrows indicating flow or movement, showing internal structure and an inset view of a tool (no text or symbols present)

Diagram showing a mechanical assembly with a bracket and a magnified inset of a tool (no text or symbols)

TD Heat pump 76

Tørretumbler med varmepumpe TD 76 Skruerne og beslagene er formonteret og klar til egentlig montering.

Montering af en Hidden Helper

TD Heat pump 86

TD Vented 76/86

Line drawing of a cabinet with an inset showing a structural detail (no text or symbols)

Diagram showing a hand operating a device with a 1x speed indicator and a magnified view of the component being turned into a housing.

Diagram showing two stages of a device processing process, with arrows indicating movement and no visible text or symbols.

Diagram showing two views of a computer setup with a monitor and keyboard, no text or symbols present

Technical diagram of a mechanical assembly with a meshed component and curved pipe connection (no text or symbols)

Simple line drawing of a rectangular electronic component with no text or symbols

ADVARSEL!

Diagram showing a lever mechanism with arrows indicating force application, no text or symbols present

Diagram showing a device with arrows indicating flow or interaction, enclosed in an inset circle (no text or symbols)

Diagram showing a mechanical assembly with a lever and guide mechanism, no text or symbols present

Technical line drawing of a rectangular oven or rack unit with internal grating and mounting base (no text or symbols)

Illustration showing two steps of a kitchen appliance: adding a tray to a drawer and removing a tray into a refrigerator (no text or symbols present)

Diagram showing two mechanical or electrical setups with curved arrows indicating motion, no text or symbols present.

Technical illustration of a laptop with a side view and its internal components (no text or symbols)

Technical line drawing of a mechanical assembly with cross-sectional and side views (no text or symbols)

Diagram showing airflow patterns around a vehicle cabin with an inset close-up of the air duct (no text or symbols)

Diagram showing a computer setup with an inset image of a device and a close-up of the interior panel (no text or symbols present)

CLICK

Line drawing of a hand pressing down on a cabinet (no text or symbols)

Line drawing of a hand inserting a component into a refrigerator (no text or symbols)

Technical diagram of a mechanical assembly with a curved component and directional arrow (no text or symbols)

Diagram of a device with a slide and fan, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a device with a curved arrow indicating motion or force, showing internal components (no text or symbols)

Diagram of a refrigerator interior showing a door handle and seat, with an arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

! WARNING!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram of a device with arrows indicating flow or movement, showing internal structure and a magnified inset (no text or symbols)

Diagram showing a mechanical device with a bracket and a magnified inset of a tool (no text or symbols)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86

Line drawing of a cabinet with an inset showing a close-up of the structure (no text or symbols)

Diagram showing a hand operating a device with a 1x speed indicator and a magnified view of the component.

Diagram showing two stages of a device handling a circular object, with arrows indicating motion direction (no text or symbols present)

Diagram showing two views of a computer setup with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Wärmepumpentrockner TD 86

Simple line drawing of a rectangular electronic component with no text or symbols

! WARNING!

Diagram showing a mechanical or electrical component with arrows indicating force direction, and an inset magnified view of a shaft (no text or symbols present)

Diagram showing a device with arrows indicating motion or force, and an inset magnified view of a tool interacting with the screen (no text or symbols present)

Diagram showing a mechanical assembly with a bracket and a magnified inset of a rod inserted into a base (no text or symbols)

3D technical illustration of a rectangular oven or rack unit with internal grating and mounting base (no text or symbols)

Illustration showing a hand placing a component into a refrigerator while another hand holds a tray with a curved handle (no text or symbols present)

Diagram showing two views of a mechanical device with directional arrows indicating motion or rotation (no text or symbols present)

Technical line drawing showing a laptop and its rear view with a curved cable or connector (no text or symbols)

Technical line drawings of a mechanical assembly and chassis (no text or symbols)

Diagram showing airflow and ventilation system inside a vehicle cabin, with no visible text or symbols

Technical illustration showing two views of a mechanical device with internal components and a downward arrow indicating motion (no text or symbols present)

CLICK

Line drawing of a hand pressing down on a cabinet (no text or symbols)

Line drawing of a hand inserting a component into a refrigerator (no text or symbols)

Technical diagram of a mechanical assembly with a curved component and directional arrow (no text or symbols)

Diagram of a device with a slide and fan, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a device with a curved arrow indicating motion or force, showing internal components (no text or symbols)

Diagram of a refrigerator interior with a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

¡ADVERTENCIA!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram showing a device with arrows indicating flow or movement, no text or symbols present

Diagram showing a mechanical assembly with a bracket and a magnified inset of a tool (no text or symbols)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86

Line drawing of a cabinet with an inset showing a close-up of the structure (no text or symbols)

Diagram showing a hand operating a device with a 1x speed indicator and a magnified view of the component.

Diagram showing two stages of a device handling a circular object, with arrows indicating motion direction (no text or symbols present)

Diagram showing two views of a computer with an arrow indicating leftward movement (no text or symbols present)

Technical line drawing of a mechanical assembly with a curved component and internal structure (no text or symbols)

Simple line drawing of a rectangular electronic component with no text or symbols

¡ADVERTENCIA!

Diagram showing a lever mechanism with arrows indicating force application, no text or symbols present

Diagram showing light rays interacting with a rectangular object, with an inset magnified view of the lens (no text or symbols)

Diagram showing a mechanical assembly with a bracket and a magnified inset of a tool (no text or symbols)

Technical line drawing of a rectangular oven or rack unit with internal grating and mounting base (no text or symbols)

Diagram showing two steps of appliance cleaning: one with hand placing a component into a drawer, the other with hand holding a tray and rotating around a fan (no text or symbols)

Diagram showing two views of a device with curved arrows indicating motion or rotation (no text or symbols present)

Technical line drawing showing a laptop and its rear panel assembly (no text or symbols)

Technical line drawings of a mechanical assembly with cross-sectional and top views (no text or symbols)

Diagram showing airflow or ventilation system inside a vehicle cabin, with inset close-up of air flow direction (no text or symbols)

Technical diagram showing a mechanical assembly with cross-section and side views (no text or symbols)

CLICK

Line drawing of a hand pressing down on a cabinet (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Technical diagram of a mechanical assembly with a curved component and directional arrow (no text or symbols)

Diagram of a refrigerator with an open shelf and a curved arrow indicating rotation (no text or symbols)

Diagram of a device with a curved cable inserted into a tray, showing no text or symbols.

Diagram of a refrigerator interior showing a handle and drawer with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

Pure architectural line drawing of a building facade with no text, numbers, or symbols

HOIATUS!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram of a device with arrows indicating force or movement, showing internal structure and a magnified inset (no text or symbols)

2 Paigaldage pesumasinale varjatud abiline.

Diagram showing a mechanical assembly with a bracket and a magnified inset of a tool (no text or symbols)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86

Diagram of a cabinet with an inset showing a structural detail (no text or symbols present)

Diagram showing a hand operating a device with a 3 mm scale adjustment and a 1x speed indicator.

Diagram showing two views of a device with arrows indicating motion, no text or symbols present

Diagram showing two views of a computer with an arrow indicating leftward movement (no text or symbols present)

Technical diagram of a mechanical assembly with a meshed component and curved pipe connection (no text or symbols)

Simple 3D illustration of a rectangular electronic component with no text or symbols

HOIATUS!

Diagram showing a lever mechanism with arrows indicating force application, no text or symbols present

Diagram showing light rays interacting with a device, with an inset magnified view of the lens (no text or symbols)

Diagram showing a mechanical assembly with a bracket and a magnified inset of a rod inserted into a base (no text or symbols)

3D technical illustration of a rectangular oven or rack unit with internal grating and mounting base (no text or symbols)

Technical line drawing of a mechanical assembly with cross-sectional and top views (no text or symbols)

Diagram showing airflow and ventilation system inside a vehicle cabin, with no visible text or symbols

Technical illustration showing a laptop with internal components and a door mechanism (no text or symbols)

CLICK

Line drawing of a hand pressing down on a cabinet (no text or symbols)

Line drawing of a hand inserting a component into a refrigerator (no text or symbols)

Technical diagram of a mechanical assembly with a curved component and directional arrow (no text or symbols)

Diagram of a device with a slide and fan, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a device with a curved arrow indicating motion or force, showing internal components (no text or symbols)

Diagram of a refrigerator interior showing a door handle and seat, with an arrow indicating rotation (no text or symbols present)

1 Vajutage varjatud abilise ust, et see avada.

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

VAROITUS!

Diagram showing a mechanical device with arrows indicating force or movement, and an inset magnified view of a tool interacting with a surface (no text or symbols present)

Diagram of a device with arrows indicating flow or movement, showing internal structure and an inset magnified view (no text or symbols)

Diagram showing a mechanical assembly with a bracket and a magnified inset of a tool (no text or symbols)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86

Diagram of a cabinet with an inset showing structural load distribution (no text or labels)

Diagram showing a pendulum device and its mechanical assembly with labeled components and directional arrows

Diagram showing two views of a device with arrows indicating motion or movement, no text or symbols present.

Diagram showing two views of a cabinet with an arrow indicating left motion (no text or symbols)

Technical diagram of a mechanical assembly with a meshed component and curved pipe connection (no text or symbols)

Simple line drawing of a rectangular electronic component with a flat base (no text or symbols)

! VAROITUS!

Diagram showing a lever mechanism with arrows indicating force application, no text or symbols present

Diagram showing a device with arrows pointing to a component, and an inset magnified view of a tool interacting with it (no text or symbols present)

Diagram showing a mechanical assembly with a bracket and a magnified inset of a tool (no text or symbols)

Technical line drawing of a rectangular oven or rack unit with internal grating and mounting base (no text or symbols)

Illustration showing a hand placing a component into a refrigerator while another hand holds a tray with a scroll, both without any text or symbols.

Diagram showing two views of a device with curved arrows indicating motion or rotation (no text or symbols present)

Technical illustration of a laptop and its rear panel assembly (no text or symbols)

Technical line drawings of mechanical components and assembly (no text or symbols)

Diagram showing airflow patterns around a cabinet with an inset close-up of air flow (no text or symbols)

Technical diagram showing a mechanical assembly with an inset close-up of a device and a side-view view of a cabinet with a downward arrow indicating motion.

CLICK

Line drawing of a hand pressing down on a kitchen appliance (no text or symbols)

Line drawing of a hand inserting a tray into a refrigerator (no text or symbols)

Diagram of a mechanical device with a curved arrow indicating rotation or force direction (no text or symbols present)

Diagram of a device with a slide and arrow indicating rotation (no text or symbols)

Diagram of a vehicle battery pack with an attached rack and load, showing no text or symbols.

Diagram of a refrigerator interior showing a door handle and seat, with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

ATTENTION!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram of a device with arrows indicating force or movement, showing internal structure and connection (no text or symbols)

Diagram showing a mechanical device with a bracket and a magnified inset of a tool (no text or symbols)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86

Line drawing of a cabinet with an inset showing a structural detail (no text or symbols)

Diagram showing a device with a gear mechanism and a magnified view of a mechanical component with 1x ratio and 3 mm diameter annotation.

Diagram showing two steps of a device pressing down on a tray, with arrows indicating motion direction (no text or symbols present)

Diagram showing two views of a computer with a monitor and keyboard, no text or symbols present

Technical diagram of a mechanical assembly with no visible text or symbols

Simple line drawing of a rectangular electronic component with no text or symbols

ATTENTION!

Diagram showing a lever mechanism with arrows indicating force application, no text or symbols present

Diagram showing a device with arrows pointing to a component, and an inset magnified view of a tool interacting with it (no text or symbols present)

Diagram showing a mechanical assembly with a bracket and a magnified inset of a tool (no text or symbols)

Technical line drawing of a rectangular oven or rack unit with internal grating and mounting base (no text or symbols)

Diagram showing two steps of appliance cleaning: one with hand placing a component into a drawer, the other with hand holding a tray and rotating around a fan (no text or symbols)

Diagram showing two views of a bed-like structure with directional arrows indicating motion (no text or symbols)

Technical line drawing showing a table and a mechanical device with a curved arm (no text or symbols)

Technical line drawing of a mechanical assembly with cross-sectional and top views (no text or symbols)

Technical diagram showing airflow or ventilation system inside a vehicle cabin, with inset close-ups of air ducts and fan components (no text or labels)

Technical line drawing showing a mechanical assembly with a magnified inset of a component (no text or symbols)

Line drawing of a hand pressing down on a kitchen appliance (no text or symbols)

Line drawing of a hand inserting a tray into a refrigerator (no text or symbols)

Diagram of a mechanical device with a curved arrow indicating rotation or force direction (no text or symbols present)

Diagram of a device with a slide and arrow indicating rotation (no text or symbols)

Diagram of a vehicle battery pack with an attached rack and load, showing no text or symbols.

Diagram of a refrigerator interior showing a door handle and seat, with an arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

⚠️ UPOZORENJE!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

1 Na stražnjoj strani perilice rublja odvrnite tri vijka.

Diagram of a device with arrows indicating airflow or force direction, showing internal structure and connection (no text or symbols)

2 Postavite skrivenog pomoćnika na perilicu.

Diagram showing a mechanical assembly with a bracket and a magnified inset of a tool (no text or symbols)

TD Heat pump 76

Sušilica s toplinskom pumpom TD 76

Vijci i nosači unaprijed su postavljeni i spren za pravilno postavljanje.

TD Heat pump 86

Sušilica s toplinskom pumpom TD 86

Vijci i nosači moraju se prethodno ukloniti iz skrivenog pomoćnika.

Postavljanje skrivenog pomoćnika (Hidden Helper)

TD Vented 76/86

Diagram of a cabinet with an inset showing a structural detail (no text or symbols present)

Diagram showing a mechanical device with a 3.5 mm scale adjustment and a hand interacting with a button labeled '1x'.

Diagram showing two stages of a device processing process, with arrows indicating movement and rotation (no text or symbols present)

Diagram showing two views of a refrigerator with a double-headed arrow indicating the left side (no text or symbols present)

Technical diagram of a mechanical assembly with a meshed component and curved pipe connection (no text or symbols)

Sušilica rublja s ventilatorom TD 76/86

Nosači se moraju zakrenuti za 180°. Prvo ih odvrnite, okrenite i ponovno zavrnite.

4 Pričvršćivanje prednjih nogica

Otvorite prednji poklopac i odvrnite sve vijke gornjoj unutarnjoj strani i uklonite fiksaciju prednjih nogica.

5 Prije postavljanja sušilice na skrivenog pomoćnika, rukom odvrnite nogice za jedan puni okret (nemojte koristiti ključ).

Simple line drawing of a rectangular electronic component with no text or symbols

⚠️ UPOZORENJE!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

1 Na stražnjoj strani uređaja odvrnite sva tr vijka.

Diagram showing light rays interacting with a device, with an inset magnified view of the lens (no text or symbols)

Diagram showing a mechanical assembly with a bracket and a magnified inset of a rod inserted into a base (no text or symbols)

3D technical illustration of a rectangular oven or rack unit with internal grating and mounting base (no text or symbols)

4 Završno postavljanje skrivenog pomoćnika na perilicu rublja ili sušilicu rublja sa stražnje strane.

Ako su gornji nosači prepreka, možete ih uklc za bolji vizualni izgled.

INFORMACIJA!

Illustration showing a hand inserting a component into a rack, with no visible text or symbols.

Diagram showing two views of a device with directional arrows indicating motion or rotation (no text or symbols present)

Technical illustration of a laptop with a side view showing the screen and keyboard (no text or symbols present)

Technical line drawing of a mechanical assembly with cross-sectional and top views (no text or symbols)

Diagram showing airflow and ventilation system inside a vehicle cabin, with no visible text or symbols

Technical diagram showing a mechanical assembly with an inset close-up of a component and a side-view view of a device (no text or symbols present)

CLICK

Line drawing of a hand pressing down on a kitchen appliance (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Technical diagram of a mechanical device with a curved arrow indicating rotation or motion (no text or symbols present)

Diagram of a device with a slide and fan, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a vehicle battery pack with a curved arrow indicating direction (no text or symbols)

Diagram of a refrigerator interior with a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

! AVVISO!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram of a device with arrows indicating force or movement, showing internal structure and connection (no text or symbols)

Diagram showing a mechanical device with a bracket and a magnified inset of a tool (no text or symbols)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86

Line drawing of a cabinet with an inset showing a close-up of the shelf structure (no text or symbols)

Diagram showing a device with a gear mechanism and a magnified view of a mechanical component with 1x speed indicator.

Diagram showing two views of a kitchen appliance with arrows indicating motion (no text or symbols)

Two technical diagrams showing a device with an arrow indicating direction, no text or symbols present.

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a rectangular electronic component with no text or symbols

! AVVISO!

Diagram showing a lever mechanism with arrows indicating force application, no text or symbols present

Diagram showing a device with arrows pointing to a component, and an inset magnified view of a tool interacting with it (no text or symbols present)

Diagram showing a mechanical assembly with a bracket and a magnified inset of a tool (no text or symbols)

Technical line drawing of a rectangular oven or rack unit with internal grating and mounting base (no text or symbols)

Diagram showing two steps of appliance cleaning: one with hand placing a component into a drawer, the other with hand holding a tray and rotating around a ring (no text or symbols)

Diagram showing two views of a mechanical device with directional arrows indicating motion or rotation (no text or symbols present)

Technical line drawing showing a laptop and its rear panel assembly (no text or symbols)

Technical line drawing of a mechanical assembly with cross-sectional and top views (no text or symbols)

Diagram showing airflow patterns around a vehicle or air duct system, with no visible text or symbols.

Technical illustration showing a mechanical assembly with a magnified inset of a component (no text or symbols)

CLICK

Line drawing of a hand pressing down on a cabinet (no text or symbols)

Line drawing of a hand inserting a component into a refrigerator (no text or symbols)

Technical diagram of a mechanical assembly with a curved component and directional arrow (no text or symbols)

Diagram of a device with a slide and fan, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a device with a curved arrow indicating motion or force, showing internal components (no text or symbols)

Diagram of a refrigerator interior showing a door handle and seat, with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

⚠️ BRĪDINĀJUMS!

Diagram showing a lever mechanism with arrows indicating force application, no text or symbols present

Diagram of a device with arrows indicating force or movement, showing internal structure and a magnified inset (no text or symbols)

Diagram showing a mechanical assembly with a bracket and a magnified inset of a tool (no text or symbols)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86 →

Line drawing of a cabinet with an inset showing a structural detail (no text or symbols)

Diagram showing a mechanical device with a spring scale and a hand holding a button, annotated with dimensions 1x and 3mm.

Diagram showing two views of a device with arrows indicating motion, no text or symbols present

Diagram showing two views of a computer with a monitor and keyboard, no text or symbols present

Technical diagram of a mechanical assembly with a meshed component and curved pipe connection (no text or symbols)

Simple line drawing of a rectangular electronic component with no text or symbols

⚠️ BRĪDINĀJUMS!

Diagram showing a lever mechanism with arrows indicating force application, no text or symbols present

Diagram showing a device with arrows pointing to a component, and an inset magnified view of a tool interacting with the component (no text or symbols present)

Diagram showing a mechanical assembly with a bracket and a magnified inset of a tool (no text or symbols)

Technical line drawing of a rectangular oven or rack unit with internal grating and mounting base (no text or symbols)

Illustration showing a hand placing a component into a refrigerator while another hand holds a tray with a curved handle, both without any text or symbols.

Diagram showing two views of a mechanical device with directional arrows indicating motion or rotation (no text or symbols present)

Technical line drawing showing a laptop and its rear panel assembly (no text or symbols)

Technical line drawing of a two-step laptop setup with front and side views (no text or symbols)

Diagram showing airflow and ventilation system with directional arrows and a magnified inset of air ducts (no text or symbols)

Technical diagram showing a mechanical assembly with an inset close-up of internal components (no text or symbols)

CLICK

Line drawing of a hand pressing down on a kitchen appliance (no text or symbols)

Line drawing of a hand inserting a tray into a refrigerator (no text or symbols)

Diagram of a mechanical device with a curved arrow indicating rotation or force direction (no text or symbols present)

Diagram of a device with a slide and arrow indicating rotation (no text or symbols)

Diagram of a vehicle battery pack with an attached rack and load, showing no text or symbols.

Diagram of a refrigerator interior showing a door handle and seat, with an arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

Pure architectural line drawing of a building facade with no text, numbers, or symbols

!SPÈJIMAS!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram of a device with arrows indicating airflow or force direction, showing internal structure and connection (no text or symbols)

Diagram showing a mechanical device with a pin inserted into a housing, and an inset magnified view of the component (no text or symbols present)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86

Line drawing of a cabinet with an inset showing a structural detail (no text or symbols)

Diagram showing a hand operating a device with a 3 mm scale indicator and a magnified view of the component's rotation.

Diagram showing two stages of a device processing process, with arrows indicating movement and no visible text or symbols.

Diagram showing two views of a refrigerator with a double-headed arrow indicating the left side (no text or symbols present)

Technical diagram of a mechanical assembly with a meshed component and curved pipe connection (no text or symbols)

Illustration of a rectangular electronic component with a flat base (no text or symbols)

!SPÈJIMAS!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram showing light rays interacting with a rectangular object, with an inset magnified view of the lens (no text or symbols)

Diagram showing a mechanical assembly with a bracket and a close-up inset of a pin inserted into a base (no text or symbols)

3D technical illustration of a rectangular oven or rack unit with internal grating and mounting base (no text or symbols)

Illustration showing a hand inserting a component into a rack, with no visible text or symbols.

Diagram showing two views of a device with directional arrows indicating motion or rotation (no text or symbols present)

Technical illustration of a laptop with a side view and its internal components, showing no text or symbols.

Technical line drawing of a two-part mechanical assembly with exploded and assembled views (no text or symbols)

Diagram showing airflow patterns around a vehicle or air duct system, with no visible text or symbols.

Diagram showing two views of a mechanical device with internal components and a directional arrow (no text or symbols)

CLICK

Line drawing of a hand pressing down on a kitchen appliance (no text or symbols)

Line drawing of a hand inserting a component into a refrigerator (no text or symbols)

Technical diagram of a mechanical device with a curved arrow indicating rotation or motion (no text or symbols present)

Diagram of a device with a tray and fan, showing an arrow indicating rotation (no text or symbols present)

Diagram of a vehicle battery pack with a curved arrow indicating direction (no text or symbols)

Diagram of a door handle with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

WAARSCHUWING!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram showing a device with arrows indicating flow or movement, no text or symbols present

Diagram showing a mechanical assembly with a bracket and a magnified inset of a pin inserted into a base (no text or symbols)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86

Line drawing of a cabinet with an inset showing a structural detail (no text or symbols)

Diagram showing a hand operating a 1x battery next to a circular component with a 3 mm scale indicator.

Diagram showing two stages of a device handling a circular object, with arrows indicating motion direction (no text or symbols present)

Diagram showing two views of a computer with a mouse cursor, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a rectangular electronic component with no text or symbols

WAARSCHUWING!

Diagram showing a lever mechanism with arrows indicating force direction, no text or symbols present

Diagram showing a mechanical or optical setup with an inset magnified view of a tool interacting with a component (no text or symbols present)

Diagram showing a mechanical assembly with a bracket and a magnified inset of a rod inserted into a base (no text or symbols)

3D technical illustration of a rectangular oven or rack unit with internal grating and mounting base (no text or symbols)

Illustration showing a hand placing a component into a refrigerator while another hand holds a tray with a curved handle (no text or symbols present)

Diagram showing two views of a mechanical device with directional arrows indicating motion or rotation (no text or symbols present)

Technical line drawing showing a laptop and its rear panel assembly (no text or symbols)

Technical line drawing of a two-step laptop setup with front and side views (no text or symbols)

Diagram showing airflow and ventilation system with directional arrows and a magnified inset of air ducts (no text or symbols)

Technical illustration showing a mechanical assembly with a magnified inset of a device (no text or symbols present)

CLICK

Line drawing of a hand pressing down on a cabinet (no text or symbols)

Line drawing of a hand inserting a component into a refrigerator (no text or symbols)

Technical diagram of a mechanical assembly with a curved component and directional arrow (no text or symbols)

Diagram of a device with a slide and fan, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a device with a curved arrow indicating motion or force, showing internal components (no text or symbols)

Diagram of a refrigerator interior showing a door handle and seat, with an arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

! ADVARSEL!

Diagram showing a lever mechanism with arrows indicating force application, no text or symbols present

Diagram of a device with arrows indicating force or movement, showing internal structure and a magnified inset (no text or symbols)

Diagram showing a mechanical device with a lever and base, connected to a rack with arrows indicating motion (no text or symbols present)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86

Line drawing of a cabinet with an inset showing a close-up of the frame structure (no text or symbols)

Diagram showing a hand operating a device with a 1x speed limit indicator and a magnified view of the component.

Diagram showing two stages of a device processing process, with arrows indicating movement and no visible text or symbols.

Diagram showing two views of a computer setup with a monitor and keyboard, no text or symbols present

Technical illustration of a mechanical device with a mesh chamber and curved pipe connection (no text or symbols)

Simple line drawing of a rectangular electronic component with a flat base (no text or symbols)

ADVARSEL!

Diagram showing a mechanical device with arrows indicating force or movement, and an inset magnified view of a tool interacting with a surface (no text or symbols present)

1 Skru ut alle tre skruene på baksiden av apparatet.

Diagram showing a device with arrows indicating force or movement, and an inset magnified view of a tool interacting with the component (no text or symbols present)

Diagram showing a mechanical assembly with a bracket and a magnified inset of a tool (no text or symbols)

Technical line drawing of a rectangular oven or rack unit with internal grating and mounting base (no text or symbols)

Illustration showing two steps of a kitchen appliance: adding a tray to a drawer and removing a tray into a refrigerator (no text or symbols present)

Diagram showing two views of a device with curved arrows indicating motion or rotation (no text or symbols present)

Technical line drawing showing a table and a mechanical device assembly (no text or symbols)

Technical line drawing of a mechanical assembly with cross-sectional and top views (no text or symbols)

Diagram showing airflow patterns around a cabinet with directional arrows, including a magnified inset of the air duct (no text or symbols)

Technical diagram showing a mechanical assembly with an inset close-up of a component (no text or symbols present)

CLICK

Line drawing of a hand pressing down on a cabinet (no text or symbols)

Line drawing of a hand inserting a component into a refrigerator (no text or symbols)

2 Hold håndtaket på strykebrettet, og trekk det ut mot deg så langt det går.

Technical diagram of a mechanical assembly with a curved component and directional arrow (no text or symbols)

Diagram of a refrigerator with an open shelf and a curved arrow indicating rotation (no text or symbols)

Diagram of a device with a curved cable inserted into a tray, showing no text or symbols.

Diagram of a refrigerator interior showing a handle and drawer with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

⚠ OSTRZEŻENIE!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram of a device with arrows indicating airflow or movement, showing internal structure and a magnified inset (no text or symbols)

Diagram showing a mechanical assembly with a bracket and a magnified inset of a pin inserted into a base (no text or symbols)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86 →

Line drawing of a cabinet with an inset showing a structural detail (no text or symbols)

Diagram showing a hand operating a device with a 3 mm scale indicator and a magnified view of the component being turned into a housing.

Diagram showing two stages of a device handling a circular component, with arrows indicating motion direction (no text or symbols present)

Diagram showing two views of a laptop with an arrow indicating left-side motion (no text or symbols)

Technical diagram of a mechanical assembly with a meshed component and curved pipe (no text or symbols)

Simple line drawing of a rectangular electronic component with a flat base (no text or symbols)

⚠ OSTRZEŻENIE!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram showing light rays interacting with a rectangular object, with an inset magnified view of the lens (no text or symbols)

Diagram showing a mechanical assembly with a bracket and a magnified inset of a rod inserted into a base (no text or symbols)

Technical line drawing of a rectangular oven or rack unit with ventilation grilles and mounting base (no text or symbols)

Diagram showing two steps of a kitchen appliance: adding a tray to a drawer and removing a tray into a rack (no text or symbols present)

Diagram showing two views of a device with directional arrows indicating motion or rotation (no text or symbols present)

Technical illustration showing a laptop and its rear panel assembly (no text or symbols)

Technical line drawing of a two-step bench assembly (no text or symbols)

Diagram showing airflow patterns around a vehicle cabin with directional arrows and a magnified inset (no text or symbols)

Technical line drawing showing a mechanical assembly with an inset close-up of internal components (no text or symbols)

CLICK

Line drawing of a hand pressing down on a kitchen appliance (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Technical diagram of a mechanical device with a curved arrow indicating rotation or force direction (no text or symbols present)

Diagram of a device with a slide and fan, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a vehicle battery pack with a curved cable inserted into the tray (no text or symbols)

Diagram of a refrigerator interior with a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

! CUIDADO!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram of a device with arrows indicating flow or movement, showing internal structure and an inset view of a tool (no text or symbols present)

Diagram showing a mechanical assembly with a bracket and a magnified inset of a tool (no text or symbols)

TD Heat pump 76

Máquina de secar roupa com bomba de calor TD 76

TD Heat pump 86

TD Vented 76/86

Line drawing of a cabinet with an inset showing a structural detail (no text or symbols)

Diagram showing a hand operating a 1x speed shift next to a device with a 3 mm scale indicator.

Diagram showing two views of a device with arrows indicating motion, no text or symbols present

Diagram showing two views of a refrigerator with an arrow indicating left-side motion (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

Máquina de secar roupa com bomba de calor TD 86

Simple line drawing of a rectangular electronic component with no text or symbols

CUIDADO!

Diagram showing a lever mechanism with arrows indicating force application, no text or symbols present

Diagram showing a device with arrows pointing to a component, and an inset magnified view of a tool interacting with it (no text or symbols present)

Diagram showing a mechanical assembly with a bracket and a magnified inset of a tool (no text or symbols)

Technical line drawing of a rectangular oven or rack unit with internal grating and mounting base (no text or symbols)

Illustration showing a hand placing a component into a refrigerator while another hand holds a tray with a curved handle, both without any text or symbols.

Diagram showing two views of a device with directional arrows indicating motion or rotation (no text or symbols present)

Technical line drawing showing a laptop and its rear panel assembly (no text or symbols)

Technical line drawings of a mechanical assembly and chassis (no text or symbols)

Technical diagram showing airflow or ventilation system inside a vehicle cabin, with inset close-up of internal components (no text or labels)

Technical diagram showing a mechanical assembly with an inset close-up of a component and a side-view view of a cabinet or lift (no text or symbols present)

CLICK

Line drawing of a hand pressing down on a cabinet (no text or symbols)

Line drawing of a hand inserting a component into a refrigerator (no text or symbols)

Technical diagram of a mechanical assembly with a curved component and directional arrow (no text or symbols)

Diagram of a device with a slide and fan, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a device with a curved arrow indicating motion or force, showing internal components (no text or symbols)

Diagram of a refrigerator interior showing a door handle and seat, with an arrow indicating rotation (no text or symbols present)

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

⚠️ ПРЕДОСТЕРЕЖЕНИЕ!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram of a device with arrows indicating flow or movement, showing internal structure and directional arrows (no text or symbols)

Diagram showing a mechanical assembly with a bracket and a magnified inset of a tool (no text or symbols)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86 →

Line drawing of a cabinet with an inset showing a structural detail (no text or symbols)

Diagram showing a hand operating a mechanical device with a 1x speed indicator and a magnified view of the component's rotation.

Illustration showing two steps of a device handling a circular object, with arrows indicating motion direction (no text or symbols present)

Diagram showing two views of a cabinet with arrows indicating movement or force (no text or symbols)

Technical illustration of a mechanical assembly with a meshed component and curved pipe connection (no text or symbols)

Simple line drawing of a rectangular electronic component with a flat base (no text or symbols)

⚠️ ПРЕДОСТЕРЕЖЕНИЕ!

Diagram showing a lever mechanism with arrows indicating force application, no text or symbols present

Diagram showing a device with arrows indicating direction, including an inset magnified view of a mechanical component (no text or symbols present)

Diagram showing a mechanical assembly with a bracket and a magnified inset of a pin inserted into a base (no text or symbols)

3D rendering of a rectangular oven or rack unit with internal grating and mounting base (no text or symbols)

Illustration showing a hand inserting a component into a rack, with no visible text or symbols.

Diagram showing two views of a device with directional arrows indicating motion or rotation (no text or symbols present)

Technical illustration of a laptop with a side view showing the front panel and rear view of the device (no text or symbols present)

Technical line drawing of a bed rack and shelf assembly (no text or symbols)

Diagram showing airflow and ventilation system inside a vehicle cabin, with no visible text or symbols

Diagram showing a mechanical assembly with an inset close-up of a component, and a side-view view of a cabinet with a downward arrow (no text or symbols)

CLICK

Line drawing of a hand pressing down on a kitchen appliance (no text or symbols)

Line drawing of a hand inserting a tray into a refrigerator (no text or symbols)

Diagram of a mechanical device with a curved arrow indicating rotation or movement (no text or symbols present)

Diagram of a device with an open lid and a curved arrow indicating rotation (no text or symbols)

Diagram of a vehicle battery pack with an attached rack and load arrow (no text or symbols)

Diagram of a door handle with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

! VAROVANIE!

Diagram showing a lever mechanism with arrows indicating force application, no text or symbols present

Diagram of a device with arrows indicating flow or movement, showing internal structure and a magnified inset (no text or symbols)

Diagram showing a mechanical assembly with a bracket and a magnified inset of a tool (no text or symbols)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86 →

Odvetrávacia sušička TD 76/86

Držiaky sa musia otočit o 180°. Najprv ich odskrutkujte, otočte a znovu utiahnite.

Line drawing of a cabinet with an inset showing a close-up of the interior structure (no text or symbols)

Diagram showing a hand operating a device with a 3 mm scale adjustment and a magnified view of the component's size.

Diagram showing two views of a device with arrows indicating motion or force, no text or symbols present

6 Zdvihnite sušičku a bezpečne ju umiestnite na skrinku a zatlačte ju dozadu, kým nezacvakne v prednastavených držiakoch.

Diagram showing two views of a computer with a mouse cursor and directional arrow (no text or symbols)

Technical diagram of a mechanical assembly with internal components and motion arrows (no text or symbols)

Potom žehliacu dosku opät vložte.

Simple line drawing of a rectangular electronic component with no text or symbols

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram showing light rays interacting with a device, with an inset magnified view of the lens (no text or symbols)

Diagram showing a mechanical assembly with a bracket and a magnified inset of a rod inserted into a base (no text or symbols)

3D technical illustration of a rectangular oven or rack unit with internal grating and mounting base (no text or symbols)

Diagram showing two steps of a kitchen appliance: adding a tray to a cabinet and inserting a tray into a rack (no text or symbols present)

Diagram showing two views of a device with directional arrows indicating rotation or movement (no text or symbols present)

Technical illustration of a laptop with a side view showing the front panel and rear view of the device (no text or symbols present)

Technical line drawing of a two-step furniture assembly (no text or symbols)

Diagram showing airflow and ventilation system with directional arrows and a magnified inset of air ducts (no text or symbols)

Technical illustration showing a mechanical assembly with a magnified inset of internal components (no text or symbols)

CLICK

Line drawing of a hand pressing down on a kitchen appliance (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Diagram of a mechanical device with a curved arrow indicating rotation or force direction (no text or symbols present)

Diagram of a device with a slide and fan, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a vehicle battery pack with a curved arrow indicating direction (no text or symbols)

Diagram of a refrigerator interior with a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

OPOZORILO!

Diagram showing a mechanical device with arrows indicating force or movement, and an inset magnified view of a tool interacting with a surface (no text or symbols present)

1 Na hrbtni strani pralnega stroja odvijte vs tri vijake.

Diagram of a device with arrows indicating force or movement, showing internal structure and connection (no text or symbols)

Diagram showing a mechanical device with a bracket and a magnified inset of a tool (no text or symbols)

Skriti pomočnik je potrebno na levi in desni strani elementa proti prevračanju priviti na prali stroj. S priloženim ključem privijte oba vijaka.

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86

Line drawing of a cabinet with an inset showing structural details (no text or symbols)

Diagram showing a hand operating a 1x speed shift next to a device with a 3 mm scale indicator.

Diagram showing two views of a device with arrows indicating motion, no text or symbols present

Diagram showing two views of a refrigerator with an arrow indicating left-side motion (no text or symbols)

Technical line drawing of a mechanical assembly with a meshed component and curved pipe connection (no text or symbols)

Simple line drawing of a rectangular electronic component with a flat base (no text or symbols)

OPOZORILO!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram showing light rays interacting with a rectangular object, with an inset magnified view of the lens (no text or symbols)

Diagram showing a mechanical assembly with a bracket and a magnified inset of a rod inserted into a base (no text or symbols)

Skriti pomočnik je potrebno na levi in desni strani elementa proti prevračanju priviti na strc S priloženim ključem privijte oba vijaka.

Technical line drawing of a rectangular oven or rack unit with internal grating and mounting base (no text or symbols)

Diagram showing two steps of a kitchen appliance: adding a tray to a cabinet and removing a tray into a rack (no text or symbols present)

Diagram showing two views of a device with directional arrows indicating motion or rotation (no text or symbols present)

Technical illustration showing a laptop and its rear panel assembly (no text or symbols)

Technical line drawing of a two-step bench assembly (no text or symbols)

Diagram showing airflow patterns around a vehicle cabin with directional arrows and a magnified inset (no text or symbols)

Technical line drawing showing a mechanical assembly with an inset close-up of internal components (no text or symbols)

CLICK

Line drawing of a hand pressing down on a cabinet (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Diagram of a mechanical device with a curved arrow indicating rotation or force direction (no text or symbols present)

Diagram of a device with a slide and fan, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a vehicle battery pack with a curved arrow indicating direction (no text or symbols)

Diagram of a refrigerator interior showing a tray with a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

WARNING!

Diagram showing a lever mechanism with arrows indicating force application, no text or symbols present

Diagram of a device with arrows indicating force or movement, showing internal structure and a magnified inset (no text or symbols)

Diagram showing a mechanical assembly with a magnified inset of a tool inserted into a base, no text or symbols present.

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86

Diagram of a cabinet with an inset showing a structural detail (no text or symbols present)

Diagram showing a device with a 3 mm scale adjustment and a hand interacting with a mechanical component labeled '1x'.

Diagram showing two views of a device with arrows indicating motion or movement, no text or symbols present.

Diagram showing two views of a cabinet with an arrow indicating left motion (no text or symbols)

Technical diagram of a mechanical assembly with a meshed component and curved pipe connection (no text or symbols)

Ventilerad torktumlare TD 76/86

Simple line drawing of a rectangular electronic component with a flat base (no text or symbols)

! WARNING!

Diagram showing a lever mechanism with arrows indicating force application, no text or symbols present

Diagram showing light rays interacting with a device, with an inset magnified view of the lens (no text or symbols)

2 Montera Hidden Helper på produkten.

Diagram showing a mechanical assembly with a bracket and a magnified inset of a rod inserted into a base (no text or symbols)

3D technical illustration of a rectangular oven or rack unit with internal grating and mounting base (no text or symbols)

Illustration showing a hand placing a component into a refrigerator while another hand holds a tray with a curved handle (no text or symbols present)

Diagram showing two views of a mechanical device with directional arrows indicating motion or rotation (no text or symbols present)

Technical line drawing showing a laptop and its rear panel assembly (no text or symbols)

Technical line drawing of a two-step laptop setup with front and side views (no text or symbols)

Diagram showing airflow and ventilation system with directional arrows and a magnified inset of air ducts (no text or symbols)

Technical illustration showing a mechanical assembly with a magnified inset of a device (no text or symbols present)

CLICK

Line drawing of a hand pressing down on a cabinet (no text or symbols)

Line drawing of a hand inserting a component into a refrigerator (no text or symbols)

Technical diagram of a mechanical assembly with a curved component and directional arrow (no text or symbols)

Diagram of a device with a slide and fan, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a device with a curved arrow indicating motion or force, showing internal components (no text or symbols)

Diagram of a refrigerator interior showing a door handle and side panel, with an arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

! УВАГА!

Diagram showing a mechanical setup with a lever and directional arrows, no text or symbols present

Diagram of a device with arrows indicating flow or movement, showing internal structure and directional arrows (no text or symbols)

Diagram showing a mechanical device with a bracket and mounting base, connected to a rack-mounted housing (no text or symbols present)

TD Heat pump 76

TD Heat pump 86

TD Vented 76/86

Line drawing of a cabinet with an inset showing a structural detail (no text or symbols)

Diagram showing a hand operating a mechanical device with a 3mm angle indicator and a 1x ratio label.

Illustration showing a device pressing down on a tray, with arrows indicating motion (no text or symbols present)

Diagram showing two views of a refrigerator with an arrow indicating left motion (no text or symbols)

Technical diagram of a mechanical assembly with a meshed component and curved components (no text or symbols)

Simple line drawing of a rectangular electronic component with no text or symbols

! УВАГА!

Diagram showing a lever mechanism with arrows indicating force application, no text or symbols present

Diagram showing light rays interacting with a device, including an inset magnified view of the lens (no text or symbols present)

Diagram showing a mechanical assembly with a bracket and a magnified inset of a rod inserted into a base (no text or symbols)

3D rendering of a rectangular oven or rack unit with internal ventilation grilles and mounting base (no text or symbols)

Diagram showing two steps of a refrigerator interior: adding a tray to the front panel and removing a tray into the back panel (no text or symbols present)

Diagram showing two views of a device with directional arrows indicating motion or rotation (no text or symbols present)

Technical illustration of a laptop with a side view showing its front panel and rear screen (no text or symbols)

Technical line drawing of a two-step laptop setup with front and side views (no text or symbols)

Diagram showing airflow and ventilation system inside a vehicle cabin, with no visible text or symbols

Technical illustration showing a mechanical assembly with cross-section and side views (no text or symbols)

CLICK

Line drawing of a hand pressing down on a cabinet (no text or symbols)

Line drawing of a hand inserting a component into a device (no text or symbols)

Technical diagram of a mechanical device with a curved arrow indicating rotation or force direction (no text or symbols present)

Diagram of a device with a slide and fan, showing a curved arrow indicating rotation (no text or symbols present)

Diagram of a vehicle battery pack with a curved arrow indicating direction (no text or symbols)

Diagram of a refrigerator interior with a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

警告!

Diagram showing a mechanical device with arrows indicating force or movement, and an inset magnified view of a tool interacting with a surface (no text or symbols present)

1 拧下洗衣机背面的所有三颗螺丝。

Diagram of a device with arrows indicating airflow or movement, showing internal structure and connection (no text or symbols)

2 将隐藏助手安装到洗衣机上。

Diagram showing a mechanical assembly with a bracket and a magnified inset of a tool (no text or symbols)

TD Heat pump 76

热泵式干衣机TD 76

TD Heat pump 86

热泵式干衣机TD 86

必须事先从隐藏助手拆下螺丝和支架。

安装隐藏助手(Hidden Helper)

TD Vented 76/86

Line drawing of a cabinet with an inset showing a structural detail (no text or symbols)

Diagram showing a mechanical device with a spring scale and a hand interacting with a button labeled '1x' and '25mm'.

Diagram showing two views of a device with arrows indicating motion, no text or symbols present

Diagram showing two views of a cabinet with an arrow indicating direction, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

通风式干衣机TD 76/86

Simple line drawing of a rectangular electronic component with no text or symbols

Diagram showing a mechanical device with arrows indicating force or movement, and an inset magnified view of a lever mechanism (no text or symbols present)

Diagram showing light rays interacting with a rectangular object, with an inset magnified view of the beam (no text or symbols)

警告!

Diagram showing a mechanical assembly with a bracket and a magnified inset of a pin inserted into a base (no text or symbols)

3D technical illustration of a rectangular oven or rack unit with internal ventilation ducts and mounting base (no text or symbols)

Line drawing of a hand pressing down on a kitchen appliance (no text or symbols)

Line drawing of a hand inserting a tray into a refrigerator (no text or symbols)

Technical diagram of a mechanical assembly with a curved arrow indicating rotation or force direction (no text or symbols present)

Diagram of a refrigerator with an open shelf and a curved arrow indicating rotation (no text or symbols)

Diagram of a vehicle battery pack with an attached rack and cable, showing no text or symbols.

Diagram of a door handle with an arrow indicating rotation (no text or symbols)

1 轻推隐藏助手门，令其打开。

2 握住熨烫板把手，向外拉出到底。

将熨烫板展开撑平。

熨烫板可以用于熨烫衣物了。

Technical line drawing of a mechanical assembly with mounting brackets and internal components (no text or symbols)

Pure technical line drawing of a mechanical component or bracket (no text or symbols)

警告!

Diagram showing a mechanical device with arrows indicating force or movement, and an inset magnified view of a tool interacting with a surface (no text or symbols present)

1 擰下洗衣機背面的所有三個螺絲。

Diagram of a device with arrows indicating airflow or movement, showing internal structure and connection (no text or symbols)

2 將隱藏助手安裝到洗衣機上。

Diagram showing a mechanical assembly with a bracket and a magnified inset of a tool (no text or symbols)

TD Heat pump 76

帶熱泵的幹衣機TD 76

TD Heat pump 86

熱泵式幹衣機TD 86

必須事先從隱藏助手拆下螺絲和支架。

安裝隱藏助手(Hidden Helper)

TD Vented 76/86

Line drawing of a cabinet with an inset showing a structural detail (no text or symbols)

Diagram showing a hand pressing a button on a device with a 3 mm scale indicator and 1x label, alongside a separate view of the device's handle.

Diagram showing two views of a device with arrows indicating motion, no text or symbols present

Diagram showing two views of a refrigerator with a double-headed arrow indicating left motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

通風式幹衣機TD 76/86

Simple line drawing of a rectangular electronic component with no text or symbols

Diagram showing a mechanical device with arrows indicating force or movement, and an inset magnified view of a lever mechanism (no text or symbols present)

Diagram showing light rays interacting with a rectangular object, with an inset magnified view of the beam (no text or symbols)

警告!

Diagram showing a mechanical assembly with a bracket and a magnified inset of a pin inserted into a base (no text or symbols)

3D technical illustration of a rectangular oven or rack unit with internal ventilation ducts and mounting base (no text or symbols)

Diagram showing two steps of appliance cleaning: one with hand placing a component into a drawer, the other with hand holding a tray and rotating around a fan (no text or symbols)

Diagram showing two views of a device with directional arrows indicating motion or rotation (no text or symbols present)

Technical illustration of a laptop and its rear panel assembly (no text or symbols)

Technical line drawing of a mechanical assembly with cross-sectional and top views (no text or symbols)

Diagram showing airflow or ventilation system inside a vehicle cabin, with inset close-up of air ducts (no text or symbols)

Technical diagram showing two views of a mechanical assembly: one with internal components and the other with a downward arrow (no text or symbols)

CLICK

1 輕推隱藏助手門，令其打開。

握住熨烫板把手，將其完全拉出。

Line drawing of a hand pressing down on a kitchen appliance (no text or symbols)

Line drawing of a hand inserting a tray into a refrigerator (no text or symbols)

Technical diagram of a mechanical assembly with a curved arrow indicating rotation or force direction (no text or symbols present)

Diagram of a refrigerator with an open shelf and a curved arrow indicating rotation (no text or symbols)

Diagram of a vehicle battery pack with an attached rack and cable, showing no text or symbols.

Diagram of a door handle with an arrow indicating rotation (no text or symbols)

1 輕推隱藏助手門，令其打開。

2 握住熨烫板把手，向外拉出到底。

將熨燙板展開撐平。

熨燙板可以用於熨燙衣物了。

Inspired by Scandinavia

ASKO APPLIANCES AB • SOCKERBRUKSGATAN 3, SE-531 40 LIDKÖPING, SWEDEN • WWW.ASKO.COM
