USER MANUAL Bolero CoolMarket Chest 99 CECOTEC

Two white and black industrial washing machines side by side against a dark blue background (no visible text or symbols)

bolero

Safety instructions 9

1. Parts and components 55

2. Before use 55

3. Installation and transport 56

4. Operation 57

5. Cleaning and maintenance 58

6. Technical specifications 59

7. Disposal of old electrical and electronic appliances 60

8. Technical support and warranty 60

9. Copyright 61

SOMMAIRE

Please, keep this instruction manual in a safe place for future reference or new users.

• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.
• Do not store explosive substances such as aerosol cans with flammable propellant in this appliance.
• This device is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• To avoid food contamination, please follow the instructions below:
• Opening the door for a long period of time may cause a significant increase in temperature in the appliance's compartments.
• Clean regularly the surfaces that might be in contact with food and accessible evacuation systems.
• If the freezer appliance remains empty for a long period of time, unplug it, defrost it, clean it, dry it, and leave the door open to prevent interior mould formation.
• WARNING: when positioning the appliance, make sure that the power cable does not get trapped or damaged.
• WARNING: do not place multiple mobile sockets or mobile power supplies on the rear of the appliance.
• WARNING: keep the ventilation grilles on the enclosure of

the appliance or the cabinet in which the appliance is located clear.

• WARNING: do not use mechanical devices or similar to accelerate the defrosting process other than those recommended by the manufacturer.
• WARNING: do not use electrical devices inside the food-preservation compartments unless they are of a type recommended by the manufacturer.
• WARNING: do not damage the refrigeration circuit.
• Check the power cable regularly for visible damage. If the cable is damaged, it must be replaced by the manufacturer, the supplier, or qualified personnel to avoid hazards.
• WARNING! It is dangerous for anyone other than authorised personnel to carry out maintenance or repairs involving the removal of covers. To prevent the electric shock risk do not attempt to repair the appliance yourself.
• Do not place carbonated beverages in the freezer compartment. Ice cream can cause “frostbites”. This can happen if they are ingested after removal from the freezer.
• Do not remove items from the freezer with wet/moist hands, as this may cause skin abrasions or “frostbites”. Bottles and cans should not be placed in the freezer, as they may burst when their contents freeze.
• See the storage times recommended by the manufacturer.
• Do not allow children to play with the controls or the freezer. The appliance is a heavy appliance. Caution must be taken when moving the appliance. It is dangerous to alter specifications or attempt to modify this appliance in any way.

• WARNING: doors or covers fitted with locks and keys must be kept out of the reach of children and not in the vicinity of the freezing appliance to prevent children from being locked inside.

• WARNING: the refrigerant used in your appliance and the insulation materials must be disposed of correctly.

• Keep the packaging material away from children, as there is a risk of suffocation.
• WARNING: if the interior light is damaged, contact the official Cecotec Technical Support Service. Do not try to repair it on your own.
• Make sure the appliance plug is accessible after installation.
• Do not place food directly against the air outlet on the interior of the appliance.
• Keep the ventilation openings clear from obstructions.
• Do not place carbonated or fizzy drinks in the freezer compartment, as this creates pressure in the container, which could explode and damage the appliance.
• To avoid injuries or death caused by electric shock, do not use the appliance with your hands wet or over a wet surface.
• You should never use this appliance with an extension lead or a multi-socket adaptor. Make sure the appliance is plugged in directly to a power supply.
• When positioning the appliance, make sure there is enough free space at the rear, as it is the main heat outlet. This will allow for adequate ventilation.
• Do not place any other appliance on the freezer and do not wet it.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• It is advisable to wait for at least four hours before connecting the appliance to allow oil to flow through the compressor.

Free of Freon

- This freezer uses freon-free refrigerant (R600a) and foaming insulation material (cyclopentane), which are

environmentally friendly, do not cause damage to the ozone layer, and have a very low impact on global warming. However, R600a is flammable and should not leak during normal use. In the event of refrigerant leakage due to damage to the refrigerant circuit, be sure to keep the appliance away from open flames and open the windows to ventilate as soon as possible.

- WARNING: the refrigerant and the insulator gas are flammable. When disposing of the appliance, only dispose of it at an authorised waste-disposal facility. Do not expose it to flames.

- WARNING: the appliance contains refrigerant and gases in the insulation. The appliance and gases must be disposed of professionally, as they may cause injuries to eyes or ignition. Make sure the refrigeration-circuit pipe is not damaged before disposing of it correctly.

- WARNING: risk of fire/flammable materials.

• If the refrigeration circuit is damaged:
• Avoid open flames and sources of ignition.
• Completely air the room where the appliance is located.

Temperature range

The appliance temperature range information can be found on its marking. Indicates the optimum room temperature for proper operation of the appliance.

Climate range Optimum room temperature

SN From +10 °C to +32 °C

N From +16 °C to +32 °C

ST From +16 °C to +38 °C

T From +16 °C to +43 °C

WARNING: if the appliance is operated outside the climate class for which it is rated (SN/N/ST), it may not be able to maintain satisfactory internal temperatures.

INSTRUCTIONS DE SÉCURITÉ

1. Handle
2. Door
3. Hinge
4. Basket
5. Compartment
6. Cooling
7. Feet

Note:

The graphics in this manual are schematic representations and may not exactly match the device.

2. BEFORE USE

• This freezer includes a packaging designed to protect it during transport. Take the freezer out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place, this will help you prevent product damage when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or not in good condition, immediately contact the official Cecotec Technical Support Service.

Pre-checking

• Before starting to use the freezer, check that:
• The interior is dry and there is enough space for air to circulate freely at the rear.
• Clean the inside of the freezer according to the recommendations in the “Cleaning and maintenance” section.
• Connect the plug into a power socket; the red light on the freezer will come on. The green light will come on and the compressor will start running.
• You will hear a noise indicating that the compressor has started to run. Liquid and gases within the refrigeration system may also give rise to noises, whether the compressor is running or not, indicating normal operation.
• If you are going to store already frozen food, open the freezer door and check that the freezer has reached the correct temperature. You can then insert already frozen food.
• Do not store food in the appliance immediately after switching it on. Wait for it to reach the correct storage temperature.

ENGLISH

Note:

• If a power failure occurs, do not open the door. Frozen food should not be affected if the breakdown lasts less than 20 hours. If the failure lasts more than 20 hours, check the food and consume it immediately or cook and refreeze it.
• If you find that the freezer door is difficult to open immediately after closing it, this is normal. This is due to the pressure difference, which will equalise and allow the door to open normally after a few minutes.

Box content

• Freezer
• Instruction manual

3. INSTALLATION AND TRANSPORT

Installation instructions. Fig. 2

• If possible, avoid placing the appliance near cookers, radiators, or direct sunlight, as this will cause the compressor to work harder than usual. If installed next to a heat or cooling source, maintain the following minimum distances:
• Distance to cookers: 100 mm (4")
• Distance to radiators: 300 mm (12")
• Distance to refrigerators: 100 mm (4")
• Make sure that there is sufficient space around the appliance to ensure free air circulation. The ideal distance is a space of at least 100 mm around the freezer, and you should be sure to leave gaps as shown in figure 2.
• The appliance must be placed on a smooth surface.
• Do not place the freezer in a damp place to prevent the metal parts from rusting. Do not spray water into the freezer, as this will weaken the insulation and cause energy leakage.
• Refer to the "Before Use" section to prepare your device.
• If the freezer is installed in unheated areas, garages, etc., condensation may form on the outside surfaces in cold weather. This is normal and not a fault. Remove condensation with a dry cloth.

Transport instructions

• The device may only be transported in an upright position. The supplied packaging must remain intact during transport.
• If the product is transported in a horizontal position, it should be placed on its left side only (taking the front of the door as a reference) and should not be operated for at least 4 hours to allow the system to adapt after the product has been returned to a vertical position.
• The device must be protected against rain, humidity, and other atmospheric phenomena.

Important

• When cleaning/carrying the device, be careful not to touch the metal wires of the capacitor at the back of the device, as this may cause injury to fingers and hands or damage to the product.
• This appliance is not designed to be installed on top of another appliance. Do not attempt to sit or stand on your device, as it is not designed for this purpose. You could injure yourself or damage the appliance.
• Make sure that the power cord is not trapped under the appliance during and after transporting or moving the appliance to prevent the power cord from being cut or damaged.
• When positioning the appliance, take care not to damage the floor, pipes, wall coverings, etc. Do not move the appliance by pulling on the door or handle.

4. OPERATION

• The temperature inside the freezer is regulated by a thermostat setting selector (Fig. 3).
• The levels on the selector do not refer to the exact temperature, but indicate the following:

o 1 (refrigeration mode): temperature of 5 °C.
o 2-4 (freezer mode): temperature between -12 °C and -18 °C.
o 4-7 (freezer mode): temperature between -18 °C and -24 °C.
- 7 (fast freezing option): temperature below -24 °C.
- Adjust the temperature according to the situation of use.

Warning

The actual temperature of the compartment has an error margin of ±3 ^ compared to the set temperature, which is normal phenomenon and does not affect the normal use of the product.

Fast freezing (below -24 °C)

If you select the fast freezing option, you must keep the freezer in continuous operation. Food will cool down quickly.

Warning

Select another level when you have finished with the quick freeze option. Do not keep this option selected longer than necessary.

Refrigerator mode

• When you change the refrigerator mode to another, you must take out the food to prevent it from spoiling when frozen.
• If you switch from freezer mode to refrigerator mode, you must follow the steps below:
• Set the thermostat selector switch to refrigeration mode.
• Remove all frozen food from the freezer chamber and keep it empty for one hour.
• Insert the food you want.

ENGLISH

Storing frozen food

• Commercially pre-frozen food should be stored according to the supplier's instructions.
• To preserve the quality of frozen food, you should remember the following:
• Place packages in the freezer as soon as possible after purchase.
• Do not exceed the best-before or use-by dates on the packaging.

Freezing fresh food

• Place fresh food to be frozen close to the side walls to ensure rapid freezing and away from already frozen food, if possible.
• Never exceed maximum capacity. Do not freeze too large a quantity at one time.
• Food is best preserved when fully frozen as quickly as possible.
• Do not mix frozen food with fresh food.

5. CLEANING AND MAINTENANCE

• Always unplug the appliance before cleaning it.
• Never use any sharp abrasive instruments, soap, household cleaners, detergents, and wax polish for cleaning.
• Use lukewarm water to clean the freezer interior and wipe it dry with a cloth.
• Once the inside of the freezer is at room temperature, you can use a damp cloth with a solution of one teaspoon of baking soda with one litre of water to wipe the inside and dry it.
• You should regularly remove the accumulated ice deposit with a plastic scraper. A large accumulation of ice will have a negative effect on the performance of the freezer.
• If the freezer is not to be used for a long period of time, turn it off, remove all food, clean it, and leave the door ajar.
• Check the door seals regularly to ensure that they are clean and free of food remains.

Note

Never use water to wash the compressor. Wipe with a dry cloth after cleaning to prevent rusting.

Defrost

• Defrost the freezer twice a year or when a frost layer of about 7 mm (1/4") has formed.
• To ensure that frozen food is at the lowest possible temperature, 6 hours before defrosting, set the thermostat knob to level 7 (fast freeze option). Wrap all food in several layers of newspaper and store in a cool place.
• Remove the water line and place it in a water container.
• Remove the basket from the freezer. Remove the basket from the freezer.
• When defrosting is complete, remove any water that has accumulated in the bottom of the freezer, as described in the section "Draining water", and dry the inside of the freezer thoroughly. Set the thermostat to the fast freeze setting for 3 hours.

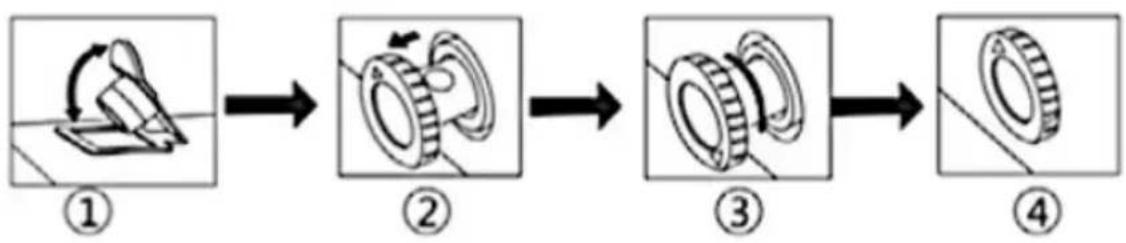

Draining water. Fig. 4.

• There is a drainage outlet at the bottom of the outside of the freezer. When defrosting the freezer, remove the rubber cover, then the defrosting water will be ejected out and discharged through the drainpipe.
• Pull out the water line, about 20-25 mm, until you can see the water hole.
• Turn the water line until the arrow points downwards.
• Make sure that the appliance does not release any more water before putting the water line back in place and make sure that the arrow is pointing upwards.

Please note

• Do not use pointed or sharp-edged objects, such as knives or forks, to remove frost.
• It is normal for water droplets or frost to appear on the freezer latch and door seals in humid weather, which will not affect normal use. In this case, wipe it with a dry cloth in good time.

Recommendations

• Close the door carefully and make sure it is completely closed after use, otherwise the freezer will consume more energy and form more ice.
• Check the contents of the freezer at regular intervals to ensure the integrity of the food.
• Prepare the fresh food you want to freeze in small portions to ensure rapid freezing.
• Wrap all food in aluminium foil or plastic freezer bags and make sure to remove air.
• Place small items in the basket.
• Do not put hot food in the freezer. Let it cool down first.
• Do not put bottles with liquid or closed cans with carbonated beverages in the freezer, as they may explode.
• Do not store poisonous or dangerous substances in the freezer. Your freezer is designed to store only edible products.

6. TECHNICAL SPECIFICATIONS

You can find more information on this model by scanning the QR code on the energy label.

Product Bolero	CoolMarket 99 White E Bolero CoolMarket Chest 99 Black E
Reference 0244	7 02152
QR code

ENGLISH

Rated current 0.36 A
Voltage 220-240 V~
Rated frequency	50 Hz
Volume 99 l
Refrigerant R600a/46 g
Base plate Cyclopentane
Climate class SN/N/ST (1)

(1) This freezer is intended for use at room temperatures between 10 °C and 38 °C.

Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

8. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

FRANÇAIS

1. PIÈCES ET COMPOSANTS

Img. 1

3. INSTALACJA I TRANSPORT

(100mm) (100mm)

Fig./Img./Abb./Afb./Rys.2

White rectangular device with a circular dial and a black square top (no text or symbols visible)

Fig./Img./Abb./Afb./Rys. 3

Fig./Img./Abb./Afb./Rys. 4
