USER MANUAL Bolero CoolMarket Chest 198M CECOTEC

BOLERO COOLMARKET CHEST 293P WHITE E

BOLERO COOLMARKET CHEST 293M WHITE D

BOLERO COOLMARKET CHEST 418P WHITE E

BOLERO COOLMARKET CHEST 418P WHITE D

BOLERO COOLMARKET CHEST DUO 508M WHITE E

Congelador horizontal / Chest freezer

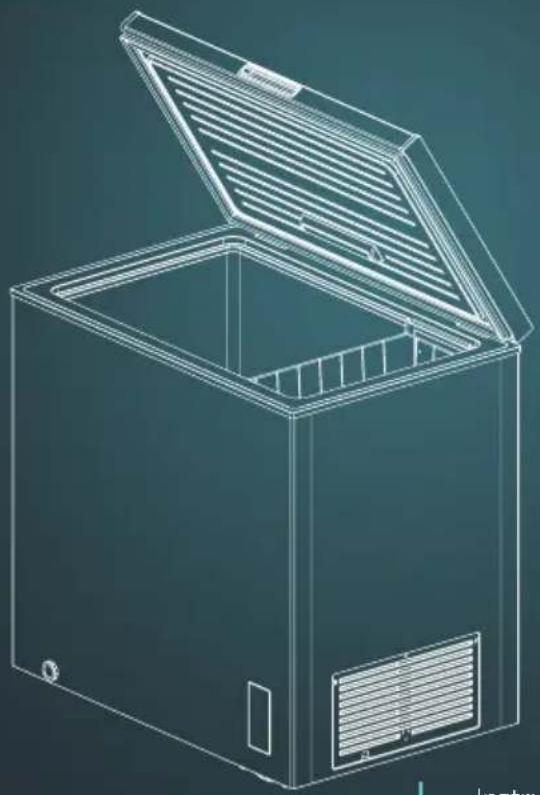

Line drawing of a closed industrial box with lid open, showing internal structure and ventilation slots (no text or symbols)

bolero

Safety and recycling instructions

1. Parts and components 155
2. Before use 155
3. Assembly 156
4. Operation 159
5. Food storage instructions 162
6. Cleaning and maintenance 165
7. Troubleshooting 167
8. Recycling of electrical and
   electronic equipment 170
9. Copyright 170
10. Simplified Declaration of Conformity 170

SOMMAIRE

EU01_110504 Bolero CoolMarket Chest 99P White E

EU01_110509 Bolero CoolMarket Chest 99M White D

EU01_113715 Bolero CoolMarket Chest 143P White E

EU01_110505 Bolero CoolMarket Chest 198P White E

EU01_110510 Bolero CoolMarket Chest 198M White D

EU01_113716 Bolero CoolMarket Chest 249P White E

EU01_110506 Bolero CoolMarket Chest 293P White E

EU01_110511 Bolero CoolMarket Chest 293M White D

EU01_110507 Bolero CoolMarket Chest 418P White E

EU01_110512 Bolero CoolMarket Chest 418P White D

EU01_110508 Bolero CoolMarket Chest Duo 508M White E

EN · The coding in this manual is generic and applies to all code variants of the appliance.

Read the following instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

Symbol	Type Meaning
	WARNING Risk of serious injury or death
	RISK OF ELECTRIC SHOCK	Risk of dangerous voltage
	FIRE	Warning: Risk of fire/flammable materials
	WARNING	Risk of injury or damage to property
	IMPORTANT/ NOTE	Correct system use

• NOTE: Pay particular attention to the phrases contained in these icons, as they warn of a potential hazard that can cause serious injury to you and others. The instructions will tell you how to reduce the risk of injury and what can happen if you do not follow them.
• Read these instructions carefully before assembling or using the appliance, as they contain important information that will help you get the best out of your equipment. It is your responsibility to make sure every user is informed about the warnings and precautions stated in this instruction manual.
• WARNING: These instructions for use are generic. This means that certain functions or components are valid for your freezer, while others are not.

ENGLISH

- When a malfunction occurs, it can seriously damage the freezer or result in death or injury to the user or create electrical or fire hazards.

- CANTION: check the freezer and its packaging for damage. Never use the freezer if it is damaged, contact Cecotec's Official Technical Support Service immediately.

- This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

- Do not store flammable, explosive, volatile or highly corrosive substances such as aerosol cans with flammable propellant in this appliance, as they may cause damage, accidents or fire.

- ⚠️ Do not place flammable items near the freezer to prevent fire.

- This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.

- Do not install the device outdoors.

- Avoid direct sunlight exposure.

- Do not install the freezer near heat sources such as stoves, ovens, etc.

- To avoid food contamination, please follow the instructions below:

A Opening the door for a long period of time may cause a significant increase in temperature in the appliance's compartments.

B Regularly clean the surfaces that might be in contact with food and accessible evacuation systems.
C If the freezer appliance remains empty for a long period of time, unplug it, defrost it, clean it, dry it, and leave the door open to prevent interior mould formation.
D Store raw meat and fish in suitable containers so that they do not come into contact with or drip onto other food items.
E The two-star frozen food compartments are suitable for storing pre-frozen food, ice cream and ice cubes*.
F The 1-, 2- and 3-star compartments are not suitable for freezing fresh food*.
G For appliances without 4-star compartment: not suitable for freezing food*.

*Confirm if this applies according to the type of compartment of your product. This function varies according to the model purchased.

*** *** Symbol of "4 stars": Freezer at -18°C or lower, with capacity to quickly freeze a certain amount of food.

Symbol of "3 stars": Freezer compartment at -18°C or lower.

** Symbol of "2 stars": Freezer compartment at -12°C or lower.

Symbol of "1 star": Freezer compartment with a target temperature and storage conditions of -6^ .

• WARNING: when positioning the appliance, make sure the power cord is not trapped or damaged.
• WARNING: do not place multi-socket adaptors or portable power supplies on the rear of the appliance.

ENGLISH

- WARNING: keep the ventilation grilles of the appliance enclosure or the cabinet where the appliance is located clear.

- WARNING: do not use mechanical devices or other means to speed up the defrosting process other than those recommended by Cecotec.

- WARNING: do not use electrical devices inside the food storage compartments unless they are of a type recommended by Cecotec.

- WARNING: do not damage the cooling circuit.

- Check the power cord regularly for visible damage. If the cord is damaged, it must be replaced by Cecotec's Official Technical Support Service or by similarly qualified personnel to avoid hazards or injuries.

- Do not use the appliance if the cord, plug or housing is damaged or malfunctioning, if it is partially disassembled or if components are missing or damaged.

- WARNING! It is dangerous for anyone other than authorised personnel to carry out maintenance or repairs involving the removal of covers. To prevent the electric shock risk do not attempt to repair the appliance yourself.

- In case of malfunctioning, repairs must be carried out by Cecotec's Technical Support Service; otherwise, the warranty will be void.

- Before installing or repairing the freezer, you must disconnect it from the mains.

- To unplug the appliance, pull from the socket, never from the cord.

- When installing or moving the appliance, be careful not to pinch, squeeze or damage the power cord. Do not bend the cable excessively, do not place heavy objects on it.

- Do not place carbonated or soft drinks in the freezer, as this creates pressure in the can, which could explode and result in injury and/or damage to the appliance.

- Ice-cream “popsicles” can cause freezer burns. This can happen if they are ingested after removal from the freezer.

- Do not remove items from the freezer with wet hands as this may cause skin abrasions or freezer burns. Bottles and cans should not be placed in the freezer, as they may burst when their contents freeze.

- See the storage times recommended by the manufacturer.

- Do not allow children to play with the controls or the freezer. This is a heavy appliance. Caution must be taken when moving it. It is dangerous to alter specifications or attempt to modify this appliance in any way.

- WARNING: in the case of doors or covers equipped with locks and keys*, these must be kept out of the reach of children and not in the vicinity of the appliance to prevent children from being locked inside.

*Depending on the freezer model.

- Be careful when closing the freezer door.

- WARNING: the refrigerant used in your appliance and the insulation materials must be disposed of correctly.

- To avoid the risk of suffocation, keep the packaging material away from children.

- WARNING: If the interior light is damaged, contact Cecotec's Official Technical Support Service. Do not try to repair it yourself.

- Make sure the appliance plug is accessible after installation.

- Do not place food directly against the air outlet on the interior of the appliance.

- To avoid injuries or death caused by electric shock, do

ENGLISH

not use the appliance with your hands wet or over a wet surface.

- Do not use the appliance with an extension cable or

a multi-socket adaptor. Make sure the appliance is plugged in directly to a power supply. The plug must be inserted into a suitable power socket, which must be properly installed and earthed in accordance with local Standards and Regulations. If an electric shock occurs, grounding can provide a path of minimum current resistance, thus reducing the risk of electric shock.

- Do not modify the plug supplied with the freezer.

- Improper connection of the equipment grounding

wires may result in a risk of electric shock. If you are in doubt as to whether the equipment is properly grounded, consult a qualified electrician.

- The power plug must be firmly in contact with the

power outlet, otherwise a fire may result.

- It is not recommended to use this product with plugs or main switches with AFC/GFCI function, as this may cause false activation. It does not pose a safety risk if triggered. If the activation persists, it is recommended to replace the sockets or the main circuit breaker without AFC/GFCI (Arc Fault Circuit Interruption / Ground Fault Circuit Interruption) function.

- This appliance is not intended to be operated by means

of an external timer or separate remote-control system.

- In case of gas leakage, do not unplug the freezer or

other electrical appliances, as sparks may cause a fire.

- When positioning the appliance, make sure there is enough free space at the rear, as it is the main heat outlet. This will allow for adequate ventilation.

- Do not place any other appliance on the freezer and do not wet it.

- To avoid hazards due to instability of the device, install it according to the instructions in this manual.

- This freezer is not designed for built-in or integrated installation.

- If any abnormal phenomenon occurs, such as burning smell, it is necessary to stop operation and cut off the power supply.

- It is advisable to wait for at least 4 hours before connecting the appliance to allow oil to flow through the compressor.

- Cecotec disclaims all liability for any damage or injury caused as a result of failure to follow the installation and/or operating instructions contained in this instruction manual.

- Cecotec is not responsible for any damage, accident, or incident resulting from the misuse of this appliance. It is the responsibility of the user to operate and maintain the appliance according to the instructions and recommendations detailed in this manual. Failure to follow instructions may result in personal injury, property damage, or loss of product warranty.

- We are constantly working on the development and improvement of our models and types of household appliances. Therefore, we reserve the right to make changes to the design, equipment and accessories of all models and types without prior notice.

Temperature range

- The appliance temperature range information can be found on its marking. Indicates the optimum room temperature for proper operation of the appliance.

ENGLISH

Climate class Optimal room temperature

SN From +10 °C to +32 °C

N From +16 °C to +32 °C

ST From +16 °C to +38 °C

T From +16°C to +43°C

Notes:

- Taking into account the limiting values of the ambient temperature range for the climates for which the freezer is designed and that internal temperatures may be affected by factors such as freezer location, ambient temperature and frequency of door opening, it may be necessary to modify the setting of any temperature control device according to these factors.

- If the appliance is operated in an environment other than the specified climate type (i.e. beyond the rated ambient temperature range), it may not be able to maintain the desired compartment temperatures.

Free of Freon

- This freezer uses freon-free refrigerant (R600a) and foaming insulation material (cyclopentane), which are environmentally friendly, do not cause damage to the ozone layer, and have a very low impact on global warming. R600a is flammable and does not leak during normal use when sealed in a refrigeration system. In case of refrigerant leakage due to damage to the refrigerant circuit, be sure to keep the appliance away from open flames and sources of ignition and open the windows to ventilate the room where the appliance is located as soon as possible.

• This symbol means: Warning, risk of fire/flammable materials.
• WARNING: the refrigerant and the insulator gas are flammable. When disposing of the appliance, only dispose of it at an authorised waste-disposal facility. Do not expose it to flames.
• WARNING: the appliance contains refrigerant and gases in the insulation. The appliance and gases must be disposed of professionally, as they may cause injuries to eyes or ignition. Make sure the refrigeration-circuit pipe is not damaged before disposing of it correctly.

INSTRUCTIONS DE SÉCURITÉ

EU01_110509 Bolero CoolMarket Chest 99M White D

EU01_110510 Bolero CoolMarket Chest 198M White D

EU01_110511 Bolero CoolMarket Chest 293M White D

EU01_110508 Bolero CoolMarket Chest Duo 508M White

EU01_110504 Bolero CoolMarket Chest 99P White E EU01_113715 Bolero CoolMarket Chest 143P White E EU01_110505 Bolero CoolMarket Chest 198P White E EU01_113716 Bolero CoolMarket Chest 249P White E EU01_110506 Bolero CoolMarket Chest 293P White E EU01_110507 Bolero CoolMarket Chest 418P White E EU01_110512 Bolero CoolMarket Chest 418P White D

Leyenda figura 8:

• The graphics in this manual are schematic representations and may not exactly match the product.
• The EU01_110508 Bolero CoolMarket Chest Duo 508M White E model has two doors.
• To improve quality, our products are constantly updated, and their appearance and specifications may change.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content

• Freezer
• Instruction manual
• Wheels (depending on model)
• Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

ENGLISH

3. ASSEMBLY

3.1 Location

• After removing the packaging, clean the outside of the freezer thoroughly with a soft, dry cloth and the inside with a cloth dampened with warm water.
• The location you choose to install the appliance must be well ventilated. Do not place the freezer in a narrow recess or near heat sources such as a hob, avoid direct sunlight to ensure freezing performance and save on energy consumption. Do not place the appliance in a damp place to avoid rust or loss of power. The result of dividing the amount of cooling power of the appliance by the total space of the room in which it is installed must be less than 8 g/m^3 .
  Note: The amount of refrigerant used by the appliance is specified on the rating plate.

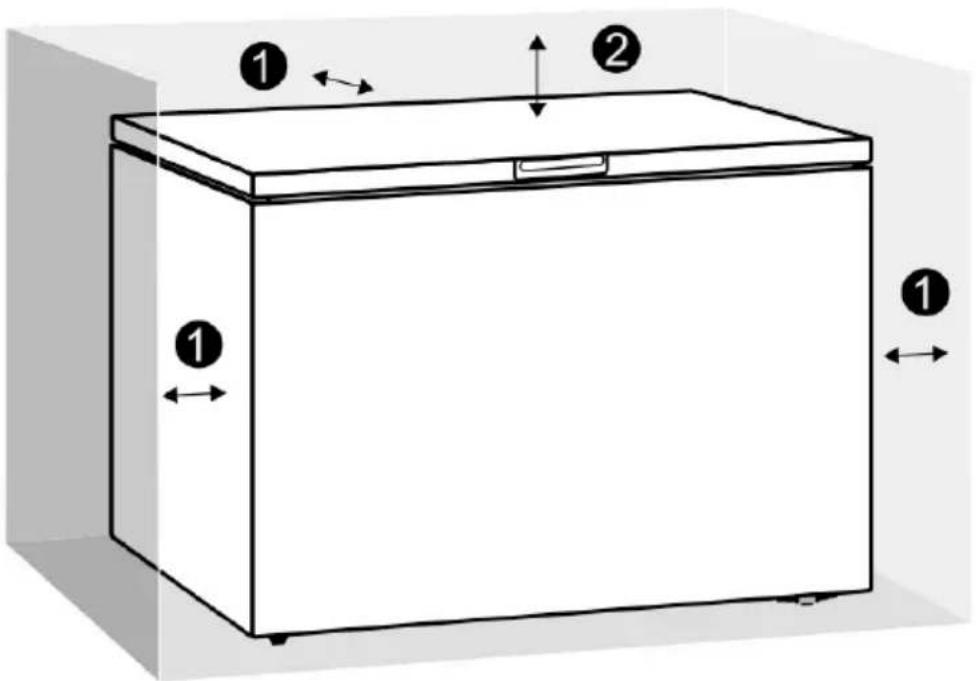

- Adequate air circulation is necessary for efficient operation, since during operation, the appliance gives off heat, therefore, at least 70 cm of free space should be left at the top (2) and 20 cm at the sides (1). (Fig. 2).

Note: Figure 2 only illustrates the space required for product installation.

- Place the appliance on a solid, flat floor to keep it stable, otherwise vibrations and noises will occur. Placing the appliance on soft, uneven or unstable surfaces such as carpets, straw or polyvinyl chloride mats, etc., may reduce the efficiency of the freezer, increase the risk of malfunction and potentially cause damage to the appliance or its environment.

- In any case, you can also place solid support plates under the freezer to avoid colour alteration due to heat dissipation.

- The place where the appliance is installed must be well ventilated.

3.2 Levelling

• The device must be well levelled to avoid vibrations.
• If necessary, adjust the levelling feet to compensate for the unevenness of the floor.
• The levelling feet can be easily rotated by slightly tilting the unit.
• Turn the levelling feet counterclockwise to raise the freezer and clockwise to lower it.

3.3 Preparation

• Once the appliance is properly installed and cleaned, do not switch it on immediately.
• When installing the freezer, wait 2 to 4 hours before starting it up. This will ensure that the coolant is fully stabilized, and maximum cooling capacity is guaranteed, while avoiding possible damage.
• IMPORTANT: Check that the electrical voltage and frequency match the data indicated on the nameplate of the freezer.
• Let the unit idle for 24 hours to allow the compartment to cool to the proper temperature.
• Once the appliance has cooled down completely, put the food in.
• In summer, when the temperature is high, food may take longer to cool completely (try to open the door as rarely as possible).

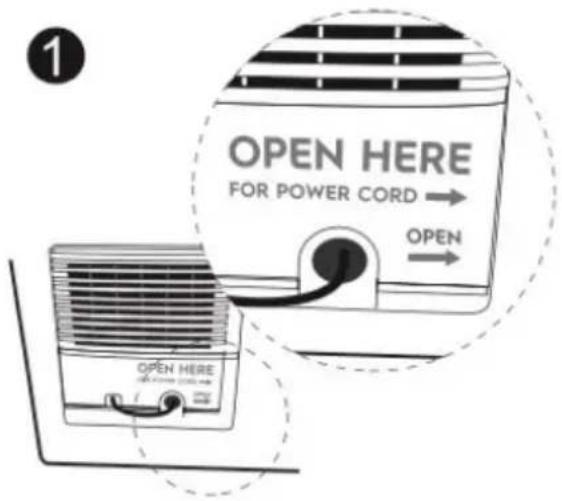

3.4 Removing the power supply cable from its compartment

Depending on the model of freezer you have:

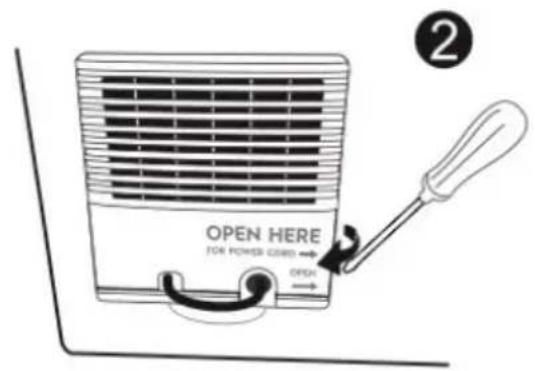

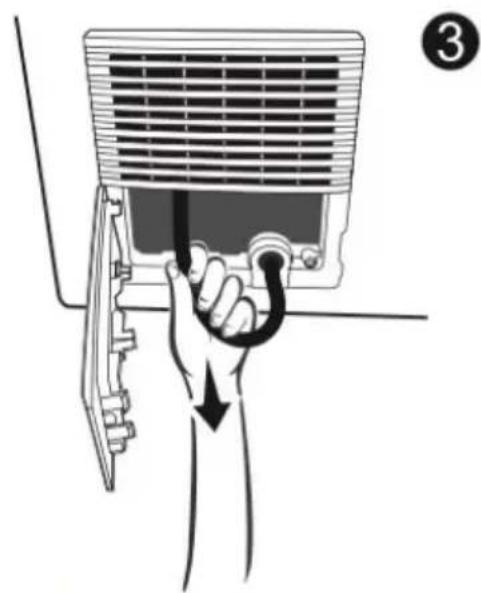

Figure 3:

1. Check that the power cord is in good condition.
2. Insert a suitable tool, such as a flat-blade screwdriver (not included), into the hole indicated by the "OPEN" arrow and carefully pry the cover open.
3. After opening the cover, pull the power cord plug out of the hole and close the cover.
4. Carefully remove the power cord from the upper hook.

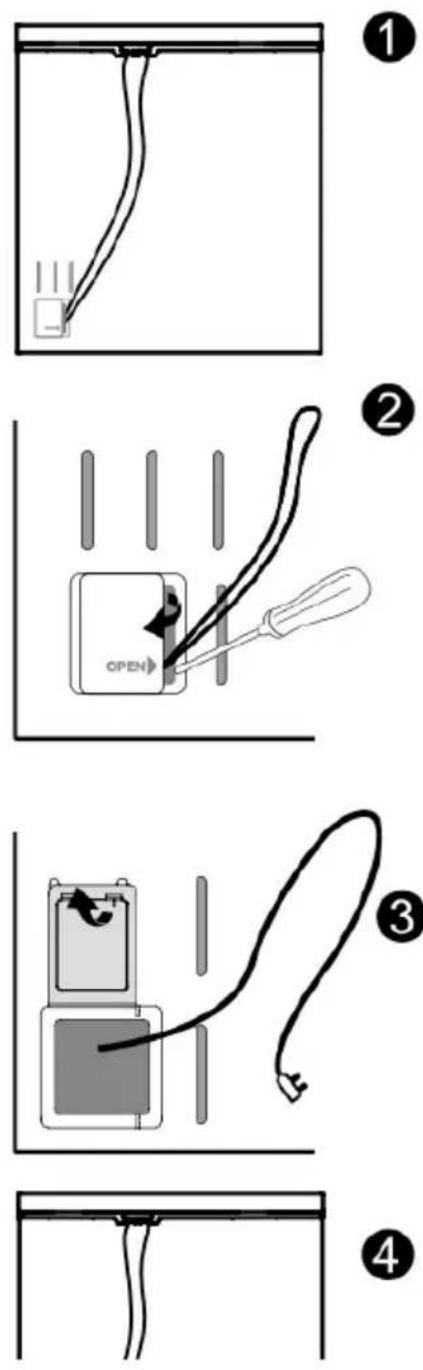

Figure 4:

1. Insert a suitable tool, such as a flat screwdriver (not included), into the hole indicated by the arrow on the cover and carefully open it.
2. After opening the cover as shown in the picture, pull the power cord out of the hole.
3. After removing the power cord, the cover must be closed in the position opposite to the original opening.

This freezer must be installed free-standing and cannot be built-in. Otherwise, it will cause problems, such as reduced performance and reduced lifetime of the device. In addition, the warranty will be voided.
The freezing speed of the appliance depends on the amount of food stored and the ambient temperature. If too many room temperature foods are introduced at the same time, the thermostat should be set to maximum 24 hours in advance or prepare ice for cold storage. Large foods should be divided into small pieces, otherwise they may deteriorate.
➢ Check that all accessories are properly installed and clean the freezer with lukewarm water and mild detergent, wipe dry with a cloth.
Note: Electrical components should be cleaned with a dry cloth.

If the appliance is installed in a wet place, be sure to check if the earthed cable and the circuit breaker are working normally. If vibration noises occur due to contact of the appliance with the wall or if the wall turns black due to air convection around the compressor, keep the appliance further away from the wall. This appliance may cause interference in mobile phones, landline phones, radio receivers, or televisions near the refrigerator, so in this case, keep the appliance as far away from these objects as possible.

3.5 Installation of the wheels (optional)

• Disconnect the freezer from the mains and empty the contents before installing the casters.
• Close and secure the door to prevent it from opening during installation.
• Use the included wheel installation kit.

ENGLISH

• Casters make it easy to move the freezer to its final location.
• Subsequently, they can be blocked.

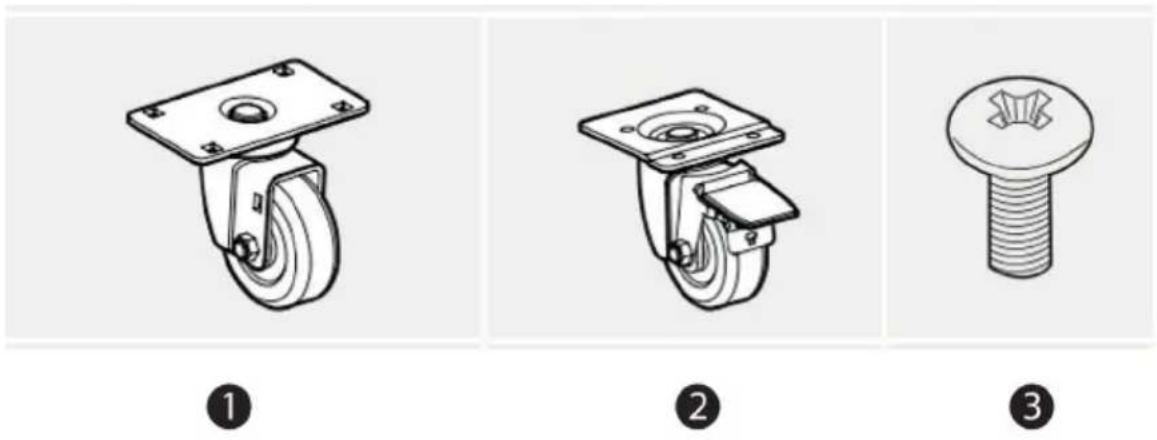

Fig. 5 key:

CAUTION: Two or more people are needed to rotate and tilt the freezer on its back, allowing access to all sides.

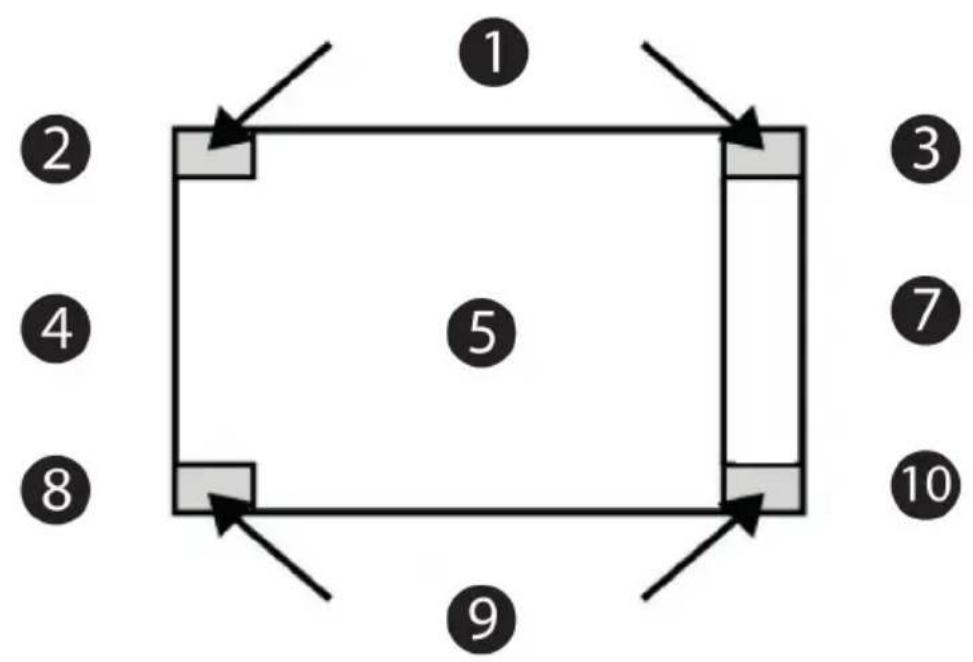

1.1.1 How to install the casters (Figure 6)

• Move the freezer to a work area with sufficient clearance on both sides for easy handling and access.
• Cover the floor with a protective material to prevent damage while the freezer is resting on its back during installation of the casters.
• Remove the adjustable levelling feet already installed in the freezer by unscrewing them counterclockwise, as they are not necessary when using casters.
• The unbraked wheels (1) are installed at the front and right rear of the compressor side.
• The braked casters (2) are installed at the front and left rear of the freezer (with the brake lever facing outward).

Fig. 6 key:

1. Freezer front
2. Braked wheel
3. Wheel without brake
4. Left side of freezer
5. View of the bottom of the freezer
6. Compressor
7. Right side of freezer
8. Braked wheel
9. Rear of freezer

10. Wheel without brake

11. Align the wheel holes with the freezer screw holes and tighten the screws.

12. Once the casters are installed, carefully lift and rotate the freezer to its upright position with the necessary assistance.
13. Move the freezer to its final location and apply the brakes on the two left wheels.
14. Wait at least 2 hours before plugging the freezer back to a power supply.
15. Place food in the freezer once the desired operating temperature has been reached.

CAUTION: The braked casters are used to stop the horizontal movement of the freezer

on level surfaces only. They are not designed to prevent movement on uneven or sloping floors.

4. OPERATION

Depending on the freezer model, the control panel may be mechanical or electronic.

4.1 Mechanical Control Panel

EU01_110509 Bolero CoolMarket Chest 99M White D EU01_110510 Bolero CoolMarket Chest 198M White D EU01_110511 Bolero CoolMarket Chest 293M White D EU01_110508 Bolero CoolMarket Chest Duo 508M White

• After switching on the unit, the POWER indicator light will come on.
• The area of the thermostat marked "COOLING" corresponds to the cooling area.
• The area of the thermostat marked "FREEZING" corresponds to the freezing area.
• By turning the thermostat clockwise, the temperature inside the freezer decreases.
• By turning the thermostat counterclockwise, the temperature inside the freezer increases.

Fig. 7 key:

A> Recommended cooling setting.

B> Recommended freezing setting.

ATTENTION: The control panel may vary depending on the freezer model.

NOTE: Do not store liquids in closed containers, such as bottles or cans.

4.2 Electronic control panel

EU01_110504 Bolero CoolMarket Chest 99P White E EU01_113715 Bolero CoolMarket Chest 143P White E EU01_110505 Bolero CoolMarket Chest 198P White E EU01_113716 Bolero CoolMarket Chest 249P White E EU01_110506 Bolero CoolMarket Chest 293P White E EU01_110507 Bolero CoolMarket Chest 418P White E EU01_110512 Bolero CoolMarket Chest 418P White D

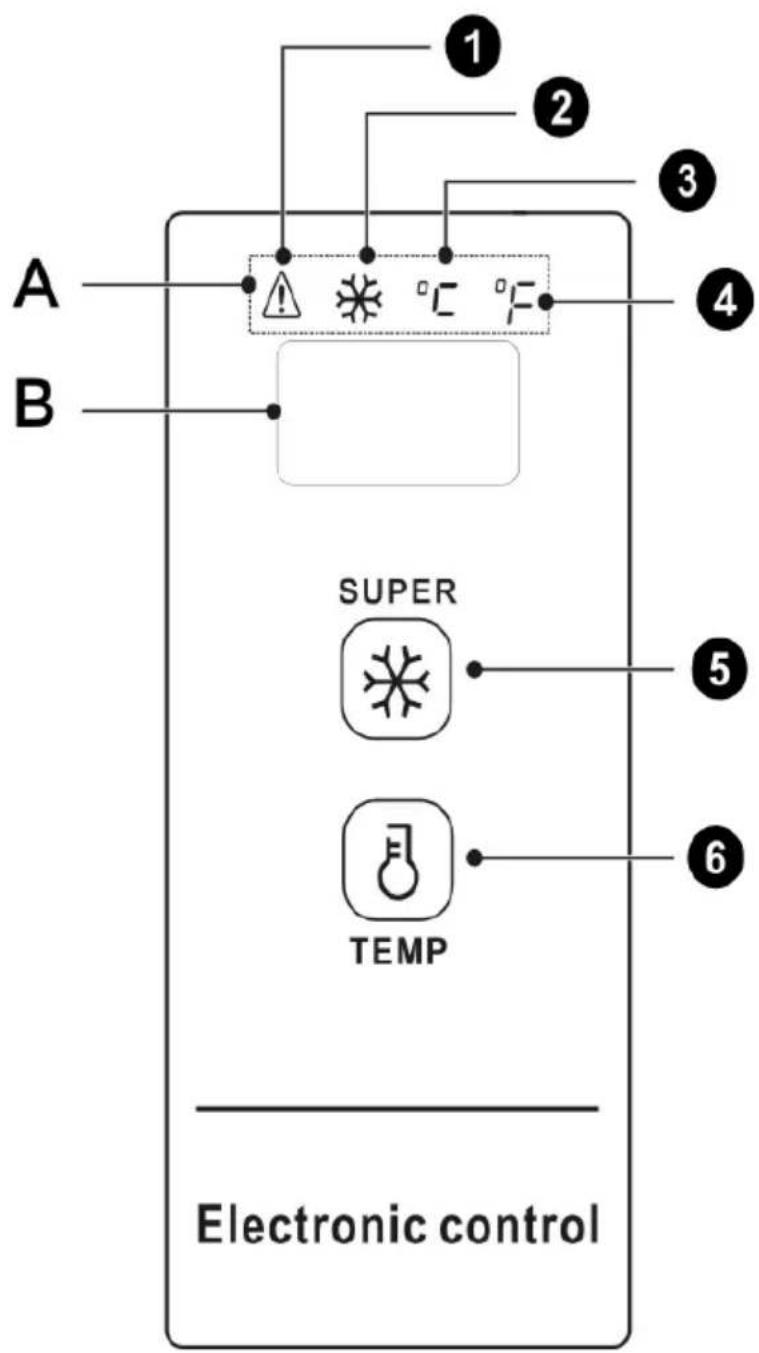

Fig. 8 key:

1.- High temperature heating indicator
2.- Fast Freezing function indicator light

ENGLISH

3.- Temperature indicator in degrees Celsius (°C)
4.- Temperature display in degrees Fahrenheit (°F)
5.- "Fast Freezing" function activation button
6.- Temperature setting knob

A.- Display

B.- Temperature display

- When the freezer is turned on, the display will stay on for 3 seconds and then switch to "normal operation" mode.

Display of "normal operation"

• If no fault is detected, the set temperature or operating mode will be displayed.
• If a fault is detected, the error code will be displayed.

Sleep" mode (power saving mode)

• This mode will be activated by default when the freezer is plugged in. After confirming the temperature, the display will turn off after 30 seconds.
• To activate the "energy saving" mode, press the temperature setting and "Fast Freezing" function buttons simultaneously for about 5 seconds. The temperature display will show "ON", indicating that the "energy saving" mode is activated.
• To deactivate the “energy saving” mode, press the temperature setting and “Fast Freezing” function buttons simultaneously for about 5 seconds. The temperature display will show “OF”, indicating that the “energy saving” mode is deactivated.

Performance check

• Activate the "energy saving" mode. After confirming the temperature, the display will turn off after 30 seconds.
• Deactivate the "energy saving" mode. After confirming the temperature, the display will not turn off and will remain on.

Lock/Unlock mode

• After initial activation, the control panel is locked by default and must be unlocked to make adjustments.
• Lock: Press the "Fast Freezing" function key for approximately 3 seconds, the display will flash once, and the selected temperature will be applied immediately. When entering "lock" mode, the display will not flash. After 30 seconds without pressing any keys, the control panel will also enter the automatic "lock" mode, and the display will flash once.
• Unlock: Press the "Fast Freezing" function key for approximately 3 seconds, the display will flash once, and the control panel will unlock.

Conversion of temperature between degrees Celsius (°C) and degrees Fahrenheit (°F)

- Press and hold the temperature adjustment key for about 3 seconds to switch between

degrees Celsius (°C) and degrees Fahrenheit (°F).

- The degrees Celsius (°C) and degrees Fahrenheit (°F) indicators will be shown on the display in each case.

Temperature settings

- When the temperature setting key is pressed, the display will show the set temperature of the device. When the key is pressed again, the temperature will change by 1^ C/ ^ F with each press.

- The temperature adjustment is carried out cyclically in this order:

$$ \begin{array}{l} 1 0 ^ {\circ} \mathrm{C} > 9 ^ {\circ} \mathrm{C} > 8 ^ {\circ} \mathrm{C} > \dots 1 ^ {\circ} \mathrm{C} > - 1 ^ {\circ} \mathrm{C} > \dots > - 2 8 ^ {\circ} \mathrm{C} > - 2 9 ^ {\circ} \mathrm{C} > - 3 0 ^ {\circ} \mathrm{C} > 1 0 ^ {\circ} \mathrm{C} \ 5 0 ^ {\circ} F > 4 9 ^ {\circ} F > 4 8 ^ {\circ} F > \dots 3 3 ^ {\circ} F > 3 2 ^ {\circ} F > 3 1 ^ {\circ} F > \dots > - 2 0 ^ {\circ} F > - 2 1 ^ {\circ} F > - 2 2 ^ {\circ} F > 5 0 ^ {\circ} F \ \end{array} $$

Fast Freezing function

• Press the "Fast Freezing" function button to activate this function. The screen will display the following icon ✦
• If the temperature is set to °C, the display will show “-30”. If the freezer compressor runs continuously, the temperature indicator will light up in “°C”.
• If the temperature is set to °F, the display will show “-22”. If the freezer compressor runs continuously, the temperature indicator will light up in “°F”.
• To deactivate the Fast Freezing function:

1.- In the event of a power failure, the function will be deactivated after the freezer is switched on again.
2.- After 24 consecutive hours of operation, the function will be automatically deactivated.
3.- If a temperature sensor failure occurs during operation with this function activated, the function may be deactivated.
4.- Press the "Fast Freezing" activation key again to deactivate the Fast Freezing function.

High temperature alarm

- The display will show the following icon.

Memory function

- If there is a power failure, the current operating status will be locked. Once the power supply is restored, operation will continue as configured prior to the outage. The "Fast Freezing" function will be deactivated after a power interruption.

Error codes

• If a fault occurs in the temperature sensor, the display will show the code E2.
• If any other error code appears, turn off the appliance and contact Cecotec's Official Technical Support Service.

ENGLISH

ATTENTION: The control panel may vary depending on the freezer model.

NOTE: Do not store liquids in closed containers, such as bottles or cans.

5. FOOD STORAGE INSTRUCTIONS

• The freezer is designed for freezing food, long-term storage of frozen food and production of ice cubes.
• Do not store poisonous or dangerous substances in the freezer. Your freezer is designed to store only edible products.
• There should always be some space between the food inside to allow air to circulate.
• Food should be kept in airtight containers to avoid drying out or giving off odours.
• Hot food must be cooled before being placed in the freezer.
• Reducing the frequency of door opening can reduce electricity consumption.
• Do not open the door frequently or leave it open longer than necessary.
• The lower the selected temperature, the higher the energy consumption.
• If the room temperature is high, the selected temperature is also low and the freezer is full, the compressor may run continuously, causing frost or ice to form on the evaporator. If this happens, increase the freezer temperature.
• Ensure good ventilation. Do not cover grilles and ventilation openings.
• Before freezing, wrap and seal fresh food with aluminium foil, film, freezer bags, airtight containers, etc.
• For more efficient freezing and thawing, divide food into small portions.
• It is advisable to label and date all frozen foods. This will help to identify foods and to know when they should be used before they spoil.
• Observe the storage times recommended by food suppliers.
• Food must be fresh when you freeze it (especially fruit and vegetables).
• Do not freeze bottles or cans containing liquids, particularly beverages containing carbon dioxide, as they may explode during freezing.
• Do not put hot food in the freezer. Cool them to room temperature before placing them in the drawer.
• To avoid increasing the temperature of already frozen food, do not place fresh, unfrozen food directly next to it. Place food at room temperature in the part of the freezer where there is no frozen food.
• Do not use ice cubes or eat ice cream or popsicles immediately after removing them from the freezer.

• Do not refreeze thawed food. If the food has thawed, cook it, allow it to cool and then freeze it.

• Consume thawed food immediately.

• Too low a temperature setting may shorten the lifespan of the freezer.
• The entire freezer is suitable for the storage of frozen food products.
• Leave enough space around the food to allow air to circulate freely.
• For proper storage, refer to the label on the food package.
• It is important to wrap the food in such a way as to prevent water from entering.
• Before storing food, make sure that the packaging is not damaged as the food may deteriorate. If the container is swollen or damp, it may not have been stored under optimal conditions.
• To limit the defrosting process, place frozen food immediately in the freezer after purchase.
• If food has thawed, even partially, do not refreeze it. Consume them as soon as possible.
• In the event of a prolonged power failure or equipment breakdown, remove stored frozen foods and check if they are still edible. Then store them in a sufficiently cool place or in another freezer.
• To thaw foods, remove them from the freezer and let them thaw at room temperature or in the refrigerator. For quick defrosting, you can use the microwave defrost function.
• If you only want to thaw part of a package, remove the portion you need and immediately close the rest. This will prevent freezer burn and reduce icing of the remaining food.
• ATTENTION: Storing too much food during operation after initial connection may adversely affect the freezing effect.
• IMPORTANT: Prolonged storage at inadequate freezing temperatures can cause loss of quality or spoilage of food and may even cause food poisoning. The minimum temperature in most cases should be -18°C or lower.
• Observe the expiry date and the storage instructions on the package. The following table shows approximate shelf life, which depends on many factors.

Food item Storage time (months)
Bread 3
Fruit (except citrus) 6-12
Vegetables 8-10
Meatless leftovers 1-2
Daily food
Butter 6-9
Mild cheese (e.g. mozzarella) 3-4

ENGLISH

Strong cheese (e.g. parmesan, cheddar) 6
Fish and seafood
Oily fish (e.g. salmon, mackerel) 2-3
White fish (e.g. cod, sole) 4-6
Shrimp 12
Shelled clams and mussels 3-4
Cooked fish 1-2
Meat
Poultry 9-12
Beef 6-12
Pork 4-6
Lamb 6-9
Sausages 1-2
Ham 1-2
Leftovers with meat 2-3

Energy saving recommendations:

• Close the door carefully and make sure that it is completely closed after use, otherwise the freezer will consume more energy and more ice will form.
• Do not place the freezer near stoves, radiators or other heat sources. If the ambient temperature is high, the compressor will run more frequently and longer, resulting in higher energy consumption.
• Ensure that there is sufficient ventilation at the base, sides and rear of the unit.
• To obtain more storage space, e.g. for large refrigerated or frozen products, you can remove the central drawers and accessories. The top and bottom drawers and accessories should be removed at the end, if necessary. (IMPORTANT: the number of accessories depends on the freezer model).
• Arrange the interior space uniformly to contribute to optimal energy use.
• Open the door only as far as necessary to minimize cold loss. Opening the door promptly and closing it properly reduces energy consumption.

• The door seals must be in perfect condition.

• Check the contents of the freezer at regular intervals to ensure the integrity of the food.

• Prepare the fresh food you want to freeze in small portions to ensure rapid freezing.
• Wrap all food in aluminium foil or plastic freezer bags and make sure to remove air.
• Place small items in the basket (not available on all models).
• Do not put hot food in the freezer. Let it cool down first.

6. CLEANING AND MAINTENANCE

ATTENTION: Before cleaning the appliance, disconnect it from the mains. Wait at least 5 minutes before restarting, as frequent starting may damage the compressor. Do not touch the plug with wet hands; doing so may result in electric shock. Avoid spilling water on the appliance, so that it does not rust or cause an accident. Do not reach into the bottom of the appliance, as this may cause damage.

Cleaning the interior and exterior

• Food residues in the appliance can cause unwanted odours, so it should be cleaned regularly, at least once a month.
• The inside of the product should be cleaned periodically to avoid unpleasant odours.
• Use a soft cloth or sponge to clean the inside of the product. You can use two tablespoons of baking soda and one litre of warm water. Then rinse with clean water and dry thoroughly. After cleaning, open the door and allow it to air dry before turning it on.
• For hard-to-reach areas, such as corners, a soft-bristled cloth or brush is recommended to ensure that contaminants and bacteria do not accumulate.
• Clean the dust that accumulates on the rear panel and side plates of the appliance regularly.
• If you have used mild soap, be sure to rinse it with clean water. Next, dry it with a dry cloth.
• Do not use any abrasive materials or corrosive products to clean the device, hard or wire brushes, organic solvents (alcohol, acetone, benzene, isoamyl acetate, etc.), boiling water, acidic or alkaline products, as they may damage the surface or the interior and deform or damage plastic parts.
• Clean the exterior surface with a soft cloth dampened with soapy water, neutral detergent, etc., and then wipe dry.
• Check the door gasket regularly to ensure that there is no debris. Clean the gasket with a soft cloth lightly dampened with soapy water or diluted mild soap. Carefully dry the door gasket and clean the ventilation slots with a wooden stick wrapped with cotton.
• Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affecting the electrical insulation.
• It is advisable to run the freezer continuously once it has been started. Generally, its operation should not be interrupted, otherwise its service life could be affected.

ENGLISH

Interruption of use of the appliance for a long period of time

If the appliance is not to be used for several months, first switch it off and disconnect the plug from the mains socket.

Remove all the food.

• Clean and dry the interior completely. To avoid mould or unpleasant odours, leave the door slightly open.
• Store the appliance in a ventilated and dry place, away from heat sources; place the appliance carefully and do not place heavy objects on it.
• Keep the appliance out of the reach of children, so that they do not play with it.

Power failure or cooling system fault

• If the appliance stops operating for a prolonged period of time, the food may defrost.
• Try to open the appliance door as little as possible, so that you can keep food in good condition for hours, even in summer.

• If you know that a power cut is going to occur in advance:

• Select the highest temperature one hour in advance, so that the food is completely frozen. Do not introduce new food. Adjust the temperature back to the original setting when power is restored.

• You can also put ice in an airtight container and place it at the top part of the appliance.

Note: It is best not to interrupt the operation of the appliance; this could affect its lifespan.

Defrosting

- After some time, a thin layer of frost may form on the surface of the inner wall of the appliance (or on the evaporator), which may affect the performance if it is thicker than 5 mm. It is recommended to remove this frost. - The freezer is designed for year-round use with minimal cleaning and maintenance. We recommend that you do the following each time you clean it for odour-free and efficient operation:

1.- Disconnect the freezer
2.- Remove the food and cover it properly to prevent it from melting.

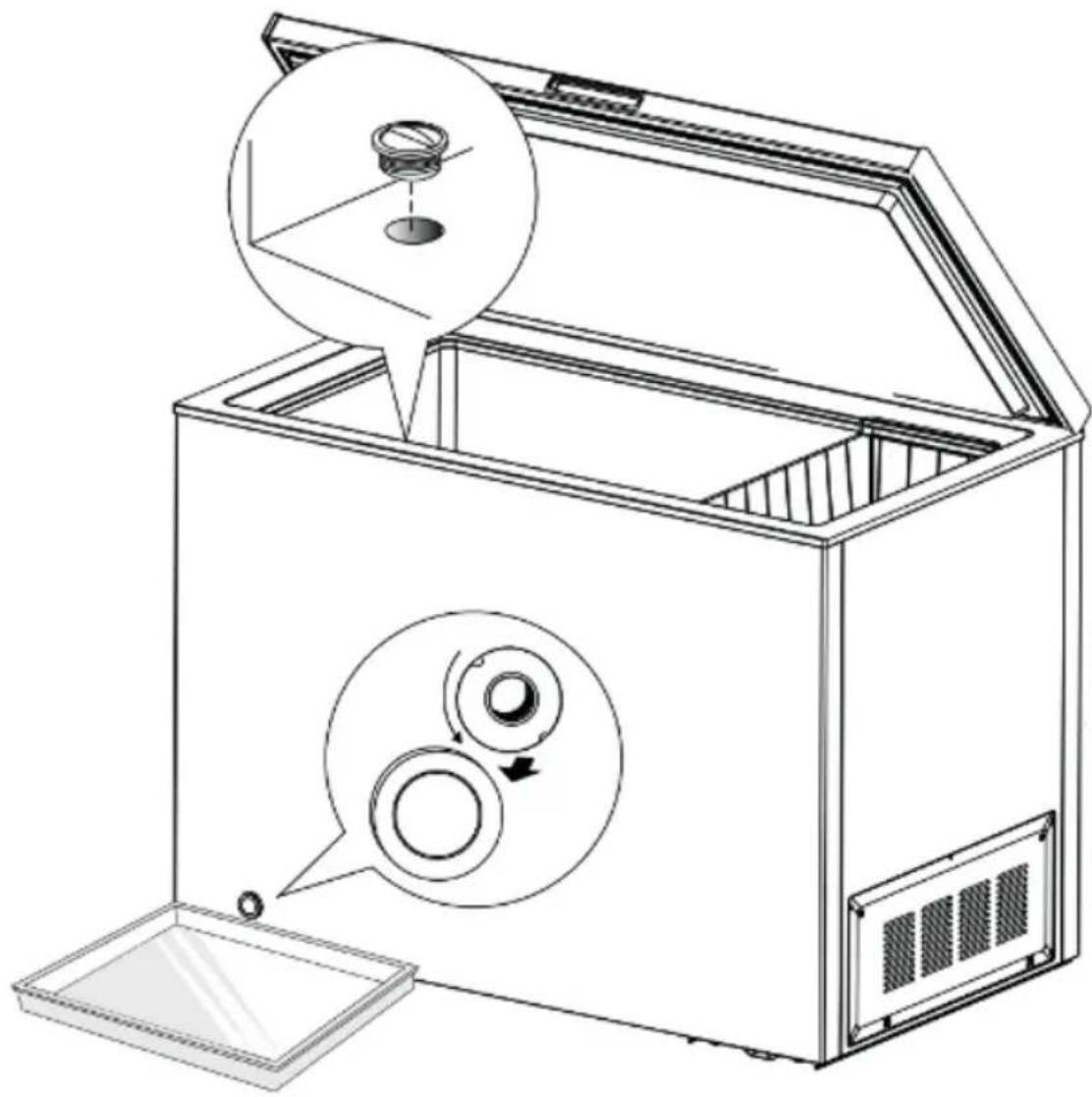

Clean the drainpipe (Figure 9), using soft materials to avoid damaging the liner. Prepare containers for thawing water. Pay attention to clean the drain pan of the compressor compartment to avoid spillage on the floor (depending on the freezer model).

You can take advantage of the ambient temperature for natural defrosting or use a specific ice scraper (plastic or wood) to remove the frost.

5.- Remove the drain plug inside the freezer and the drain plug outside (depending on the freezer model). The thawed water will drain. Check the tray from time to time to prevent overflow. Replace the drain plugs at the end of defrosting.

6.-You may also use an adequate amount of hot (not boiling) water to accelerate thawing and blot excess water with a dry towel after thawing.

7.- After thawing and drying, return the food to the freezer and turn it on.

Safety check after maintenance

Check that the power cable is not broken or damaged.

Check that the plug is correctly inserted into the socket.

Check that the plug does not overheat.

ATTENTION: If the power cord and plug are damaged or dusty, electric shock and fire may occur. If there is any malfunction, disconnect the power cable and contact the official Cecotec Technical Support Service.

7. TROUBLESHOOTING

For the following minor malfunctions, please try to solve the problem yourself before contacting the official Cecotec Technical Support Service.

Fault Possible	causes Possible solutions
The appliance does not work.	The appliance is not plugged into the mains.	Unplug the cable and plug it in again.
	Circuit breakers or fuses are damaged.There is no electricity.	Check the electrical panel of your electrical installation.
The appliance makes noise.	The appliance is not stable.	Place the freezer on a level surface.
	The appliance touches the wall.	Move the appliance away from the wall.
The appliance has low cooling efficiency.	The food inside is hot or there is too much food.	Introduce food in the appliance when it is at room temperature.
	You open the door too often.	Keep the door closed.
	Something is caught in the door gasket.	Remove the object obstructing the door gasket.
	The appliance receives direct sunlight or is close to a heat source.	Remove the appliance from the heat source.
	The place where the appliance is placed is not well ventilated.	Ventilate the room.
	The selected temperature is too high.	Adjust the temperature.

ENGLISH

The appliance gives off unpleasant odours.	There is spoiled food inside.	Dispose of food which is spoiled. Clean the appliance.
	There is food with a strong odour inside.	Pack the strong-smelling foods.
Compressor runs for a long time.	High ambient temperature results in long operating time.	This is normal.
	Too many foods are introduced at the same time.	Do not put in too much food at the same time.
	Food is introduced while still hot.	Wait for the food to cool before putting it in the freezer.
	The door is opened too often.	Open the door only when it is necessary.
	The layer of frost on the inside is too thick.	Needs defrosting.
The door does not close properly.	Some object jams the door.	There is too much food, or it is not placed in the correct way.
	There is too much food in storage.	Do not overload the refrigerator with food.
	The bolt gasket is deformed.	Heat the gasket with an electric dryer or hot water, then let it cool and replace it. If the problem persists, contact Cecotec's Official Technical Support Service
The external part is hot.	When the appliance is in operation, heat is dissipated to the outside through the metal tubes inside the freezer.	It is normal for the outside temperature to be higher.
	Higher ambient temperature in summer causes an increase in the outside temperature.	Increase the heat dissipation space or place the unit in a cooler, more ventilated location.
Condensation forms on the outside.	Condensation may form when the humidity in the room is high.	This is normal. Wipe off condensation with a dry cloth.
It is difficult to open the door.	The difference in air pressure between the inside and outside of the freezer can sometimes make it difficult to open the door.	Wait a few moments and then try to open the door slowly.

Note: If none of these situations match your problem, do not attempt to disassemble or repair the appliance yourself. All repairs must be carried out by qualified personnel. Contact Cecotec's Official Technical Support Service. Repairs must be carried out by an authorised technician and only original spare parts must be used.

When the appliance is not to be used for a long period of time, disconnect it from the mains, remove all food and clean it. Leave the door ajar to avoid unpleasant odours.

These instructions are intended for qualified technicians, do not attempt to carry them out if you do not have the necessary training and knowledge, as any damage caused by an incorrect repair will void the warranty.

Unauthorised self-maintenance or maintenance will affect the safe use of the product and the application of the warranty policy.

NOTE:

- Certain noises may be heard during normal use of the freezer, which do not affect its correct operation.

- Noises that can be easily avoided:

Noise caused by an uneven appliance: adjust the position with the adjustable, folding front feet (not available on all freezer models). In any case, use a flat and stable base to locate the freezer.
Noise caused by rubbing against an adjoining piece of furniture or cabinet: move the freezer away.

ENGLISH

- The noises heard during normal use are mainly due to the operation of the compressor (ignition) and the refrigeration system (thermal expansion and contraction caused by the flow of refrigerant).

8. RECYCLING OF ELECTRICAL AND ELECTRONIC EQUIPMENT

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its service life, you must remove the batteries/accumulators and take it to a collection point designated by local authorities. For detailed information on how to properly dispose of electrical and electronic equipment and/or the corresponding batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help to protect the environment.

9. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

10. SIMPLIFIED DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

Img. 1

EU01_110509 Bolero CoolMarket Chest 99M White D EU01_110510 Bolero CoolMarket Chest 198M White D EU01_110511 Bolero CoolMarket Chest 293M White D EU01_110508 Bolero CoolMarket Chest Duo 508M White

EU01_110504 Bolero CoolMarket Chest 99P White E EU01_113715 Bolero CoolMarket Chest 143P White E EU01_110505 Bolero CoolMarket Chest 198P White E EU01_113716 Bolero CoolMarket Chest 249P White E EU01_110506 Bolero CoolMarket Chest 293P White E EU01_110507 Bolero CoolMarket Chest 418P White E EU01_110512 Bolero CoolMarket Chest 418P White D

Image 8 :

EU01_110509 Bolero CoolMarket Chest 99M White D EU01_110510 Bolero CoolMarket Chest 198M White D EU01_110511 Bolero CoolMarket Chest 293M White D EU01_110508 Bolero CoolMarket Chest Duo 508M White

DEUTSCH

EU01_110504 Bolero CoolMarket Chest 99P White E EU01_113715 Bolero CoolMarket Chest 143P White E EU01_110505 Bolero CoolMarket Chest 198P White E EU01_113716 Bolero CoolMarket Chest 249P White E EU01_110506 Bolero CoolMarket Chest 293P White E EU01_110507 Bolero CoolMarket Chest 418P White E EU01_110512 Bolero CoolMarket Chest 418P White D

EU01_110509 Bolero CoolMarket Chest 99M White D EU01_110510 Bolero CoolMarket Chest 198M White D EU01_110511 Bolero CoolMarket Chest 293M White D EU01_110508 Bolero CoolMarket Chest Duo 508M White

EU01_110504 Bolero CoolMarket Chest 99P White E EU01_113715 Bolero CoolMarket Chest 143P White E EU01_110505 Bolero CoolMarket Chest 198P White E EU01_113716 Bolero CoolMarket Chest 249P White E EU01_110506 Bolero CoolMarket Chest 293P White E EU01_110507 Bolero CoolMarket Chest 418P White E EU01_110512 Bolero CoolMarket Chest 418P White D

Legenda figura 8:

3.5.1 Como instalar as rodas (Figura 6)

EU01_110509 Bolero CoolMarket Chest 99M White D EU01_110510 Bolero CoolMarket Chest 198M White D EU01_110511 Bolero CoolMarket Chest 293M White D EU01_110508 Bolero CoolMarket Chest Duo 508M White

EU01_110504 Bolero CoolMarket Chest 99P White E EU01_113715 Bolero CoolMarket Chest 143P White E EU01_110505 Bolero CoolMarket Chest 198P White E EU01_113716 Bolero CoolMarket Chest 249P White E EU01_110506 Bolero CoolMarket Chest 293P White E EU01_110507 Bolero CoolMarket Chest 418P White E EU01_110512 Bolero CoolMarket Chest 418P White D

Legenda figura 8:

EU01_110509 Bolero CoolMarket Chest 99M White D EU01_110510 Bolero CoolMarket Chest 198M White D EU01_110511 Bolero CoolMarket Chest 293M White D EU01_110508 Bolero CoolMarket Chest Duo 508M White

EU01_110504 Bolero CoolMarket Chest 99P White E EU01_113715 Bolero CoolMarket Chest 143P White E EU01_110505 Bolero CoolMarket Chest 198P White E EU01_113716 Bolero CoolMarket Chest 249P White E EU01_110506 Bolero CoolMarket Chest 293P White E EU01_110507 Bolero CoolMarket Chest 418P White E EU01_110512 Bolero CoolMarket Chest 418P White D

Legenda figuur 8:

7. PROBLEEMOPLOSSING

EU01_110509 Bolero CoolMarket Göğüs 99M Beyaz D EU01_110510 Bolero CoolMarket Göğüs 198M Beyaz D EU01_110511 Bolero CoolMarket Göğüs 293M Beyaz D EU01_110508 Bolero CoolMarket Göğüs Duo 508M Beyaz

EU01_110504 Bolero CoolMarket Göğüs 99P Beyaz E EU01_113715 Bolero CoolMarket Göğüs 143P Beyaz E EU01_110505 Bolero CoolMarket Göğüs 198P Beyaz E EU01_113716 Bolero CoolMarket Göğüs 249P Beyaz E EU01_110506 Bolero CoolMarket Göğüs 293P Beyaz E EU01_110507 Bolero CoolMarket Göğüs 418P Beyaz E EU01_110512 Bolero CoolMarket Göğüs 418P Beyaz D

Efsane şekil 8:

EU01_110509 Bolero CoolMarket Chest 99M White D EU01_110510 Bolero CoolMarket Chest 198M White D EU01_110511 Bolero CoolMarket Chest 293M White D EU01_110508 Bolero CoolMarket Chest Duo 508M White

EU01_110504 Bolero CoolMarket Chest 99P White E EU01_113715 Bolero CoolMarket Chest 143P White E EU01_110505 Bolero CoolMarket Chest 198P White E

CATALÀ

EU01_113716 Bolero CoolMarket Chest 249P White E EU01_110506 Bolero CoolMarket Chest 293P White E EU01_110507 Bolero CoolMarket Chest 418P White E EU01_110512 Bolero CoolMarket Chest 418P White D

Llegenda figura 8:

EU01_110509 Bolero CoolMarket Chest 99M White D

EU01_110510 Bolero CoolMarket Chest 198M White D

EU01_110511 Bolero CoolMarket Chest 293M White D

EU01_110508 Bolero CoolMarket Chest Duo 508M White

يَءMoشر الطاقة.

EU01_110504 Bolero CoolMarket Chest 99P White E

EU01_113715 Bolero CoolMarket Chest 143P White E

EU01_110505 Bolero CoolMarket Chest 198P White E

EU01_113716 Bolero CoolMarket Chest 249P White E

EU01_110506 Bolero CoolMarket Chest 293P White E

EU01_110507 Bolero CoolMarket Chest 418P White E

EU01_110512 Bolero CoolMarket Chest 418P White D

الأسطورة رقم 8:

Technical diagram of an open refrigerator with numbered parts labeled for identification.

Fig./Img./Abb./Afb./Rys.1

Diagram of a rectangular box with labeled dimensions and numbered parts, showing internal structure and spacing.

Fig./Img./Abb./Afb./Rys.2

Fig./Img./Abb./Afb./Rys. 3

OPEN HERE FOR POWER CORD → OPEN OPEN HERE FOR POWER CORD ← ①

OPEN HERE FOR POWER CAND

Illustration of a hand inserting a cable into an air conditioner unit (no text or symbols)

Fig./Img./Abb./Afb./Rys. 4

Three technical illustrations of a different mechanical component: a wheel, a square plate, and a threaded bolt (no text or symbols present)

Fig./Img./Abb./Afb./Rys. 5

Fig./Img./Abb./Afb./Rys. 6

COOLING A FREE ZING POWER B

Fig./Img./Abb./Afb./Rys. 7

A B 1 2 3 4 SUPER 5 TEMP 6 Electronic control

Fig./Img./Abb./Afb./Rys. 8

Line drawing of a microwave oven with an open lid and internal components, showing a close-up of the lid and internal rings (no text or symbols)

Fig./Img./Abb./Afb./Rys. 9

www.cecotec.es
