USER MANUAL MMR-26Z MPM

EN We wish you satisfaction from using the product and invite you to check a wide range of other MPAs

MILKCEP C BPAJADLEJECH MLOKOM MXLRSOLOCNOUMSOU

MIKCEP 3 OLEFIOBOIO CHA LEO

Exterior view of a modern kitchen mixer with a black handle and stainless steel bowl (no visible text or symbols)

cz NAVOD K OBSLUZE 3

Labeled diagram of a kitchen mixer with numbered parts and wire handles for assembly or cleaning instructions.

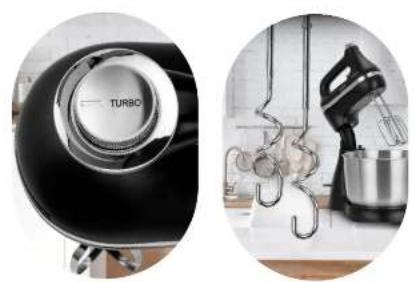

Two kitchen utensils: a black turbomachinery with 'TURBO' label and a hand mixer on a counter (no visible text or symbols)

Smooth speed control - TURBO mode Attachment for light creams and sauces

Close-up of a kitchen mixer with a metal whisk, kitchen background (no visible text or symbols)

Dough kneading attachment

BEZPEČNOSTNÍ POKYNY PŘI POUŽÍVÁNÍ

• Read the instructions carefully before use.
• Take special care when children are near the appliance.
• Do not use the appliance for purposes other than those for which it was intended.
• Use of accessories not recommended by the manufacturer may cause damage to the device or personal injury.
• Do not immerse the device, cable or charger in water or other liquids.
• Do not leave the appliance unattended during operation.

- Never use a damaged appliance, including one with a damaged cord or plug, in which case have it repaired at an authorised service centre.

- Do not use the appliance outdoors.

- Do not hang the power cable on sharp edges or allow it to come into contact with hot surfaces.

- Do not let the power cord hang over the edge of the table/counter.

- Do not touch the appliance with wet hands.

- The appliance is intended for domestic use only.

- Remember to keep a safe distance from rotating components of the appliance during operation. Coming into contact with them may result in personal injury or (i) damage to property e.g. by pulling out loose hanging items of clothing/jewellery etc.

- Clean the appliance, in particular parts being in direct contact with food, before first use, immediately after finishing work and if the appliance has not been used for a long time. The procedure is described in details in the “CLEANING AND MAINTENANCE” section.

- Before cleaning the stirrers and hook, they must first be removed from the device!

- Do not place the device near other electric cookers, burners, ovens, etc.

- Always ensure that all parts of the appliance are correctly fitted before starting work.

- Do not place the appliance on a hot surface.

• The appliance may be used by people with reduced physical, sensory or mental abilities, as well as those without prior knowledge or experience in using such types of appliance, provided that they either are supervised or have been instructed and fully understood the training content.
• Children are forbidden to perform cleaning and maintenance activities.

• The appliance must be kept away from children. Keep the appliance and cable out of the reach of children.

• The device is not a toy and should not be used as such by children.

• Disconnect the appliance from the power supply each time when the appliance is left unattended and before any assembling, disassembling, or cleaning works.
• Turn off the appliance before making any changes in equipment or before approaching any moving parts during use.

- Do not connect the plug to the power socket with wet hands.

- Do not pull the plug out of the power socket by pulling the cord.

- Use the appliance on a smooth and stable surface.

- For the safety of children, please do not leave freely accessible parts of the packaging (plastic bags, cardboard boxes, polystyrene, etc.).

-WARNING! Do not allow children to play with the film. Danger of suffocation!

BEFORE FIRST USE

1. Take the device out of the box and remove all protecting cardboard and foil.
2. Wash thoroughly and dry the parts that directly come into contact with food.

DESCRIPTION OF THE APPLIANCE

1. Speed control knob/Turbo button
2. Mixer release key
3. Main unit
4. Supporting arm button (releasing the mixer from the arm)
5. Supporting arm (swivel arm)
6. Base button
7. Base

8. Rotating bowl with a capacity of 4.2l

9. Whisk mixers for whipping foam

10. Hook mixers for kneading dough

USE OF THE MIXER

1. Fix the whisk mixers (9) or hook mixers (10) in the corresponding holes of the main unit (3) so that you feel the resistance. Always insert accessories with the end ending in the crown into the opening on the left side of the device.
2. Connect the device to a power source.
3. Place the bowl (6) on the base.
4. Open the supporting arm (8) by pressing the base button (6). In the extreme position, the base will lock automatically.
5. Mount the main unit with whisk mixers or hook mixers attached to the supporting arm. Correct installation of the device will be indicated by the latches snapping into place.
6. Press the button on the base (6) and lower the supporting arm (5).
7. Add the products to the bowl.
8. Turn on the device by moving the knob (1) clockwise to reach the maximum speed.
9. The device is equipped with the TURBO function (1) which allows the device to achieve maximum power. To activate the TURBO function, press the speed control dial/turbo button (1).
10. When finished, move the speed control knob/turbo button (1) to the left.
11. Disconnect the device from the power source.
12. Then lift the supporting arm (5) by pressing the base button (6).
13. Press the supporting arm button (4) to remove the device from the supporting arm (5).
14. Remove the whisk or hook mixers by pulling the mixer release key (2).

CAUTION! When mixing with hook mixers for kneading dough, flour may be deposited on the edges of the bowl. It should be collected with a spatula after turning off the mixer.

SECURITY MEASURES

1. After 3 minutes of continuous use, let the device cool down for a few minutes.
2. Do not work for more than 3 minutes at a time.

CLEANING AND MAINTENANCE

1. Pull the plug out of the socket
2. Clean the device casing with a damp cloth.
3. Clean the whisk mixers or hook mixers under running water.
4. It is recommended to clean the accessories immediately after the operation is done. This will remove any lingering deposits, prevents residue from drying up, making washing more efficient and easier, and prevents the proliferation of bacteria.

CAUTION! Do not use sharp objects, abrasive polishes, solvents or other strong chemicals for cleaning since their use may cause damages to the device.

CAUTION! Do not immerse the main unit (3) in water.

TECHNICAL DATA

Model	MMR-26/Z
Power supply 220-240V ~ 50Hz
Rated power 500 W
Maximum power 850 W
Availability of the shutdown and standby mode	Available
Power consumption in standby mode -
Power consumption in the shutdown mode 0.17 W
Power consumption in network standby mode	-
Automatically goes into standby mode after -
Automatically goes into the shutdown mode after -
Network standby mode, if the device has a connection function with the application	-
Length of mains cable	1 m

CE

CAUTION! MPM agd S.A. reserves the right to technical changes.

Proper disposal of the product (waste electrical and electronic equipment)

Marking on the product indicates that after the service-life of the product expires, it should not be disposed with other type of municipal waste. Used equipment may have a negative impact on the environment and health of people due to potentially containing hazardous substances, mixtures and components. Mixing electric waste with other types of waste or disassembling those in an unprofessional manner may cause a release of substances that are hazardous to the environment and health.

Used equipment should be handed-over to a point for collection of electric waste. In order to obtain detailed information regarding the electric waste collection points, the user should contact the municipal point of electric waste collection or used equipment processing department.
