1. drill and screwer
2. battery socket
3. switch
4. rotation selector
5. drill chuck
6. torque selector
7. battery
8. charger
9. battery charge indicator

UA

Electronic adjustment of the rotation

Read the operating instruction

Wear protective goggles

Wear hearing protectors

This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.

CHARAKTERYSTYKA WYROBU

YT-828500, YT-828501, YT-828502, YT-828503, YT-828504

PRODUCT CHARACTERISTICS

The drill-driver is a universal portable tool that does not require an external power source, designed for DIY enthusiasts to make holes in various materials (e.g. wood, metal, concrete) and to screw and unscrew screws and bolts. Its special advantages will be appreciated by DIY enthusiasts performing various assembly and finishing works. Correct, reliable and safe operation of the power tool depends on proper use, therefore:

Before using the tool, read the entire manual and keep it.

The supplier is not liable for any damage resulting from failure to comply with the safety regulations and recommendations of this manual.

EQUIPMENT

The factory packaging includes a screwdriver and an additional handle. The device is not equipped with a battery or battery charger.

The product is delivered complete and does not require assembly. The following are supplied with the YT-8277915 product: 2x battery, and charging station (charger). The YT-827791 product does not include a battery or charging station.

TECHNICAL PARAMETERS

Parameter Unit of measurement Value
Catalogue number YT-827791, YT-8277915
Tension [V] 18 DC
Revolutions (idling) [min]	^-1 0 - 500 / 0 - 1800
Max torque [Nm] 120
Stroke frequency [min]	^-1 0 - 8500 / 0 - 29750
Noise level
- Sound pressure [dB (A)] 82,0 ± 5,0
- Power L_WA	[dB (A)] 90,0 ± 5,0
Vibration level (drilling concrete / steel) [m/s]	^2 ]	11,5 ± 1,5 / 1,3 ± 1,5
Mass	[kg]	1,3
Tool holder	[mm]	13
Maximum drilling diameter
- in wood	[mm]	25
- in concrete	[mm]	16
- in steel	[mm]	20
Degree of protection		IPX0
Insulation class		III
Battery*
- Battery type		Li-Ion
- Capacity	[Ah]	4
Charger*
- Input voltage	[V]	200 - 240~
- Network frequency [Hz]	50 / 60
- Output voltage	[V]	21,5 DC
Charging time**	[h]	2

* only for models equipped with a battery and charger.

** the specified charging time applies only to the battery with the capacity listed in the table.

The declared noise emission value has been measured using the standard test method and can be used to compare one tool to another. The declared noise emission value can be used in the preliminary exposure assessment.

The declared total vibration value has been measured using the standard test method and can be used to compare one tool to another. The declared total vibration value can be used in the initial exposure assessment.

Note! The vibration emission during tool operation may differ from the declared value, depending on the manner the tool is used. Note! Safety measures to protect the operator, which are based on an assessment of exposure under actual conditions of use (including all parts of the work cycle, such as the time when the tool is switched off or idle and the activation time), must be specified.

EN

GENERAL WARNINGS FOR THE SAFETY OF POWER TOOLS

Warning! Read all safety warnings, illustrations and specifications provided with this power tool. Failure to do so may result in electric shock, fi re or serious injury.

Keep all warnings and instructions for future reference.

The term "power tool" used in warnings applies to all tools driven by power both wired and wireless.

Workplace safety

Keep the workplace well-lit and clean. Disorder and poor lighting can be causes of accidents.

Do not work with power tools in an environment with an increased risk of explosion, containing flammable liquids, gases or vapors. Power tools generate sparks that can ignite dust or fumes.

Children and third persons should not be allowed to enter the workplace. Loss of concentration can result in loss of control.

Electrical safety

The plug of the electric cable must match the power socket. You must not modify the plug in any way. Do not use any plug adapters with earthed power tools. An unmodified plug that fits the outlet reduces the risk of electric shock.

Avoid contact with earthed surfaces such as pipes, radiators and coolers. Grounding the body increases the risk of electric shock.

Do not expose power tools to contact with atmospheric precipitation or moisture. Water and moisture that gets inside the power tool increases the risk of electric shock.

Do not overload the power cable. Do not use the power cord to carry, pull or unplug the power plug from the power outlet.

Avoid contact of the power cable with heat, oils, sharp edges and moving parts. Damage or entanglement of the power cord increases the risk of electric shock.

In the case of working outside closed rooms, use extension cords intended for work outside closed rooms. The use of an extension cord adapted for outdoor use reduces the risk of electric shock.

When using a power tool in a humid environment is unavoidable as a protection against supply voltage use a residual current device (RCD). The use of RCD reduces the risk of electric shock.

Personal safety

Stay alert, pay attention to what you do and keep common sense while working with the power tool. Do not use a power tool when you are tired or under the influence of alcohol or medication. Even a moment of inattention while working can lead to serious personal injury.

Use personal protective equipment. Always wear eye protection. The use of personal protective equipment such as dust masks, anti-slip safety shoes, helmets and hearing protection reduce the risk of serious personal injury.

Prevent accidental operation. Make sure that the electric switch is in the “off” position before connecting to the power supply and / or battery, lifting or moving the power tool. Moving the power tool with the finger on the switch or powering the power tool, when the switch is in the “on” position can lead to serious injuries.

Before turning on the power tool remove any keys and other tools that were used to adjust it. The key left on the rotating parts of the power tool can lead to serious injuries.

Do not reach and do not lean too far. Keep the right attitude and balance all the time. This will allow easier control over the power tool in case of unexpected work situations.

Dress accordingly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts of the power tool. Loose clothing, jewelry or long hair can be caught by moving parts.

If the devices are fitted for the connection of dust extraction or dust collection, make sure that they are connected and used properly. The use of dust extraction reduces the risk of dust hazards.

Do not let the experience acquired from frequent use of the tool resulted in carelessness and ignoring safety rules.

Carefree action can cause serious injuries in a fraction of a second.

Use and care of the power tool

Do not overload the power tool. Use the power tool appropriate for the selected application. The right power tool will provide a better and safer job if used according to the designed load.

Do not use the power tool, if the electric switch does not allow switching on and off. Power tool, which cannot be controlled by means of a power switch is dangerous and must be returned for repair.

Disconnect the plug from the power socket and / or remove the battery if it is detachable from the power tool before adjusting, changing accessories or storing the tool. Such preventive measures will allow you to avoid accidentally turning on the power tool.

Keep the tool out of the reach of children, do not let people who do not know how to operate the power tool or these instructions use a power tool. Power tools are dangerous in the hands of untrained users.

Maintain power tools and accessories. Check the tool for mismatches or jams of moving parts, damage to parts and any other conditions that may affect the operation of the power tool. Damage must be repaired before using the power tool.

Many accidents are caused by incorrectly maintained tools.

EN

Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp edges are less prone to jamming and are easier to control when working.

Use power tools, accessories and inserted tools etc. in accordance with these instructions, taking into account the type and conditions of work. The use of tools for work other than designed is likely to result in a dangerous situation.

Handles and gripping surfaces must be dry, clean and free from oil and grease. Slippery handles and gripping surfaces do not allow for safe operation and control of the tool in dangerous situations.

Repairs

Repair the power tool only in authorized facilities using only original spare parts. This ensures proper operation safety of the power tool.

DRILL SAFETY WARNINGS

Safety instructions for all activities

Wear hearing protection when hammer drilling. Exposure to noise can cause hearing loss.

Use an additional handle (grip). Loss of control can result in personal injury.

Hold the tool properly before use. This tool produces high torque and without proper grip during operation, loss of control may cause personal injury.

Hold the tool by insulated gripping surfaces when performing an operation where the insertion tool may contact a hidden wire or the power cord. Contacting a „live“ wire may cause metal parts of the tool to become „live“ and give the operator an electric shock.

Safety instructions when using long drill bits

Never operate at higher speed than the maximum speed rating of the drill bit. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.

Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.

Apply pressure only in direct line with the bit and do not apply excessive pressure. Bits can bend causing breakage or loss of control, resulting in personal injury.

Battery Charging Safety Instructions

Attention! Before charging, make sure that the charger body, cable and plug are not cracked or damaged. It is forbidden to use a faulty or damaged charging station and power supply! Only the charging station and power supply supplied in the set may be used to charge batteries. Using another charger may cause a fire or destroy the tool. The battery may only be charged in a closed, dry room protected from access by unauthorized persons, especially children. The charging station and power supply must not be used without constant adult supervision! If it is necessary to leave the room in which charging is taking place, disconnect the charger from the mains by unplugging the power cord from the mains socket. If smoke, a suspicious smell, etc. is emitted from the charger, immediately remove the charger plug from the mains socket! The tool is supplied with an uncharged battery, therefore before starting work it should be charged according to the procedure described below using the charging station and power supply supplied in the set. Li-Ion batteries (lithium-ion) do not exhibit the so-called „memory effect", which allows them to be charged at any time. However, it is recommended to discharge the battery during normal operation and then charge it to full capacity. If, due to the nature of the work, it is not possible to treat the battery in this way every time, then it should be done at least every few or a dozen cycles of operation. In no case should batteries be discharged by short-circuiting the electrodes, as this causes irreversible damage! It is also forbidden to check the battery charge by short-circuiting the electrodes and checking for sparking.

Battery storage

To extend the battery life, ensure proper storage conditions. The battery can withstand about 500 charge-discharge cycles. The battery should be stored in a temperature range of 0 to 30 degrees Celsius, with a relative humidity of 50%. To store the battery for a longer period of time, it should be charged to about 70% of its capacity. In the case of longer storage, the battery should be charged periodically, once a year. Do not over-discharge the battery, as this will shorten its life and may cause irreversible damage. During storage, the battery will gradually discharge due to leakage. The process of self-discharge depends on the storage temperature, the higher the temperature, the faster the discharge process. If the batteries are not stored properly, electrolyte may leak. In the event of a leak, secure the leak with a neutralizing agent, in the event of contact of the electrolyte with the eyes, rinse the eyes thoroughly with water and then seek immediate medical attention. It is forbidden to use a tool with a damaged battery. When the battery is completely worn out, it should be taken to a specialist waste disposal facility.

Battery transportation

Lithium -ion batteries are considered hazardous materials according to legal regulations. The user of the tool can transport the tool with the battery and the batteries themselves by land. In this case, no additional conditions need to be met. In the event of entrusting transport to third parties (e.g. shipping by courier), the regulations for the transport of hazardous materials must be followed. Before shipping, contact a person with appropriate qualifications in this matter. It is prohibited to transport damaged batteries.

EN

During transport, dismantled batteries must be removed from the tool, and exposed contacts must be protected, e.g. covered with insulating tape. Secure the batteries in the packaging in such a way that they do not move inside the packaging during transport. National regulations for the transport of hazardous materials must also be observed.

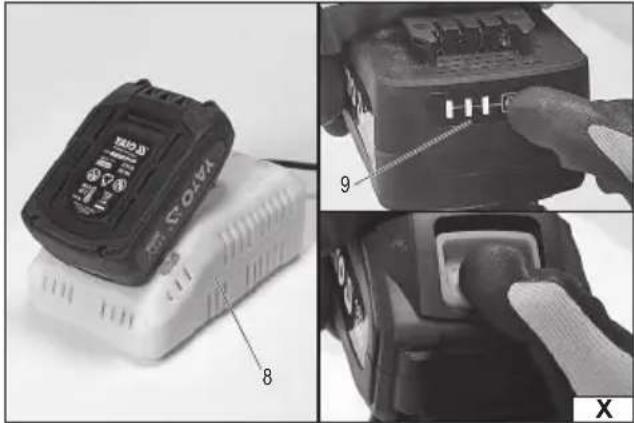

Battery charging

Insert the battery into the charger socket (X).

Connect the charger to a wall outlet.

There is a charger operation indicator light near the battery socket, as described in the „Charger operation indicator” table. After charging is complete, disconnect the charger plug from the mains socket. Remove the battery from the charging station by pressing and holding the battery latch button, then slide the battery out of the charger socket.

Green color Red color Work Status
continuous light waiting for loading
	continuous light landing
continuous light battery charged

YT-828500, YT-828501, YT-828502, YT-828503, YT-828504

Green color Yellow color* Red color Work Status
			waiting for loading
pulsating landing
continuous light battery charged
		pulsating battery overheating
		continuous light battery damaged
	pulsating charger overheating
	continuous light		charger damaged

*only in model with catalog number YT-828502

Power battery

Ion batteries can be used for power supply: YT-828461, YT-828462, YT-828463, YT-828464, YT-828465, which can only be charged using YATO YT-828498, YT-828499, YT-828500, YT-828501, YT-828502, YT-828503, YT-828504 chargers. It is prohibited to use other batteries with a different rated voltage and which do not fit the device's battery socket. It is prohibited to modify the socket and/or battery to fit them.

Insert the battery into the power socket with the contacts facing the inside of the tool until the battery latch engages. Make sure the battery does not slide out during operation. Disconnect the battery by pressing and holding the latch, then sliding the battery out of the tool housing.

PREPARING FOR WORK

NOTE! All activities listed in this chapter must be performed with the supply voltage disconnected - the battery must be disconnected from the tool!

Setting the speed and selecting the torque

The screwdriver has two mechanically switched gears (II). Depending on the selected maximum rotational speed, one of them should be selected. The gear characterized by a lower rotational speed is recommended for tightening and loosening screws, while the gear characterized by a higher speed is recommended for drilling.

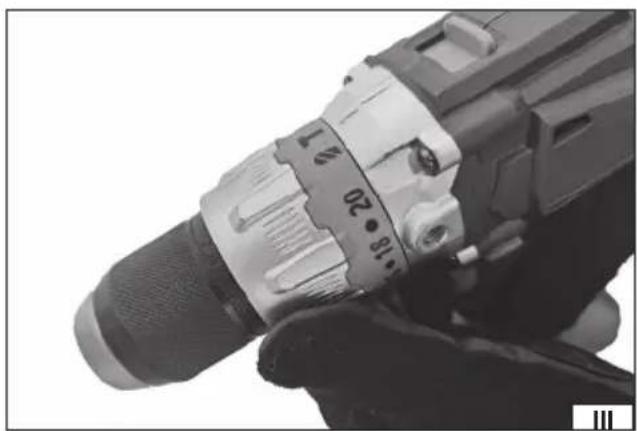

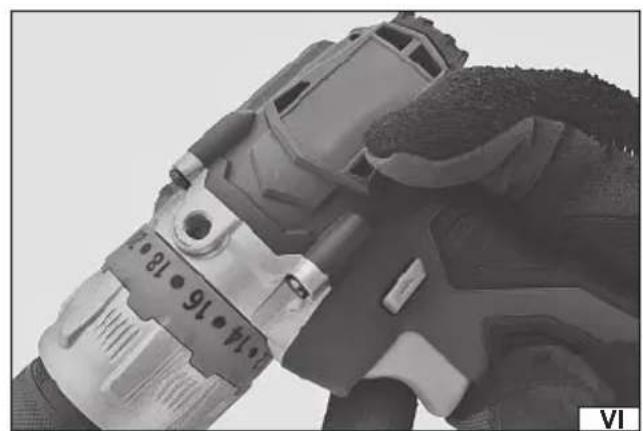

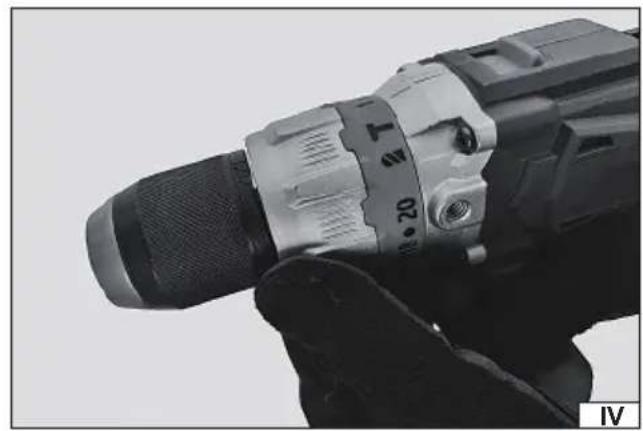

The torque is set using a ring located behind the drill chuck (III). The higher the number of settings, the higher the torque the screwdriver offers. Do not set a higher torque than necessary for correct operation. Otherwise, the threads may be damaged. When screwing screws directly into the material, the correct torque should be selected experimentally, by conducting a test on waste material. If the maximum torque that is safe for a given connection is not known, set the lowest value and then increase it until the appropriate value for the work is reached. If the screwdriver reaches the maximum set torque, the overload clutch will engage, and tightening should then be stopped.

If the product is equipped with a hammer drilling function, it has a hammer symbol visible on the setting ring (IV). Setting the ring to the hammer symbol will engage the impact mechanism. Impact drilling should be used for drilling holes in concrete and should not be used for drilling holes in wood or plastics.

When using a tool to drill holes, set the ring to the drill or hammer symbol, this will disengage the overload clutch and transmit

EN

maximum torque to the drill.

Warning! Do not use the settings marked with numbers for drilling. Activation of the overload clutch during drilling can damage the material or the drill and increases the risk of injury.

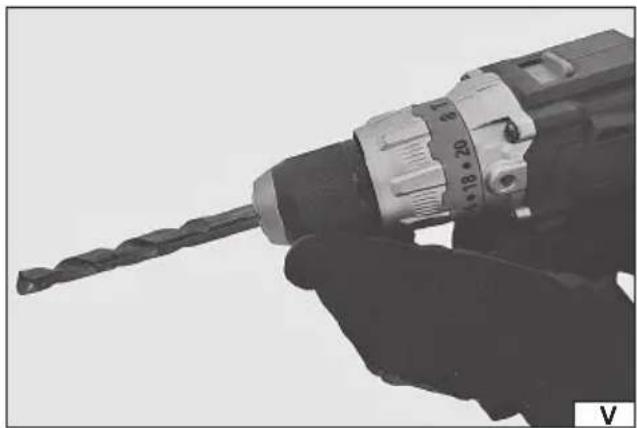

Fixing drills in the drill chuck

Be sure to select the appropriate cylindrical shank drill for the job.

Insert the drill bit into the chuck. Tighten the drill chuck by hand until the drill bit is securely held (V).

Set the highest torque. Set the torque knob to the drill or hammer symbol.

Setting the direction of rotation

Set the direction of rotation switch to the desired position. The direction of rotation is indicated by an arrow (VI).

Attention! The direction of rotation can only be changed when the supply voltage is disconnected! The direction of rotation must not be changed during operation of the drill-driver!

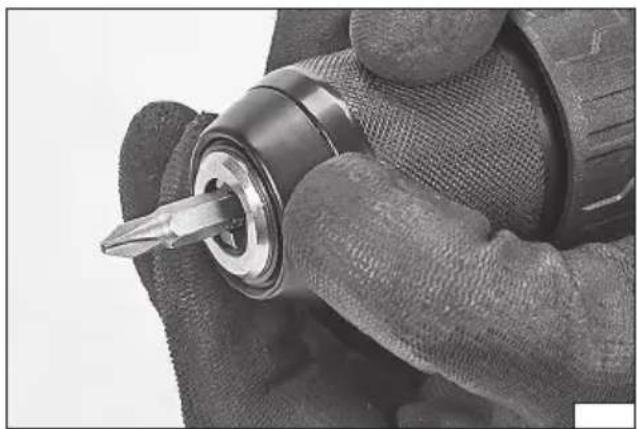

Fixing screwdriver bits in the drill chuck

Insert the bit holder into the drill chuck hole and then insert the appropriate bit for the job or secure the bit directly into the holder (VII).

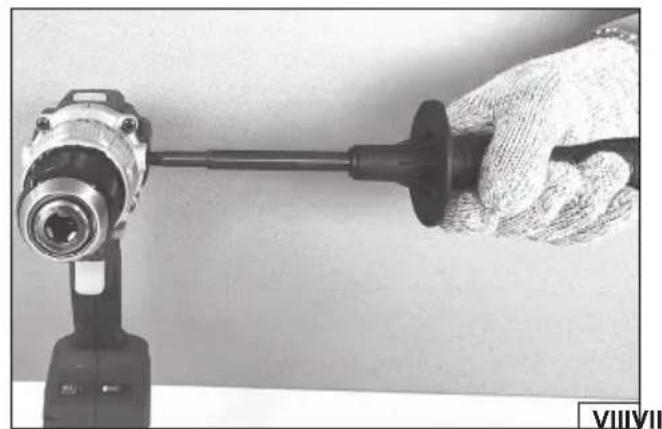

Installing the additional handle (VIII)

Due to the high torque, always use the tool with a properly attached auxiliary handle.

Screw the end of the additional handle into the hole in the tool housing. Tighten the handle so that it is securely fastened and does not loosen during operation.

Preparatory activities for work

Before starting work:

Secure the workpiece in a vice or using clamps.

Use work tools that are appropriate for the job at hand. Keep them sharp and in good condition.

Put on work clothes and eye and hearing protection.

Grasp the tool with both hands (IX).

Adopt a confi dent and stable stance.

Turn on the tool by pressing the electrical switch with your finger.

Caution! If you notice any suspicious noises, crackling sounds, smells, etc. during operation, immediately turn off the tool and remove the battery from the tool.

USING THE TOOL

Warning! Hearing protection must be worn when using the tool!

Using right or left rotation direction

Use clockwise rotation when drilling with commonly used right-handed drills.

Use left-hand rotation when a right-hand drill becomes jammed in the material and when removing screws. Use minimum rotation when removing screws.

Drilling in wood

Before drilling a hole, it is recommended to secure the workpiece with carpenter's clamps or in a vice, and then use a center punch or nail to determine the drilling location. Attach the appropriate drill bit to the drill chuck, set the torque, connect the battery to the tool and start drilling.

When making holes „through“ it is recommended to place a wooden pad under the material to prevent the edge of the hole at the exit from being jagged.

When making large diameter holes, it is recommended to drill a smaller pilot hole first.

Drilling in metals

Always securely secure the workpiece. In the case of thin sheet metal, it is advisable to place a piece of wood under it to avoid unwanted bends, etc. Then mark the locations for the holes with a center punch and start drilling.

Use drills for steel. When drilling white cast iron, it is recommended to use carbide-tipped drills. When drilling larger holes, it is recommended to make a smaller pilot hole first.

When drilling steel, use machine oil to cool the drill.

For aluminum, use turpentine or paraffin as a coolant.

When drilling brass, copper or cast iron, do not use coolants. To cool, remove the drill bit from the material frequently to allow it to cool.

EN

Before drilling the actual hole, drill a smaller hole without impact. Drill the actual hole with the impact function turned on. Use carbide impact drills in good condition.

Drilling in hard, compact ceramic materials (concrete, hard brick, stone, marble, etc.)

Before drilling the actual hole, drill a smaller hole without impact. Drill the actual hole with the impact function turned on. Use carbide-tipped impact drills in good condition.

Drilling in tiles, soft brick, plaster etc.

Use hammer drills. Do not use the hammer function (if available on the drill). Press the tool firmly with a constant force while drilling. Periodically remove the drill bit from the drill hole to remove dust and debris.

Using a tool to insert or remove screws

For this purpose it is recommended to use the lowest possible rotation speed and to use appropriate tips.

The bits can be mounted directly in the drill chuck or using a special magnetic holder.

To unscrew the screw, change the direction of rotation of the switch to left rotation (L).

Using attachments

The tool cannot be used to drive work attachments.

Additional notes

While working, do not exert too much pressure on the material being processed and do not make sudden movements so as not to damage the working tool and the drill.

Take regular breaks while working.

The tool must not be overloaded, the temperature of the external surfaces must never exceed 60 °C.

After finishing work, turn off the drill, remove the battery and perform maintenance and inspection.

MAINTENANCE AND INSPECTIONS

NOTE! Before starting any adjustments, technical service or maintenance, remove the battery from the product socket. After finishing work, check the technical condition of the power tool by visually inspecting it and assessing: the body and handle, operation of the electric switch, patency of the ventilation slots, sparking of the brushes, noise level of bearings and gears, start-up and smooth operation. During the warranty period, the user may not install power tools or replace any components or parts, as this will void the warranty. Any irregularities observed during inspection or during operation are a signal to carry out repairs at a service point. After finishing work, the housing, ventilation slots, switches and covers should be cleaned, for example, with an air jet (with a pressure of no more than 0.3 MPa), a brush or a dry cloth without using chemicals or cleaning fluids. Clean the tools and handles with a dry, clean cloth.

DE

PRODUKTMERKMALE

YT-828500, YT-828501, YT-828502, YT-828503, YT-828504

YT-828500, YT-828501, YT-828502, YT-828503, YT-828504

YT-828500, YT-828501, YT-828502, YT-828503, YT-828504

YT-828500, YT-828501, YT-828502, YT-828503, YT-828504

PRODUKTA RAKSTUROJUMS

YT-828500, YT-828501, YT-828502, YT-828503, YT-828504

YT-828500, YT-828501, YT-828502, YT-828503, YT-828504

YT-828500, YT-828501, YT-828502, YT-828503, YT-828504

YT-828500, YT-828501, YT-828502, YT-828503, YT-828504

YT-828500, YT-828501, YT-828502, YT-828503, YT-828504

YT-828500, YT-828501, YT-828502, YT-828503, YT-828504

CARACTÉRISTIQUES DU PRODUIT

YT-828500, YT-828501, YT-828502, YT-828503, YT-828504

YT-828500, YT-828501, YT-828502, YT-828503, YT-828504

YT-828500, YT-828501, YT-828502, YT-828503, YT-828504

YT-828500, YT-828501, YT-828502, YT-828503, YT-828504

YT-828500, YT-828501, YT-828502, YT-828503, YT-828504

YT-828500, YT-828501, YT-828502, YT-828503, YT-828504

YT-828500, YT-828501, YT-828502, YT-828503, YT-828504

DECLARATION OF CONFORMITY

0125/YT-827791/EC/2025

We declare and guarantee with full responsibility that the following products:

Brushless cordless drill / driver 18 V d.c., ∅13 mm, 0 - 500 / 0-1800 min ^-1 ; item no. YT-827791, YT-8277915

meet requirements of the following European Standards / Technical Specifications:

EN 62841-1:2015 + A11:2022

EN 62841-2-1:2018 + A11:2019 + A1:2022 + A12:2022

EN IEC 55014-1:2021

EN IEC 55014-2:2021

and fulfill requirements of the following European Directives:

2006/42/EC Machinery and safety elements

2014/30/EU Electromagnetic compatibility (EMC) Directive

2011/65/EU Restriction of the Use of Certain Hazardous Substances

Serial number: concern all serials numbers of item(s) mentioned in this declaration

The person authorized to compile the technical file:

Agnieszka Rędziak

(Place and date of issue)

V-CE PREZES ZARZADU

JAN SZMIDT

(Name and signature of authorized person)

TOYA S.A.
