Product Type	Cordless Lawn Mower
Brand	Bosch
Model	Rotak 18V2-43
Cutting Width	43 cm
Cutting Height	30–75 mm
Grass Collection Bag Volume	50 L
Rated Voltage	36 V (2 x 18 V)
Compatible Battery Type	PBA 18V...W-C (4.0 Ah, 5.0 Ah, 6.0 Ah)
Recommended Charger	AL18..
Weight (without battery)	19.6 kg
Sound Pressure Level (standard cutting)	83 dB(A)
Sound Power Level (standard cutting)	90 dB(A)
Vibration Value (a_h / p_F)	1.2 m/s² / 11.6 m/s²
Charging Temperature Range	0 °C to +35 °C
Operating and Storage Temperature Range	-5 °C to +50 °C
Runtime with 6.0 Ah battery	Up to 850 m²
Mulching Function	Yes, with adapter
Maintenance	Clean regularly, do not spray with water, store in a dry place
Recommended Protective Equipment	Hearing protection, non-slip shoes
After-Sales Service	09 70 82 12 99 (local call)

Frequently Asked Questions - Rotak 18V2-43 BOSCH

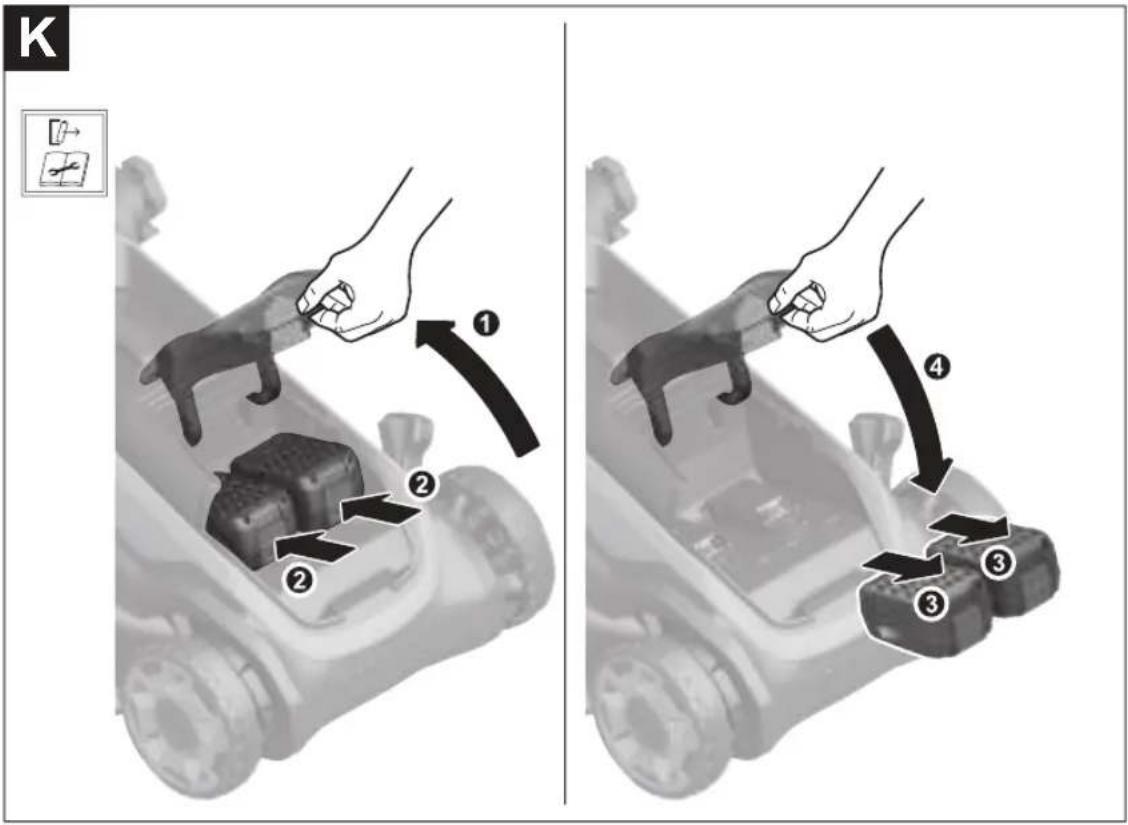

How to start the Rotak 18V2-43 mower?

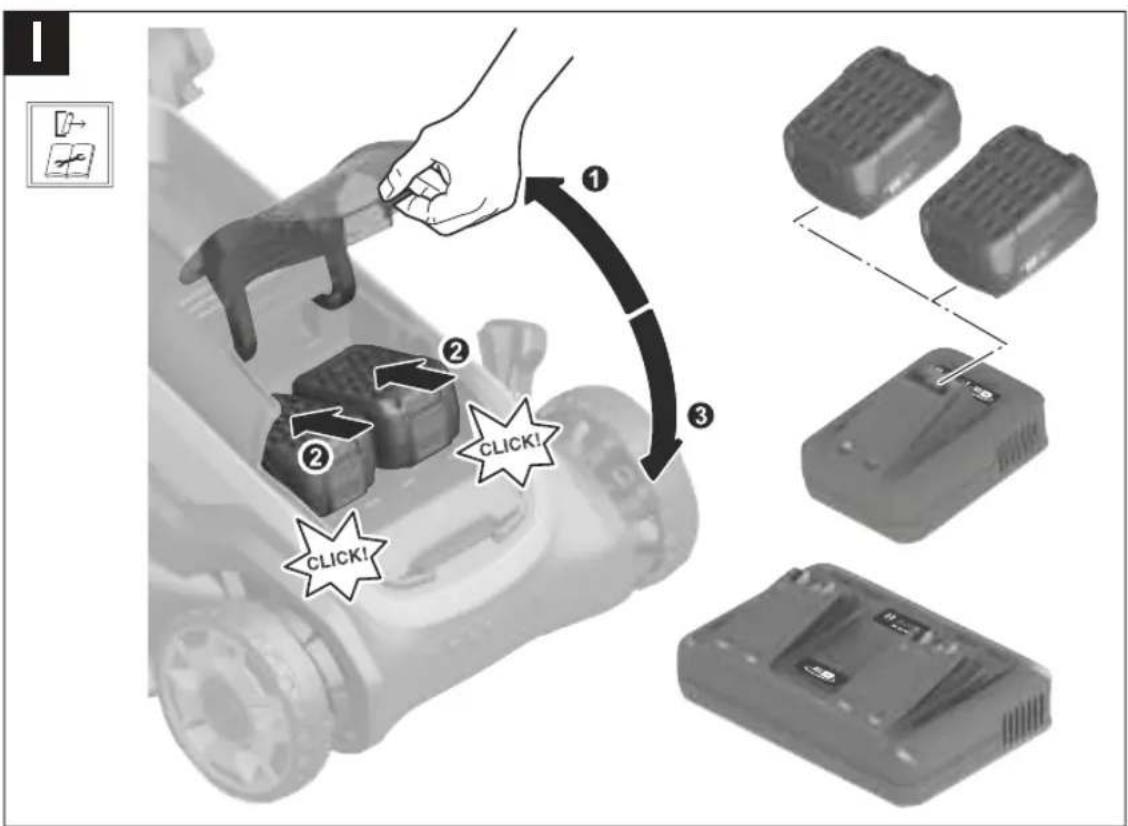

Insert the fully charged battery into its compartment until it clicks. Press the start button while holding the handle. Make sure the blades are clear before starting.

What to do if the mower does not start?

Check that the battery is correctly inserted and charged. If the battery is too hot or too cold, let it return to room temperature. Consult the troubleshooting chart for other possible causes.

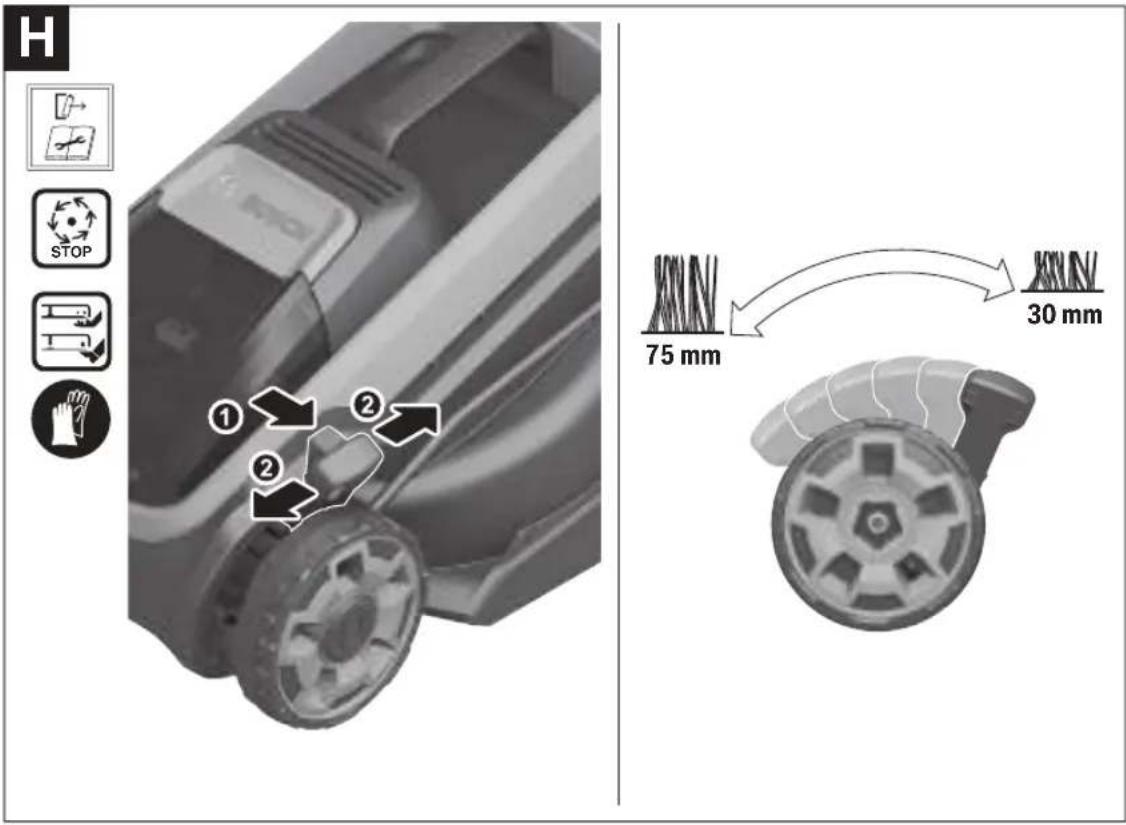

How to adjust the cutting height?

Use the central adjustment handle (figure H of the manual). The cutting height can be adjusted from 30 to 75 mm. For optimal mulching, cut about one third of the grass height.

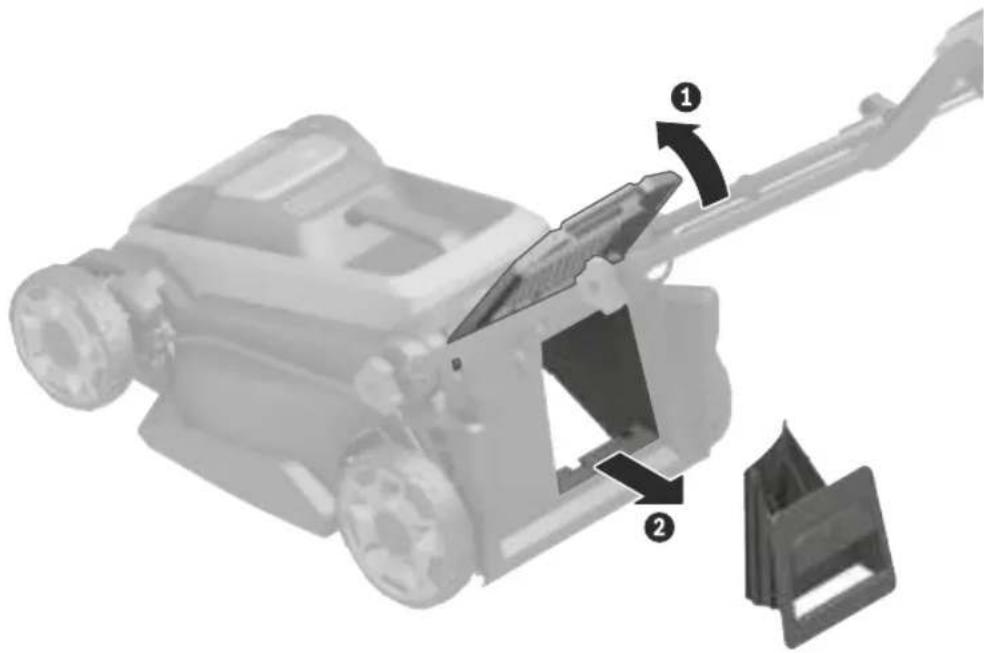

How to use the mulching function?

Remove the grass collection bag and insert the mulching adapter into the ejection opening, then close the flap. Mulching works best on dry grass in the late afternoon.

What is the battery runtime?

The runtime depends on battery capacity and cutting conditions. With a 6.0 Ah battery, you can mow up to 850 m² on fine, dry grass. To optimize runtime, mow more often and increase cutting height.

How to clean and maintain the mower?

Always remove the battery before maintenance. Clean the ventilation slots with a soft brush. Never use a high-pressure cleaner or garden hose. Store in a dry place.

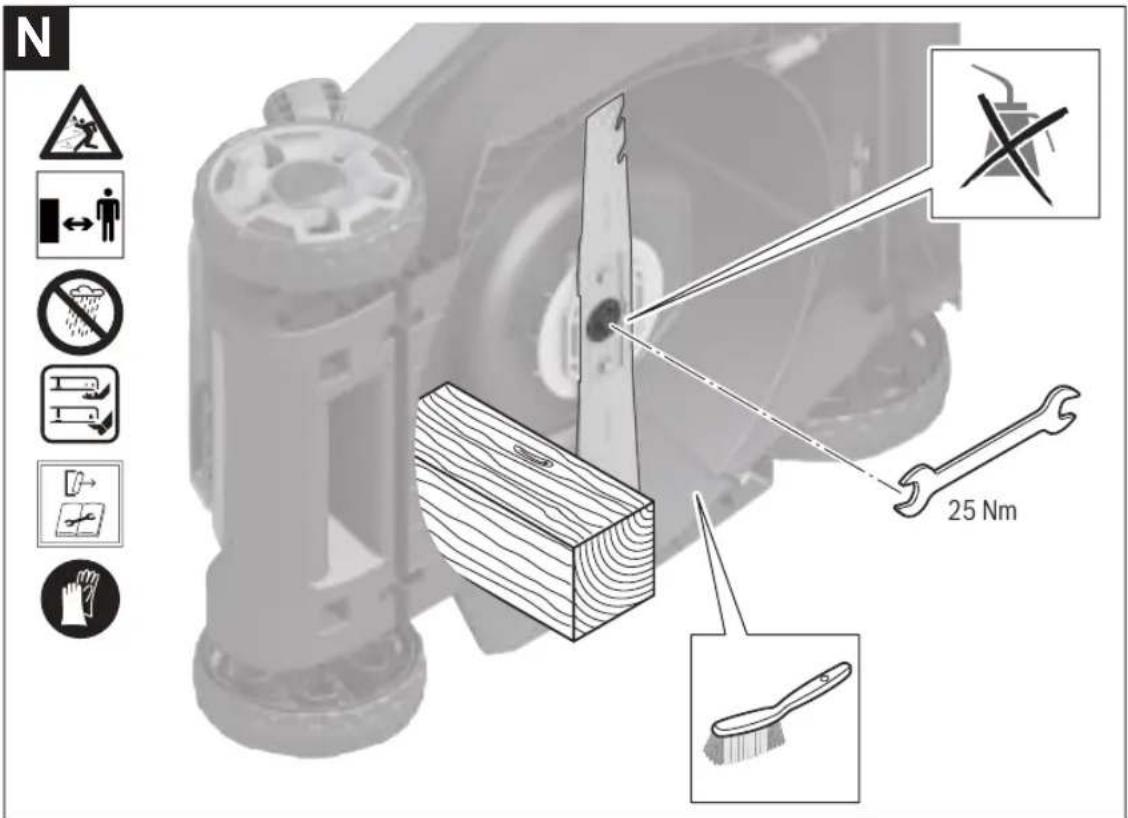

How to remove and replace the blades?

Disconnect the battery and wear protective gloves. Follow figure N of the manual: unscrew the central nut, remove the worn blade and mount the new one in the correct direction. Tighten the nut to 25 Nm.

What to do if the mower vibrates abnormally?

Stop the mower immediately, remove the battery and check if the blade is damaged or not properly tightened. If the blade is damaged, replace it. If the problem persists, contact after-sales service.

Which battery types are compatible?

The mower is compatible with Bosch PBA 18V batteries of 4.0 Ah, 5.0 Ah, and 6.0 Ah (W-C models). Only use batteries recommended by the manufacturer to avoid any risk.

Where to find spare parts?

Order spare parts from Bosch after-sales service at 09 70 82 12 99. Specify the 10-digit reference number on the product's rating label.

USER MANUAL Rotak 18V2-43 BOSCH

Two identical black-and-white photos of a lawn mower with attached blades, no visible text or symbols.

English ...... Page 26

Français......Page 33

Bosch Power Tools F 016 L94 958 | (20.10.2025)

8

G

Mechanical device with two labeled parts (① and ②), showing a lawn and handle assembly (no text or symbols beyond labels)

10

12

J2
ROTAK18V2-43

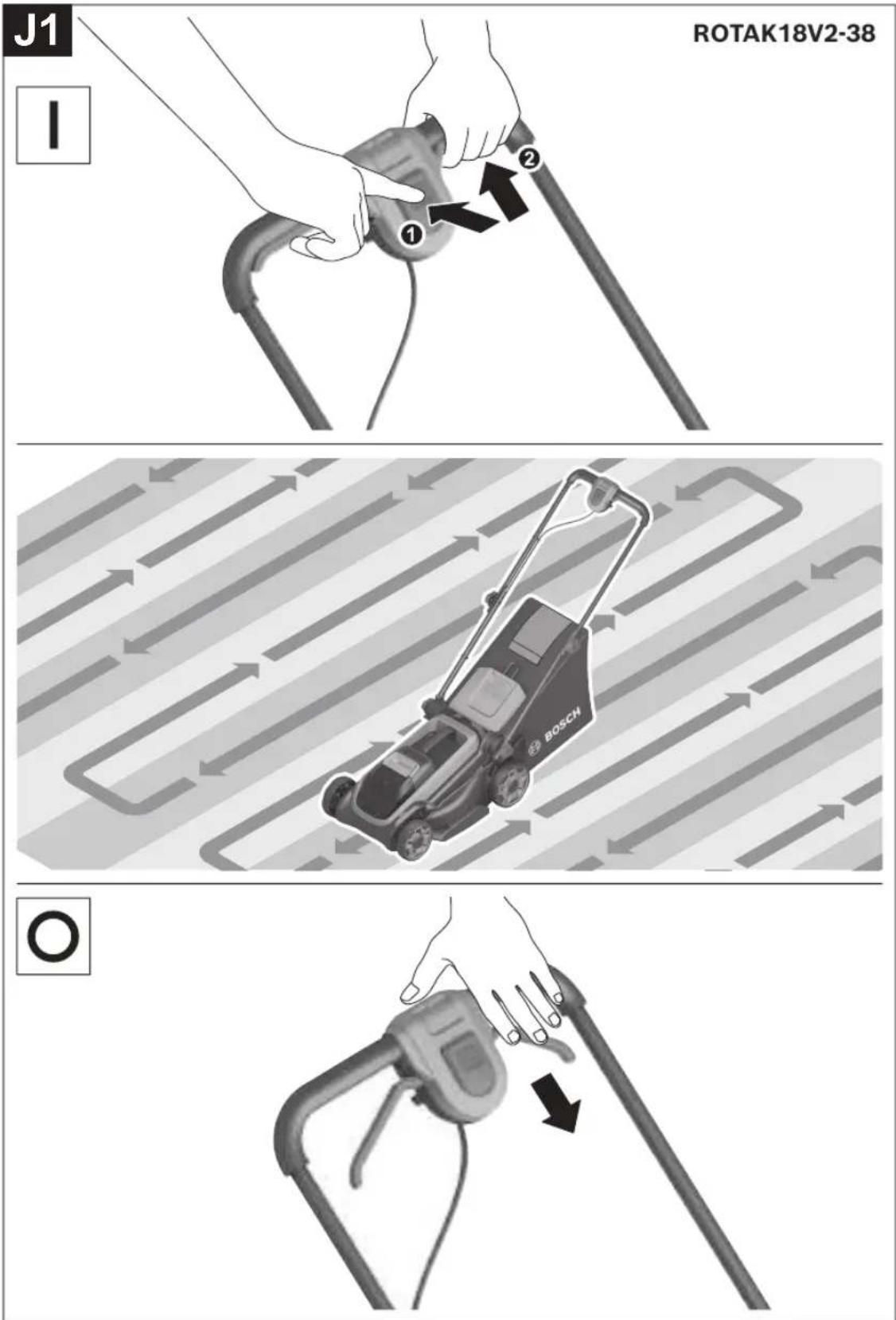

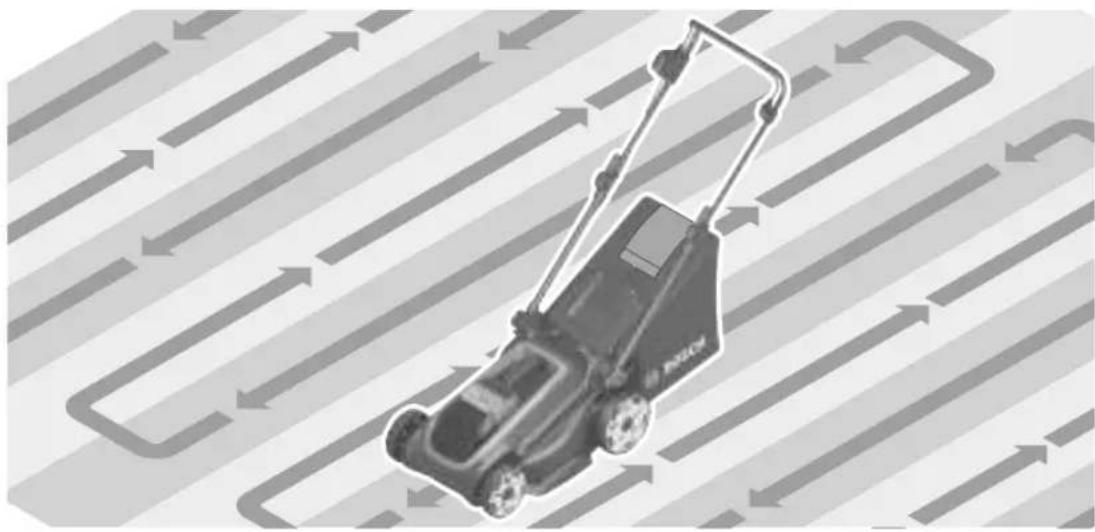

Illustration of a person using a lawn mower on a striped background (no text or symbols)

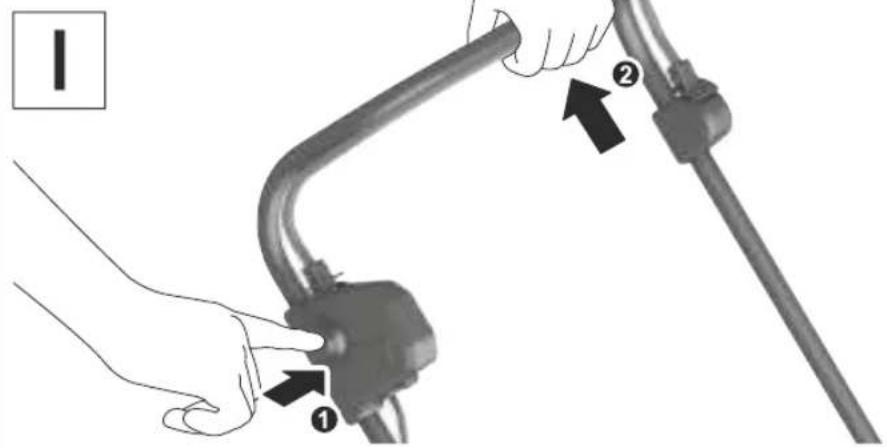

Close-up of a hand holding a flexible hose with a black arrow indicating the grip (no text or symbols present)

14

01

ROTAK18V2-38

Illustration of a vehicle with a cross symbol and magnified inset showing a vehicle (no text or symbols present)

16

02

ROTAK18V2-43

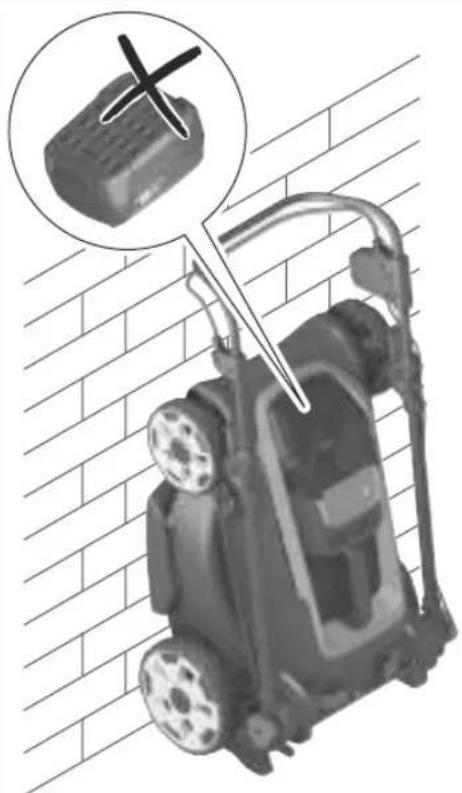

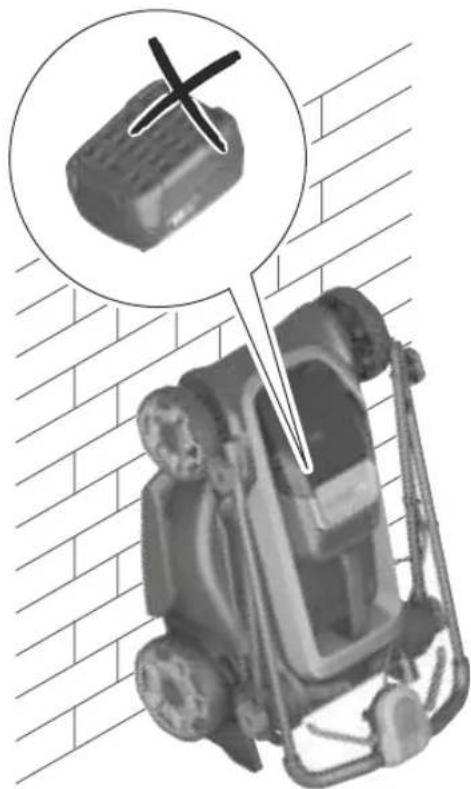

Illustration of a vacuum cleaner next to a device on a brick wall, with an inset showing a close-up of the device (no text or symbols present)

ROTAK18V2-38ROTAK18V2-43

Pure mechanical part diagram without any text, numbers, or symbols

Metal plate with bolt holes and a separate screw (no text or symbols)

Deutsch

Sicherheitshinweise

Explanation of symbols – lawnmower

General hazard safety alert.

Read instruction manual.

Make sure that bystanders are not injured by foreign objects being thrown away.

WARNING: Keep bystanders away.

WARNING: Keep hands and feet away from the blades.

WARNING: Disconnect battery before maintenance.

Not applicable.

Wait until all machine components have completely stopped before touching them. The blades continue to rotate after the machine is switched off, a rotating blade can cause injury.

Do not expose to rain.

Not applicable.

Not applicable.

Do not use a high-pressure washer or a garden hose to clean the machine.

Carefully check the area where the tool is to be used for wildlife and pets. Wildlife and pets may be injured while the machine is in operation. Thoroughly check the working area and

remove any stones, sticks, wires, bones and foreign objects. When using the machine, ensure that no wildlife, pets or small tree stumps are hidden in the dense grass.

General Power Tool Safety Warnings

WARNING

Read all safety warnings, instructions, illustrations and specifica-

tions provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

▶ Keep work area clean and well lit. Cluttered or dark areas invite accidents.
▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
▶ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

Personal safety

▶ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection

used for appropriate conditions will reduce personal injuries.

▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
▶ Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

▶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
▶ Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
▶ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into ac-

count the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

▶ Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Battery tool use and care

▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
▶ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
▶ Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
▶ Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ C may cause explosion.
▶ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

Service

▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
▶ Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Lawnmower safety warnings

▶ Do not use the lawnmower in bad weather conditions, especially when there is a risk of lightning. This decreases the risk of being struck by lightning.
▶ Thoroughly inspect the area for wildlife where the lawnmower is to be used. Wildlife may be injured by the lawnmower during operation.
▶ Thoroughly inspect the area where the lawnmower is to be used and remove all stones, sticks, wires, bones,

28 | English

and other foreign objects. Thrown objects can cause personal injury.

Before using the lawnmower, always visually inspect to see that the blade and the blade assembly are not worn or damaged. Worn or damaged parts increase the risk of injury.
▶ Check the grass catcher frequently for wear or deterioration. A worn or damaged grass catcher may increase the risk of personal injury.
▶ Keep guards in place. Guards must be in working order and be properly mounted. A guard that is loose, damaged, or is not functioning correctly may result in personal injury.
▶ Keep all cooling air inlets clear of debris. Blocked air inlets and debris may result in overheating or risk of fire.
▶ While operating the lawnmower, always wear non-slip and protective footwear. Do not operate the lawnmower when barefoot or wearing open sandals. This reduces the chance of injury to the feet from contact with the moving blade.
▶ While operating the lawnmower, always wear long trousers. Exposed skin increases the likelihood of injury from thrown objects.
▶ Do not operate the lawnmower in wet grass. Walk, never run. This reduces the risk of slipping and falling which may result in personal injury.
▶ Do not operate the lawnmower on excessively steep slopes. This reduces the risk of loss of control, slipping and falling which may result in personal injury.
When working on slopes, always be sure of your footing, always work across the face of slopes, never up or down and exercise extreme caution when changing direction. This reduces the risk of loss of control, slipping and falling which may result in personal injury.
▶ Use extreme caution when reversing or pulling the lawnmower towards you. Always be aware of your surroundings. This reduces the risk of tripping during operation.
▶ Do not touch blades and other hazardous moving parts while they are still in motion. This reduces the risk of injury from moving parts.
When clearing jammed material or cleaning the lawnmower, make sure all power switches are off and the battery pack is disconnected. Unexpected operation of the lawnmower may result in serious personal injury.

Additional safety warnings

This tool contains magnets – keep away from implants and other medical devices, e.g. pacemaker or insulin pumps, magnetic storage media and magnetically sensitive devices. The magnet generates a field that can impair the function of the devices or lead to irreversible data loss.
When adjusting the machine, make sure not to pinch your fingers between the moving blades and fixed parts of the machine.

▶ Check the product for damage if it hits a hard object or in case of excessive vibration.
▶ Always allow the product to cool down before storing.
▶ Empty the grassbox before storing.

Operation

▶ We would advise you to wear ear protection for your own convenience.
▶ Wait until the blades stop if the machine has to be tilted for transportation when crossing surfaces other than grass and when transporting the machine to and from the area to be mowed.
▶ Do not tilt the machine when starting or switching on the motor.
▶ Switch on the motor according to the instructions with feet well away from rotating parts.
▶ Do not put hands or feet near or under rotating parts.
▶ Always stand clear of the discharge zone when operating the machine.
▶ Never pick up or carry the machine while the motor is running.

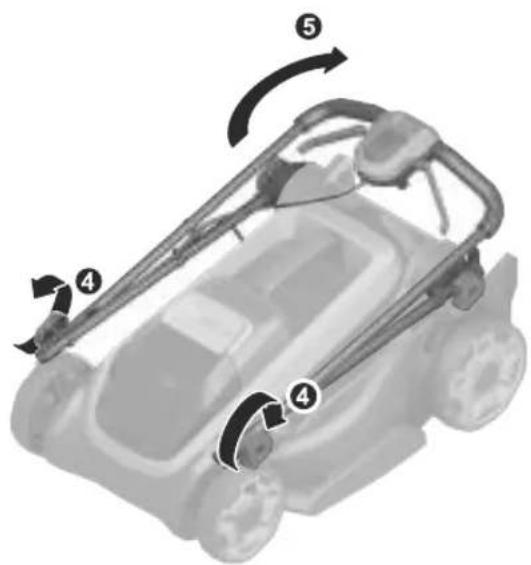

▶ When folding handles to storage position be mindful of cable positions to avoid damaging or pinching the cables.
▶ Tool does not start when handles are folded in storage position.
▶ If you store the lawnmower in a horizontal position, ensure that the rechargeable batteries have been removed.
▶ Only lift the garden tool with the carrying handle. Use the carrying handle with care.
▶ Do not modify the product. Unauthorized modifications may impair the safety of your product and may result in increased noise and vibration.

Removing the Battery

• Whenever you leave the machine.
• Before clearing a blockage.
• Before checking, cleaning or working on the machine.
• After striking a foreign object. Inspect the machine for damage and change the blade as necessary.
• If the machine starts to vibrate abnormally (check immediately).
• Before storing the tool.

Recommendations for Optimal Handling of the Battery Pack

▶ Do not open the battery. There is a risk of short-circuiting.

Protect the battery against heat (e.g., against continuous intense sunlight), fire, water, and moisture. There is a risk of explosion.

When not using the machine detach the battery away from paper clips, coins, keys, nails, screws, or other small metal objects that could cause bridging of the

terminals. Shorting the battery terminals together may cause burns or a fire.

In case of damage and improper use of the battery pack, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.
▶ Only use the battery with products from the manufacturer. This is the only way in which you can protect the battery against dangerous overload.
The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat.
▶ Do not short-circuit the battery. There is a risk of explosion.
▶ Occasionally clean the air inlet vents of the battery using a soft, clean and dry brush.
▶ Charge the machine only with the supplied battery charger.

Symbols

The following symbols are important for reading and understanding the original instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the product in a better and safer manner.

Symbol Meaning

	Movement direction
	Reaction direction

Symbol Meaning

	Wear protective gloves
weight	Weight
weight	Switching on
fixed	Switching off
fixed	Permitted action
	Prohibited action
CLICI	Audible noise
total	Accessories/Spare Parts

Product Description and Specifications

Read all safety warnings and all instructions. Failure to follow the safety warnings and instructions may result in electric shock, fire and/or serious injury.

Please observe the illustrations at the beginning of this operating manual.

Intended Use

The garden product is intended for domestic lawn mowing.

The garden product is not intended for hedge cutting, trimming, shredding, etc.

The garden product is intended for lawn mowing at ground level.

Technical Data

Lawnmower ROTAK18V2-38 ROTAK18V2-43
Article number	3 600 HB9 M.. 3 600 HB9 L..
Rated voltage V 36 V (2 x 18 V) 36 V (2 x 18 V)
Cutting width cm 38 43
Cutting height mm 30–75 30–75
Volume, grass bag I 40 50
Weight according to IEC 62841-1/IEC 62841-4-3A)	kg 15.8 19.6
Serial number See type plate on garden tool	See type plate on garden tool
Recommended ambient temperature during charging °C 0 to +35 0 to +35
Permitted ambient temperature during operationB) and during storage	°C –5 to +50 –5 to +50
Battery type	PBA 18V...W-C4.0 Ah, 5.0 Ah, 6.0 Ah	PBA 18V...W-C4.0 Ah, 5.0 Ah, 6.0 Ah

30 | English

Lawnmower ROTAK18V2-38 ROTAK18V2-43

Recommended chargers ^C

AL18.. AL18..

A) Without rechargeable battery (you can find the battery weight at www.bosch-diy.com)
B) Limited performance at temperatures < 0 °C
C) The following chargers are not compatible with the PBA rechargeable battery: AL 1814 CV, AL 1820 CV, AL 1860 CV

Noise/Vibration information

Noise emission values determined according to EN IEC 62841-4-3.

ROTAK18V2-38

Standard Cutting:

Typically, the A-weighted noise level of the power tool is: Sound pressure level 79 dB(A); sound power level 87 dB(A). Uncertainty K = 3 dB.

Wear hearing protection!

Mulching:

Typically, the A-weighted noise level of the power tool is: Sound pressure level 77 dB(A); sound power level 84 dB(A). Uncertainty K = 3 dB.

Wear hearing protection!

ROTAK18V2-43

Standard Cutting:

Typically, the A-weighted noise level of the power tool is: Sound pressure level 83 dB(A); sound power level 90 dB(A). Uncertainty K = 3 dB.

Wear hearing protection!

Mulching:

Typically, the A-weighted noise level of the power tool is: Sound pressure level 81 dB(A); sound power level 87 dB(A). Uncertainty K = 3 dB.

Wear hearing protection!

Vibration values a_h (continuous vibrations), p_F (repeated shock vibrations) and uncertainty K determined according to EN IEC 62841-4-3.

ROTAK18V2-38

$$ a _ {n} = 1 \mathrm{m} / \mathrm{s} ^ {2} (\mathrm{K} = 1. 5 \mathrm{m} / \mathrm{s} ^ {2}), p _ {\mathrm{F}} = 7. 2 \mathrm{m} / \mathrm{s} ^ {2} (\mathrm{K} = 0. 6 \mathrm{m} / \mathrm{s} ^ {2}) $$

ROTAK18V2-43

$$ a _ {n} = 1. 2 \mathrm{m} / \mathrm{s} ^ {2} (K = 1. 5 \mathrm{m} / \mathrm{s} ^ {2}), p _ {F} = 1 1. 6 \mathrm{m} / \mathrm{s} ^ {2} (K = 0. 6 \mathrm{m} / \mathrm{s} ^ {2}) $$

The declared vibration total value(s) and the declared noise emission value(s) have been measured in accordance with a standard test method and may be used for comparing one machine with another.

The declared vibration total value(s) and the declared noise emission value(s) may also be used in a preliminary assessment of exposure.

The vibration and noise emissions during actual use of the machine can differ from the declared total value depending on the ways in which the machine is used; and of the need to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the machine is switched off and when it is running idle in addition to the trigger time).

Rechargeable battery

Bosch sells some cordless power tools without a rechargeable battery. You can tell whether a rechargeable battery is included with the power tool by looking at the packaging.

Charging the battery

▶ Use only the chargers listed in the technical data. Only these chargers are matched to the lithium-ion battery of your power tool.

Note: Lithium-ion rechargeable batteries are supplied partially charged according to international transport regulations. To ensure full rechargeable battery capacity, fully charge the rechargeable battery before using your tool for the first time.

Inserting the Battery

Push the charged battery into the battery holder until it clicks into place.

Removing the Battery

To remove the rechargeable battery, press the battery release button and pull the battery out. Do not use force to do this.

Battery Charge Indicator on the Rechargeable Battery

Note: Not all battery types have a battery charge indicator. The LEDs on the battery charge indicator on the rechargeable battery indicate the state of charge of the battery. For safety reasons, it is only possible to check the charging status when the power tool is at a standstill.

Press the button for the battery charge indicator on the rechargeable battery to show the state of charge. This is also possible when the rechargeable battery is removed.

LEDs on rechargeable battery State of charge

4 × continuous green light ≈ 75-100 %

3 × continuous green light ≈ 50-75 %

2 × continuous green light ≈ 25-50 %

1 × continuous green light ≈ 5-25 %

1 × flashing green light ≈ 0-5 %

Recommendations for Optimal Handling of the Battery

Protect the battery against moisture and water.

Only store the battery within a temperature range of -20 to 50°C. Do not leave the battery in your car in the summer, for example.

A significantly reduced operating time after charging indicates that the battery has deteriorated and must be replaced. Follow the instructions on correct disposal.

Mounting and Operation

Action Figure Page
Items included ^A)	A1-A2	3-4
ROTAK18V2-38	B-C	5

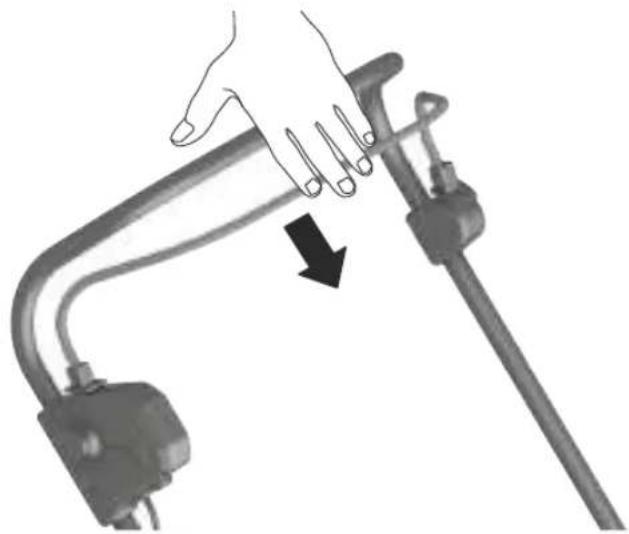

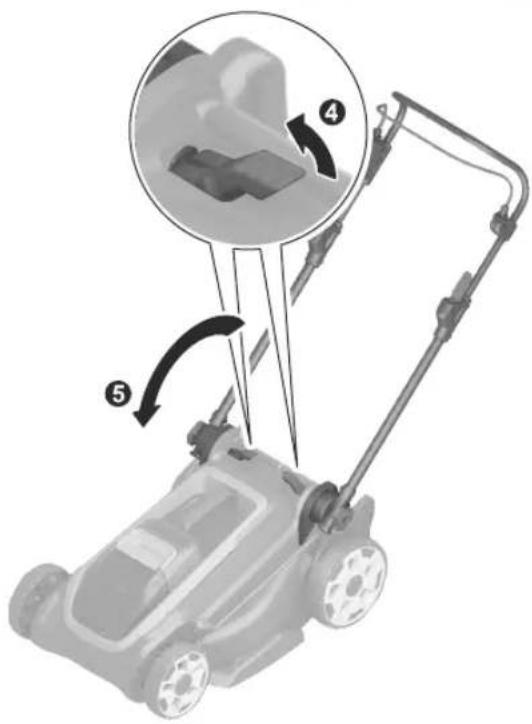

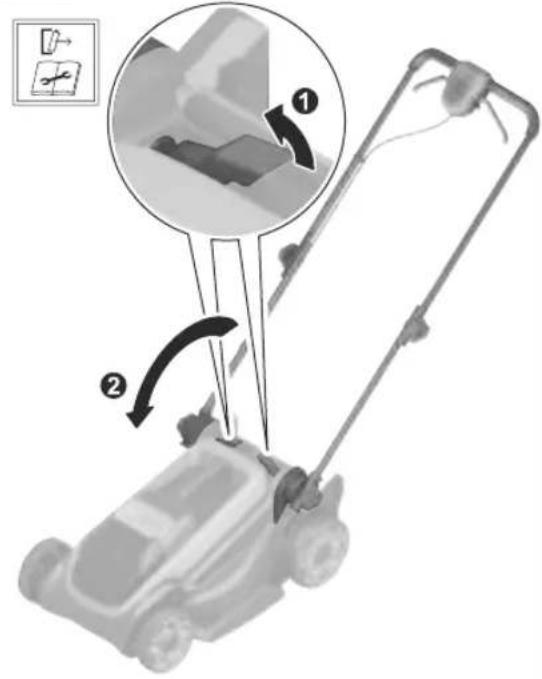

Folding out the handle

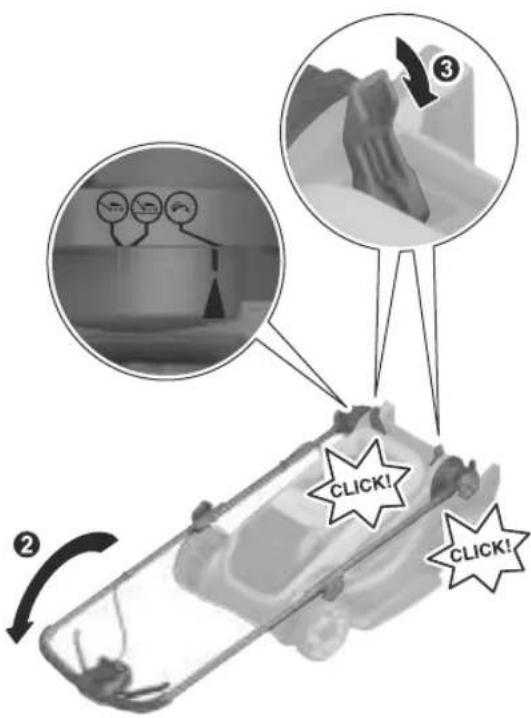

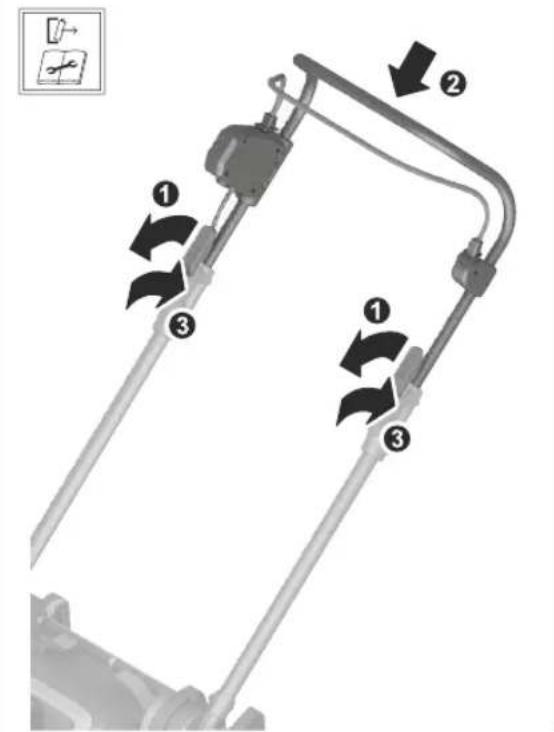

Setting the working height

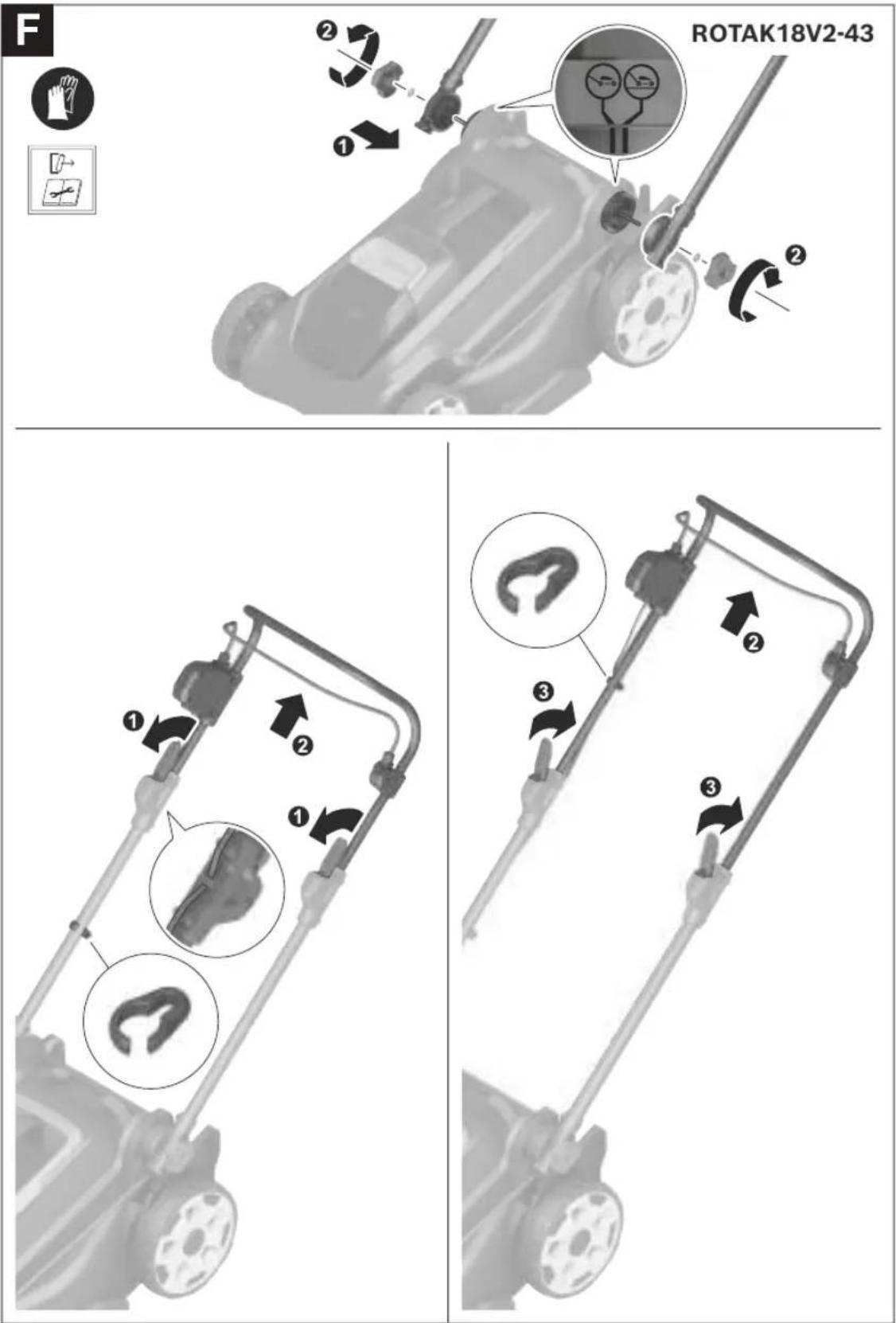

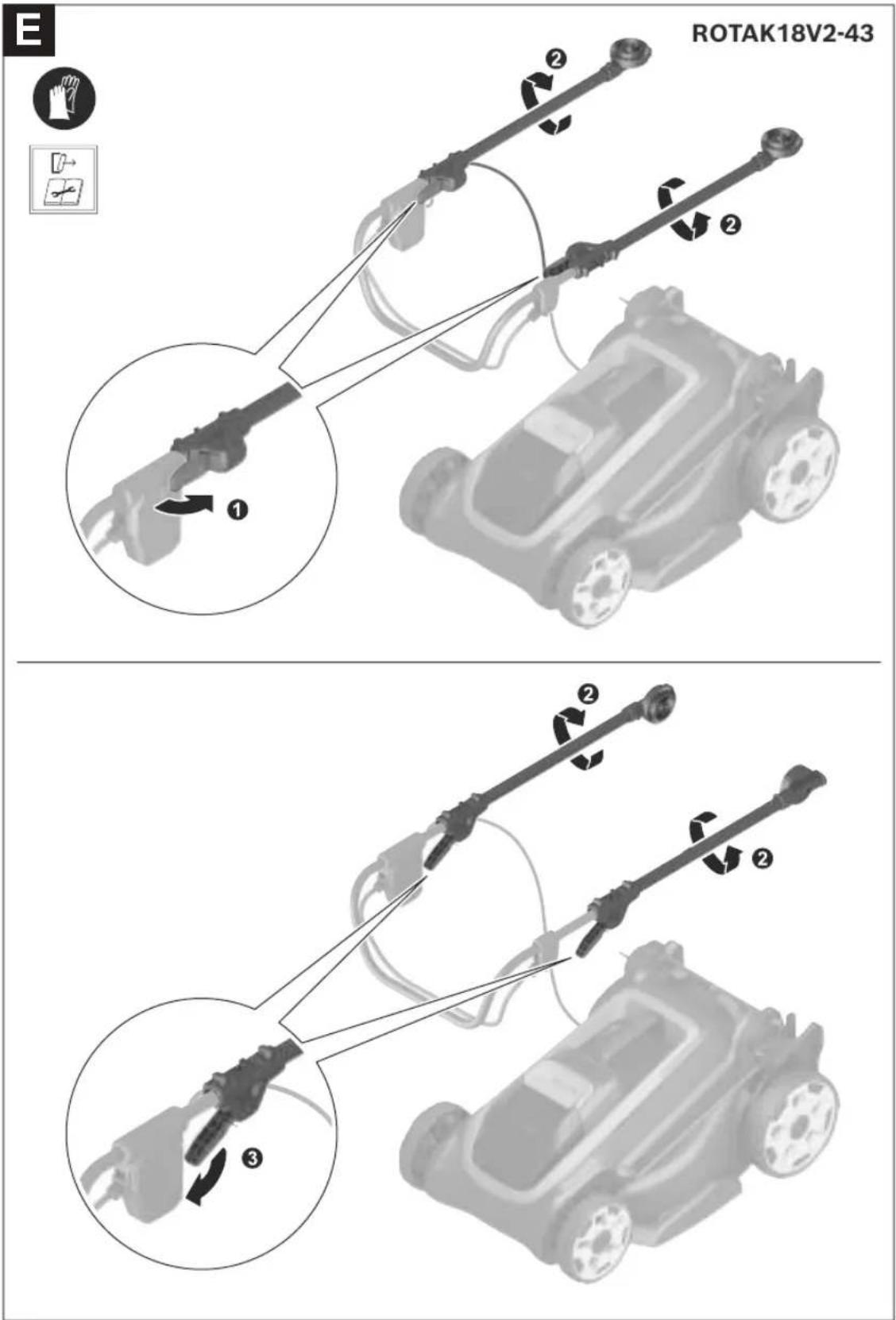

ROTAK18V2-43	F	8
Mounting the handle
Setting the working height

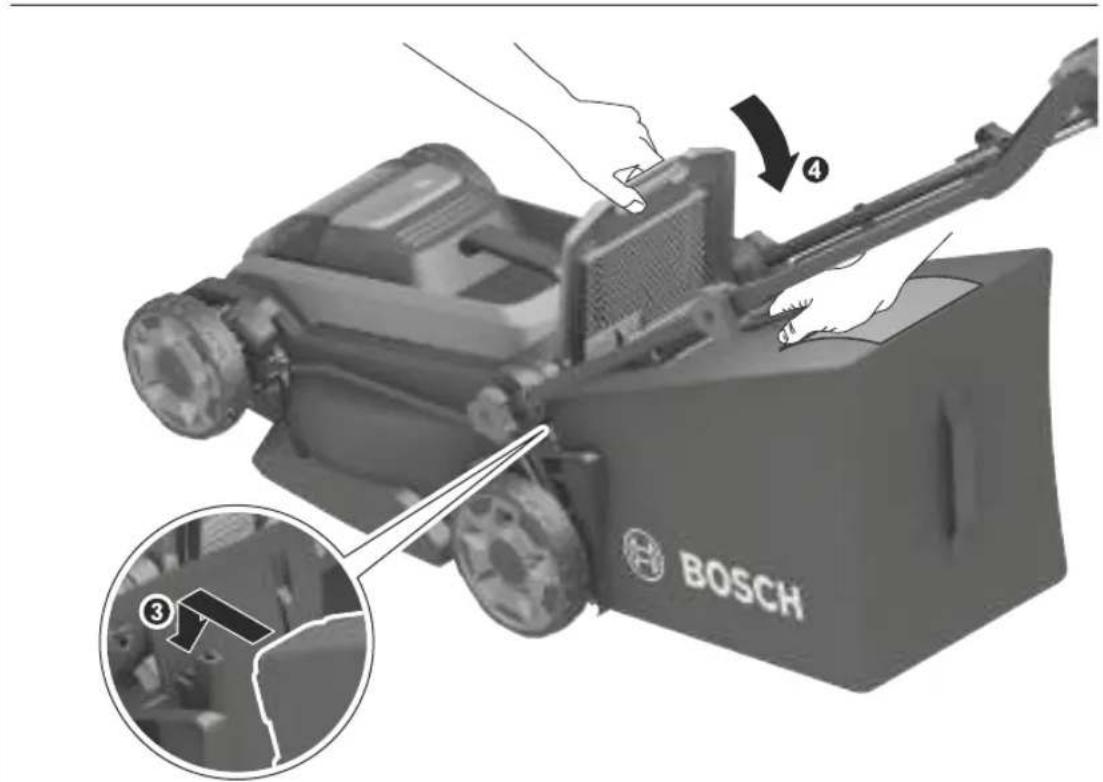

Assembling/fitting/removing the grass-box	G	9
Setting the cutting height	H	10
Inserting the rechargeable battery	I	10
Operation	J1-J2	11-12
– Switching on
– Mowing
– Switching off
Removing the rechargeable battery	K	13

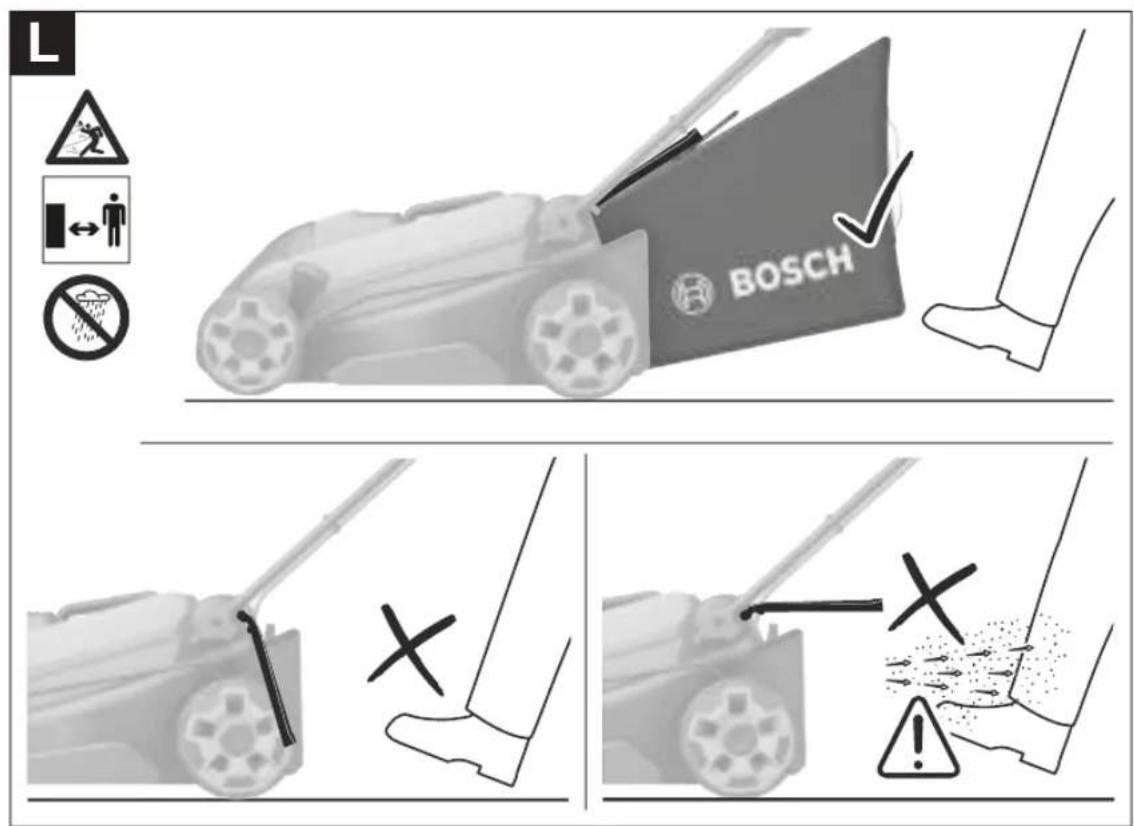

“Mowing” working advice	L	13

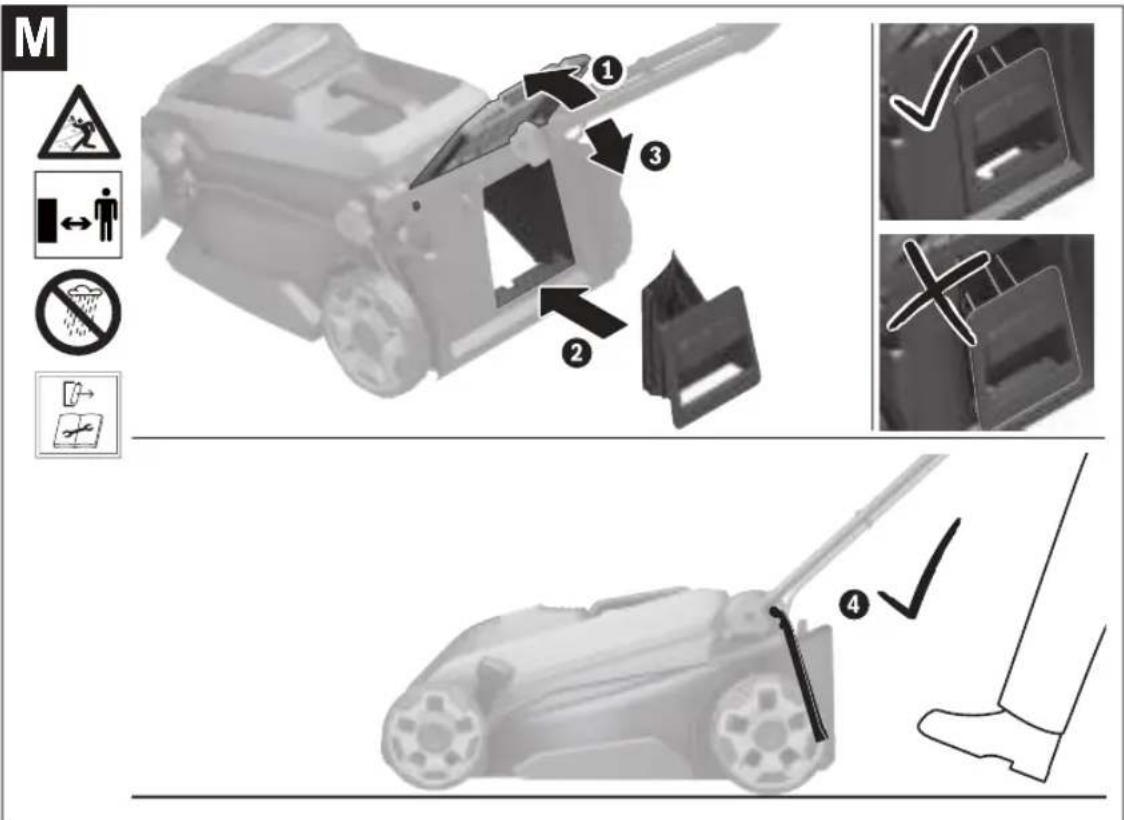

“Mulching” working advice	M	14
Blade maintenance/blade replacement	N	14
Storage	O1-O2	15-16
Selecting accessories	P	17

A) This accessory is not part of the standard scope of delivery.

Starting Operation

For Your Safety

▶ Caution! Switch the garden tool off and remove the rechargeable batteries before you perform maintenance or cleaning work. The same applies if the switch cable is damaged, cut or entangled.

The blade continues to rotate for a few seconds after the machine is switched off.
▶ Caution: Do not touch the rotating blade.
▶ Use only the chargers listed in the technical data. Only these battery chargers are matched to the lithium-ion batteries of your product.

Mulching Function

Remove the grass bag and slide the mulch adapter into the ejection opening. Close the ejection flap.

Remove the mulch adapter when you use the grass bag again.

The best time to mulch grass is late afternoon, when the grass is dry and the freshly mown area is not exposed to direct sunlight.

To achieve the best mulching performance, set the cutting height so that around a third of the grass blade length is removed, ideally no more than 10–20 mm at a time.

Working Advice

Cutting Capacity (Battery Operating Duration)

The cutting capacity (battery operating duration) depends on lawn properties, such as grass density, moisture content, grass length and height of cut.

Switching the garden tool on and off frequently during cutting will also reduce the cutting capacity (battery operating duration).

To improve the cutting capacity (battery operating duration), it is recommended to cut more frequently, increase the cutting height and walk at an appropriate pace.

The example below shows the connection between cutting height and cutting capacity with regard to three batteries.

Cutting conditions

Very thin, dry grass

Cutting capacity	ROTAK18V2-38 / ROTAK18V2-43
4.0 Ah battery Up to 500/600 m	^2
5.0 Ah battery Up to 600/725 m	^2
6.0 Ah battery Up to 700/850 m	^2

To increase the run time an additional battery can be purchased from an authorised customer service agent for Bosch garden products.

Troubleshooting

Problem Possible cause Corrective measure

Motor will not start Internal wiring of garden tool defective Contact Bosch customer service

32 | English

Problem Possible cause Corrective measure

	Rechargeable battery discharged Charge the rechargeable battery
	Rechargeable battery too hot/cold Allow the rechargeable battery to cool down/warm up
	Grass too long Max. allowed grass height 15 cm on highest height-of-cut setting
	The motor protection has been triggered Allow the motor to cool down and set a larger cutting height
	Rechargeable battery not correctly/not fully inserted	Insert correctly
Garden tool operates intermittently	Internal wiring of garden tool defective Contact Bosch customer service
	The motor protection has been triggered Allow the motor to cool down and set a larger cutting height
Garden tool leaves an irregular cutting pattern and/or motor working with difficulty	Cutting height too low Set a larger cutting height
	Blade blunt	Replace the blade (see figure N)
	Blockages possible Switch off the garden tool and remove the rechargeable battery (see figure K)
			Check the underside of the garden tool and unclog if necessary (always wear gardening gloves)
	Blade fitted the wrong way round Fit the blade the right way round
The blade does not rotate after the garden tool has been switched on	Blade obstructed by grass Switch off the garden tool and remove the rechargeable battery (see figure K)
			Remove the blockage (always wear gardening gloves)
	Blade nut/screw loose Tighten blade nut/screw (25 Nm)
Excessive vibrations/noise	Blade nut/screw loose Tighten blade nut/screw (25 Nm)
	Blade damaged	Replace the blade (see figure N)

Maintenance and Service

Maintenance, Cleaning and Storage

▶ Before any work on the garden product itself (e.g. maintenance, tool change, etc.) as well as during transport and storage, remove the battery from the garden product. There is danger of injury when unintentionally actuating the On/Off switch.

▶ For safe and proper working, always keep the product clean.

Do not place other objects on the garden product.

To ensure safe and efficient operation, always keep the product and the ventilation slots clean.

Never spray the product with water.

Never immerse the product in water.

Store the product in a secure, dry place, out of the reach of children.

Do not place other objects on the product.

Keep all nuts, bolts and screws tight to ensure safe working with the product.

Inspect the product and replace worn or damaged parts for safety.

Ensure replacement parts fitted are Bosch-approved.

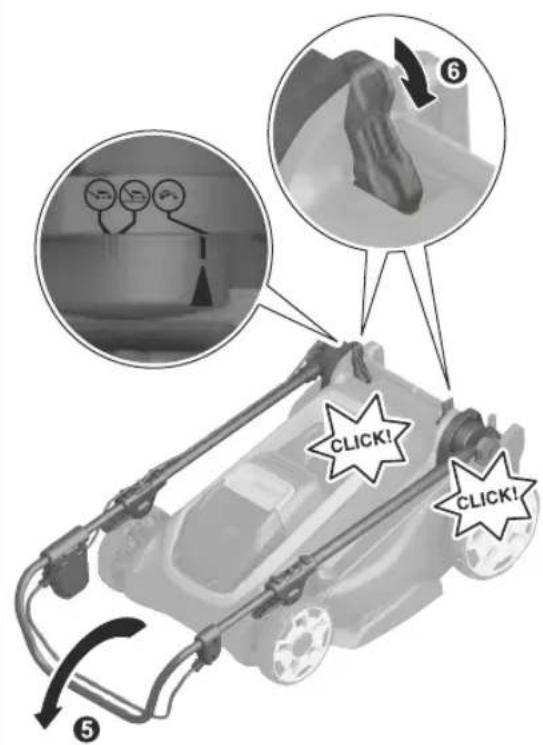

When storing, make sure that all 4 wheels of the garden tool stand on the ground/floor.

Do not modify this product. Unauthorized modifications may impair the safety of your product and may result in increased risk of injury.

Battery Maintenance

Use the following procedures to enable optimum usage of the battery:

• Protect the battery against moisture and water.
• Store the machine and battery only within a temperature range between -20^ and 50^ . As an example, do not leave the battery in the car in summer.
• The battery must not be stored within the product but stored separately.
• Do not leave the battery in the product in direct sunlight.
• The ideal storage condition for the battery is 5^ .
• Occasionally clean the venting slots of the battery using a soft, clean and dry brush.

A significantly reduced working period after charging indicates that the battery is used and must be replaced.

After-Sales Service and Application Service

Great Britain

Tel. Service: [phone]

GB Importer:

Robert Bosch Ltd.

Broadwater Park

North Orbital Road

Uxbridge

UB9 5HJ

You can find the link to our service addresses and warranty conditions on the last page.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

Disposal

Power tools, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of power tools and batteries/rechargeable batteries into household waste!

Only for EU countries and United Kingdom:

Electrical and electronic equipment or used batteries that are no longer suitable for use must be collected separately and disposed of in an environmentally friendly manner. Use the designated collection systems. Incorrect disposal may cause harmful effects on the environment and human health, due to the potential presence of hazardous substances.

Français

Tlf. Service Center: 44898855

4,0 Ah, 5,0 Ah, 6,0 Ah

4,0 Ah, 5,0 Ah, 6,0 Ah

Tillatt omgivelsestemperatur under drift ^b) og ved lagring °C -5 ... +50 -5 ... +50
Batteritype PBA 18V...W-C		PBA 18V...W-C
	4,0 Ah, 5,0 Ah, 6,0 Ah	4,0 Ah, 5,0 Ah, 6,0 Ah
Anbefalte ladere ^c)	AL18.. AL18..

Legal Information and Licenses

1.1 - /library/CMSIS V1.17.3 /library/Device/Holtek V1.17.3 - Apache-2.0

Copyright (c) 2009-2016 ARM Limited. All rights reserved.

Licensed under the Apache License, Version 2.0 (the License); you may not use this file except in compliance with the License. You may obtain a copy of the License at

www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an AS IS BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

Apache 2.0 License

Version 2.0, January 2004

http://www.apache.org/licenses/

TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION

1. Definitions.

"License" shall mean the terms and conditions for use, reproduction, and distribution as defined by Sections 1 through 9 of this document.

"Licensor" shall mean the copyright owner or entity authorized by the copyright owner that is granting the License.

"Legal Entity" shall mean the union of the acting entity and all other entities that control, are controlled by, or are under common control with that entity. For the purposes of this definition, "control" means (i) the power, direct or indirect, to cause the direction or management of such entity, whether by contract or otherwise, or (ii) ownership of fifty percent (50%) or more of the outstanding shares, or (iii) beneficial ownership of such entity.

"You" (or "Your") shall mean an individual or Legal Entity exercising permissions granted by this License.

"Source" form shall mean the preferred form for making modifications, including but not limited to software source code, documentation source, and configuration files.

"Object" form shall mean any form resulting from mechanical transformation or translation of a Source form, including but not limited to compiled object code, generated documentation, and conversions to other media types.

"Work" shall mean the work of authorship, whether in Source or Object form, made available under the License, as indicated by a copyright notice that is included in or attached to the work (an example is provided in the Appendix below).

"Derivative Works" shall mean any work, whether in Source or Object form, that is based on (or derived from) the Work and for which the editorial revisions, annotations, elaborations, or other modifications represent, as a whole, an original work of authorship. For the purposes of this License, Derivative Works shall not include works that remain separable from, or merely link (or bind by name) to the interfaces of, the Work and Derivative Works thereof.

"Contribution" shall mean any work of authorship, including the original version of the Work and any modifications or additions to that Work or Derivative Works thereof, that is intentionally submitted to Licensor for inclusion in the Work by the copyright owner or by an individual or Legal Entity authorized to submit on behalf of the copyright owner. For the purposes of this definition, "submitted" means any form of electronic, verbal, or written communication sent to the Licensor or its representatives, including but not limited to communication on electronic mailing lists, source code control systems, and issue tracking systems that are managed by, or on behalf of, the Licensor for the purpose of discussing and improving the Work, but

excluding communication that is conspicuously marked or otherwise designated in writing by the copyright owner as "Not a Contribution."

"Contributor" shall mean Licensor and any individual or Legal Entity on behalf of whom a Contribution has been received by Licensor and subsequently incorporated within the Work.

1. Grant of Copyright License. Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable copyright license to reproduce, prepare Derivative Works of, publicly display, publicly perform, sublicense, and distribute the Work and such Derivative Works in Source or Object form.
2. Grant of Patent License. Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable (except as stated in this section) patent license to make, have made, use, offer to sell, sell, import, and otherwise transfer the Work, where such license applies only to those patent claims licensable by such Contributor that are necessarily infringed by their Contribution(s) alone or by combination of their Contribution(s) with the Work to which such Contribution(s) was submitted. If You institute patent litigation against any entity (including a cross-claim or counterclaim in a lawsuit) alleging that the Work or a Contribution incorporated within the Work constitutes direct or contributory patent infringement, then any patent licenses granted to You under this License for that Work shall terminate as of the date such litigation is filed.

3. Redistribution. You may reproduce and distribute copies of the Work or Derivative Works thereof in any medium, with or without modifications, and in Source or Object form, provided that You meet the following conditions:

4. You must give any other recipients of the Work or Derivative Works a copy of this License; and

5. You must cause any modified files to carry prominent notices stating that You changed the files; and
6. You must retain, in the Source form of any Derivative Works that You distribute, all copyright, patent, trademark, and attribution notices from the Source form of the Work, excluding those notices that do not pertain to any part of the Derivative Works; and
7. If the Work includes a "NOTICE" text file as part of its distribution, then any Derivative Works that You distribute must include a readable copy of the attribution notices contained within such NOTICE file, excluding those notices that do not pertain to any part of the Derivative Works, in at least one of the following places: within a NOTICE text file distributed as part of the Derivative Works; within the Source form or documentation, if provided along with the Derivative Works; or, within a display generated by the Derivative Works, if and wherever such third-party notices normally appear. The contents of the NOTICE file are for informational purposes only and do not modify the License.

You may add Your own attribution notices within Derivative Works that You distribute, alongside or as an addendum to the NOTICE text from the Work, provided that such additional attribution notices cannot be construed as modifying the License. You may add Your own copyright statement to Your modifications and may provide additional or different license terms and conditions for use, reproduction, or distribution of Your modifications, or for any such Derivative Works as a whole, provided Your use, reproduction, and distribution of the Work otherwise complies with the conditions stated in this License.

1. Submission of Contributions. Unless You explicitly state otherwise, any Contribution intentionally submitted for inclusion in the Work by You to the Licensor shall be under the terms and conditions of this License, without any additional terms or conditions. Notwithstanding the above, nothing herein shall supersede or modify the terms of any

258 | Legal Information and Licenses

separate license agreement you may have executed with Licensor regarding such Contributions.

1. Trademarks. This License does not grant permission to use the trade names, trademarks, service marks, or product names of the Licensor, except as required for reasonable and customary use in describing the origin of the Work and reproducing the content of the NOTICE file.
2. Disclaimer of Warranty. Unless required by applicable law or agreed to in writing, Licensor provides the Work (and each Contributor provides its Contributions) on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied, including, without limitation, any warranties or conditions of TITLE, NON-INFRINGEMENT, MERCHANTABILITY, or FITNESS FOR A PARTICULAR PURPOSE. You are solely responsible for determining the appropriateness of using or redistributing the Work and assume any risks associated with Your exercise of permissions under this License.
3. Limitation of Liability. In no event and under no legal theory, whether in tort (including negligence), contract, or otherwise, unless required by applicable law (such as deliberate and grossly negligent acts) or agreed to in writing, shall any Contributor be liable to You for damages, including any direct, indirect, special, incidental, or consequential damages of any character arising as a result of this License or out of the use or inability to use the Work (including but not limited to damages for loss of goodwill, work stoppage, computer failure or malfunction, or any and all other commercial damages or losses), even if such Contributor has been advised of the possibility of such damages.
4. Accepting Warranty or Additional Liability. While redistributing the Work or Derivative Works thereof, You may choose to offer, and charge a fee for, acceptance of support, warranty, indemnity, or other liability obligations and/or rights consistent with this License. However, in accepting such obligations, You may act only on Your own behalf and on Your sole responsibility, not on behalf of any other Contributor, and only if You agree to indemnify, defend, and hold each Contributor harmless for any liability incurred by, or claims asserted against, such Contributor by reason of your accepting any such warranty or additional liability.

END OF TERMS AND CONDITIONS

Warranty Disclaimer

This product contains Open Source Software components which underly Open Source Software Licenses. Please note that Open Source Licenses contain disclaimer clauses. The text of the Open Source Licenses that apply are included in this manual under "Legal Information and Licenses".

Servicekontakte

Service Contacts

Contacts de Service

https://www.bosch-pt.com/serviceaddresses

Garantiebedingungen Guarantee Conditions Conditions de Garantie Condiciones de Garantía

https://www.bosch-pt.com/guarantee/202507
