Read the operating instruction

Second class of insulation

This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.

Vacuum packaging machine is designed for vacuum packaging of food products in the special bags which are the intended for it. Thanks to this packing the food keeps longer its freshness and nutritional value. The product has been designed exclusively for domestic use and is not designed for use in commercial applications.

ATTENTION! The machine should be used only with plastic bags which are specifically designed for vacuum packaging machines. It is forbidden to use regular plastic bags or other bags which are not designed for vacuum packaging machines.

ATTENTION! Food packaging bags you should use the bags which are intended to come into contact with food.

Correct, reliable, and safe operation of the tool is dependent on its proper use, therefore:

Prior to working with the product, you should read all the instruction and keep it around.

For any damage caused by failure to comply with safety regulations and instructions of this manual, the supplier is not responsible.

EQUIPMENT

The product is supplied in a complete state and requires no assembly. The product is not supplied with the bags.

SAFETY INSTRUCTIONS

ATTENTION! Read all the instructions below. Failure to comply with them can lead to electrical shock, fire or personal injury.

FOLLOW THE INSTRUCTIONS BELOW

Do not use the device in an environment of increased risk of explosion, which is containing flammable liquids, gases, or vapours. Set the device on a flat, even and hard surface. When selecting the place for placement, consider the space needed for a bag. The bag may not hang out from the packaging machine, it should lie on the same ground as packaging machine. Otherwise, the bag may be slip out from the handle of welding device. Do not place the device near sources of heat or fire. Packaging machine has the ability to roll in the power cable to the slot on the bottom or on back of the housing. Before each use you should completely unroll the power cable. Connect the unit only to the mains of voltage and frequency shown on the rating plate of the device. Power cable plug must fit into the wall outlet. It is forbidden to modify the plug. Do not use any adapters in order to adapt the plug to the outlet. The unmodified plug, which fits the outlet, reduces the risk of electric shock. After each use, you should disconnect the power cable plug from a mains outlet. Avoid contact with earthed surfaces such as pipes, radiators and refrigerators. The earthing of body increases the risk of electric shock. The device designed for indoors operation only. Do not expose the device to humidity or precipitation. Water and moisture that gets inside the device, it increases the risk of electric shock. Do not immerse the device in water or any other liquid. Do not overload power cable. It is forbidden to use the power cable to carry out, connect and disconnect the plug from wall outlet. Avoid contact of the supply cable with heat, oil, sharp edges and moving parts. Damaged cable increases the risk of an electric shock. In the event of damage to the power cable (for example, the cutting, melting of insulation), you should immediately disconnect the plug from the wall outlet, and then pass the product to the authorized repairing service. It is forbidden to use the device with a damaged hose. It is prohibited to repair the power cable, the cable must be replaced with a new one at the authorized service point. In the case of the use of extension cables, extension cables should be used with such power supply parameters as these shown on the nameplate of the appliance. Cross section of the extension cable wires should be not smaller than the cross section of the wires of device

EN

power cable. It is necessary to check the insulation of power cable and extension cable or ask the manufacturer of the device and/or of the extension cable. If you notice damage to any part of the equipment, its further use is forbidden. In this case, the device must be submitted to an authorized service center. The device may be used by children, who are at least 8 years old and by persons with reduced physical and mental capabilities, and by persons who lack of experience and knowledge of the appliance, it is provided the supervision or instruction concerning the use of appliance in a safe way, so that the associated risks would be understood. Children should not play with the device. Children without supervision should not carry out the cleaning and maintenance of the device. The device designed for domestic operation only. After the packing of 20 bags the device should be left for 25 minutes. You should also wait approximately 20 seconds between each packaging. After each use, you should disconnect the power cable plug from a mains outlet. In the case of thermal overload the product can automatically turn off. Then you should disconnect the power cable from a mains outlet and allow the device to cool down.

OPERATING THE APPLIANCE

Vacuum packaging

CAUTION! Unplug the power cord from the power socket while performing all preparation.

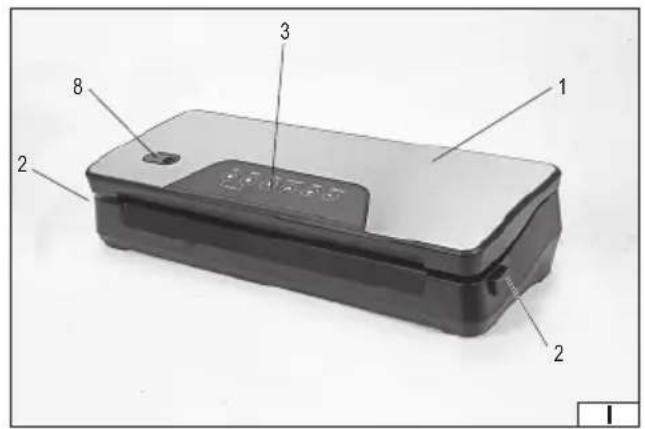

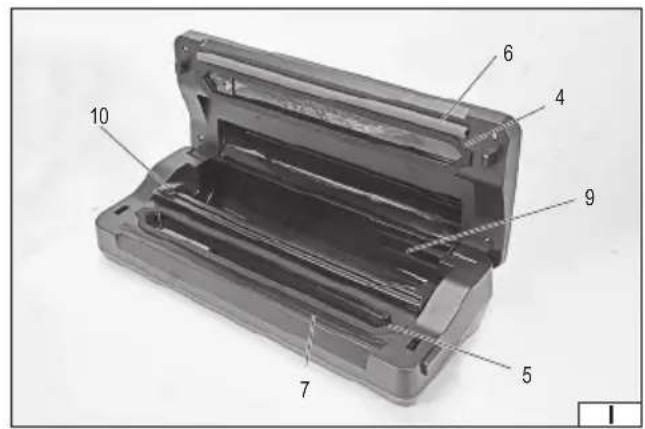

Lift the appliance cover. If the cover is closed with a latch, pushed it in, unlock it and then lift the cover.

Inside the appliance there is a safety switch that will allow it to be started only after the cover is properly closed. Do not press it with the cover open, it is forbidden to lock the safety switch.

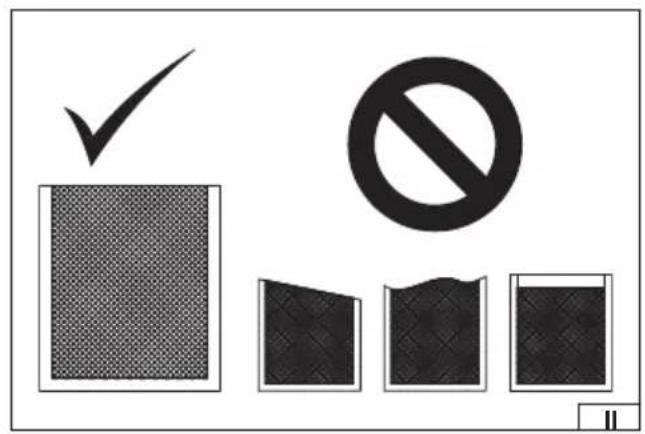

Prepare the bag for use in the packaging machine. Only use special bags intended for use in vacuum packaging machines. The bag can be cut by matching its size to the product being packaged. Note that the three edges of the bag are always sealed in the factory, and the trimmed edge is equal to (II) and not wider than the maximum width of the bags listed in the table. When choosing the size, make sure that there is at least 5 cm of the bag left from its edge to the packaged product.

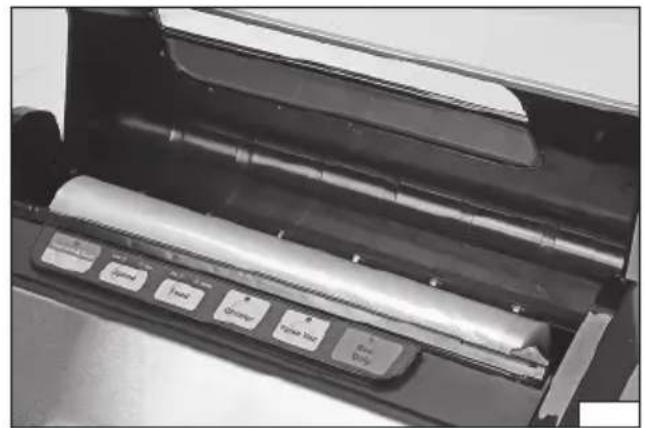

You can also use the compartment for film on a roll. Place the roll in the compartment (IV), pull out the desired length and then use the built-in cutter to cut the film from the roll. The compartment is able to accommodate a roll of film up to 5 meters long.

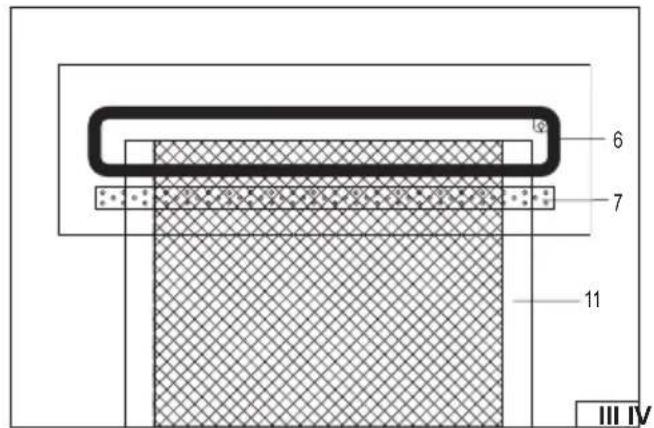

Place the bag so that it is above the heating strip and its edge to be sealed is completely inside the cover gasket (III). Align both sides of the bag so that no kinks, bends or wrinkles are formed. Connect the appliance to power supply. Close the cover so that the latches on both sides engage properly.

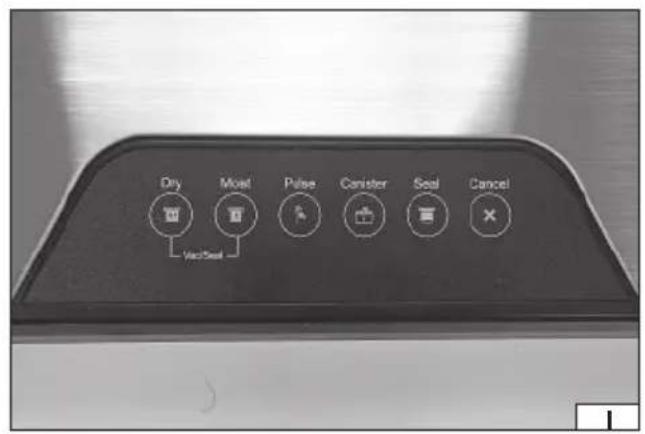

The appliance is started by pressing one of the control panel buttons.

The "Dry" button is used to vacuum packaging of dry foods. By pressing this button, the machine will automatically suck the air out of the bag, and when the suction is complete, it will seal the edges of the bag to close it tightly.

The “Moist” button is used to vacuum packaging of wet foods. By pressing this button, the machine will automatically suck the air out of the bag, and when the suction is complete, it will seal the edges of the bag to close it tightly.

Caution! Dry the wet food before packaging, the bag should not contain more than 10 ml of liquid after placing the food.

The “Pulse” button is used to pulse air suction. Use this mode for vacuum-packaging of delicate foods. Press and hold this button to suck the air, and release the pressure to interrupt suction. In this mode, the edges of the bag are not automatically sealed and tightly closed. This must be done manually using the “Seal” button.

The “Canister” button is used to extract air from the vacuum container connected to the packaging machine with a special hose. The “Seal” button is only used to weld the edges of the bag. For example, in the case of sealing film from a roll or after the impulse air suction is completed.

The "Cancel" button is used to interrupt the operation of the appliance at any time.

The indicator light goes off to indicate the end of the sealing process, regardless of whether it was previously suctioned or not. Only then can you unlock and open the cover.

CAUTION! The heating strip may be hot. Avoid touching it when removing the bag from the machine. The heating strip is covered with a special protective tape. Do not remove it.

EN

Vacuum container operation

The packaging machine can also extract air from vacuum containers. The container should be closed as specified in the accompanying documentation. Then connect the container valve to the container connection with a special hose. Close the cover of the appliance so that both latches engage. Press the "Canister" button, the packaging machine will start sucking the air out of the container. The packaging machine is provided with a sensor that will automatically stop the air from being sucked out of the container. Before disconnecting the hose from the container, close its valve so that it does not let air in after disconnecting the hose from the container.

The proceedings in the case of device malfunction

Operation Possible reason and solution
Packaging machine is not working	Check whether the power cable is not damaged. Check whether the device is connected to the power supply. Check whether the bag is positioned properly inside the welding machine. If the device automatically switched off as a result of overheating, wait for its total cool down.
Air is not sucked out of the bag	Check whether the bag is positioned properly inside the welding machine. Check whether the welded edge of the bag is even, whether it does not have wrinkles, folds, or holes. Check whether the gaskets are not contaminated.
Bag melts	Heating bar is too hot, you should disconnect the device from the power supply and allow it to completely cool down.
The air gets back to the bag	The bag is damaged. Check whether the bag is not damaged. Packaged products with sharp edges can make a hole in the bag. Check whether the weld is correct, if the liquid has been sucked out with air, it could prevent the correct welding of bag. Check whether the gaskets and welding strip are not contaminated.
The bag is not welded	Check whether the bag is positioned properly inside the welding machine. Check whether the welded edge of the bag is even, whether it does not have wrinkles, folds, or holes. Check whether the gaskets are not contaminated. If the device automatically switched off as a result of overheating, wait for its total cool down.

Tips on vacuum packaging of food

Vacuum packaging allows you to delay the process of food spoilage. Vacuum packed foods slower lose their nutritional value and longer remain fresh.

ATTENTION! Vacuum cannot substitute the cooling and freezing of food. Any type of food, which can spoil, requires storage in a cool place or freezing, requires the same treatment after vacuum packing.

The best results can be achieved for vacuum packaging of fresh food. If the quality of food deteriorates, the vacuum may delay this process, but it never can stop it. Anaerobic bacteria and microorganisms, that can operate in an environment with low oxygen content, continue to have an impact on the deterioration of the food quality.

Cooking, defrosting and reheating in water of the vacuum foiled food allows to preserve the flavor of dishes and makes it easier to maintain cleanliness. When you are heating the vacuum packed foods with microwave oven you should always punch the bag in several places, which will allow the bag to release hot air. Vacuum packed food can be heated by immersion and heating it in the warm water, the water temperature must not exceed 75 degrees C.

ATTENTION! It is forbidden to heat the vacuum foiled food in any different way, by, for example, using fat or by placing it in the oven.

ATTENTION! The food, which is prone to be spoiled, should be thawed using the microwave oven or by placing it in the refrigerator. You should never thaw the food by leaving it at the room temperature.

In the case of meat and fish packaging, it is advisable to put first the food for 1-2 hours in the freezer. This will allow to bind the juices, which are naturally present in the food, and also will allow to keep shape of the food. If it is not possible to initially pre-cool the food it is recommended that you place the paper towel, which is rolled loosely, between food and edge of the bag you want to weld. The towel will absorb juices that leak out from food during air suction.

In the case of cheese it is recommended to pack the remainder of the cheese after every use. If you use the bag, which is large enough, you can use it again, after former removal of welding.

Attention! Due to risks associated with the operation of anaerobic bacteria, the soft cheese should never be vacuum packed.

Before vacuum packing of vegetables it is recommended that you blanche them. Blanching stops the action of enzymes, that may lead to the loss of flavor, color and structure. To blanche the vegetables you dip them in the tens of seconds in boiling water, and then remove and immerse in cold water. Blanching time depends on the type of vegetable. The finer and more delicate vegetables the shorter is blanching time. Blanching also can be made using a microwave or steam.

Attention! When stored the vegetables emit gases. Therefore, after blanching and vacuum packaging, it is recommended that you store them in the freezer.

Attention! Due to the risks associated with the operation of anaerobic bacteria, fresh mushrooms, onion and garlic should never be vacuum packed.

EN

It is recommend to vacuum pack the fine products in their original packaging. This will prevent the leakage of product small particles with sucked air into the Interior of the machine, which may even prevent the proper vacuum packaging.

Before vacuum packing, the food, which is in liquid state, for example, soups, should be frozen in a separate vessel, which shape and size should be selected so the frozen product would fit in the bag. After freezing, you should remove the product from the vessel, put the food into bag, vacuum package, and then put it back in the freezer. Vacuum packed food can be heated by immersion and heating it in the warm water, the water temperature must not exceed 75 degrees C.

MAINTENANCE AND STORAGE

After each use, you should disconnect the power cable plug from a mains outlet. Wait until the device is completely cool and proceed to maintenance.

ATTENTION! Do not immerse the device in water or other liquid. Do not use abrasive cleaning agents.

Clean the device housing with a soft cloth moistened in solution of water and mild cleanser. Wipe it dry. If the interior of the device was contaminated, for example with food, clean it with a soft cloth or paper towel. Clean the gaskets and heating strip with a soft cloth moistened in solution of water and mild cleanser. Avoid excessive pressure when cleaning. Use of sharp objects for cleaning can destroy the heating bar or gaskets.

Before connecting the appliance to the power supply, make sure that all parts have been cleaned and drained. Close the cover, but not snap it. When you use the product, it is recommended that you do not snap the cover. The gasket, with which the device is equipped, may deform when you snap the cover, that can affect on the correct operation and performance of the device.

Store the product in dry and shaded places. Protect the storage from undesirable individuals, especially from the children. Store the product in small single unit packs supplied with the product.

TECHNICAL PARAMETERS

Parameter Unit Value
Catalog number 67877
Rated voltage [V~] 220 - 230
Rated frequency [Hz] 50 - 60
Rated power [W] 130
Electric protection class II
Degree of the housing protection (IP) IPX0
Max. width of the bag	[cm]	30
Airflow	[l/min]	8 - 10
Produced vacuum	[kPa]	-40 ÷ -70
External dimensions (width x depth x height)	[mm]	390 x 150 x 85
Weight	[kg]	1,4
