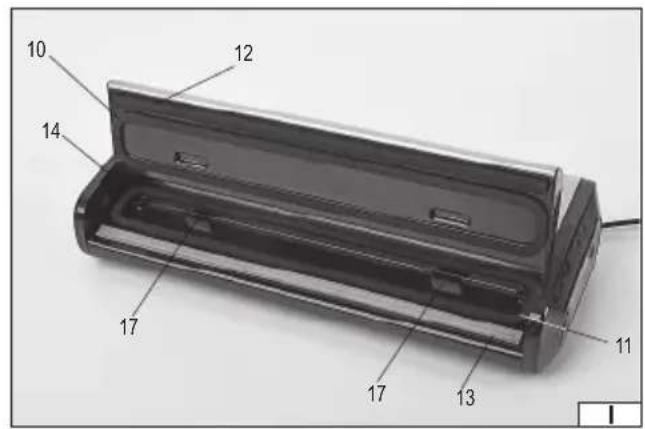

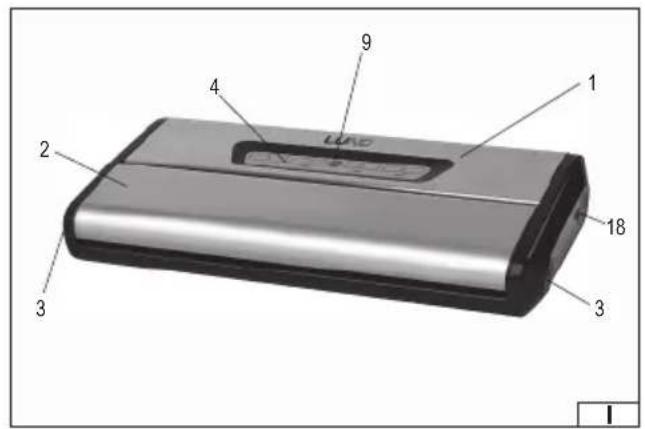

1. housing

2. cover

3. cover latch button

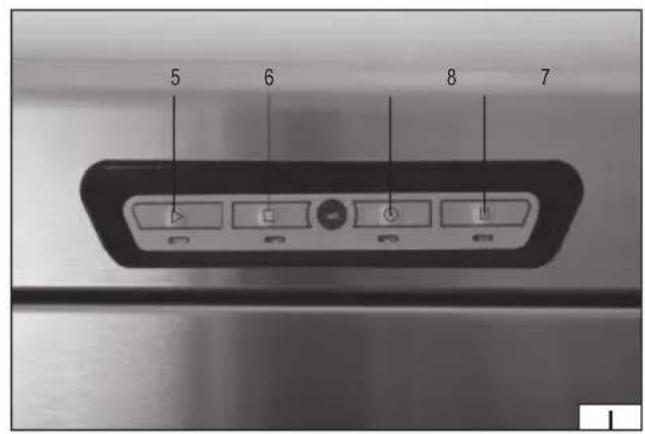

4. control panel

5. "Packaging" button

6. "Stop" button

7. "Sealing" button

8. 'Pulse' button

9. control lamp

10. upper gasket

11. lower gasket

12. gasket of the heating strip

13. heating strip

14. safety switch

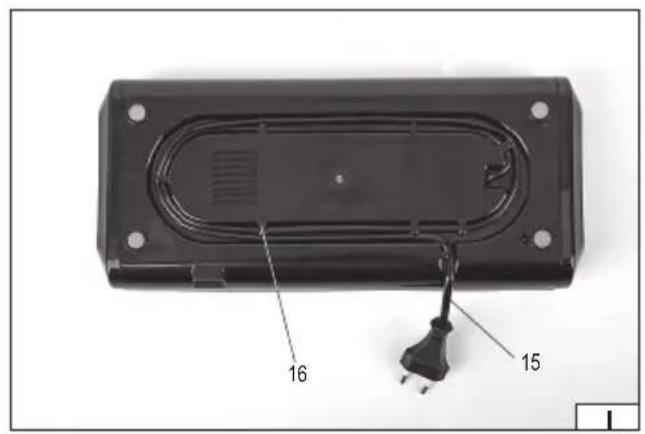

15. power cable with plug

16. cable handle

17. support plate

18. external connector

19. bag

DE

Read the operating instruction

Second class of insulation

This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.

Vacuum packaging machine is designed for vacuum packaging of food products in the special bags which are the intended for it. Thanks to this packing the food keeps longer its freshness and nutritional value. The product has been designed exclusively for domestic use and is not designed for use in commercial applications.

ATTENTION! The machine should be used only with plastic bags which are specifically designed for vacuum packaging machines. It is forbidden to use regular plastic bags or other bags which are not designed for vacuum packaging machines. ATTENTION! Food packaging bags you should use the bags which are intended to come into contact with food.

Correct, reliable, and safe operation of the tool is dependent on its proper use, therefore:

Prior to working with the product, you should read all the instruction and keep it around.

For any damage caused by failure to comply with safety regulations and instructions of this manual, the supplier is not responsible.

EQUIPMENT

The product is supplied in a complete state and requires no assembly. The product is not supplied with the bags.

SAFETY INSTRUCTIONS

ATTENTION! Read all the instructions below. Failure to comply with them can lead to electrical shock, fire or personal injury.

FOLLOW THE INSTRUCTIONS BELOW

Do not use the device in an environment of increased risk of explosion, which is containing flammable liquids, gases, or vapours. Set the device on a flat, even and hard surface. When selecting the place for placement, consider the space needed for a bag. The bag may not hang out from the packaging machine, it should lie on the same ground as packaging machine. Otherwise, the bag may be slip out from the handle of welding device. Do not place the device near sources of heat or fire. Packaging machine has the ability to roll in the power cable to the slot on the bottom or on back of the housing. Before each use you should completely unroll the power cable. Connect the unit only to the mains of voltage and frequency shown on the rating plate of the device. Power cable plug must fit into the wall outlet. It is forbidden to modify the plug. Do not use any adapters in order to adapt the plug to the outlet. The unmodified plug, which fits the outlet, reduces the risk of electric shock. After each use, you should disconnect the power cable plug from a mains outlet. Avoid contact with earthed surfaces such as pipes, radiators and refrigerators. The earthing of body increases the risk of electric shock. The device designed for indoors operation only. Do not expose the device to humidity or precipitation. Water and moisture that gets inside the device, it increases the risk of electric shock. Do not immerse the device in water or any other liquid. Do not overload power cable. It is forbidden to use the power cable to carry out, connect and disconnect the plug from wall outlet. Avoid contact of the supply cable with heat, oil, sharp edges and moving parts. Damaged cable increases the risk of an electric shock. In the event of damage to the power cable (for example, the cutting, melting of insulation), you should immediately disconnect the plug from the wall outlet, and then pass the product to the authorized repairing service. It is forbidden to use the device with a damaged hose. It is prohibited to repair the power cable, the cable must be replaced with a new one at the authorized service point. In the case of the use of extension cables, extension cables should be used with such power supply parameters as these shown on the nameplate of the appliance. Cross section of the extension cable wires should be not smaller than the cross section of the wires of device

EN

power cable. It is necessary to check the insulation of power cable and extension cable or ask the manufacturer of the device and/or of the extension cable. If you notice damage to any part of the equipment, its further use is forbidden. In this case, the device must be submitted to an authorized service center. The device may be used by children, who are at least 8 years old and by persons with reduced physical and mental capabilities, and by persons who lack of experience and knowledge of the appliance, it is provided the supervision or instruction concerning the use of appliance in a safe way, so that the associated risks would be understood. Children should not play with the device. Children without supervision should not carry out the cleaning and maintenance of the device. The device designed for domestic operation only. After the packing of 20 bags the device should be left for 25 minutes. You should also wait approximately 20 seconds between each packaging. After each use, you should disconnect the power cable plug from a mains outlet. In the case of thermal overload the product can automatically turn off. Then you should disconnect the power cable from a mains outlet and allow the device to cool down.

ATTENTION! During all the preparatory activities, you should disconnect the power cable plug from a mains outlet.

ATTENTION! Pressing of any function button will change the control light, which is placed below.

Raise the cover of device. If the cover is closed by the latch, push the both lock buttons at the same time, to unlock the cover, and then raise it.

Inside the device there is a safety switch that will let you run the device only when the cover is closed properly. It should not be pushed when the cover is opened, it is forbidden to block the safety switch.

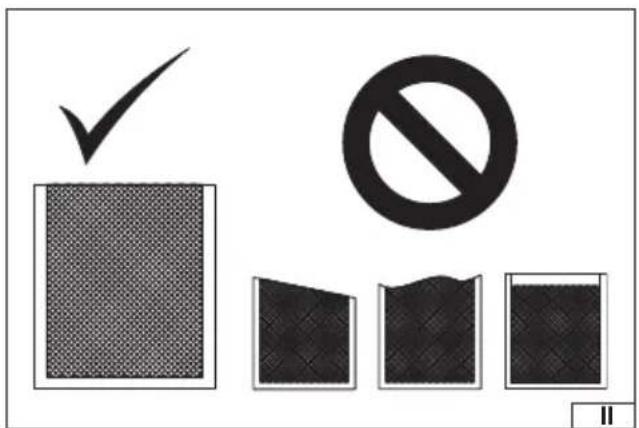

Bag must be prepared for use in the packaging machine. Use only special bags, intended only for use in vacuum packaging machines. The bag can be cut by adjusting its size to the product to be packed. Please remember that all the edges of the bag except one should always been welded, and the trimmed edge was even and not wider than the maximum width of bags listed in the table. Choosing the bag size, make sure that there remains of at least 5 cm of the bag from edge to the product to be packed.

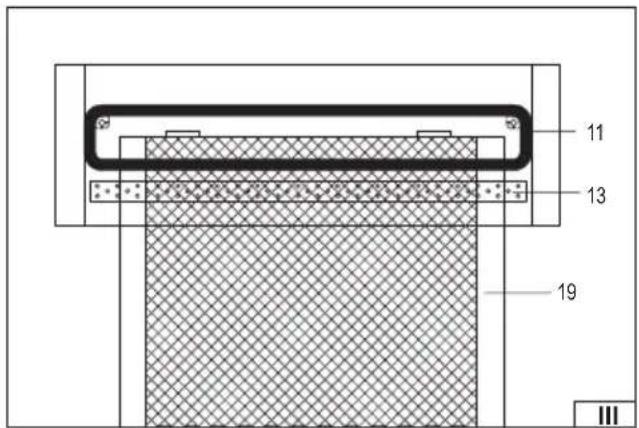

Put the bag so that it it over heating strip, and its edge, which is designed to be welded, is completely inside the cover seals. The chamber packaging machine is equipped with retaining plates that facilitate appropriate positioning of the bag. The bag edge should touch the retaining plate. Align both sides of the bag so as not to create a bends, folds or wrinkles. Close the cover and make sure that the latch worked out. The cover cannot be raised freely. Connect the device to mains. The control lamp lights up. Press the "Pakowanie" (Packaging) button, this will start the process of air suction, and when it is complete, the welding of bag edge. This is indicated by the ignition of control light, which is placed under the button.

After the end of the packing process, the device automatically stops the process of sucking air, that will be indicated by switching off of the control lam located under the button. Then you should switch off the device from power supply, and unlock the cover latches by pressing both buttons the tabs. Lift the cover and remove the bag with packed product.

ATTENTION! Heating strip may be hot. You should avoid touching it when you remove the bag from machine.

If, during the process of packing, it will be necessary to interrupt it, press the "Stop" button.

If, in the course of packaging there will be noticed the undesirable deformation of the packed product or liquids, which has been present in the product, start to be sucked in by the packaging machine, you should press the" Zgrzewanie" (Welding) button, this will stop the process of air sucking and start welding of the bag edges.

In the case of packaging of delicate products it recommended to use the "Impuls" button. Single pressing of this button will cause only temporary start of packaging machine and suction of a small amount of air. If you press and hold this button, the device would start its continuous operation, but button release causes the immediate discontinuation of air suction. This allows you to choose the degree of air suction in the case of sensitive products.

After the end of suction in pulsed mode, you should weld the bag by pressing the "Zgrzewanie" (Welding) button. The control lamp

EN

lights up, it will switch off after completion of welding. You must then disconnect the device from the power source, unlock latch by pressing the both latch buttons. Lift the cover and remove the bag with packaged product.

Welding the bags from a role

Bags designed for vacuum packaging may take the form of a long winded sleeve on a roll, where there are only two welded edges of bags. In this case, you should cut off the bag to its desired size. Put one edge in the machine in such a way as for vacuum packaging, and then close the cover and make sure that the latch worked out. The cover cannot be raised freely. Connect the device to mains. The control lamp lights up. Press the "Zgrzewanie" (Welding) button, the control lamp lights up, it will switch off after completion of welding. You must then disconnect the device from the power source, unlock latch by pressing the both latch buttons. Lift the cover and remove the bag with welded edge.

Vacuum packaging with containers

packaging machine has the ability to vacuum package the containers. Container should be connected to the external connector by using a hose. In order to prepare the container for vacuum packaging you should follow the information provided along with the container.

Attention! The packaging machine is not equipped with hoses and containers, the external port has an internal diameter of 5.5 mm. Make sure that the connector hose will fit into the packaging machine connector.

Close the cover and make sure that the latch worked out. The cover cannot be raised freely. Connect the device to mains. The control lamp lights up. Press the “Pakowanie” (Packaging) button, this will start the process of air suction. This is indicated by the ignition of control light, which is placed under the button.

After the end of the packing process, the device automatically stops the process of sucking air, that will be indicated by switching off of the control lam located under the button. You should then close the valve of the container, which will not let air to it after disconnecting from the packaging machine. You must then disconnect the device from the power source, unlock latch by pressing the both latch buttons. Disconnect the hose from the outer connector and the container.

It is recommended that you leave at least 2.5 cm free space between the cover of the container, and the product, which is packed into it. Make sure that the gasket between the container and its cover is clean and undamaged. Otherwise, the container can get air or vacuum will not be possible at all.

The proceedings in the case of device malfunction

Operation Possible reason and solution
Packaging machine is not working	Check whether the power cable is not damaged. Check whether the device is connected to the power supply. Check whether the bag is positioned properly inside the welding machine. If the device automatically switched off as a result of overheating, wait for its total cool down.
Air is not sucked out of the bag	Check whether the bag is positioned properly inside the welding machine. Check whether the welded edge of the bag is even, whether it does not have wrinkles, folds, or holes. Check whether the gaskets are not contaminated.
Bag melts	Heating bar is too hot, you should disconnect the device from the power supply and allow it to completely cool down.
The air gets back to the bag	The bag is damaged. Check whether the bag is not damaged. Packaged products with sharp edges can make a hole in the bag. Check whether the weld is correct, if the liquid has been sucked out with air, it could prevent the correct welding of bag. Check whether the gaskets and welding strip are not contaminated.
The bag is not welded	Check whether the bag is positioned properly inside the welding machine. Check whether the welded edge of the bag is even, whether it does not have wrinkles, folds, or holes. Check whether the gaskets are not contaminated. If the device automatically switched off as a result of overheating, wait for its total cool down.

Tips on vacuum packaging of food

Vacuum packaging allows you to delay the process of food spoilage. Vacuum packed foods slower lose their nutritional value and longer remain fresh.

ATTENTION! Vacuum cannot substitute the cooling and freezing of food. Any type of food, which can spoil, requires storage in a cool place or freezing, requires the same treatment after vacuum packing.

The best results can be achieved for vacuum packaging of fresh food. If the quality of food deteriorates, the vacuum may delay this process, but it never can stop it. Anaerobic bacteria and microorganisms, that can operate in an environment with low oxygen content, continue to have an impact on the deterioration of the food quality.

Cooking, defrosting and reheating in water of the vacuum foiled food allows to preserve the flavor of dishes and makes it easier to maintain cleanliness. When you are heating the vacuum packed foods with microwave oven you should always punch the bag in several places, which will allow the bag to release hot air. Vacuum packed food can be heated by immersion and heating it in the warm water, the water temperature must not exceed 75 degrees C.

EN

ATTENTION! It is forbidden to heat the vacuum foiled food in any different way, by, for example, using fat or by placing it in the oven. ATTENTION! The food, which is prone to be spoiled, should be thawed using the microwave oven or by placing it in the refrigerator. You should never thaw the food by leaving it at the room temperature.

In the case of meat and fish packaging, it is advisable to put first the food for 1-2 hours in the freezer. This will allow to bind the juices, which are naturally present in the food, and also will allow to keep shape of the food. If it is not possible to initially pre-cool the food it is recommended that you place the paper towel, which is rolled loosely, between food and edge of the bag you want to weld. The towel will absorb juices that leak out from food during air suction.

In the case of cheese it is recommended to pack the remainder of the cheese after every use. If you use the bag, which is large enough, you can use it again, after former removal of welding.

Attention! Due to risks associated with the operation of anaerobic bacteria, the soft cheese should never be vacuum packed.

Before vacuum packing of vegetables it is recommended that you blanche them. Blanching stops the action of enzymes, that may lead to the loss of flavor, color and structure. To blanche the vegetables you dip them in the tens of seconds in boiling water, and then remove and immerse in cold water. Blanching time depends on the type of vegetable. The finer and more delicate vegetables the shorter is blanching time. Blanching also can be made using a microwave or steam.

Attention! When stored the vegetables emit gases. Therefore, after blanching and vacuum packaging, it is recommended that you store them in the freezer.

Attention! Due to the risks associated with the operation of anaerobic bacteria, fresh mushrooms, onion and garlic should never be vacuum packed.

It is recommend to vacuum pack the fine products in their original packaging. This will prevent the leakage of product small particles with sucked air into the Interior of the machine, which may even prevent the proper vacuum packaging.

Before vacuum packing, the food, which is in liquid state, for example, soups, should be frozen in a separate vessel, which shape and size should be selected so the frozen product would fit in the bag. After freezing, you should remove the product from the vessel, put the food into bag, vacuum package, and then put it back in the freezer. Vacuum packed food can be heated by immersion and heating it in the warm water, the water temperature must not exceed 75 degrees C.

MAINTENANCE AND STORAGE

After each use, you should disconnect the power cable plug from a mains outlet. Wait until the device is completely cool and proceed to maintenance.

ATTENTION! Do not immerse the device in water or other liquid. Do not use abrasive cleaning agents.

Clean the device housing with a soft cloth moistened in solution of water and mild cleanser. Wipe it dry. If the interior of the device was contaminated, for example with food, clean it with a soft cloth or paper towel. Clean the gaskets and heating strip with a soft cloth moistened in solution of water and mild cleanser. Avoid excessive pressure when cleaning. Use of sharp objects for cleaning can destroy the heating bar or gaskets.

Before connecting the appliance to the power supply, make sure that all parts have been cleaned and drained. Close the cover, but not snap it. When you use the product, it is recommended that you do not snap the cover. The gasket, with which the device is equipped, may deform when you snap the cover, that can affect on the correct operation and performance of the device.

Store the product in dry and shaded places. Protect the storage from undesirable individuals, especially from the children. Store the product in small single unit packs supplied with the product.

TECHNICAL PARAMETERS

Parameter Unit Value
Catalog number 67882
Rated voltage [V] ~230
Rated frequency [Hz] 50
Rated power [W] 175
Electric protection class II
Degree of the housing protection (IP) IPX0
Max. width of the bag	[cm]	28
Airflow	[l/min]	16
Produced vacuum	[kPa]	-65 ÷ -80
External dimensions (width x depth x height)	[mm]	340 x 150 x 64
Weight	[kg]	1,4
