USER MANUAL LVX26 H.KOENIG

The bottle cooler is designed for keeping an already cooled bottle of wine, sparkling wine or any other beverage at drinking temperature over the long term.

The device can accommodate bottles with a maximum diameter of 90 mm.

Bottle cooler is also suitable for cooling other beverages such as sparkling wine, soft drinks or bottled beer. The temperature range can be between 5^ and 18^ or between 41^ and 64^ .

Uses for a different purpose or for a purpose which exceeds this description are considered incompatible with the intended or designated use.

General Safety information

• This device may be used by children aged 8 and above, if they are supervised or have been instructed at to the safe use of the device and have understood the resulting hazards.
• Cleaning and maintenance by the user must not be performed by children unless they are at least 8 years old and are supervised. Children are not allowed to play with the device.
• The device and its connecting cable must be kept away from children who are less than 8 years old.
• The device may be used by individuals with reduced physical, sensory or mental capabilities or a lack of experience and / or knowledge of their use if they are supervised or have been instructed at to the safe use of the device and have understood the resulting

hazards.

• Unplug the device when not in use and before cleaning. Allow device to cool before cleaning.
• Only customer service departments authorized by the manufacturer may carry out repairs on the device, as otherwise the guarantee entitlements will be null and void in the event of any subsequent damages. Improperly performed repairs can cause considerable dangers for the user.
  Defective components must always be replaced with original replacement parts. Only such parts will guarantee that the safety requirements are fulfilled.
• Do not use accessory attachments that have not been recommended by the manufacturer.
• Do not allow cord to touch hot surfaces or hang over sharp edges such as those on countertops.
• Do not place the device on or near a hot gas or electric burner, or heated oven.
• Always handle the device gently. Do not place it near the edge of the table or counter to protect against the deformation or functional damage in case it falls down from the table accidentally.
• Do not use this device for any unintended use. Dangers due to electrical power

Mortal danger due to electrical power!
Mortal danger exists when coming into contact with live wires or subassemblies!

Observe the following safety notices to avoid dangers due to electrical power:

• Do not dip the cable, device or plug into water or other liquid to prevent an electric shock.

• Do not operate this device if it has a damaged cable or plug, if it is not working properly or if it has been damaged or dropped. If the power cable or plug are damaged, then they must be replaced by the manufacturer or its service agent in order to avoid a hazard.

• Do not open the housing on the device under any circumstances. There is a danger of an electrical shock if live connections are touched and the electrical or mechanical structure is altered. In addition, functional faults on the device can also occur.

• When using electrical equipment, safety precautions must always be taken to prevent the risk of fire, electric shock and/or injury in the event of misuse.

• The device must not be used if it has been dropped, it obvious signs of damage are visible or if it has leaks.
• Please keep this document at hand and give it to the future owner in case of transfer of your device

• This appliance is intended for use in domestic and similar applications such as

• kitchen areas in shops, offices and other working environments

-farmhouses

• in hotels, motels and other residential environments
• guest rooms
• The device is not intended to be operated by external timer means or a remote control system

Warning

• Packaging materials may not be used for playing. There is a danger of suffocation.

Delivery scope and transport inspection

As a rule, the device is delivered with the following components:

□ Bottle cooler Operating Instructions

• Examine the shipment for its completeness and for any visible damages.
• Immediately notify the carrier, the insurance and the supplier about any incomplete shipment or damages as a result of inadequate packaging or due to transportation.

Unpacking

To unpack the device, remove the device out of the carton and remove the packaging material.

Disposal of the packaging

The packaging protects the device against damages during transit. The packaging materials are selected in accordance with environmentally compatible and recycling-related points of view and can therefore be recycled.

Returning the packaging back to the material loop saves raw materials and reduces the quantities of accumulated waste. ake any packaging materials that are no longer required to recycling collection for disposal.

• If possible, keep the original packaging for the device for the duration of the guarantee period of the device, in order that the device can be re-packaged properly in the event of a guarantee claim.

Setup location requirements:

In order to ensure the safe and trouble-free operation of the device, the setup location must fulfil the following prerequisites:

• The device must be set up on a firm, flat, horizontal surface with sufficient load-bearing capacity for the device.
• The device is not intended to be installed in a wall or a built-in cupboard.
  -Do not operate the product near hot gas or hot stove.
• Choose the setup location in such a way that children cannot reach the device.
• The device is not intended to be installed in a wall or a built-in cupboard.

-Do not set up the device in a hot, wet or extremely damp environment or near flammable material.

• The electrical socket must be easily accessible so that the power lead can be disconnected easily, in the case of an emergency.

• The installation and assembly of this device in non-stationary setup locations (e.g. on ships) must be carried out by specialist companies / electricians, provided they guarantee the prerequisites for the safe use of this device.

Electrical connection

In order to ensure the safe and trouble-free operation of the device, the following instructions must be observed for the electrical connection:

• Before connecting the device, compare the connection data (voltage and frequency) on the rating plate with those of your electrical network. This data must agree in order that no damages occur in the device

If in doubt, ask your qualified electrician.

• The connection between the device and the electrical network may employ a 3 meter long (max.) extension cable with a cross-section of 1.5mm^2 . The use of multiple plugs or gangs is prohibited because of the danger of fire that is involved with this.
• Make sure that the power cable is undamaged and has not been installed under the oven or over hot or sharp surfaces.
• The electrical safety of the device is only guaranteed if the device is connected to a properly installed protective conductor system. Operations using an electrical outlet without a protective conductor are prohibited. If in doubt, have the house installation checked over by a qualified electrician.

The manufacturer cannot be made responsible for damages that are caused by a missing or damaged protective conductor.

Rating plate

The rating plate with the connection and performance data can be founded on the underside of the device.

Operation and Handing

This chapter provides you with important notices with regard to operating the device. Observe the following notices to avoid dangers and damages:

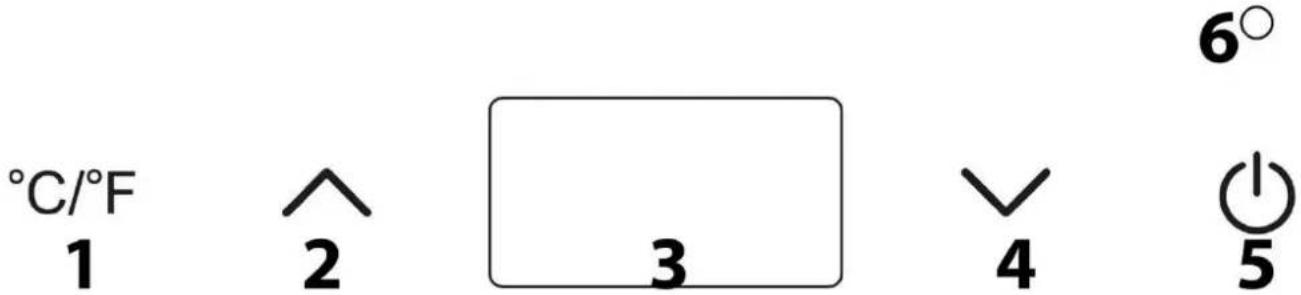

Control panel and display

1 Change from ^ C to ^ F , as well as display of the current temperature inside the wine bottle cooler
2 Increase the temperature
3 Display
4 Reduce the temperature
5 On/ standby button
6 LED

4.2 Operation of the bottle cooler

Connect the adapter plug with the device, then insert the plug into the socket. Press the On / standby button. Set your desired temperature.

Place a suitable bottle (less than 90mm in diameter) in the device. The device starts to cool down.

LED:

The LED flashes until the set temperature is reached. After that it is constantly illuminated. As soon as the temperature deviates by more as 3^ , the display flashes again.

If you press the ^ C / ^ F button for a long time, the temperature in the interior of the bottle cooler is displayed for a few seconds.

The cooling power of the device depends on various factors: The ambient temperature:

The maximum achievable cooling power depends, among other things, on the outside temperature. Rapid cooling is possible at a lower ambient temperature. If the ambient temperature is very high, cooling may need more time.

The starting temperature of the contents of the bottle:

A pre-cooled bottle content is immediately kept cool. Bottles with a warmer content need more time to reach the desired drinking temperature.

Ambient temperature below 16^ or above 32^ will hinder the performance of the appliance.

Cleaning and Maintenance

This chapter provides you with important notices with regard to cleaning and maintaining the device. Please observe the notices to prevent damages due to

cleaning the device incorrectly and to ensure trouble-free operation.

Safety information

Attention

Please observe the following safety notices, before you commence with cleaning the device:

• The device must be cleaned at regular intervals.
• Switch the device off prior to cleaning it and unplug the plug from the wall power outlet.
• If dampness penetrates into the device, this can damage the electronic components. Please ensure that no liquid can enter the interior of the device through the ventilation slots.
• Do not immerse the appliance into water or other liquids, and do not put it in the dishwasher.
• Do not use any aggressive or abrasive cleaning agents or solvents.
• Do not scrape off stubborn dirt with hard items.

Cleaning

To clean, simply wipe the outside and inside body of the WineCase One with a damp cloth. Once clean, ensure that the appliance is dried thoroughly.

Troubleshooting

Safety notices

Attention

• Only qualified electricians, who have been trained by the manufacturer, may carry out any repairs on electrical equipment.

• Improperly performed repairs can cause considerable dangers for the user and damages to the device.

The wine temperature control does not work:

The device may not be connected or the electrical circuit may be broken.

Wine is not cooled sufficiently:

The wine wasn't chilled long enough; the ambient temperature is too high.

If you are unable to solve the problem with the steps shown above, please contact Customer Service.

Technical Data

Device	Wine cooler
Name
Mains data	100 V – 240 V; 50 Hz / 60 Hz
Power	72 W
Temperature range:	5 °C -18 °C 41 °F - 64°F
External measurements (W x H x D):	13,5 x 24,5 x 28,5 cm
Weight	2,3 kg

WARRANTY

The warranty period for our products is 2 years, unless otherwise stated, starting from the date of initial purchase or the date of delivery.

If you have any problems or questions, you can easily access our help pages, troubleshooting tips, FAQ, and user manuals on our service site: https://sav.hkoenig.com.

By typing the reference name of your device in the search bar, you can access all available online support, designed to best meet your needs.

If you still cannot find an answer to your question or problem, then click on "Did the answer solve your problem?" This will direct you to the Customer Support Request Form, which you can fill out to validate your request and get help.

WARRANTY CONDITIONS

The warranty covers all failures occurring under normal use, in accordance with the usage and specifications in the user's manual.

This warranty does not apply to packaging or transportation problems during shipment of the product by the owner. It also does not include normal wear and tear of the product, nor maintenance or replacement of consumable parts.

EXCLUSION OF WARRANTY

• Accessories and wearing parts (^*)

• Normal maintenance of the device.

• All breakdowns resulting from improper use (shocks, failure to comply with power supply recommendations, poor conditions of use, etc.), insufficient maintenance or misuse of the device, as well as the use of unsuitable accessories.

• Damage of external origin: fire, water damage, electrical surge, etc.
• Any equipment that has been disassembled, even partially, by persons other than those authorized to do so (notably the user).
• The products whose serial number would be missing, deteriorated or illegible that would not allow its identification.
• The products subjected to leasing, demonstration, or exhibition.

(*) Some parts of your device, called wear parts or consumables, deteriorate with time and frequency of use of your device. This wear and tear are normal but can be accentuated by poor conditions of use or maintenance of your device. These parts are therefore not covered by the warranty.

The accessories supplied with the device are also excluded from the warranty. They cannot be exchanged or refunded. However, some accessories can be purchased directly through our website: https://sav.hkoenig.com/.

ENVIRONMENT

CAUTION :

Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should

be chosen carefully, a wheeled waste container is marked with a cross.

Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin, 77290 Mitry-Mory, France
