USER MANUAL AGE8WV H.KOENIG

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

Carefully read this manual before using this appliance. Ensure that you know how the appliance functions and how to operate it.

Maintain the appliance in accordance with the instructions to ensure that it functions properly.

Keep this manual with the appliance. If the appliance is to be used by a third party, this instruction manual must be supplied with it.

The safety instructions do not by themselves eliminate any danger completely and proper accident prevention measures must always be used.

No liability can be accepted for any damage caused by non-compliance with these instructions or any other improper use or mishandling.

Do not use this appliance if it has been dropped or damaged in any way, or if the supply cord is damaged.

GENERAL SAFETY PRECAUTIONS

After removing the wine cooler from the package, make sure it is in good condition. In case of doubt, do not use it and contact an authorized service center.

Read the operation manual carefully.

This wine cooler can only be used in the use of which it was designed. Damage due to improper use or repairs made by unqualified personnel will avoid warranty.

Before cleaning the wine cooler, make sure it is unplugged. Never clean the unit with an acid, gasoline, oil or any other kind of chemical substance that could damage the wine cooler. Repair should only be made by authorized service centers.

CAUTION

1. This device is not intended for use by persons with reduced capacity on the physical, mental or sensory or lack of experience and knowledge (including children), unless he has them was asked to monitor or if they have had instructions on the use of the appliance by a person responsible for their safety. Children should be supervised to ensure they do not play with the device.
2. If the power cord is damaged, it must be replaced with an after-sales service to avoid any danger.
3. Free standing installation only.
4. In order to prevent children from entrapment after your throw away your old wine cooler, please follow the instructions below to help prevent accidents.
5. Take off the door. Leave the shelves in place, so that children may not easily climb inside.

GENERAL AND ELECTRICAL SAFETY

When using electric appliances always observe safety regulations where applicable to reduce the risk of fire, electric shock and personal injury

Always check that the power supply corresponds to the voltage on the rating plate.

Supply Cord and Plug

Always unplug from mains supply when not in use. Do not abuse or damage the power cord. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

Supervision

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Water

Do not immerse appliance in water or supply cord in water. Do not use with wet hands or use in damp situations.

Use and Environment

Do not use outdoors. Do not use directly below a socket outlet. This appliance is not intended to be operated by means of an external timer or separate remote-control system. This appliance is designed exclusively for private, domestic use and is not suitable for commercial or industrial use. Do not use this appliance for anything other than its intended use. Only use the appliance on a stable, level, heat-resistant surface.

Injury Precaution

WARNING: Potential injury from misuse! Avoid contact with all moving parts. Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

Damaged or Dropped

Always inspect your appliance before use. Check parts are correctly attached. Do not use this appliance if it has been damaged, dropped, left outdoors or dropped in

Store in a Safe Place

When not in use store your appliance and all its accessories and instruction manual in a safe and dry place.

The device must not be used if it has been dropped, it obvious signs of damage are visible or if it has leaks.

• This appliance may be used by children of at least 8 years of age, as long as they are supervised and have been given instructions about using the appliance safely and are fully aware of the dangers involved.
• Cleaning and maintenance should not be carried out by children unless they are at least 8 years of age and are supervised by an adult.
• Keep the appliance and its power cord out of reach of children under 8 years of age.
• When using electrical equipment, safety precautions must always be taken to prevent the risk of fire, electric

shock and/or injury in the event of misuse.

TECHNICAL DATA

Type		AGE8WV
Volume (liter)		25L
Material	Case	Iron
	Door	Glass
Unit Dimension (W×H×D)(mm)		260X465X510
Packaging Dimension (W×H×D)(mm)		300x495x535
Net Weight (Kg)		8.5
Gross Weight (Kg)		9.3
Power Consumption (KW·h/24h)		0.438
Fitting ambient temperature range of working		<30°C
Temperature Range		8°C – 18°C
Rated Voltage		AC 220-240V
Rated Frequency		50Hz
Input power		70W

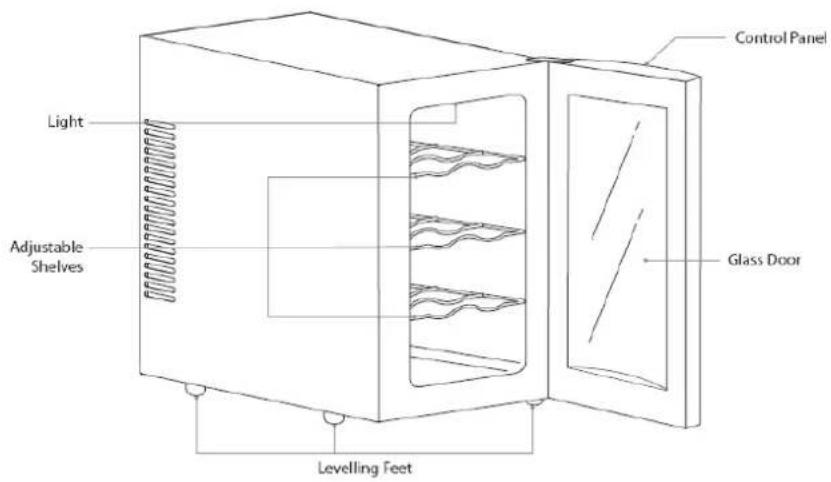

ILLUSTRATED STRUCTURE

CONTROL PANEL

率

1. Interior Light Button

2. Fahrenheit ^ /Celsius ^ Button

3. Desired Temperature Display

4. Temperature Up / Down Buttons

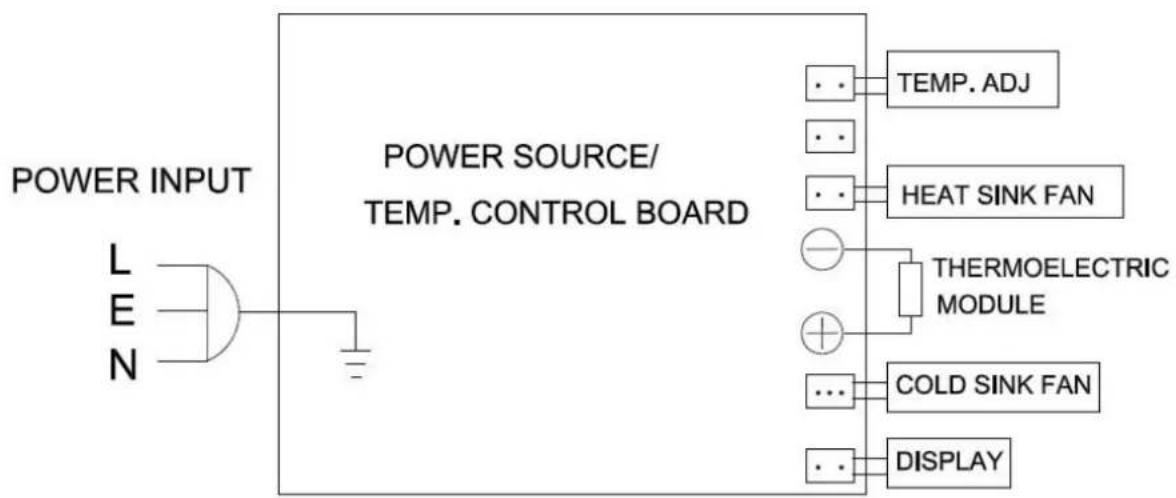

ELECTRIC PRINCIPLE DIAGRAM

Locate the wine cooler according to the installation limitations. Once you have plugged the unit into an electrical outlet, let the unit run for at least 30 minutes before making any adjustments.

2. Temperature Adjustments

a) Your wine cooler has an electric temperature control on the front of the units. You can set the temperature of your wine cooler at any setting your desire. The temperature will range from 8 degree to 18 degree. When initially turned on, the LED will display the ambient temperature and then the internal cabinet temperature.
b) Pressing the TEMP button on the display will increase the temperature and pressing the TEMP button will lower the temperature.
c) After you set your desired temperature, the set temperature numerals will flash for 5 seconds and then revert to the internal cabinet temperature.
d) Your wine cellar also has a light for your viewing convenience. A light switch on the control panel will activate the light manually. Under normal operation it is best for the light to remain off.
e) By pressing the C/F button you can have the temperature readout either in Celsius or Fahrenheit.

PARTICULAR PRECAUTIONS

• To assure your wine cooler works at the maximum efficiency it was designed for, you should install it in a location where there is proper air circulation, plumbing and electrical connections.
• The following are recommended clearances around the wine cooler:

sides 3/4 " 19mm
top4" 100mm
back 2" 50mm

• For proper internal air circulation, do not overfill your wine cooler.
• Avoiding direct sunshine temperature.
• Do not place heavy articles on the top of the cellar.

MAINTENANCE

• Shut off power supply before cleaning cabinet.
• Take out wines and shelves, and then clean the cabinet with soda water first and with clean water.
• Do not use soap or detergent for the cabinet.
• Clean the cellar regularly.

TROUBLESHOOTING

Symptoms	Possible cause	Solutions
No cooling	○ Plug not put in○ Low voltage	○ Put in the plug○ Ensure normal voltage
	○ Fuse broken	○ Change fuse
Not cold enough temperature inside	○ The wine cooler is placed too near heat source; ○ Bad ventilation; ○ Fans don't work; ○ The door is not closed tightly or opened too frequently or for too long time;	○ Keep the wine cooler away from sunshine or other heat source; ○ Place the wine cooler in the area with good ventilation and keep things away from the fans; ○ Check whether the plug is connected or change the fan; ○ Close the door tightly and don't open the door too frequently or for too long time.
Peculiar smell inside wine cooler	Check whether there is any sour inside	Wrap the source or take it out
Inside light flash	○ Set temperature higher than inner temperature; ○ The automatic defrost function start to work	○ Adjust the adjustor ○ Normal function. No repair needed
Frost on the cold sink。	Too much humidity or too low temperature inside the case	Output the plug, stop the power, and defrost by hand, Connect power again when the ice thaws

ENVIRONMENT

CAUTION:

Do not dispose of this product as it has with other household products. There is a separation of this waste product into communities, you will need to inform your local authorities about the places where you can return this product. In fact, electrical and electronic products contain hazardous substances that have harmful effects on the environment or human health and should be recycled. The symbol here indicates that electrical and electronic equipment should be chosen carefully, a wheeled waste container is marked with a cross.

Adeva SAS / H.Koenig Europe - 8 rue Marc Seguin, 77290 Mitry-Mory, France www.hkoenig.com

• [e-mail] - [e-mail] - Tél: [phone]
