USER MANUAL YT-82830 Yato

Labeled diagram of a metal detector with numbered components for identification

Close-up of hands using a tool to adjust or install a black mechanical component (no visible text or symbols)

Close-up of mechanical components, one showing a circular component with a bolt and cable, the other showing a cylindrical device mounted on a base (no visible text or symbols)

Close-up of a hand using a power tool to adjust or install a mechanical component (no visible text or symbols)

Close-up of hands holding a black cylindrical mechanical component, no visible text or symbols

Close-up of a hand holding a black cylindrical connector, no visible text or symbols

Close-up of a hand holding a gray plastic mechanical device with a circular component (no visible text or symbols)

Close-up of a gloved hand holding a mechanical component with a circular top and cable, no visible text or symbols.

Close-up of hands assembling a mechanical component with numbered parts (3 and 4), no visible text or symbols.

Close-up of gloved hands holding a small mechanical component with a thin wire, no visible text or symbols

Close-up of hands adjusting a mechanical component with a circular opening (no visible text or symbols)

Close-up of a hand holding a handheld device, showing mechanical components and a close-up view (no text or symbols visible)

1/3 2/3 XIII

Three-panel photo showing hands operating a battery pack and charging case, with no visible text or symbols.

Technical line drawing of a mechanical assembly or bracket (no text or symbols)

PL

It is forbidden to use metal cutting blades, use only the cutting line

Keep at least 15 m distance between the workplace and bystanders

Avoid throwed objects

Do not expose to precipitation

Read the operating instruction

Wear protective goggles

Schutzbrille tragen

Wear hearing protectors

Gehörschutz tragen

This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.

WYPOSAŻENIE PRODUKTU

Cordless grass trimmer is used for decorative forming of lawns, by using a plastic line, which is rotating at high speed. Because of the electric drive of grass trimmer its operation is much quieter than in the case of combustion tool, its operation is also possible in vicinity of buildings. Due to the battery power supply, the grass trimmer allows you to work in areas, which are not accessible for to mains-powered products. Correct, reliable, and safe operation of the device is dependent on its proper use, therefore:

Prior to working with the tool, you should read all the instruction and keep it around.

For any damages or injuries caused by the tool misuse, resulting from failure to comply with its designation, no compliance with safety regulations and recommendations included in this manual, the supplier does not accept any liability. The tool misuse causes also the loss of user's rights to the guarantee and warranty.

EQUIPMENT OF THE PRODUCT

The product is supplied in a complete state but before the first use it is required to assembly it. The product is supplied with the blades covers, front handle rechargeable battery and charging station.

Attention! The product of the catalog number: YT-82831 has not been equipped with a rechargeable battery and charging station.

TECHNICAL DATA

Parameter Unit Value
Catalog number YT-82830, YT-82831
Rated voltage [V] 18 DC
Cutting speed [min]	-1] 7200
The length of cutting [mm] 250 / 300
Cutting line diameter [mm] 1.65
Length of cutting line on the spool [m]	2.5
Electric protection class		III
Weight	[kg]	2.74
Noise level
- L_PA (pressure)	[dB (A)]	85.0 ± 3.0
- L_WA (power)	[dB (A)]	93.0 ± 3.0
Vibrations	[m/s2] 2.5 ± 1.5
Type of the battery*		Li-Ion
Capacity of the battery*	[Ah]	2
Energy of the battery [Wh]	36
Charging station*
Input voltage [V~]	220 - 240
Mains frequency	[Hz] 50 / 60
Rated power	[W]	60
Output voltage	[V] 21 DC
Input current	[A]	2.4
Time of charging**	[h]	1

* only for models equipped with battery and charger
** charging time applies only to the battery with a capacity listed in table

GENERAL SAFETY CONDITIONS

NOTE! Get acquainted with all the instructions below. Failure to observe them may lead to an electric shock, fire or injuries. The notion of electric tool used in the instructions applies to all the tools which are powered with electric current, both wire tools and wireless ones.

OBSERVE THE FOLLOWING INSTRUCTIONS

Place of work

The place of work must be properly illuminated and clean. Disorder and poor illumination may be a cause of accidents.

Do not work with electric tools in explosive environments, or those which contain inflammable liquids, gases or vapours.

Electric tools generate sparks, which may cause a fire in case of contact with inflammable gases or vapours.

Do not allow children and outsiders to the place of work. A lack of concentration may result in a loss of control over the tool.

EN

Electric safety

The plug of the power supply cable must fit the mains socket. Do not modify the plug. Do not use any adapters whatsoever in order to adapt the plug to the socket. Unmodified plug which fits the socket reduces the risk of an electric shock.

Avoid contact with grounded surfaces, such as pipes, heaters and refrigerators. Grounding of the body increases the risk of an electric shock.

Do not expose electric tools to precipitation or humidity. Water and humidity which gets into the electric tool increases the risk of an electric shock.

Do not overload the power supply cable. Do not use the power supply cable in order to carry the tool or to connect and disconnect the plug from the mains socket. Avoid contact of the power supply cable with heat, oils, sharp tools and moving elements. Damage to the power supply cable increases the risk of an electric shock.

In case work is realised outside closed areas, it is necessary to use extension cords designed for applications outside closed areas. Using a correct extension cord permits to reduce the risk of an electric shock.

If operating a power tool in a damp location is unavoidable, use a residual current device (RDC) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

Commence work in good physical and psychological conditions. Pay attention to what you do. Do not work if you are tired or under effects of medicines or alcohol. Even a moment's inattention during work may lead to serious injuries.

Always use individual means of protection. Always wear goggles. Using individual means of protection, such as dust-masks, protective shoes, helmets and hearing protections permits to reduce the risk of serious injuries.

Avoid accidental activation of the tool. Make sure the switch is in the OFF position, before you connect the tool to the mains. Holding the tool with a finger on the switch or connecting an electric tool when the switch is in the ON position may lead to serious injuries.

Before you turn an electric tool on remove all the spanners and other tools, which have been used for adjustments. A spanner left on rotating elements of the tool may lead to serious injuries.

Keep your balance. Maintain an appropriate position. It will permit to control the electric tool in case of unpredicted situations during its operation.

Use protective clothes. Do not wear loose clothes or jewellery. Keep your hair, clothes and gloves away from moving elements of the electric tool. Loose clothes, jewellery or long hair may get caught on moving elements of the tool.

Use dust extractors or dust containers, if the tool is equipped with any. Make sure they are properly connected. Using of dust extractors permits to reduce the risk of serious injuries.

Operation of the electric tool

Before the battery is installed, make sure the switch is off. Installation of the battery when the switch is on may lead to accidents.

Use solely the charger recommended by the manufacturer. Using a charger designed for another type of battery may be a cause of fire.

The electric tool must be operated exclusively with the battery indicated by the manufacturer. Using another battery may be a cause of fire or injuries.

When the battery is not used, it must be stored away from such metal objects as paper clips, coins, nails, screws or other small metal elements, which might short-circuit the terminals. Short-circuited terminals of the battery may cause burns or fire.

Under adverse circumstances liquid may leak from the battery; avoid any contact. In case of accidental contact with the liquid, rinse it with water. In case of eye contact, seek medical. The liquid leaking from the battery may cause irritation or burns.

Repairs

The tool may be repaired only by authorised service centres, which must use solely original spare parts. It will guarantee a proper level of safety of operation of the electric tool.

ADDITIONAL SAFETY INSTRUCTIONS

The machine may be the cause of serious injuries. Yous should carefully read the instructions manual. Be familiar with its correct holding, service, maintenance, starting and stopping the device. Become familiar with the correct operation of all controls.

The machine is not intended for use by children and persons with reduced physical, sensory or mental capabilities or persons deprived of their experience and knowledge or by people, who are not familiar with the instructions for use of the machine. Local regulations may restrict the age of the operator.

The grass trimmer must not be exposed to the influence of precipitation.

Keep the cable away from the cutting element. During operation the cable may be hidden in the grass, there is, therefore, the possibility of its accidental damage or intersection.

Use only the accessories provided by the manufacturer: spool with the cutting plastic line. Do not use equipment other than speci-

EN

fied by the manufacturer, such as blades, cutting discs or discs equipped with the cutting chain. Do not substitute the cutting line with a metal wire or string. The use equipment other than those specified may result in a serious threat to the safety of the operator and bystanders. Prior to installation of the cutting element and cover to make sure that they are not damaged, have no cracks, are not bent. Make sure, that there is at least 1 meter line on the spool.

During operation, it is likely, that objects can be thrown towards the operator and bystanders. The operator is responsible for accidents or a threat presented to others or to the environment. Do not operate the device, if there are bystanders in the vicinity, especially children and animals. Prior to work appoint a safety zone with a radius, of at least 15 meters from the place of work.

Despite the safety measures taken during the design and construction of the machine, there always remains a residual risk.

Therefore, you should use the technical and complementary protective measures.

Always wear eye and face protection, this protects the eyes, face and respiratory system against dust and objects thrown during the operation. Always wear the correct, adjacent to the body, protective clothing. Use only long trousers. Do not wear loose clothing or jewelry, which can be caught by moving parts of the machine. Wear protective gloves and hearing protection. Wear safety shoes with non-slip soles, does not work with bare feet or sandals.

The device must be regularly reviewed in accordance with the information contained in the following section. This will allow for more efficient and safer operation.

When you work you should use hearing protectors. Exposure to excessive noise can lead to permanent hearing damage.

Use protective glasses. During the work the garbage can create risk of eye injury.

You must be familiar with the instructions to switch off the device in case of emergency.

Before the work always check whether the cutting element, screws, guards and other elements are not worn or damaged. Replace worn parts before starting work. You should also check that the screw connections not loosened. Tighten the loose bolts.

During operation, you should not tilt the machine and keep it constantly in a state of equilibrium, you should always put your feet surely on the slope and walk, never run. When mowing slopes you should always move across the slope, never along.

Never touch the dangerous moving parts before disconnecting the machine from the power supply and until all dangerous moving parts completely stop.

The cutting element can rotate for some time after the engine is stopped.

Disconnecting the machine from the power supply is to turn off the machine switch and disconnect the power source. Unplugging the power cord from the wall socket in the case of mains-operated devices or disconnect the battery in the case of battery-powered devices.

The machine should be disconnected from the power supply in every case when:

• the operator walks away from the machine,
• the obstruction is removed,
• before checking or cleaning,
• before the inspection whether machine is damaged after hitting the foreign object,
• before the immediate testing after the machine starts to vibrate excessively.

PRODUCT SERVICE

Preparation of grass trimmer to work

Attention! Before all mounting and regulatory operations, you should disconnect the grass trimmer from the power supply. Remove the battery pack from the power tool socket!

Visually inspect the tool, If you notice any damage, do not start any work before repairing them.

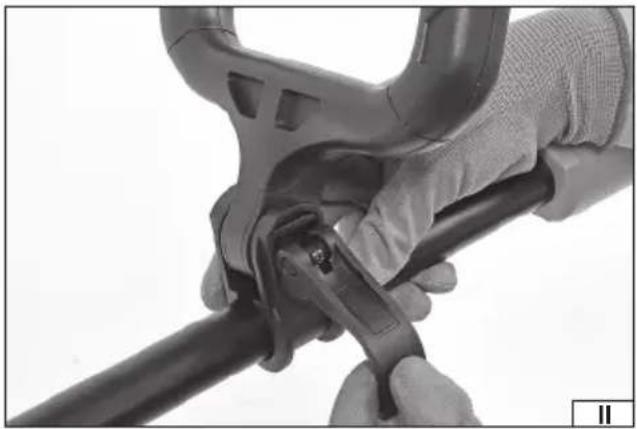

Installation of the front handle (II)

If the handle has not been fitted, then you should translate the holder through the guard of power cables, and, after that, lock its position with the lever.

The handle position should be selected in an experimental way, to fit the physical condition of the operator and the area in which the trimmer will be used. The handle position should allow work with the hands bent at the elbows and straight back. It should also ensure the freedom of movement in the plane of trimmer work.

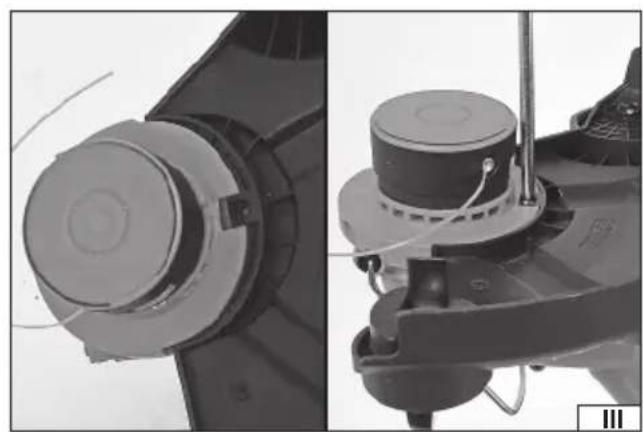

Installing the cutting element guard (III)

Insert the shield latches in the trimmer cover, and then protect them by a screw.

At the edge of the guard there is a blade, which is used to automatically shorten the line. Before starting work, you should remove from it the guard.

Adjustment operations

In addition to adjusting the position of the front handle, the trimmer allows to adjust the length of the power supply wires, turn of the lower part of the power supply wires, rotation of the cutting head, and adjustment of the cutting width.

It is possible to use stepless setting of the length of the power cord cover, which translates into the length of the entire tool. Turn the ring (V) in the direction of the symbol of an open padlock, adjust the length and rotate the ring in the direction of the closed padlock symbol. Make sure, that the length of the trimmer does not change spontaneously during work.

EN

In order to more ergonomic usage of trimmer to edge mowing you can turn the bottom cover of the cords. To do this, you should pull the lock in the direction shown by the arrow (VI), hold it down, and then turn. There are two positions to for locking i.e. 0 degrees and 180 degrees. Lower the lock ring and make sure that it returned to its starting position, and that the position of the power cord cover has been locked in a new position. In addition, it is possible to turn the cutting head alone by 90 degrees. To do this, press the button located on the head (IV). This will release of the lock, and the internal spring will begin rotation of the cutting head. You should manually rotate the head until it is locked in a new position. Restoration to its previous position is performed by pressing the button, and then, by manual rotation of the head until the moment of its locking in the previous position.

Due to this, that the blade, which is used for automatic shortening of the cutting line, was placed on the eccentric, it is possible to rotate the blade, which will cause the step width change between the values listed in the table of technical data. The dial should be pressed, hold down, and then rotated (XI) and release the pressure in such a way that it would be locked in the position described the required width of the cut.

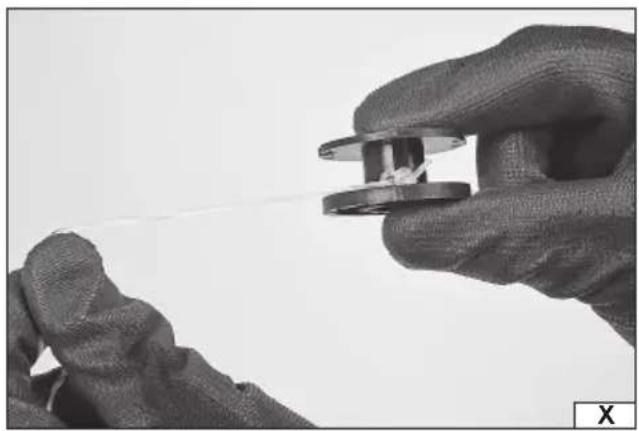

When you are using the trimmer for vertical cutting of edges (X), you can use the auxiliary wheel, which is attached to the edge of the cutting element cover, this will facilitate the trimmer driving. During normal horizontal grass cutting it is recommended to use a spacer guard, which is located in the front of cutting head. This will facilitate the protection of vertical surface against being hit by the cutting line.

Replacing the line

To do this, you should pull the line segment, which is protruding from the spool, and then press the lock button of the spool (VII). Each time, when you press, the line unwinds a few millimeters. It is not recommended to unwind the line over a length sufficient to reach the blade guard. After starting the trimmer, the line segment, which is extending beyond the blade guard, is cut. If you will not be able to further unwind the line, this means, that the line on the spool is worn and it should be replaced.

You should prepare a line section with a length and diameter shown in the table. Then remove the spool cover cover by simultaneously pressing both buttons of the lock cover (VIII). Pull out the spool, then clean it and clean the interior of spool.

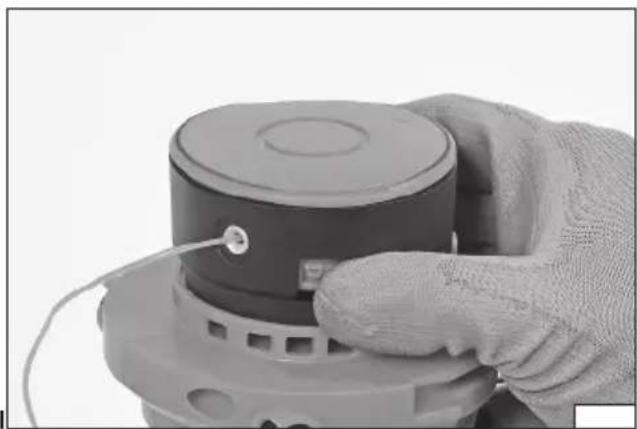

One end of the line should be attached to the spool, by threading it through the eyelet in the spool and tying (X). Then, the remaining section of the line you should slip tightly onto the spool in the direction indicated by the arrow on the spool. During the winding, you should avoid crossing beams and tangling of line. Leave a section of several centimeters length and thread it through the hole in the spool guard (IX). Mount the spool in the spool guard so that the arrow on the spool would point toward the same direction as the arrow on the cover of the cutting element. Then mount the spool cover and see whether the line unwinds freely by the described above attempt to unwind it.

Preparing the workplace

Before starting work, you should prepare the workplace. Before starting the work you should assign a safety zone with a radius of at least 15 meters away from the place of work, which will not be accessible for bystanders. Make sure, that around the workplace there are not obstacles, which can cause collision of the operator or grass trimmer during its operation.

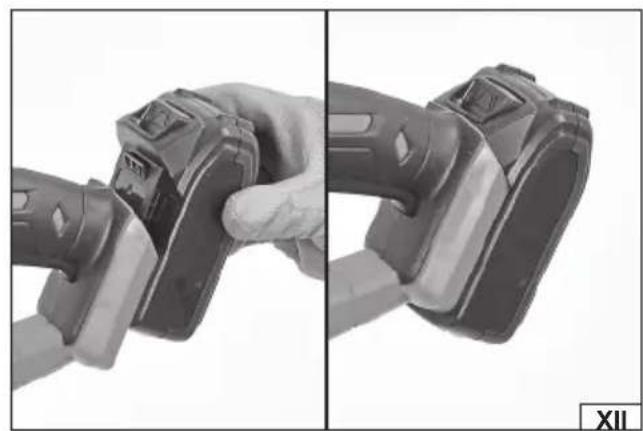

Connecting the grass trimmer to power (XII)

Insert the battery into the power socket, with its pins facing to the inside of the shear and to the top, until the battery latches will lock. Make sure, that the battery will not slip out during work.

You should disconnect the battery by pressing and holding the latch, and then remove the battery from the grass trimmer housing.

Starting and stopping the grass trimmer

Make sure, that the battery is connected to the grass trimmer, and that from the cutting element guard it was removed the protection, and that the cutting element has no contact with any part of the body and other objects.

Adopt an position, that ensures balance. With one hand catch the front handle. With the other hand grasp the rear handle. Push with your thumb the lock switch, and press the switch with other fingers, this will start the trimmer.

During operation it is not necessary to hold the lock.

The grass trimmer is stopped after releasing pressure on the switch. The cutting device can rotate for some time after the engine is stopped. It is forbidden to stop the cutting element by applying pressing it to the ground or to other object.

After a complete stoppage of cutting element, you should disconnect the shear from the power supply by disconnecting it from the battery. Then proceed to maintenance.

Work with the trimmer

Do not allow operation of the device at low rev speeds or during startup.

It is recommended, to move the grass trimmer from right to left during its work. You should avoid mowing, by moving the trimmer from left to right. This will allow the operator to avoid, during cutting, the ejected remnants of cut grass.

Avoid mowing the shrubs and bushes. Work the grass trimmer near trees can damage their bark. Hitting with line stones, bricks, walls or similar surfaces, can lead to very rapid wear of the line.

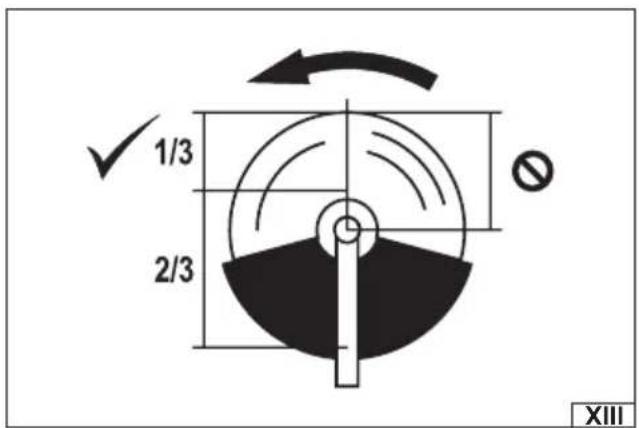

You should avoid cutting by the upper quadrant of the cutting element (IX). This will prevent situation, when the grass trimmer is

EN

rebound in the direction of operator in the event of blockage of the cutting element during operation.

Tips useful when working

You should ensure balance and proper posture while you work. Be extremely careful when working on slippery, sloping or uneven ground.

During operation, the cutting element must be constantly monitored. Do not carry out the cut in places which are remaining out of sight.

Before you start your works, you should carefully inspect the work place, remove any loose branches and remnants of previous cutting.

When you work you should use regular breaks. The device, during its operation, emits noise and vibration, that affect the equipment operator. The use of regular breaks and personal protective equipment such as gloves, hearing protection, and eye protection can reduce the impact of the device operation on the operator's condition..

You should start the work being healthy and in good shape. In the event of nausea, headache, visual disturbances (eg. reduced field of vision), hearing problems, dizziness you should immediately stop working with the device.

Tall grass should be cut gradually from the top, this will reduce the risk of winding up of the cut grass on the line spool.

Try to cut grass only by the end of the line, this will reduce the risk of winding up of the cut grass on the line spool.

If during the operation any element of grass trimmer or guard becomes damaged or deformed, you should replace it or fix it before the start of device operation.

Safety recommendations for battery loading

Attention! Before loading may start make sure the body of the charger, the cable and the plug are not broken or damaged. It is prohibited to use a damaged loading dock and charger! For the purpose of loading batteries only the charging dock and the charger provided may be used. Using another charger may be a cause of fire or damage the tool. Batteries may be charged only in a dry room, protected from unauthorised persons, particularly children. Do not use the charging dock and the charger without permanent supervision of an adult! If it is necessary to leave the room where loading is taking place, it is required to disconnect the charger from the mains, removing the charger from the mains socket. In case when smoke comes out of the charger, or a strange smell is emitted, etc., it is required to immediately remove the plug of the charger from the mains socket!

The drill and automatic return screwdriver is provided with an unloaded battery, so before work may commence, it is required to charge it following the procedure below, using the charger and charging dock provided. Li-ION batteries do not show the so called “memory effect”, so it is allowed to charge them at any moment. However, it is recommended to discharge them during normal work, and then load them to their full capacity. If due to the nature of the task it is not possible to do so each time, then it is required to do it at least from time to time. Under no circumstances is it allowed to discharge the batteries short-circuiting the electrodes, since this would cause irreversible damage! It is also prohibited to check the load of the batteries, short-circuiting the electrodes for sparking.

Storage of the battery

In order to prolong the life of the battery, it is required to provide adequate storage conditions. The batteries can go through approximately 500 „loading - discharging” cycles. The battery must be stored between 0 and 30°C, at the relative humidity of 50%. In order to store the battery for a prolonged period, it is required to charge it to approximately 70% of its capacity. In case of prolonged storage, it is required to recharge the battery once a year. Do not permit excessive discharging of the battery, since this would reduce its life and may cause irreversible damage.

During storage, the battery will be gradually unloading due to leakage conductance. The process of automatic unloading depends on the temperature of storage, since the higher the temperature, the fastest the process. In case of incorrect storage of batteries, there is a danger of electrolyte leakage. In case of leakage, it is required to protect the leakage with neutralizing agent. In case of contact of electrolyte with the eyes, it is required to rinse the eyes abundantly, and then immediately seek medical assistance. It is prohibited to use a tool with a damaged battery.

In case the battery is completely worn out, it is required to deposit it at a special point dedicated to disposal of such waste.

Transport of the batteries

Lithium-ion batteries are in accordance with legal regulations treated as dangerous waste. The user of the tool may transport the tool with the battery or only batteries by land. Then no additional conditions must be complied with. In transport is realised by third parties (for example dispatch through courier service), then it is required to proceed in accordance with regulations for transport of dangerous materials. Before shipment, contact an authorised person.

It is prohibited to transport damaged batteries. During transport the battery must be removed from the tool, and the exposed contacts protected, e.g. with insulating tape. Protect the batteries so that they do not move inside the package during transport. It is also required comply with the national regulations for transport of dangerous materials.

Charging the battery

Attention! Before charging you should disconnect the charger from the mains by unplugging the power supply plug from the mains. In addition, you should clean the battery and its terminals of dirt and dust with a soft, dry cloth.

The battery has a built-in charge indicator. When you press the button, LEDs will light up (XIV), the more LEDs will light up, the

EN

more fully the battery pack is charged. If the button is pressed and the LEDs are off it means that the battery is discharged.

Disconnect the battery from the tool.

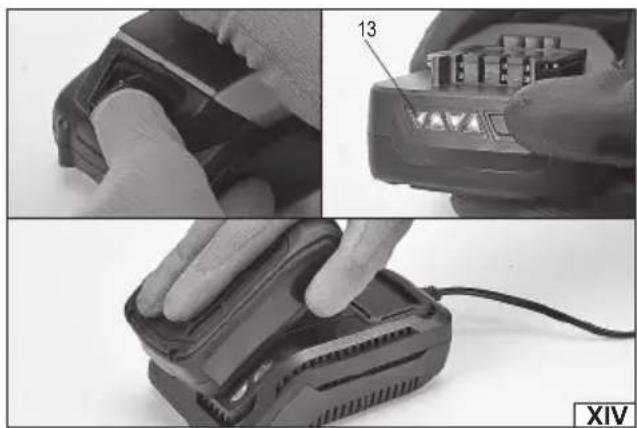

Push the battery in the charger socket (XIV).

Plug the charger into a mains socket.

When the red LED lights up, it means the loading process.

When charging is complete, the red LED goes off, and green LED lights up, indicating a full charge of the battery.

Unplug the charger from the mains outlet.

Remove the battery from the charging station, by pressing the battery latch button.

Attention! If, when the charger is connected to the power supply, the green LED is on, this indicates a fully charged battery. In this case, the charger does not start charging.

MAINTENANCE AND STORAGE OF THE PRODUCT

Attention! Before starting any operation, which is described below, you should switch off the grass trimmer from its power supply. The tool, which is mains powered, should be disconnected from the wall outlet, the tool, which are battery operated, should be disconnect from the battery.

After each use, you should examine your tool condition with particular emphasis on the patency of the ventilation openings.

Check the alignment of all elements of the tool. Any loose connections should be tightened. Check the status of the cutting element. The cutting element guard and the spool you should clean of grass debris. If you notice a damage to the cutting element guard and/or to spool, they must be replaced before further work. It is forbidden to use the trimmer with damaged cutting element guard and/or damaged spool.

The tool housing should be cleaned with a soft dry cloth. Clean the housing of residual grass, oil, grease and other contaminants.

The tool should be stored in a dry, closed room, disconnected from the power supply.

The tool should be stored in the areas, which are shaded, dry, and equipped with adequate ventilation to prevent condensation.

The place should not be available for bystanders, especially children. During storage the blades should always be protected by the cover.

CHARAKTERISTIK DES PRODUKTES

PRODUKTA RAKSTUROJUMS

PRODUKTA APKALPOŠANA

Darba sagatavošana

CARACTERISTIQUES DU PRODUIT

Intertek House, Cleeve Road, Leatherhead, Surrey KT22 7SB; Wielka Brytania

DECLARATION OF CONFORMITY

0423/YT-82830/EC/2024

We declare and guarantee with full responsibility that the following products:

Cordless grass trimmer 18 V d.c.; 250 / 300 mm; 7200 min ^-1 ; item no. YT-82830, YT-82831

meet requirements of the following European Standards / Technical Specifications:

EN 60335-1:2012 + A11:2014 + A13:2017 + A1:2019 + A14:2019 + A2:2019 + A15:2021

EN 50636-2-91:2014

EN IEC 55014-1:2021

EN IEC 55014-2:2021

and fulfill requirements of the following European Directives:

2006/42/EC Machinery and safety elements

2014/30/EU Electromagnetic compatibility (EMC) Directive

2011/65/EU Restriction of the Use of Certain Hazardous Substances

Serial number: concern all serials numbers of item(s) mentioned in this declaration

The last two digits of the year in which the CE marking was affixed: 17

Year of production: 2024

The person authorized to compile the technical file:

Tomasz Zych

(Place and date of issue)

TOTA SPATA SCYNA SPECIALISTA DS. TECHNICZNYCH TOMASZ ZYCH

(Name and signature of authorized person)

TOYA S.A.

DECLARATION OF CONFORMITY

0423/YT-82830/EC/2024

We declare and guarantee with full responsibility that the following products:

Cordless grass trimmer 18 V d.c.; 250 / 300 mm; 7200 min ^-1 ; item no. YT-82830, YT-82831

fulfil requirements of the following European Directive: 2000/14/WE

Conformity assessment procedure:

Manufacturer quality-control system, examination of the manufacturer's technical file and periodical inspection by notified body

Notified body:

Intertek Testing; Certification Ltd. notification no.: 0359

Intertek House, Cleeve Road, Leatherhead, Surrey KT22 7SB; United Kingdom

Measured sound power level on an equipment representative for this type: 93 dB(A)

Guaranteed sound power level for this equipment: 96 dB(A)

conformity and references of the other Community Directives applied:

2006/42/WE Machinery and safety devices

2014/30/UE Electromagnetic compatibility

2011/65/UE Restriction of the Use of Certain Hazardous Substances

Wrocław, 2024.04.02

(Place and date of issue)

TOTA SPATA SCYTA SPECIALISTA DS. TECHNICZNYCH TOMASZ ZYCH

(Name and signature of authorized person)

TOYA S.A.

Intertek House, Cleeve Road, Leatherhead, Surrey KT22 7SB; United Kingdom
