USER MANUAL HCR79F19EHSB HAIER

29 Care and cleaning

31 Troubleshooting

35 Installation

38 Technical data

Before first use 5

Installation 5

Daily use 6

Power on for the first time 12

Lock/unlock feature settings 12

Refrigerator temperature adjustment 12

Freezer temperature adjustment 13

Switch zone temperature adjustment 13

My Zone Function 14

Eco Function 14

Super Cool Function 15

Super Frz. Function 15

Holiday Function 16

Ice maker Function 16

Fast Ice Function 17

Water On Function 17

Filter Reset Function 17

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance.

The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

WARNING - Important Safety information

NOTICE-General information and tips

Environmental information

Disposal

Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances.

Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

WARNING!

Risk of injury or suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance.

Before switching on the appliance for the first time read the following safety hints!:

WARNING!

Before first use

▶ Make sure there is no transport damage.
Remove all packaging and keep out of children's reach.

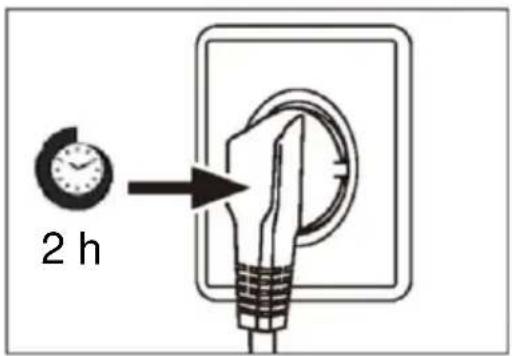

▶ Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient.
▶ Handle the appliance always with at least two persons because it is heavy.

Installation

The appliance should be placed in a well-ventilated place. Ensure a space of at least 10 cm above and around the appliance.
▶ Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth.
▶ Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).

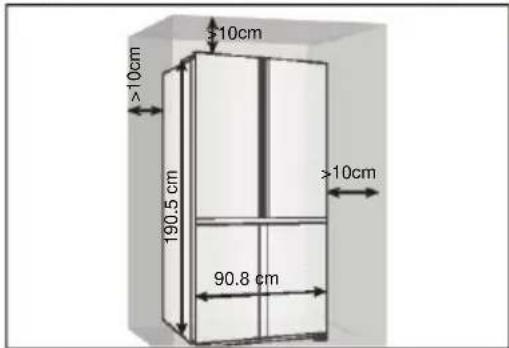

▶ Install and level the appliance in an area suitable for its size and use.
- Keep ventilation openings in the appliance or in the in-built structure clear of obstruction.
▶ Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.
The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.
▶ Do not use multi-plug adapters and extension cables.
▶ Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
▶ Ensure that the power cable is not trapped by the refrigerator. Do not step on the power cable.
This device should not be used unless there is a ground connection to the building or an RCD residual current pulse is added with a dual socket.

WARNING!

▶ Use a separate earthed socket for the power supply which is easy accessik. The appliance must be earthed.
▶ Do not damage the refrigerant circuit.

Daily use

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
▶ Children aged from 3 to 8 years are allowed to load and unload, but not allowed to clean or install the refrigerating appliances.
- Keep away children under 3 years of age from the appliance unless they are constantly supervised.
▶ Children shall not play with the appliance.
If cool gas or other inflammable gas is leaking in the vicinity of the appliance, turn off the valve of the leaking gas, open the doors and window and do not unplug a plug in the power cable of the refrigerator or any other appliance.
▶ Notice that the appliance is set for operation at a specific ambient range between 10 and 43°C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.
▶ Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator, to ovoid personal injury caused by falling or electric shock caused by contact with water.
▶ Do not pull on the door shelves. The door may be pulled slant, the bottle rack, may be pulled away, or the appliance may topple.
▶ Open and close the doors only with the handles. The gap between the doors and between the doors and the cabinet is very narrow. Do not extend your hands in these areas to avoid pinching your fingers. Open or close the refrigerator doors only when there are no children standing within the range of door movement.

WARNING!

▶ Do not store or use inflammable, explosive or corrosive materials in the appliance or in the vicinity.
▶ Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures.
▶ Never store liquids in bottles or cans (besides high percentage spirits especially carbonated beverages in the freezer, as these will burst during freezing.
▶ Check the condition of food if a warming in the freezer has taken place.
▶ Do not set unnecessarily low temperature in the refrigerator compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst
▶ Do not touch frozen goods with wet hands (wear gloves). Especially do not eat ice lollies immediately after removal from the freezer compartment There is the risk to freeze or the formation of frost blisters. FIRST aid: keep immediately under running cold water. Do not pull away!
▶ Do not touch the inside surface of the freezer storage compartment when in operation, especially with wet hands, as your hands may freeze onto the surface.
▶ Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.
▶ Do not use electrical devices inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Maintenance / cleaning
▶ Make sure children are supervised if they carry out cleaning and maintain
▶ Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.

WARNING!

▶ Hold the plug, not the cable, when unplugging the appliance.
▶ Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
▶ Do not scrape off frost and ice with sharp objects. Do not use spray electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.
▶ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
▶ Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.
▶ Eliminate the dust on the back of the unit at least once in the year to avoid hazard by fire, as well as increased energy consumption.
▶ Do not spray or flush the appliance during cleaning.
▶ Do not use water spray or steam to clean the appliance.
▶ Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.

Refrigerant gas information

WARNING!

The appliance contains the flammable refrigerant ISOBUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open fire sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service.

In case of eyes get into contact with the refrigerant, rinse immediately it under running water and call immediately the eye specialist.

Intended use

This appliance is intended for cooling and freezing food. It has been designed exclusively for use in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments as well as in bed-and-breakfast and catering business. It is not intended for commercial or industrial use.

Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.

Standards and directives

and

This product meets the requirements of all applicable EC directives with the corresponding harmonised standards and UK standards, which provide for CE and UKCA marking.

CAUTION!

1.

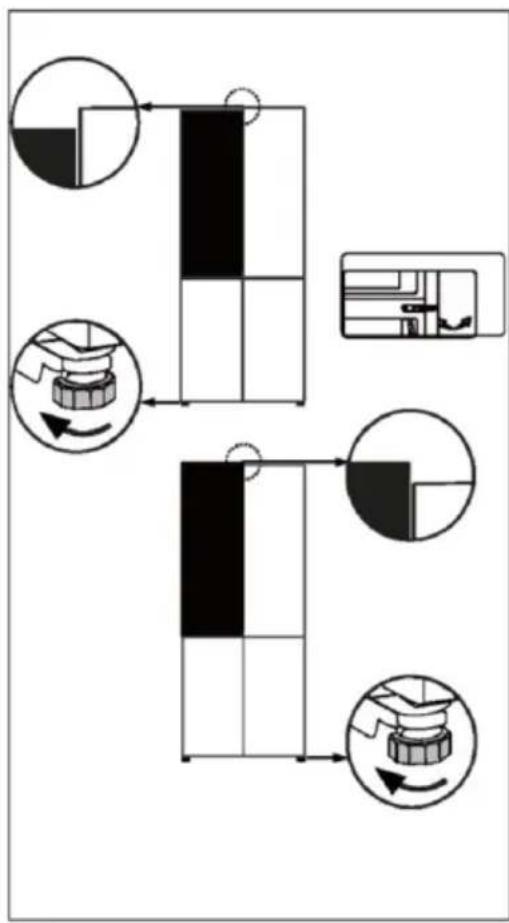

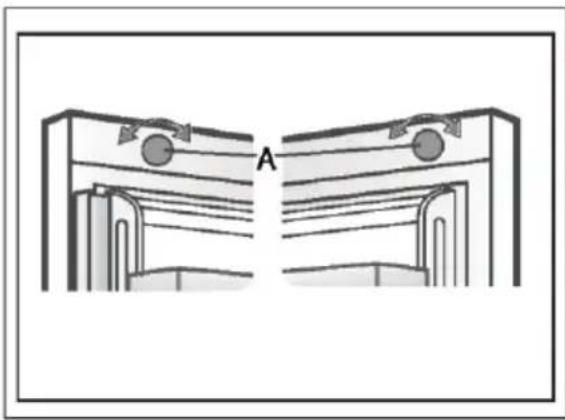

When you close the door, the vertical door strip on the left door should be bent inside (1).

2.

If you try to close the left door and the vertical door strip is unbent (2), you should bend it firstly, otherwise the door strip will hit the fixing shaft or right door. Thus a damage to the door slip or a leak will occur.

There is a heating thread inside the frame. The temperature of the surface will rise a little, which is normal and won't affect the function of appliance.

NOTICE

Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

A B C

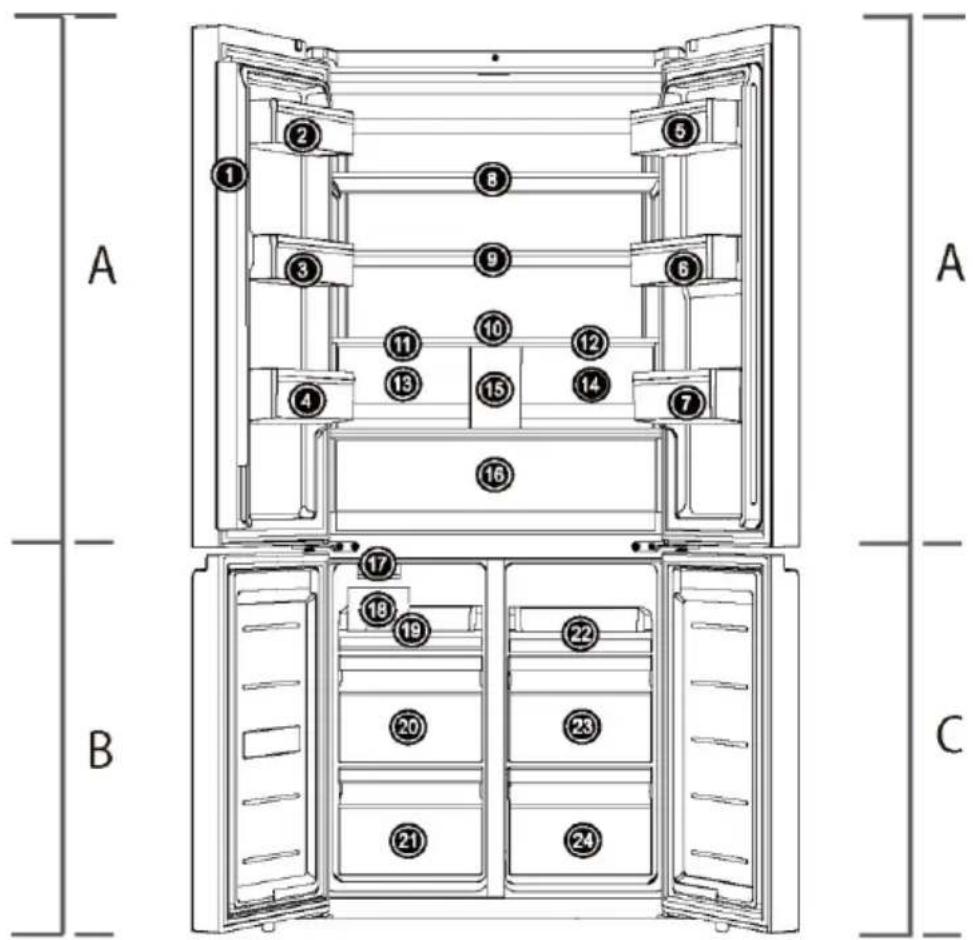

A: Fridge compartment

1 Door beam
2 Bottle holder (upper left)
3 Bottle holder (middle left)
4 Bottle holder (lower left)
5 Bottle holder (upper right)
6 Bottle holder (middle right)
7 Bottle holder (lower right)
8 Glass shelf
9 Glass shelf
10 Glass shelf
11 Panel of Humidity Zone drawer
12 Panel of My Zone drawer

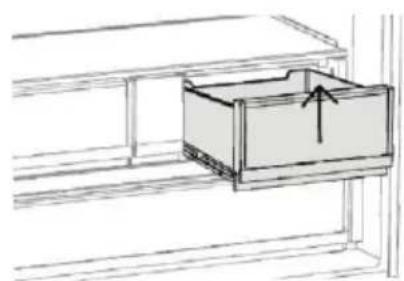

13 Humidity Zone drawer

14 My Zone drawer
15 Water filte

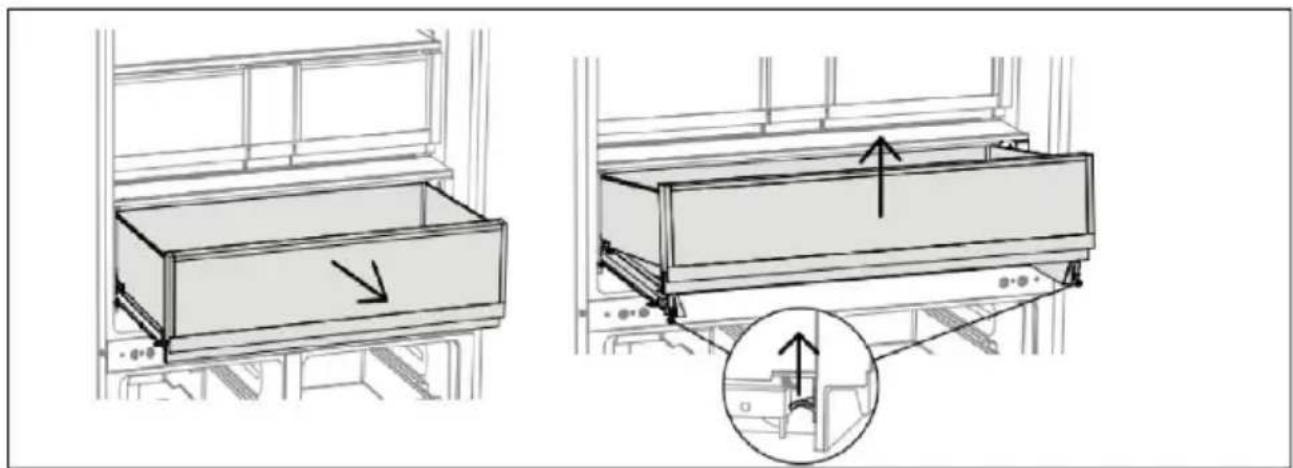

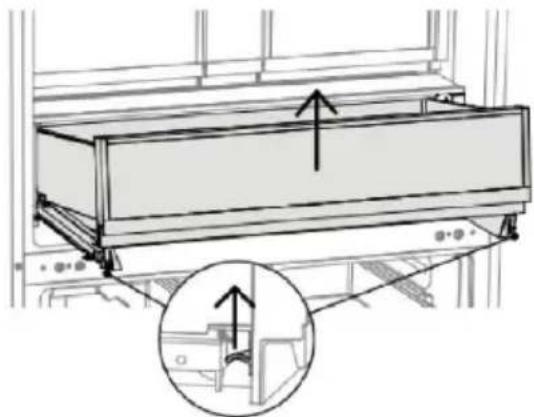

16 Fresh Box

B: Frezzer compartment

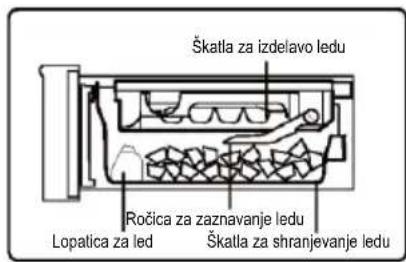

17 ice maker assembly
18 Ice storage box
19 Storage tray
20 Storage drawer (middle)
21 Storage drawer (lower)

C: Switch Zone compartment

22 Storage tray
23 Storage drawer (middle)
24 Storage drawer (lower)

Control panel

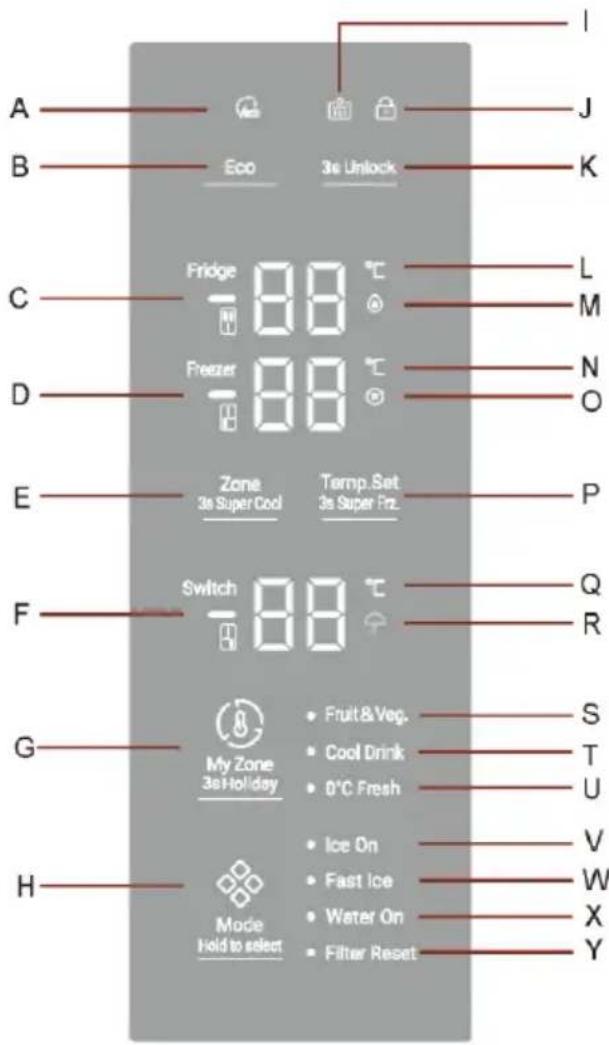

A B Eco 3s Unlock Fridge 88 °C Freezer 88 °C Zone 3s Super Cool Temp. Set 3s Super Frz. Switch 88 °C My Zone 3s Holiday Fruit & Veg. Cool Drink 0°C Fresh Ice On Fast Ice Water On Filter Reset I J K L M N O P Q R S T U V W X Y

Indicators:

A Eco indicator
C Fridge indicator
D Freezer indicator
F Switch indicator
I Filter indicator
J Lock indicator
L Fredge °C indicator
M Super Cool indicator
N Freezer °C indicator
O Super Frz. Indicator
Q Switch °C indicator
R Holiday indicator
Q Switch °C indicator
S Fruit&Veg indicator
T Cool Derink indicator
U 0°C Fresh indicator
V Ice On indicator
W Fast Ice indicator
X Water On indicator
Y Fileter Reset indicator

Buttons:

B Eco function

E Zone function

3s Super Cool function

G My Zone function

3S Holiday function

K 3s Unlock function

P Temp. Set function

3s Super Frz.function

Power on for the first time

When the refrigerator is powered on for the first time, with the refrigeration compartment automatically set to 5°C, the Switch Zone temperature compartment automatically set to -6°C, the freezer compartment automatically set to -18°C, and the My Zone set to the 'Fruit&Veg' level.

Lock/unlock feature settings

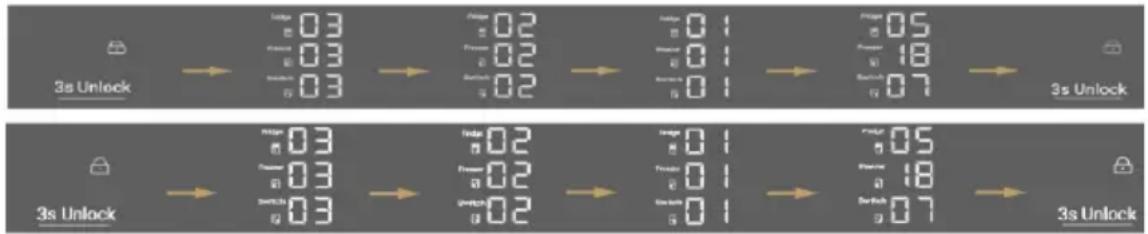

The display screen of this device is capable of automatically entering a lock mode. After 30 seconds of inactivity following any button operation, the display screen will automatically turn off and lock. When not in lock mode, if you press and hold the "Unlock/Lock Function Button" for 3 seconds, the buzzer will beep once, and the "Panel lock Function Icon" will light up, indicating that the device has entered lock mode. To unlock, press and hold the "Unlock/Lock Function Button" for 3 seconds while in lock mode, and the "Panel lock Function Icon" F will turn off, indicating that the device has been unlocked.

3s Unlock 3s Unlock 3s Unlock

NOTICE

While in lock mode, no adjustments can be made to any functions except for the unlock function.

Refrigerator temperature adjustment

▶ 1. Refrigeration Compartment Temperature Adjustment
When the display panel is lit and unlocked, press the "(Zone)" adjustment button. When the double-8 icon for "(Fridge)" on the display panel is lit, the refrigeration temperature adjustment mode is entered. The refrigeration temperature will display the current set value. Each press of the Temp. Set temperature adjustment button will decrease the refrigeration set value by 1, until the minimum value of the refrigeration compartment is reached. Pressing it again will jump to the maximum value and cycle through. After stopping the button operation for 5 seconds, the current adjustment value will stop flashing and confirm the current set value, displaying the current set value until the screen goes off. If any other button except the Temp. Set adjustment button is pressed within 5 seconds, the flashing stops, and the display enters the corresponding button operation state. Meanwhile, the current value is confirmed as the current set value, and the current set value is displayed until the screen goes off.

▶ 2. Temperature Adjustment Range: 9°C to 1°C
▶ 3. Initial Refrigeration Compartment Setting: 5°C

NOTICE

The set temperature of the refrigeration compartment cannot be adjusted when the display is locked or in the Super Cool mode.

Freezer temperature adjustment

▶ 1. Freezer Compartment Temperature Adjustment
When the display panel is lit and unlocked, press the "(Zone)" adjustment button. When the double-8 icon for "(Freezer)" on the display panel is lit, the freezer temperature adjustment mode is entered. The freezer temperature will display the current set value. Each press of the Temp. Set temperature adjustment button will decrease the freezer set value by 1, until the minimum value of the freezer compartment is reached. Pressing it again will jump to the maximum value and cycle through. After stopping the button operation for 5 seconds, the current adjustment value will stop flashing and confirm the current set value, displaying the current set value until the screen goes off. If any other button except the Temp. Set adjustment button is pressed within 5 seconds, the flashing stops, and the display enters the corresponding button operation state. Meanwhile, the current value is confirmed as the current set value, and the current set value is displayed until the screen goes off.

▶ 2.Temperature adjustment range: -14°C -24°C

▶ 3. Default Freezer Setting: -18°C

NOTICE

The set temperature of the refrigeration compartment cannot be adjusted when the display is locked or in the Eco mode or in the Super Frz. mode.

Switch zone temperature adjustment

▶ 1. Flexible Temperature Zone Adjustment
When the display panel is lit and unlocked, press the "(Zone)" adjustment button. When the double-8 icon for "(Switch)" on the display panel is lit, the flexible temperature zone adjustment mode is entered. The flexible temperature zone will display the current set value. Each press of the Temp. Set temperature adjustment button will decrease the set value of the flexible temperature zone by 1, until the minimum value of the flexible temperature zone is reached. Pressing it again will jump to the maximum value and cycle through. After stopping the button operation for 5 seconds, the current adjustment value will stop flashing and confirm the current set value, displaying the current set value until the screen goes off. If any other button except the Temp. Set adjustment button is pressed within 5 seconds, the flashing stops, and the display enters the corresponding button operation state.

▶ Meanwhile, the current value is confirmed as the current set value, and the current set value is displayed until the screen goes off.
▶ 2. Temperature Adjustment Range: 5°C to -20°C
▶ 3. Default Flexible Temperature Zone Setting: -6°C

NOTICE

The set temperature of the Switch temperature compartment cannot be adjusted when the display is locked.

My Zone Function

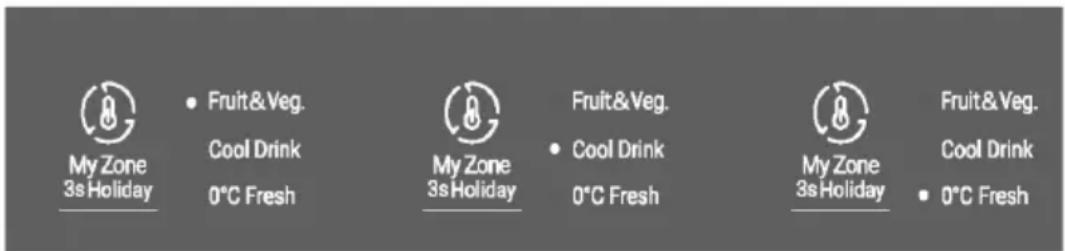

▶ In the unlocked state of the display panel, each press of the [My Zone] button will cycle through Fruit&Veg (fruits and vegetables), Cool Drink (chilled drinks), and 0°C Fresh (freshness preservation), lighting up the corresponding icons in sequence. When an icon is lit, it indicates that the corresponding function is activated.

My Zone 3s Holiday • Fruit&Veg. Cool Drink 0°C Fresh My Zone 3s Holiday Fruit&Veg. Cool Drink 0°C Fresh Fruit&Veg. Cool Drink 0°C Fresh My Zone 3s Holiday Fruit&Veg. Cool Drink 0°C Fresh

Eco Function

In Eco Mode, the refrigerator automatically adjusts the temperature settings of the refrigeration and freezer compartments based on changes in ambient temperature, ambient humidity, and internal temperature of the refrigerator, eliminating the need for manual adjustment.
▶ 1. In the unlocked state, press the [Eco] button. The buzzer will sound once, and the [Eco] icon will light up, indicating that the Eco function of the refrigerator is activated.
▶ 2. When the Eco function of the refrigerator is activated, press the [Eco] button again. The buzzer will sound once, and the [Eco] icon will go off, indicating that the Eco function is deactivated.

NOTICE

In the Eco Function mode, it is not possible to adjust the temperature of the Refrigerator, Freezer temperature compartments.

When the Holiday function, Super Cool, or Super Frz. function is activated, the refrigerator will exit the Eco function mode, and the Eco Function Icon" will turn off.

Super Cool Function

In the unlocked state, press and hold the [Zone] button for 3 seconds. The [Super Cool function icon] will light up, indicating that the refrigerator enters the Super Cool mode. After operating for 6 hours according to the Super Cool settings, the refrigerator will automatically switch to the Super Cool off state. If you wish to manually exit the Super Cool mode, press and hold the [Zone] button for 3 seconds again. The [Super Cool function icon] will go off, and the refrigerator will exit the Super Cool mode.
In the unlocked state, press and hold the [Zone] button for 3 seconds. The [Super Cool function icon] will light up, indicating that the refrigerator enters the Super Cool mode. After operating for 6 hours according to the Super Cool settings, the refrigerator will automatically switch to the Super Cool off state. If you wish to manually exit the Super Cool mode, press and hold the [Zone] button for 3 seconds again. The [Super Cool function icon] will go off, and the refrigerator will exit the Super Cool mode.

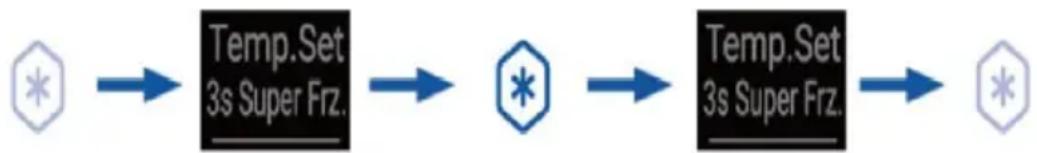

Super Frz. Function

In the unlocked state, press and hold the [Zone] button for 3 seconds. The [Super Cool function icon] will light up, indicating that the refrigerator enters the Super Cool mode. After operating for 6 hours according to the Super Cool settings, the refrigerator will automatically switch to the Super Cool off state. If you wish to manually exit the Super Cool mode, press and hold the [Zone] button for 3 seconds again. The [Super Cool function icon] will go off, and the refrigerator will exit the Super Cool mode.

NOTICE

In the Super Frz. mode, it is not possible to adjust the freezer temperature settings using the "Temperature Control - " button and the "Temperature Control +" button. Super Frz. function can freeze the fresh food as soon as possible to the core by accelerating the freezing to preserve the best nutritional value, appearance and taste of food.

If you need to freeze a large amount of food once, it is recommended to set the Super Frz. function on ahead for 24 hours before the usage of freezer compartment. Under unlock state, press key "AA" (Super Frz. function), indicator "N" (Super Frz. function) lights up, product enters Super Frz. mode. Product automatically exits. Super Frz. mode after 50 hours of activation. For manually exiting Super Frz. mode, press key "AA"(Super Freeze function under unlock state, indicator "N" (Super Frz. function) goes off, product exits Super Frz. mode.

Holiday Function

In the unlocked state, press the "Auto Set Function Button" AB once, and the "Auto Set Function Icon" O will light up, indicating that the refrigerator enters the Auto Set function mode.

NOTICE

In the Holiday function mode, temperature adjustment of the refrigerator compartment is not possible.

When the Auto Set and Super Cool are enabled, the refrigerator will exit the daily function mode, and the "Holiday Function Icon" P will go out.

The Holiday function is designed for your convenience when you are not using the refrigeration compartment for an extended period of time. When the Holiday function is activated, the freezer compartment operates normally, while the refrigeration compartment is set to a temperature control level of 17^ C. This prevents the refrigeration compartment from developing odors due to excessively high temperatures and also helps to save energy consumption.

Ice maker Function

▶ ICE ON/OFF activates automatic ice - this is only available in the lower left compartment. Your ice maker is designed to automatically dispense ice into the ice storage bin below

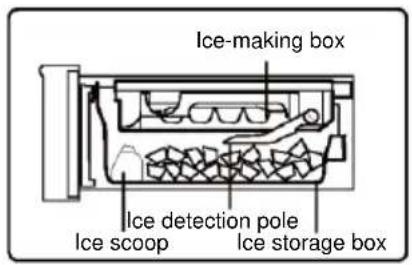

▶ until it detects the bin is full. The more ice you use, the more it makes.
▶ To activate Ice On Function, In the unlocked state, press the [Mode] button, scroll to ICE ON. The light next to the feature will flash.
▶ Press the button for 3 seconds until the light turns solid.
▶ To deactivate Ice On Function, press the [Mode] button, scroll to ICE ON. Press the button for 3 seconds, When ICE ON is deactivated the light will not illuminate.

• Ice On • Ice On Mode Hold to select Mode Hold to select

Fast Ice Function

▶ Fast Ice increases ice production by up to 30% and will automatically deactivate after 24 hours.
▶ To activate Fast Ice Function, In the unlocked state, press the [Mode] button, scroll to Fast Ice. The light next to the feature will flash.
▶ Press the button for 3 seconds until the light turns solid.
▶ To deactivate Fast Ice Function, press the [Mode] button, scroll to Fast Ice. Press the button for 3 seconds, When Fast Ice is deactivated the light will not illuminate.

• Ice On • Fast Ice Mode Hold to select • Ice On • Fast Ice Mode Hold to select

Water On Function

To activate Water On, In the unlocked state, press the [Mode] button, scroll to Water On. The light next to the feature will flash.

▶ Press the button for 3 seconds until the light turns solid.
▶ To deactivate Water On Function, press the [Mode] button, scroll to Water On. Press the button for 3 seconds, When Water On is deactivated the light will not illuminate.

Mode Hold to select • Water On Mode Hold to select • Water On

Filter Reset Function

▶ After the refrigerator has been in operation for a cumulative period of 6 months, the reminder icon will light up, indicating that the user needs to replace the filter.
▶ Once the filter has been replaced, press and hold the button for 3 seconds to cancel the reminder. The timer will be reset, and there will be a feedback beep.

Mode Hold to select • Filter Reset Mode Hold to select • Filter Reset

▶ Door open alarm
- When the door is open for too long or not closed properly, the refrigerator will emit an alarm sound after a while, reminding you to close the door promptly.
▶ Power-off memory
▶ After a power outage, the refrigerator will remember the following settings when powered back on: refrigerator temperature level, freezer temperature level, switch temperature level, My Zone level, Super Cool,

Architectural cross-section diagram of a multi-level building with curved structural elements (no text or labels)

Multi-air-flow

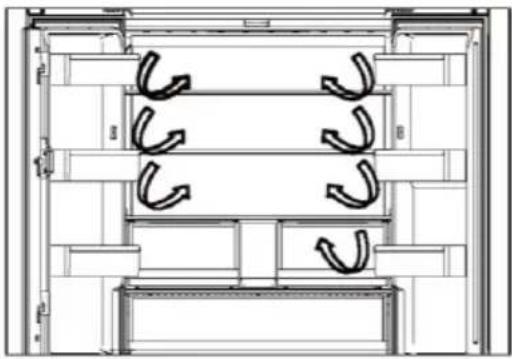

1. The refrigerator is equipped with a multi-air-flow system, with which cool air flows are located on every shelf level. This helps to maintain a uniform temperature to ensure that your food is kept fresher for longer.

Diagram showing two hands holding a tray with raindrops, labeled with arrows ① and ② indicating direction or movement.

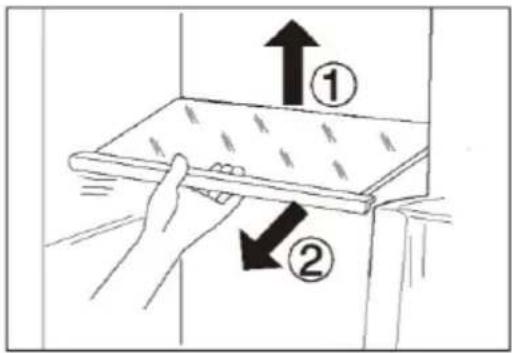

Adjustable shelves

1. The height of the shelves can be adjusted to fit your storage needs.

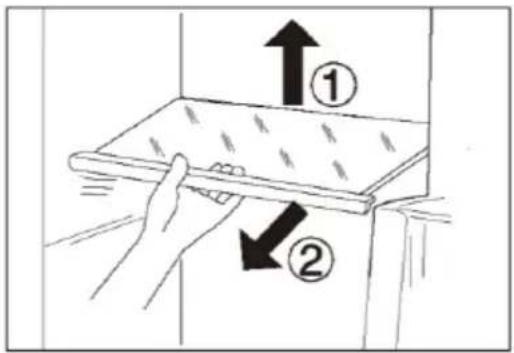

2. To relocate a shelf, remove it first by uplifting its hind edge ① and pulling it out ②.
3. To reinstall it, put it on the lugs on both sides and push it to the most rearward position until the rear of the shelf is fixed inside the slots in the sides

My Zone drawer

In this compartment the humidity level is lower than fridge compartment This drawer is suitable to store dry fruit and other dry food with low water content like butter, fats and oil or chocolate.

Humidity zone drawer

In this compartment the humidity level is higher than fridge compartment. It is controlled automatically by the system and is suitable to store fruits, vegetables, salads etc.

Fresh Box

Storage zone for fruit and vegetables to keep them fresh and healthy.

MYZONE|®

HUMIDITYZONE | 0°

FRESHBOX | 🍴

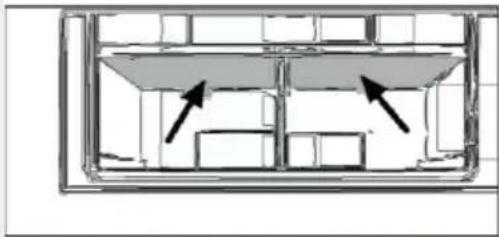

NOTICE

1. Do not remove the plastic cover inside the two zones.
2. They maintain the humidity.
3. Cold-sensitive fruits like pineapple, avocado, bananas, grapefruits are not recommended to be stored in these two drawers.

Architectural cross-section diagram of a building facade with two internal compartments and two directional arrows indicating flow or movement (no text or symbols present)

Removable door racks/bottle holder

1. The door racks can be removed for cleaning:

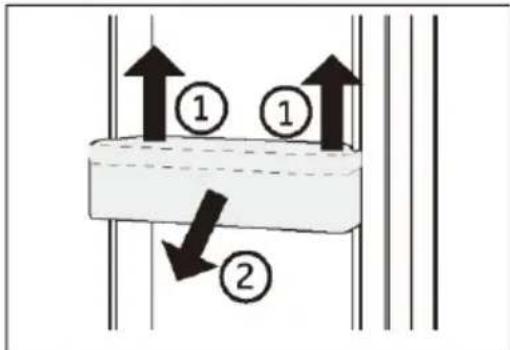

2. Place hands on each side of the rack, lift it upwards ① and pull it out ②.
3. In order to insert the door rack, the above steps are carried out in reverse order.

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a liquid container, with directional arrows indicating flow or movement.

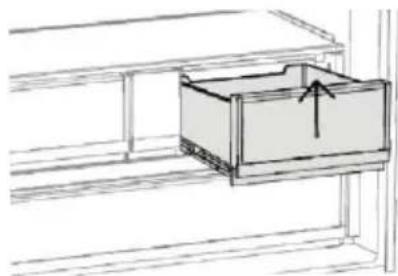

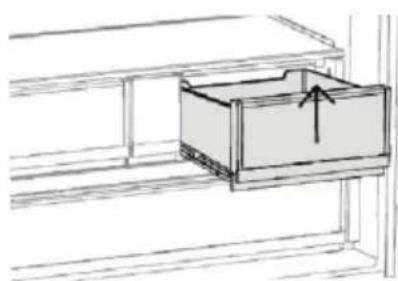

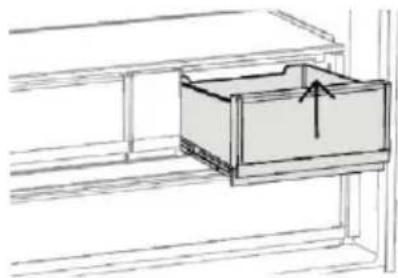

Removable Humidityzone/Myzone drawer

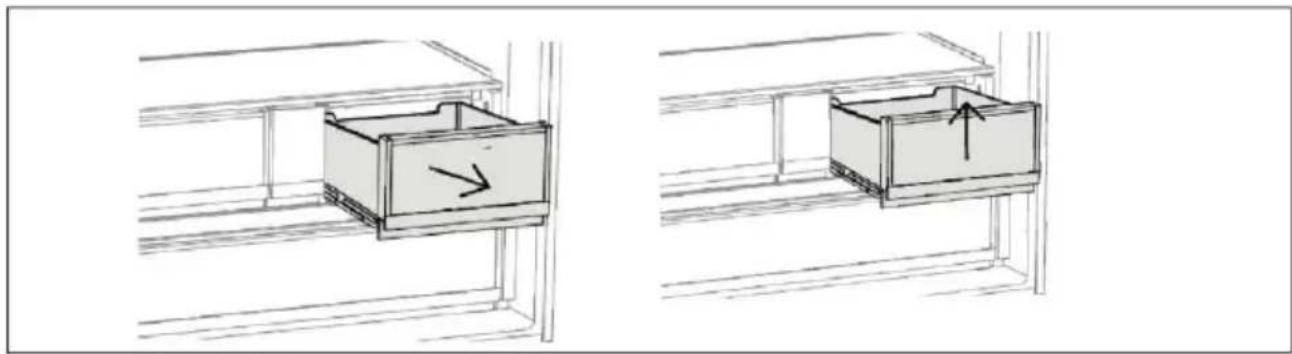

Open the refrigerator door to its maximum extent, pull out the drawer, and then lift the front end to remove it.

Two technical line drawings of a cabinet with arrows indicating direction, no text or symbols present

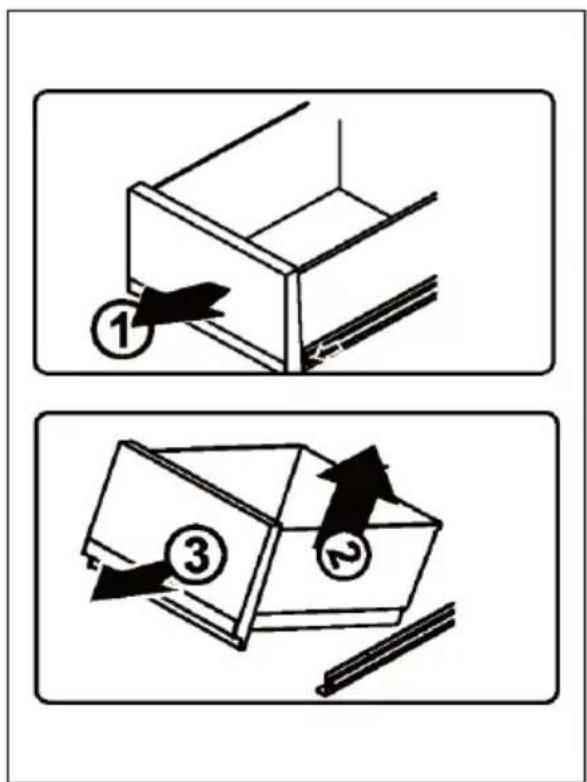

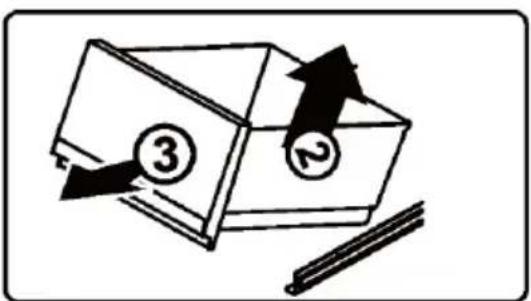

Removable Fresh Box

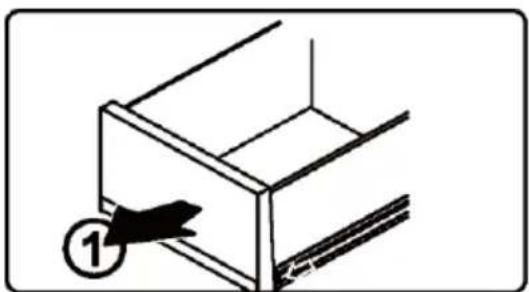

When removing the drawer, place both hands on the bottom sides of the drawer's front cover, press down on the latches, gently lift the front end of the drawer to detach it from the slide, and then lift the drawer diagonally upward to remove it.

Technical line drawing showing two views of a drawer with arrows indicating movement, no text or symbols present.

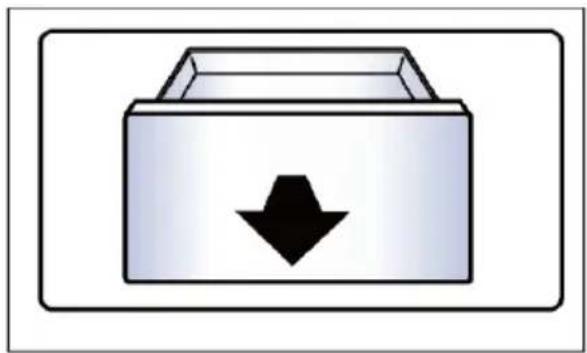

Removable Storage tray/Storage drawer(lower)

Open the refrigerator door to its maximum extent, pull out the drawer, and then lift the front end to remove it.

Simple icon of a box with a downward arrow symbol (no text or labels)

Removable Storage drawer(middle)

When removing the drawer, place your hand on the front cover of the drawer, press down on the front end of the slide with your other hand, and lift the front end of the drawer slightly to detach it from the slide, then lift the drawer diagonally upward to remove it.

Diagram illustrating three steps of lifting a box, labeled 1, 2, and 3 with arrows indicating motion.

Names of Ice Maker Parts

The automatic ice maker can be removed for cleaning and taken out when ice is not needed, leaving room for other frozen foods.

Ice Maker

%&* #( &, #-8* $)0 %&-.+, #' & $+/

Water connection

Ensure the refrigerator is NOTplugged into a power supply. Locate the isolation tap for cold water connection (tee and tap fitting not supplied).

Illustration of a hand holding a wall-mounted device next to a faucet, with no text or symbols present.

Locate the water hose set to complete the water connection installation

Pure diagram of a coiled cable with two connectors (no text or symbols)

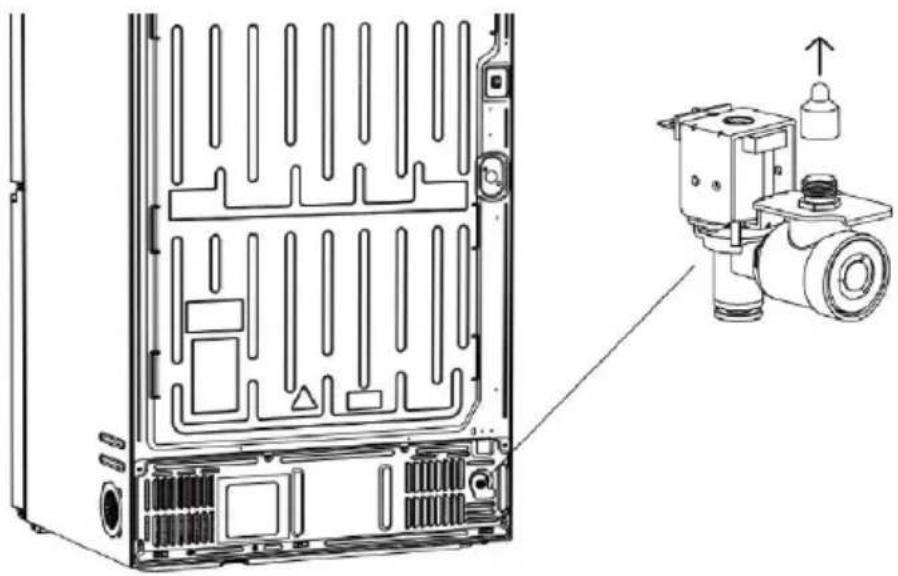

Remove cap from water inlet valve at the back of the refrigerator.

Technical line drawing of a server rack with internal components and a close-up view of the device (no text or symbols)

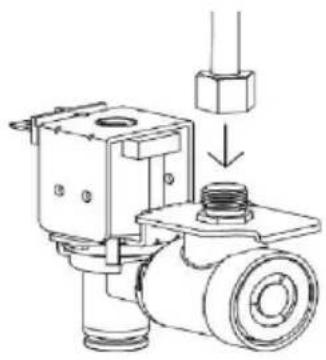

Connect one end of the water hose set to the water inlet valve.

Mechanical assembly diagram showing a bolted joint with a nut and shaft (no text or labels)

Fasten the water tap adaptor to the isolation tap. Take care not to overtighten the water tap adaptor.

Simple line drawing of a faucet with an arrow indicating force or movement (no text or symbols)

Take ice cubes

After making ice, use an ice shovel to take ice cubes.

Ice-making box Ice detection pole Ice scoop Ice storage box

NOTICE

If you have just started using it or it has been more than a week since the last use, the newly made ice cubes may be smelly or dusty, so the first made ice (about 8 ice cubes) recommend thrown away.

- If you have cleaned the water supply channel of the ice maker, the ice cubes made for the first time can also be used immediately.

Ice cube storage

The ice storage capacity of the ice box can be automatically confirmed by the ice detector. (In order to correctly determine the ice storage capacity, do not place the ice cubes flatly) After the storage reaches a certain amount, stop Ice-making. Please confirm the amount of ice stored in the ice box. If there is too much ice, it will not be able to make ice, or it may affect the normal opening and closing of the door.

Cleaning Ice Box

Step 1:

Turn off the Ice-making function and open the upper freezer door.

Step 2:

Rotate the ice box fixing knob to the left all the way, hold the handle on the front of the ice box outwards, and slowly

Step 3:

Turn the ice maker over, pull the white ice maker knob out, and then remove the ice maker.

Step 4:

Wash the ice box with water; do not use brushes or decontamination powders that may scratch the surface.

Step 5:

Install the ice box in the reverse order of removal. Push the ice maker into the drawer and push it to the bottom until you hear a "click", which indicates it is fully inserted. Turn the retaining knob back to the right to lock.

Fixed knob

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Close-up of a stainless steel faucet dispensing water into a glass basin (no text or symbols visible)

NOTICE

After freezing anything other than water, the ice maker should be cleaned in time before putting it back into the automatic ice maker.

• When cleaning the water storage box, use a soft sponge to wash it; do not use brush or decontamination powder. To remove stubborn stains, use diluted dishwashing detergent, but be sure to rinse with water. Do not use hard bristle brushes, wire brushes, abrasives (such as toothpaste, detergent powder, etc.), organic solvents (such as gasoline, thinner, acetone, alcohol, etc.), hot water, acid or alkali that can cause plastic cracking.
• The ice box assembly is not washable. If it gets wet, wipe it with a dry cloth. Otherwise, the ice-making function will be damaged if water gets into the appliance. Do not add water to the ice box when installing the ice maker as the water is supplied automatically.

WARNING

Only fill potable water into the ice maker.

Ice Maker Q&A

Q1: Do not make ice?

Phenomenon	Do not make ice.
Reason	a. Water is not added to the water storage box.b. The water storage box is not inserted in place.c. The Ice-making assembly is not installed properly.d. The "Ice-Making" function is not turned on.
Solution	a. Add water to the water storage box.b. Insert the water storage box correctly in place.c. Push the ice maker assembly all the way in until the securing knob can be locked.d. Turn on the "Ice-making" function.

Q2: The amount of ice is small, the ice cubes are small or melted?

Phenomenon	The produced ice cubes are few, small and partially melting.
Reason	a. The refrigerator door is opened and closed frequently or isn't closed tightly.b. The ice storage box is uneven or mixed with other things
Solution	a. Close the refrigerator door tightly, and try to open and close it as less frequently as possible.b. Use an ice shovel to flatten the ice cubes and remove the mixed foreign matter.

Q3: The produced ice cubes are cloudy

Phenomenon	The ice cubes produced have white suspensions.
Reason	Ice is made with water that contains minerals.
Solution	This is normal and there is no need to worry.

Q4: The ice cubes have an odor?

Phenomenon	The ice produced by the ice maker has a peculiar smell.
Reason	a. The water in the water storage box has not been replaced for a long time.b. Odorous water or beverages are poured into the water storage box.c. The ice cubes have been made and kept in the ice box for too long.
Solution	a. Change the water.b. Refer to "Cleaning and Maintenance of Ice Maker" for cleaning.c. Ice cubes should not be stored for a long time, or it will cause odor with other foods.

Q5: The ice cubes are in strange shapes?

Phenomenon	a. Ice cubes agglomerate or differ in size from each other.b. Ice cubes are rounded.c. Ice cubes have protrusions.
Reason	a. The refrigerator is slanted.b. The ice cubes have been placed for too long.c. There are concave and convex water supply channels on the ice box.
Solution	a. The feet can be adjusted properly to ensure the refrigerator is placed smoothly.b. Use ice cubes as soon as possible, or remake.c. This is normal and there is no need to worry.

Energy saving tips

▶ Make sure the appliance is properly ventilated (see INSTALLATION).
▶ Do not install the appliance in direct sunlight or in the near of heat sources (e.g. stoves, heaters).
- Avoid unnecessarily low temperature in the appliance. The energy consumption increases the lower the temperature in the appliance is set.
▶ Functions like Super Frz. consume more energy.
▶ Allow warm food to cool down before placing it in the appliance.
▶ Open the appliance door as little and as briefly as possible.
▶ Do not overfill the appliance to avoid obstructing the air flow.
▶ Avoid air within the food packaging.
▶ Keep door seals clean so that the door always closes correctly.
▶ Defreeze frozen food in the fridge storage compartment.
The most energy-saving configuration requires the appliance keep drawers food box and shelves on factory-fresh condition, and food should be places as far as possible without blocking the air outlet of the duct.

WARNING!

Disconnect the appliance from the power supply before cleaning.

Cleaning

Clean the appliance when only little or no food is stored.

The appliance should be cleaned every four weeks for good maintenance and to prevent bad stored food odors.

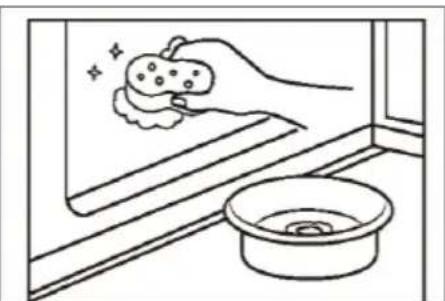

WARNING!

▶ Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator detergent to avoid damage.
▶ Do not spray or flush the appliance during cleaning.
▶ Do not use water spray or steam to clean the appliance.
▶ Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break.
▶ Do not touch the inside surface of the freezer storage compartment, especially with wet hands, as your hands may freeze onto the surface.

Line drawing of a hand washing a baby near a sink, with a bowl nearby (no text or symbols)

▶ Always keep the door gasket clean.
▶ Clean the inside and housing of the appliance with a sponge dampened in warm water and neutral detergent.
▶ 1. Please scrub the interior and exterior of the refrigerator, including door sealing, door rack, glass shelves, boxes and so on, with a soft towel or sponge dipped in warm water (you may add neutral detergent into the warm water).

▶ 2. If there is liquid spilled, remove all the contaminated parts, directly rinse with the flow water, dry and place it back into the fridge.
▶ 3. If there is spilled cream (such as the cream, melting ice cream), please remove all the contaminated parts, put into the warm water with about 40 °C for some time, then rinse with the flow water, dry and place it back into the fridge.
▶ 4. In case some small part or component gets stuck inside of the fridge (between shelves or drawers), use small soft brush to release it. If you could not reach the part, please contact Haier service
▶ Rinse and dry with soft cloth.
▶ Do not clean any of the parts of the appliance in a dishwasher.
- Allow at least 7 minutes before restarting the appliance as frequent starting may damage the compressor.

Defrosting

The defrosting of the refrigerator and the freezer compartment are done automatically; no manual operation is needed.

Replacing the LED-lamps

WARNING!

Do not replace the LED lamp yourself, it must only be replaced by either the manufacturer or the authorised service agent.

The lamps adopts LED as its light source, featuring low energy consumption and long service life. If there is any abnormality, please contact the customer service. See CUSTOMER SERVICE.

Replaceable (LED only) light source by a professional.

Non-use for a longer period

If the appliance is not used for an extended period of time, and you will not use the Holiday-function for the refrigerator:

▶ Take out the food.
▶ Unplug the power cord.
▶ Clean the appliance as described above.
- Keep the doors open to prevent the creation of bad odours inside.

NOTICE

Turn the appliance off only if strictly necessary.

Moving the appliance

1. Remove all food and unplug the appliance.
2. Secure shelves and other moveable parts in the fridge and the freezer with adhesive tape.
3. Do not tilt the refrigerator more than 45^ to avoid damaging the refrigerating system.

WARNING!

▶ Do not lift the appliance by its handles.
▶ Never place the appliance horizontally on the ground.

Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.

WARNING!

▶ Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages.
▶ A damaged supply should only be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Problem	Possible Cause	Possible Solution
The compressor does not work.	Mains plug is not connected in the mains socket.The appliance is in the defrosting cycle	Connect the mains plug.This is normal for an automatic defrosting
The appliance runs frequently or runs for a too long period of time.	The indoor or outdoor temperature is too high.The appliance has been off power for a period of time.A door of the appliance is not tightly closed.The door has been opened too frequently or for too long.The temperature setting for the freezer compartment is too low.The door gasket is dirty, worn, cracked or mismatched.The required air circulation is not guaranteed.	In this case, it is normal for the appliance to run longer.Normally, it takes 8 to 12 hours for the appliance to cool down completely.Close the door/drawer and ensure the appliance is located on a level ground and there is no food or container jarring the door.Do not open the door/drawer too frequently.Set the temperature higher until a satisfactory refrigerator temperature is obtained.It takes 24 hours for the refrigerator temperature to become stable.Clean the door/drawer gasket or replace them by the customer service.Ensure adequate ventilation.
The inside of the refrigerator is dirty and/ or smells.	The inside of the refrigerator needs cleaning.Food of strong odour is stored in the refrigerator.	Clean the inside of the refrigerator.Wrap the food thoroughly..
It is not cold enough inside the appliance.	The temperature is set too high.Too warm goods has been stored.Too much food has been stored at one time.The goods are too close to each other.A door/drawer of the appliance is not tightly closed.The door/drawer has been opened too frequently or for too long.	Reset the temperature.Always cool down goods before storing them.Always store small quantities of food.Leave a gap between several foods allowing air flowing.Close the door/drawer.Do not open the door/drawer too frequently.
It is too cold inside the appliance.	The temperature is set too low.The Super Frz/Super Cool-function is activated or is running too long.	Reset the temperature.Switch off the Super Frz/Super Cool function
Moisture formation on the inside of the refrigerator compartment.	The climate is too warm and toodamp.A door/drawer of the appliance is not tightly closed.The door/drawer has been opened too frequently or for too long.Food containers or liquids are left open.	Increase the temperature.Close the door/drawer.Do not open the door/drawer too frequently.Let hot foods cool to room temperature and cover foods and liquids.
Moisture accumulates on the refrigerators outside surface or between the doors/door and drawer.	The climate is too warm and too damp.The door is not closed tightly. The cold air in the appliance and the warm air outside it condensates.	This is normal in damp climate and will change when the humidity decreases.Ensure that he door/drawer is tightly shut.
Strong ice and frost in the freezer compartment.	The goods were not adequately packaged.A door/drawer of the appliance is not tightly closed.The door/drawer has been opened too frequently or for too long.The door/drawer gasket is dirty, worn, cracked or mismatched.Something on the inside prevents the door/drawer to close properly.	Always pack the goods well.Close the door/drawer.Do not open the door/drawer too frequently.Clean the door/drawer gasket or replace them by new ones.Reposition the shelves, door racks, or internal containers to allow the door/drawer to close.
The sides of the cabinet and door strip get warm.	-	This is normal.
The appliance makes abnormal sounds.A slight sound is to be heard similar to that of flowing water.	The appliance is not located on level ground.The appliance touches some object around it.-	Adjust the feet to level the appliance.Remove objects around the appliance.This is normal.
You will hear an alarm beep.	The fridge storage compartment door is open.	Close the door.
You will hear a faint hum.	The anti-condensation system is working	This prevents condensation and is normal
The interior lighting or cooling system does not work.	Mains plug is not connected in the mains socket.The power supply is not intact.The LED-lamp is out of order.	Connect the mains plug.Check the electrical supply to the room. Call the local electricity company!Please call the service for changing the lamp.
Display light up circularly, but do not feel cool.	It is in the demo mode.	When the display screen is unlocked, press "Zone" and click "Holiday" 5 times (within 5 seconds) to exit this mode.

Power interruption

In the event of a power cut, food should remain safely cold for about 5 hours. Follow these tips during a prolonged power interruption, especially in summer:

▶ Open the door/drawer as few times as possible.
▶ Do not put additional food into the appliance during a power interruption.
▶ If prior notice of a power interruption is given and the interruption duration is longer than 5 hours, make some ice and put it in a container in the top of the refrigerator compartment.
▶ An inspection of the goods is required immediately after the interruption.
As temperature in the refrigerator will rise during a power interruption or other failure, the storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) soon afterwards in order to prevent health risks.

Memory function during power interruption

After restoration of power the appliance continues with the settings that were set before the power failure.

Unpacking

WARNING!

The appliance is heavy. Always handle with at least two persons.
- Keep all packaging materials out of children's reach and dispose them in an environmentally friendly manner.
▶ Take the appliance out of the packaging.
▶ Remove all packaging materials.

Environmental conditions

The room temperature should always be between 10^ C and 43^ C, since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation.

Space recommendation

Recommended space (mm) when door is opened:

908 660 288 1065 1481 908 660 21 21 1141 946

Ventilaton cross-section

To achieve sufficient ventilation of the appliance for safety reasons, the information of the required ventilation cross sections must be observed.

Aligning the appliance

The appliance should be placed on a flat and solid surface.

Set the feet to the desired level.

Make sure the distance to the wall on the hinge side is at least 10 cm for the door to open properly.

≥10cm ≥10cm ≥10cm 190.5 cm 90.8 cm

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Notice:

For a free standing appliance: this refrigerating appliance is not intended to be used as a built-in appliance

Fine tuning of the doors

If the doors are not in one level, this mismatch can be remedied by following:

Using adjustable foot/adjustable hinge

Rotate the adjustable foot or adjustable hinge according to the direction of arrow to turn up or down the foot. Adjustable hinges can be fine tuned with a open-end wrench (14/17mm).

Contact after-sale service if needed.

Diagram of two symmetrical mechanical or architectural components with labeled section A, no text or symbols present

Using adjustment button

Rotate the adjustment button on top of the door.

Notice:

In the future use of refrigerator, doors uneven phenomenon may occur to the weight of stored food. Then please adjust according to the above

2 h

Waiting time

To the maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Before connecting the appliance to the power supply you have to wait at least 2 hours so that the oil runs back into the capsule.

Electrical connection

Before each connection check if:

▶ power supply, socket and fusing are appropriate to the rating plate.
▶ the power socket is earthed and no multi-plug or extension.
▶ the power plug and socket are strictly according.

Connect the plug to a properly installed household socket.

WARNING!

To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).

Brand	Haier
Model name / identifier	HCR79F19EHSB
Category of the model	Refrigerator-freezer
Energy efficiency class	E
Annual energy consumption (kWh/ year)	364
Total volume(L)	679
Volume refrigerator(L)	447
Volume freezer(L)	115
Volume convertible(L)	117
Star rating	***
Frost-free system	Yes
Freezing capacity (kg/24h)	10
Climate rating	SN/N/ST/T
Noise emission class and airborne acoustical noise emissions (dB(A) re 1pW)	C(38)
Temperature rise time (h)	10
Ice making capacity	0.8 kg/24h

Explanations:

- Yes, featured

(1) Based on the results of the standards conformance test over 24 hours.

The actual consumption depends on the use and the location of the appliance.

(2) Climate rating SN: This appliance is intended for use in an ambient temperature of between +10°C and +32°C

Climate rating N: This appliance is intended for use in an ambient temperature of between +16°C and +32°C

Climate rating ST: This appliance is intended for use in an ambient temperature of between +16°C and +38°C

Climate rating T: This appliance is intended for use in an ambient temperature of between +16°C and +43°C

Additional technical data

Voltage / Frequency	220-240V~ /50Hz
Input current (A)	2
Coolant	R600a
Dimensions (H/W/D in mm)	1905 / 908 / 748

Abstract geometric composition with four overlapping gray shapes arranged radially (no text or symbols)

Haier

2025 Version A

Haier

A B Eco 3s Unlock C Fridge 88 °C M D Freezer 88 °C N O E Zone 3s Super Cool Tamp.Set 3s Super Frz. P F Switch 88 °C Q R G My Zone 3s Holiday Fruit&Veq. Cool Drink 0°C Fresh S T U H Ice On Fast Ice Water On Filter Reset V W X Y

Индикатори:

3s Unlock 3s Unlock 3s Unlock

ЗАБЕЛЕЖКА

ЗАБЕЛЕЖКА

ЗАБЕЛЕЖКА

• Ice On • Ice On Mode Hold to select Mode Hold to select

Функция „Fast Ice“

Mode Hold to select • Water On Mode Hold to select • Water On

Architectural floor plan showing four U-shaped structural elements mounted on a building facade (no text or labels)

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Регулируеми рафтове

Architectural cross-section diagram of a building facade with two windows and an open door (no text or symbols)

Simple line drawing of a wooden drawer with an arrow pointing downward (no text or symbols)

Line drawing of a cabinet with an upward arrow indicating direction (no text or symbols)

Technical line drawing showing two views of a drawer with arrows indicating movement, no text or symbols present.

Подвижна тава за

Simple icon of a box with a downward arrow, no text or symbols present

Diagram illustrating three steps of lifting a box, labeled 1, 2, and 3 with arrows indicating motion.

Illustration of a power plug connecting a wall-mounted switch to a tap, with no text or symbols present.

Line drawing of a coiled cable with two connectors (no text or symbols)

Technical line drawing of a server rack with internal components and a close-up view of the device (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a faucet with an arrow indicating fluid flow or movement (no text or symbols)

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Close-up of a stainless steel faucet dispensing water into a glass basin (no text or symbols visible)

ЗАБЕЛЕЖКА

Simple line drawing of a hand washing a baby near a sink, with no text or symbols present.

Diagram of a mechanical device with rotating arrows indicating motion (no text or symbols)

Предупреждение:

Diagram of two symmetrical mechanical or architectural components with labeled section A, no text or symbols present

Abstract geometric composition with four overlapping gray shapes arranged in a cross pattern (no text or symbols)

Haier

2025 г. Версия А

Haier

Chladnička-mraznička HCR79F19EHSB

A B Eco 3s Unlock C Fridge 88 °C M D Freezer 88 °C N O E Zone 3s Super Cool Tamp.Set 3s Super Frz. P F Switch 88 °C Q R G My Zone 3s Holiday Fruit&Veq. Cool Drink 0°C Fresh S T U H Ice On Fast Ice Water On Filter Reset V W X Y

Ukazatele:

A Indikátor Eco
C Indikátor chladničky
D Indikátor mrazničky
F Indikátor Switch
I Indikátor filtru
J Indikátor zámku
L Indikátor °C chladničky
M Indikátor Super Cool
N Indikátor °C mrazničky
O Indikátor Super Frz.
Q Indikátor °C Switch
R Indikátor Holiday
Q Indikátor °C Switch
S Indikátor Fruit&Veg
T Indikátor Cool Drink
U Indikátor 0°C Fresh
V Indikátor Ice On
W Indikátor Fast Ice
X Indikátor Water On
Y Indikátor Filter Reset

Tlačítka:

3s Unlock 3s Unlock 3s Unlock

UPOZORNĚNÍ

Funkce Super Frz.

UPOZORNĚNÍ

UPOZORNĚNÍ

• Ice On • Ice On Mode Hold to select Mode Hold to select

Funkce Fast Ice

Mode Hold to select • Water On Mode Hold to select • Water On

Funkce Filter Reset

Architectural floor plan showing four U-shaped structural elements mounted on a building facade (no text or labels)

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Nastavitelné police

Architectural cross-section diagram of a building facade with two arrows pointing to structural elements (no text or labels)

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a liquid container, with directional arrows indicating flow or movement.

Line drawing of a wooden drawer with an arrow pointing to it, placed on a shelf (no text or symbols)

Simple line drawing of a box inside a shelf with an arrow indicating direction (no text or symbols)

Technical line drawing showing two views of a drawer with arrows indicating movement, no text or symbols present.

Simple icon of a box with a downward arrow, no text or symbols present

Diagram illustrating three steps of lifting a box, labeled 1, 2, and 3 with arrows indicating motion.

Illustration of a power plug connecting a wall-mounted switch to a tap (no text or symbols present)

Line drawing of a coiled cable with two connectors (no text or symbols)

Technical line drawing of a server rack with internal components and a close-up view of the device (no text or symbols)

Mechanical assembly diagram showing a bolted joint with a nut and shaft (no text or labels)

Simple line drawing of a faucet with an arrow indicating force or movement (no text or symbols)

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Close-up of a stainless steel faucet dispensing water into a tray with a small container (no visible text or symbols)

UPOZORNĚNÍ

Simple line drawing of a hand washing a soap bubble over a window, with a basin below (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Upozornění:

Diagram of two symmetrical mechanical or architectural components with labeled section A, no text or symbols present

Abstract geometric composition with four overlapping gray shapes arranged in a cross pattern (no text or symbols)

Haier

Verze A 2025

Haier

Εγχειρίδιο χρήσης

Ψυγειοκαταψύκτης

HCR79F19EHSB

A B Eco 3s Unlock C Fridge 88 °C M D Freezer 88 °C N O E Zone 3s Super Cool Tamp.Set 3s Super Frz. P F Switch 88 °C Q R G My Zone 3s Holiday Fruit&Veq. Cool Drink 0°C Fresh S T U H Ice On Fast Ice Water On Filter Reset V W X Y

Ενδείξεις:

Α Ένδειξη Eco

C'Ενδειξη ψυγείου

D'Ενδειξη καταψύκτη

F'Ενδειξη αλλαγής

Ι Ένδειξη φίλτρου

3s Unlock 3s Unlock 3s Unlock

ΕΙΔΟΠΟΙΗΣΗ

ΕΙΔΟΠΟΙΗΣΗ

• Ice On • Ice On Mode Hold to select Mode Hold to select

Λειτουργία Fast Ice

Mode Hold to select • Water On Mode Hold to select • Water On

Architectural cross-section diagram of a multi-level building with curved structural elements (no text or labels)

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating movement or force direction.

Πολλαπλή ροή αέρα

Architectural cross-section diagram of a building facade with two internal compartments and two directional arrows indicating flow or movement (no text or symbols present)

Diagram showing fluid flow with numbered arrows and circular indicators, likely illustrating a physical or engineering concept.

Simple line drawing of a wooden drawer with an arrow pointing to it (no text or symbols)

Line drawing of a wooden drawer with an arrow indicating direction (no text or symbols)

Technical line drawing of a drawer with an arrow indicating direction, showing internal structure and assembly (no text or symbols)

Simple icon of a box with a downward arrow, no text or symbols present

Diagram illustrating three steps of lifting a box, labeled 1, 2, and 3 with arrows indicating motion.

Illustration of a plug inserted into a wall socket next to a faucet (no text or symbols)

Line drawing of a coiled cable with two connectors (no text or symbols)

Technical line drawing of a server rack with internal components and a close-up view of the device (no text or symbols)

Mechanical assembly diagram showing a valve and nut assembly with no visible text or symbols

Simple line drawing of a faucet with an arrow indicating force or movement (no text or symbols)

Λήψη παγοκύβων

Diagram of a mechanical device with two black arrows indicating direction (no text or symbols)

Close-up of a faucet dispensing water into a small container (no visible text or symbols)

ΕΙΔΟΠΟΙΗΣΗ

Simple line drawing of a hand washing a soap bubble over a sink, with no text or symbols present.

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Σημείωση:

Diagram of two symmetrical mechanical or structural components with labeled point A, no text or symbols present

Abstract geometric composition with four overlapping gray shapes arranged radially (no text or symbols)

Haier

2025 'Εκδοση Α

Haier

A B Eco 3s Unlock Fridge 88 °C Freezer 88 °C Zone 3s Super Cool Temp. Set 3s Super Frz. Switch 88 °C My Zone 3s Holiday Fruit & Veg. Cool Drink 0°C Fresh Ice On Fast Ice Water On Filter Reset I J K L M N O P Q R S T U V W X Y

Jelzések:

3s Unlock 3s Unlock 3s Unlock

MEGJEGYZÉS

MEGJEGYZÉS

MEGJEGYZÉS

• Ice On • Ice On Mode Hold to select Mode Hold to select

Fast Ice funkció

Mode Hold to select • Water On Mode Hold to select • Water On

Architectural cross-section diagram of a multi-level building facade with curved doorways (no text or symbols)

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating movement or force direction.

Állítható polcok

Architectural cross-section diagram of a building facade with two internal compartments and two directional arrows indicating flow or movement (no text or symbols present)

Diagram showing fluid flow with numbered arrows and circular indicators, likely illustrating a physical or engineering process.

Line drawing of a wooden drawer with an arrow pointing to it, placed inside a shelf (no text or symbols)

Line drawing of a cabinet with an open drawer and an arrow indicating direction (no text or symbols)

Kivehető Fresh Box

Technical line drawing of a drawer with an inset showing a close-up view of the interior space (no text or symbols present)

Simple icon of a box with a downward arrow, no text or symbols present

Diagram illustrating three steps of lifting a box, labeled 1, 2, and 3 with arrows indicating motion.

Illustration of a plug inserted into a wall socket next to a faucet (no text or symbols)

Line drawing of a coiled cable with two connectors (no text or symbols)

Technical line drawing of a server rack with internal components and a close-up view of the device (no text or symbols)

Mechanical assembly diagram showing a bolted joint with a nut and shaft (no text or labels)

Simple line drawing of a faucet with an arrow indicating force or movement (no text or symbols)

Jégkockák kivétele

Diagram of a printer or printer with arrows indicating flow direction (no text or symbols)

Close-up of a stainless steel faucet dispensing water into a rectangular basin (no text or symbols visible)

MEGJEGYZÉS

Line drawing of a hand washing a soap bubble above a sink with a basin (no text or symbols)

Diagram of a mechanical device with rotating arrows indicating motion (no text or symbols)

Megjegyzés:

Diagram of two symmetrical mechanical or architectural components with labeled section A, no text or symbols present

Abstract geometric composition with four overlapping gray shapes arranged radially (no text or symbols)

Haier

2025, A verzió

Haier

Manuale dell'utente

Frigorifero-Congelatore HCR79F19EHSB

A B Eco 3s Unlock C Fridge 88 °C M D Freezer 88 °C N O E Zone 3s Super Cool Tamp.Set 3s Super Frz. P F Switch 88 °C Q R G My Zone 3s Holiday Fruit&Veq. Cool Drink 0°C Fresh S T U H Ice On Fast Ice Water On Filter Reset V W X Y

Indicatori:

3s Unlock 3s Unlock 3s Unlock

AVVISO

AVVISO

AVVISO

• Ice On • Ice On Mode Hold to select Mode Hold to select

Funzione Fast Ice

Mode Hold to select • Water On Mode Hold to select • Water On

Architectural cross-section diagram of a multi-level building with curved doorways (no text or labels)

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Ripiani regolabili

Architectural floor plan showing two structural elements with arrows indicating directions (no text or labels)

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a liquid container, likely illustrating fluid flow or pressure changes.

Simple line drawing of a drawer with an arrow pointing downward (no text or symbols)

Line drawing of a cabinet with an open drawer and an arrow indicating direction (no text or symbols)

Technical line drawing showing two views of a drawer with arrows indicating direction (no text or symbols present)

Simple icon of a box with a downward arrow, no text or symbols present

Diagram illustrating three steps of lifting a box, labeled 1, 2, and 3 with arrows indicating motion.

Illustration of a power plug connecting a wall-mounted switch to a tap (no text or symbols present)

Line drawing of a coiled cable with two connectors (no text or symbols)

Technical line drawing of a server rack with internal components and a close-up view of the device (no text or symbols)

Mechanical assembly diagram showing a valve and nut assembly with a bolt (no text or labels)

Simple line drawing of a faucet with an arrow indicating force or movement (no text or symbols)

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Close-up of a stainless steel faucet dispensing water into a tray with a small container (no visible text or symbols)

AVVISO

Line drawing of a hand washing a soap bubble over a window, with a basin below (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Avviso:

Diagram of two symmetrical mechanical or architectural components with labeled section A, no text or symbols present

Abstract geometric composition with four overlapping gray shapes arranged radially (no text or symbols)

Haier

2025 Versione A

Haier

Manual do Utilizador

A B Eco 3s Unlock C Fridge 88 °C M D Freezer 88 °C N O E Zone 3s Super Cool Tamp.Set 3s Super Frz. P F Switch 88 °C Q R G My Zone 3s Holiday Fruit&Veq. Cool Drink 0°C Fresh S T U V W X Y H Mode Hold to select Ice On Fast Ice Water On Filter Reset

Indicadores:

3s Unlock 3s Unlock 3s Unlock

AVISO

AVISO

• Ice On • Ice On Mode Hold to select Mode Hold to select

Função Fast Ice

Mode Hold to select • Water On Mode Hold to select • Water On

Função Filter Reset

Architectural diagram of a multi-level storage unit with curved internal components (no text or labels)

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Architectural floor plan showing room layouts and structural elements with two arrows pointing to specific areas (no text or labels)

Prateleiras das portas/suporte de garrafas amovíveis

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a liquid container, with directional arrows indicating flow or movement.

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Pure architectural line drawing of a window frame structure without any text or symbols

Fresh Box amovível

Technical line drawing showing two views of a drawer with arrows indicating movement, no text or symbols present.

Simple icon of a box with a downward arrow symbol (no text or labels)

Diagram illustrating three steps of lifting a box, labeled 1, 2, and 3 with arrows indicating motion.

Illustration of a tool interacting with a control panel and a tap (no text or symbols)

Line drawing of a coiled cable or hose with two connectors (no text or symbols)

Retire a tampa da válvula de entrada de água na parte de trás do frigorífico.

Technical line drawing of a server rack with internal components and a close-up view of the device (no text or symbols)

Mechanical assembly diagram showing a bolted joint with a nut and shaft (no text or labels)

Simple line drawing of a faucet with an arrow indicating force or movement (no text or symbols)

Obter cubos de gelo

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Close-up of a stainless steel faucet dispensing water into a tray with a small container (no visible text or symbols)

AVISO

Simple line drawing of a hand washing a soap bubble over a window, with a basin below (no text or symbols)

Substituir as lâmpadas LED

AVISO!

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Aviso:

Diagram of two symmetrical mechanical or architectural components with labeled section A, no text or symbols present

Abstract geometric composition with four overlapping gray shapes arranged radially (no text or symbols)

Haier

2025 Versão A

Haier

Manualul de utilizare

Combină frigorifică

HCR79F19EHSB

A: Compartment frigider

A B Eco 3s Unlock C Fridge 88 °C M D Freezer 88 °C N O E Zone 3s Super Cool Tamp.Set 3s Super Frz. P F Switch 88 °C Q R G My Zone 3s Holiday Fruit&Veq. Cool Drink 0°C Fresh S T U H Ice On Fast Ice Water On Filter Reset V W X Y

Indicatoare:

Un indicator Eco

C Indicator frigider

D Indicator congelator

W Indicator Fast Ice

X Indicator Water On

Y Indicator Filter Reset

Butoane:

B Functie Eco

E Functie Zone

3s Unlock 3s Unlock 3s Unlock

OBSERVATIE

OBSERVATIE

• Ice On • Ice On Mode Hold to select Mode Hold to select

Funcția Fast Ice

Mode Hold to select • Water On Mode Hold to select • Water On

Architectural cross-section diagram of a multi-level building with curved structural elements (no text or labels)

Flux de aer multiplu

Diagram showing two hands holding a tray with arrows labeled ① and ② indicating movement or force direction.

Rafturi ajustabile

Sertarul Humidity zone

Architectural cross-section diagram of a building facade with two internal compartments and two directional arrows indicating flow or movement (no text or symbols present)

Diagram showing fluid flow with numbered arrows and circular indicators, likely illustrating a physical or engineering concept.

Sertar Humidityzone/Myzone detaşabil

Simple line drawing of a wooden drawer with an arrow pointing downward (no text or symbols)

Line drawing of a cabinet with an open drawer, showing internal structure and arrows indicating direction (no text or symbols)

Technical line drawing showing two views of a drawer with arrows indicating movement, no text or symbols present.

Simple icon of a box with a downward arrow symbol (no text or labels)

Diagram illustrating three steps of lifting a box, labeled 1, 2, and 3 with arrows indicating motion.

Illustration of a power plug connecting a wall-mounted switch to a tap (no text or symbols present)

Line drawing of a coiled cable with two connectors (no text or symbols)

Technical line drawing of a server rack with internal components and a close-up view of the device (no text or symbols)

Mechanical assembly diagram showing a valve with a bolt and nut, no text or symbols present

Simple line drawing of a faucet with an arrow indicating force or movement (no text or symbols)

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Close-up of a stainless steel faucet dispensing water into a glass basin (no text or symbols visible)

OBSERVATIE

Line drawing of a hand washing a baby near a sink with a basin nearby (no text or symbols)

Diagram of a mechanical device with rotating arrows indicating motion (no text or symbols)

Observatie:

Diagram of two identical mechanical or architectural components with curved supports and a central circular component labeled 'A' (no text or symbols on the components themselves)

Abstract geometric composition with four overlapping gray shapes arranged in a cross pattern (no text or symbols)

Haier

2025 Versiunea A

Haier

Chladnička s mrazničkou HCR79F19EHSB

A: Chladiaci priestor

1 Lišta dverí
2 Držiak na fl'aše (vl'avo hore)
3 Držiak na fl'aše (vl'avo v strede)
4 Držiak na fl'aše (vl'avo dole)
5 Držiak na fl'aše (vpravo hore)
6 Držiak na fl'aše (vpravo v strede)
7 Držiak na fl'aše (vpravo dole)
8 Sklenená polica
9 Sklenená polica
10 Sklenená polica
11 Panel zásuvky Humidity Zone
12 Panel zásuvky My Zone
13 Zásuvka Humidity Zone

A B Eco 3s Unlock C Fridge 88 °C M D Freezer 88 °C N O E Zone 3s Super Cool Tamp.Set 3s Super Frz. P F Switch 88 °C Q R G My Zone 3s Holiday Fruit&Veq. Cool Drink 0°C Fresh S T U H Ice On Fast Ice Water On Filter Reset V W X Y

Indikátory:

A Indikátor Eco
C Indikátor chladničky
D Indikátor mrazničky
F Indikátor spínača
I Indikátor filtra
J Indikátor uzamknutia
L Indikátor chladničky °C
M Indikátor Super Cool
N Indikátor mrazničky °C
O Super Frz. Indikátor
Q Indikátor spínača °C
R Indikátor Holiday
Q Indikátor spínača °C
S Indikátor Fruit&Veg
T Indikátor Cool Drink
U Indikátor 0°C Fresh
V Indikátor Ice On
W Indikátor Fast Ice
X Indikátor Water On
Y Indikátor Filter Reset

Tlačidlá:

B Funkcia Eco

E Funkcia Zone

Funkcia 3s Super Cool

G Funkcia My Zone

Funkcia 3S Holiday.

K 3S Unlock

P Temp. Funkcia Set

Funkcia 3s Super Frz

Zapnite prvýkrát

▶ Pri prvom zapnutí chladničky do elektrickej siete sa rozsvieti displej, pričom chladiaci priestor sa automaticky nastaví na 5 °C, teplota priestoru pre Switch Zone sa automaticky nastaví na -6 °C, mraziaci priestor sa automaticky nastaví na -18 °C a My Zone na úroveň Fruit&Veg.

Nastavenia funkcie uzamknutia/odomknutia

3s Unlock 3s Unlock

OZNÁMENIE

OZNÁMENIE

• Ice On • Ice On Mode Hold to select Mode Hold to select

Funkcia Fast Ice

▶ Fast Ice zvyšuje produkciu l'adu až o 30 % a automaticky sa vypne po 24 hodinách.
- Ak chcete aktivovat' funkciu Fast Ice, v odomknutom stave stlačte tlačidlo [Mode] a prejdite na položku Fast Ice. Svetlo vedl'a funkcie bude blikat'.
▶ Stlačte tlačidlo na 3 sekundy, kým sa svetlo neprestane blikat'.
- Ak chcete funkciu Fast Ice vypnút, stlačte tlačidlo [Mode] a prejdite na položku Fast Ice. Stlačte tlačidlo na 3 sekundy, ked'je funkcia Fast Ice vypnutá, svetlo sa nerozsvieti.

• Ice On • Fast Ice • Ice On • Fast Ice Mode Hold to select Mode Hold to select

Funkcia Water On

Ak chcete aktivovat' Water On, v odomknutom stave stlačte tlačidlo [Mode] a prejdite na Water On. Svetlo vedl'a funkcie bude blikat'.

▶ Stlačte tlačidlo na 3 sekundy, kým sa svetlo neprestane blikat'.
- Ak chcete funkciu Water On vypnút, stlačte tlačidlo [Mode] a prejdite na Water On. Stlačte tlačidlo na 3 sekundy, ked'je funkcia Water On vypnutá, svetlo sa nerozsvieti.

Mode Hold to select • Water On Mode Hold to select • Water On

Funkcia Filter Reset

Architectural floor plan showing four U-shaped structural elements mounted on a building facade (no text or labels)

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Architectural floor plan showing two structural elements with arrows indicating directions (no text or labels)

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a liquid container, likely illustrating fluid flow or pressure changes.

Simple line drawing of a drawer with an arrow pointing downward (no text or symbols)

Line drawing of a cabinet with an open drawer and an arrow indicating direction (no text or symbols)

Vyberatel'ná Fresh Box

Technical line drawing showing two views of a drawer with arrows indicating movement, no text or symbols present.

Simple icon of a box with a downward arrow symbol (no text or labels)

Diagram illustrating three steps of lifting a box, labeled 1, 2, and 3 with arrows indicating motion.

Illustration of a plug inserted into an electrical outlet with a tap, alongside a schematic view of the tap (no text or symbols present)

Line drawing of a coiled cable with two connectors (no text or symbols)

Technical line drawing of a server rack with internal components and a close-up view of the device (no text or symbols)

Mechanical assembly diagram showing a bolted joint with a nut and shaft (no text or labels)

Simple line drawing of a faucet with an arrow indicating force or movement (no text or symbols)

Diagram of a printer with arrows indicating orientation, no text or symbols present

Close-up of a kitchen sink with a faucet pouring water from a bowl (no visible text or symbols)

OZNÁMENIE

Simple line drawing of a hand washing a baby near a sink, with no text or symbols present.

Diagram of a mechanical device with rotating arrows indicating motion (no text or symbols)

Oznámenie:

Diagram of two symmetrical mechanical or architectural components with labeled section A, no text or symbols present

Abstract geometric composition with four overlapping gray shapes arranged radially (no text or symbols)

Haier

2025 Verzia A

Haier

Navodila za uporabo

Hladilnik-zamrzovalnik HCR79F19EHSB

A B Eco 3s Unlock C Fridge 88 °C M D Freezer 88 °C N O E Zone 3s Super Cool Tamp.Set 3s Super Frz. P F Switch 88 °C Q R G My Zone 3s Holiday Fruit&Veq. Cool Drink 0°C Fresh S T U H Ice On Fast Ice Water On Filter Reset V W X Y

Kazalniki:

A Indikator Eco
C Indikator hladilnika
D Indikator zamrzovalnika
F Indikator Switch
I Indikator filtra
J Indikator ključavnice
L Indikator Hladilnik °C
M Indikator Super Cool
N Indikator Zamrzovalnik °C
O Super Frz. Indikator
Q Indikator Switch °C
R Indikator Holiday
Q Indikator Switch °C
S Indikator Fruit&Veg
T Indikator Cool Drink
U Indikator 0 °C Fresh
V Indikator Ice On
W Indikator Fast Ice
X Indikator Water On
Y Indikator Filter Reset

Gumbi:

B Funkcija Eco

E Funkcija Zone

Funkcija 3s Super Cool

G Funkcija My Zone

Funkcija 3s Holiday

K Funkcija 3s Unlock

3s Unlock 3s Unlock 3s Unlock 3s Unlock

OBVESTILO

OBVESTILO

OBVESTILO

• Ice On • Ice On Mode Hold to select Mode Hold to select

Funkcija Fast Ice

Mode Hold to select • Water On Mode Hold to select • Water On

Funkcija Filter Reset

▶ Po 6 mesecih delovanja hladilnika zasveti ikona opomnika, kar pomeni, da mora uporabnik zamenjati filter.
▶ Po zamenjavi filtra pritisnite in pridržite gumb 3 sekunde, da prekličete opomnik. Časovnik se ponastavi in glasi se pisk.

Mode Hold to select • Filter Reset Mode Hold to select • Filter Reset

Architectural cross-section diagram of a multi-level building facade with curved structural elements (no text or labels)

Več pretokov zraka

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Nastavljive police

Predal Humidity Zone

Architectural cross-section diagram of a building facade with two internal compartments and two directional arrows indicating flow or movement (no text or symbols present)

Odstranljive police za vrata/nosilec za steklenice

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a liquid container, likely illustrating fluid flow or pressure changes.

Odstranljiv predal Humidityzone/Myzone

Simple line drawing of a wooden drawer with an arrow pointing to it, placed inside a shelf (no text or symbols)

Line drawing of a cabinet with an open drawer, showing internal structure and an upward arrow (no text or symbols)

Odstranljivi Fresh Box

Technical line drawing showing two views of a drawer with arrows indicating direction, no text or symbols present.

Odstranljiv pladenj za shranjevanje/predal za shranjevanje (spodaj)

Simple icon of a box with a downward arrow symbol (no text or labels)

Odstranljiv predal za shranjevanje (sredina)

Diagram illustrating three steps of lifting a box, labeled 1, 2, and 3 with arrows indicating motion.

Imena delov izdelovalnika ledu

Illustration of a plug inserted into a control panel and a tap with a handle (no text or symbols)

Pure diagram of a coiled cable with two connectors (no text or symbols)

Odstranite pokrovček z ventila za dovod vode na zadnji strani hladilnika.

Technical line drawing of a server rack with internal components and a close-up view of the device (no text or symbols)

Technical line drawing of a mechanical assembly with a bolt and housing (no text or symbols)

Simple line drawing of a faucet with an arrow indicating force or movement (no text or symbols)

Postrezite si z ledenimi kockami

Ko naredite led, z lopatko za led vzemite ledene kocke.

Škatla za izdelavo ledu Ročica za zaznavanje ledu Lopatica za led Škatla za shranjevanje ledu

OBVESTILO

Diagram of a printer or printer with arrows indicating flow direction (no text or symbols)

Close-up of a kitchen sink with a faucet pouring water from a bowl (no visible text or symbols)

OBVESTILO

Line drawing of a hand washing a baby near a sink, with a bowl nearby (no text or symbols)

Diagram of a mechanical device with rotating arrows indicating motion (no text or symbols)

Obvestilo:

Diagram of two symmetrical mechanical or architectural components with labeled section A, no text or symbols present

Abstract geometric composition with four overlapping gray shapes arranged in a cross pattern (no text or symbols)

Haier

2025, različica A

Haier

Benutzerhandbuch

Kühl-Gefrierkombination HCR79F19EHSB

4

A B Eco 3s Unlock C Fridge 88 °C M D Freezer 88 °C N O E Zone 3s Super Cool Tamp.Set 3s Super Frz. P F Switch 88 °C Q R G My Zone 3s Holiday Fruit&Veq. Cool Drink 0°C Fresh S T U H Ice On Fast Ice Water On Filter Reset V W X Y

Anzeigen:

HINWEIS

• Ice On • Ice On Mode Hold to select Mode Hold to select

Fast Ice-Funktion

Mode Hold to select • Water On Mode Hold to select • Water On

Architectural diagram of a multi-level storage unit with curved internal components (no text or labels)

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating movement or force direction.

Mehrfach-Luftstrom

Architectural cross-section diagram of a building facade with two arrows pointing to structural elements (no text or labels)

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a liquid container, with directional arrows indicating flow or movement.

Two technical line drawings of a cabinet with arrows indicating direction, no text or symbols present

Line drawing of a wooden drawer with an arrow indicating downward motion (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a close-up of the component (no text or symbols present)

Simple illustration of a box with a downward arrow symbol (no text or labels)

Simple line drawing of a box with a numbered arrow pointing to one corner (no text or symbols)

Diagram showing a box with numbered items and arrows indicating direction, possibly illustrating a process or allocation.

Illustration of a plug inserted into a control panel and a tap with a handle (no text or symbols)

Line drawing of a coiled cable or hose with two connectors (no text or symbols)

Technical line drawing of a server rack with internal components and a close-up view of the device (no text or symbols)

Mechanical assembly diagram showing a valve and nut assembly with no visible text or symbols

Simple line drawing of a faucet with an arrow indicating force or movement (no text or symbols)

Eiswürfel entnehmen

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Close-up of a stainless steel faucet dispensing water into a tray with a small container (no visible text or symbols)

HINWEIS

Simple line drawing of a hand washing a baby on a window, with a basin nearby (no text or symbols)

Diagram of a mechanical device with rotating arrows indicating motion (no text or symbols)

Hinweis:

Diagram of two symmetrical mechanical or architectural components with labeled point A, no text or symbols present

Abstract geometric composition with four overlapping gray shapes arranged in a cross pattern (no text or symbols)

Haier

2025 Version A

Haier

Manual de usuario

A B Eco 3s Unlock C Fridge 88 °C M D Freezer 88 °C N O E Zone 3s Super Cool Tamp.Set 3s Super Frz. P F Switch 88 °C Q R G My Zone 3s Holiday Fruit&Veq. Cool Drink 0°C Fresh S T U H Ice On Fast Ice Water On Filter Reset V W X Y

Indicadores:

3s Unlock → ~0.3 ~0.3 ~0.3 → ~0.2 ~0.2 ~0.2 → ~0.1 ~0.1 → ~0.5 ~18 ~0.7 → 3s Unlock 3s Unlock → ~0.3 ~0.3 ~0.3 → ~0.2 ~0.2 ~0.2 → ~0.1 ~0.1 → ~0.5 ~18 ~0.7 → 3s Unlock

AVISO

AVISO

AVISO

• Ice On • Ice On Mode Hold to select Mode Hold to select

Función Fast Ice

Mode Hold to select • Water On Mode Hold to select • Water On

Architectural cross-section diagram of a multi-level building facade with curved structural elements (no text or labels)

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Estantes ajustables

Architectural cross-section diagram of a building facade with two internal compartments and two directional arrows indicating flow or movement (no text or symbols present)

Diagram showing fluid flow with numbered arrows and circular indicators, likely illustrating a physical or engineering process.

Cajón extraíble Humidity Zone/My Zone

Simple line drawing of a wooden drawer with an arrow pointing downward (no text or symbols)

Line drawing of a wooden drawer with an arrow indicating direction (no text or symbols)

Fresh Box extraíble

Technical line drawing showing two views of a drawer with arrows indicating movement, no text or symbols present.

Simple icon of a box with a downward arrow symbol (no text or labels)

Diagram illustrating three steps of lifting a box, labeled 1, 2, and 3 with arrows indicating motion.

Illustration of a plug inserted into a wall socket next to a tap (no text or symbols)

Line drawing of a coiled cable with two connectors (no text or symbols)

Technical line drawing of a server rack with internal components and a close-up view of the device (no text or symbols)

Mechanical assembly diagram showing a valve with a bolt and nut, no text or symbols present

Simple line drawing of a faucet with an arrow indicating fluid flow or movement (no text or symbols)

Diagram of a printer or printer with arrows indicating flow direction (no text or symbols)

Close-up of a kitchen sink with a faucet pouring water from a bowl (no visible text or symbols)

Paso 5:

Line drawing of a hand washing a baby on a window, with a basin and plate nearby (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Nota:

Diagram of a mechanical or architectural component with two symmetrical sections, labeled 'A' at the intersection (no text or symbols on the diagram itself)

Abstract geometric composition with four overlapping gray shapes arranged in a cross pattern (no text or symbols)

Haier

2025 Versión A

Haier

A B Eco 3s Unlock C Fridge 88 °C M D Freezer 88 °C N O E Zone 3s Super Cool Tamp.Set 3s Super Frz. P F Switch 88 °C Q R G My Zone 3s Holiday Fruit&Veq. Cool Drink 0°C Fresh S T U H Ice On Fast Ice Water On Filter Reset V W X Y

Voyants :

3s Unlock 3s Unlock 3s Unlock

INFORMATION

INFORMATION

INFORMATION

• Ice On • Ice On Mode Hold to select Mode Hold to select

Fonction Fast Ice

Mode Hold to select • Water On Mode Hold to select • Water On

Architectural cross-section diagram of a multi-level building facade with curved structural elements (no text or labels)

Flux multi-air

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Clayettes réglables

Architectural cross-section diagram of a building facade with two windows and an open door (no text or symbols)

Diagram showing two labeled arrows pointing upward and downward to a liquid container, with numbered circles indicating positions.

Tiroir amovible Humidity Zone/My Zone

Two technical line drawings of a drawer with arrows indicating direction, no text or symbols present

Fresh Box amovible

Technical line drawing showing two views of a drawer with arrows indicating movement, no text or symbols present.

Simple icon of a box with a downward arrow symbol (no text or labels)

Diagram illustrating three steps of lifting a box, labeled 1, 2, and 3 with arrows indicating motion.

Illustration of a plug inserted into a control panel and a tap with a handle (no text or symbols)

Line drawing of a coiled cable or hose with two connectors (no text or symbols)

Technical line drawing of a server rack with internal components and a close-up view of the device (no text or symbols)

Mechanical assembly diagram showing a bolted joint with a nut and shaft (no text or labels)

Simple line drawing of a faucet with an arrow indicating fluid flow or movement (no text or symbols)

Prendre des glaçons

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Close-up of a stainless steel faucet dispensing water into a glass basin (no text or symbols visible)

INFORMATION

Simple line drawing of a hand washing a soap bubble over a window, with a basin nearby (no text or symbols)

Diagram of a mechanical device with rotating arrows indicating motion (no text or symbols)

Remarque :

Diagram of two symmetrical mechanical or architectural components with labeled section A, no text or symbols present

Abstract geometric composition with four overlapping gray shapes arranged radially (no text or symbols)

Haier

2025 version A

Haier

A B Eco 3s Unlock C Fridge 88 °C M D Freezer 88 °C N O E Zone 3s Super Cool Tamp.Set 3s Super Frz. P F Switch 88 °C Q R G My Zone 3s Holiday Fruit&Veq. Cool Drink 0°C Fresh S T U H Ice On Fast Ice Water On Filter Reset V W X Y

Indicatoren:

A Eco-indicator
C Koelkastindicator
D Vriezerindicator
F Switch-indicator
I Filterindicator
J Vergrendelingsindicator
L Koelkast °C-indicator
M Super Cool-indicator
N Vriezer °C-indicator
O Super Frz-indicator
Q Switch °C-indicator
R Holiday-indicator
Q Switch °C-indicator
S Fruit&Veg-indicator
T Cool Drink-indicator
U 0°C Fresh indicator
V Ice On-indicator
W Fast Ice-indicator
X Water On-indicator
Y Filter Reset-indicator

Toetsen:

3s Unlock 3s Unlock 3s Unlock

LET OP

LET OP

• Ice On • Ice On Mode Hold to select Mode Hold to select

Fast Ice-functie

Mode Hold to select • Water On Mode Hold to select • Water On

Architectural cross-section diagram of a multi-level building with curved structural elements (no text or labels)

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Verstelbare planken

Architectural floor plan showing two structural elements with arrows pointing to them (no text or labels)

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a liquid container, likely illustrating fluid flow or pressure changes.

Two technical line drawings of a cabinet with arrows indicating direction, no text or symbols present

Technical line drawing showing two views of a drawer with arrows indicating movement, no text or symbols present.

Simple icon of a box with a downward arrow symbol (no text or labels)

Diagram illustrating three steps of lifting a box, labeled 1, 2, and 3 with arrows indicating motion.

Illustration of a plug inserted into a control panel with switches, next to a tap (no text or symbols)

Line drawing of a coiled cable with two connectors at both ends (no text or symbols)

Technical line drawing of a server rack with internal components and a close-up view of the device (no text or symbols)

Mechanical assembly diagram showing a bolted joint with a nut and shaft (no text or labels)

Simple line drawing of a faucet with an arrow indicating fluid flow or movement (no text or symbols)

IJsblokjes pakken

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Close-up of a stainless steel faucet dispensing water into a glass basin (no text or symbols visible)

LET OP

Simple line drawing of a hand washing a baby near a sink, with no text or symbols present.

Diagram of a mechanical device with rotating arrows indicating motion (no text or symbols)

Let op:

Diagram of two symmetrical mechanical or architectural components with labeled section A, no text or symbols present

Abstract geometric composition with four overlapping gray shapes arranged in a cross pattern (no text or symbols)

Haier

2025 Versie A

Haier

Instrukcja obsługi

A B Eco 3s Unlock C Fridge 88 °C M D Freezer 88 °C N O E Zone 3s Super Cool Tamp.Set 3s Super Frz. P F Switch 88 °C Q R G My Zone 3s Holiday Fruit&Veq. Cool Drink 0°C Fresh S T U H Ice On Fast Ice Water On Filter Reset V W X Y

Wskaźniki:

3s Unlock 3s Unlock 3s Unlock

UWAGA

UWAGA

• Ice On • Ice On Mode Hold to select Mode Hold to select

Funkcja Fast Ice

Mode Hold to select • Water On Mode Hold to select • Water On

Architectural cross-section diagram of a multi-level building with curved structural elements (no text or labels)

Diagram showing two hands holding a rectangular object with arrows labeled ① and ② indicating direction or movement.

Regulowane półki

Architectural floor plan showing two structural elements with arrows indicating directions (no text or labels)

Diagram showing two labeled arrows (① and ②) pointing upward and downward to a liquid container, likely illustrating fluid flow or pressure changes.

Simple line drawing of a drawer with an arrow pointing downward (no text or symbols)

Line drawing of a cabinet with an upward arrow indicating direction (no text or symbols)

Technical diagram showing two views of a drawer with directional arrows indicating movement or force, including a magnified inset detail.

Simple icon of a box with a downward arrow symbol (no text or labels)

Diagram illustrating three steps of lifting a box, labeled 1, 2, and 3 with arrows indicating motion.

Illustration of a power plug connecting a wall-mounted switch to a faucet (no text or symbols present)

Pure diagram of a coiled tube with two connectors (no text or symbols)

Technical line drawing of a server rack with internal components and a close-up view of the device (no text or symbols)

Mechanical assembly diagram showing a valve with a bolt and nut, no text or symbols present

Simple line drawing of a faucet with an arrow indicating force or movement (no text or symbols)

Diagram of a printer or printer with arrows indicating flow direction (no text or symbols)

Close-up of a kitchen sink with a faucet pouring water from a bowl (no visible text or symbols)

UWAGA

Simple line drawing of a hand washing a soap bubble over a sink bowl (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Uwaga:

Regulowanie drzwi

Diagram of two symmetrical mechanical or architectural components with labeled section A, no text or symbols present

Abstract geometric composition with four overlapping gray shapes arranged in a cross pattern (no text or symbols)

Haier

2025 Wersja A
