Product Type	French Door Refrigerator
Brand	Haier
Model	HFF-750CGBJ
Total Capacity	708 L (25 cu ft)
Refrigerator Capacity	448 L
Freezer Capacity	260 L
Dimensions (H x W x D)	1770 x 910 x 730 mm
Weight	110 kg
Power Supply	220-240 V, 50 Hz, 1.5 A
Energy Class	A+
Annual Energy Consumption	350 kWh
Climate Class	SN, N, ST, T
No Frost System	Yes (both compartments)
Electronic Control	Yes, with digital display
Lighting	LED inside refrigerator and freezer
Water Dispenser	External (plumbed)
Ice Maker	Automatic (in freezer)
Shelves	3 tempered glass shelves (adjustable)
Crisper Drawers	2 humidity-controlled
Door Reversible	Yes (factory set for left hinge)
Child Lock	Yes (on control panel)
Anti-Fingerprint Finish	Yes (stainless steel)
Warranty	2 years parts and labor
Spare Parts Availability	Via Haier authorized service centers

Frequently Asked Questions - HFF-750CGBJ HAIER

How do I set the temperature on my Haier HFF-750CGBJ refrigerator?

Press the Temp button on the control panel. The refrigerator temperature can be set between 1°C and 7°C, and the freezer between -15°C and -24°C. Recommended settings: fridge at 3°C, freezer at -18°C.

Why is my refrigerator making a clicking noise?

Clicking sounds are normal when the compressor starts or stops, or when the defrost timer engages. If persistent or loud, ensure the refrigerator is level and not touching cabinets. Contact service if it worsens.

How often should I clean the condenser coils?

Clean the condenser coils (located at the back or bottom) every 6 months using a vacuum cleaner or soft brush. This ensures efficient operation and extends the appliance's life.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the steps in the user manual: remove hinge covers, unscrew hinges, swap door handles, and reattach hinges on the opposite side. Use a Phillips screwdriver and watch for alignment.

What should I do if the water dispenser stops working?

Check if the water supply line is connected and turned on. Ensure the water filter (if fitted) is not clogged. Press and hold the Dispenser Lock button for 3 seconds to unlock. If still no water, replace the filter.

How do I activate Vacation mode?

Press and hold the Vacation button on the control panel for 3 seconds. The display will show 'V' and the refrigerator will maintain a higher temperature (around 14°C) to save energy while you're away. Remember to remove perishables.

My ice maker is not making ice. What can I check?

Ensure the ice maker is turned on (press the Ice On/Off button). Check that the freezer temperature is below -15°C. Verify the water supply is connected and the water filter is not blocked. The first batch may take 24 hours.

How do I replace the water filter?

Locate the filter inside the refrigerator compartment (usually top-right). Turn it counterclockwise to unlock and pull it out. Insert the new filter (Haier model: HWF-750) and turn clockwise until it locks. Run water from the dispenser for 5 minutes before use.

The digital display shows an error code 'E1'. What does it mean?

Error code E1 indicates a communication failure between the main control board and the display board. Try resetting the refrigerator by unplugging it for 10 minutes. If the error persists, contact Haier service.

What is the recommended clearance around the refrigerator for proper ventilation?

Leave at least 5 cm (2 inches) clearance on both sides, 10 cm (4 inches) at the back, and 5 cm at the top. Ensure the front grille is unobstructed for airflow. This prevents overheating and maintains efficiency.

USER MANUAL HFF-750CGBJ HAIER

EN WARNING: Risk of fire/flammable material. The symbol indicates there is a risk of fire since flammable materials are used. Take care to avoid causing a fire by igniting flammable material.

SL WARNING: Risk of fire/flammable material. The symbol indicates a risk of fire because flammable materials are used.

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions contain important information which will help you get the best out of the appliance and ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make sure you also pass this manual so that the new owner can become familiar with the appliance and safety warnings.

Legend

Warning – Important Safety information

General information and tips

Environmental information

Disposal

Help protect the environment and human health. Put the packaging in applicable containers to recycle it. Help to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with this symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

Risk of injury or suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals, to prevent children and pets to get closed in the appliance.

Old appliances still have some residual value. An environmentally friendly method of disposal will ensure that valuable raw materials can be recovered and used again.

Cyclopentane, a flammable substance not harmful to ozone, is used as an expander for the insulation foam.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused.

For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product, handled by the professionals.

Safety information 4

Safety Tips....7

Intended use....12

Product description....13

Control panel....14

Use....15

Equipment 22

Care and cleaning....28

Troubleshooting....30

Installation....33

Technical data 36

Customer service....38

Accessories

Check the accessories and literature in accordance with this list:

1 ice scoop

2 Egg trays

3 spacers

Energy-label

Warranty card

User manual

Before switching on the appliance for the first time read the following safety hints!

WARNING!

Before first use

Make sure there is no transport damage. Remove all packaging and keep out of children's reach. Wait at least two hours before installing the appliance in order to ensure the refrigerant circuit is fully efficient. Handle the appliance always with at least two persons because it is heavy. The appliance should be placed in a well-ventilated place. Ensure a space of the appliance above and a

Installation

WARNING!

Never place the appliance in a damp area or location where it might be splashed with water. Clean and dry water splashes and stains with a soft clean cloth. Do not install the appliance in direct sunlight or near heat sources (e.g., stoves, heaters). Install and level the appliance in an area suitable for its size and use. Keep ventilation openings in the appliance or in the built-in structure clear of obstruction. Make sure that the electrical information on the rating plate agrees with the power supply. If it does not, contact an electrician.

The appliance is operated by a 220-240 VAC/50 Hz power supply. Abnormal voltage fluctuation may cause the appliance to fail to start, or damage to the temperature control or compressor, or there may be an abnormal noise when operating. In such case, an automatic regulator shall be mounted.

Do not use multi-plug adapters and extension cables.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

Do not step on the power cable.

WARNING!

Use a separate earthed socket for the power supply which is easily accessible. The appliance must be earthed.

Only for UK: The appliance's power cable is fitted with a 3-cord (grounding) plug that fits a standard 3-cord (grounded) socket. Never cut off or dismount the third pin (grounding). After the appliance is installed, the plug should be accessible.

WARNING: Do not damage the refrigerant circuit.

Daily use

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Children aged from 3 to 8 years are allowed to load and unload, but not allowed to clean or install the refrigerating appliances.

Keep away children under 3 years of age from the appliance unless they are constantly supervised.

Cleaning and user maintenance shall not be made by children without supervision.

The appliance must be positioned so that the plug is accessible.

If coal gas or other flammable gas is leaking into the vicinity of the appliance, turn off the valve of the leaking gas, open the doors and windows, and do not unplug the power cable of the refrigerator/freezer or any other appliance.

Note that the appliance is set for operation at a specific ambient range between 10 and 43°C. The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.

Do not place unstable articles (heavy objects, containers filled with water) on top of the refrigerator/freezer, to avoid personal injury caused by falling or electric shock caused by contact with water.

Do not pull on the door shelves. The door may be pulled slant, the bottle rack may be pulled away, or the appliance may topple.

WARNING!

Open and close the door only with the handles. The gap between the door and the cabinet is very narrow. Do not put your hands in these areas to avoid pinching your fingers. Open or close the refrigerator/freezer doors only when there are no children standing within the range of door movement. Never store bottled beer or beverages, liquids in bottles or cans (besides high percentage spirits) especially carbonated beverages in the freezer, as these will burst during freezing. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. Do not store medicines, bacteria or chemical agents in the appliance. This appliance is a household appliance. It is not recommended to store materials that require strict temperatures. Check the condition of food if a warming in the freezer has taken place. Do not set unnecessarily low temperature in the refrigerator compartment. Minus temperatures may occur at high settings. Attention: Bottles can burst. Do not touch frozen goods with wet hands (wear gloves). Especially do not eat ice lollies immediately after removal from the freezer compartment. There is the risk to freeze or the formation of frost blisters. First aid: keep immediately under running cold water. Do not pull away! Do not touch the inside surface of the freezer storage compartment when in operation, especially with wet hands, as your hands may freeze onto the surface.

Unplug the appliance in the event of a power interruption or before cleaning. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.

WARNING!

Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING!

Maintenance / cleaning

Make sure children are supervised if they carry out cleaning and maintenance. Disconnect the appliance from the electrical supply before undertaking any routine maintenance. Allow at least 7 minutes before restarting the appliance, as frequent starting may damage the compressor.

Hold the plug, not the cable, when unplugging the appliance.

Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Please clean with special refrigerator/freezer detergent to avoid damage. Eventually use warm water and baking soda solution about a tablespoon of baking soda to a litre/quart of water. Rinse thoroughly with water and wipe dry. Do not use cleaning powders or other abrasive cleaners. Do not wash removable parts in a dishwasher.

Do not scrape off frost and ice with sharp objects. Do not use sprays, electric heaters like heater, hair dryer, steam cleaners or other sources of heat in order to avoid damage to the plastic parts.

WARNING!

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Do not try to repair, disassemble or modify the appliance by yourself. In case of repair please contact our customer service.

If the illuminating lamps are damaged, they must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Eliminate the dust on the back of the unit at least once a year to avoid hazard by fire, as well as increased energy consumption.

Do not spray or flush the appliance during cleaning.

Do not use water spray or steam to clean the appliance. Do not clean the cold glass shelves or glass door with hot water. Sudden temperature change may cause the glass to break. If you leave your appliance out of use for an extended period, leave it open to prevent odour and unpleasant smells building up inside.

Refrigerant gas information

WARNING!

The appliance contains the flammable refrigerant ISOBUTANE (R600a). Make sure the refrigerant circuit is not damaged during transportation or installation. Leaking refrigerant may cause eye injuries or ignite. If a damage has occurred, keep away open fire sources, thoroughly ventilate the room, do not plug or unplug the power cords of the appliance or any other appliance. Inform the customer service.

In case of eye contact with the refrigerant, rinse immediately under running water and call an eye specialist immediately.

WARNING: The refrigeration system is under high pressure. Do not tamper with it. Since flammable refrigerants are used, please install, handle, and service the appliance strictly according to the instructions and contact a professional agent or our after-sales service to dispose of the appliance.

WARNING!

For refrigerators with an ice-water function, please pay attention to the following warning:

For appliances not intended to be connected to the water supply: WARNING: fill with potable water only.

For appliances intended to be connected to the water supply: WARNING: connect to potable water supply only.

If you want to clean the water system, please refer to the User Manual. If you have any questions, please contact the after-sales service.

Intended use

This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices, and other working environments;

- farm houses and by clients in hotels, motels, and other residential type environments;

- bed and breakfast type environments;

- catering and similar non-retail applications.

If the appliance is not used for an extended period of time:

• Take out the food.
• Unplug the power cord.
• Empty and clean the water tank.
• Clean the appliance as described above.
• Keep the doors open to prevent the creation of bad odours inside.

To ensure the safe preservation of foodstuffs or wine, please comply with this instruction.

The appliance should be cleaned at least once every four weeks for good maintenance and to prevent stored food odours. Always keep the door gasket clean.

(1.) Please scrub the interior and exterior of the refrigerator, including door gasket, door rack, glass shelves, boxes and so on, with a soft towel or sponge dipped in warm water (neutral detergent can be added). (2.) If liquids are accidentally spilled, all contaminated components should be removed and placed under running water. After washing, wipe and dry. (3.) If there is spilled cream (such as cream, melting ice cream), please remove all the contaminated parts, put them into warm water at about 40°C for a while, then rinse with running water, dry and place them back into the refrigerator/freezer. (4.) In case some small part or component enters inside the fridge (between the shelves or drawers), use a small soft brush to release it. If you cannot reach the part, please contact Haier service.

▶ To avoid contamination of food, please respect the following instructions: - Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. - Clean regularly surfaces that can come in contact with food and accessible drainage systems. - Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. - Store raw meat and fish in suitable containers in the refrigerator/freezer, so that it is not in contact with or drip onto other food. To ensure the safe preservation of foodstuffs, instant food and raw meat / fish shall be stored separately. - Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice cream and making ice cubes. - One-, two- and three-star compartments are not suitable for the freezing of fresh food. - If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance. The details on the most appropriate part in the compartment of the appliance where specific types of food shall be stored, considering the distribution of temperature that can be present in the different compartments of the appliance are in the other part of the manual.

Disposal

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Since flammable insulation blowing gases are used, please contact the professional agent or our after-sale service to dispose of the appliance.

WARNING!

Risk of injury or suffocation!

Refrigerants and gases must be disposed of professionally. Ensure that the tubing of the refrigerant circuit is not damaged before being properly disposed of. Disconnect the appliance from the mains supply. Cut off the mains cable and dispose of it. Remove the trays and drawers as well as the door catch and seals to prevent children and pets from getting closed in the appliance.

CAUTION!

When you close the door, the vertical door strip on the left door should be bent inside (1).

If you try to close the left door and the vertical door strip is unbent (2), you should bend it firstly, otherwise the door strip will hit the fixing shaft or right door. Thus a damage to the door strip or a leak will occur.

There is a heating thread inside the frame. The temperature of the surface will rise a little, which is normal and won't affect the function of the appliance.

Intended use

This appliance is intended for cooling and freezing food. It has been designed exclusively for use in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments as well as in bed-and-breakfast and catering business. It is not intended for commercial or industrial use. Changes or modifications to the device are not allowed. Unintended use may cause hazards and loss of warranty claims.

Standards and directives CE

This product meets the requirements of all applicable EC directives with the corresponding harmonised standards, which provide for CE marking.

Due to technical changes and different models, some of the illustrations in this manual may differ from your model.

A: Refrigerator compartment

1 Back lamp 2 Door beam 3 Door rack 4 Refrigerator tray 5 Water tank 6 Human Sensor 7 Glass shelf 8 Antioxidant zone

B: Freezer compartment

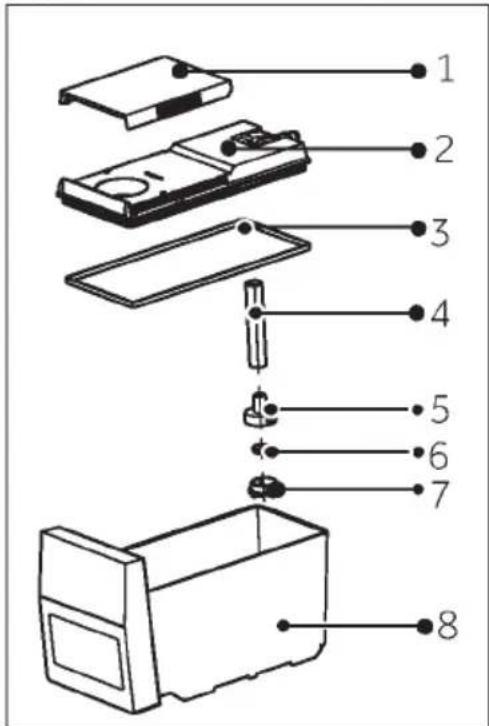

9 Auto ice maker box

10 Freezer box

C: My Zone compartment

11 My Zone tray

12 My Zone drawer

Control panel

Buttons:

A Fridge temperature setting/Super cool selector B My Zone temperature setting C Freezer temperature setting/Quick Freezer selector D Ice maker selector E Auto set selector F Serve selector G Panel lock selector

Indicators:

a1 Super cool function a2 Temperature fridge compartment b Temperature My Zone compartment c1 Quick freezer function c2 Temperature freezer compartment d Ice maker function e Auto set function f Serve function g Panel lock

Before first use

Remove all packaging materials, keep them out of children's reach and dispose them in an environmentally friendly manner. ▶ Clean the inside and outside of the appliance with water and a mild detergent before putting any food in it. ▶ After the appliance has been levelled and cleaned, wait for at least 2-5 hours before connecting it to the power supply. See Section INSTALLATION. ▶ Precool the compartments at high settings before loading with food. The function Power-Freeze helps to cool down the freezer compartment quickly. The refrigerator temperature and freezer temperature are automatically set to 5°C and -18°C respectively. These are the recommended settings. If desired, you can change these temperatures manually. Please see ADJUST THE TEMPERATURE.

Human sensor

The refrigerator has a human sensor function. When people are near the refrigerator, the control panel will light up.

Sensor keys

The buttons on the control panel are sensor keys, which already respond when lightly touched with the finger

Switch on /off the appliance

The appliance is in operation as soon as it is connected to the power supply.

When the appliance is powered on for the first time, the actual refrigerator and freezer temperatures are displayed. The display will flash. If the doors are closed it will switch off after 30 seconds.

Maybe the panel lock is active.

The appliance is preset to the recommended temperature of 5°C (refrigerator) and -18°C (freezer). Under normal ambient condition you need not to set a temperature. When the appliance is switched on after disconnection from the main power supply, it may take up to 12 hours for the correct temperatures to be reached.

Empty the appliance before switching off. To switch off the appliance, pull the power cord out of the power socket.

Lock/unlock panel

The control panel is automatically locked against activation if the doors are closed and 30 seconds no button is pressed. For any settings the control panel must be unlocked.

▶ Touch button "G" for 3 seconds to block all panel elements against activation. The buzzer alarms and the related indicator "g" is now displayed; The icon flashes if a button will be pressed, when the panel lock is activated, the change is not running. ▶For unlocking press again the button.

Standby mode

The display screen turns off automatically 30 seconds after pressing a key. The display will be automatically locked. It lights up automatically when pressing any key or opening any door (Alarm does not light up the display screen).

Select the working mode

You may need to select one of the following two ways to set the appliance:

1) Auto Set mode

Under Auto Set mode, the appliance can automatically adjust the temperature setting according to the ambient temperature and temperature change in the appliance. If you do not have any special requirements, we recommend that you use Auto Set mode (refer to Auto Set mode later on).

2) Manual adjusting mode:

If you want to manually adjust the temperature of the appliance in order to store a particular food, you can set the temperature via a temperature adjusting button (refer to ADJUST THE TEMPERATURE).

Door opening alarm

When the refrigerator door is opened for more than 1 minute, the door opening alarm will sound. The alarm can be silenced by either closing the door or touching the control panel. If the door is left open for more than 5 minutes, the light inside the compartment and control panel illumination will automatically switch off.

Adjust the temperature

The indoor temperatures are influenced by the following factors:

▶ Ambient temperature ▶ Frequency of door opening ▶ Amount of stored foods ▶ Installation of the appliance

Adjust the temperature for fridge

1. Unlock the panel by pressing button "G" if it is locked.
2. Press button "A" (Fridge) to select the fridge compartment. An alarm sounds. The set temperature in the refrigerator compartment is displayed.
3. Press button "A" to set the fridge temperature. A signal will sound at each key press. The temperature increases in sequences of 1°C from a minimum of 1°C to a maximum of 9°C, switching to 1°C again when pressing further. The optimum temperature in the refrigerator is 5°C. Colder temperatures mean unnecessary energy consumption.

If no key is operated within 5 seconds, the setting is confirmed automatically.

Adjust the temperature for the freezer.

1. Unlock the panel by pressing button "G" if it is locked.
2. Press button "C" (Freezer) to select the freezer compartment. An alarm sounds. The actual temperature in the freezer compartment is displayed.
3. Press button "C" (Freezer) to set the freezer temperature. A signal will sound at each key press.

The temperature increases in sequences of 1°C from a minimum of -14°C to a maximum of -24°C, switching to -14°C again when pressing further.

The optimum temperature in the freezer is -18°C. Colder temperatures mean unnecessary energy consumption.

If no key is operated within 5 seconds, the setting is confirmed automatically.

The temperature in the corresponding compartment cannot be adjusted if any other function (Quick freezer or Auto set mode) is activated or the display is locked. The corresponding indicator will flash accompanied by a buzzer.

Adjust the temperature for My Zone compartment

1. Unlock the panel by pressing bottom "G" if it is locked. Press the "My Zone" and a buzzer sounds, then enter the My Zone setting state.
2. A signal will sound at each key press. The temperature increases in sequences of 1° C from a minimum of -20° C to a maximum of +5° C (Adjustable per degree). If there is no operation in 5 seconds, the temperature has been set and the flashing stops

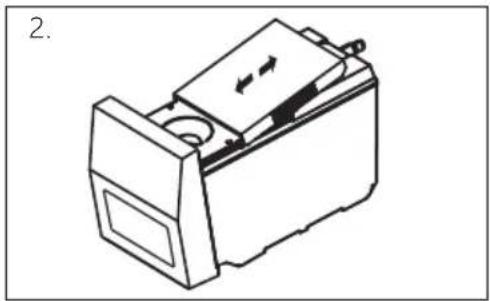

Icemaker mode

1. Unlock the panel by pressing button "G" if it is locked.
2. Press button "D" (Icemaker). An alarm sounds.
3. Indicator "d" illuminates and the function is activated.

Please note the ice maker will not function until the freezer has reached a temperature of -12 °C or below. See "Ice maker usage precautions" section of this manual. If you need to change it, please contact after sales service personnel.

Auto Set mode

In the Auto Set mode, the appliance can automatically adjust the temperature setting according to the ambient temperature and temperature change in the appliance. This function is totally hand free.

1. Unlock the panel by pressing button "G" if it is locked.
2. Press button "E" (Auto Set). An alarm sounds.
3. Indicator "e" illuminates and the function is activated.

By repeating the above steps or selecting an other function this function can be switched off again.

Under the auto set state and super cool states, you can not adjust the fridge temperature; Under the auto set state and quick freezer states, you cannot adjust the freezer temperature.

Under the auto set state and when selecting the quick freezer function, the auto set function is automatically exited; Under the quick-freezer state and when selecting Auto Set function, the quick-freezer function is automatically exited.

Serve function

1. Unlock the panel by pressing button "G" if it is locked
2. Press button "F" (Serve). An alarm sounds.
3. Indicator "f" illuminates and the function is activated

By repeating the above steps or selecting an other function this function can be switched off again.

Super Cool function

Switch on the Super Cool function if larger quantity of food should be stored (for example after the purchase). The Super Cool function accelerates the cooling of fresh food and protects the goods already stored from undesirable warming. The factory setting temperature is nearly 1°C.

1. Unlock the panel by pressing button "G" if it is locked.
2. Press button "A" (Super Cool) for 3 seconds.
3. Indicator "a1" illuminates and the function is activated.

By repeating the above steps or selecting another function, this function can be switched off again.

This function will be automatically disabled when the function has lasted about 4 hours.

Quick Freezer function

Fresh food should be frozen as quickly as possible to the core. This preserves the best nutritional value, appearance and taste. The Quick Freezer function accelerates the freezing of fresh food and protects the goods already stored from undesirable warming. If you need to freeze a large amount of food at once, it is recommended to set the Quick Freezer function on ahead for 24 hours before the usage of the freezer room. The function setting temperature is below -24°C.

1. Unlock the panel by pressing button "G" if it is locked.
2. Press button "C" (Quick Freezer) for 3 seconds.
3. Indicator "c1" illuminates and the function is activated.

By repeating the above steps or selecting another function, this function can be switched off again.

The Quick-Freezer function will automatically switch off about 50 hours later. The appliance is then operated at the previously set temperature.

WARNING!

Empty the appliance before switching off. Keep the door of the refrigerating compartment open when the Fridge off function is activated, to avoid odour or mold.

Tips on storing fresh food

Storing into the refrigerator compartment

Keep your fridge temperature below 5°C.

Hot food must be cooled to room temperature before storing in the appliance. Foods stored in the refrigerator should be washed and dried before storing. Food to be stored should be properly sealed to avoid odour or taste alterations. Do not store excessive quantities of food. Leave spaces between foods to allow cold air to flow around them, for better and more homogeneous cooling.

Foods eaten daily should be stored at the front of the shelf.

Leave a gap between foods and the inner walls, allowing air to flow. In particular, do not store foods against the rear wall: foods could freeze against the rear wall. Avoid direct contact of food (especially oily or acidic food) with the inner liner, as oil/acid can erode the inner liner. Clean away oily/acid dirt whenever it is found.

Defrost frozen food in the fridge storage compartment. This way, you can use the frozen food to decrease the temperature in the compartment and save energy. The ageing process of fruit and vegetables such as courgettes, melons, papaya, banana, pineapple, etc. can be accelerated in the refrigerator. Therefore, it is not advisable to store them in the refrigerator. However, the ripening of strongly green fruits can be promoted for a certain period. Onions, garlic, ginger and other root vegetables should also be stored at room temperature. Unpleasant odours inside the fridge are a sign that something has spilled and cleaning is required. See CARE AND CLEANING.

Different foods should be placed in different areas according to their properties:

Please keep a distance of more than 10 mm between the food placed and air ducts or sensors to ensure the cooling effect.

1 Butter, cheese, eggs, spices, etc. 2 Eggs, cans, canned food, spices, etc. 3 Drinks and bottled foods. 4 Water 5 Pickled foods, canned food, etc. 6 Meat products, snack foods, etc. 7 Pasta, milk, tofu, dairy, etc. 8 Fruit, vegetables, salad, etc.

Storage into the freezer compartment

• Keep the freezer temperature at -18°C. ▶ 24 hours before freezing, switch on the Quick-freezer function; for small quantities of food, 4-6 hours are sufficient. Hot food must be cooled to room temperature before storing in the freezer compartment. ▶ Food cut into small portions will freeze faster and be easier to defrost and cook. The recommended weight for each portion is less than 2.5 kg. It is better to pack food before putting it into the freezer. The outside of the packaging must be dry to avoid bags sticking together. Packaging materials should be odour-free, airtight, non-poisonous and non-toxic. In order to avoid expiration of storage periods, please note the freezing date, time limit and name of the food on the packaging according to the storage periods of different foods. ▶ WARNING: Acid, alkali and salt etc. could erode the internal surface of the freezer. Do not place food having these substances (e.g. sea fish) directly on the internal surface. Salt water in the freezer should be cleaned up immediately. ▶ Do not exceed the food storage times recommended by the manufacturers. Only take the required amount of food out of the freezer. ▶ Consume defrosted food quickly. Defrosted food cannot be re-frozen unless it is first cooked, otherwise it may become unsafe to eat.
• Do not load excessive quantities of fresh food in the freezer compartment. Refer to the freezing capacity of the freezer – See TECHNICAL DATA or data on the type plate. ▶ Food can be stored in the freezer at a temperature of at least -18°C for 2 to 12 months, depending on its properties (e.g., meat: 3-12 months, vegetables: 6-12 months). When freezing fresh food, avoid bringing it into contact with already frozen food. Risk of thawing!

When storing commercially frozen foods, please follow these guidelines:

▶ Always follow manufacturers' guidelines for the length of time you should store food for. Do not exceed these guidelines!

▶ Try to keep the length of time between purchase and storage as short as possible to preserve food quality.

▶ Buy frozen foods that have been stored at a temperature of -18°C or below.

- Avoid buying food which has ice or frost on the packaging – This indicates that the products might have been partially defrosted and refrozen at some point – temperature rises affect the quality of food.

▶ Please keep a distance of more than 10 mm between the food placed and the air duct to ensure the cooling effect.

Multi-air-flow

The refrigerator is equipped with a multi-air-flow system, with which cool air flows are located on every shelf level. This helps to maintain a uniform temperature to ensure that your food is kept fresher for longer.

Adjustable shelves

The height of the shelves can be adjusted to fit your storage needs.

1. To relocate a shelf, remove it first by lifting its hind edge (1) and pulling it out (2).
2. To reinstall it, put it on the lugs on both sides and push it to the most rearward position until the rear of the shelf is fixed inside the slots in the sides.

Ensure that all ends of a shelf are level.

Antioxidant zone

This function can keep the oxygen in a low level to slow down the oxidation process of fruits & vegetables. Extending the time of foods storage.

Removable Antioxidant zone

The Antioxidant zone drawer can be removed for cleaning:

1. To remove the Refrigerator tray, remove it first by pulling it out (1) and uplifting its hind edge (2).
2. To reinstall it, the above steps are carried out in reverse order.

Removable refrigerator tray

The Refrigerator tray can be removed for cleaning:

1. To remove the Refrigerator tray, remove it first by uplifting its hind edge (1) and pulling it out (2).
2. To reinstall it, the above steps are carried out in reverse order.

Removable door racks

The door racks can be removed for cleaning:

Place hands on each side of the rack, lift it upwards (1) and pull it out (2).

To insert the door rack, perform the above steps in reverse order.

OPTIONAL: OK-temperature indicator

The OK-temperature indicator can be used to determine temperatures below +4°C. Gradually reduce the temperature if the sign does not indicate "OK".

When the appliance is switched on, it may take up to 12 hours for the correct temperatures to be reached.

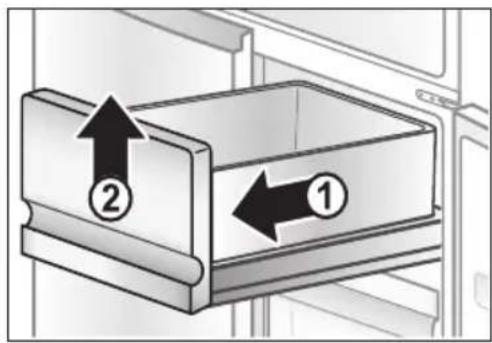

Removable Freezer box

The Freezer box drawer can be removed for cleaning.

1. To remove the Refrigerator tray, first pull it out (1) and lift its rear edge (2).
2. To reinstall it, perform the above steps in reverse order.

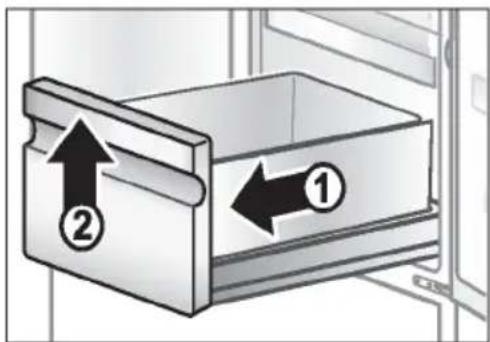

Removable Freezer box

The Freezer box drawer can be removed for cleaning:

1. To remove the Refrigerator tray, first pull it out (1) and lift its rear edge (2).
2. To reinstall it, the above steps are carried out in reverse order.

Equipment

EN

The automatic ice maker of this product is equipped with a special water tank. The user injects water directly into the water tank. It is convenient and safe to use the ice machine.

Components ice maker

1. Water tank
2. Auto ice maker box

Components water tank

1. Water tank upper slide cover
2. Water tank upper cover
3. Water tank sealing ring
4. Rubber pipe
5. Water tank suction pipe filter cover
6. Water tank suction pipe filter gasket
7. Water tank suction pipe filter buckle
8. Water tank body

Components auto ice maker box

1. Auto ice-making box
2. Ice scoop
3. Ice detector
4. Ice drawer

Note:

The automatic ice maker and water tank can be removed for cleaning and taken out when the user does not need it. It needs to be cleaned when it is used again.

Use of auto ice maker

1. Remove the water tank: Slightly lift the bottom of the water tank.
2. Slide the upper cover of the water box to fill the water. Be careful not to exceed the full water line. Return to water tank. The water tank shall be installed in place, otherwise, it will not be able to get water normally.
3. After the ice making is completed, use the ice scoop equipped with the gift bag to remove the ice.

The ice storage capacity of the ice drawer can be automatically confirmed by the ice detector. When the storage reaches a certain amount, stop ice making.

Note:

The water filling temperature in the water tank shall not exceed 60 °C.

When the temperature is too low in winter, the water in the water tank may freeze. When there is no water in the ice maker, sometimes you can hear the sound of the water pump and ice maker working. This is a normal phenomenon. If it is used for the first time or more than one week from the last time, the newly made ice may have peculiar smell. It is necessary to throw away the first ice making ice or clean the ice maker before making ice. If there is too much ice in the ice drawer, it cannot make ice and the drawer cannot be closed normally.

WARNING!

Only purified water can be put in the water tank.

Cleaning water tank

1. Push the water tank upper slide cover to the marked position and then push it upward. Take off the water tank upper cover.
2. Take off the rubber pipe, water tank suction pipe filter cover, water tank suction pipe filter gasket, water tank suction pipe filter buckle.
3. Take off sealing ring.

Clean the water tank and its components with soft sponge and install them in the order of disassembly after cleaning.

Notice:

The erection sequence is the reverse of the removal sequence.

Cleaning ice maker

1. Open the left freezing door. Turn the fixing knob of the ice making box to the left, hold the handle of the ice making box and slowly pull out the ice maker.
2. Turn the ice maker box over, pull out the white knob of the ice maker, and take out the auto ice-making box.
3. Clean the ice maker and install them in the order of disassembly after cleaning.

1. After using non-purified water, the ice box should be cleaned in time before being put back into the automatic ice maker.
2. When cleaning the water supply box, internal water supply box and cover, use a soft sponge. Do not use brushes or decontamination powder. To remove stubborn stains, use diluted tableware cleaner, but be sure to rinse thoroughly with water. Do not use hard brushes, steel brushes, abrasives (such as toothpaste, decontamination powder, etc.), organic solvents (such as gasoline, banana water, acetone, alcohol, etc.), hot water, or acids and alkalis, as these can cause plastic cracking.
3. Ice box components cannot be washed with water. If they get wet, wipe them dry with a dry cloth. Otherwise, the ice making function may be damaged if water enters the electrical parts. Since the water supply is automatic, do not add water to the ice making box when it is installed.

Removable My Zone compartment drawer

The My Zone compartment drawer can be removed for cleaning:

1. Open the My Zone compartment door and lift out the My Zone compartment tray.
2. Remove the My Zone compartment drawers.

Disconnect the appliance from the power supply before cleaning.

Cleaning

Clean the appliance when only little or no food is stored. The appliance should be cleaned every four weeks for good maintenance and to prevent bad odors from stored food.

Do not clean the appliance with hard brushes, wire brushes, detergent powder, petrol, amyl acetate, acetone and similar organic solutions, acid or alkaline solutions. Use a special refrigerator detergent to avoid damage. Do not spray or flush the appliance during cleaning. Do not use water spray or steam to clean the appliance. Do not clean the cold glass shelves with hot water. Sudden temperature change may cause the glass to break. Do not touch the inside surface of the freezer storage compartment, especially with wet hands, as your hands may freeze onto the surface. In case of heating, check the condition of frozen goods.

Always keep the door gasket clean.

Clean the inside and housing of the appliance with a sponge dampened in warm water and neutral detergent.

1. Scrub the interior and exterior of the refrigerator, including door sealing, door rack, glass shelves, boxes, etc., with a soft towel or sponge dipped in warm water (you may add neutral detergent to the warm water).

1. If there is liquid spilled, remove all the contaminated parts, directly rinse with the flow water, dry and place it back into the fridge.
2. If there is spilled cream (such as the cream, melting ice cream), please remove all the contaminated parts, put into the warm water with about 40° C for some time, then rinse with the flow water, dry and place it back into the fridge.
3. In case some small part or component gets stuck inside of the fridge (between shelves or drawers), use small soft brush to release it. If you could not reach the part, please contact Haier after-sales service.

Rinse and dry with a soft cloth.

Do not clean any of the parts of the appliance in a dishwasher.

Allow at least 7 minutes before restarting the appliance as frequent starting may damage the compressor.

Defrosting

The defrosting of the refrigerator and the freezer compartment are done automatically; no manual operation is needed.

Replacing the LED lamps

WARNING!

Do not replace the LED lamp yourself; it must only be replaced by either the manufacturer or the authorized service agent.

The lamp uses LED as its light source, featuring low energy consumption and long service life. If there is any abnormality, please contact customer service. See CUSTOMER SERVICE.

Parameters of the lamp:

Refrigerator compartment: 12 V max 16 W

Freezer compartment: 12 V max 2 W

Non-use for a longer period

If the appliance is not used for an extended period of time, and you will not use only the Holiday-function or the fridge off function for the refrigerator:

▶Take out the food. ▶Unplug the power cord. ▶ Empty and clean the water tank ▶Clean the appliance as described above. - Keep the doors open to prevent the creation of bad odours inside.

Turn the appliance off only if strictly necessary.

Moving the appliance

1. Remove all food and unplug the appliance.
2. Secure shelves and other moveable parts in the fridge and the freezer with adhesive tape.
3. Do not tilt the refrigerator more than 45° to avoid damaging the refrigerating system.

▶Do not lift the appliance by its handles. ▶Never place the appliance horizontally on the ground.

Many occurring problems could be solved by yourself without specific expertise. In case of a problem please check all shown possibilities and follow below instructions before you contact an after sales service. See CUSTOMER SERVICE.

WARNING!

▶ Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket. Electrical equipment should be serviced only by qualified electrical experts, because improper repairs can cause considerable consequential damages. ▶ A damaged supply should only be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Problem Possible Cause Possible Solution
The compressor does not work.	·Mains plug is not connected in the mains socket.·The appliance is in the defrosting cycle	·Connect the mains plug.·This is normal for an automatic defrosting
The appliance runs frequently or runs for a too long period of time.	·The indoor or outdoor temperature is too high.·The appliance has been off power for a period of time.·A door/drawer of the appliance is not tightly closed.·The door/drawer has been opened too frequently or for too long.·The temperature setting for the freezer compartment is too low.·The door/drawer gasket is dirty, worn, cracked or mismatched.·The required air circulation is not guaranteed.	·In this case, it is normal for the appliance to run longer.·Normally, it takes 8 to 12 hours for the appliance to cool down completely.·Close the door/drawer and ensure the appliance is located on a level ground and there is no food or container jarring the door.·Do not open the door/drawer too frequently.·Set the temperature higher until a satisfactory refrigerator temperature is obtained. It takes 24 hours for the refrigerator temperature to become stable.·Clean the door/drawer gasket or replace them by the customer service.·Ensure adequate ventilation.
The inside of the refrigerator is dirty and/or smells.	·The inside of the refrigerator needs cleaning.·Food of strong odour is stored in the refrigerator.	·Clean the inside of the refrigerator.·Wrap the food thoroughly..

Problem Possible Cause Possible Solution

It is not cold enough inside the appli-ance.	·The temperature is set too high.·Too warm goods has been stored.·Too much food has been stored at one time.·The goods are too close to each other.·A door/drawer of the appliance is not tightly closed.·The door/drawer has been opened too frequently or for too long.	·Reset the temperature.·Always cool down goods be-fore storing them.·Always store small quantities of food.·Leave a gap between several foods allowing air flowing.·Close the door/drawer.·Do not open the door/drawer too frequently.
It is too cold inside the appliance.	·The temperature is set too low.·The Power- freeze function is acti-vated or is running too long.	·Reset the temperature.·Switch off the Power- freeze function
Moisture formation on the inside of the refrigerator com-partment.	·The climate is too warm and too-damp.·A door/drawer of the appliance is not tightly closed.·The door/drawer has been opened too frequently or for too long.·Food containers or liquids are left open.	·Increase the temperature.·Close the door/drawer.·Do not open the door/drawer too frequently.·Let hot foods cool to room temperature and cover foods and liquids.
Moisture accumu-lates on the refrigerators outside surface or between the doors/door and drawer.	·The climate is too warm and too damp.·The door/drawer is not closed tightly. The cold air in the appliance and the warm air outside it con-densates.	·This is normal in damp climate and will change when the hu-midity decreases.·Ensure that he door/drawer is tightly shut.
Strong ice and frost in the freezer com-partment.	·The goods were not adequately packaged.·A door/drawer of the appliance is not tightly closed.·The door/drawer has been opened too frequently or for too long.·The door/drawer gasket is dirty, worn, cracked or mismatched.·Something on the inside prevents the door/drawer to close properly.	·Always pack the goods well.·Close the door/drawer.·Do not open the door/drawer too frequently.·Clean the door/drawer gasket or replace them by new ones.·Reposition the shelves, door racks, or internal containers to allow the door/drawer to close.
The sides of the cabinet and door strip get warm.	·-	·This is normal.

Troubleshooting

EN

Problem Possible Cause Possible Solution
The appliance makes abnormal sounds.	· The appliance is not located on level ground.· The appliance touches some object around it.	· Adjust the feet to level the appliance.· Remove objects around the appliance.
A slight sound is to be heard similar to that of flowing water.	· - · This is normal.
You will hear an alarm beep.	· The fridge storage compartment door is open.	· Close the door or silence the alarm manually.
You will hear a faint hum.	· The anti-condensation system is working	· This prevents condensation and is normal
The interior lighting or cooling system does not work.	· Mains plug is not connected in the mains socket.· The power supply is not intact.· The LED-lamp is out of order.	· Connect the mains plug.· Check the electrical supply to the room. Call the local electricity company!· Please call the service for changing the lamp.

Power interruption

In the event of a power cut, food should remain safely cold for about 12 hours. Follow these tips during a prolonged power interruption, especially in summer:

▶ Open the door/drawer as few times as possible. ▶ Do not put additional food into the appliance during a power interruption. If prior notice of a power interruption is given and the interruption duration is longer than 12 hours, make some ice and put it in a container in the top of the refrigerator compartment. An inspection of the goods is required immediately after the interruption. As temperature in the refrigerator will rise during a power interruption or other failure, the storage period and edible quality of food will be reduced. Any food that defrosts should be either consumed, or cooked and refrozen (where suitable) soon afterwards in order to prevent health risks.

Memory function during power interruption

After restoration of power the appliance continues with the settings that were set before the power failure.

Unpacking

WARNING!

The appliance is heavy. Always handle with at least two persons.

- Keep all packaging materials out of children's reach and dispose them in an environmentally friendly manner.

▶Take the appliance out of the packaging. ▶Remove all packaging materials.

Environmental conditions

The room temperature should always be between 10°C and 43°C, since it can influence the temperature inside the appliance and its energy consumption. Do not install the appliance near other heat-emitting appliances (ovens, refrigerators) without isolation.

Space requirement

Required space when door is opened:

D1 = 50

D2 = 934

D3 = 600

D4 = 1130

W1 = 830

W2 = 1338

Ventilation cross-section

To achieve sufficient ventilation of the appliance for safety reasons, the information of the required ventilation cross sections must be observed. Ensure a space of at least 10 cm above and 10 cm around the appliance.

Aligning the appliance

The appliance should be placed on a flat and solid surface.

1. Tilt the appliance slightly backwards.
2. Set the feet to the desired level.

Make sure the distance to the wall on the hinge side is at least 28 mm for the door to open properly.

1. The stability can be checked by alternately bumping on the diagonals. The slightly swaying should be the same in both directions. Otherwise the frame can warp; possible leaking door seals are the result. A low tendency to the rear facilitates the closing of the door.

Fine tuning of the doors

If the doors are not in one level, this mismatch can be remedied by following:

A) Using adjustable foot

Rotate the adjustable foot according to the direction of arrow to turn up or down the foot.

B) Using spacers

Open the upper door and lift it.

Carefully clip the spacer (enclosed in the accessory bag) in the white plastic ring of the middle hinge by hand or using tools like pliers. Do not scratch or bruise the door.

C) Using

If the front and back of the fridge doors are not in the same level, turning the adjusting knob to adjust the doors' position.

In the future use of refrigerator, doors uneven phenomenon may occur to the weight of stored food. Then please adjust according to the above methods.

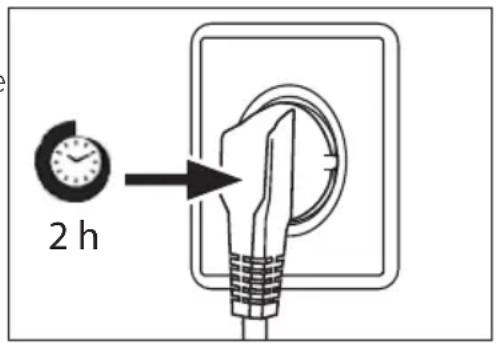

Waiting time

The maintenance-free lubrication oil is located in the capsule of the compressor. This oil can get through the closed pipe system during slanting transport. Before connecting the appliance to the power supply you have to wait 2 hours so that the oil runs back into the capsule.

Electrical connection

Before each connection check if:

▶ power supply, socket and fusing are appropriate to the rating plate.

▶ the power socket is earthed and no multi-plug or extension. ▶ the power plug and socket are strictly according.

Connect the plug to a properly installed household socket.

WARNING!

To avoid risks a damaged power cord must be replaced by the customer service (see warranty card).

Product fiche according to regulation EU No. 1060/2010

Brand	Haier
Model name / identifier	HFF-750CGBJ
Category of the household refrigerating appliance(1)	7
Energy efficiency classA+++ (most efficient) to D (least efficient)	A++
Energy consumption(2)	298 kWh/year
Total net capacity of whole refrigerator compartment	255 L
of which chill compartment	-
of which wine storage compartment	-
of which cellar-temperature compartment	-
of which fresh food storage compartment	255 L
Total number of wine bottles(3)	-
Total net capacity of two-star compartment	67 L
Total net capacity of freezer compartment	98 L
Star coding(4)
Design temperature of "other compartments"(5)	-
Lowest storage temperature of wine compartment	-
Frost-free	•
Storage time during malfunctions	12 h
Freezing capacity(6)	12 kg
Climate rating(7)	SN. N. ST. T
Airborne noise emitted	38 dB(A) re 1 pW
Type of appliance	freestanding

Explanations: - Yes featured (1) Household refrigeration categories: Category=Designation 1=Refrigerator with one or more storage compartments for fresh food, 2=Refrigerator with cellar-temperature zone, cellar-temperature compartment refrigerator and wine cabinet, 3=Refrigerator with cold storage zone and refrigerator with a zero star compartment, 4=Refrigerator with a one-star compartment, 5=Refrigerator with a two-star compartment, 6=Refrigerator with a three-star compartment, 7=Fridge-freezer, 8=Freezer, 9=Chest freezer, 10=Multi-purpose refrigerators and other refrigerators (2) Based on the results of the standards conformance test over 24 hours. The actual consumption depends on the use and the location of the appliance. (3) The rated capacity is quoted as the number of standard 0.751 bottles that can be stored in the appliance in accordance with the manufacturer's instructions. (4) * = compartment -6°C or less; *** = frozen-food compartment -18°C or less; ■ = food freezer compartment -18°C or less with a minimum freezing capacity. (5) 'Other compartment' means a compartment, other than a wine storage compartment, intended for the storage of particular foodstuffs at a temperature warmer than +14°C. (6) The freezing capacity is achievable for the quantity given according to type of appliance only after switching to permanent operation and cannot be repeated within 24 hours. Please observe the operating instructions. (7) Climate rating SN: This appliance is intended for use in an ambient temperature of between +10°C and +32°C Climate rating N: This appliance is intended for use in an ambient temperature of between +16°C and +32°C Climate rating ST: This appliance is intended for use in an ambient temperature of between +16°C and +38°C Climate rating T: This appliance is intended for use in an ambient temperature of between +16°C and +43°C

Additional technical data

Voltage / Frequency 220-240V ~/ 50Hz
Input current (A)	1.8
Main fuse (A)	16
Coolant	R600a
Dimensions (H/W/D in mm)	1908 / 830 / 677

Customer service

EN

Customer Service

We recommend our Haier Customer Service and the use of original spare parts.

If you have a problem with your appliance, please first check section TROUBLESHOOTING.

If you cannot find a solution there, please contact

▶your local dealer or ▶ our European Call Service-Center (see listed phone numbers below) or the Service & Support area at www.haier.com where you can activate the service claim and also find FAQs.

To contact our Service, ensure that you have the following data available.

The information can be found on the rating plate.

Model ____

Serial No. ____

Also check the Warranty Card supplied with the product in case of warranty.

European Call Service-Center
Country* Phone number Costs
Haier Italy (IT)	199 100 912
Haier Spain (ES)	902 509 123
Haier Germany (DE)	0180 5 39 39 99	• 14 Ct/Min Landline• max 42 Ct/Min Mobile
Haier Austria (AT)	0820 001 205	• 14,53 Ct/Min Landline• max 20 Ct/Min all others
Haier United Kingdom (UK)	0333 003 8122
Haier France (FR)	0980 406 409

* For other countries please refer to www.haier.com

Haier Europe Trading S.r.l

Branch UK

Westgate House, Westgate, Ealing

London, W5 1YY

HFF750CGBJ_EN

Haier

Instructions for use

Refrigerator-freezer

HFF750CGBJ

Thank you for purchasing a Haier product.

Legend

3 spacers

Energy label

Warranty card

Instructions for use

Caution

Multi-airflow

Adjustable shelves

Caution:

Water tank components

1. Upper sliding cover of the water tank
2. Water tank top cover
3. Water tank sealing ring
4. Rubber hose
5. Water tank suction hose filter cover
6. Water tank suction hose filter gasket
7. Water tank suction hose filter clip
8. Water tank

Automatic ice maker components

1. Automatic ice maker
2. Ice scoop
3. Ice detector
4. Ice drawer

Caution:

Caution:

Leveling the appliance

The appliance should be placed on a flat and sturdy surface.

C) Usage

If the front and rear parts of the refrigerator doors are not at the same level, turn the adjustment knob to adjust the door position.

Caution

Westgate House, Westgate, Ealing

London, W5 1YY

HFF750CGBJ_EN

Haier
